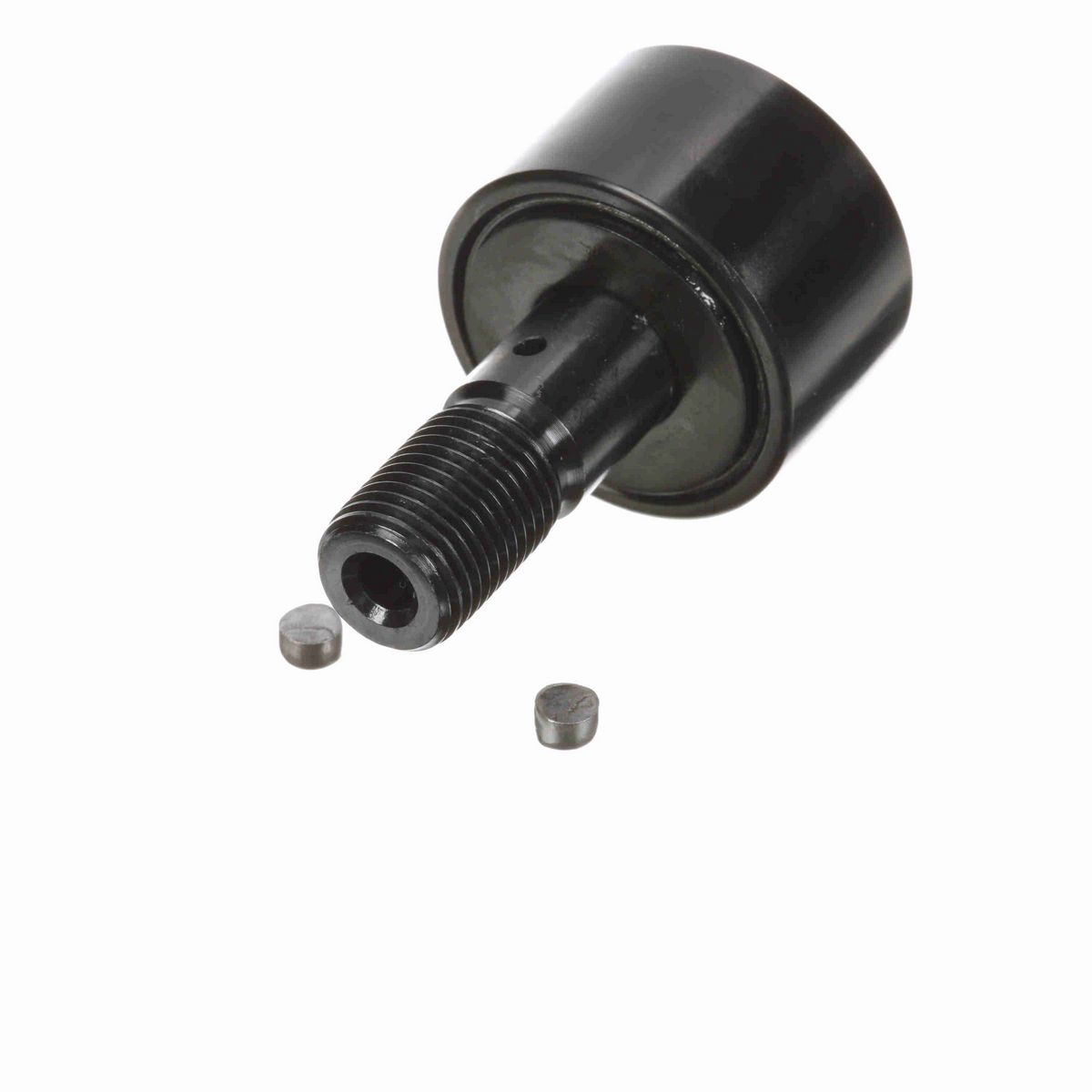

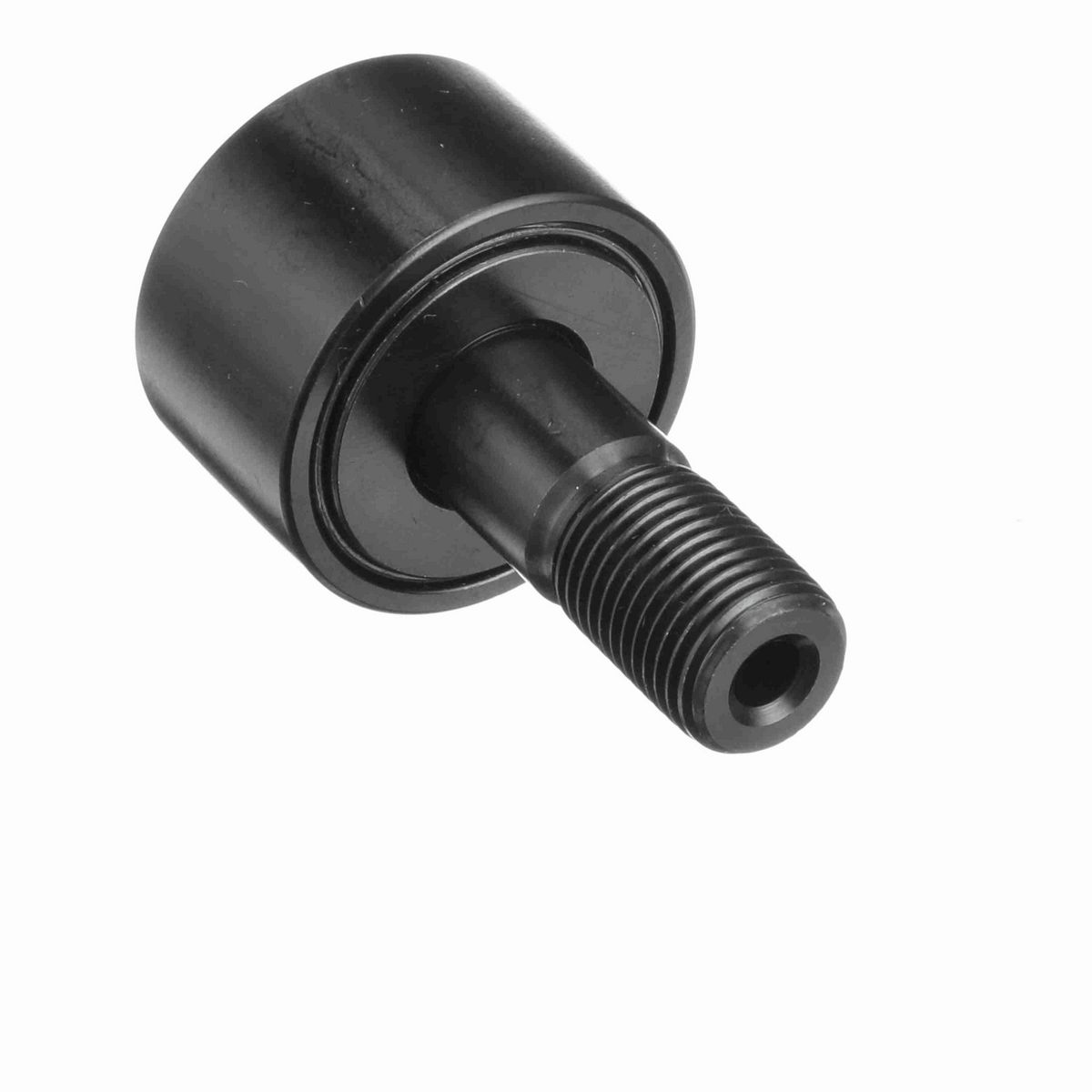

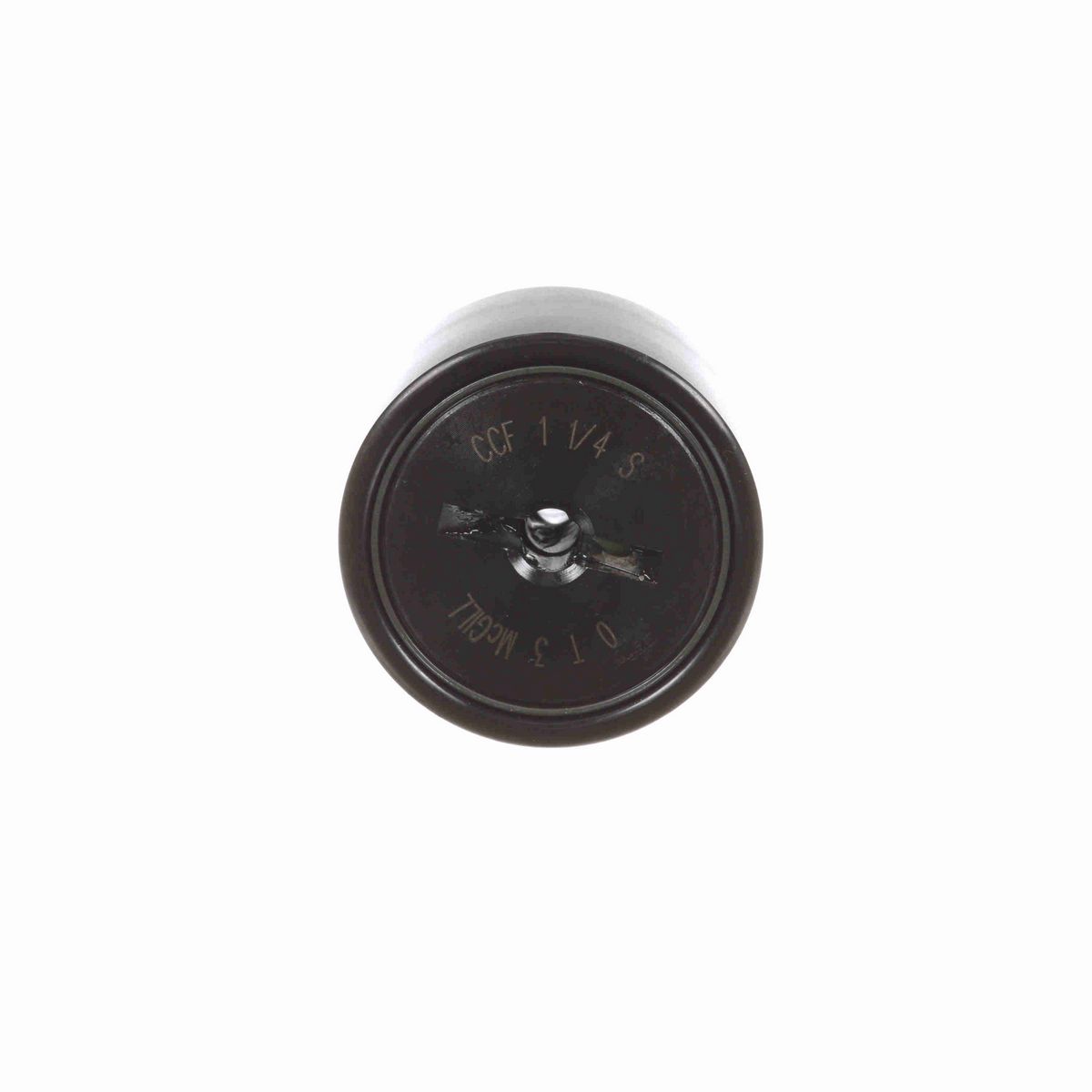

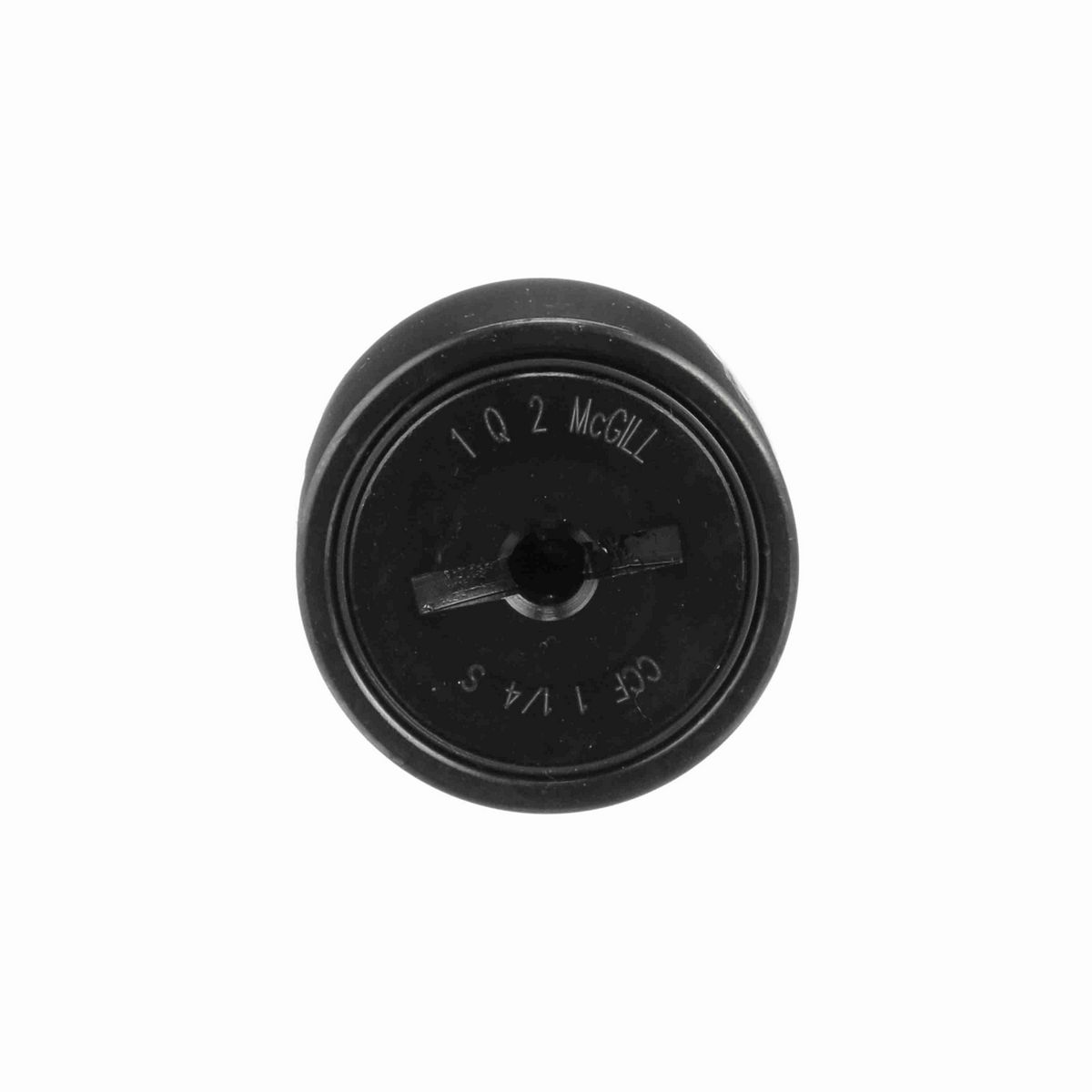

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Crown Radius	14
Threads	1/2-20
Roller Diameter (in)	1.25 in
Stud Length (in)	1.25 in
Lubrication Fitting Size (mm)	0.1875 mm
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.5 in
Oil Hole Center (in)	0.3125 in
Roller Width (in)	0.75 in
Minimum Thread Length (in)	0.63 in
Weight (kg)	0.14 kg

Technical Specifications

Hex/Slot	Screwdriver Slot
O.D. Configuration	Crowned
Rolling Element	Needle Roller - Full Complement
Series	Inch CAMROL®
Sealing	Sealed
Limiting Speed	3,100
Dynamic Radial Rating	3,930
Adjustment	None
Material	Bearing Steel, Black Oxide Finish
Tolerance Class	P0 Equivalent
Stud Type	Standard Stud
Roller Shape	Crowned
Dynamic Load Rating (lb)	3,930 lb
Platform	CAMROL®
Static Load Rating	4,250
Lubrication Hole Location	Stud side
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	350 lbs

General Specifications

UPC	726166034696
Weight	0.31 LB
Packaged Length	1.50 IN
Packaged Width	1.75 IN
Packaged Height	2.18 IN
HTC	8482.40.0000
Country of Origin	Mexico
