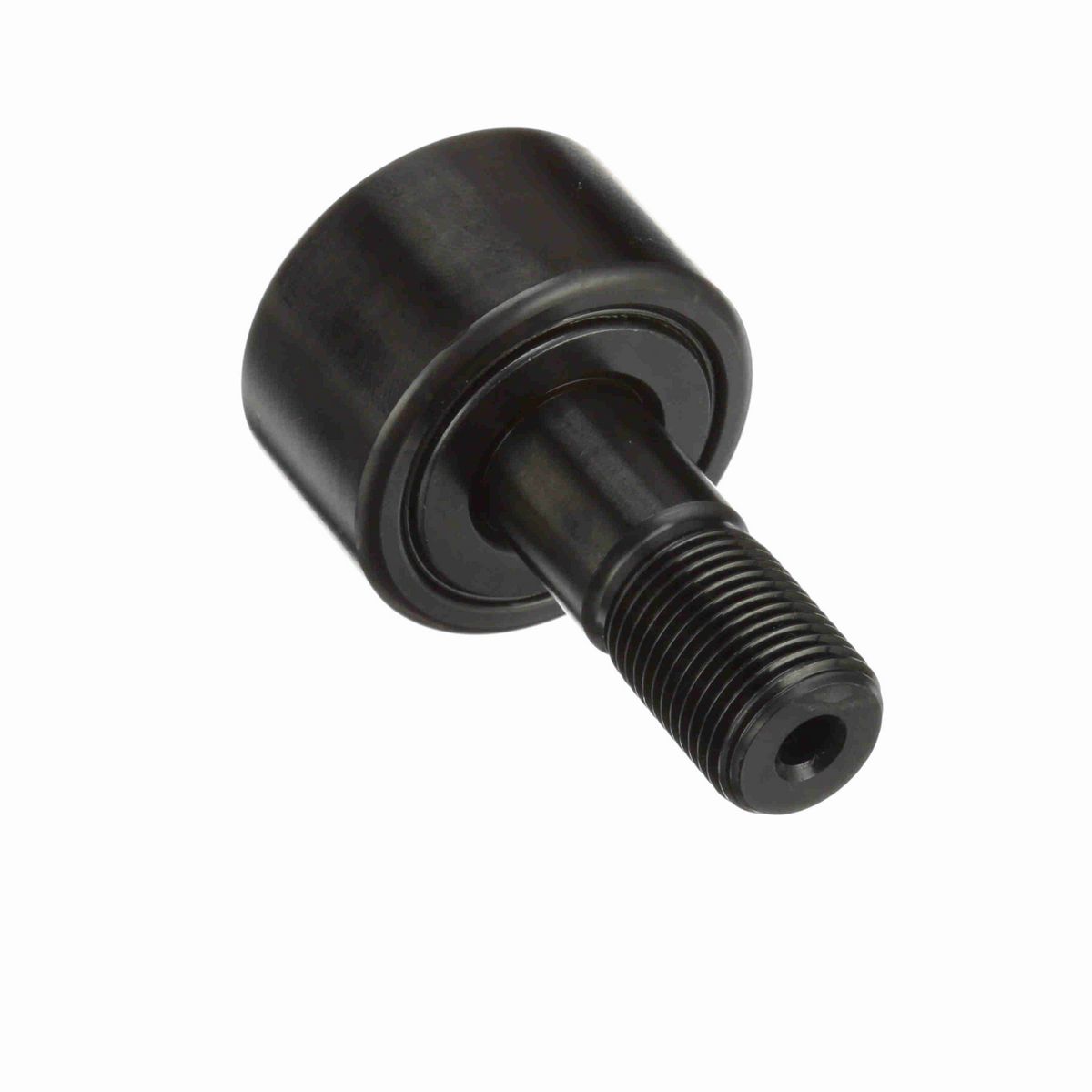

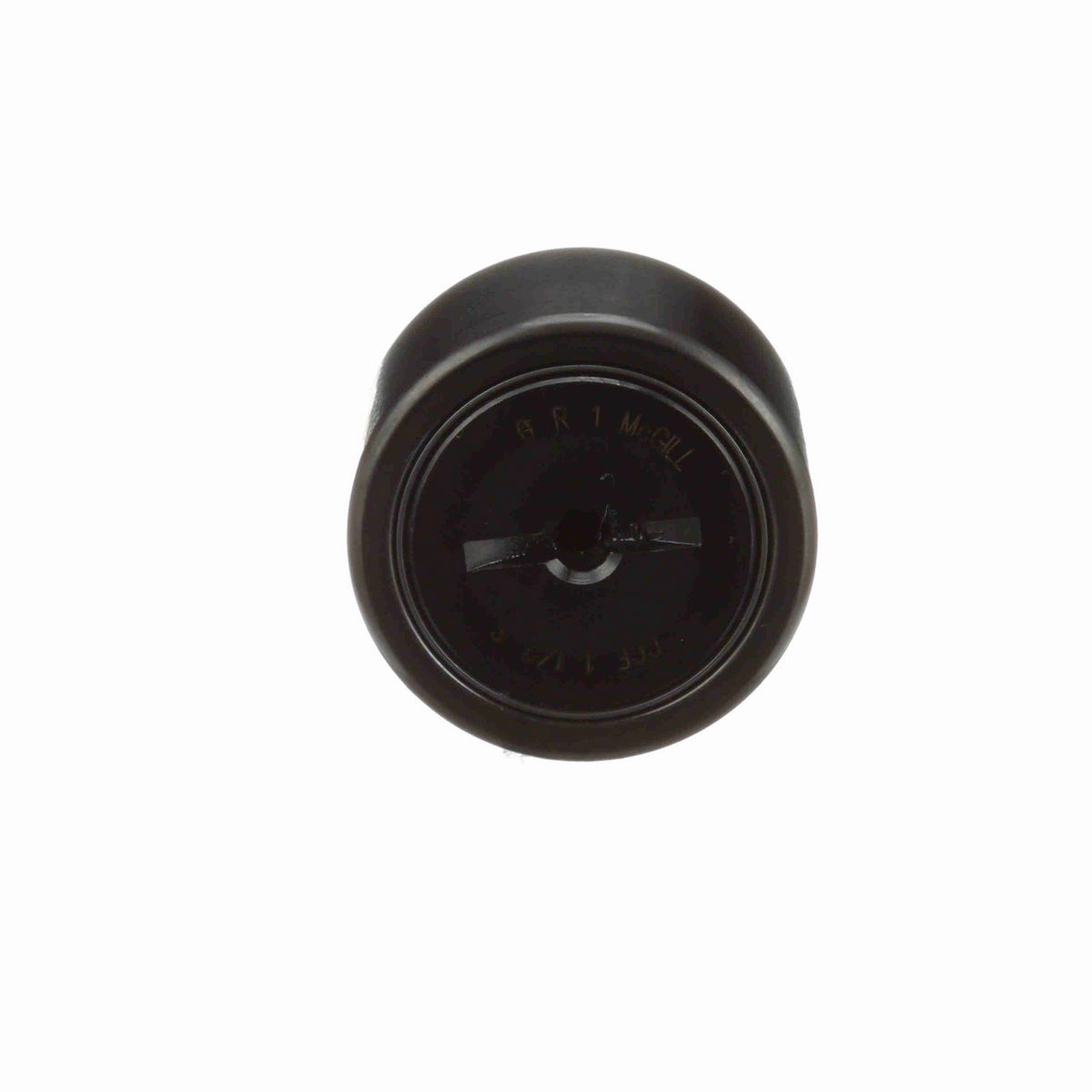

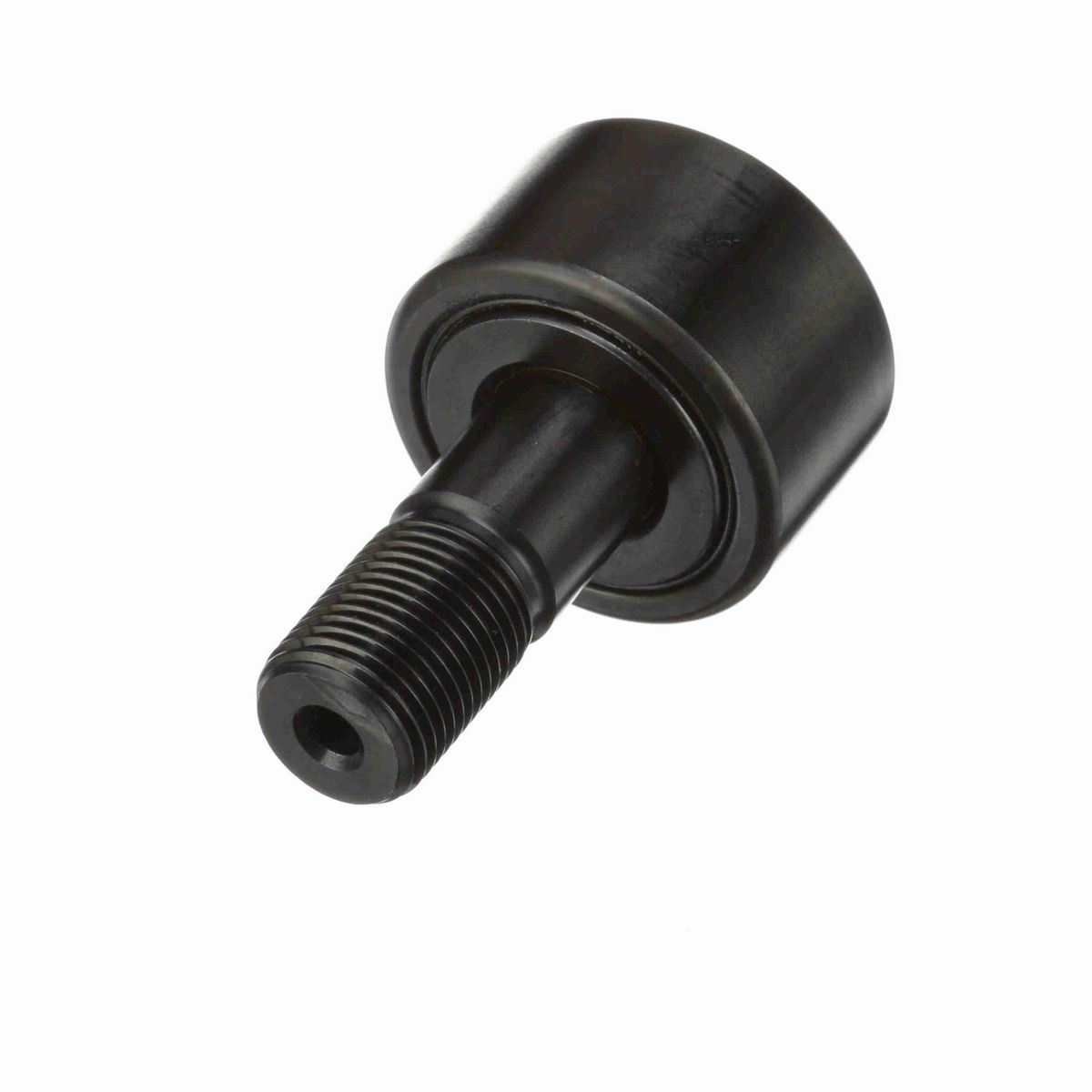

• Stud type cam follower
• Crowned outside diameter
• Needle rolling elements
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	5/8-18
Crown Radius	20
Roller Diameter (in)	1.5 in
Minimum Thread Length (in)	0.75 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Lubrication Fitting Size (mm)	0.1875 mm
Stud Length (in)	1.5 in
Roller Width (in)	0.875 in
Stud Diameter (in)	0.625 in
Oil Hole Center (in)	0.375 in
Weight (kg)	0.24 kg

Technical Specifications

Series	Inch CAMROL®
O.D. Configuration	Crowned
Adjustment	None
Hex/Slot	Screwdriver Slot
Dynamic Radial Rating	4,840
Rolling Element	Needle Roller - Full Complement
Sealing	Sealed
Limiting Speed	2,500
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	Crowned
Dynamic Load Rating (lb)	4,840 lb
Static Load Rating	4,000
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	650 lbs

General Specifications

UPC	726166035822
Weight	0.52 LB
Packaged Length	1.80 IN
Packaged Width	2.50 IN
Packaged Height	1.70 IN
HTC	8482.40.0000
Country of Origin	Mexico
