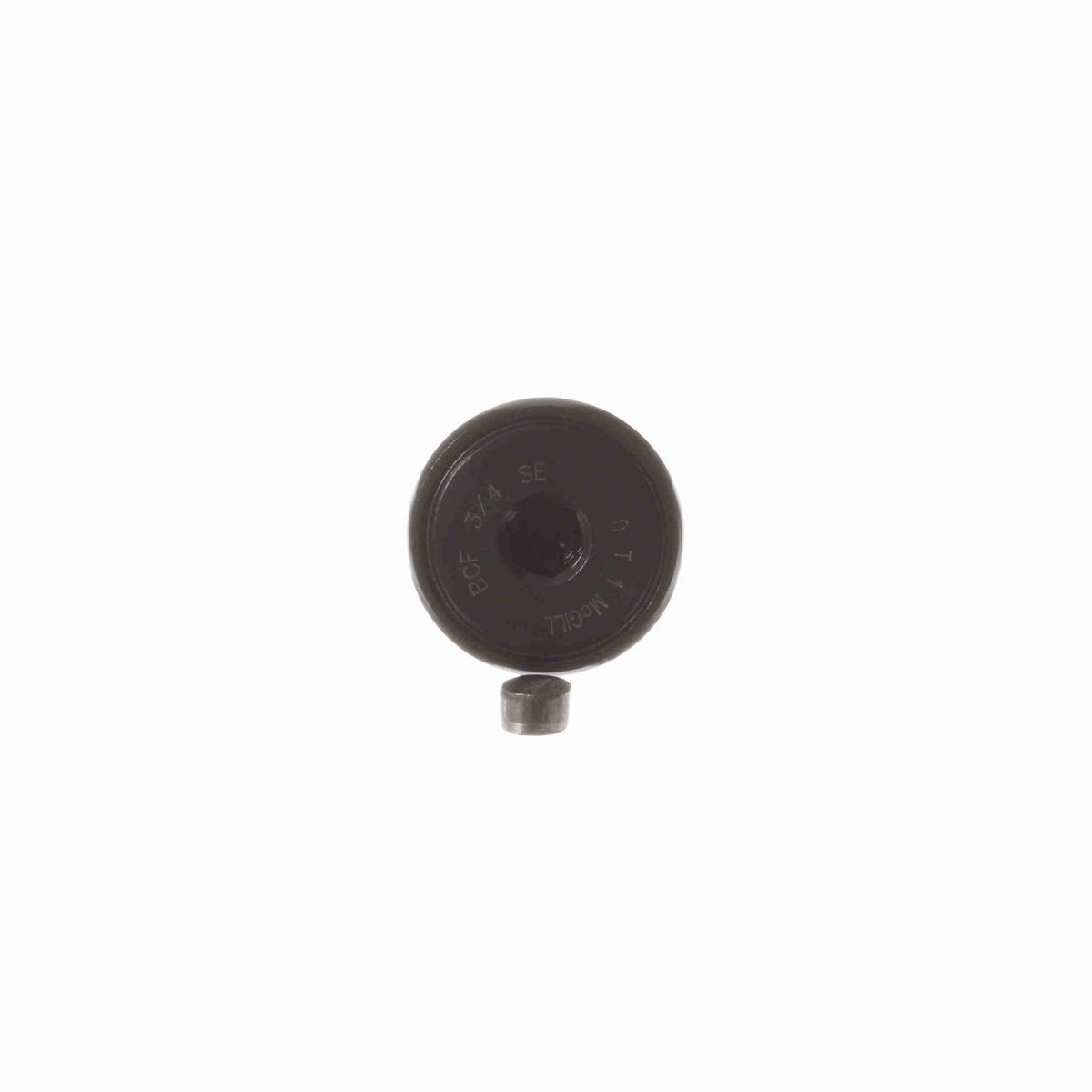

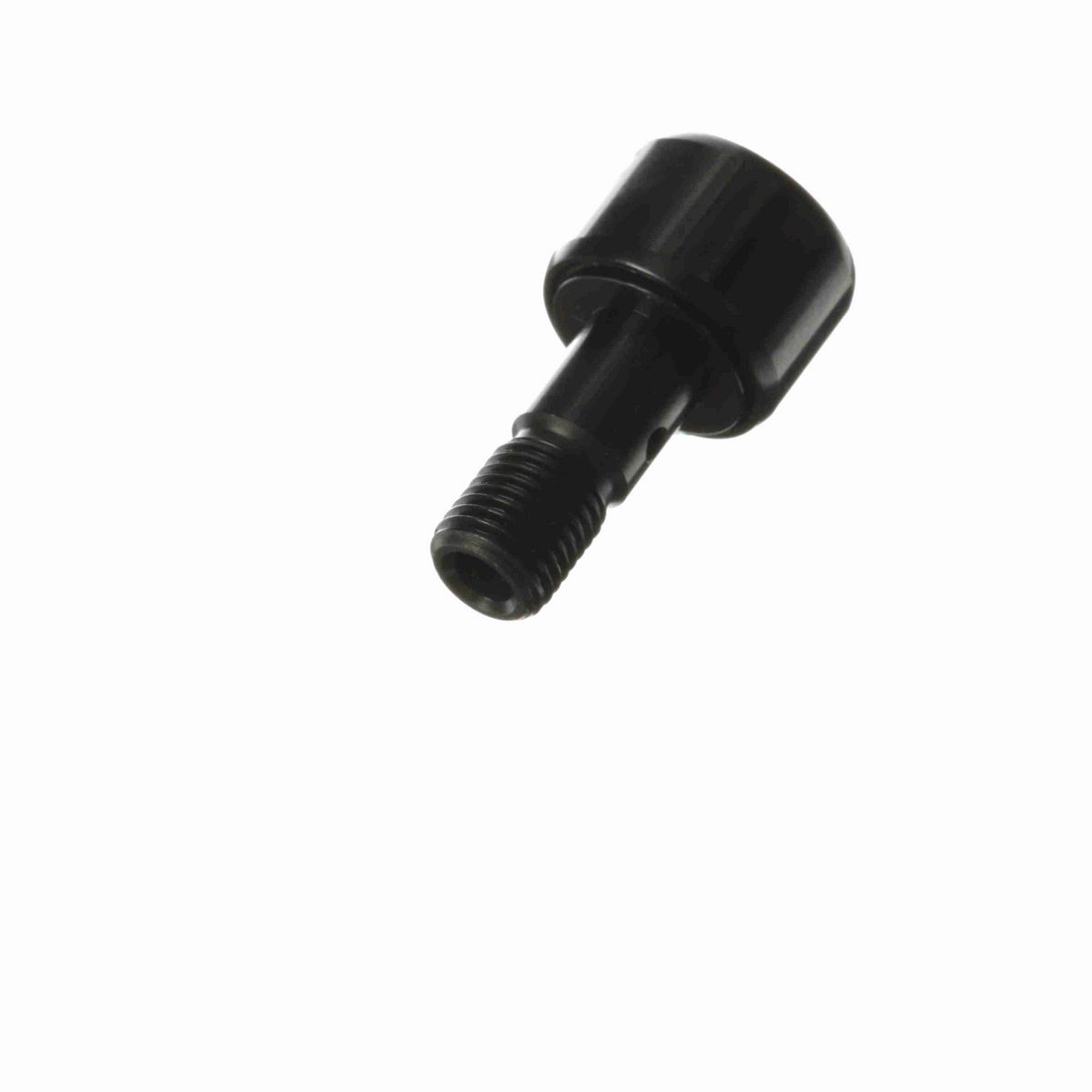

• Stud type cam follower
• Cylindrical outside diameter
• Non-metallic bushing
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.75 in
Roller Width (in)	0.5 in
Hex Socket (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.375 in
Stud Length (in)	0.875 in
Minimum Thread Length (in)	0.38 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Center (in)	0.25 in
Weight (kg)	0.03 kg

Technical Specifications

Adjustment	None
Rolling Element	Selflube Bushing
O.D. Configuration	Cylindrical
Sealing	Sealed
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Roller Shape	Cylindrical
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	95 lbs

General Specifications

UPC	726166032463
Weight	0.07 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.80.0080
Country of Origin	Mexico
