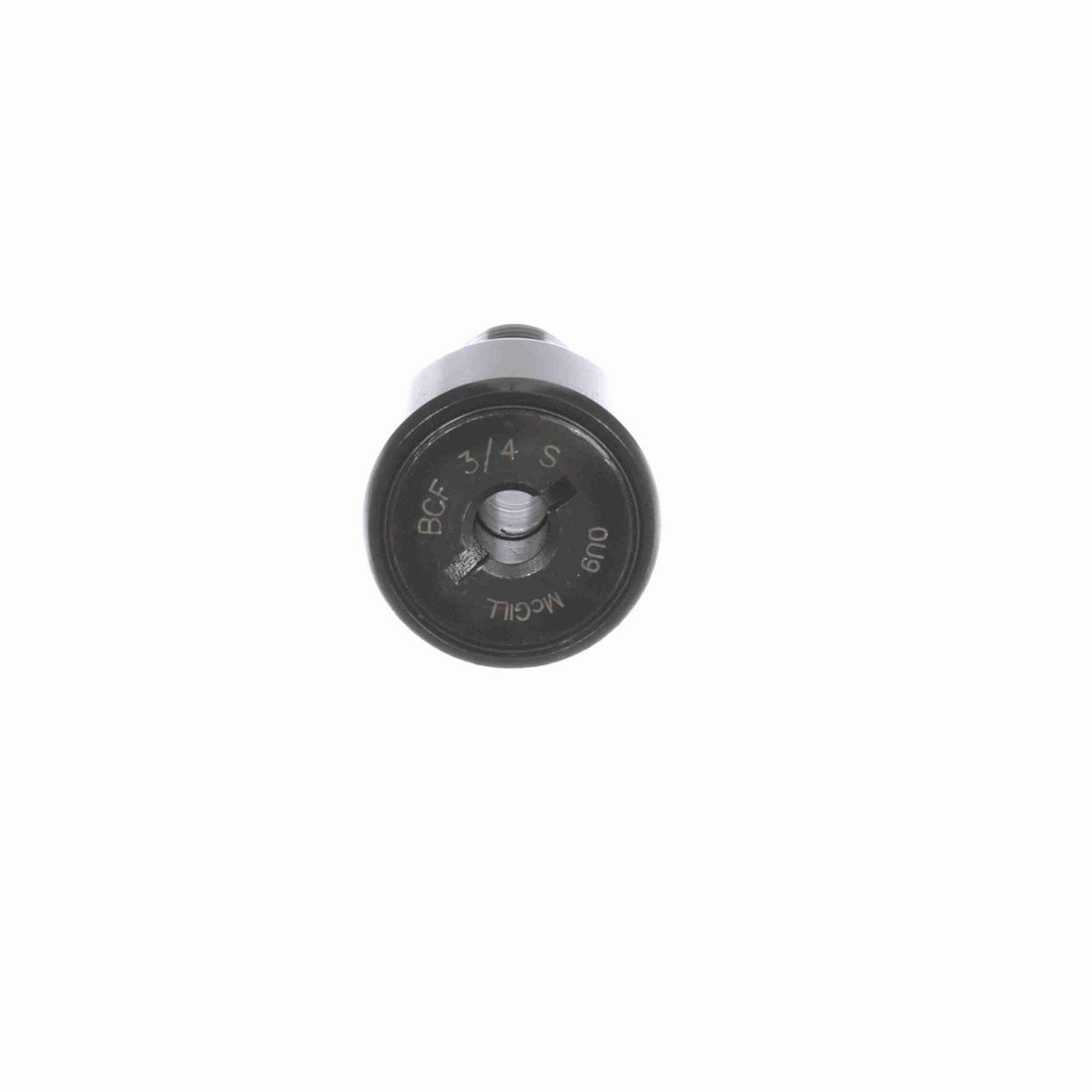

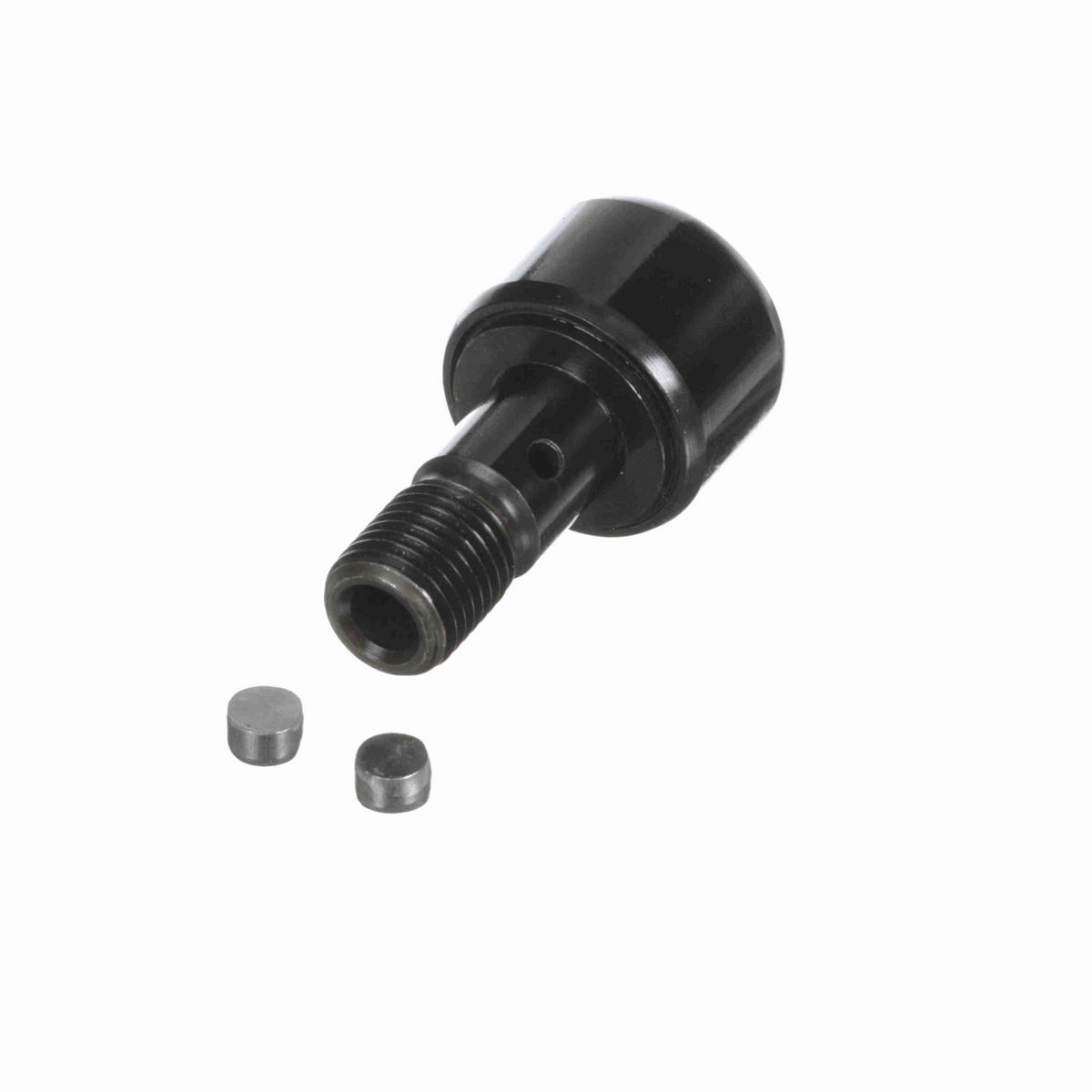

• Stud type cam follower
• Cylindrical outside diameter
• Non-metallic bushing
• Slot hole
• LUBRI-DISC® seal

Dimensions

Threads	3/8-24
Roller Diameter (in)	0.75 in
Minimum Thread Length (in)	0.38 in
Stud Diameter (in)	0.375 in
Stud Length (in)	0.875 in
Lubrication Fitting Size (in)	0.1875 in
Oil Hole Diameter (in)	0.094 in
Roller Width (in)	0.5 in
Lubrication Fitting Size (mm)	0.1875 mm
Oil Hole Center (in)	0.25 in
Weight (kg)	0.03 kg

Technical Specifications

Adjustment	None
O.D. Configuration	Cylindrical
Hex/Slot	Screwdriver Slot
Sealing	Sealed
Series	Inch CAMROL®
Rolling Element	Selflube Bushing
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	Cylindrical
Platform	CAMROL®
Tolerance Class	P0 Equivalent
Ability to Relubricate	Yes
Clamping Torque (in-lbf)	95 lbs

General Specifications

UPC	726166032456
Weight	0.06 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.80.0080
Country of Origin	Mexico
