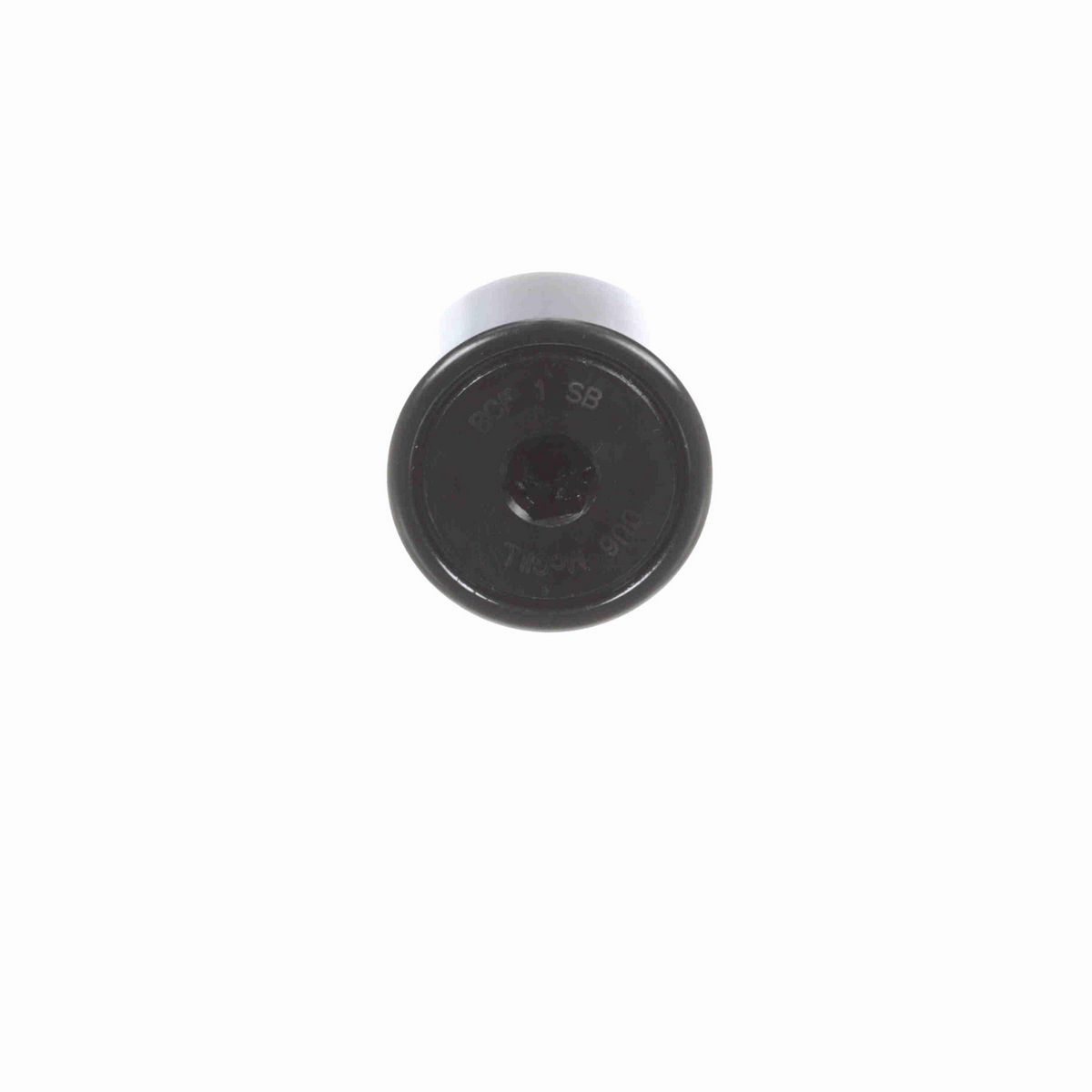

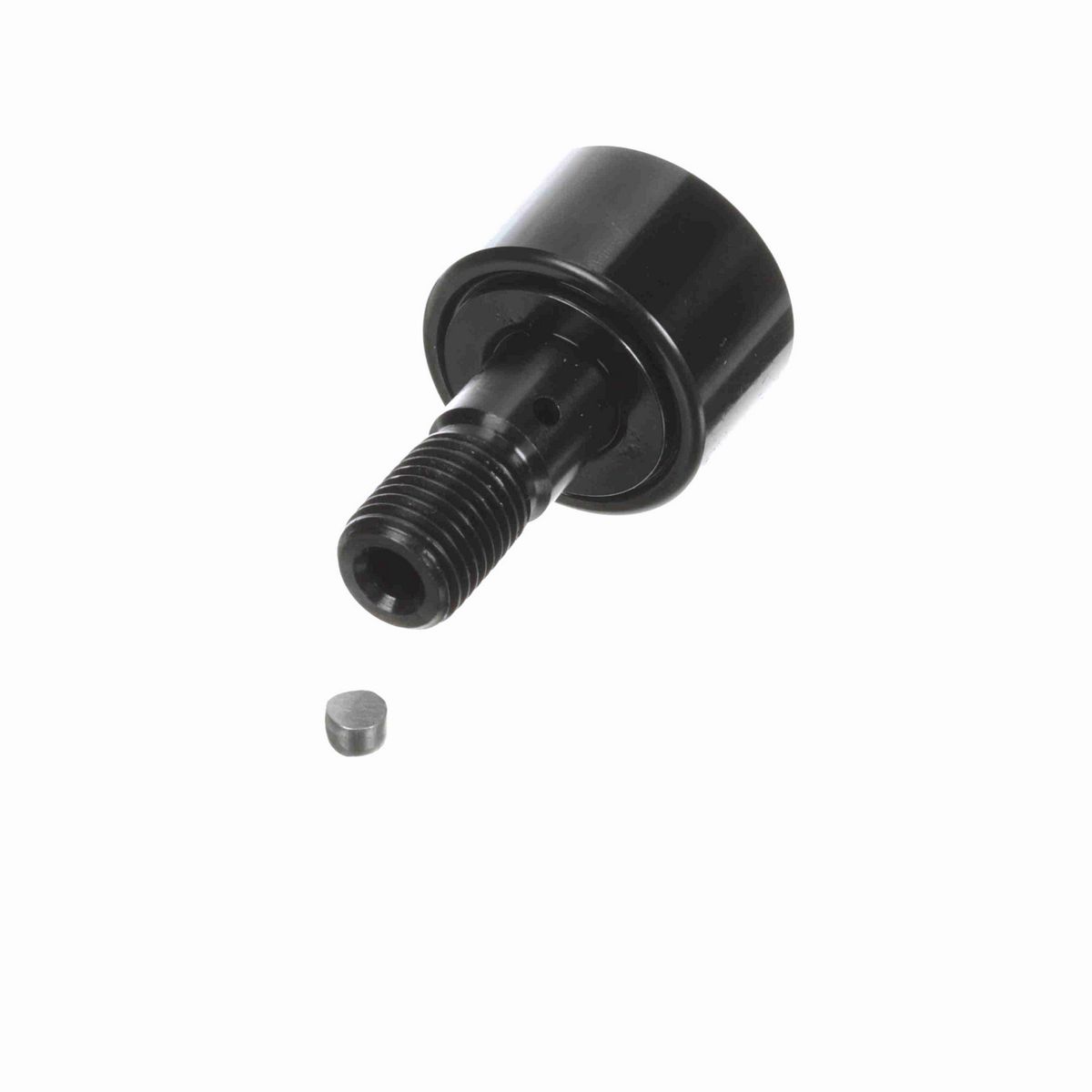

• Stud type cam follower
• Cylindrical outside diameter
• Non-metallic bushing
• Hex hole
• LUBRI-DISC® seal

Dimensions

Threads	7/16-20
Roller Diameter (in)	1 in
Hex Socket (in)	0.25 in
Minimum Thread Length (in)	0.5 in
Oil Hole Diameter (in)	0.094 in
Stud Diameter (in)	0.4375 in
Roller Width (in)	0.625 in
Stud Length (in)	1 in
Oil Hole Center (in)	0.25 in
Lubrication Fitting Size (in)	0.1875 in
Lubrication Fitting Size (mm)	0.1875 mm
Weight (kg)	0.07 kg

Technical Specifications

Sealing	Sealed
O.D. Configuration	Cylindrical
Adjustment	None
Rolling Element	Selflube Bushing
Series	Inch CAMROL®
Hex/Slot	Hex Hole
Material	Bearing Steel, Black Oxide Finish
Stud Type	Standard Stud
Roller Shape	Cylindrical
Tolerance Class	P0 Equivalent
Platform	CAMROL®
Lubrication Hole Location	Stud side
Clamping Torque (in-lbf)	250 lbs
Ability to Relubricate	Yes

General Specifications

UPC	726166033798
Weight	0.16 LB
Packaged Length	1.75 IN
Packaged Width	1.00 IN
Packaged Height	1.75 IN
HTC	8482.80.0080
Country of Origin	Mexico
