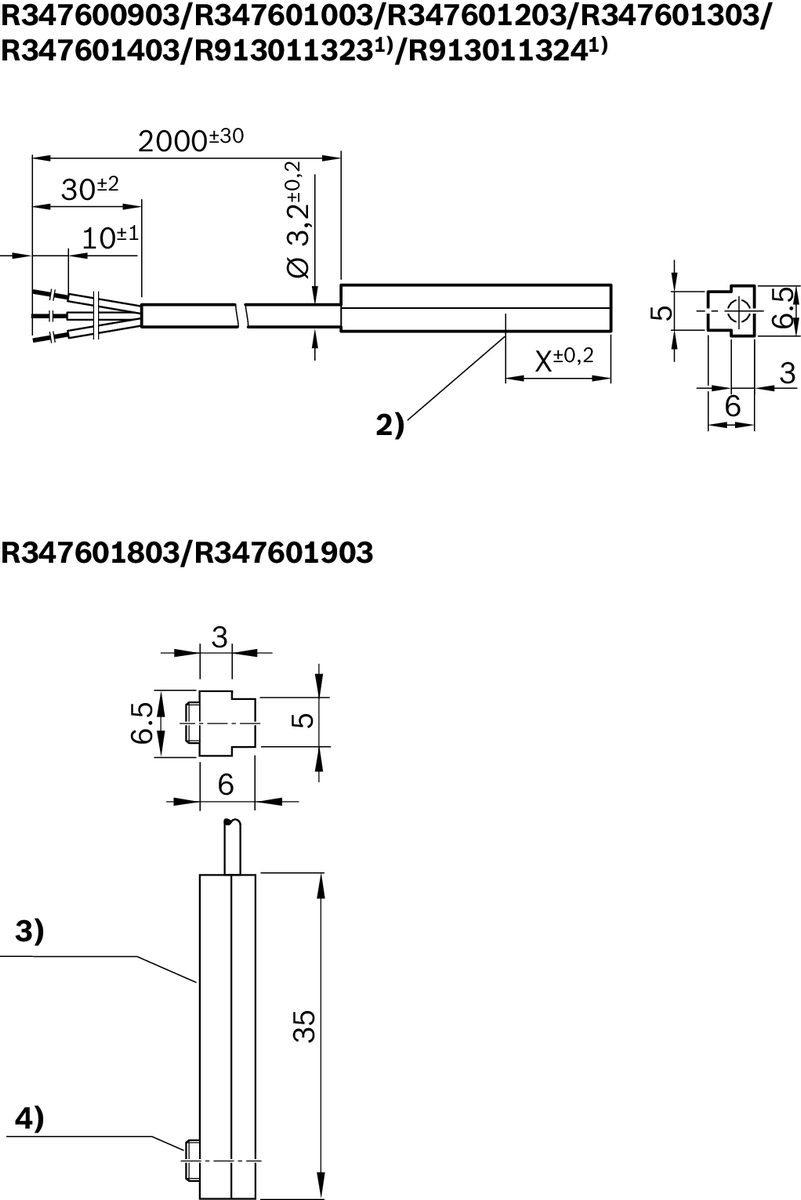

Датчик магнитного поля Bosch Rexroth HALL NPN-NO H 15080 & [R347601403]

Electrical accessories for linear axes

Magnetic sensors

Use

Reference switch

Connection type

Cable 2.0 m, 3-pin

Galvanized connection ends

✓

Switching function version

Hall, NPN/NO

Certifications and approvals

‒

Cable cross-section

3 x 0.14 mm²

Permissible ambient temperature (min. ... max.)

-40 °C ... +85 °C

Activation point (dimension x) [mm]

13.65

Operating voltage (min. … max.)

3.8 V ... 30 V

Dynamic bending radius

‒

Static bending radius

‒

Bending cycles

‒

Weight [kg]

0.04

Switch-on suppression

no

Function indicator

no

Functional principle

magnetic

Dynamic bending radius footnote

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Footnote bending radius, static

Technical data only for the cast-on connection line at the sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.

Bending cycles footnote

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Footnote cable diameter d with tolerance

Technical data only for the cast-on connection line at the sensor. The available extension cables offer even better performance, e.g. when using a cable drag chain.

Footnote cable cross-section

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Footnote option number

Option not available. Switch only available as accessory with material number

Suitable for drag chains footnote

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Weld spark-resistant footnote

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Torsion-resistant footnote

Technical data only for the cast-on connection line at the sensor. Even more performance, e.g. extension cables are offered for use in an energy chain.

Cable diameter D [mm]

3.2

Cable diameter D tolerance [mm]

±0.2

Compatible

CKK, CKR, MKK/MKR-040, AGK, VKK

Short-circuit protection

‒

Load current [A]

≤20

Max. permissible approach speed [m/s]

2

MTTFd (per EN ISO 13849-1) [Years]

‒

Option number

nv

Pulse extension

‒

Switching frequency

2.5

Suitable for drag chains

no

Protection class

IP66

Weld spark-resistant

‒

Torsion-resistant

‒

Reverse polarity protection

‒
