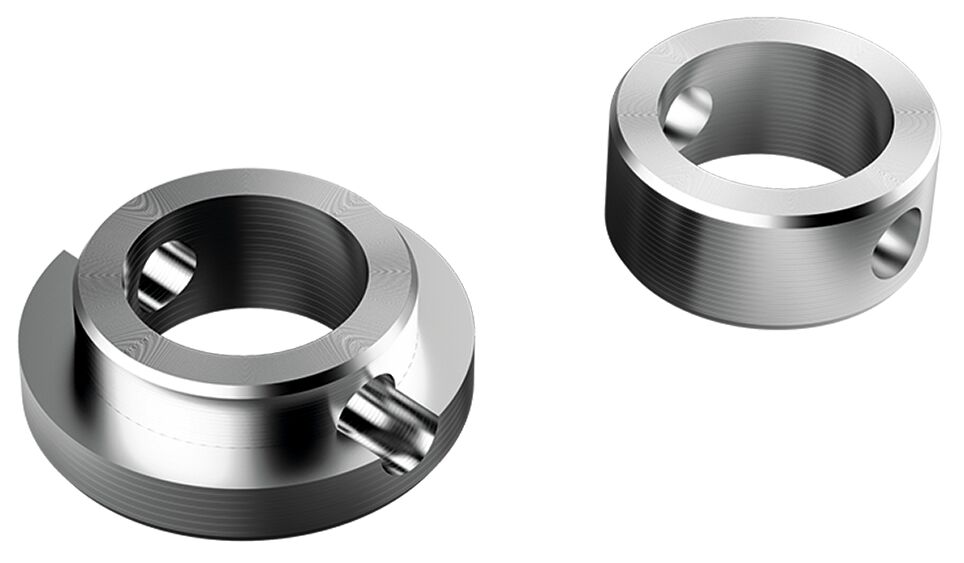

Центрирующее кольцо Bosch Rexroth D=12/9 & [R039660550]

Mechanical accessories for linear axes

Centering rings

Nominal size [mm]

12 - 9

Outer diameter D [mm]

4

Weight [kg]

0.01

Footnote fastening site

Applies to size OBB-055; end block for size OBB-120

Module

OBB-055/OBB-120

Dimension A H7/k6 [mm]

12

Dimension B H7/k6 [mm]

9

Dimension C [mm]

6.6

Tolerance C

±0.1

Dimension D [mm]

4

Tolerance D [mm]

-0.2

Dimension E [mm]

2

Dimension E tolerance [mm]

+0.2

Dimension F [mm]

2

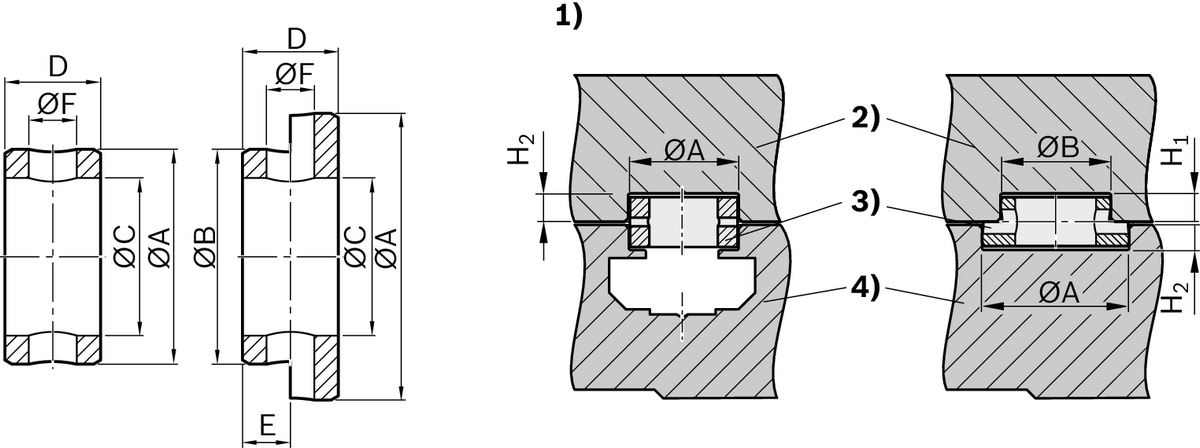

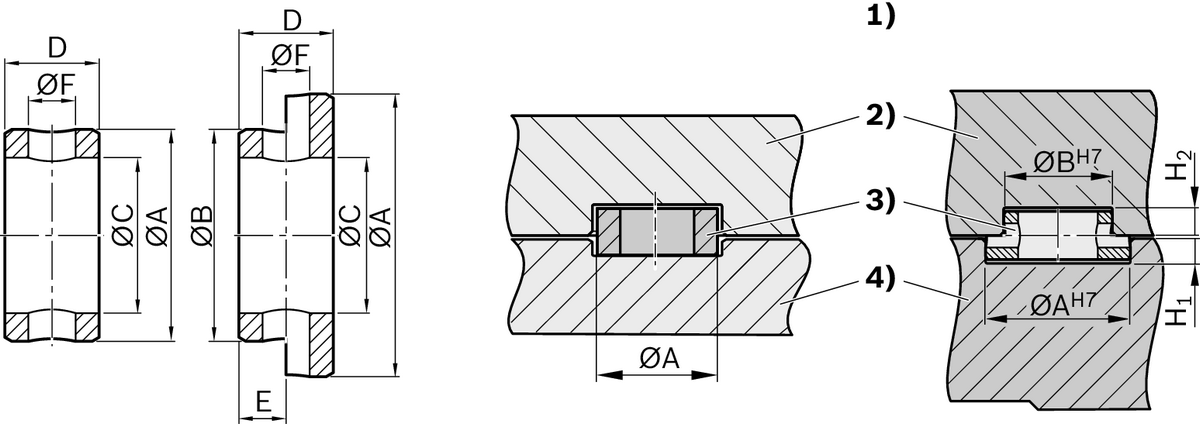

Dimension H1 (profiled rail systems) [mm]

2.1

Dimension H2 tolerance [mm]

+0.2
