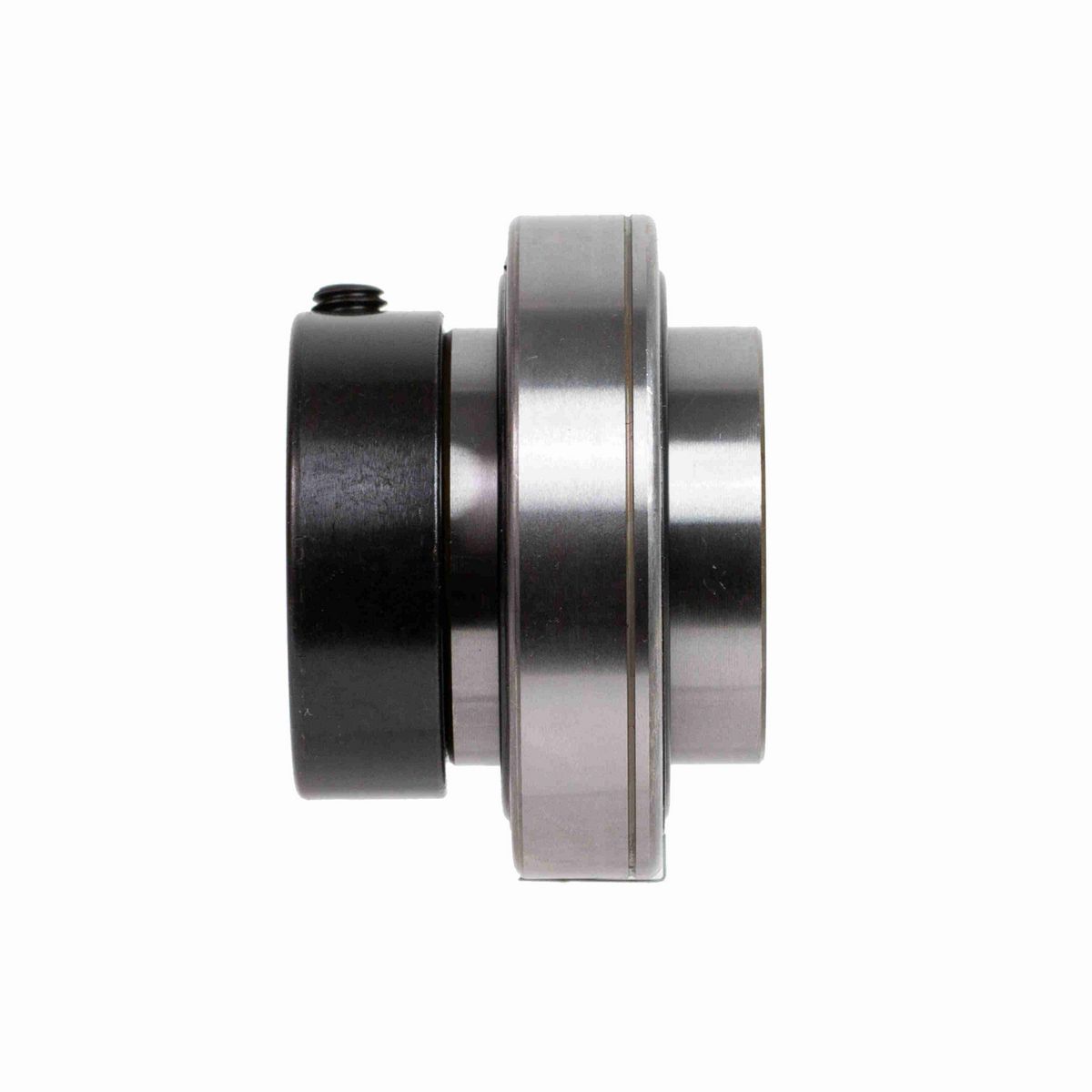

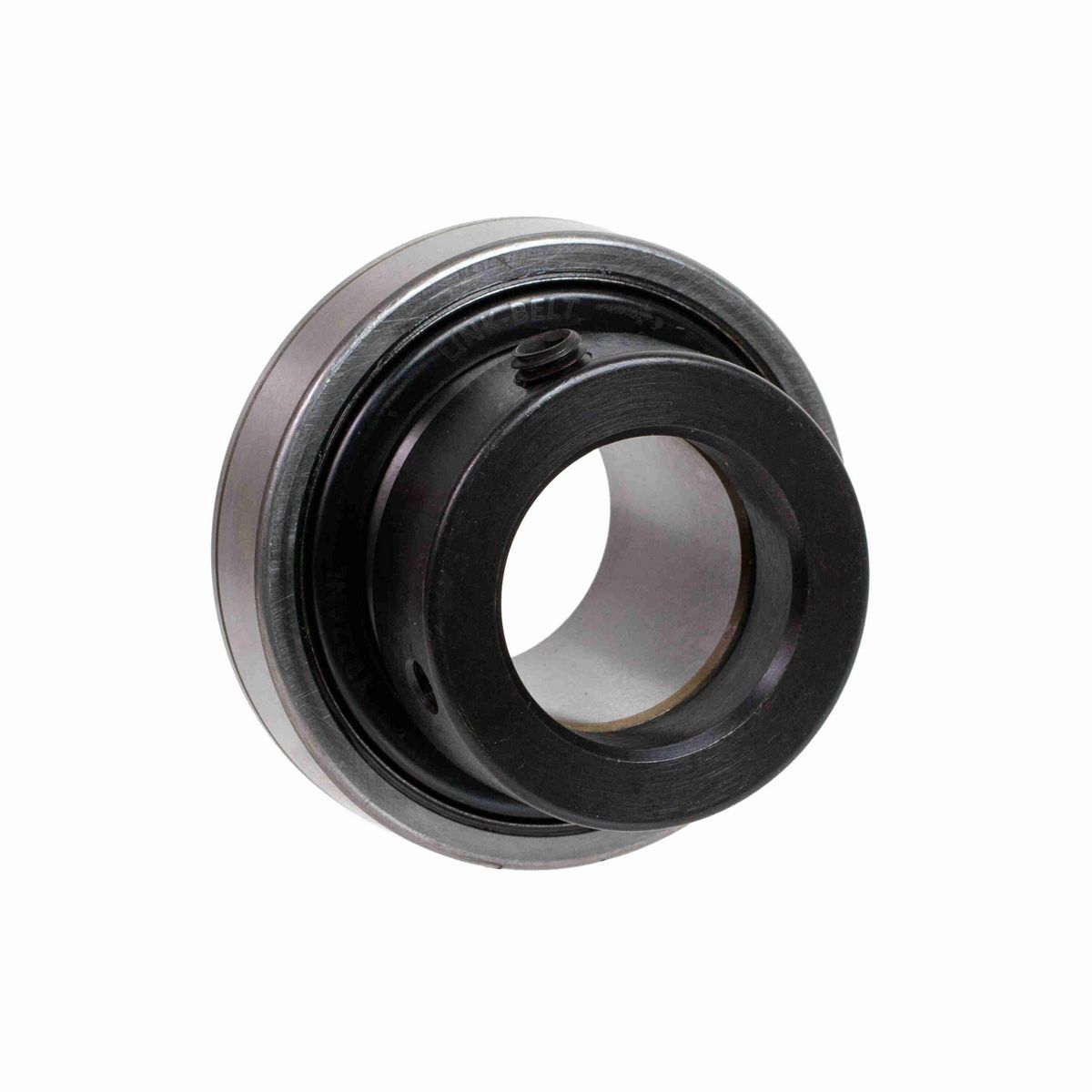

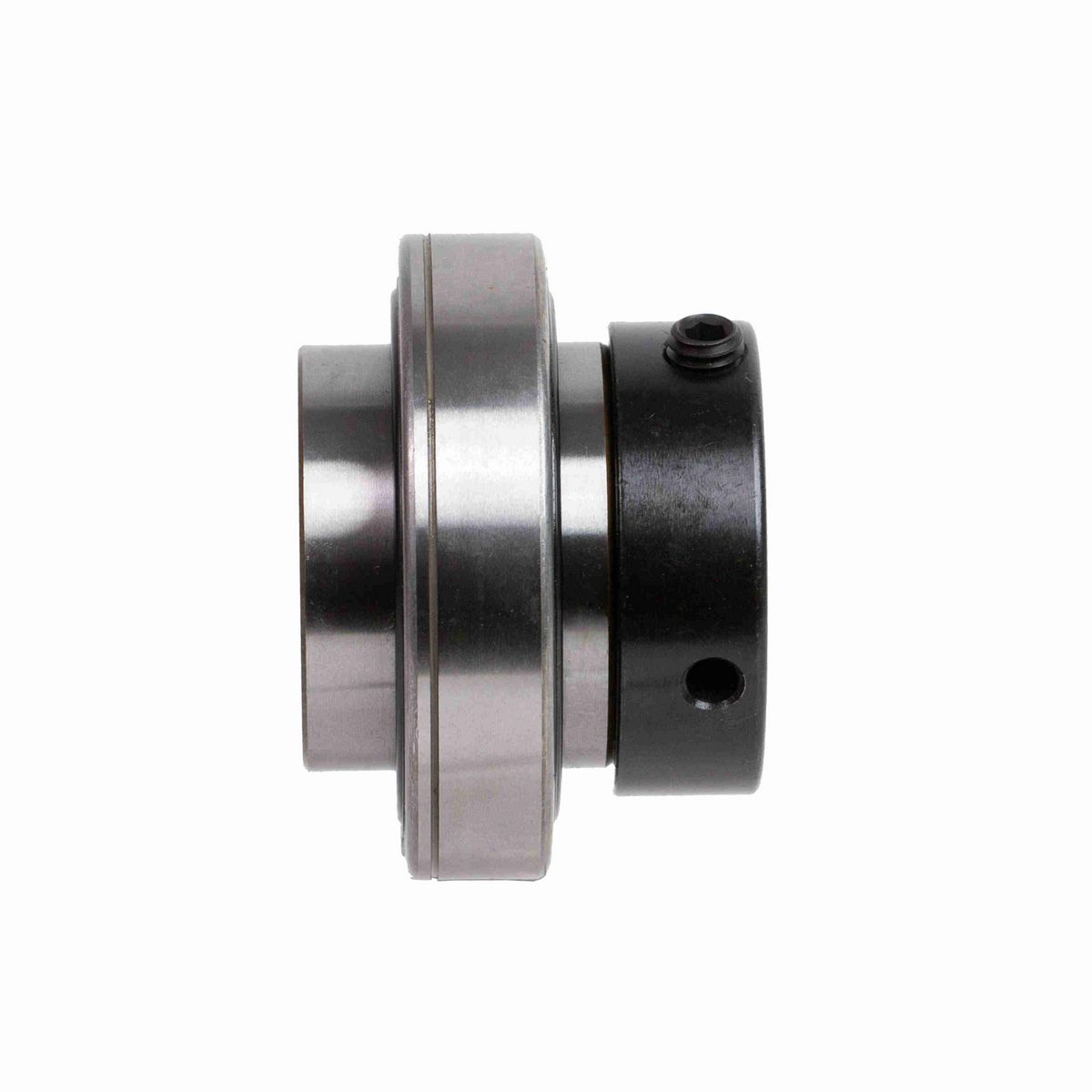

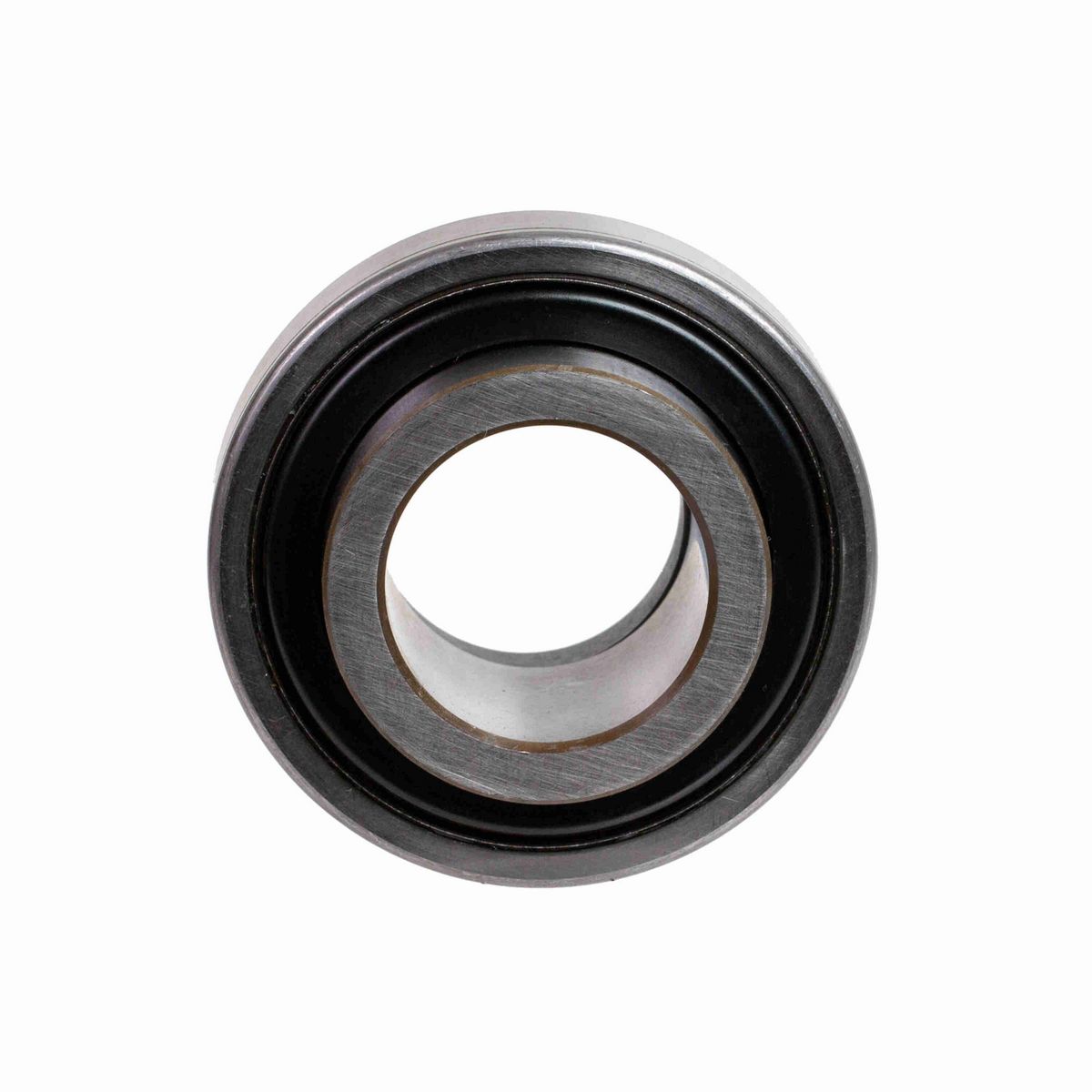

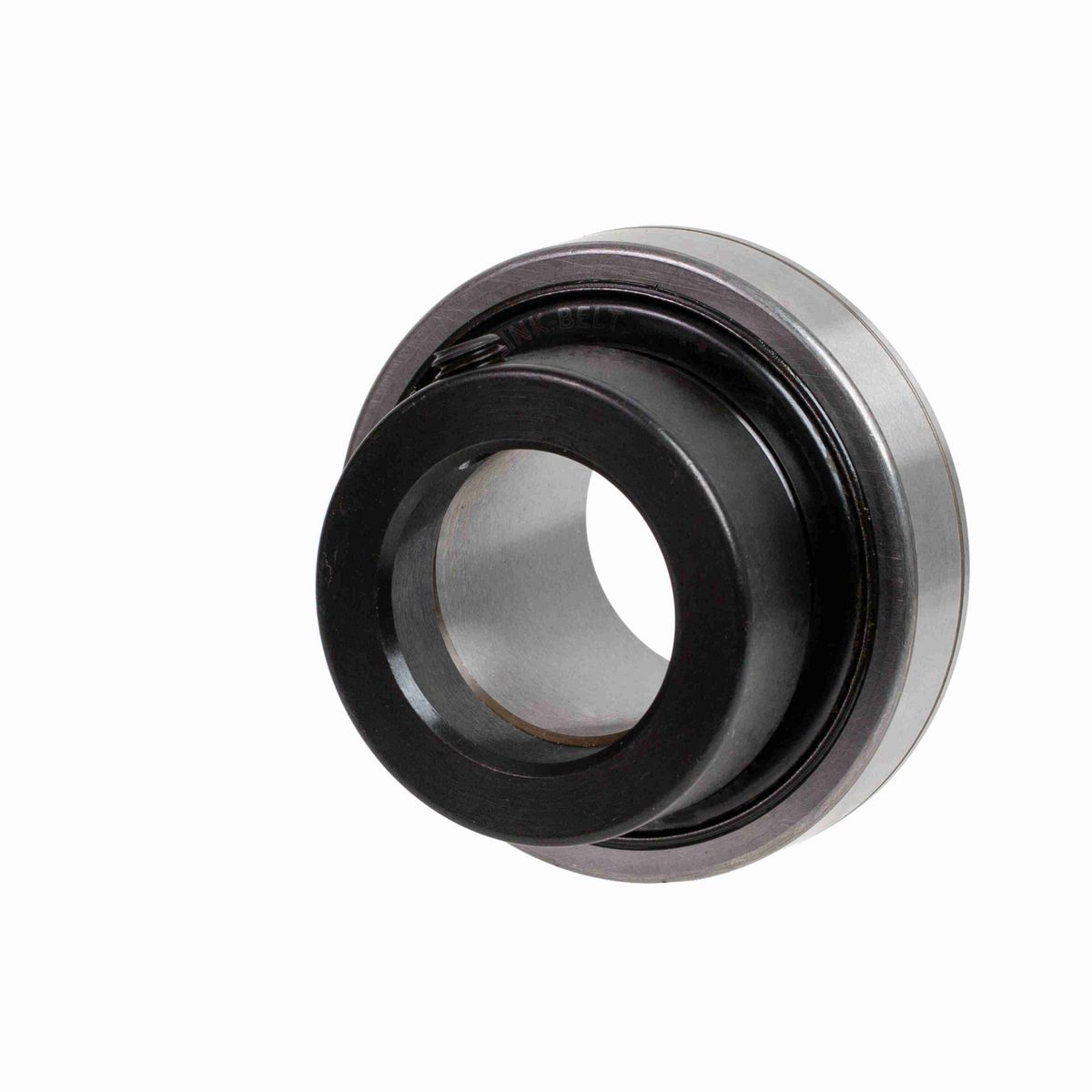

• 1 1/2" Unmounted, Non Relubricatable, Cylindrical OD, Ball Bearing, Standard Duty, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Bore Size (in)

1.5000 in

Technical Specifications

Vibration Frequency Inner Ring Defect	0.0912 cps
Co Static Load Rating	4460 lb
Bore Length (in)	2 7/32 in
Lubrication Type	EXXON RONEX MP STD
Inner Ring Hub Diameter (in)	2.083 in
Outer Ring Width (in)	0.7087 in
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Vibration Frequency Roller Spin	0.0367 cps
Locking Device Kit	W2245S
Outer Ring Fillet Radius (in)	0.039 in
C Dynamic Load Rating	7330 lb
Maximum Temperature (C)	107 °C
Setscrew Torque (in-lbs)	290-325 in/lbs
Vibration Frequency Outer Ring Defect	0.0588 cps
Locking Collar Outside Diameter (in)	2 3/8 in
Locking Collar Width (in)	23/32 in
Type of Seal	N Lip Seal
Bearing Brand	LINK-BELT 200 SERIES BALL
Maximum Temperature (F)	225 °F
Locking Type	Eccentric
Vibration Frequency Fundamental Train	0.0065 cps
Maximum Speed (RPM)	6000 rpm
Size Code	208
Bearing Type	Standard Duty
Inner Ring Width (in)	1.688 in
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Available Seal Type	E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal
Product	YB200
Retainer Type	NYLON
Short Hub Length (in)	0.8438 in
Outside Diameter (in)	3.1496 in
Mounted Clearance	C3 STANDARD

General Specifications

UPC	662327152772
Weight	1.87 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	3.00 IN
HTC	8482105052
Country of Origin	Mexico
