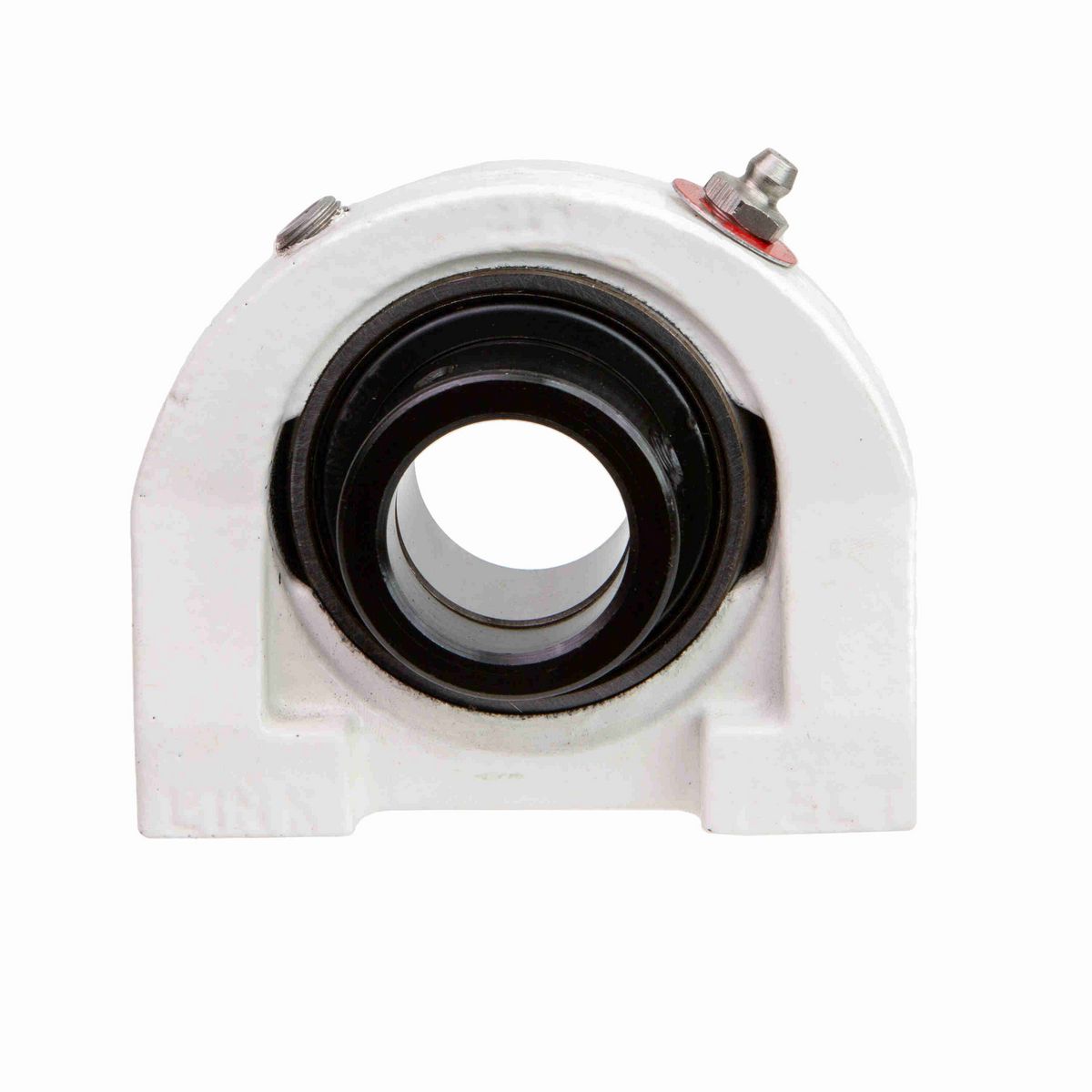

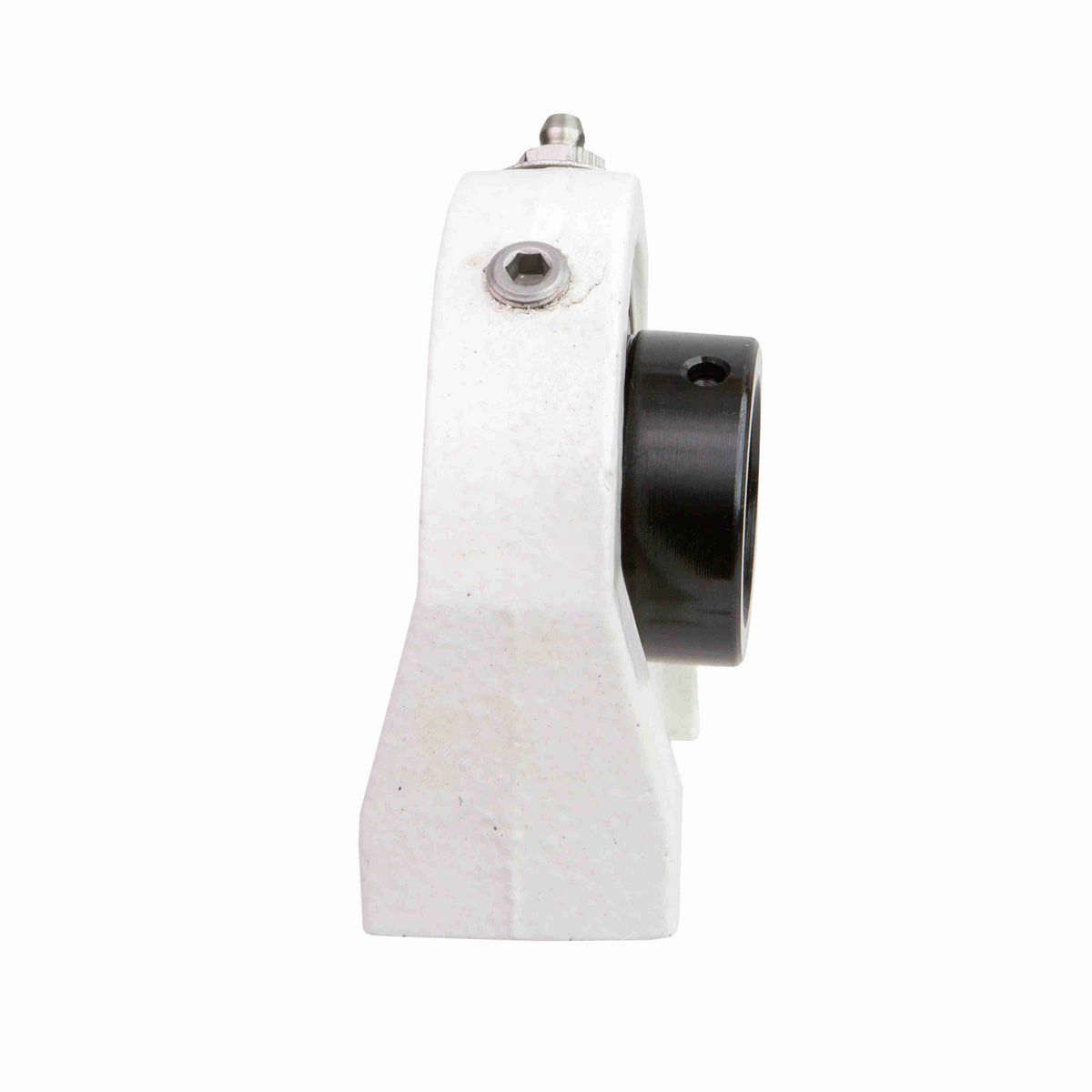

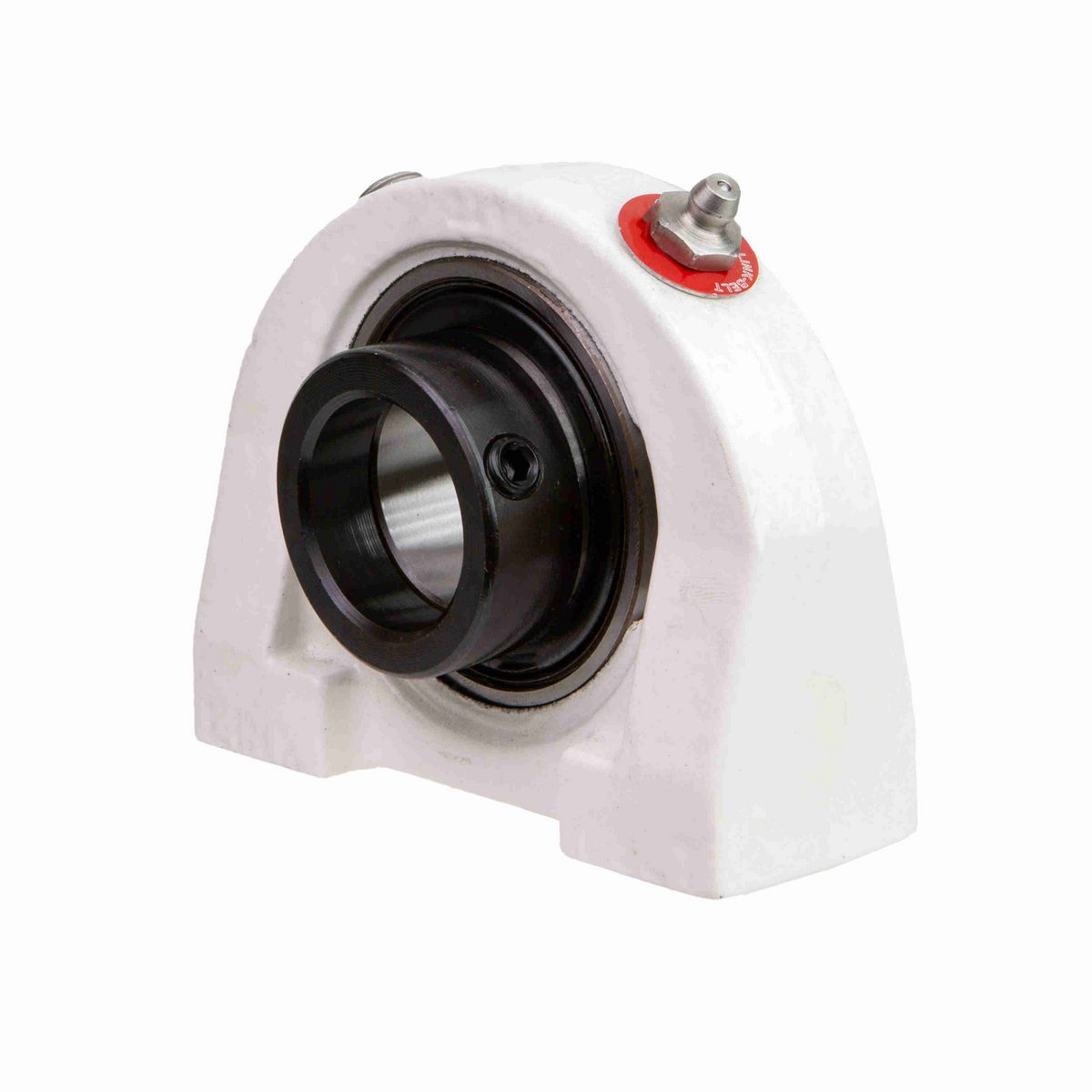

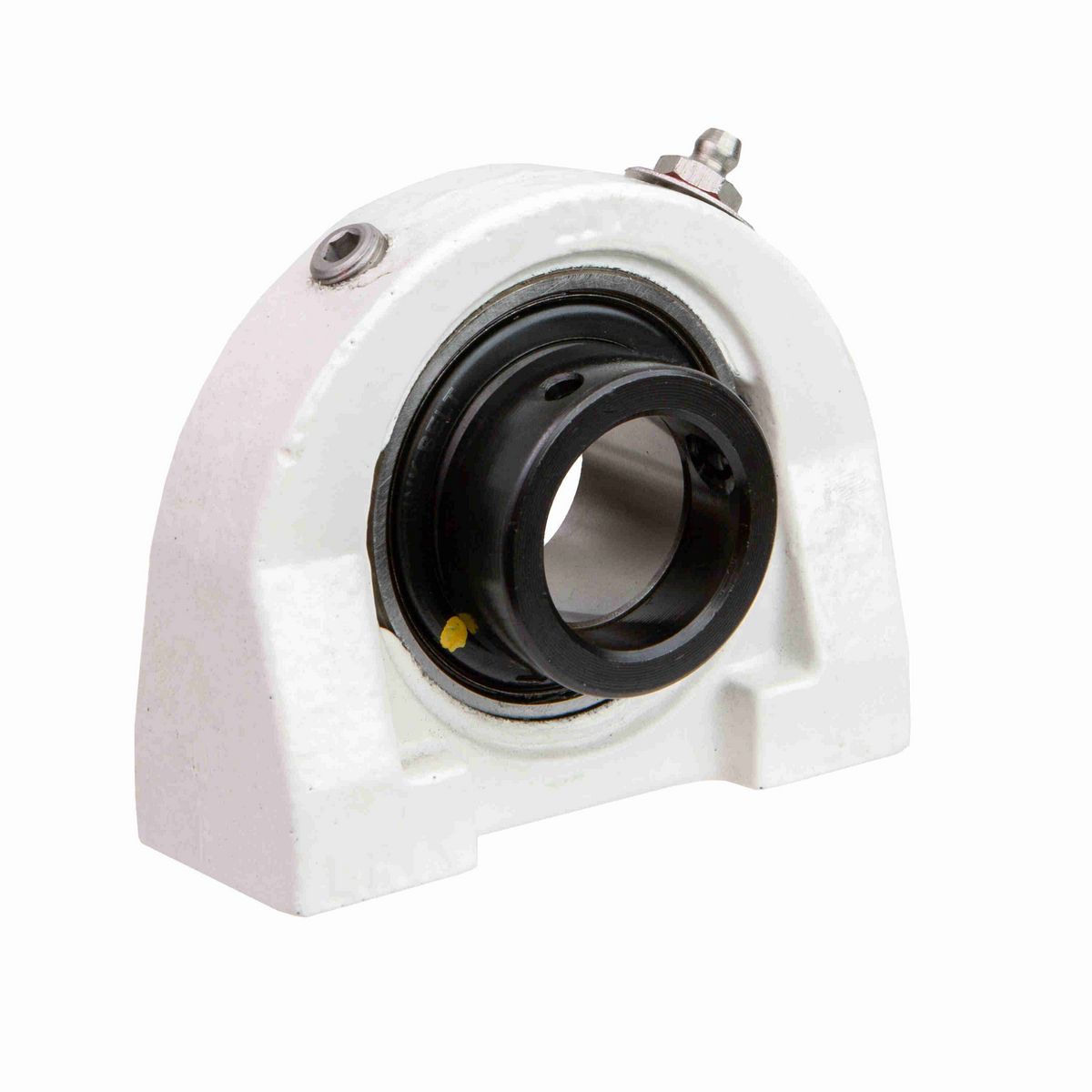

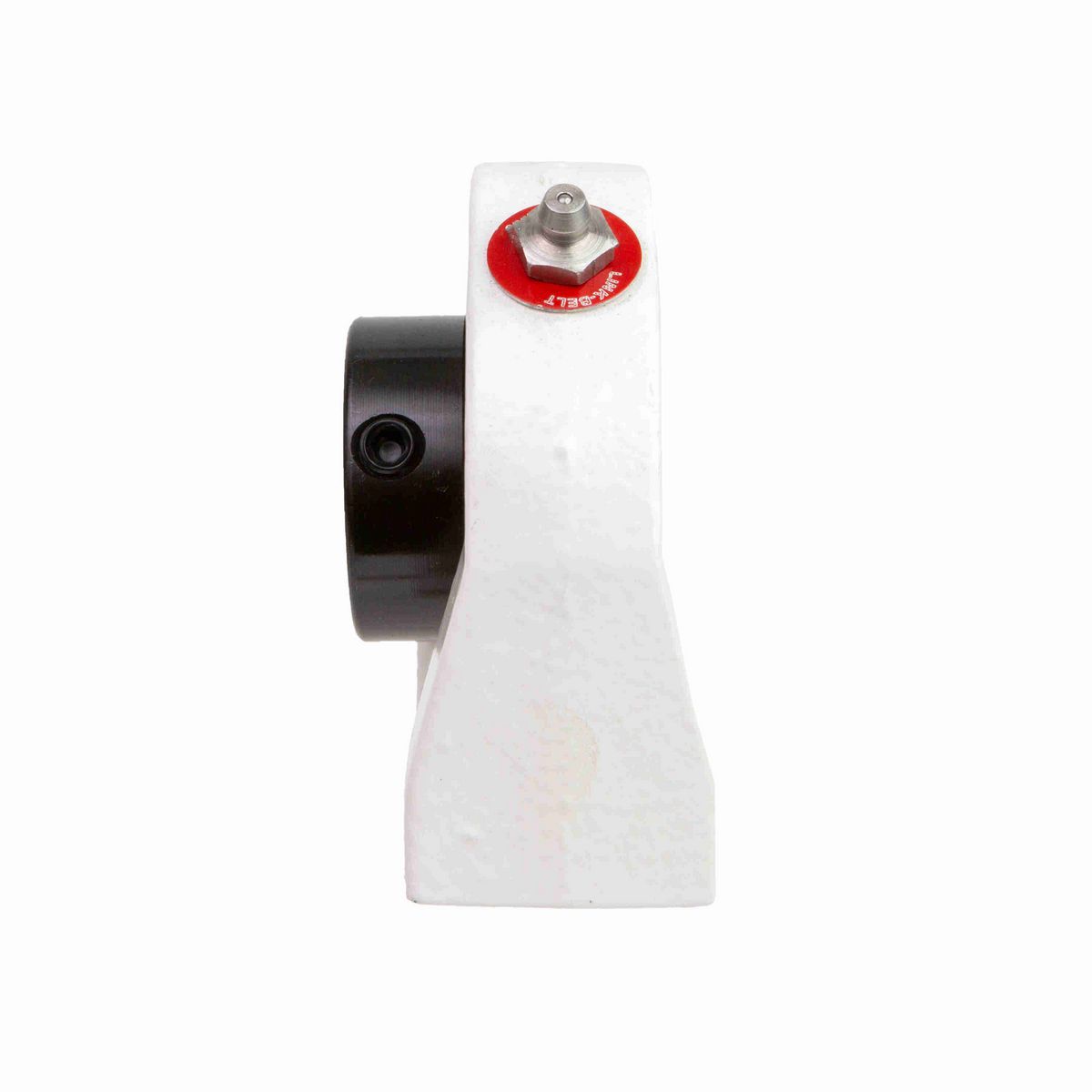

• 1 3/16" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Tapped Base Pillow Block, Eccentric Cam Locking Collar, Single Lip Contact Seal, Nylon Coated Housing, Inner and Outer Ring Not Penetrated

Dimensions

Base to Center Height (in)	1.688 in
Overall Length (in)	4 in
Base Width (in)	1.50 in
Thread Depth (in)	0.63 in
Thread Size	7/16-14
Bore Diameter (in)	1.1875 in
Overall Width (in)	1.5 in
Overall Height (in)	3.31 in
Length Through Bore (in)	1.41 in
Bolt Spacing (in)	3.00 in
Centerline to Outermost Bearing Face (in)	1.09 in

Technical Specifications

Bore Shape	Straight
Housing Style	Pillow Block
Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Housing Base	Solid
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	White
Housing Construction	One Piece
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Housing Type	Pillow Block, Tapped Base
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	1.69 in
Setscrew Torque (in-lbs)	165-185 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Housing Coating	Nylon Coated
Maximum Speed (RPM)	5600 rpm
End Cap Available	No
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0595 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	206
Inner Ring Outside Diameter (in)	1.587 in
Static Load Rating (lb)	2,530 lb
Dynamic Load Rating (lb)	4,390 lb
Lubricant	EXXON RONEX MP STD
Housing Material	Cast Iron
Base Length (in)	4.00 in
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Roller Spin	0.0385 cps
Cage Type	Ball Riding Retainer
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Bearing Brand	LINK-BELT DURA-KLEAN
Radial Clearance	C3 STANDARD
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0905 cps
Insert	WG219EL
Shaft Locking Type	Set Screw
Bearing Type	Intermediate Duty
Max Operating Temperature (C)	107 °C
Locking Device Kit	W2195S
Housing Width (in)	1.5 in

General Specifications

UPC	662327721725
Weight	2.74 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483208040
Country of Origin	Mexico
