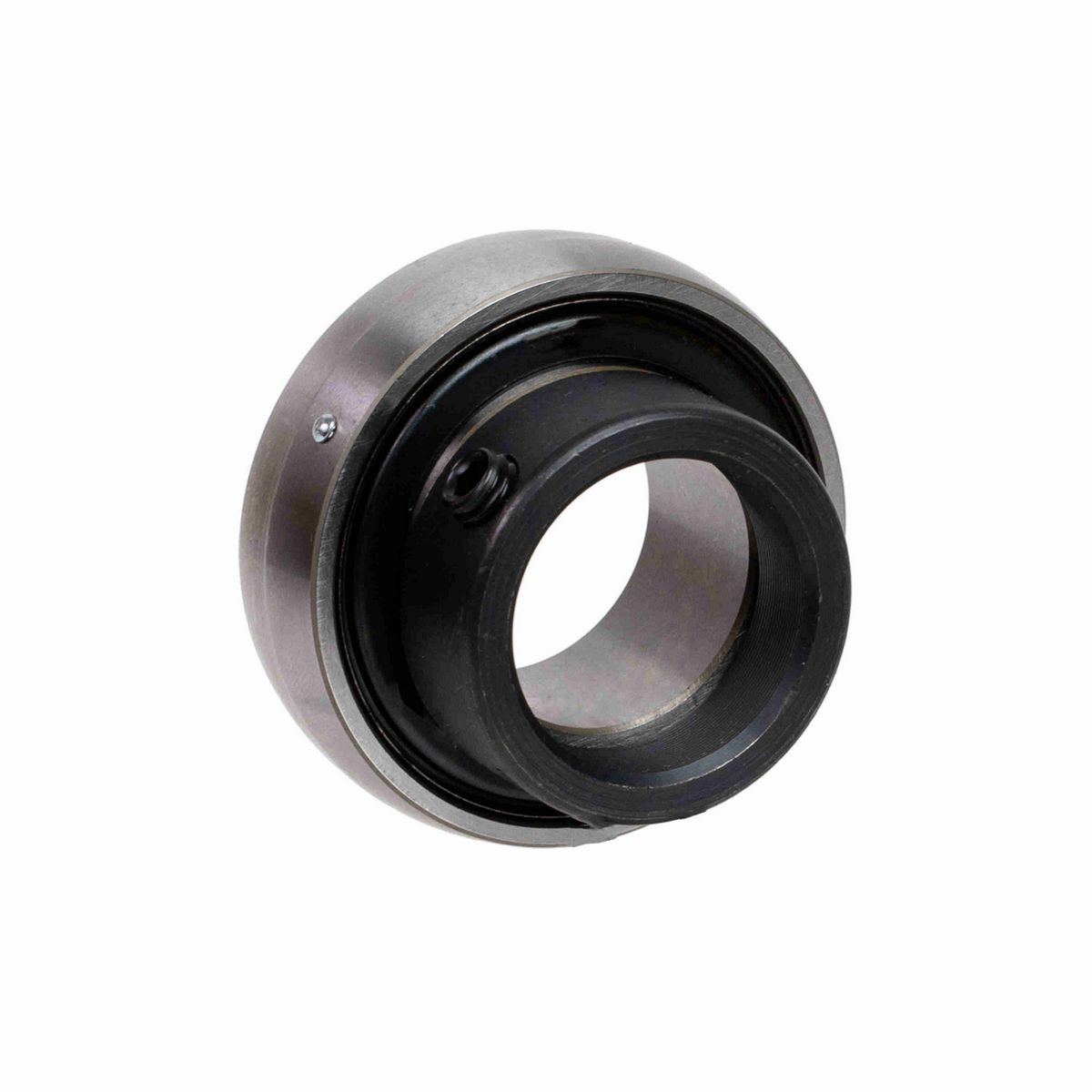

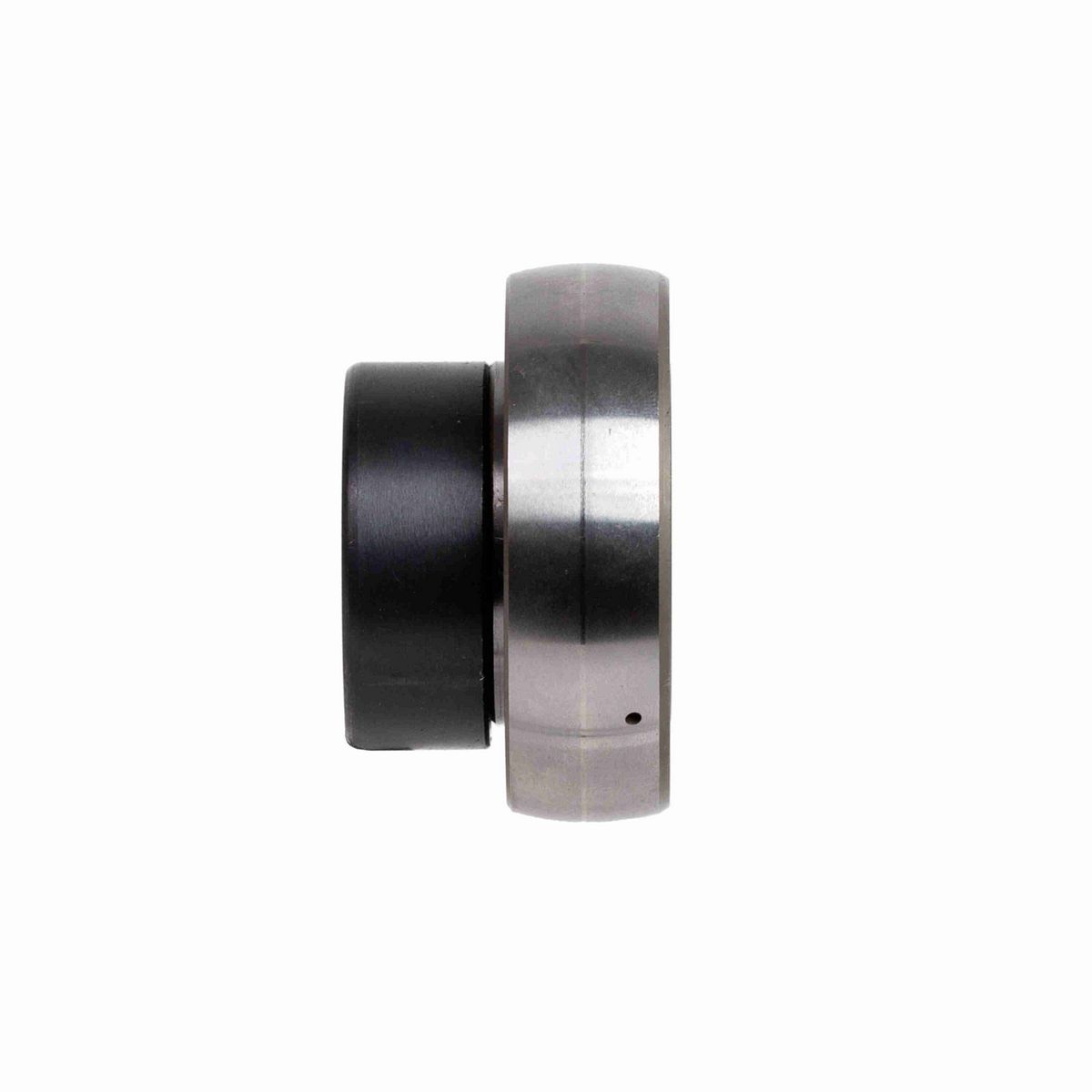

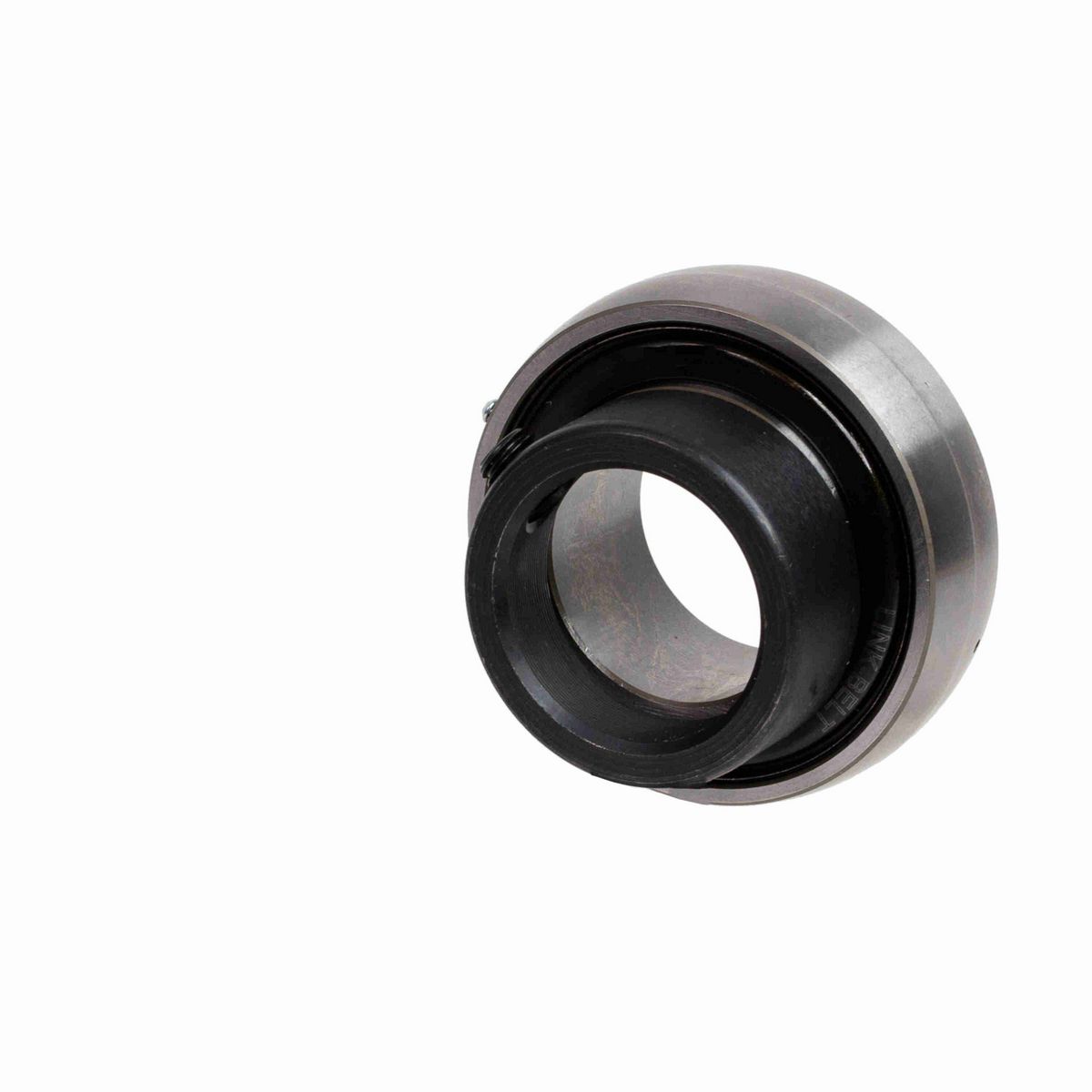

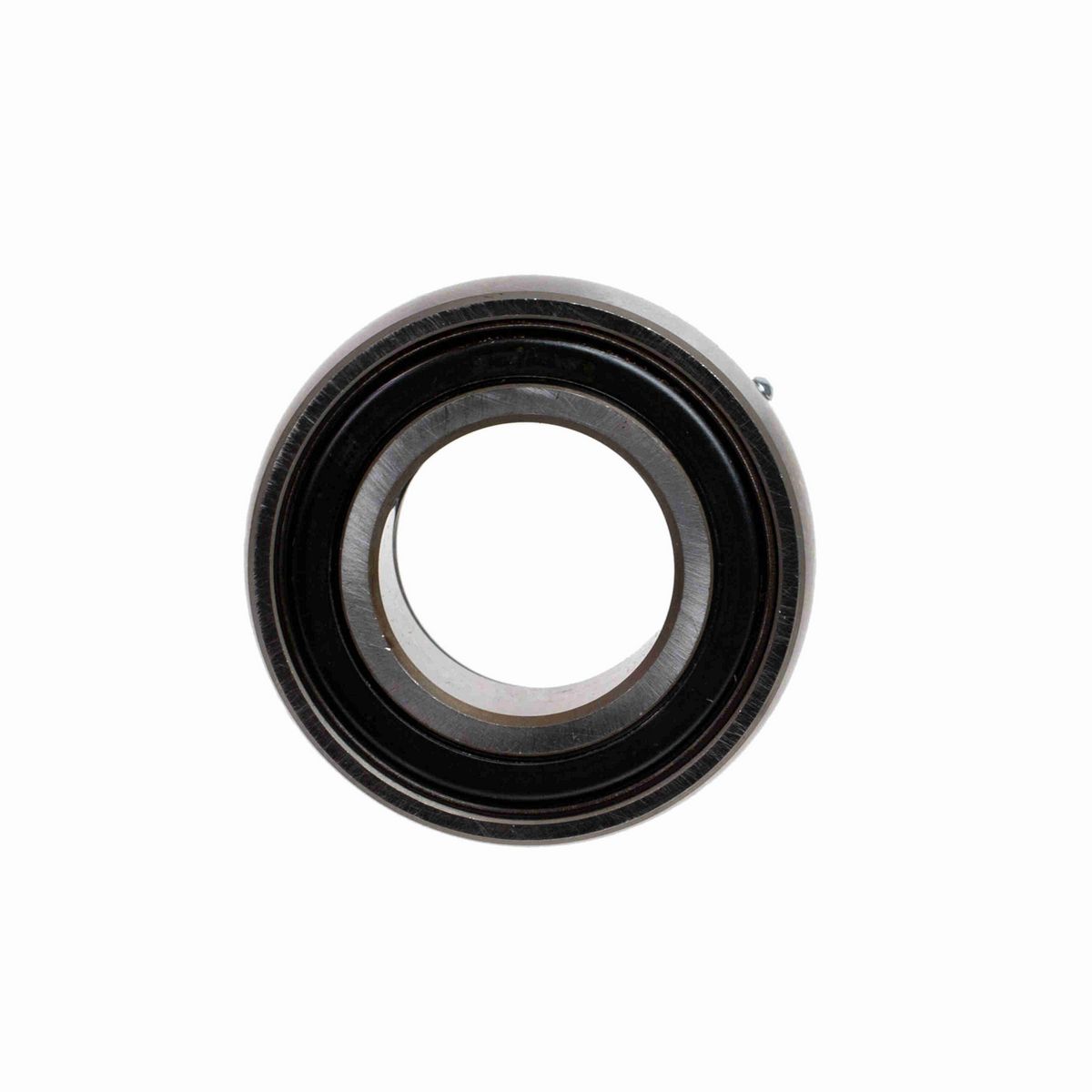

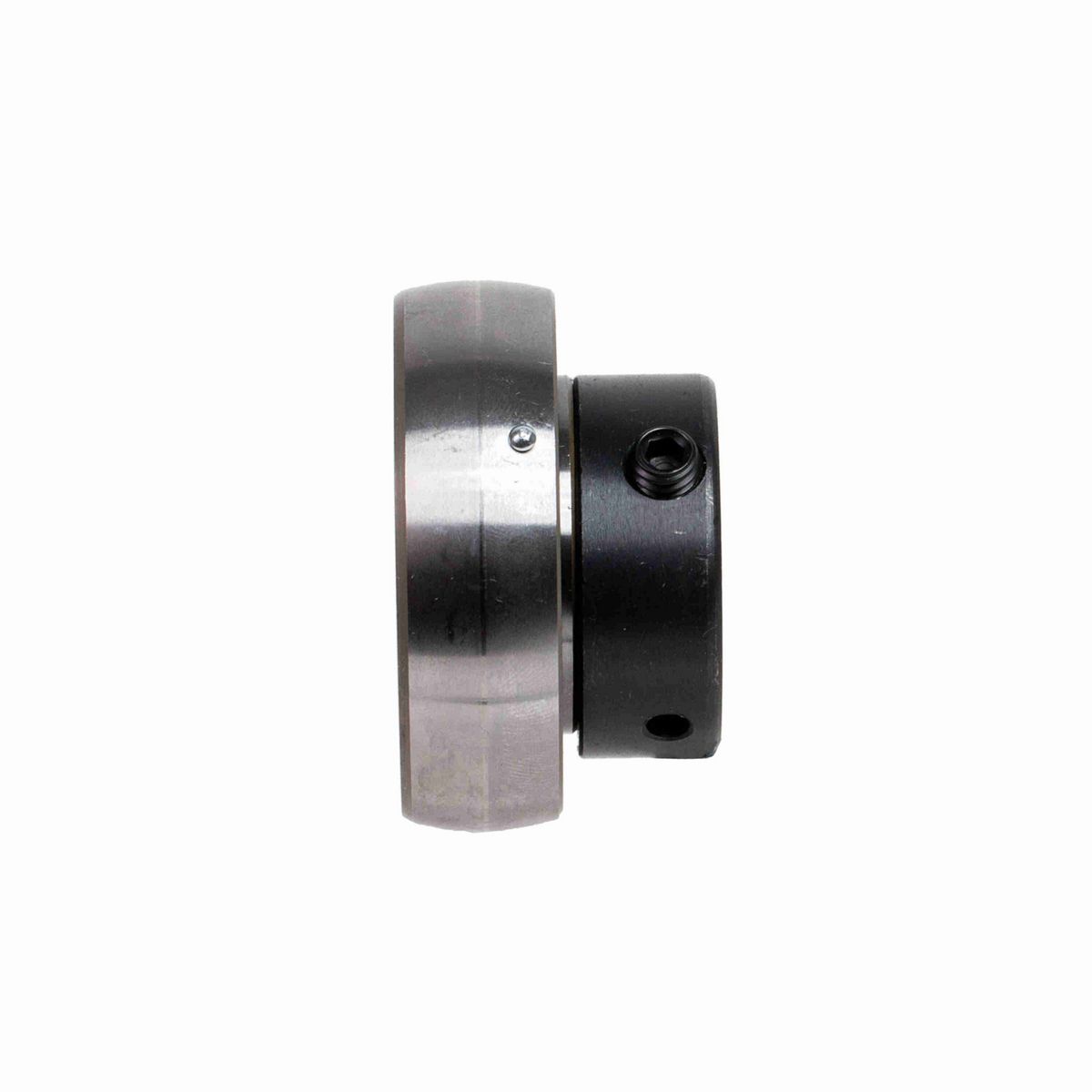

• 1 3/8" Unmounted Ball Bearing, Intermediate Duty, Eccentric Cam Locking Collar, Single Lip Contact Seal, Relubricatable, Spherical OD

Dimensions

Bore Size (in)

1.3750 in

Technical Specifications

Inner Ring Hub Diameter (in)	1.847 in
Maximum Speed (RPM)	4800 rpm
Locking Type	Eccentric
Bore Length (in)	1 17/32 in
C Dynamic Load Rating	5810 lb
Distance from Bearing Centerline to Centerline of Lube Hole (in)	0.239 in
Bearing Type	Intermediate Duty
Inner Ring Width (in)	1 in
Locking Collar Outside Diameter (in)	2 3/16 in
Available Seal Type	E Lip Seal
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Locking Device Kit	W2225S
Retainer Type	NYLON
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Mounted Clearance	C3 STANDARD
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Maximum Temperature (F)	225 °F
Outer Ring Width (in)	0.7480 in
Lubrication Type	EXXON RONEX MP STD
Product	WG200
Vibration Frequency Fundamental Train	0.0067 cps
Maximum Temperature (C)	107 °C
Size Code	207
Short Hub Length (in)	0.3740 in
Locking Collar Width (in)	11/16 in
Outside Diameter (in)	2.8346 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Type of Seal	E Lip Seal
Setscrew Torque (in-lbs)	290-325 in/lbs
Co Static Load Rating	3440 lb

General Specifications

UPC	662327151096
Weight	1.19 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
