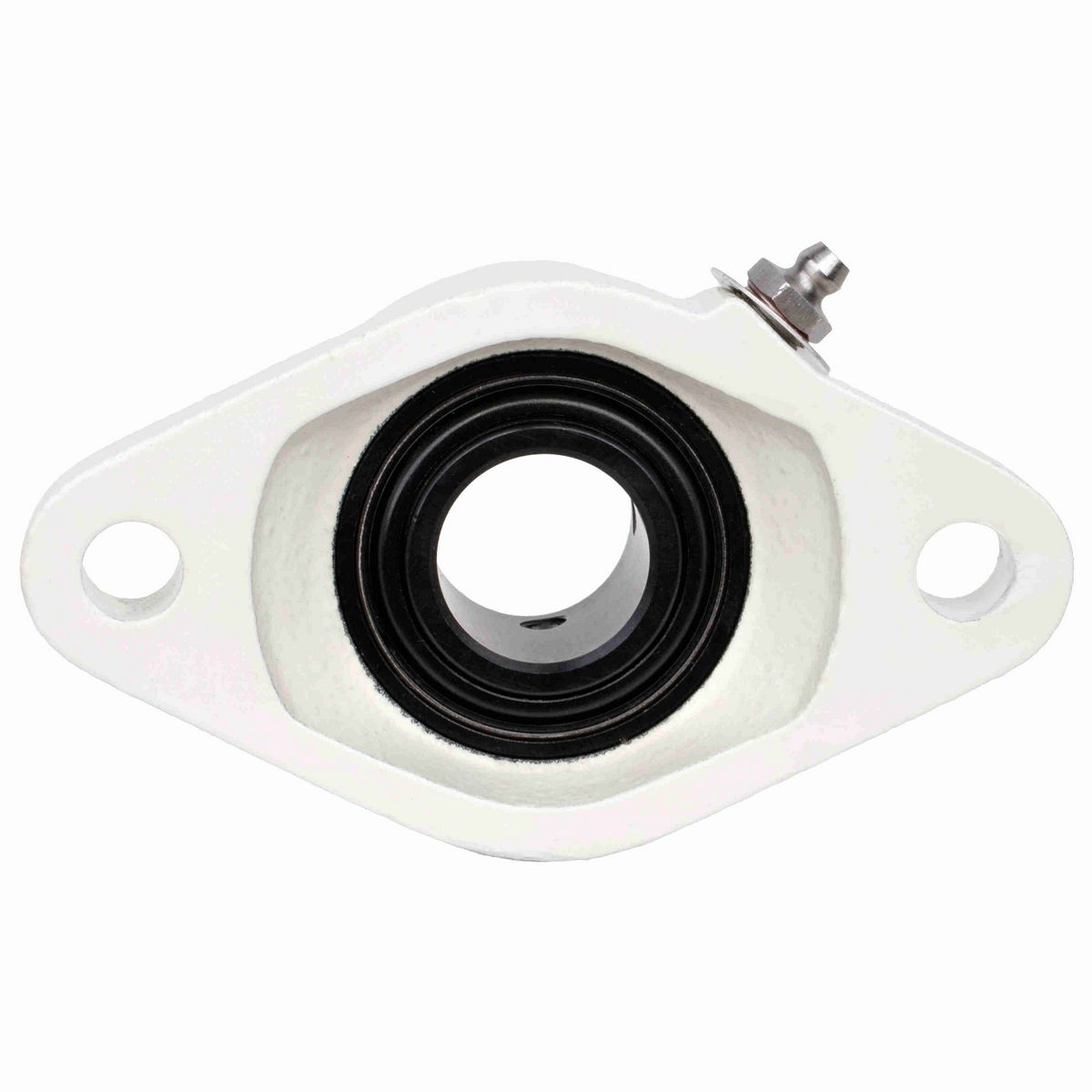

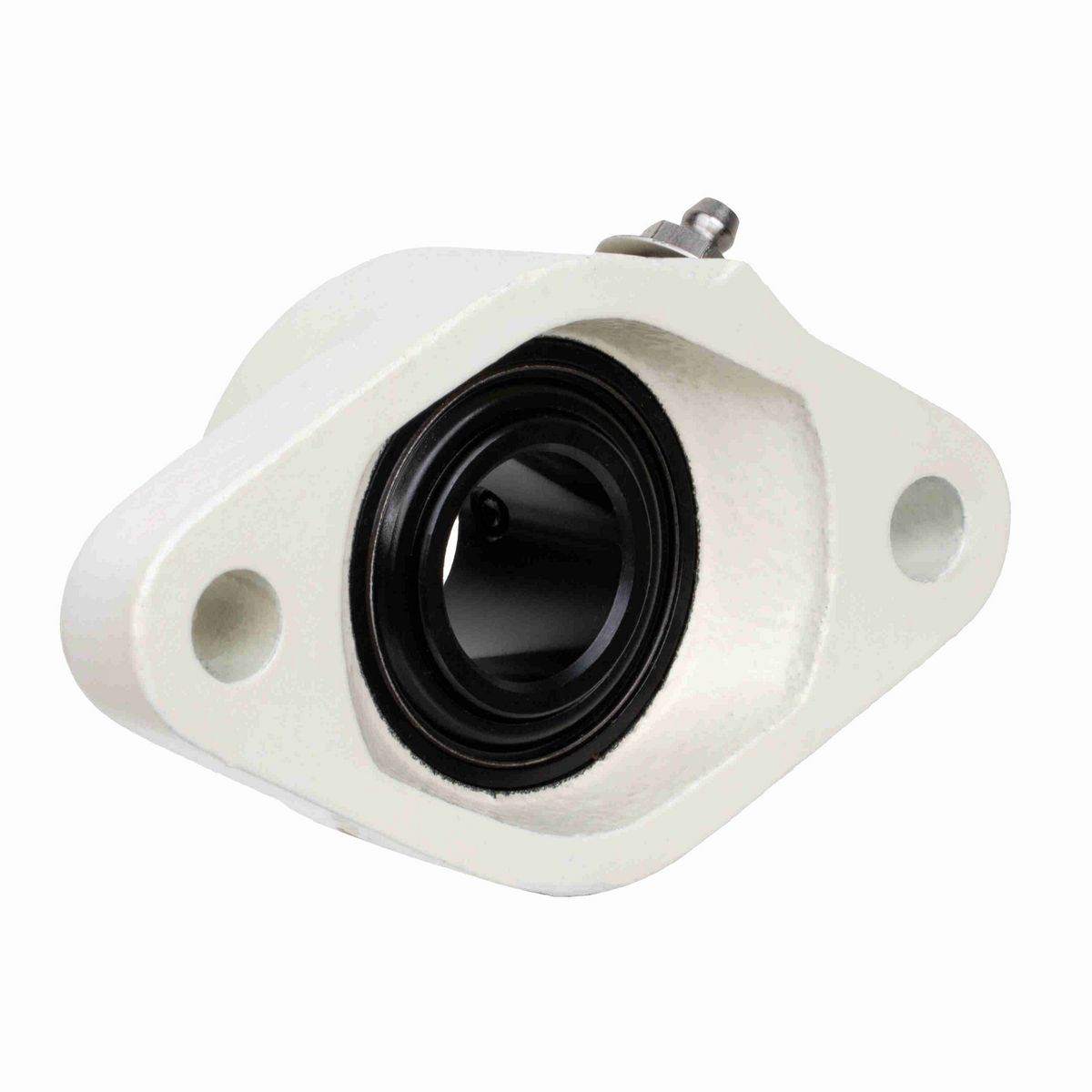

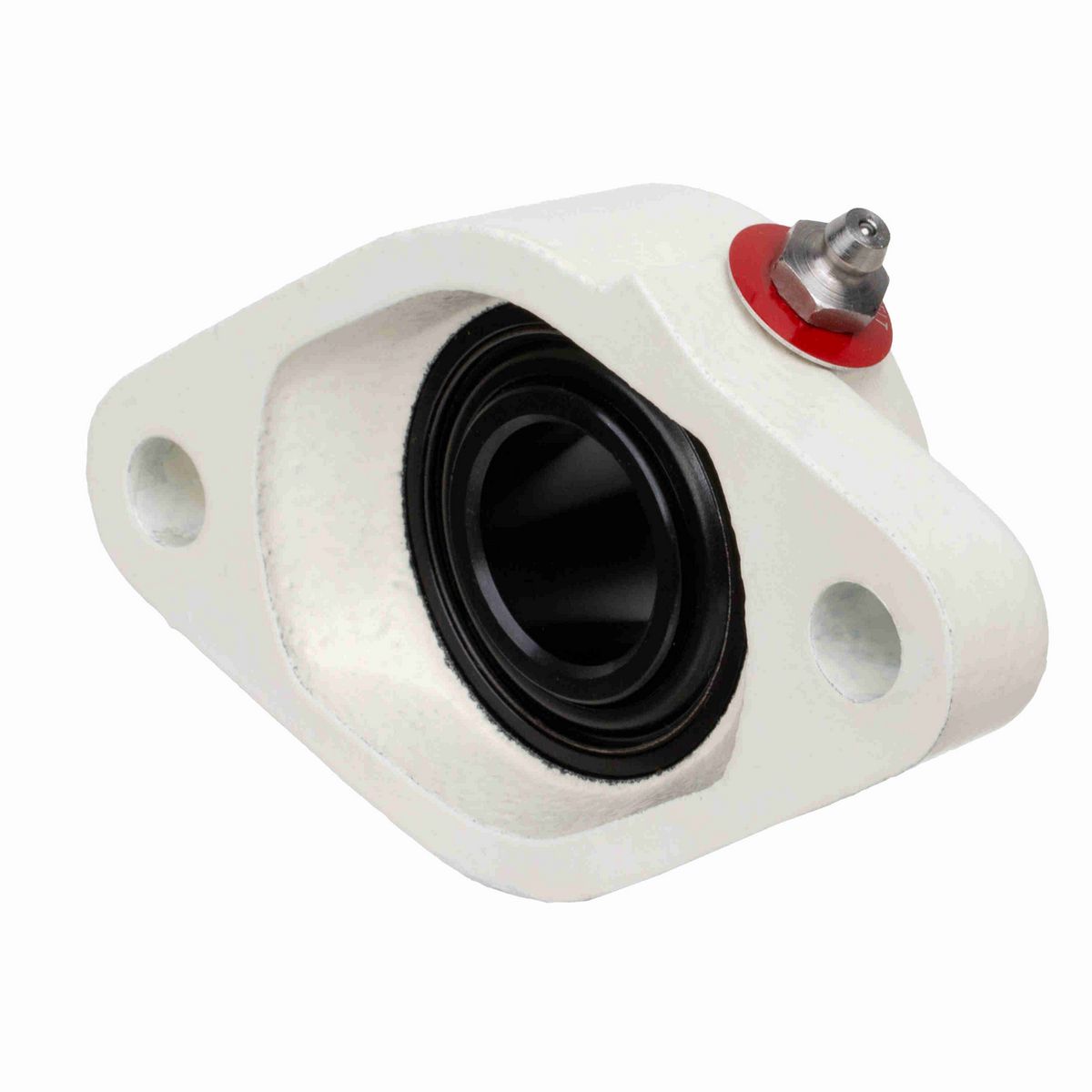

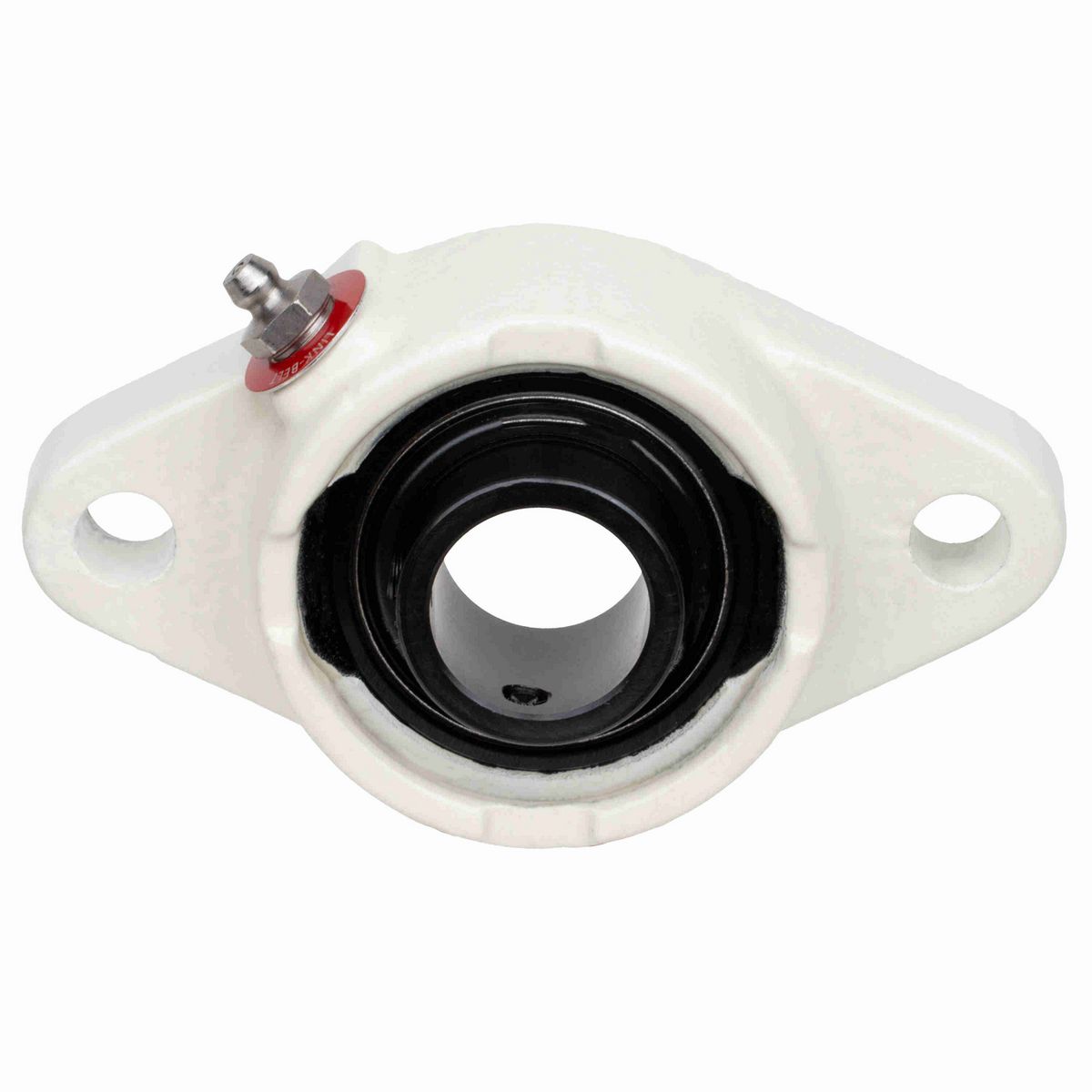

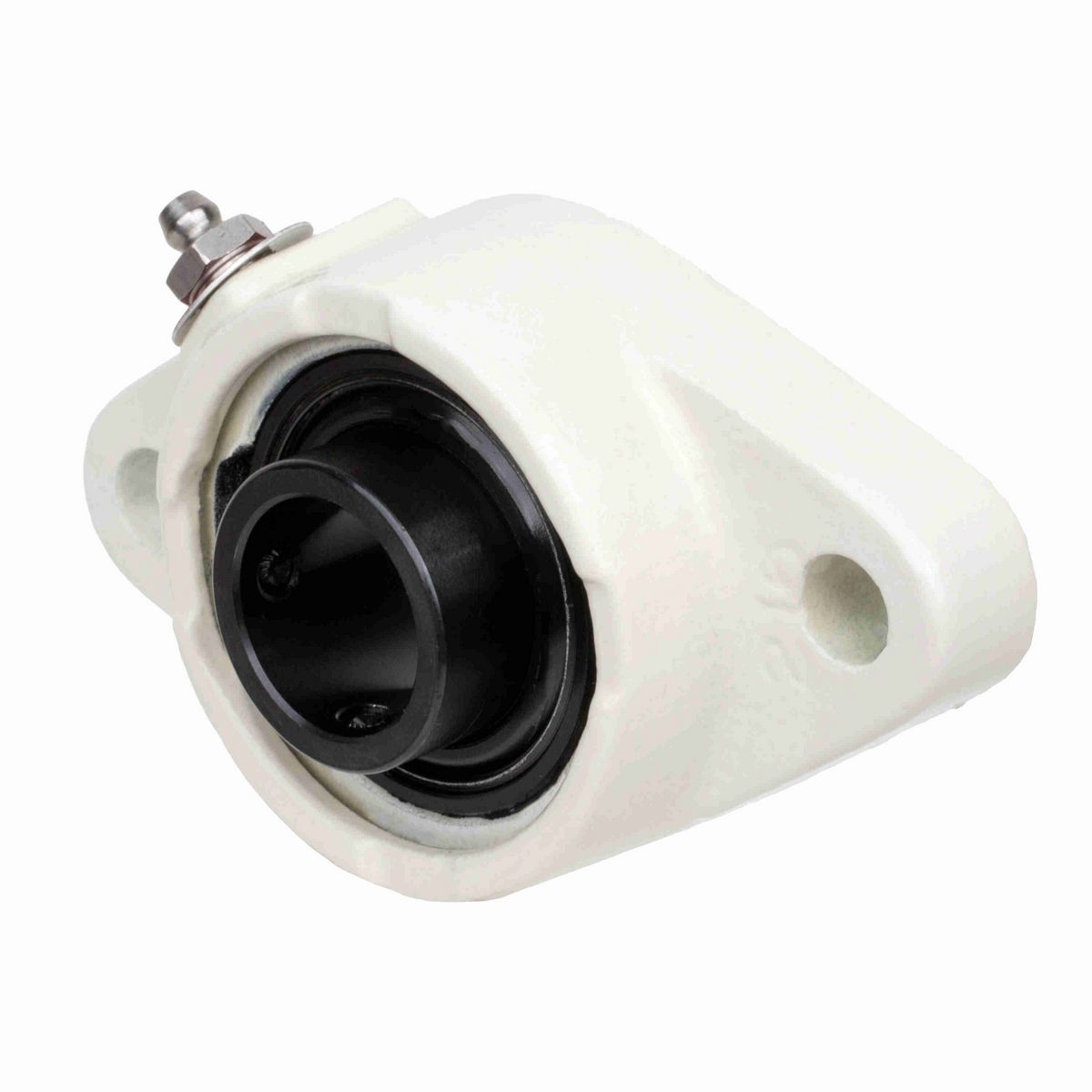

• 1" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Flange Block, Setscrew Locking, Single Lip Contact Seal, Nylon Coated Housing

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	2.69 in
Foot Height (in)	0.59 in
Overall Length (in)	4.89 in
Length Through Bore (in)	1.178 in
Overall Height (in)	1.551 in
Bore Diameter (in)	1 in
Bolt Spacing (in)	3.8891 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Color	White
Bore Shape	Straight
Housing Type	Flange, Two Bolt
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Pilot Configuration	No Pilot
Cage Material	Molded fiber glass reinforced nylon
Housing Style	Flange Block
Setscrew Torque (in-lbs)	87-92 in/lbs
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0067 cps
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0595 cps
Static Load Rating (lb)	1,760 lb
Insert	SG216ELK8299A
Inner Ring Outside Diameter (in)	1.313 in
Bearing Brand	LINK-BELT DURA-KLEAN
Bearing Type	Intermediate Duty
Size Code	205
Grease Fitting Thread Size	1/8 NPT
End Cap Available	Yes
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	225 °F
Maximum Speed (RPM)	6800 rpm
Shaft Locking Type	Set Screw
Housing Coating	Nylon Coated
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0387 cps
Lubricant	MOBIL FM222 FOOD GRADE H1
Misalignment Capability	±1.5° Misalignment - Static Only
Radial Clearance	C3 STANDARD
Dynamic Load Rating (lb)	3,150 lb
End Cap	Y2166N
Cage Type	Ball Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Bearing Insert Finish	BLACK OXIDE

General Specifications

UPC	662327480141
Weight	1.50 LB
Packaged Length	5.63 IN
Packaged Width	3.19 IN
Packaged Height	1.81 IN
HTC	8483204040
Country of Origin	Mexico
