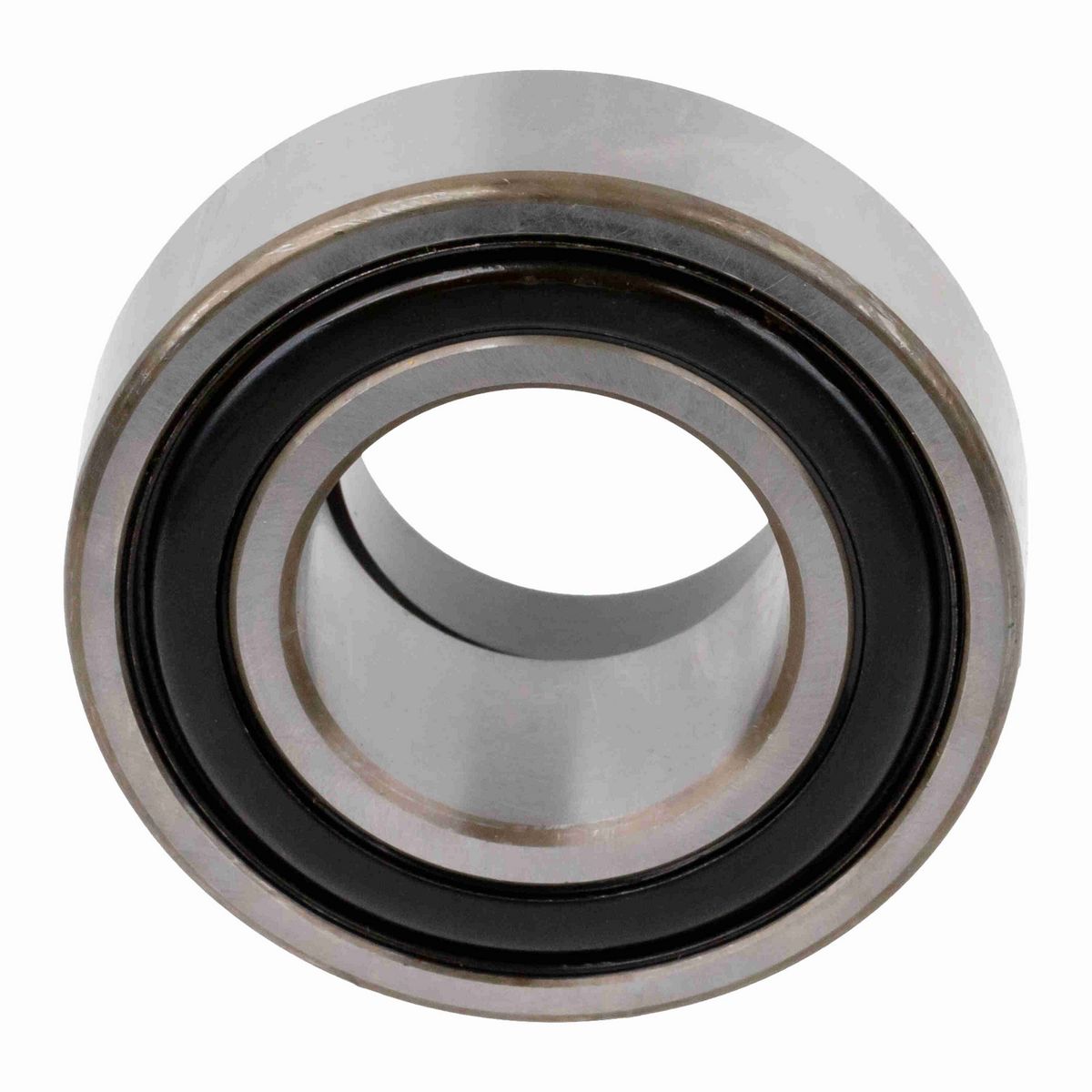

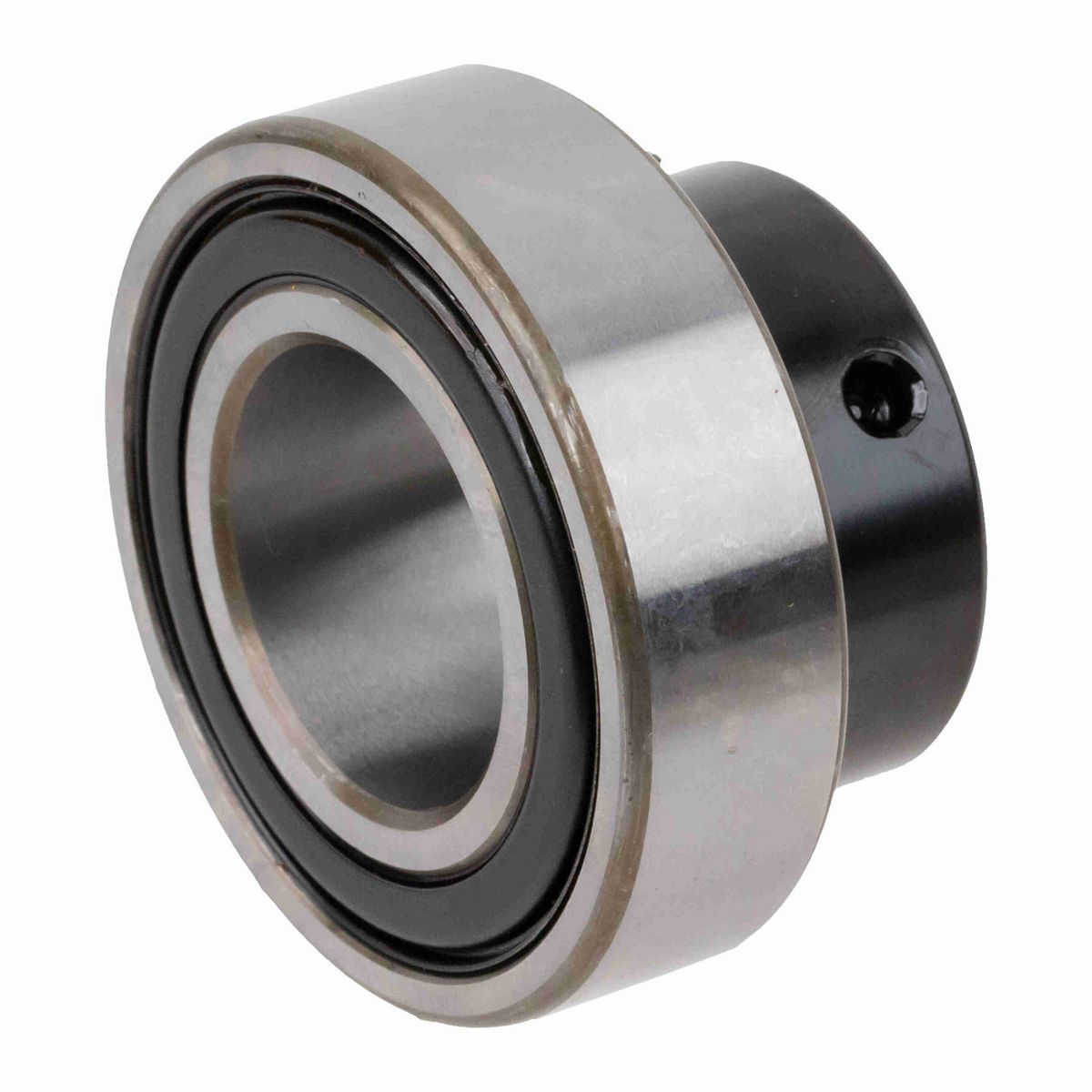

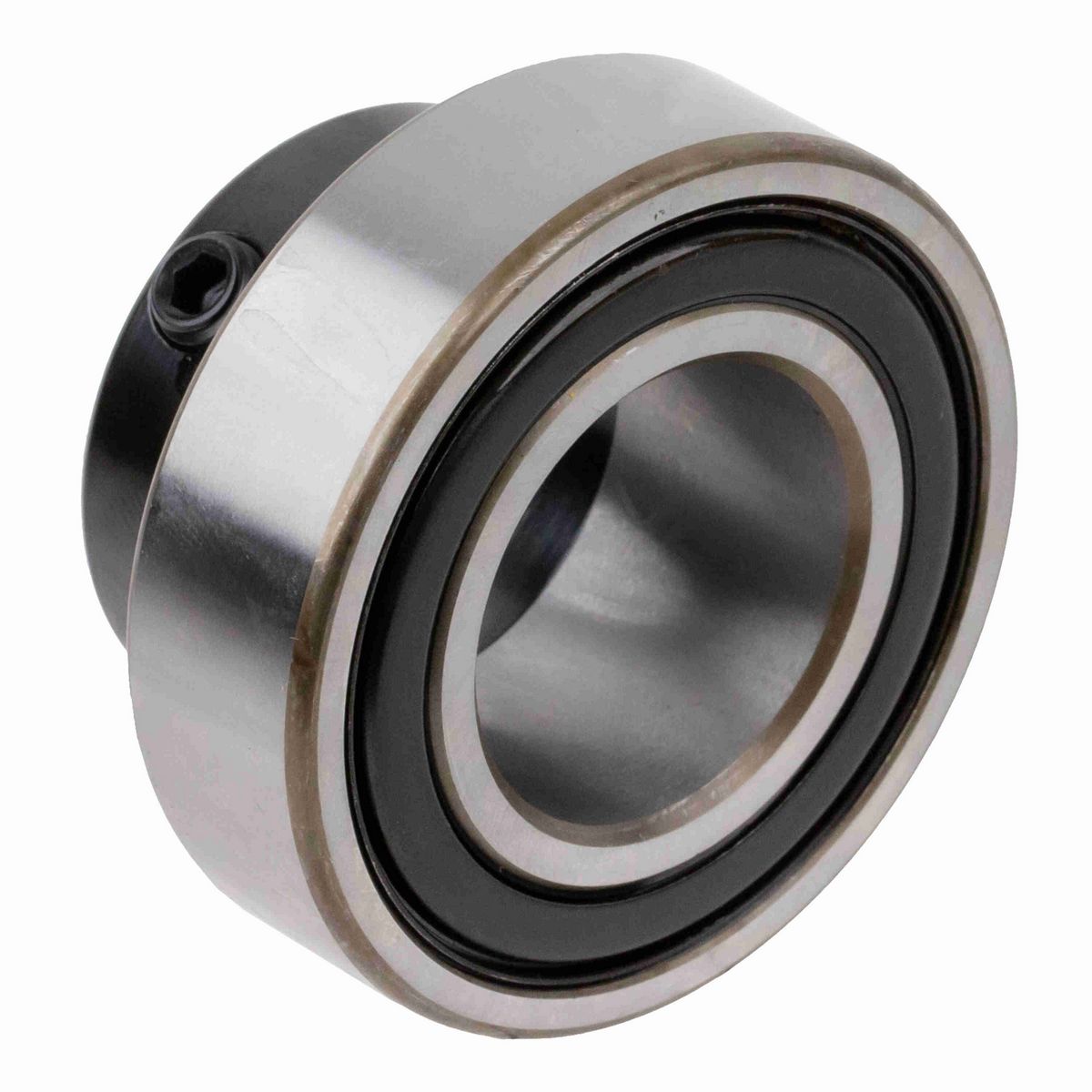

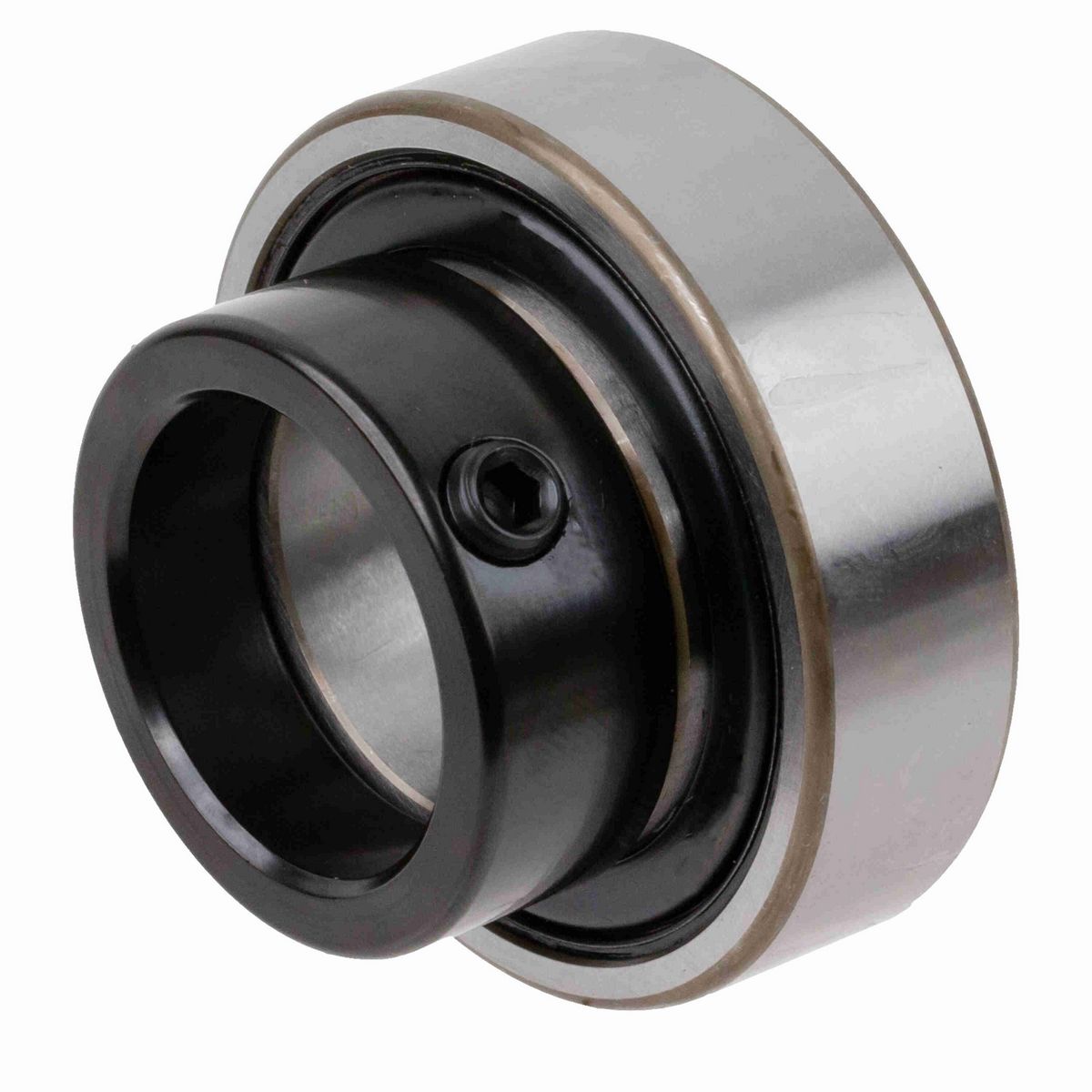

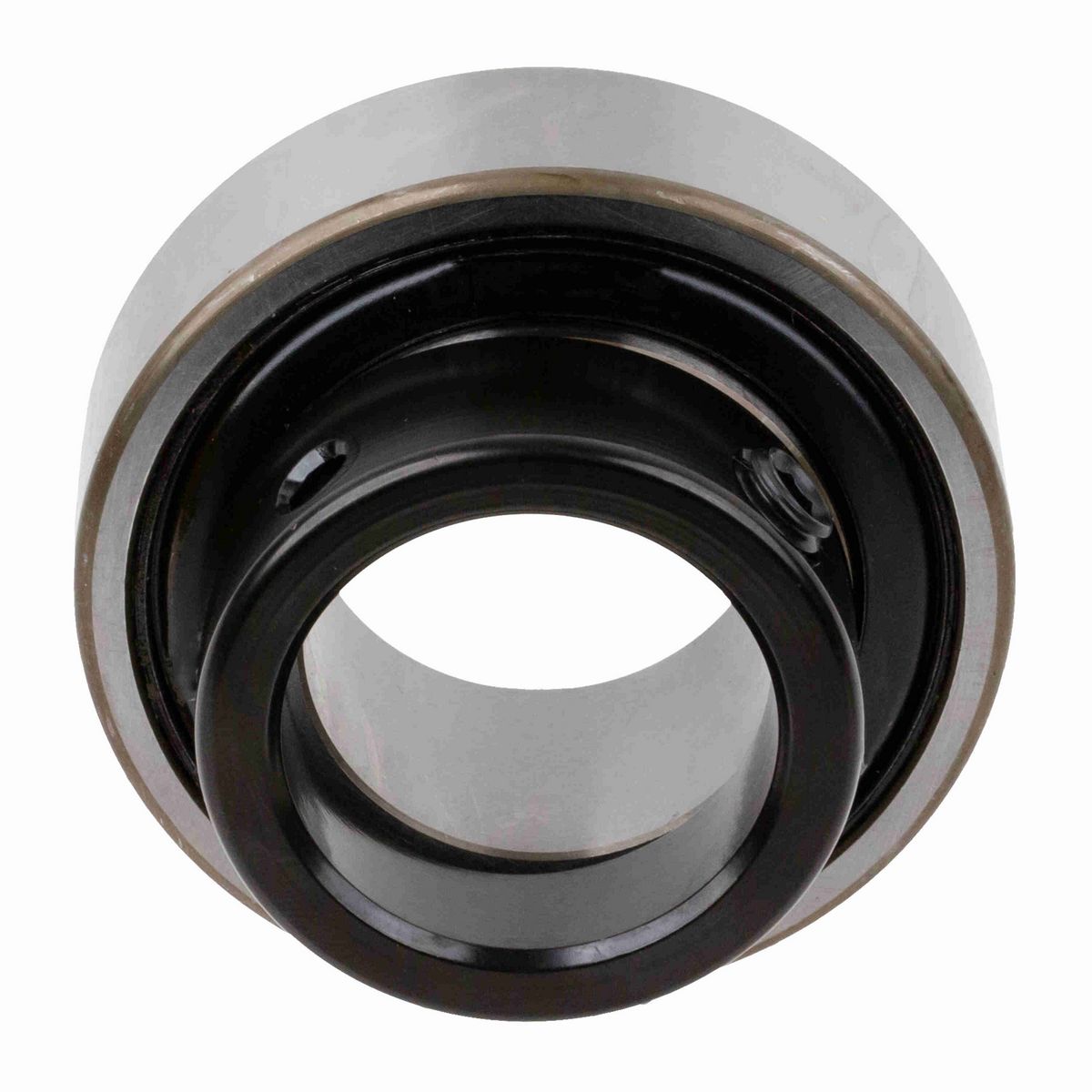

• 1 1/4" Unmounted, Non Relubricatable, Cylindrical OD, Ball Bearing, Intermediate Duty, Eccentric Cam Locking Collar, Single Lip Contact Seal, Collar E coated

Dimensions

Bore Size (in)

1.2500 in

Technical Specifications

Locking Collar Outside Diameter (in)	1 3/4 in
Outer Ring Width (in)	0.7087 in
Maximum Temperature (F)	225 °F
C Dynamic Load Rating	4390 lb
Retainer Type	NYLON
Outside Diameter (in)	2.4409 in
Locking Collar Width (in)	5/8 in
Short Hub Length (in)	0.3543 in
Available Seal Type	E Lip Seal
Co Static Load Rating	2530 lb
Outer Ring Fillet Radius (in)	0.039 in
Size Code	206
Inner Ring Width (in)	0.938 in
Product	WB200
Vibration Frequency Roller Spin	0.0385 cps
Locking Device Kit	W2E20K975S
Bearing Type	Intermediate Duty
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Type of Seal	E Lip Seal
Maximum Speed (RPM)	5600 rpm
Mounted Clearance	C3 STANDARD
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0067 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Setscrew Torque (in-lbs)	165-185 in/lbs
Lubrication Type	EXXON RONEX MP STD
Bore Length (in)	1 13/32 in
Locking Type	Eccentric
Inner Ring Hub Diameter (in)	1.587 in
Vibration Frequency Inner Ring Defect	0.0905 cps

General Specifications

UPC	793699275254
Weight	0.69 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
