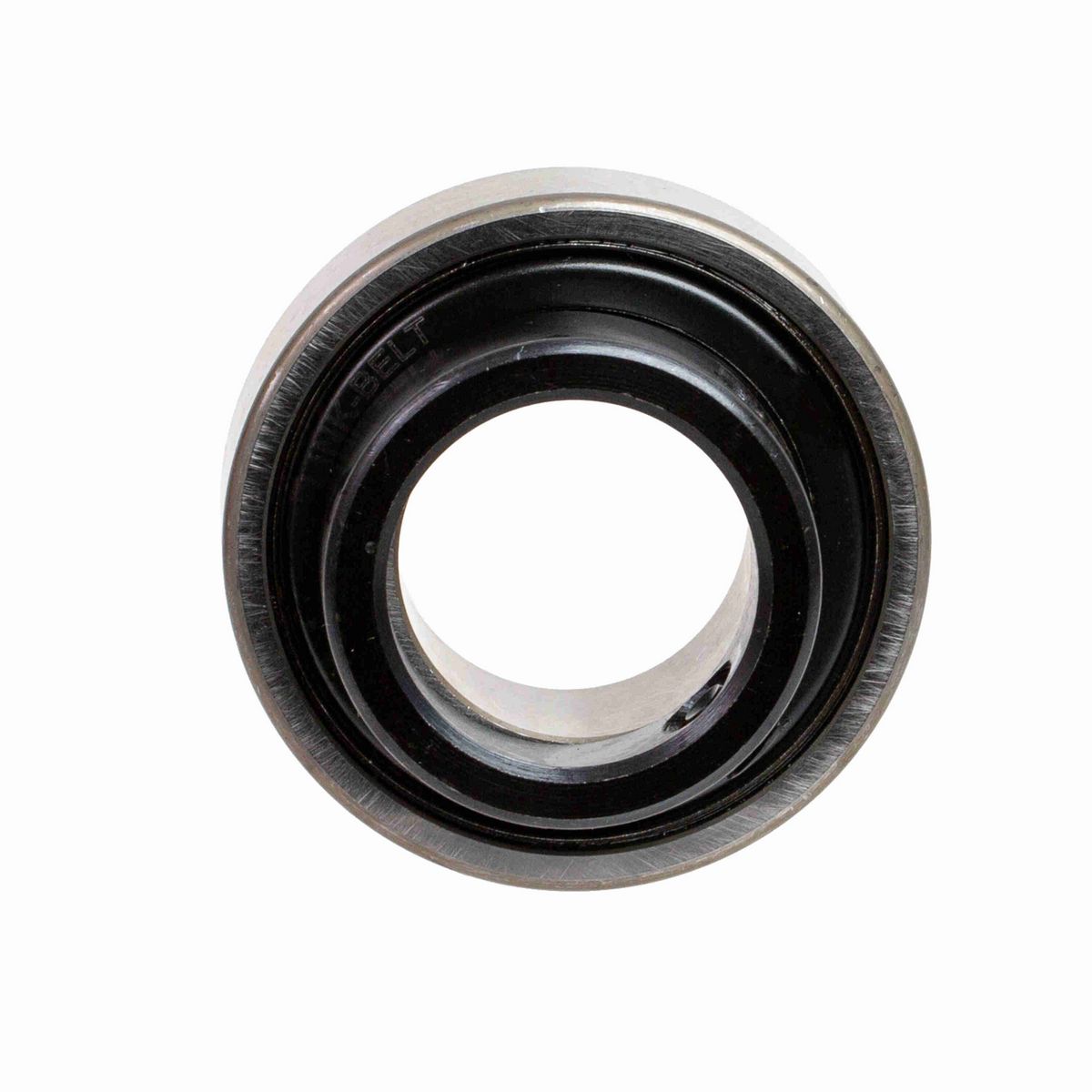

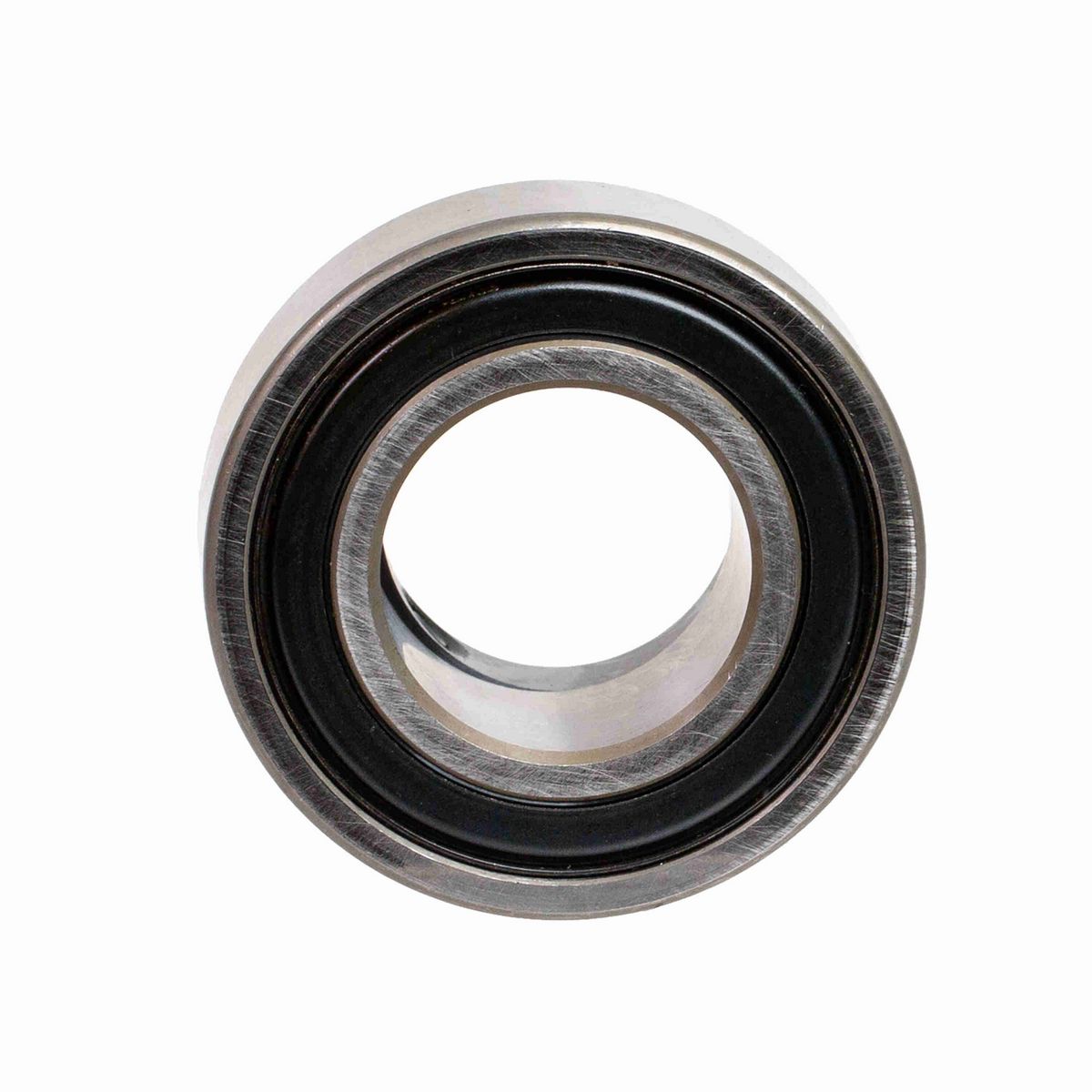

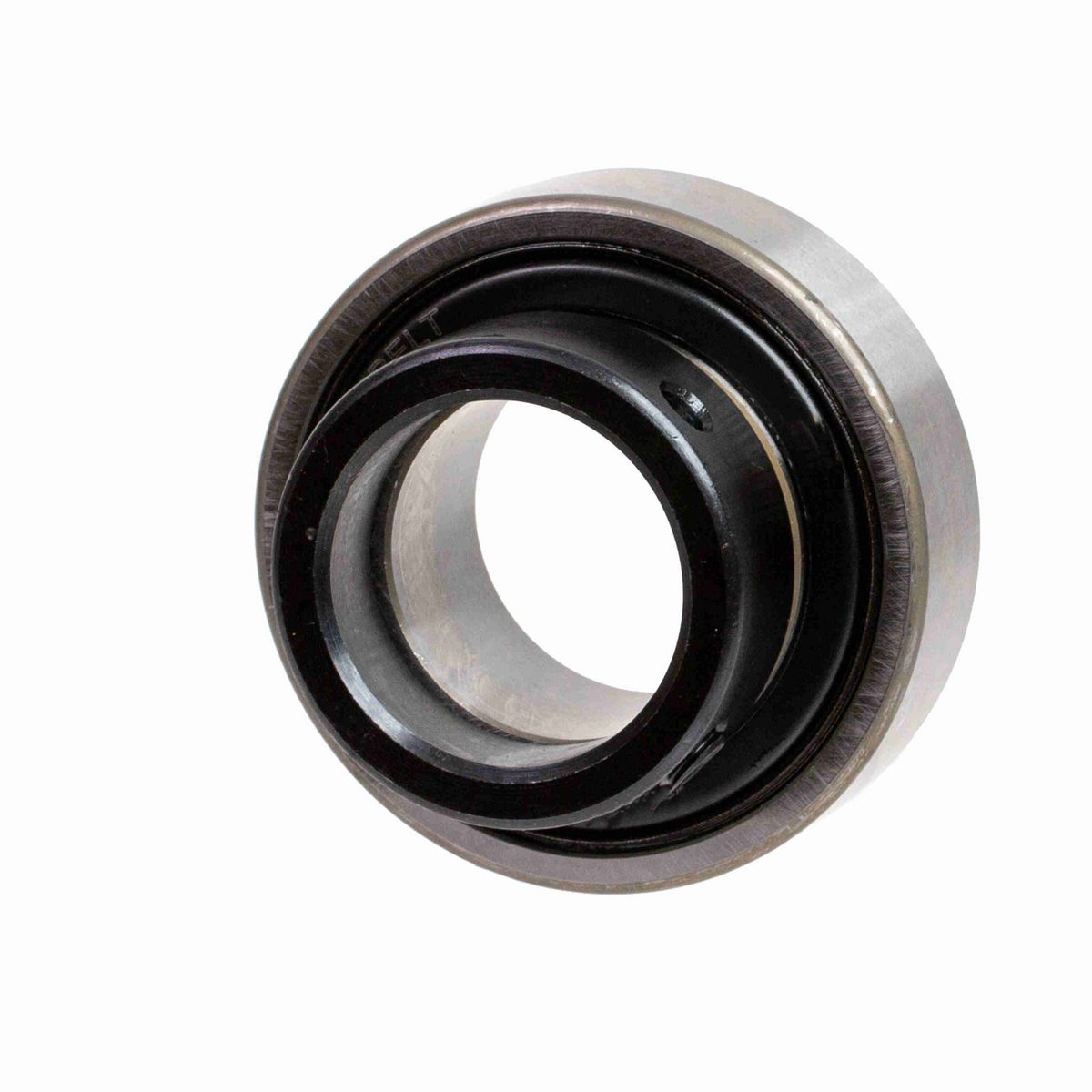

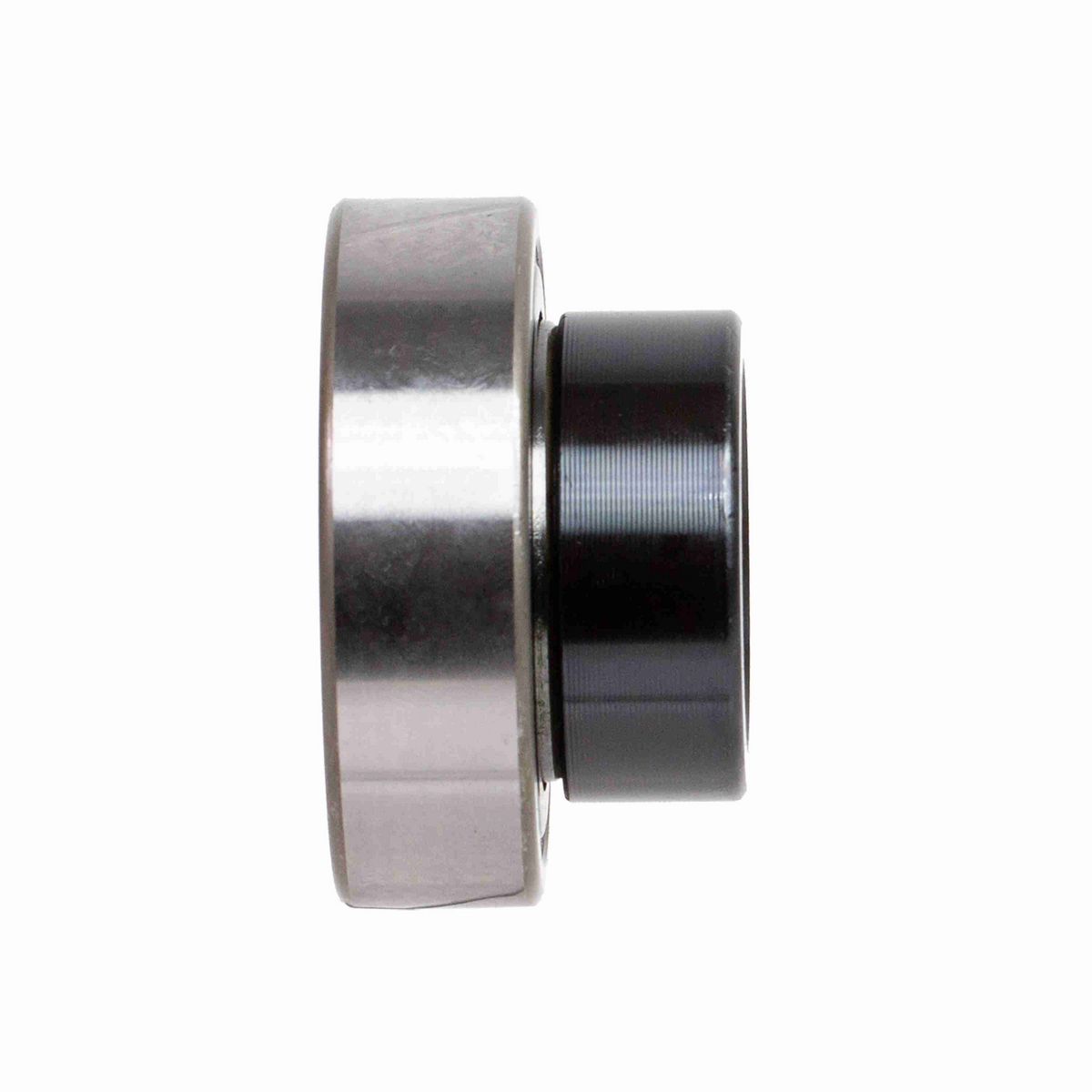

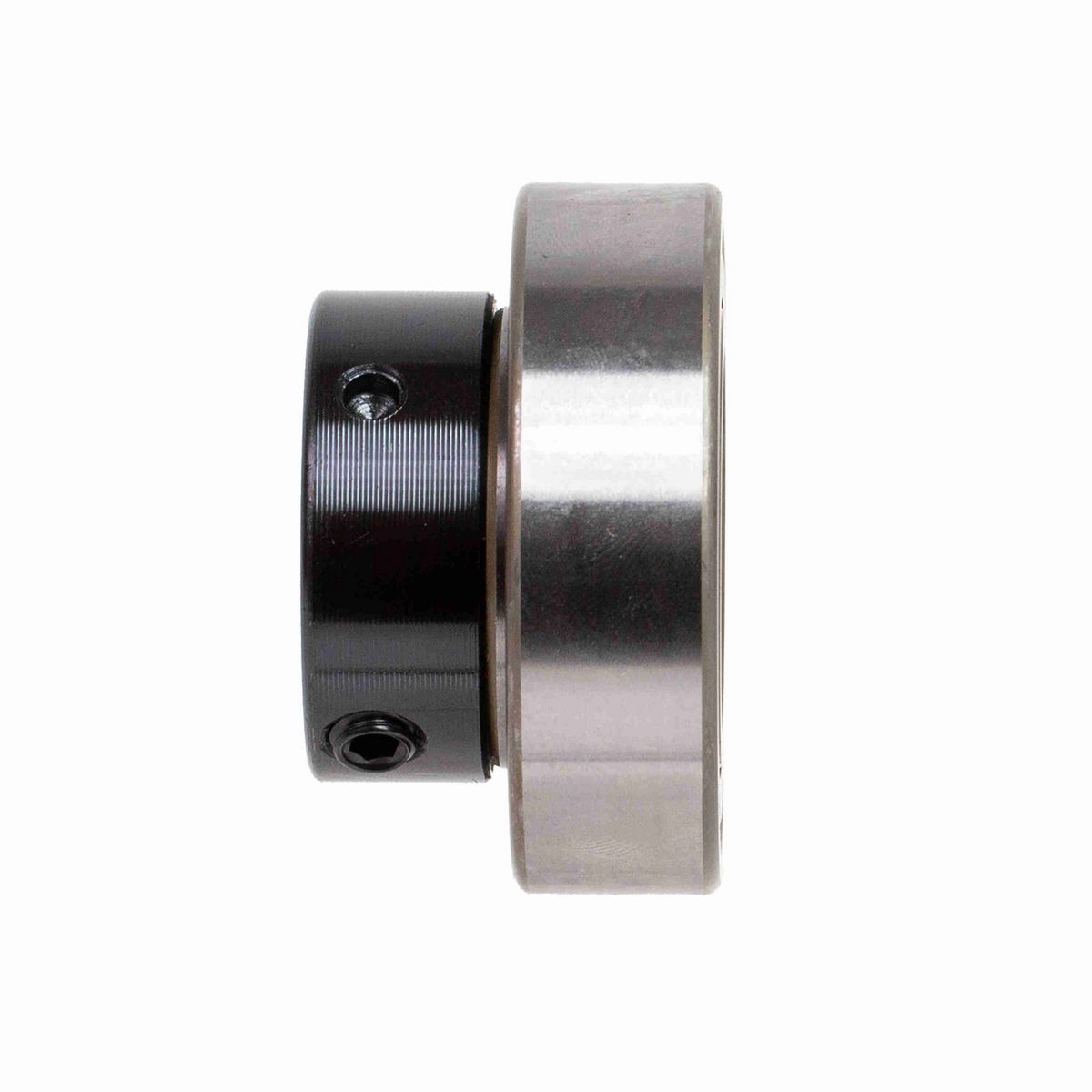

• 1 7/16" Unmounted Ball Bearing, Intermediate Duty, Eccentric Cam Locking Collar, Single Lip Contact Seal, Non-relubricatable, Cylindrical OD

Dimensions

Bore Size (in)

1.4375 in

Technical Specifications

Vibration Frequency Inner Ring Defect	0.0905 cps
Lubrication Type	EXXON RONEX MP STD
Setscrew Torque (in-lbs)	290-325 in/lbs
Bore Length (in)	1 17/32 in
Vibration Frequency Fundamental Train	0.0067 cps
Locking Collar Outside Diameter (in)	2 3/16 in
Outer Ring Fillet Radius (in)	0.039 in
Maximum Speed (RPM)	4800 rpm
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Mounted Clearance	C3 STANDARD
Bearing Type	Intermediate Duty
Size Code	207
Short Hub Length (in)	0.3740 in
Maximum Temperature (C)	107 °C
Outside Diameter (in)	2.8346 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Retainer Type	NYLON
Product	WB200
C Dynamic Load Rating	5810 lb
Locking Type	Eccentric
Type of Seal	E Lip Seal
Maximum Temperature (F)	225 °F
Co Static Load Rating	3440 lb
Inner Ring Hub Diameter (in)	1.847 in
Outer Ring Width (in)	0.7480 in
Inner Ring Width (in)	1 in
Locking Device Kit	W2235S
Available Seal Type	E Lip Seal
Vibration Frequency Roller Spin	0.0383 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Locking Collar Width (in)	11/16 in
Primary Seal	BUNA SINGLE LIP CONTACT SEAL

General Specifications

UPC	662327150761
Weight	1.15 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
