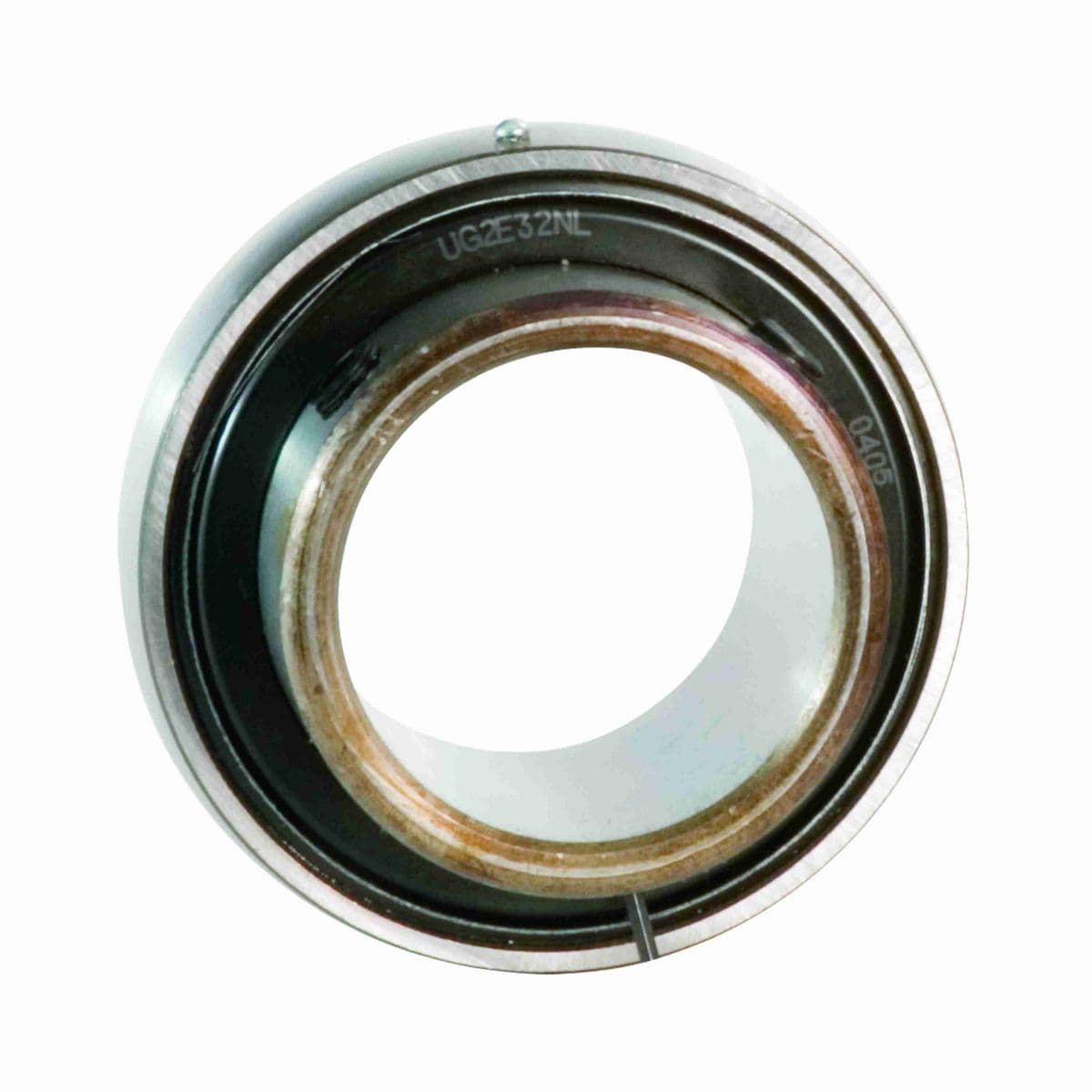

• 1 1/2" Unmounted Ball Bearing, Standard Duty, Setscrew Locking, Single Lip Contact Seal, Steel Retainer, Reversed Assembled, Relubricatable, Spherical OD

Dimensions

Bore Size (in)

1.5000 in

Technical Specifications

Maximum Temperature (C)	107 °C
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Vibration Frequency Fundamental Train	0.0065 cps
Product	UG200
Vibration Frequency Outer Ring Defect	0.0588 cps
Setscrew Torque (in-lbs)	165 in/lbs
Size Code	208
C Dynamic Load Rating	7330 lb
Type of Seal	N Lip Seal
Maximum Speed (RPM)	6000 rpm
Vibration Frequency Roller Spin	0.0367 cps
Locking Collar Width (in)	23/32 in
Locking Type	Set Screw
Lubrication Type	EXXON RONEX MP STD
Mounted Clearance	C3 STANDARD
Locking Collar Outside Diameter (in)	2 3/8 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Co Static Load Rating	4460 lb
Primary Seal	BUNA SINGLE LIP CONTACT SEAL
Vibration Frequency Inner Ring Defect	0.0912 cps
Inner Ring Width (in)	1.188 in
Bore Length (in)	1 23/32 in
Available Seal Type	E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal
Bearing Type	Standard Duty
Inner Ring Hub Diameter (in)	2.083 in
Outside Diameter (in)	3.1496 in
Outer Ring Width (in)	0.8661 in
Maximum Temperature (F)	225 °F
Retainer Type	Steel
Short Hub Length (in)	0.4330 in

General Specifications

UPC	662327814434
Weight	1.65 LB
Packaged Length	4.00 IN
Packaged Width	4.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
