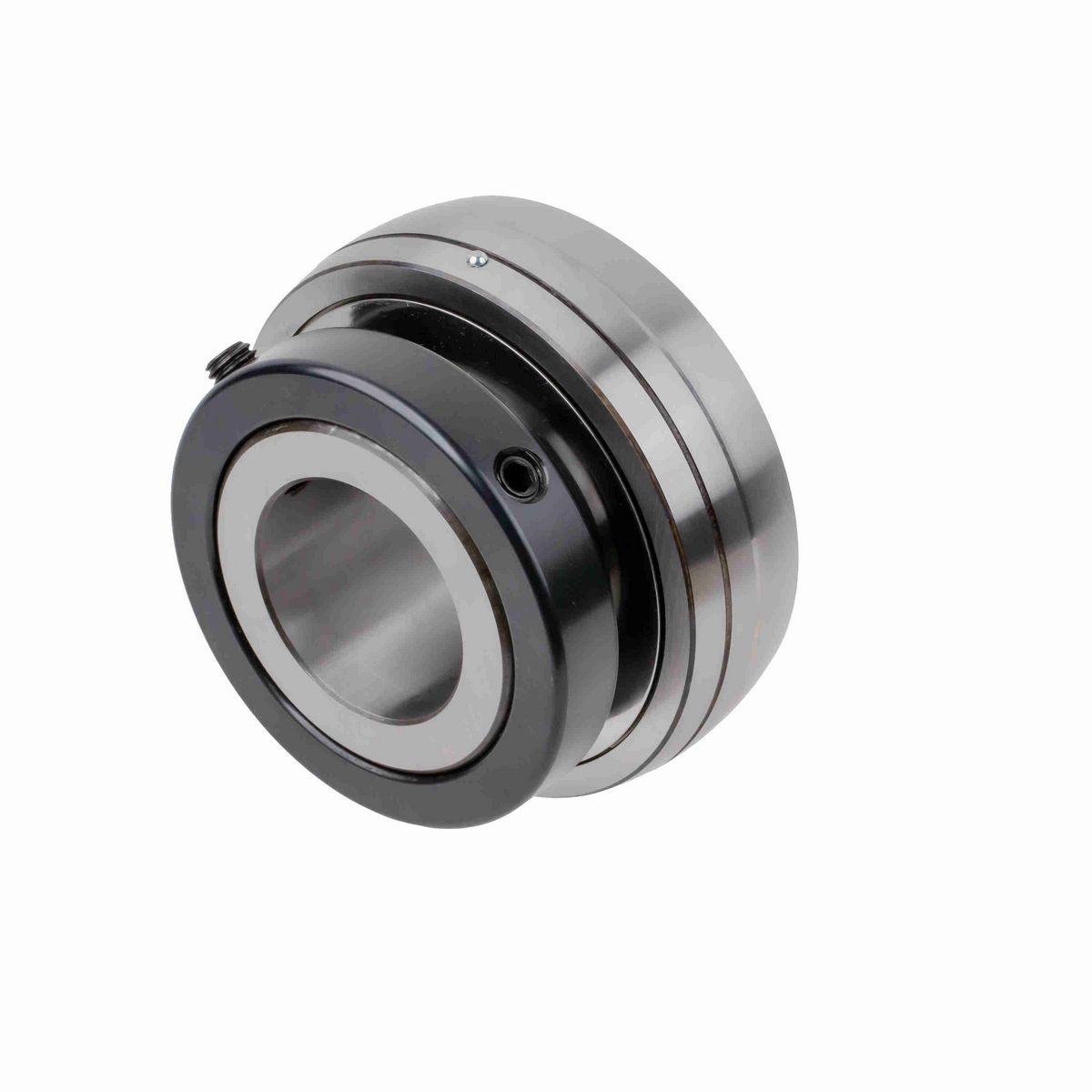

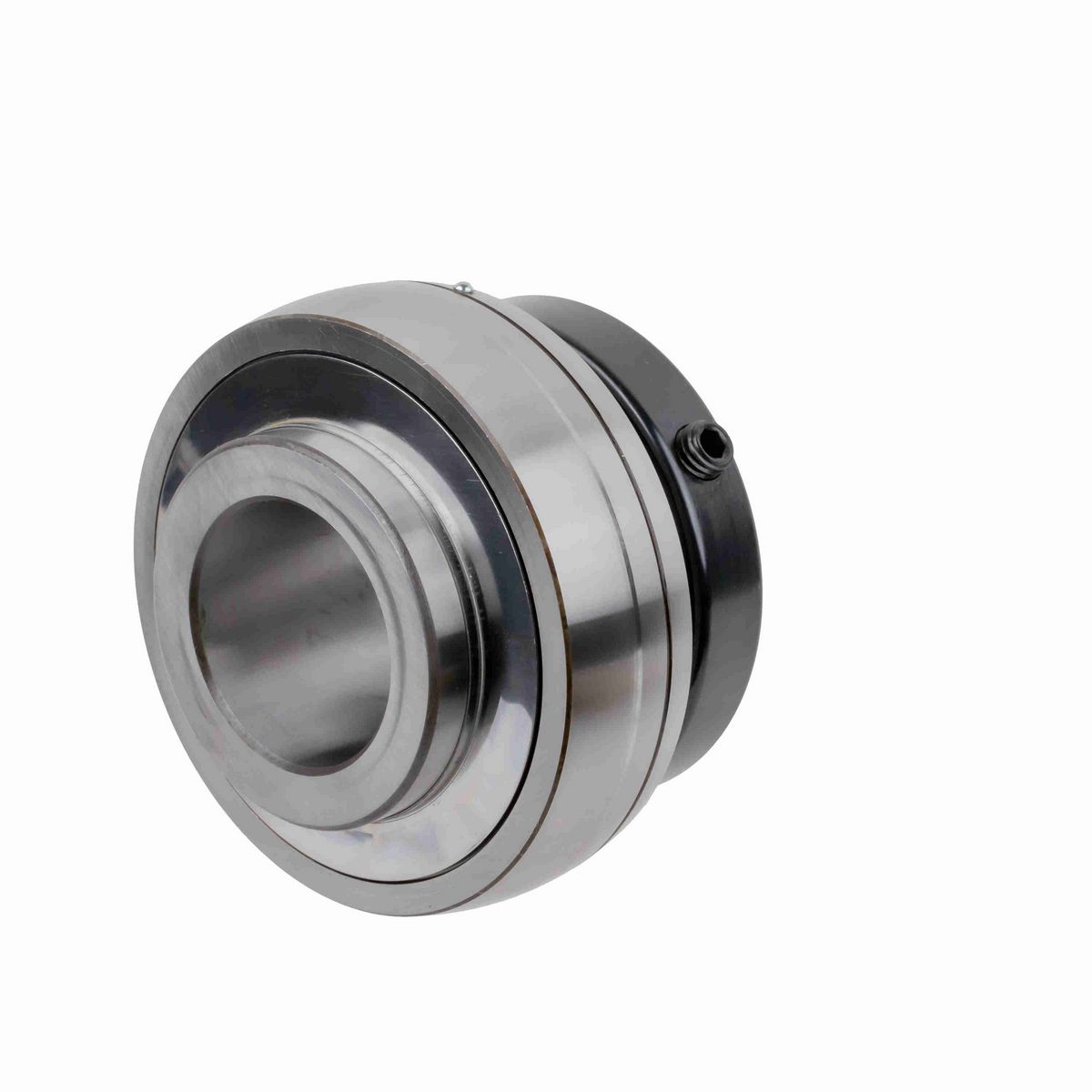

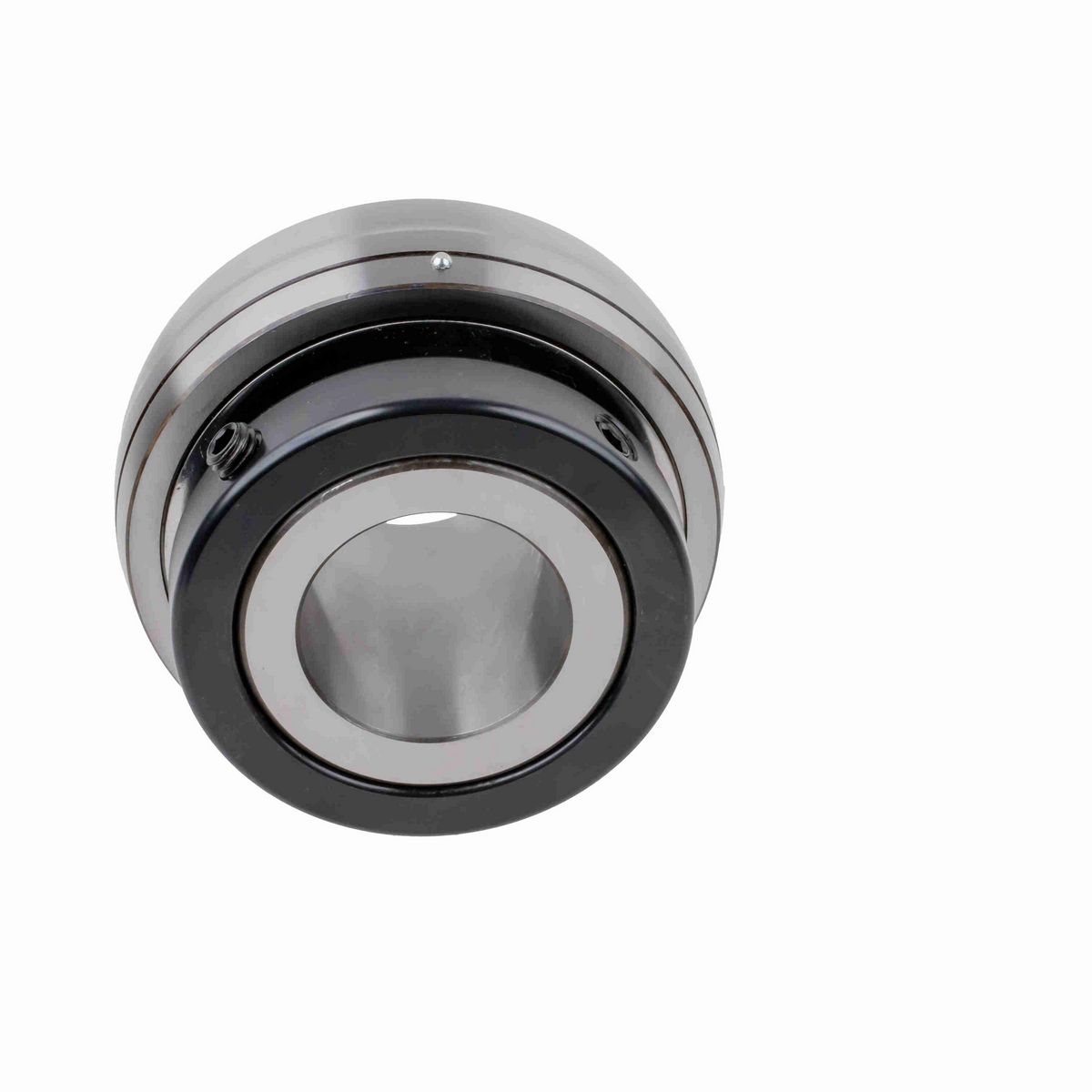

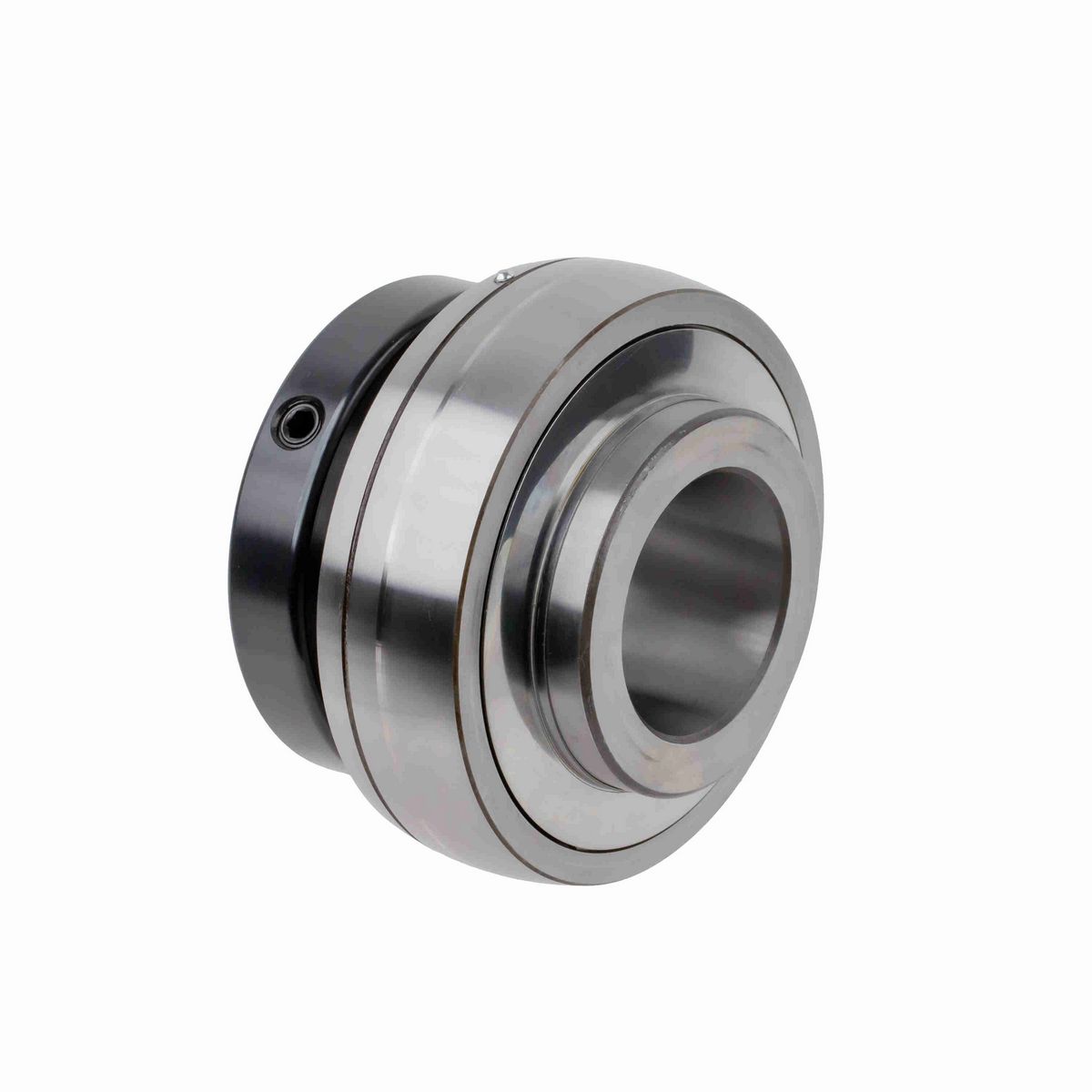

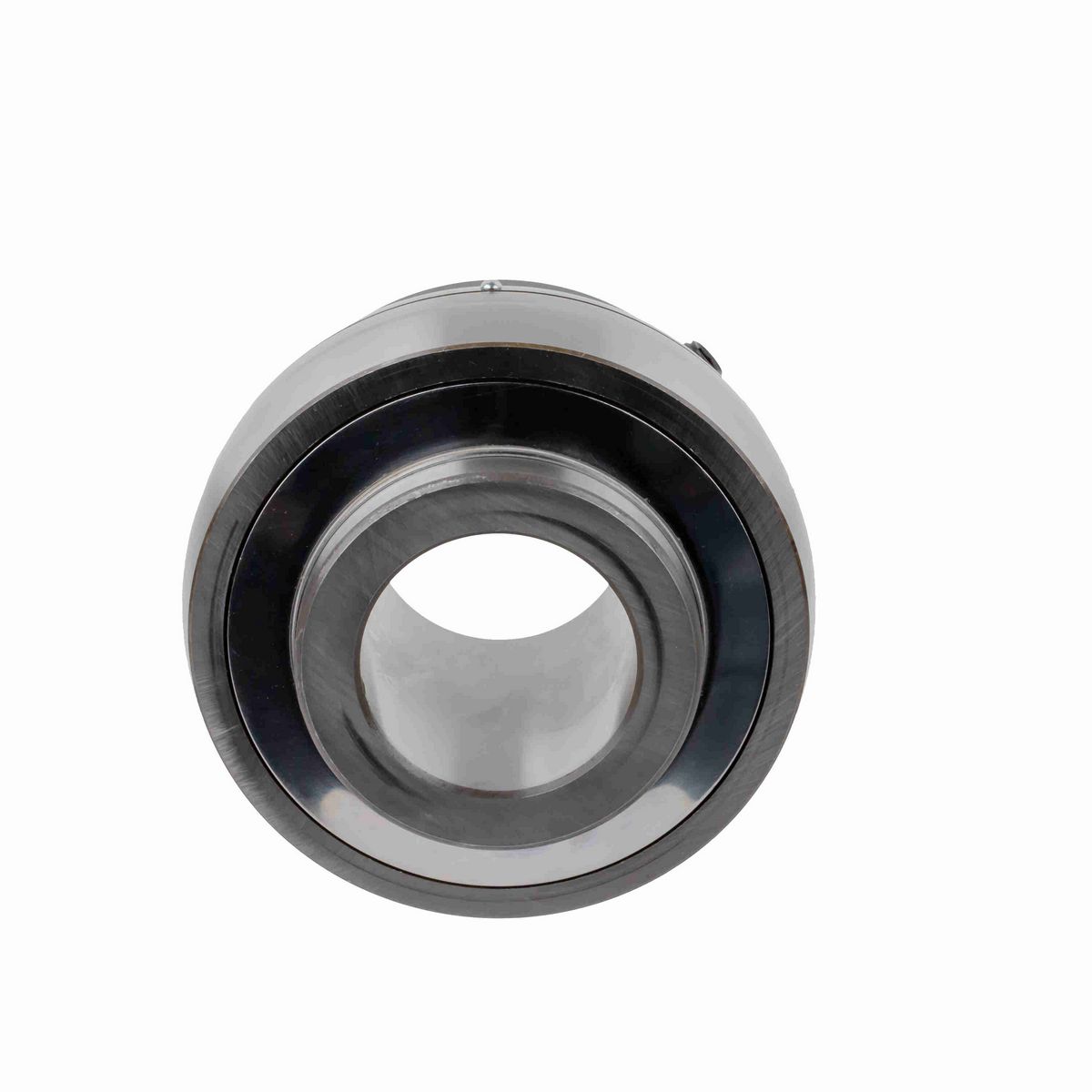

• 2" Unmounted Ball Bearing, Heavy Duty, Setscrew Locking, Clearance Seal

Dimensions

Bore Size (in)

2 in

Technical Specifications

Product	UG300
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Type of Seal	Clearance Seal
Outside Diameter (in)	4.7244 in
Maximum Temperature (F)	225 °F
Locking Device Kit	U3355S
Locking Collar Outside Diameter (in)	3 15/16 in
Size Code	335
Co Static Load Rating	10000 lb
Maximum Speed (RPM)	4950 rpm
Primary Seal	CLEARANCE SEAL WITH FLINGERS
Bearing Type	Heavy Duty
Locking Collar Width (in)	3/4 in
Bore Length (in)	3 1/16 in
Lubrication Type	EXXON RONEX MP STD
Outer Ring Width (in)	1.3386 in
Maximum Temperature (C)	107 °C
Available Seal Type	N Double Lip Seal; H Labyrinth Seal
Vibration Frequency Fundamental Train	0.0063 cps
Retainer Type	NYLON
Setscrew Torque (in-lbs)	430-460 in/lbs
Service Instructions	BR3-007 LB 200 BALL-300 BALL
C Dynamic Load Rating	16070 lb
Vibration Frequency Outer Ring Defect	0.0510 cps
Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0333 cps
Mounted Clearance	C3 STANDARD
Inner Ring Hub Diameter (in)	2.959 in
Short Hub Length (in)	1 7/32 in
Vibration Frequency Inner Ring Defect	0.0823 cps

General Specifications

UPC	662327708757
Weight	6.61 LB
Packaged Length	5.50 IN
Packaged Width	5.50 IN
Packaged Height	3.25 IN
HTC	8482105056
Country of Origin	Mexico
