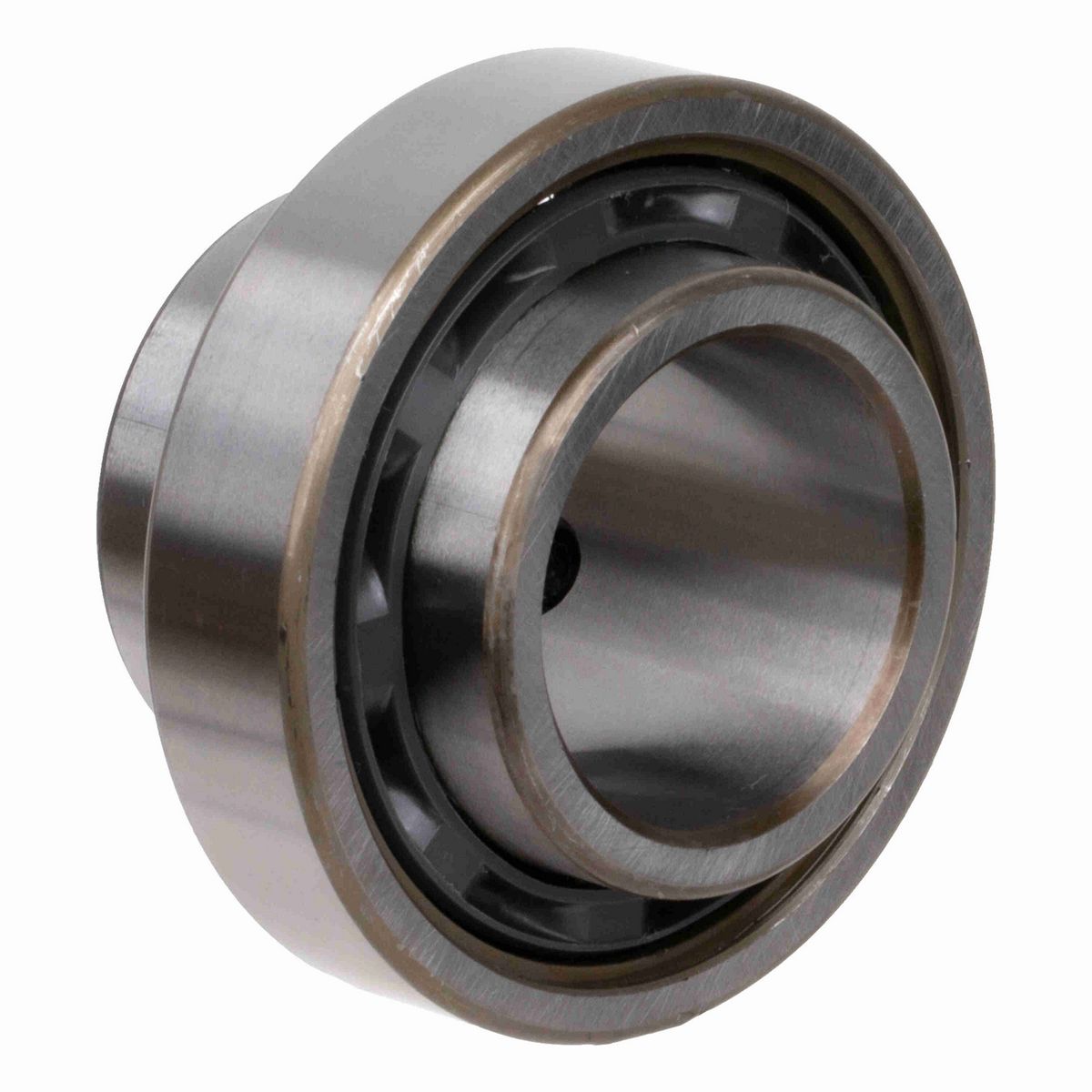

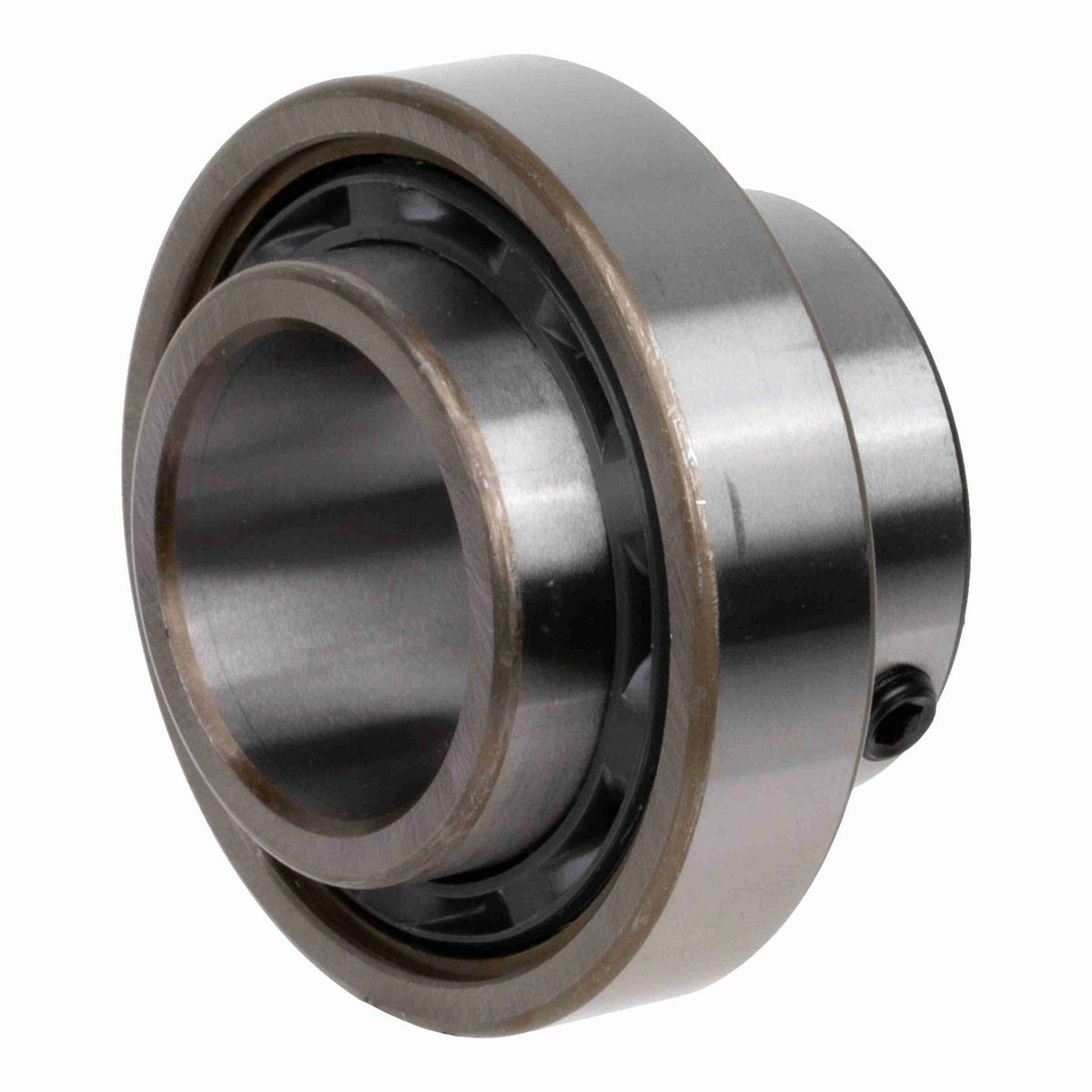

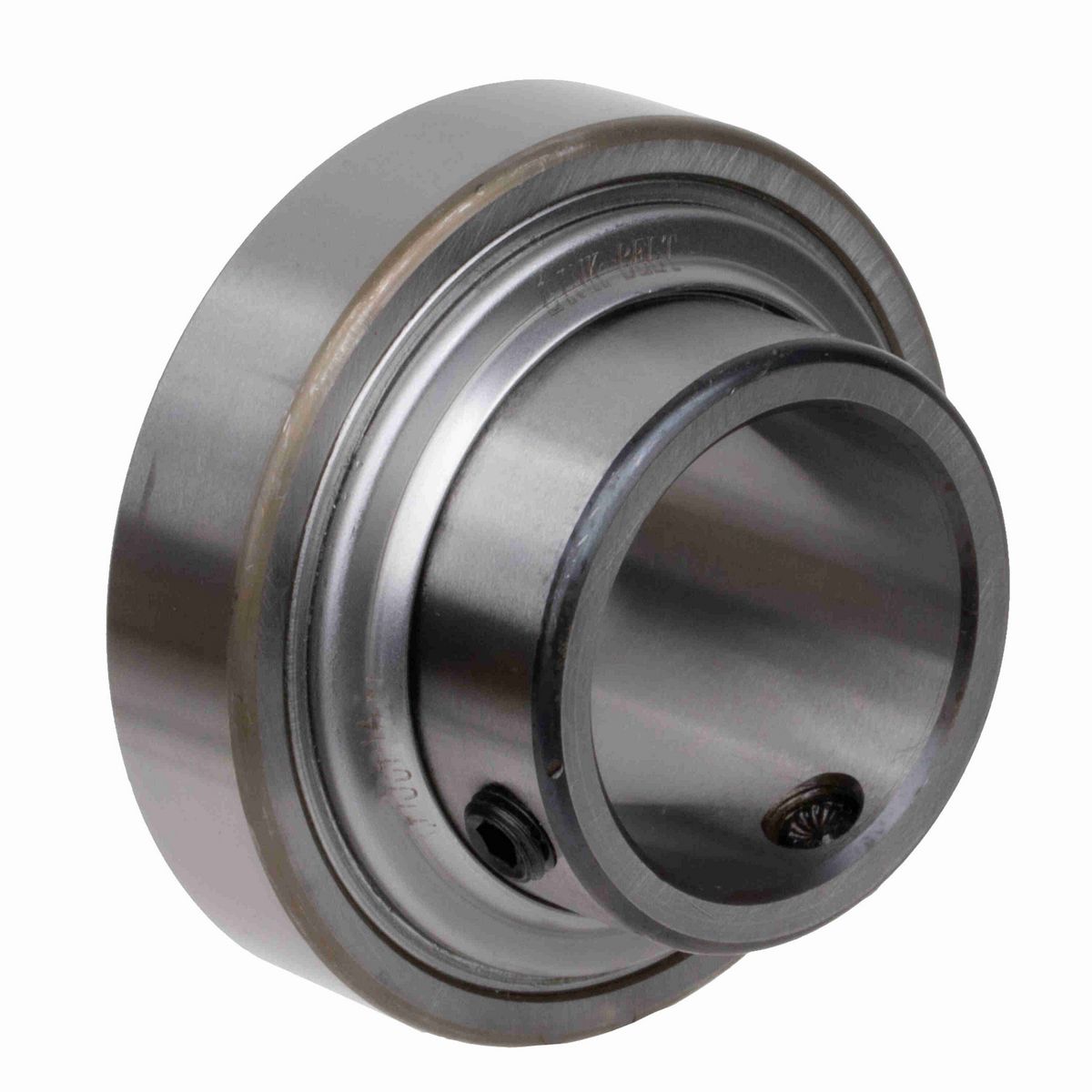

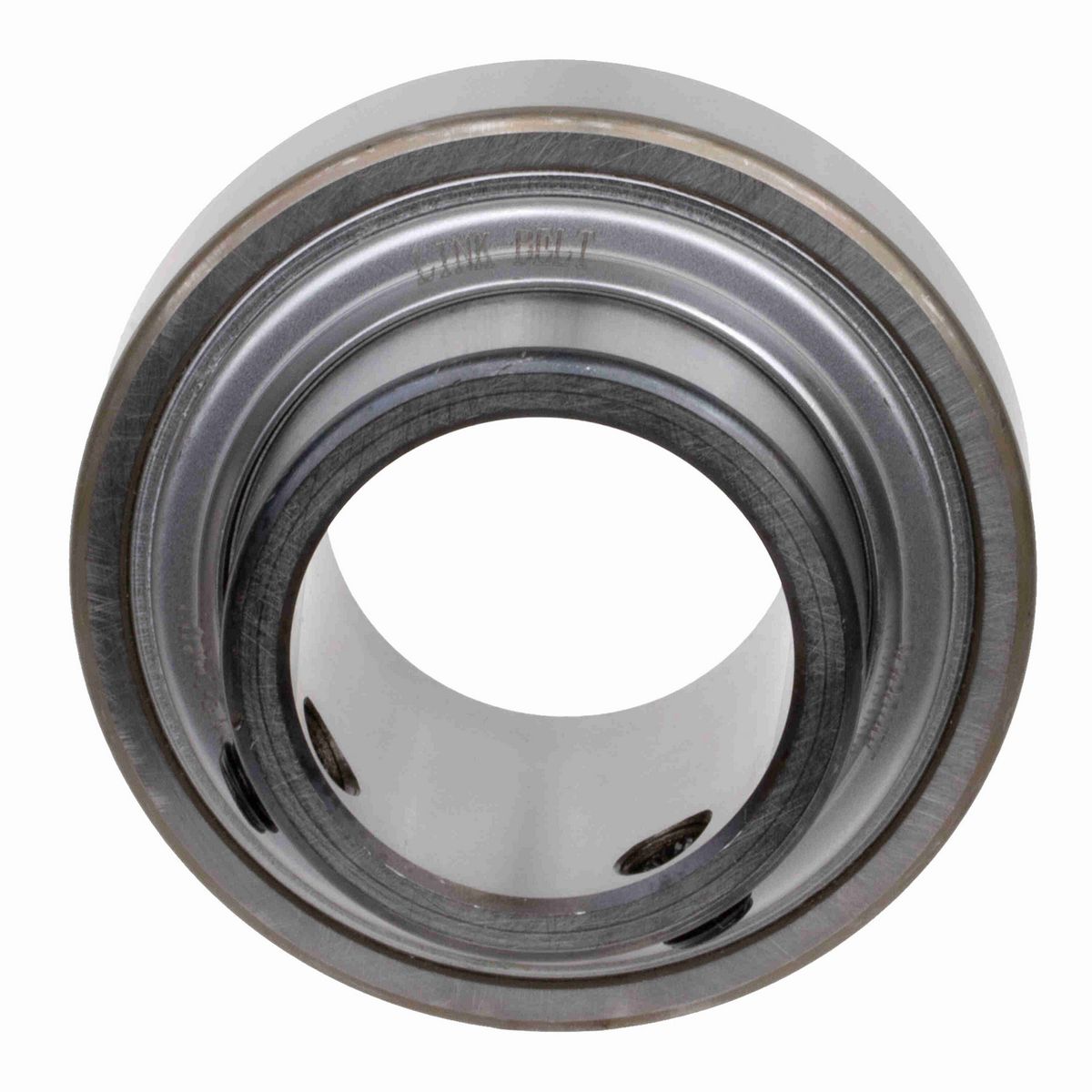

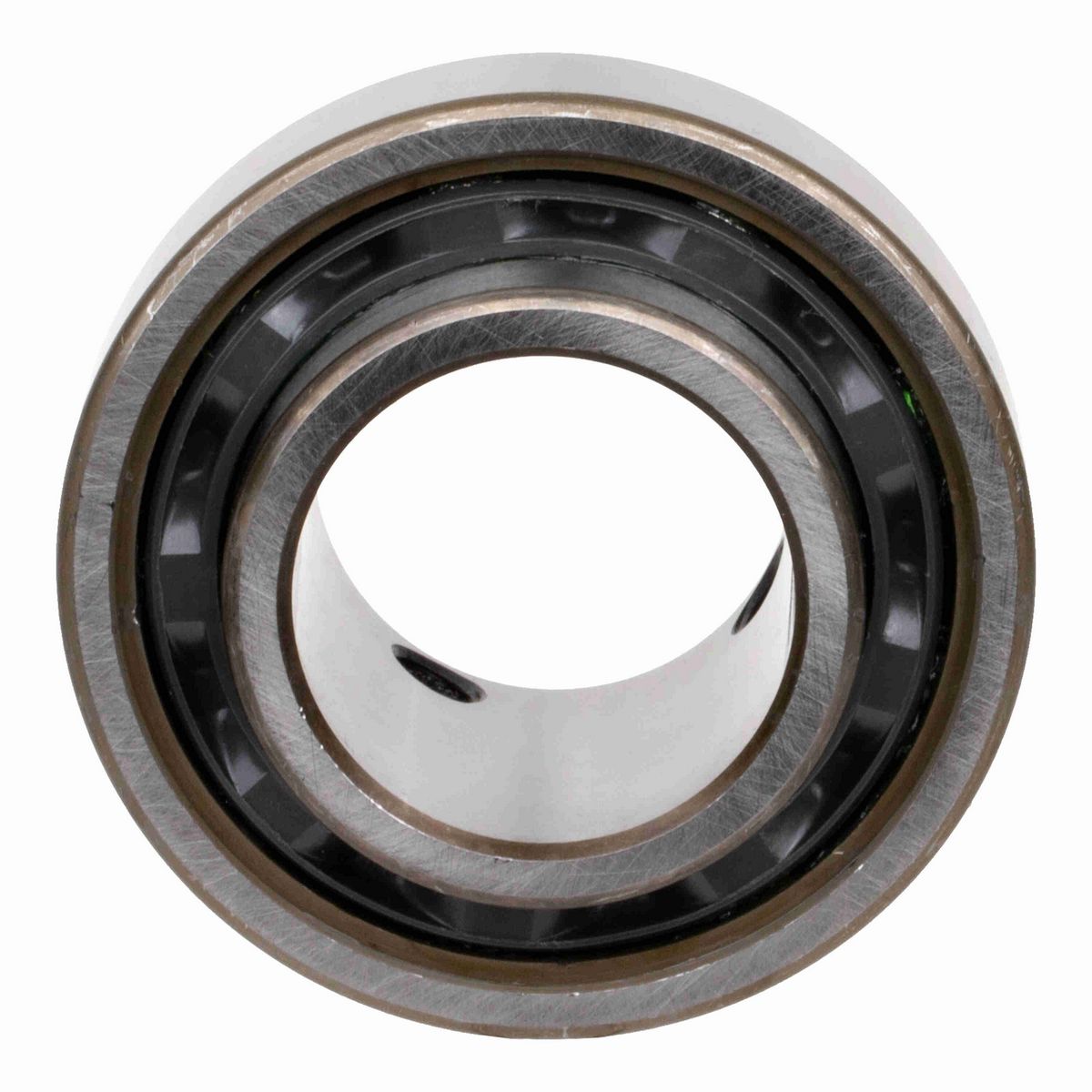

• 1 7/16" Unmounted Ball Bearing, Standard Duty, Setscrew Locking, Clearance Seal, Seal Omitted on Side Opposite the Setscrews, Non-relubricatable, Cylindrical OD

Dimensions

Bore Size (in)

1.4375 in

Technical Specifications

Bore Length (in)	1 49/64 in
Distance from Inner Ring Long Hub Face to Centerline of Setscrew (in)	0.25 in
Outer Ring Width (in)	0.6693 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Available Seal Type	E3 Triple Lip Seal; N Lip Seal; H Labyrinth Seal
Vibration Frequency Outer Ring Defect	0.0595 cps
Outside Diameter (in)	2.8346 in
Locking Type	Set Screw
Mounted Clearance	C3 STANDARD
Maximum Temperature (F)	225 °F
Inner Ring Hub Diameter (in)	1.847 in
Type of Seal	Clearance Seal
Retainer Type	NYLON
Service Instructions	BR3-007 LB 200 BALL-300 BALL
Size Code	207
Vibration Frequency Fundamental Train	0.0067 cps
Lubrication Type	EXXON RONEX MP STD
Bearing Type	Standard Duty
Co Static Load Rating	3440 lb
Product	UB200
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Temperature (C)	107 °C
Setscrew Torque (in-lbs)	165 in/lbs
Primary Seal	STL CLR LKG SIDE ONLY
Outer Ring Fillet Radius (in)	0.039 in
C Dynamic Load Rating	5810 lb
Maximum Speed (RPM)	6850 rpm
Short Hub Length (in)	0.6563 in
Distance from Bearing Centerline to Centerline of Lube Hole (in)	0.227 in

General Specifications

UPC	662327241162
Weight	0.93 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8482105052
Country of Origin	Mexico
