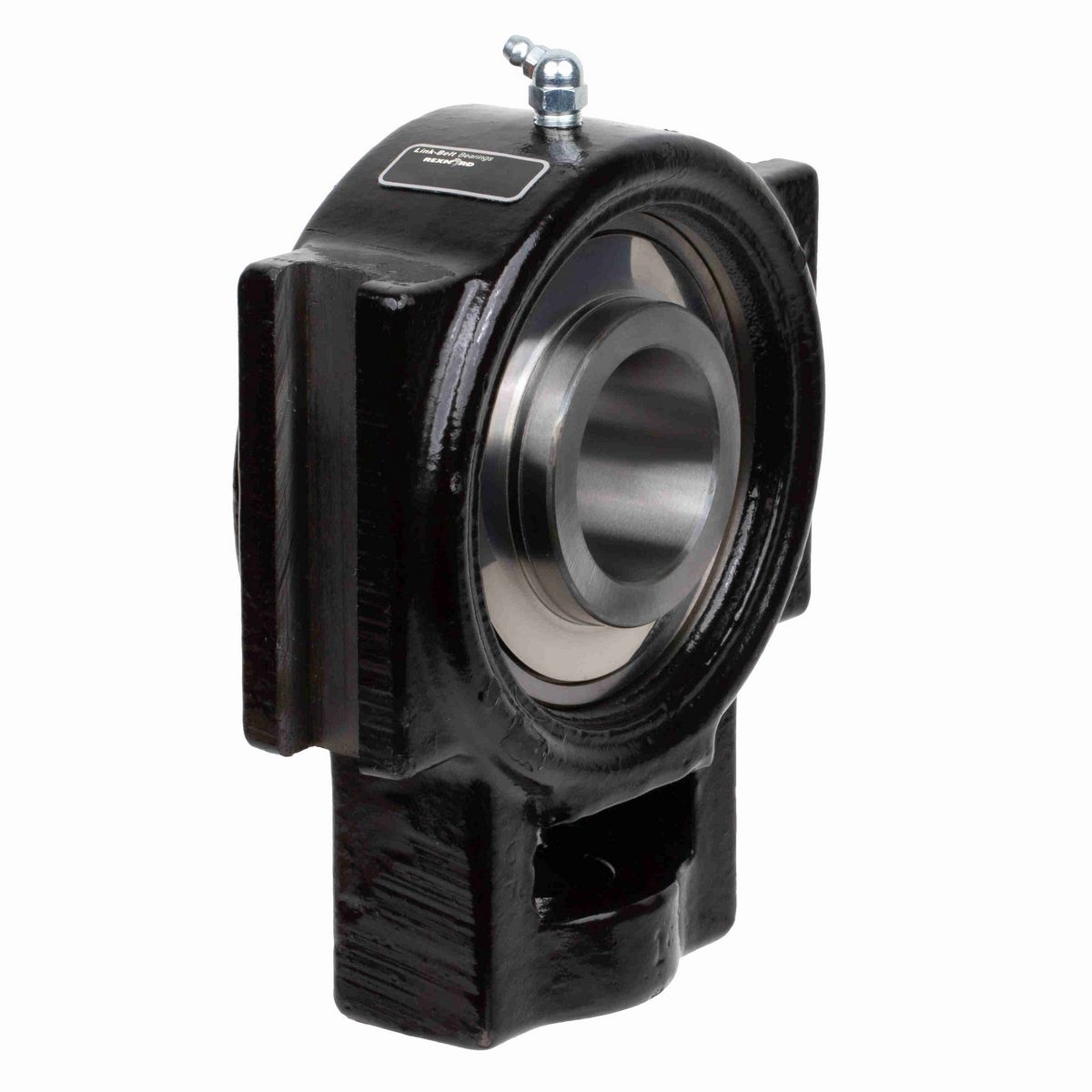

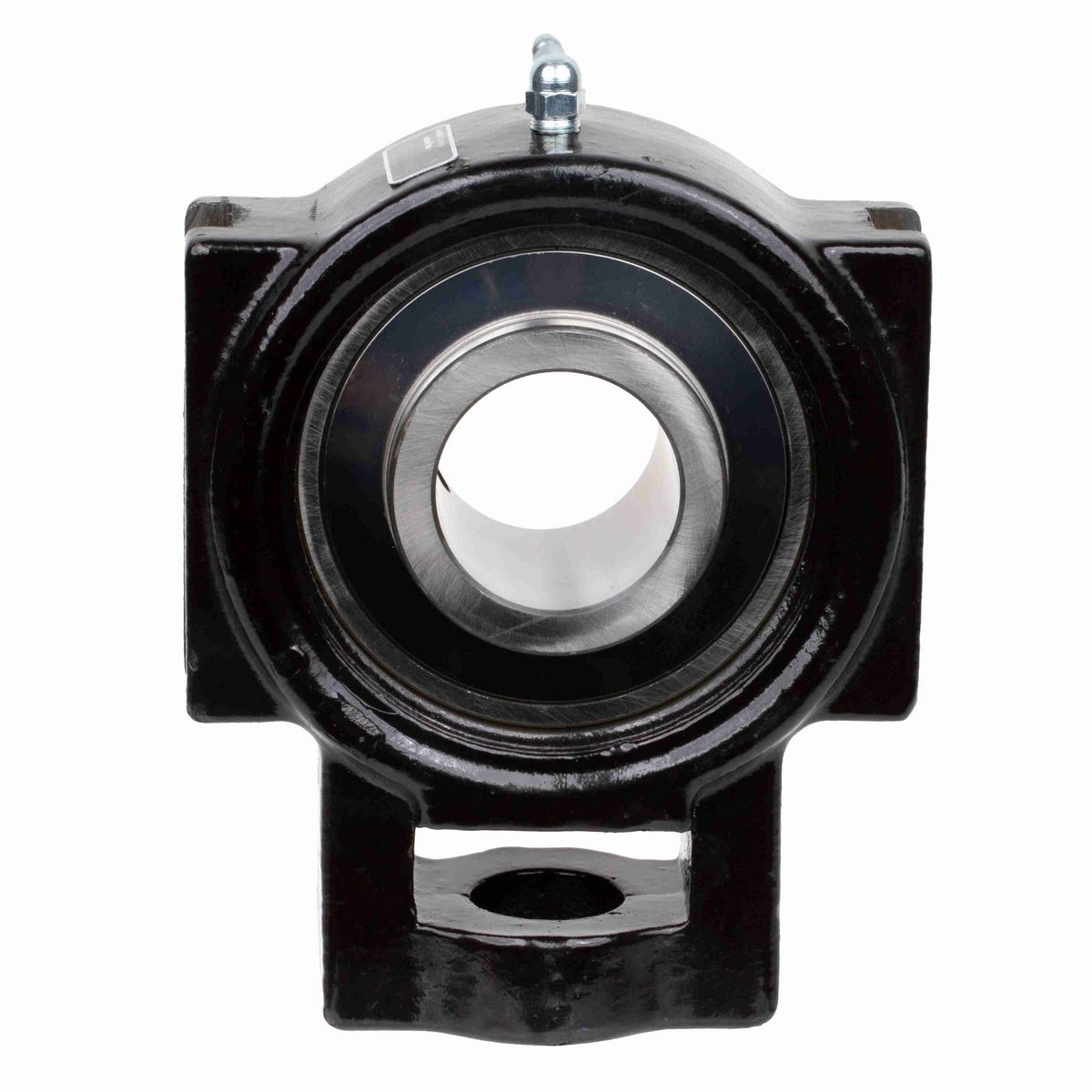

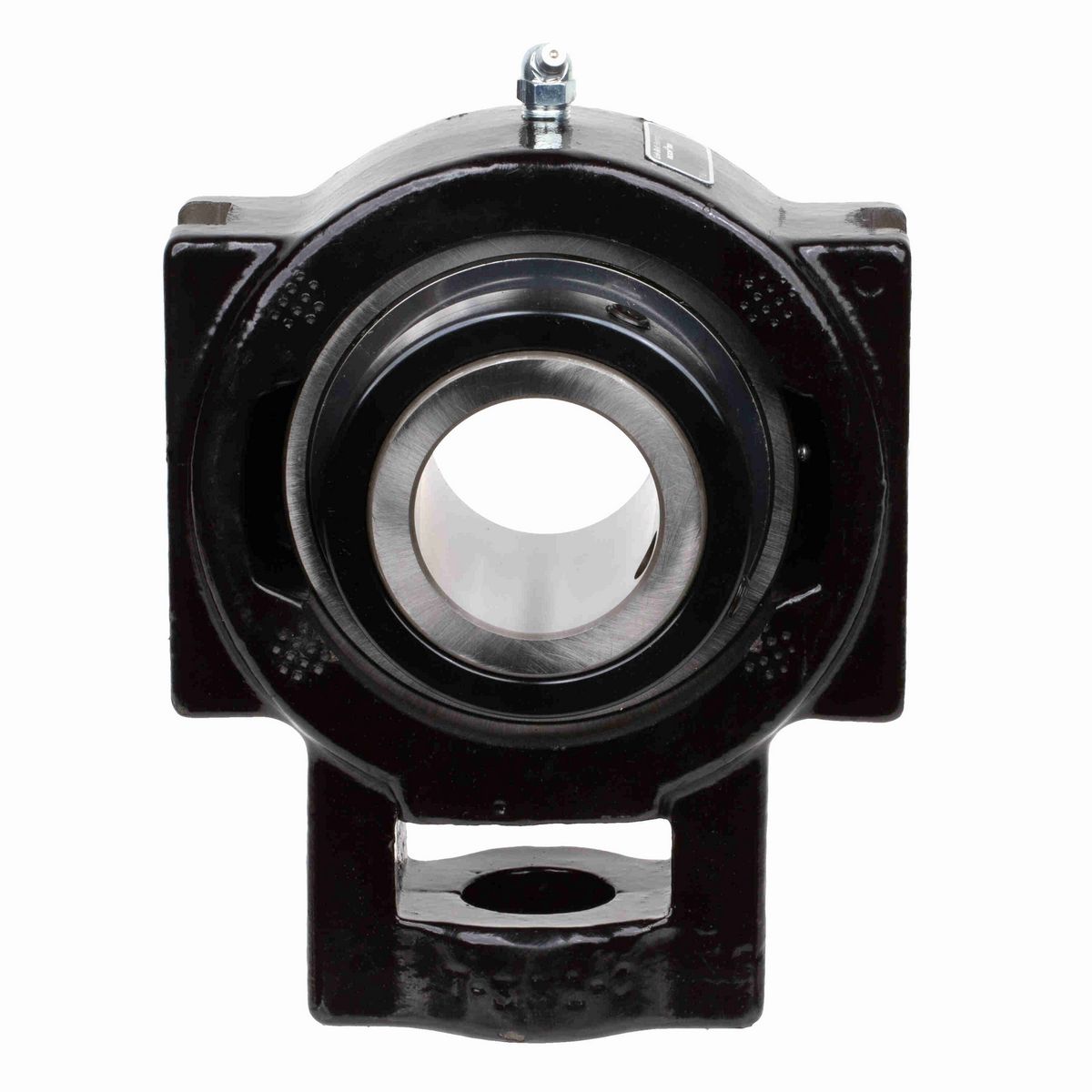

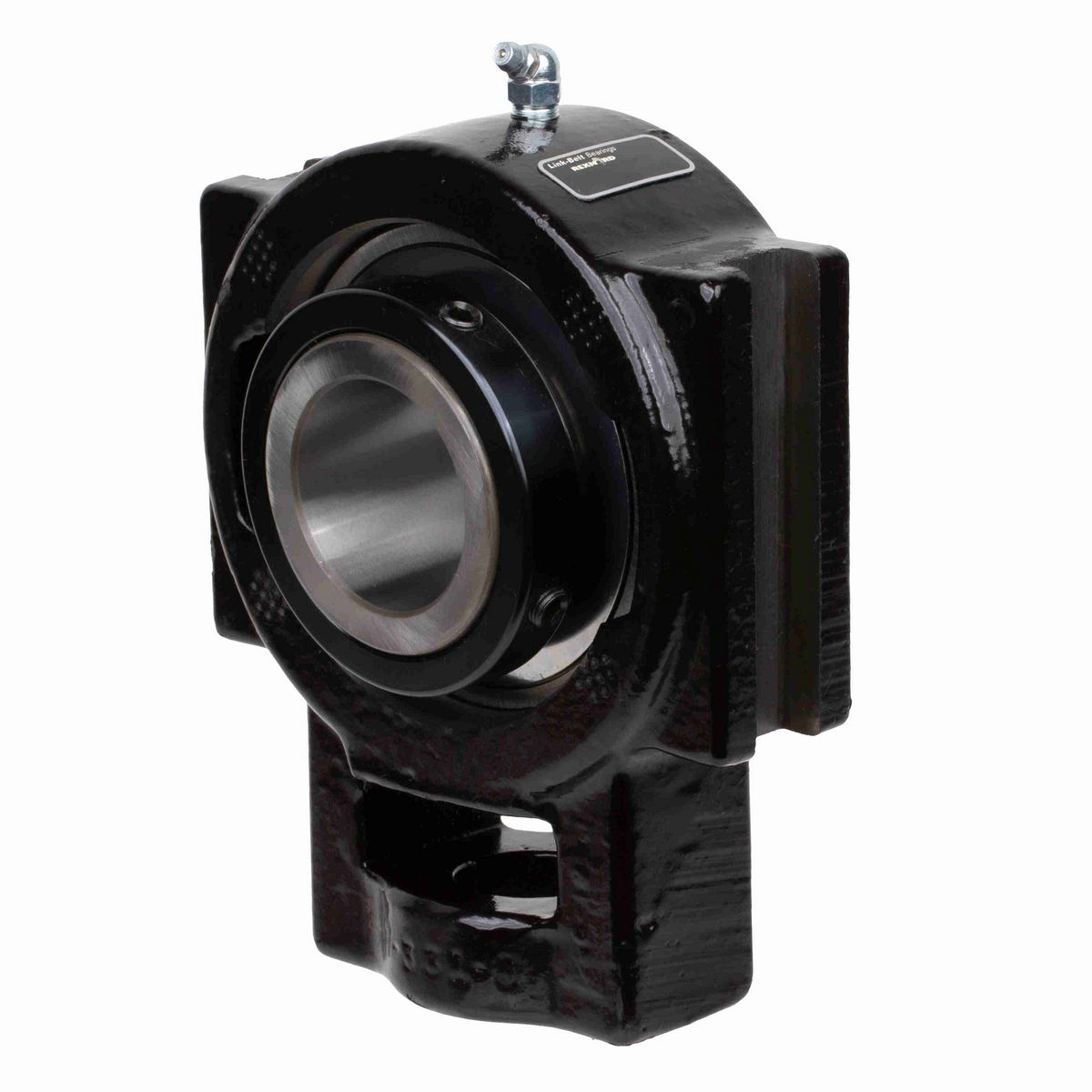

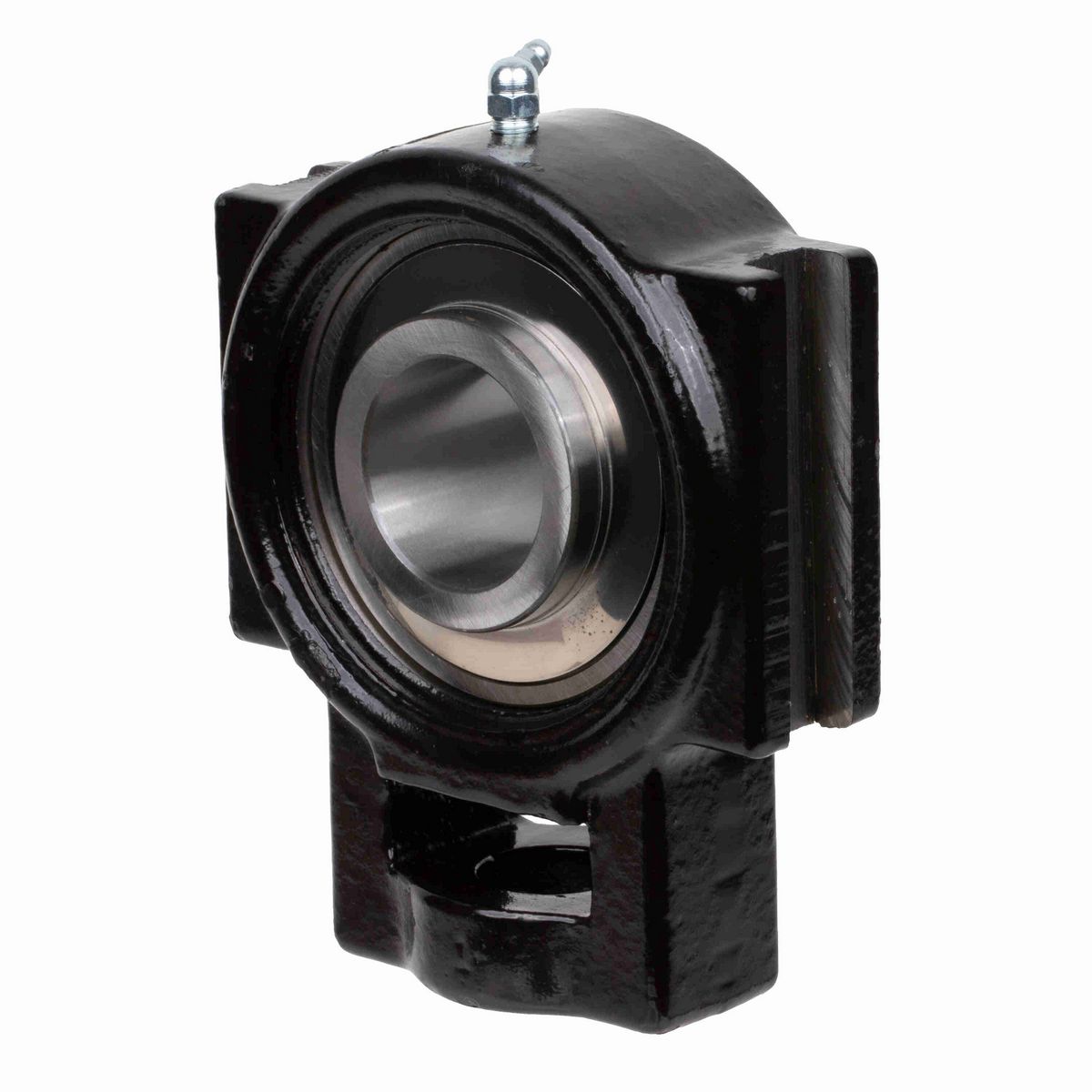

• 1 15/16" Mounted Ball Bearing, Heavy Duty, Cast Iron Fixed Take-up Block, Setscrew Locking, Clearance Seal

Dimensions

Overall Width (in)	2.82 in
Overall Height (in)	5.88 in
Overall Length (in)	7.38 in
Slot Width (in)	0.812 in
Base to Center Height (in)	4.63 in
Bore Diameter (in)	1.9375 in
Length Through Bore (in)	2.82 in
Slot Spacing (in)	5.125 in
Centerline to Outermost Bearing Face (in)	1.67 in

Technical Specifications

Outer Ring Land Profile	Standard
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Slot Length (in)	4 in
Seal Type	Labryinth Seal
Housing Style	Take-Up Block
Housing Construction	One Piece
Rolling Element	Ball Bearing
Housing Type	Take-Up Block, Wide Slot
Housing Color	Black
Carriage Bolt Size (in)	1 in
Adjusting Screw Square Nut Seat Height (in)	2.25 in
Locking Collar Outside Diameter (in)	3.42 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Ability to Relubricate	Yes
Adjusting Screw Clearance Hole Diameter (in)	1.25 in
Vibration Frequency Fundamental Train	0.0063 cps
Radial Clearance	C3 STANDARD
Grease Fitting Thread Size	1/8 NPT
Misalignment Capability	±1.5° Misalignment - Static Only
Lubricant	EXXON RONEX MP STD
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Maximum Speed (RPM)	5600 rpm
End Cap Available	Yes
Vibration Frequency Inner Ring Defect	0.0825 cps
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	U3315S
Cage Type	Ball Riding Retainer
Max Operating Temperature (F)	225 °F
Static Load Rating (lb)	8,500 lb
Vibration Frequency Roller Spin	0.0330 cps
End Cap	U3316C
Bearing Type	Heavy Duty
Fixed vs. Expansion	Fixed
Size Code	331
Insert	UG331L
Dynamic Load Rating (lb)	13,900 lb
Centerline to Cap Face (in)	1.97
Vibration Frequency Outer Ring Defect	0.0508 cps
Housing Coating	Powder Coated
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Max Operating Temperature (C)	107 °C
Inner Ring Outside Diameter (in)	2.701 in

General Specifications

UPC	662327707903
Weight	13.45 LB
Packaged Length	8.38 IN
Packaged Width	2.88 IN
Packaged Height	8.38 IN
HTC	8483204040
Country of Origin	Mexico
