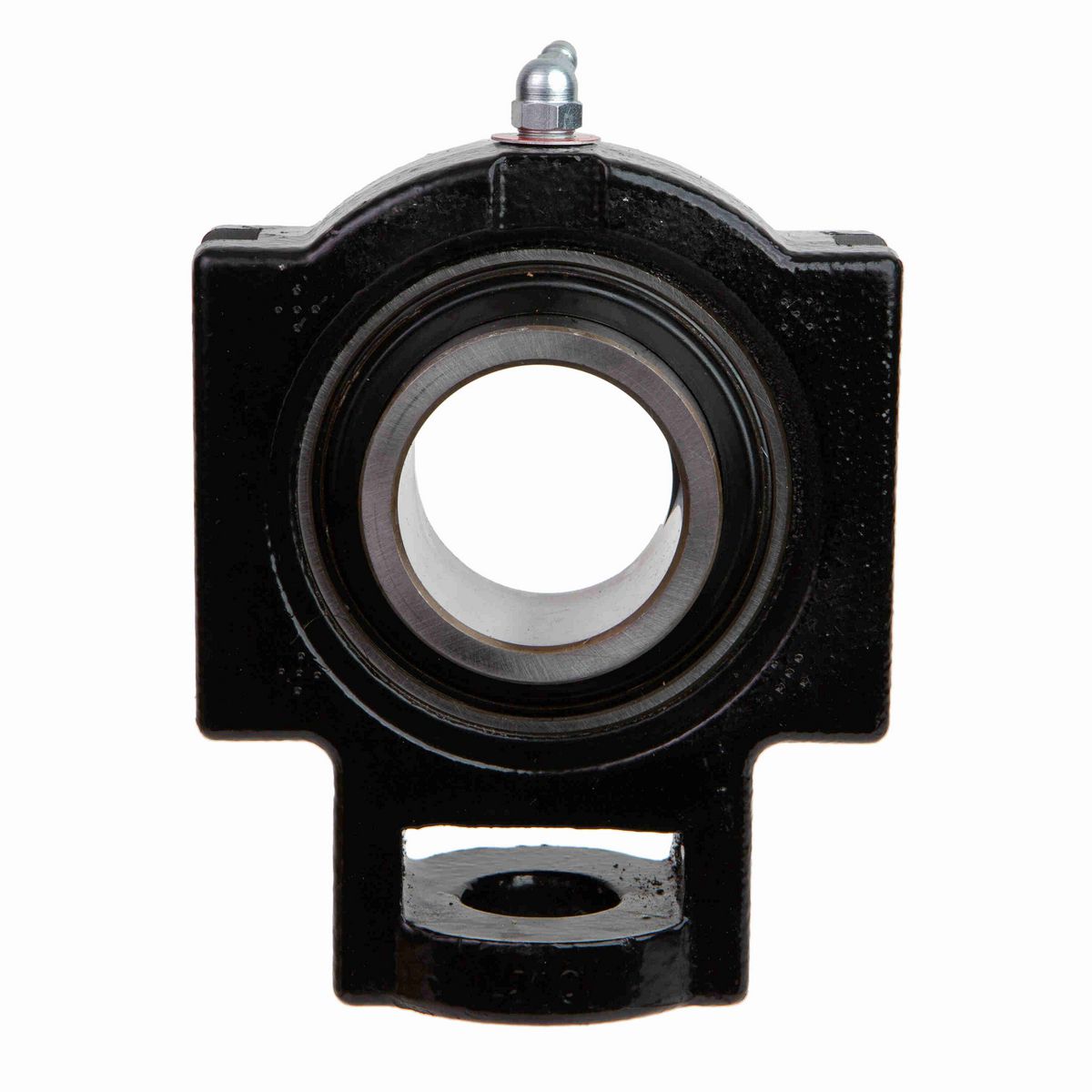

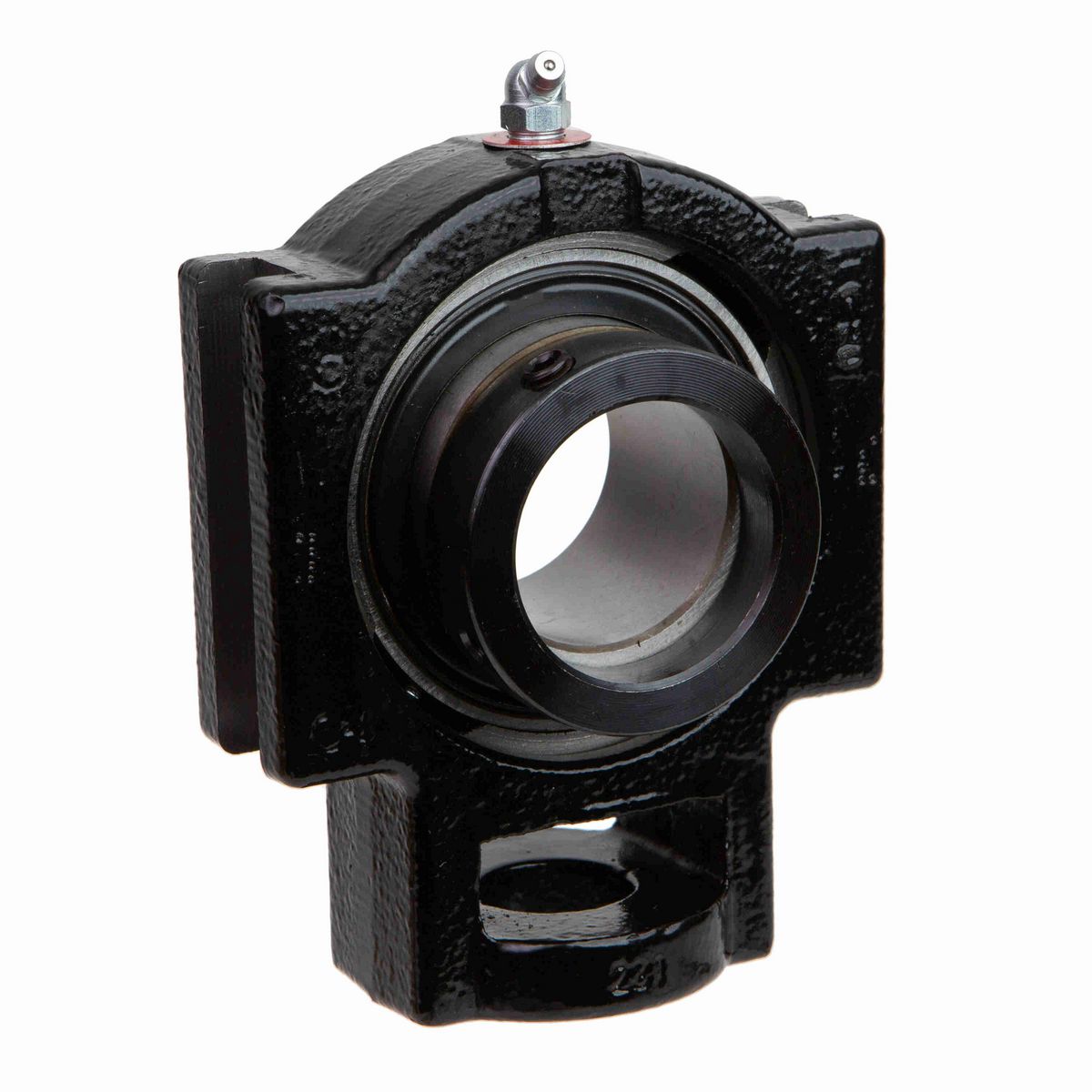

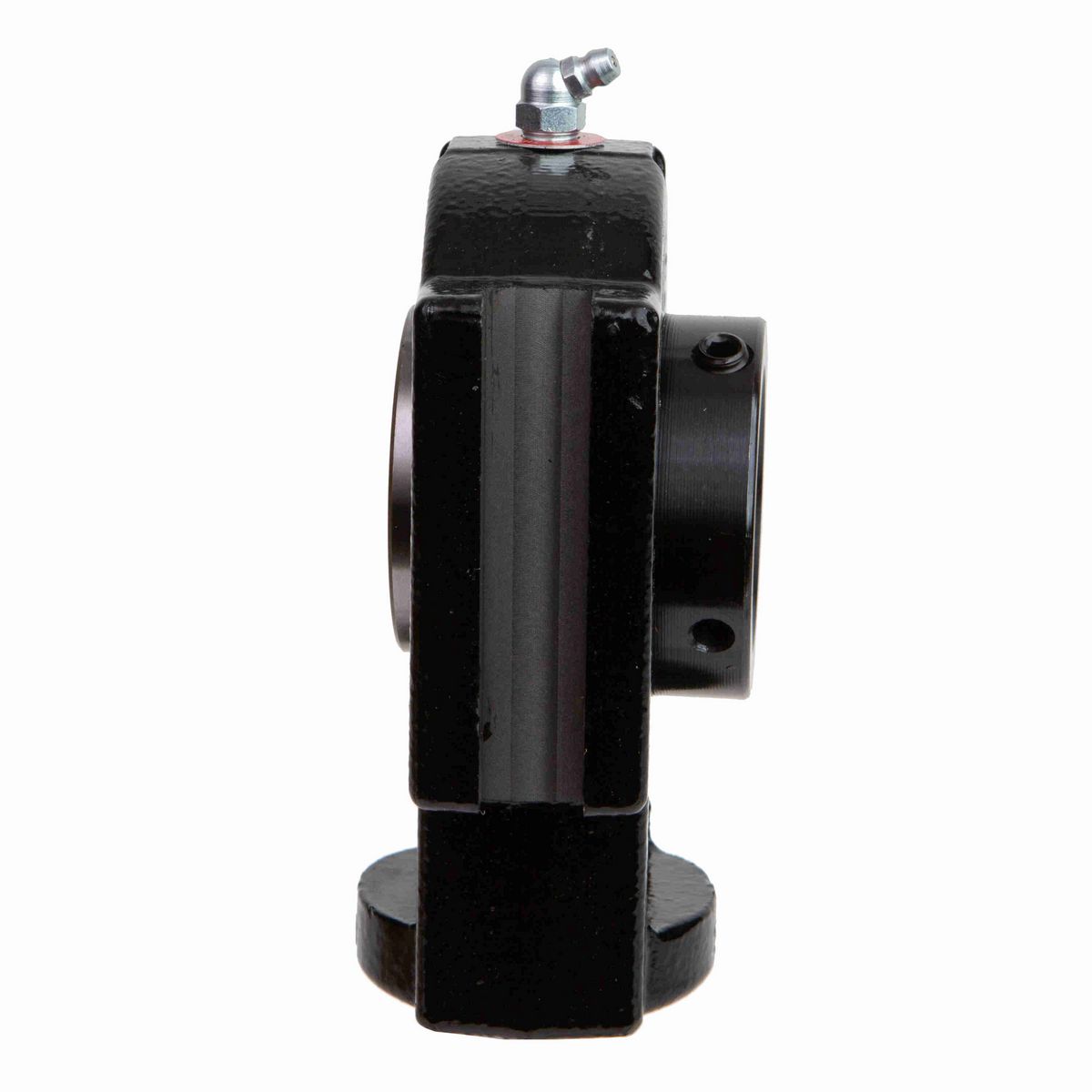

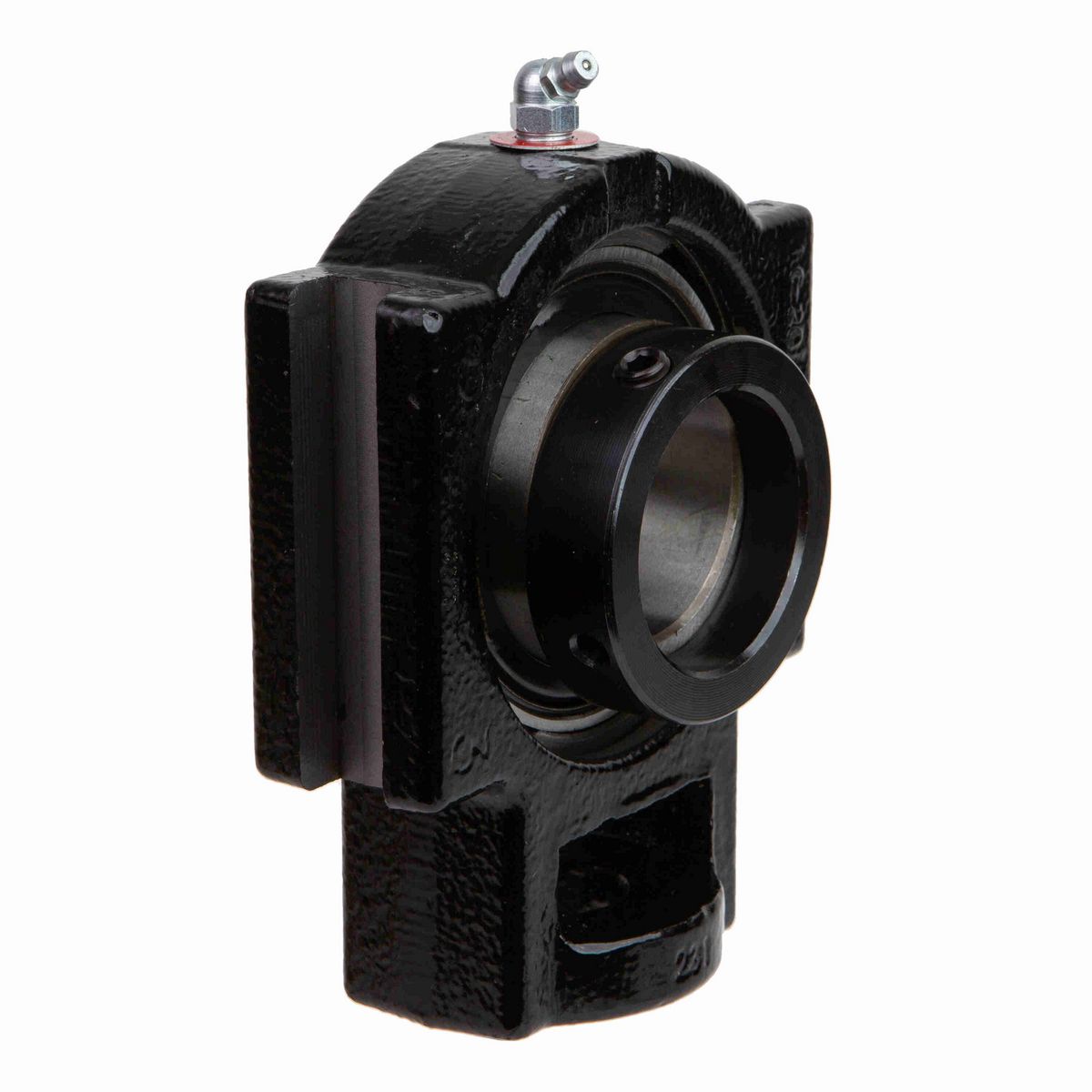

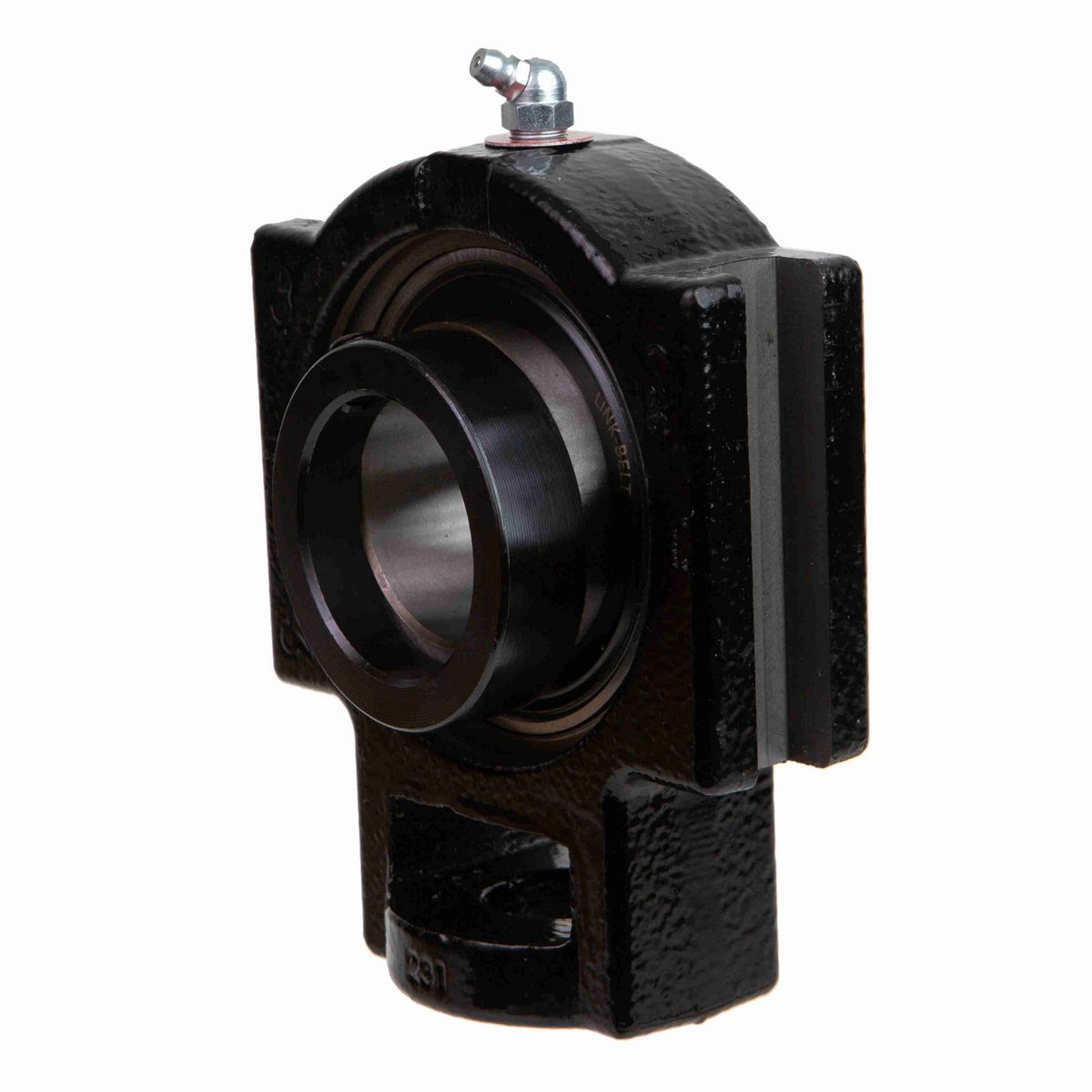

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron Wide Slot Take-up Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Slot Width (in)	0.688 in
Bore Diameter (in)	1.9375 in
Overall Length (in)	5.93 in
Overall Width (in)	2.56 in
Base to Center Height (in)	3.59 in
Overall Height (in)	4.75 in
Length Through Bore (in)	2.47 in
Slot Spacing (in)	3.968 in
Centerline to Outermost Bearing Face (in)	1.5 in

Technical Specifications

Slot Length (in)	3.38 in
Housing Style	Take-Up Block
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Type	Take-Up Block, Wide Slot
Housing Color	Black
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Cage Material	Molded fiber glass reinforced nylon
Outer Ring Land Profile	Standard
Housing Construction	One Piece
Misalignment Type	Static Only
Ability to Relubricate	Yes
Adjusting Screw Clearance Hole Diameter (in)	1.13 in
Carriage Bolt Size (in)	3/4 in
Setscrew Torque (in-lbs)	290-325 in/lbs
Adjusting Screw Square Nut Seat Height (in)	1.94 in
Locking Collar Outside Diameter (in)	2.69 in
Inner Ring Outside Diameter (in)	2.475 in
Max Operating Temperature (F)	225 °F
Maximum Speed (RPM)	4800 rpm
Bearing Type	Standard Duty
Vibration Frequency Outer Ring Defect	0.0682 cps
Cage Type	Ball Riding Retainer
Static Load Rating (lb)	5,220 lb
Bearing Brand	LINK-BELT 200 SERIES BALL
Max Operating Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0068 cps
Dynamic Load Rating (lb)	7,920 lb
Lubricant	EXXON RONEX MP STD
Locking Device Kit	W2315S
End Cap	Y2316N
Housing Material	Cast Iron
Shaft Locking Type	Eccentric
Insert	YG231NL
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Misalignment Capability	±1.5° Misalignment - Static Only
Fixed vs. Expansion	Fixed
End Cap Available	Yes
Vibration Frequency Roller Spin	0.0445 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Inner Ring Defect	0.0985 cps
Size Code	210
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662327147860
Weight	7.00 LB
Packaged Length	7.25 IN
Packaged Width	2.25 IN
Packaged Height	7.25 IN
HTC	8483204040
Country of Origin	Mexico
