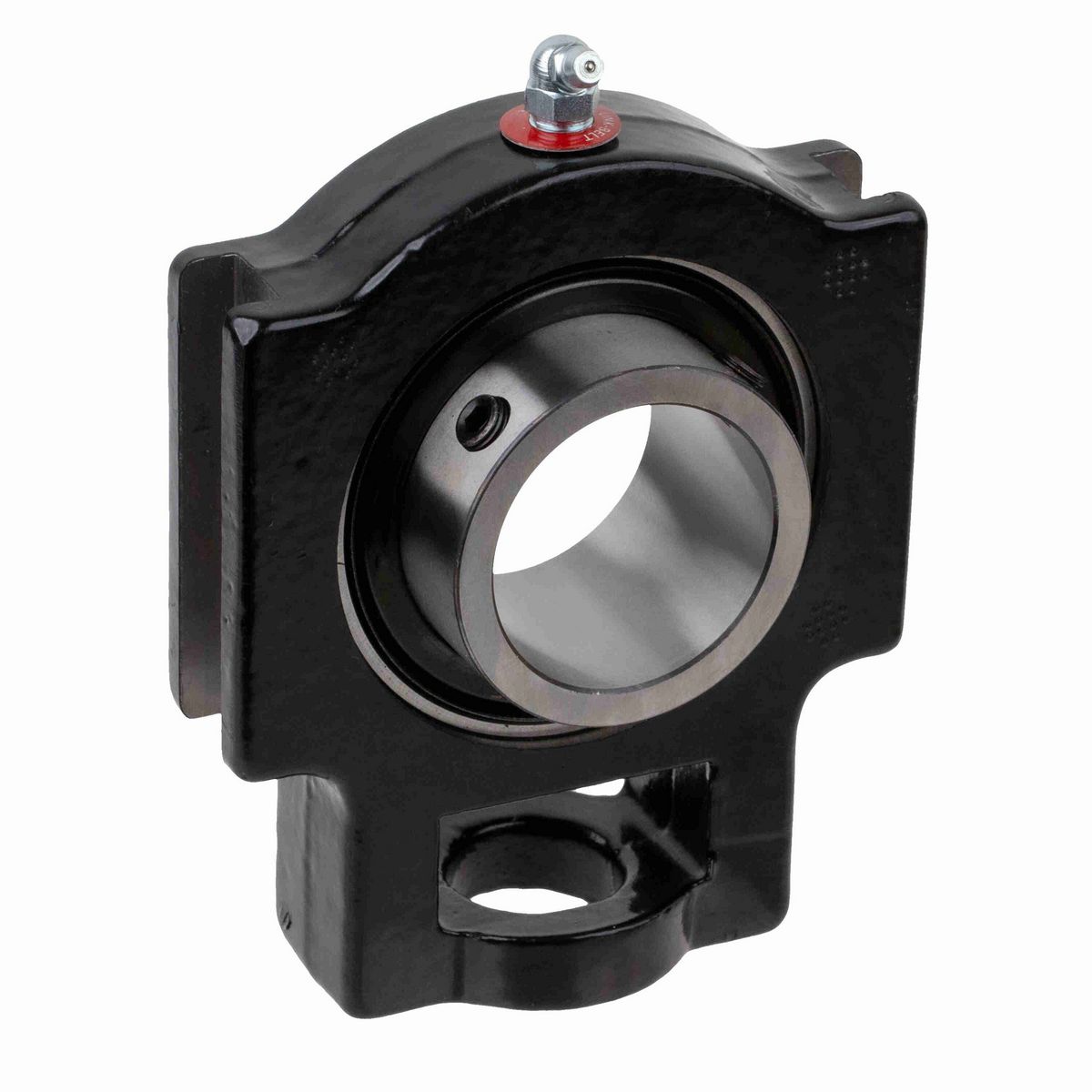

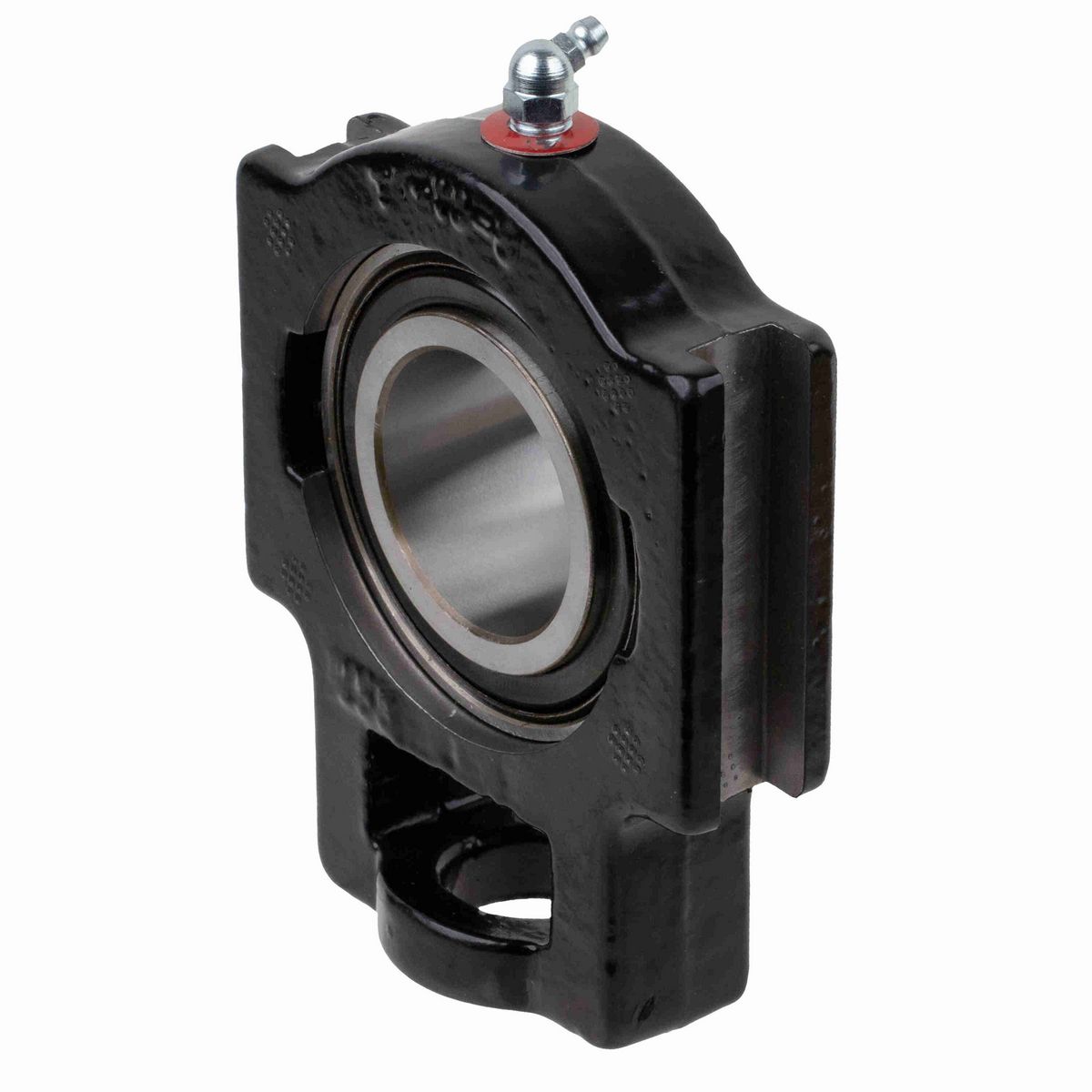

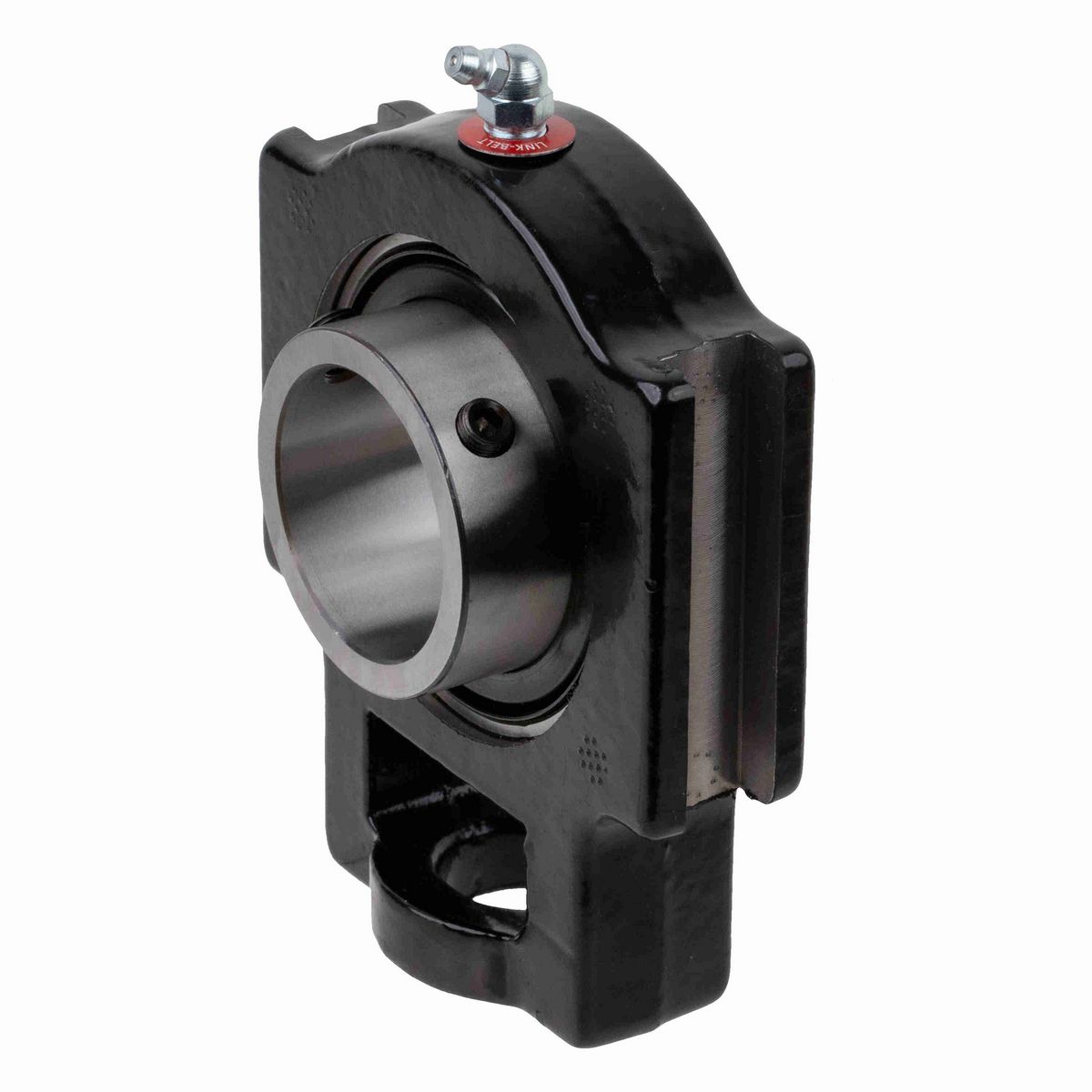

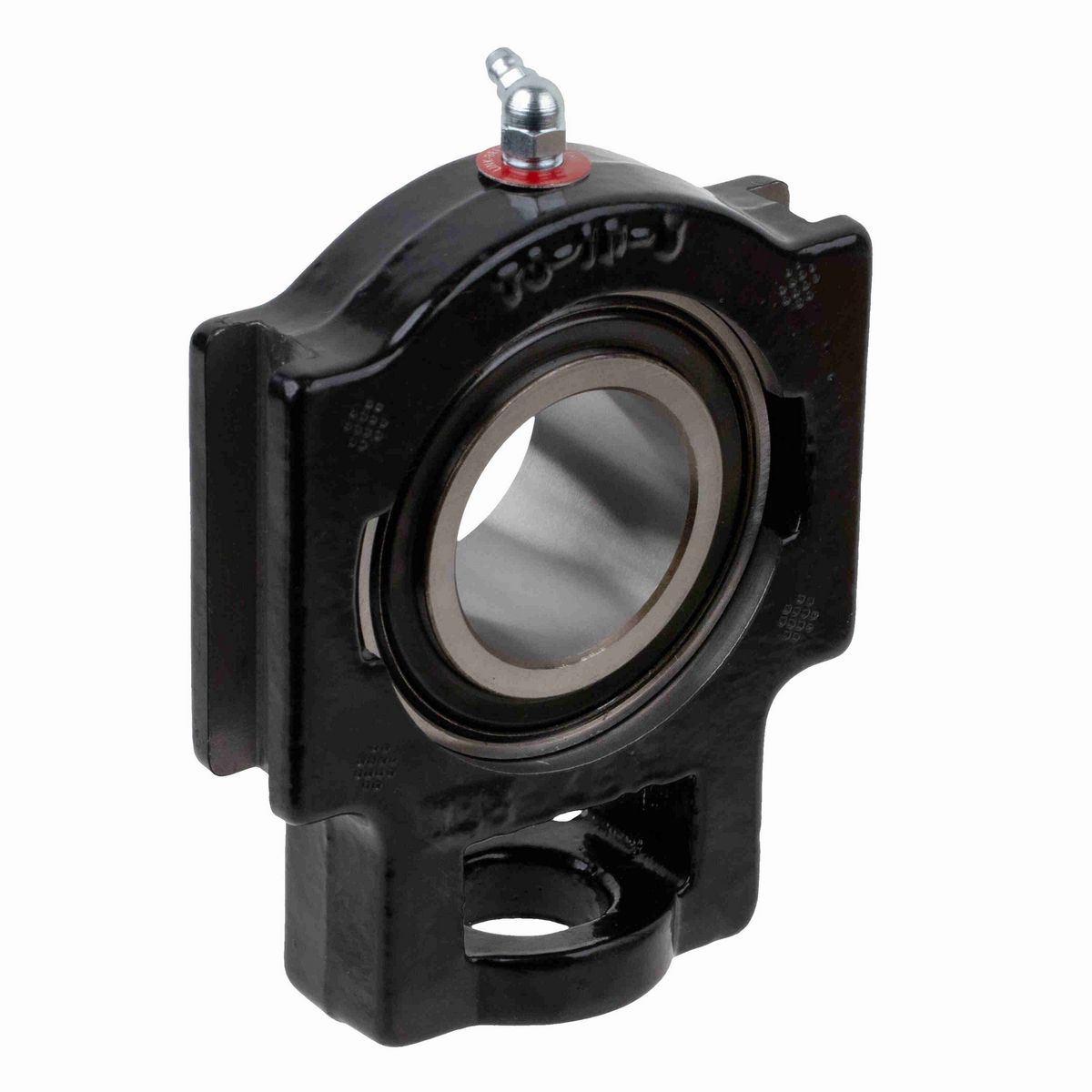

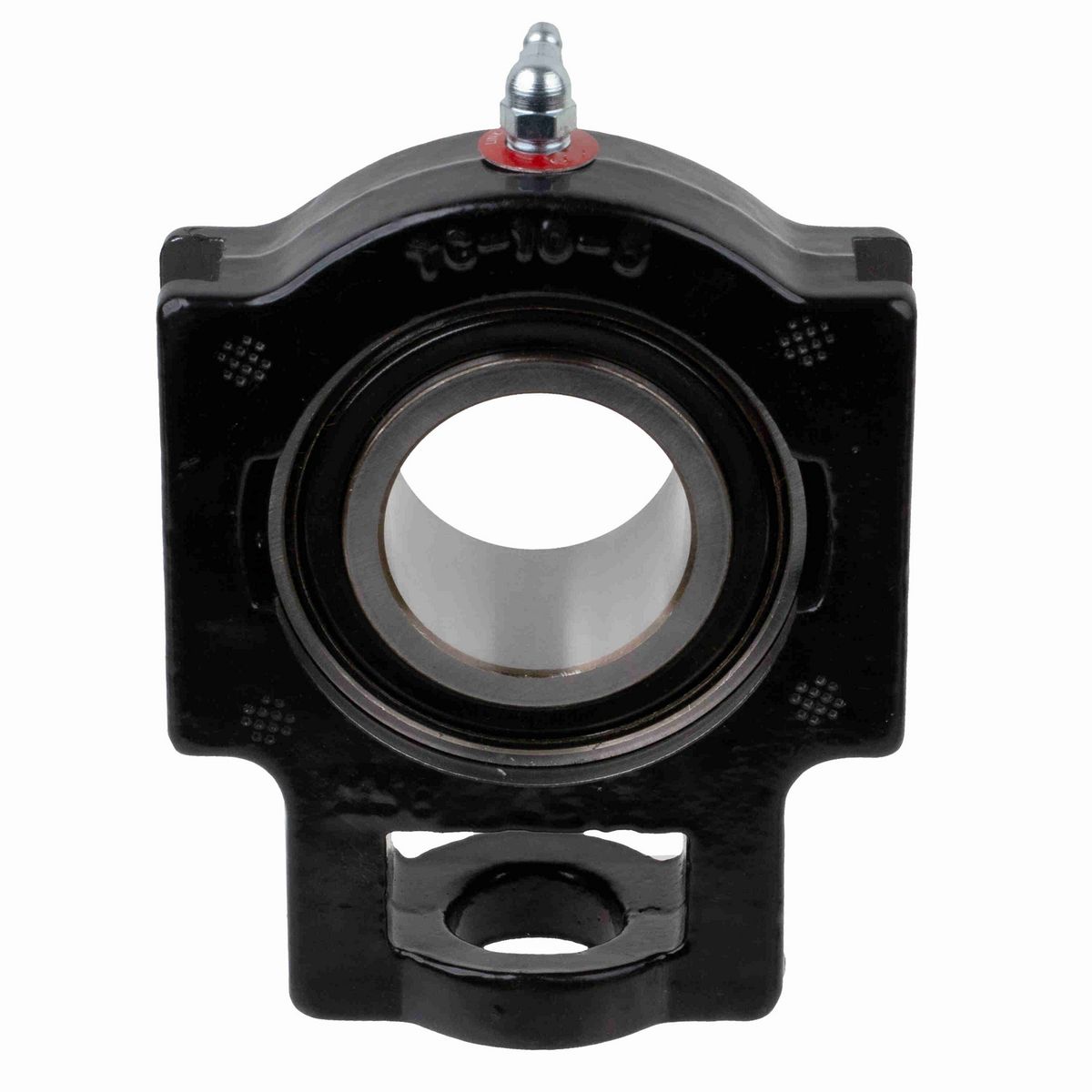

• 1 15/16" Mounted Ball Bearing, Intermediate Duty, Cast Iron Wide Slot Take-up Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Slot Width (in)	0.688 in
Overall Length (in)	5.88 in
Length Through Bore (in)	1.803 in
Overall Width (in)	2.06 in
Base to Center Height (in)	3.56 in
Bore Diameter (in)	1.9375 in
Overall Height (in)	4.75 in
Slot Spacing (in)	3.968 in
Centerline to Outermost Bearing Face (in)	1.266 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Misalignment Type	Static Only
Housing Type	Take-Up Block, Wide Slot
Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Bore Shape	Straight
Slot Length (in)	3.38 in
Housing Style	Take-Up Block
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Setscrew Torque (in-lbs)	300 in/lbs
Carriage Bolt Size (in)	7/8 in
Adjusting Screw Clearance Hole Diameter (in)	1.13 in
Adjusting Screw Square Nut Seat Height (in)	1.94 in
Ability to Relubricate	Yes
Shaft Locking Type	Set Screw
Insert	SG231ELPA
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.0682 cps
Static Load Rating (lb)	5,220 lb
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated
End Cap Available	No
Size Code	210
Radial Clearance	C3 STANDARD
Inner Ring Outside Diameter (in)	2.475 in
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	3600 rpm
Vibration Frequency Inner Ring Defect	0.0985 cps
Max Operating Temperature (F)	225 °F
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0445 cps
Misalignment Capability	±1.5° Misalignment - Static Only
Dynamic Load Rating (lb)	7,920 lb
Bearing Type	Intermediate Duty
Bearing Brand	LINK-BELT 200 SERIES BALL
Cage Type	Ball Riding Retainer
Vibration Frequency Fundamental Train	0.0068 cps
Housing Material	Cast Iron
Lubricant	EXXON RONEX MP STD

General Specifications

UPC	662327667214
Weight	5.25 LB
Packaged Length	6.50 IN
Packaged Width	2.63 IN
Packaged Height	6.50 IN
HTC	8483204040
Country of Origin	Mexico
