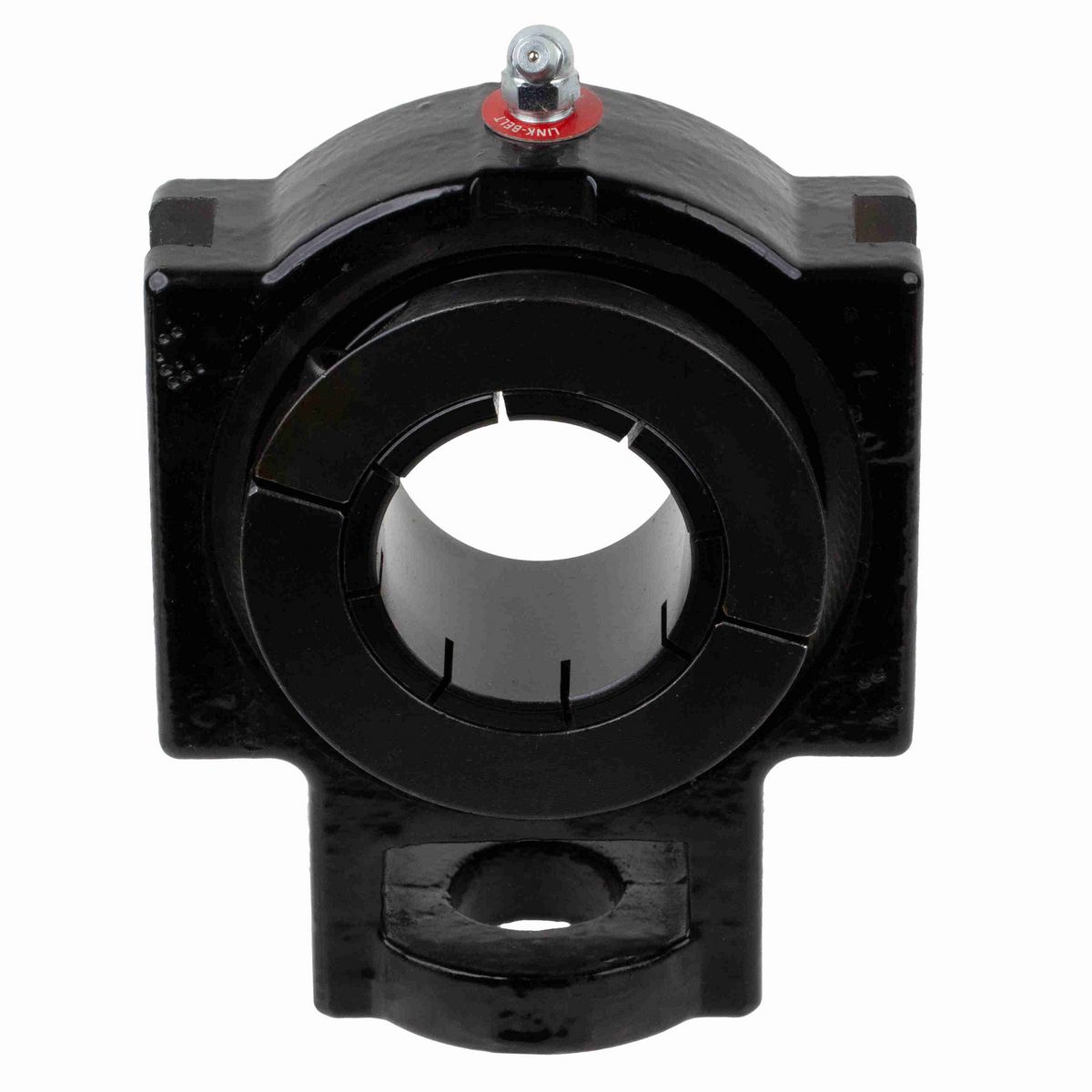

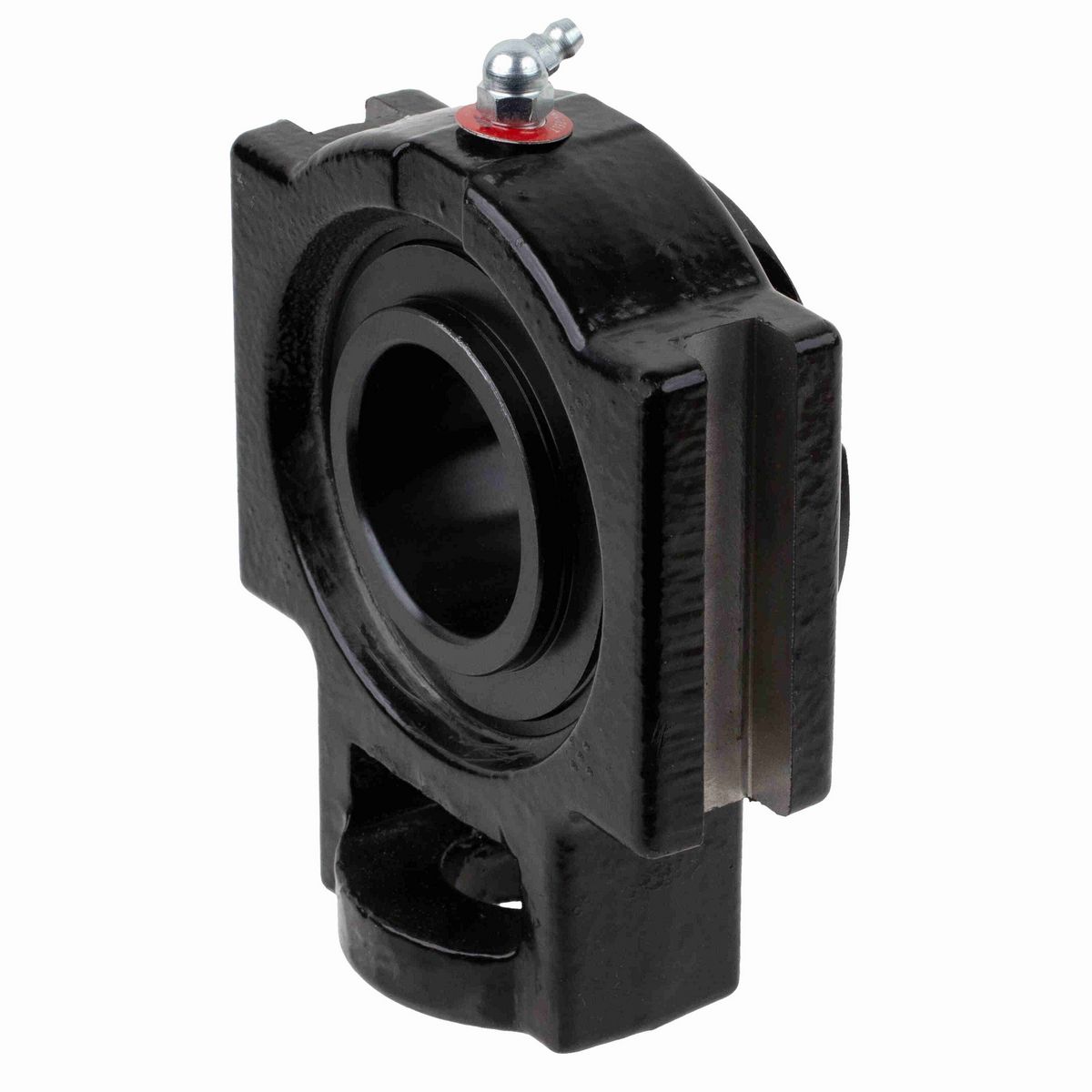

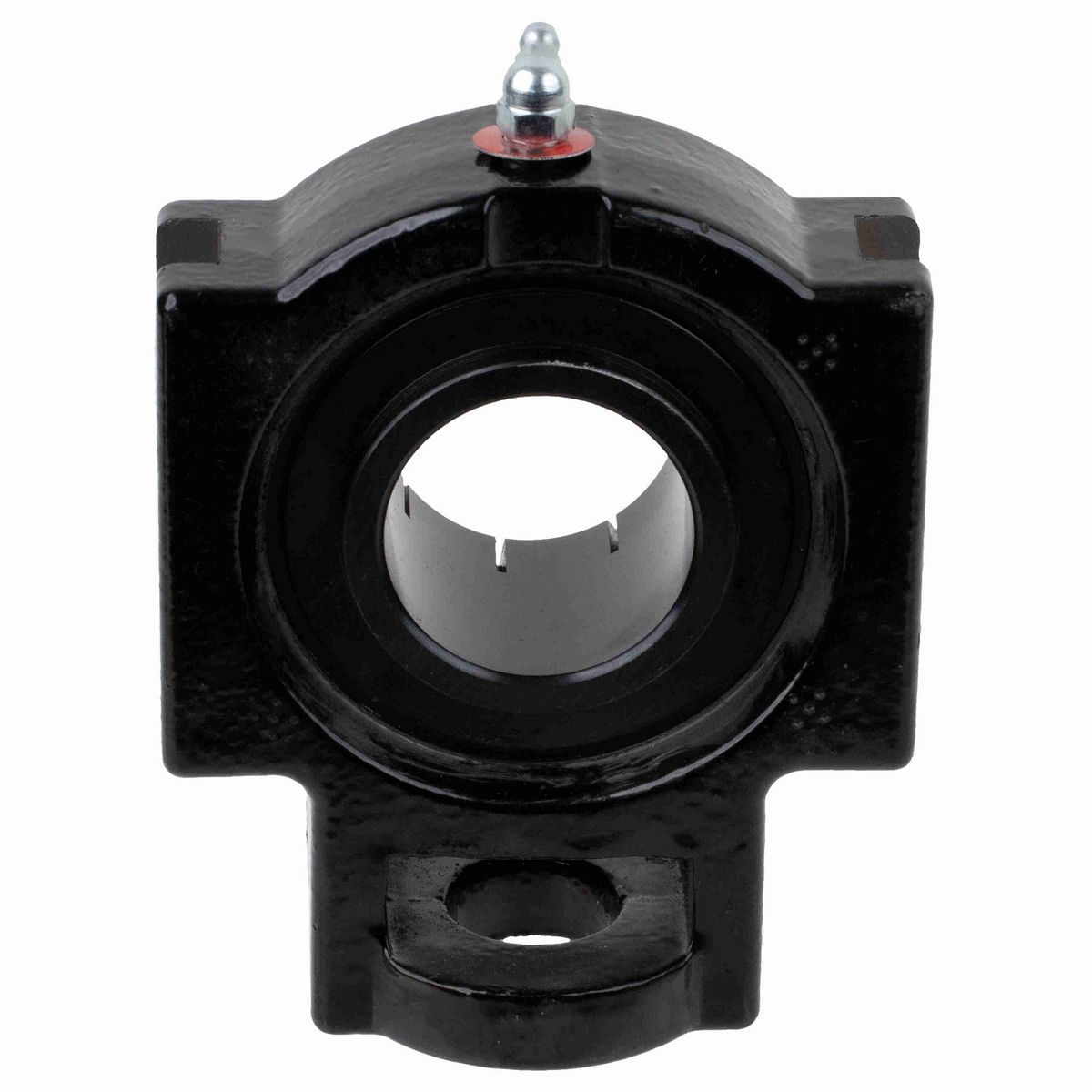

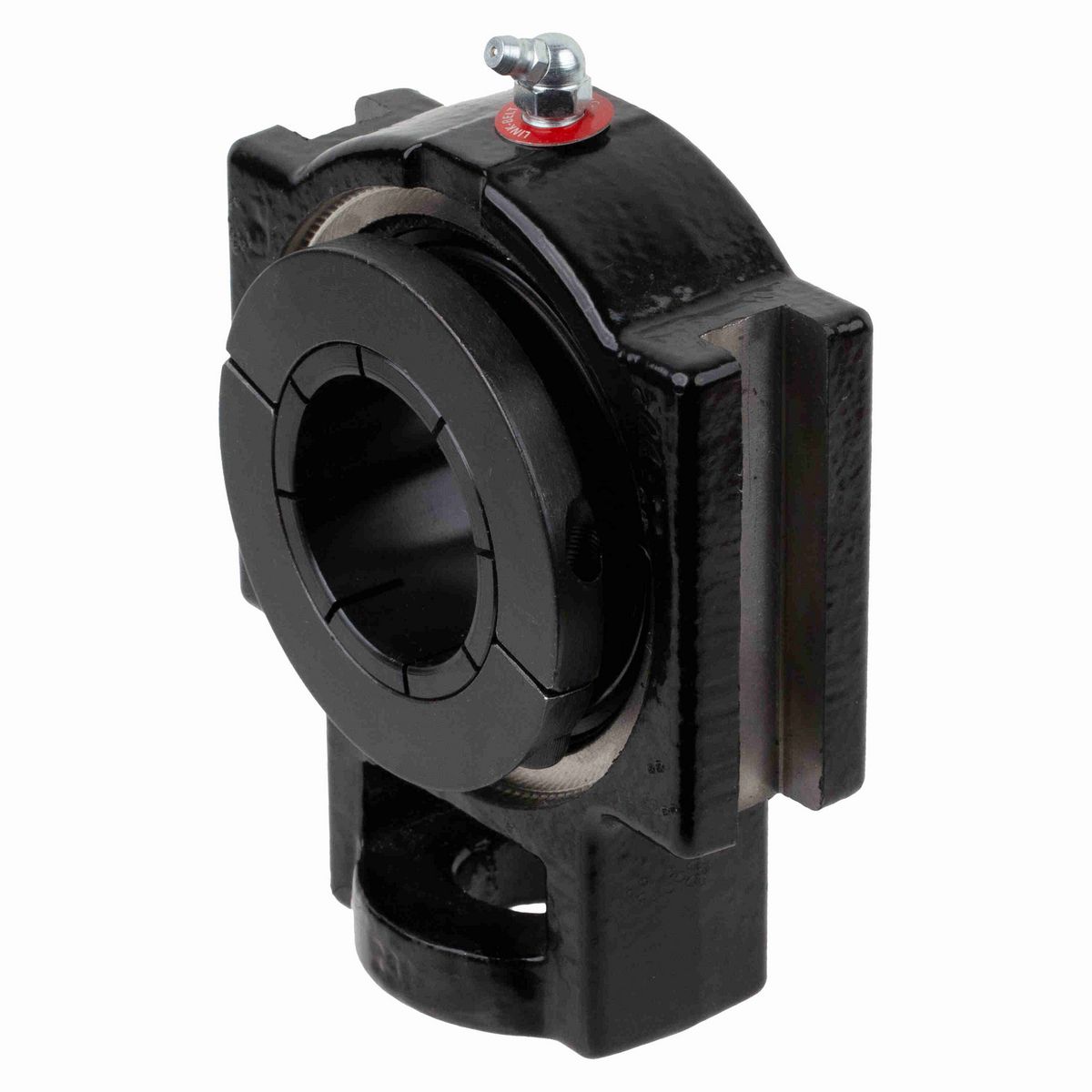

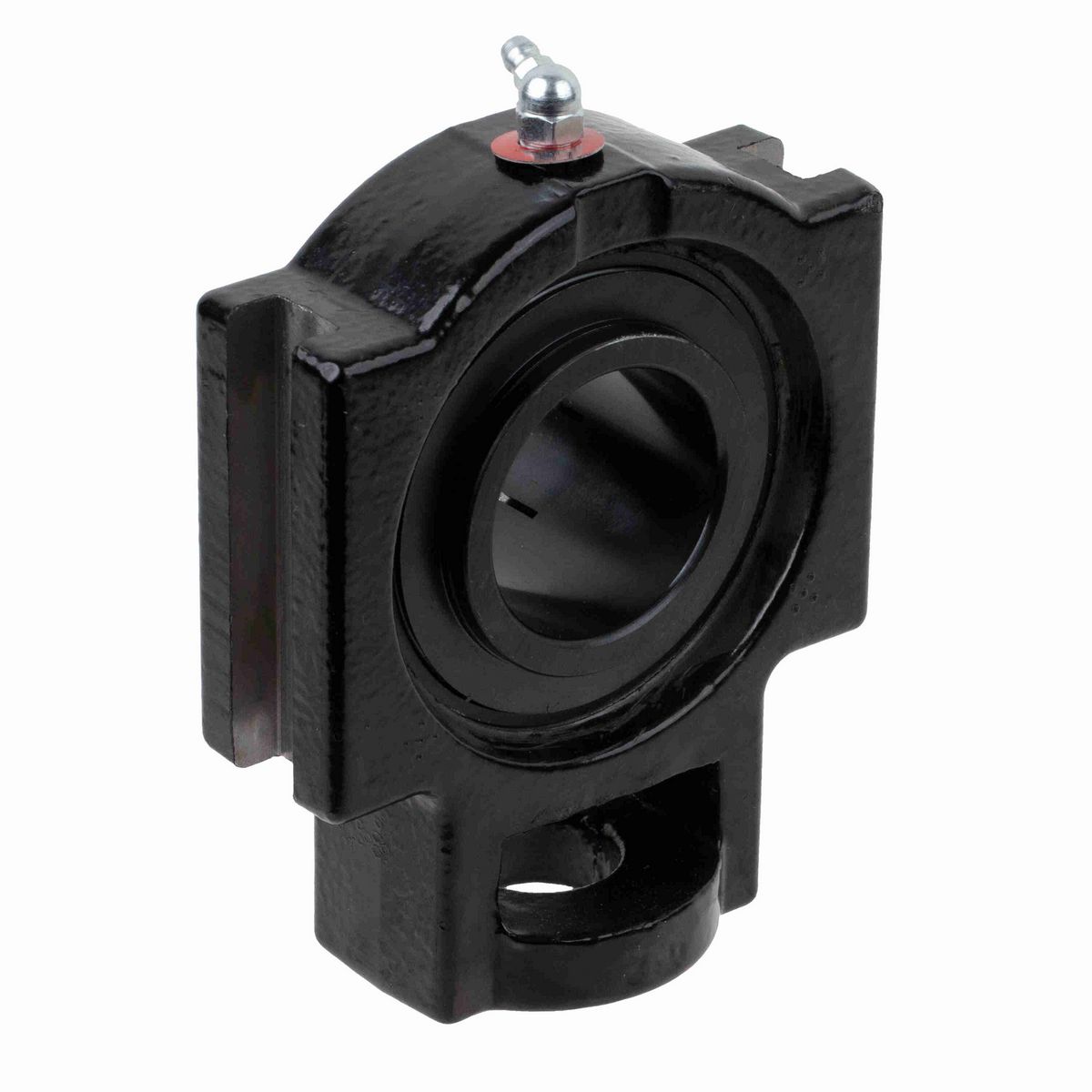

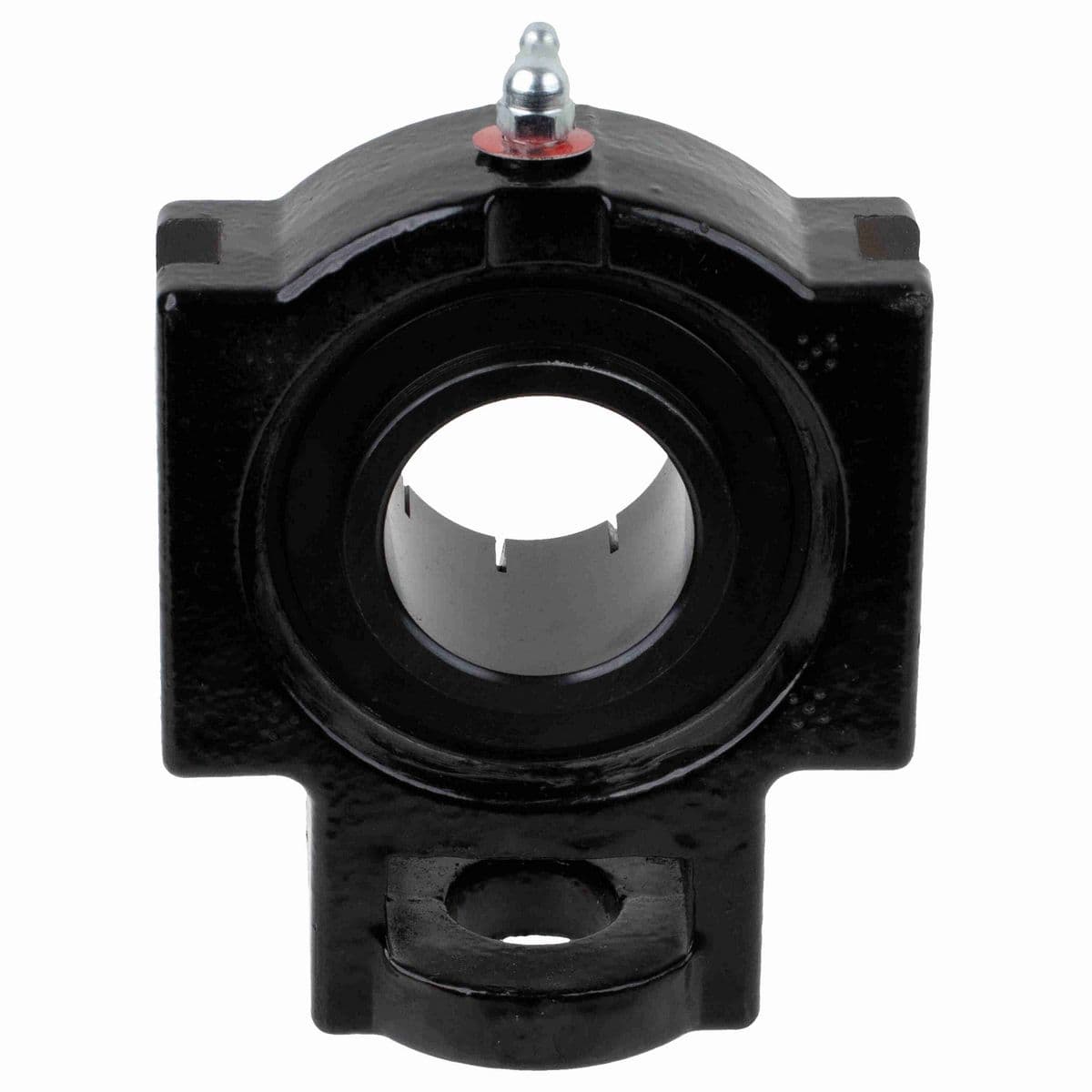

• 1 15/16" Mounted Ball Bearing, Standard Duty, Cast Iron Wide Slot Take-up Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Overall Length (in)	5.93 in
Length Through Bore (in)	2.17 in
Base to Center Height (in)	3.59 in
Slot Width (in)	0.688 in
Overall Height (in)	4.75 in
Overall Width (in)	2.56 in
Bore Diameter (in)	1.9375 in
Slot Spacing (in)	3.968 in
Centerline to Outermost Bearing Face (in)	1.42 in

Technical Specifications

Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Construction	One Piece
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Type	Take-Up Block, Wide Slot
Slot Length (in)	3.38 in
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Black
Misalignment Type	Static Only
Housing Style	Take-Up Block
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.35 in
Setscrew Torque (in-lbs)	313-348 in/lbs
Carriage Bolt Size (in)	3/4 in
Adjusting Screw Square Nut Seat Height (in)	1.94 in
Adjusting Screw Clearance Hole Diameter (in)	1.13 in
Dynamic Load Rating (lb)	7,920 lb
Inner Ring Outside Diameter (in)	2.475 in
Bearing Insert Finish	Black Oxide
Vibration Frequency Roller Spin	0.0445 cps
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Housing Material	Cast Iron
Vibration Frequency Outer Ring Defect	0.0682 cps
Cage Type	Ball Riding Retainer
Size Code	210
Bearing Brand	LINK-BELT 200 SERIES BALL
Grease Fitting Thread Size	1/8 NPT
Insert	CLG231NL
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (RPM)	4800 rpm
Max Operating Temperature (C)	107 °C
Radial Clearance	C3 STANDARD
Static Load Rating (lb)	5,220 lb
Vibration Frequency Inner Ring Defect	0.0985 cps
Shaft Locking Type	Concentric
End Cap	CL2316
Bearing Insert Material	52100 Bearing Steel
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Misalignment Capability	±1.5° Misalignment - Static Only
Locking Device Kit	CL2315S
Bearing Type	Standard Duty
End Cap Available	Yes

General Specifications

UPC	662864252010
Weight	6.70 LB
Packaged Length	7.25 IN
Packaged Width	2.25 IN
Packaged Height	7.25 IN
HTC	8483204040
Country of Origin	Mexico
