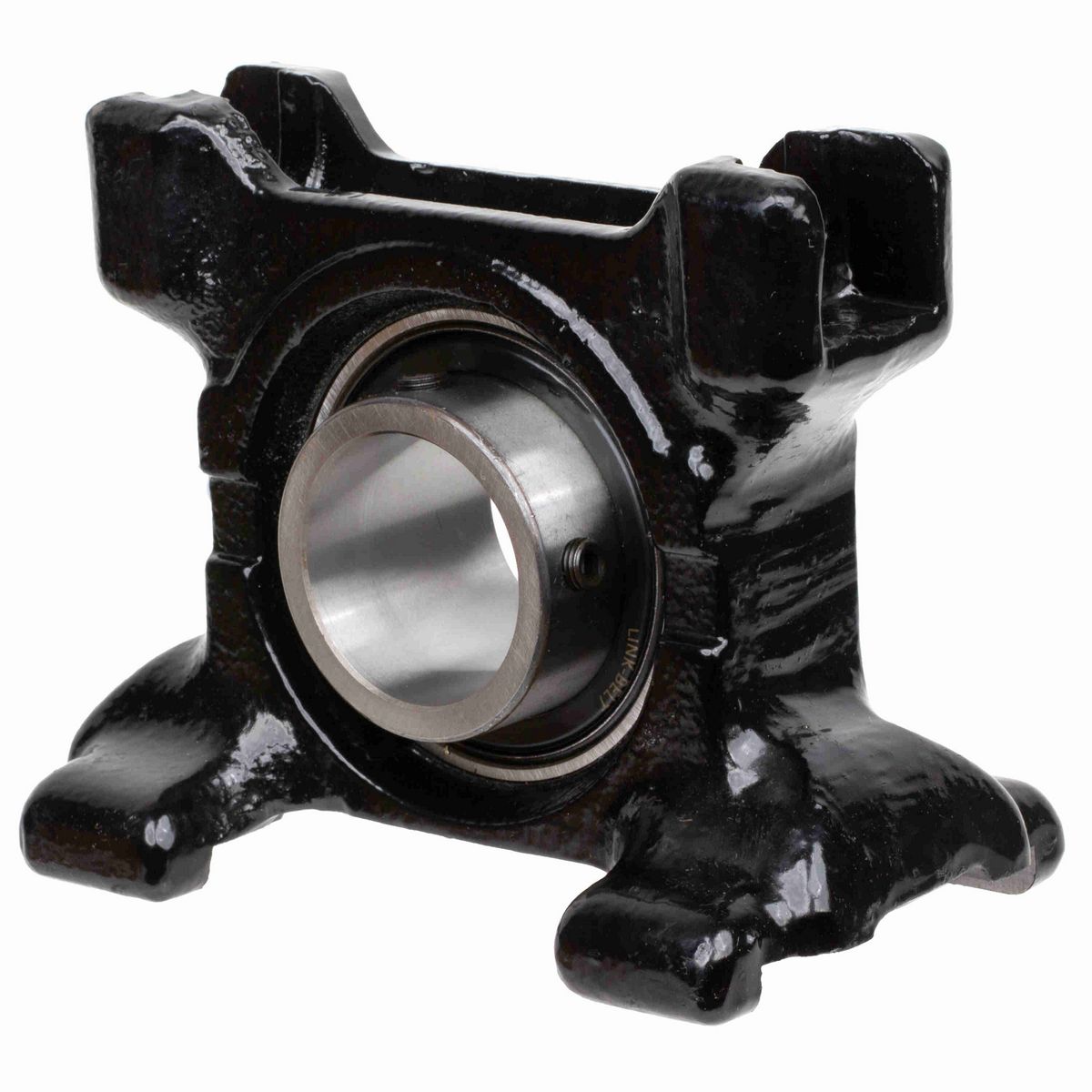

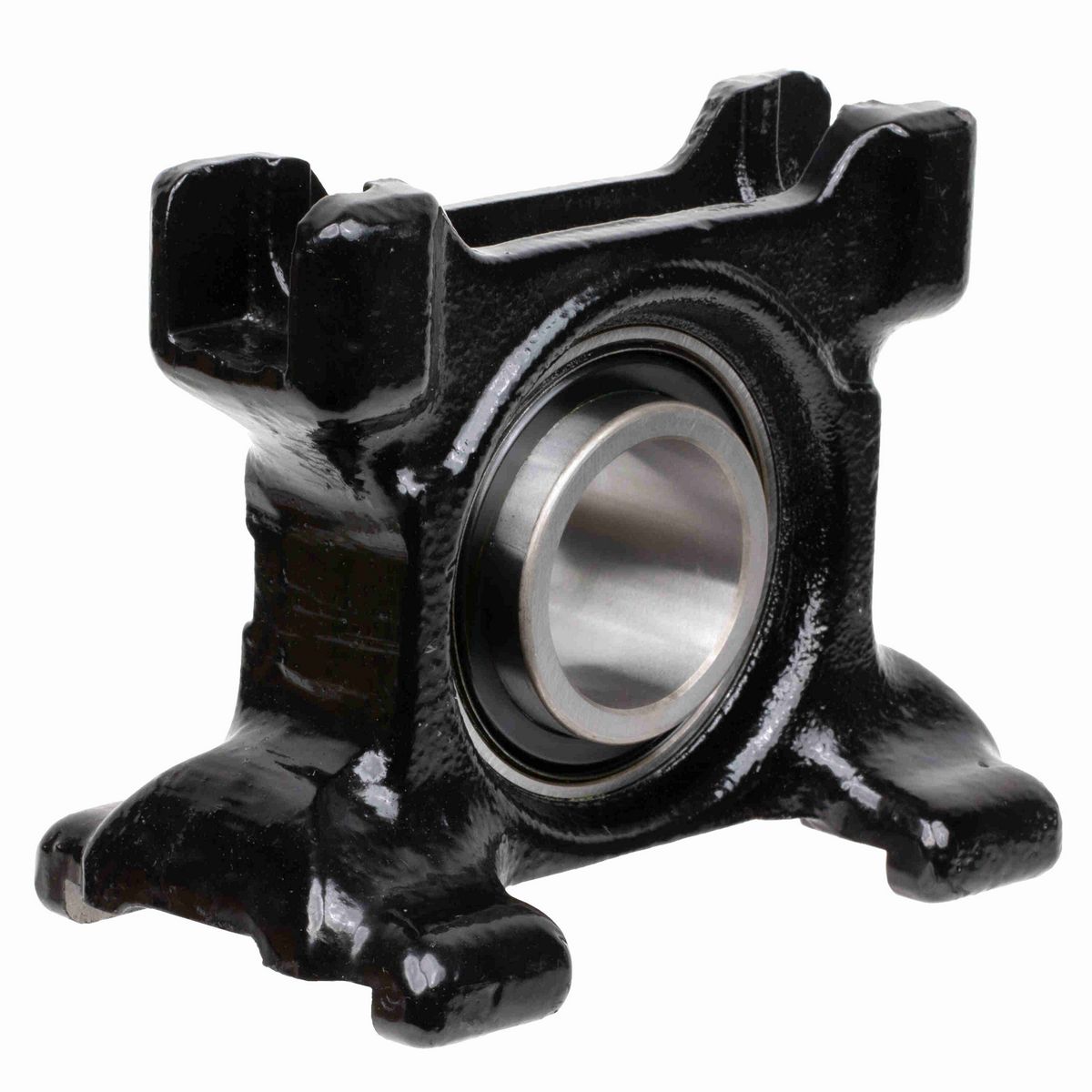

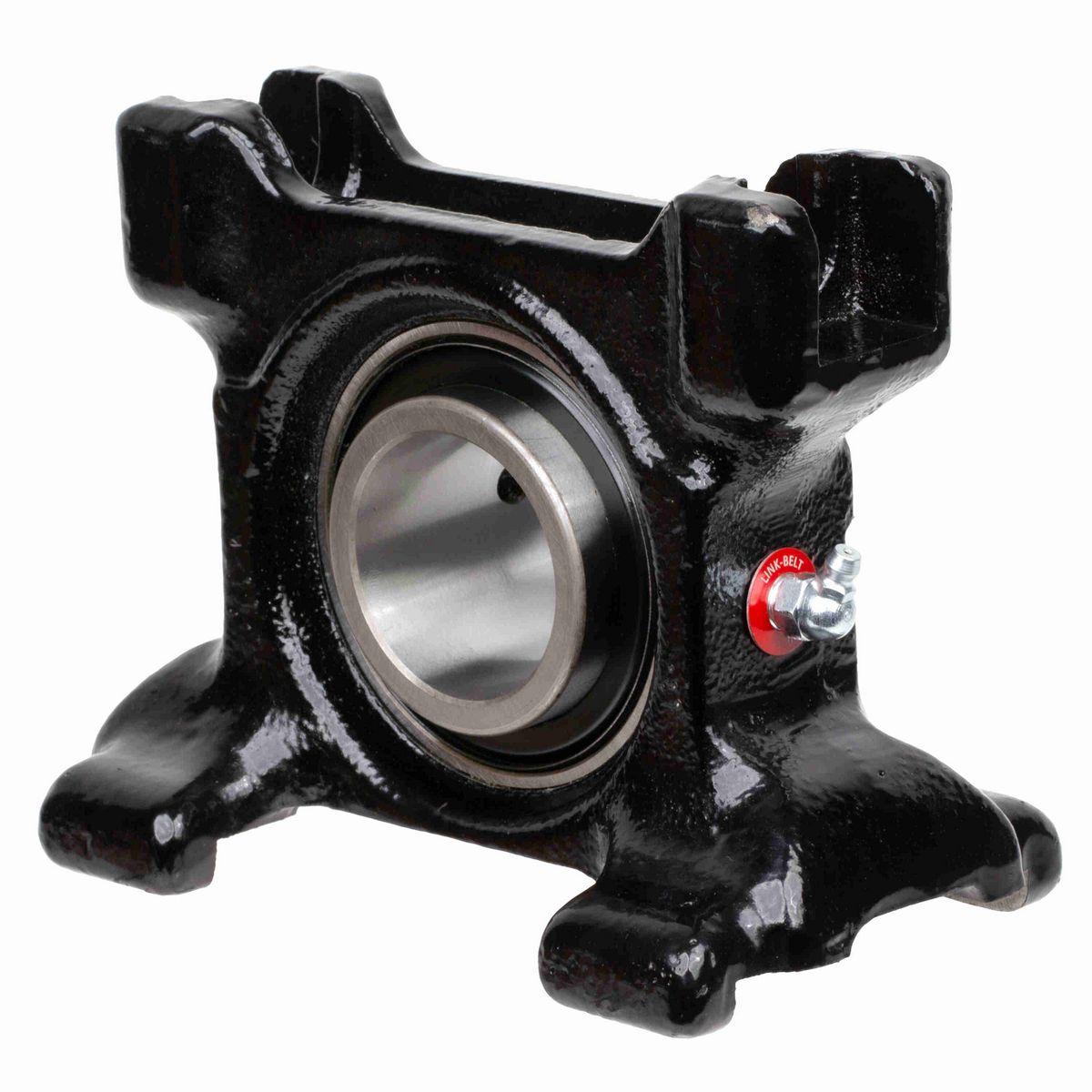

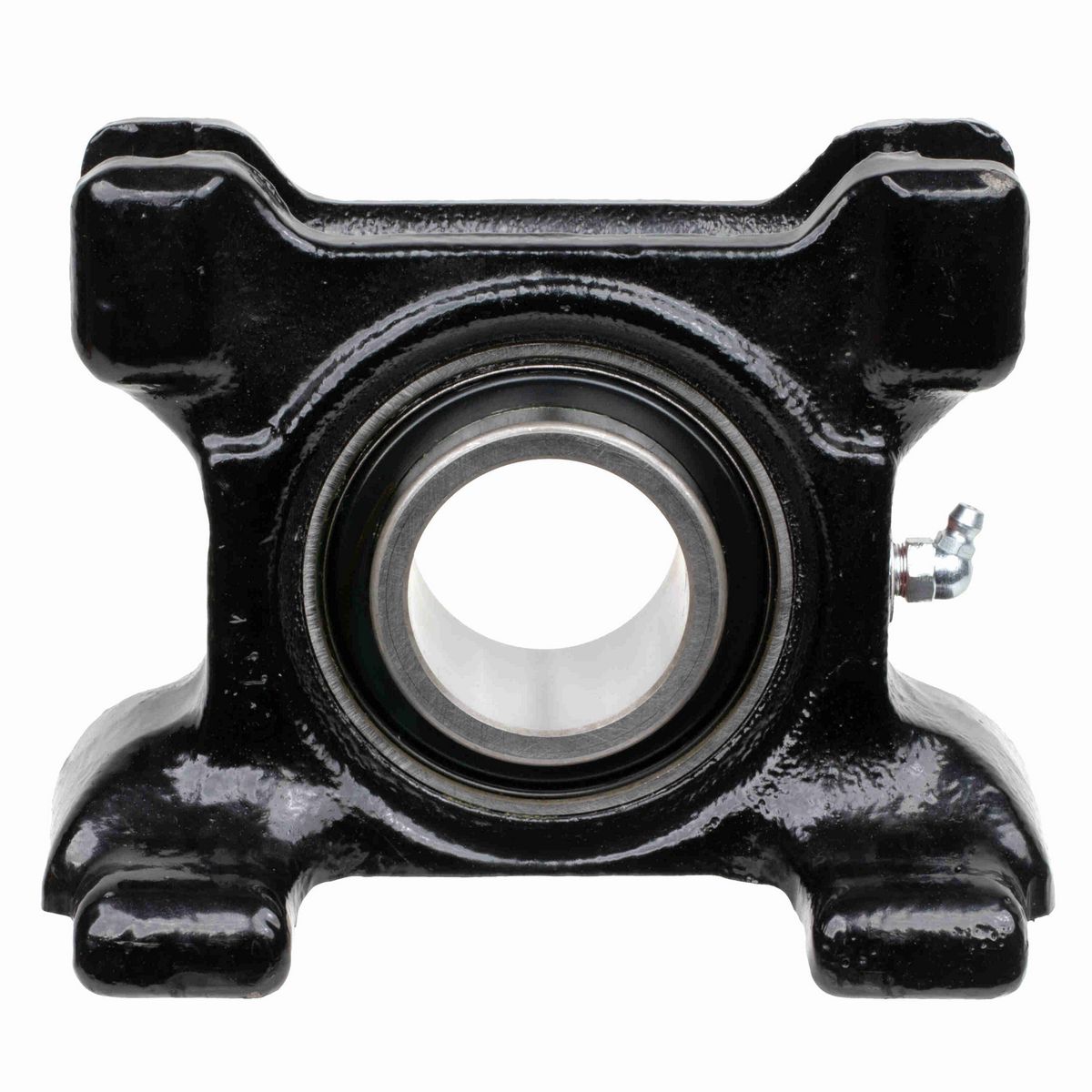

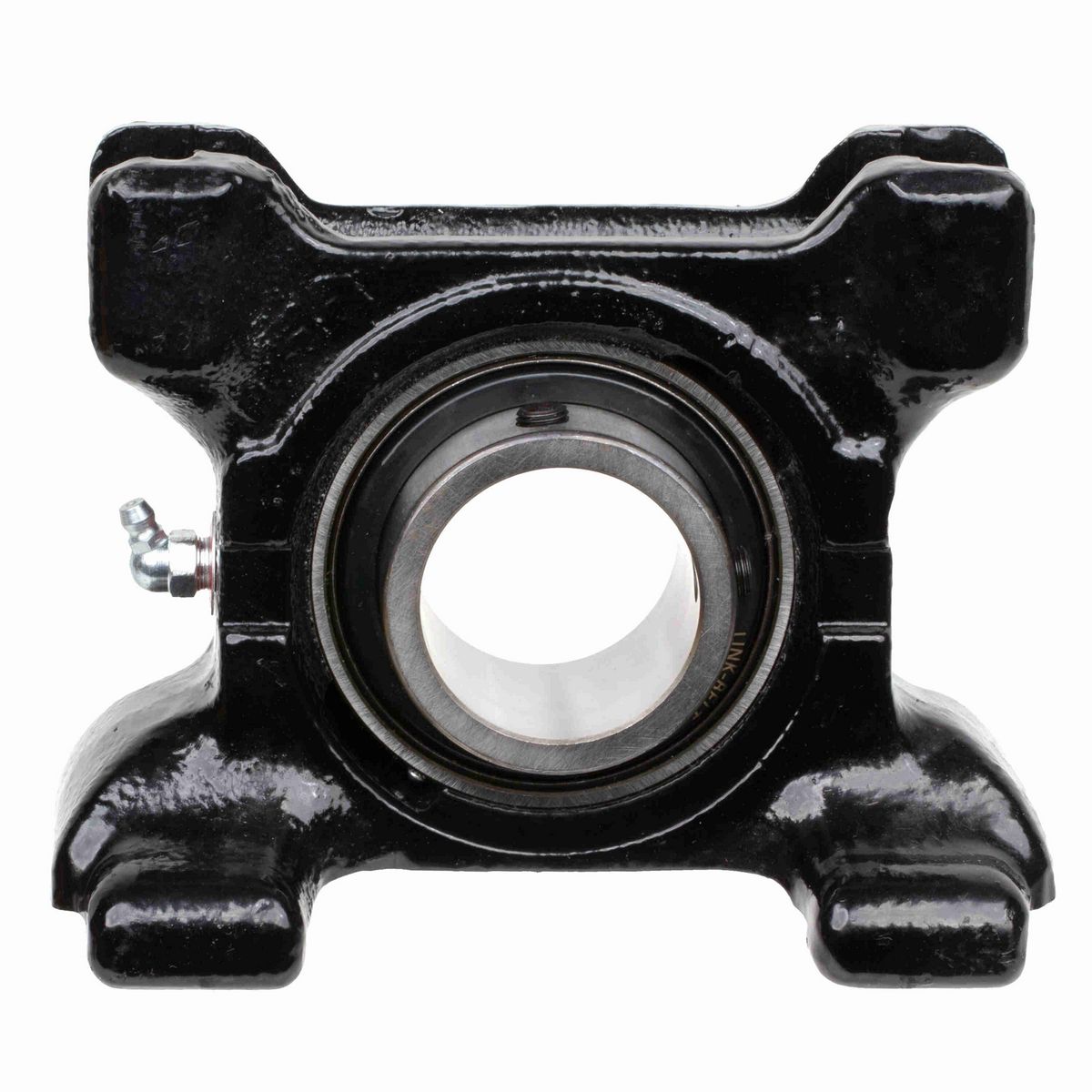

• 2 3/16" Mounted Ball Bearing, Standard Duty, Protected Screw Cast IronTake-up Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Slot Width (in)	3.14 in
Overall Height (in)	6 in
Length Through Bore (in)	2.254 in
Bore Diameter (in)	2.1875 in
Overall Width (in)	4.12 in
Overall Length (in)	7 in
Centerline to Outermost Bearing Face (in)	1.406 in

Technical Specifications

Housing Construction	One Piece
Housing Style	Take-Up Block
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Outer Ring Land Profile	Standard
Bore Shape	Straight
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Housing Type	Take-Up Block
Misalignment Type	Static Only
Housing Color	Black
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	290-325 in/lbs
Vibration Frequency Outer Ring Defect	0.0680 cps
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	C3 STANDARD
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0437 cps
Max Operating Temperature (F)	225 °F
Size Code	211
Max Operating Temperature (C)	107 °C
Shaft Locking Type	Set Screw
Housing Coating	Powder Coated
Insert	UG235NL
Cage Type	Ball Riding Retainer
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Inner Ring Defect	0.0987 cps
Lubricant	EXXON RONEX MP STD
Fixed vs. Expansion	Fixed
Static Load Rating (lb)	6,570 lb
Inner Ring Outside Diameter (in)	2.749 in
Misalignment Capability	±1.5° Misalignment - Static Only
Dynamic Load Rating (lb)	9,800 lb
Bearing Type	Standard Duty
Vibration Frequency Fundamental Train	0.0068 cps
End Cap Available	No
Maximum Speed (RPM)	4360 rpm

General Specifications

UPC	662327144623
Weight	12.00 LB
Packaged Length	7.75 IN
Packaged Width	3.69 IN
Packaged Height	7.88 IN
HTC	8483204040
Country of Origin	Mexico
