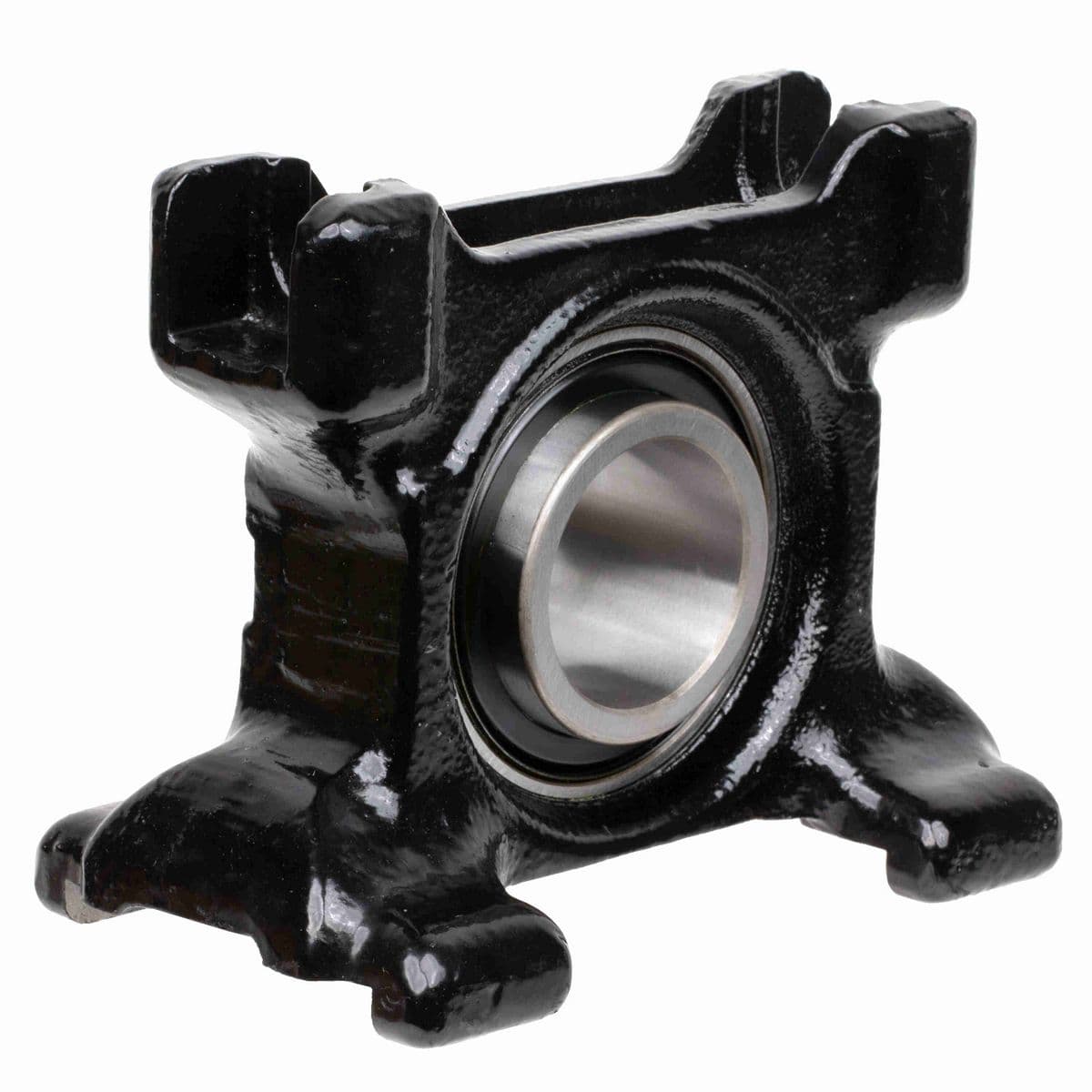

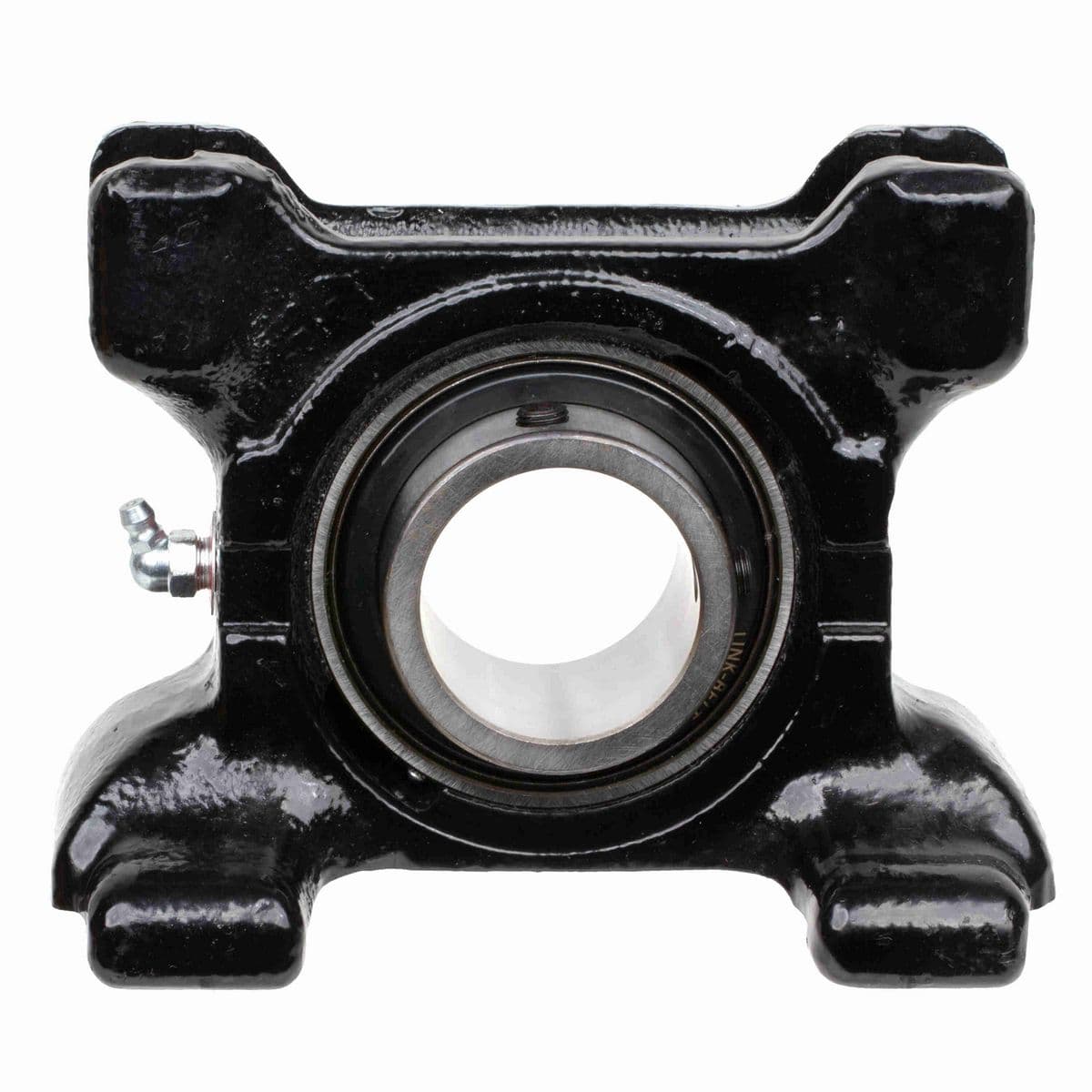

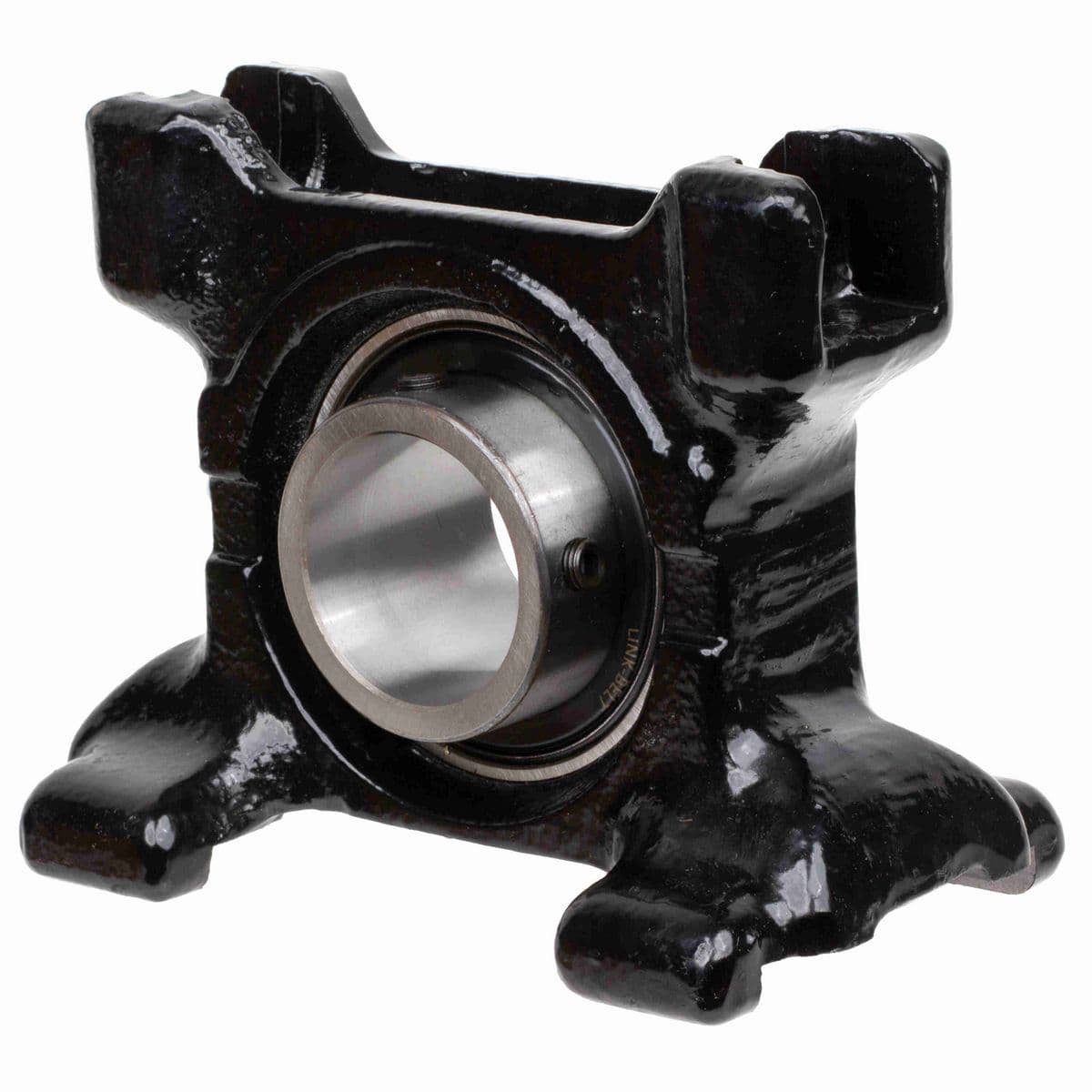

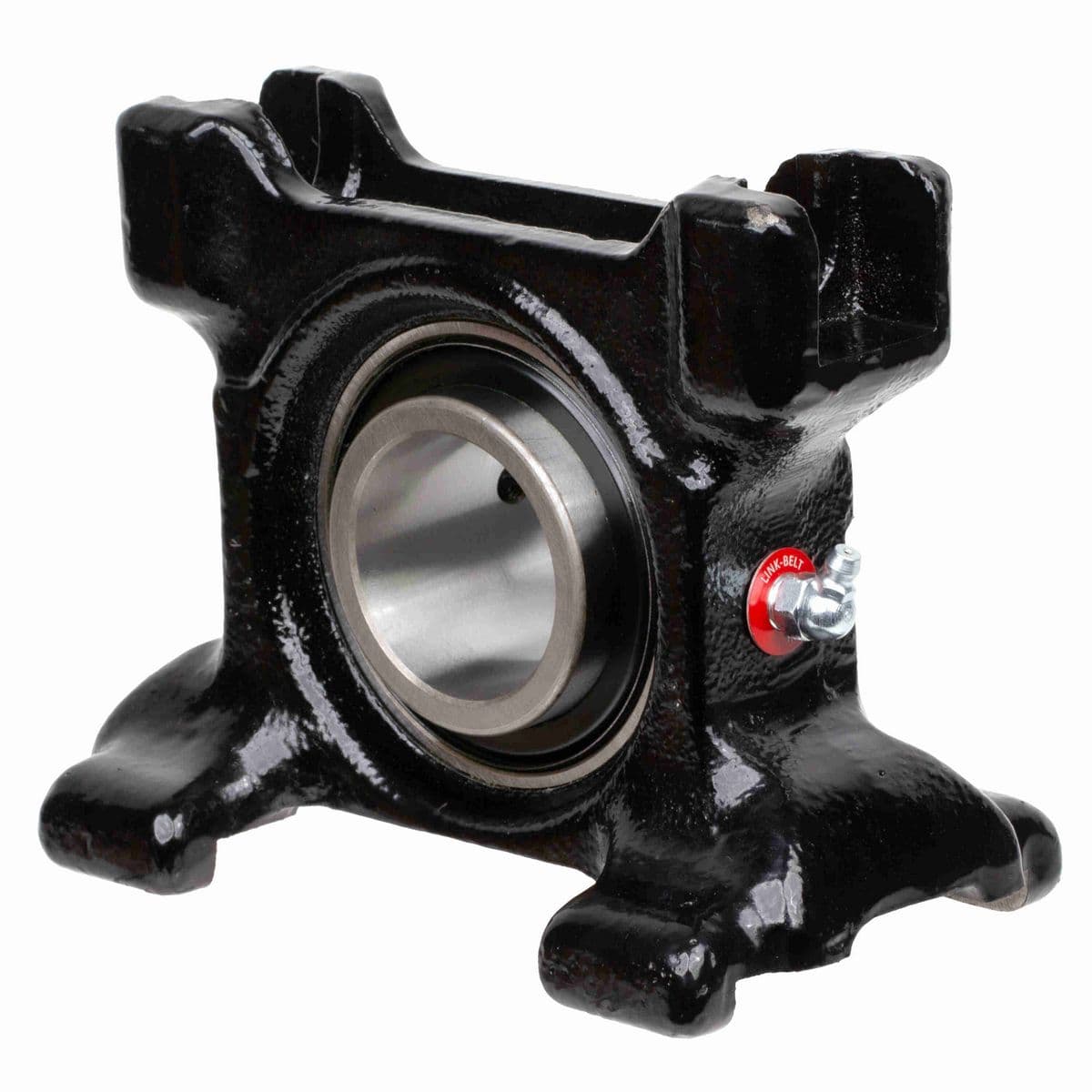

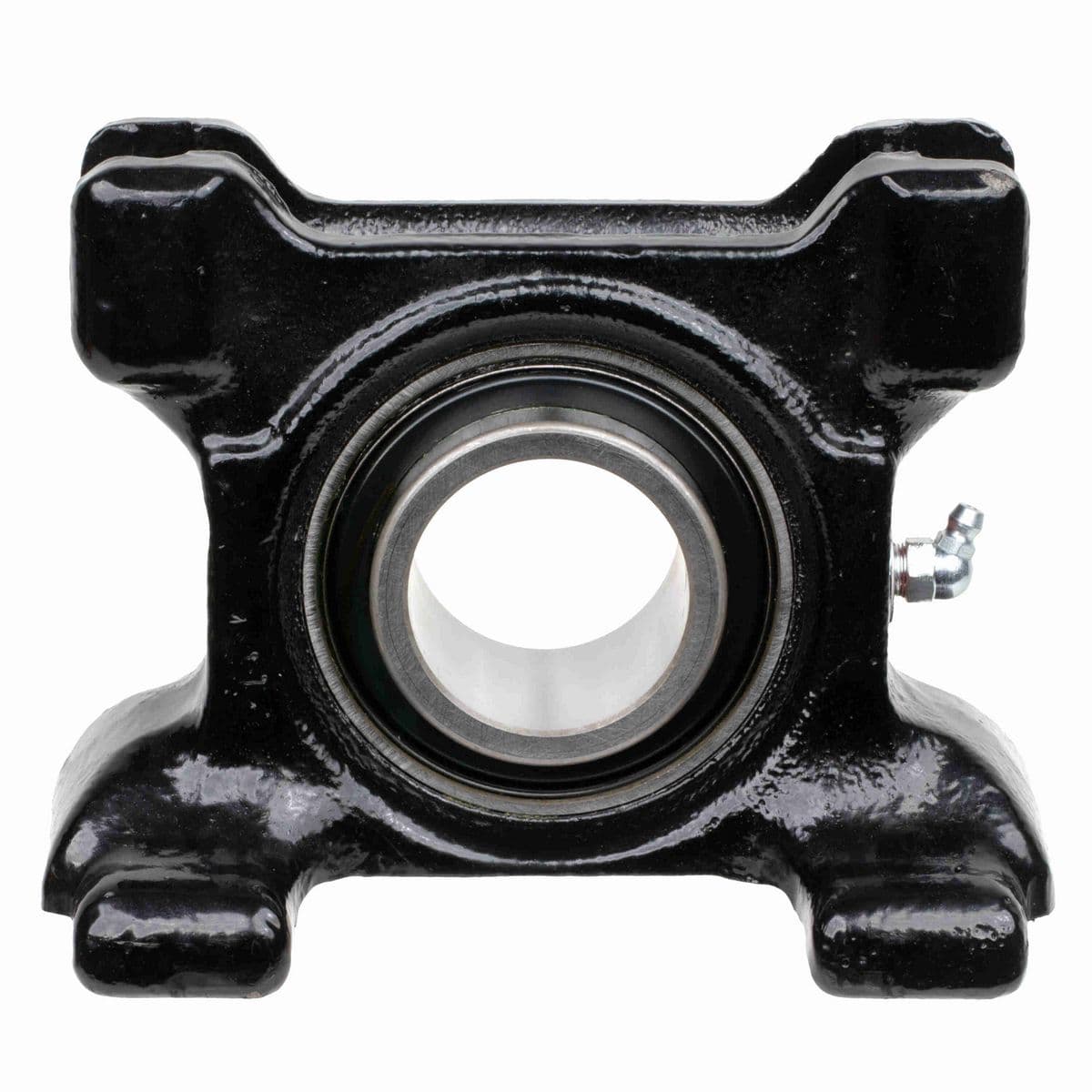

• 1 15/16" Mounted Ball Bearing, Standard Duty, Protected Screw Cast Iron Take-up Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Length (in)	7 in
Overall Width (in)	4.12 in
Bore Diameter (in)	1.9375 in
Overall Height (in)	5.56 in
Slot Width (in)	3.14 in
Length Through Bore (in)	2.094 in
Centerline to Outermost Bearing Face (in)	1.27 in

Technical Specifications

Housing Type	Take-Up Block
Outer Ring Land Profile	Standard
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Seal Type	BUNA SINGLE LIP CONTACT SEAL
Rolling Element	Ball Bearing
Slot Length (in)	7 in
Housing Construction	One Piece
Housing Style	Take-Up Block
Setscrew Torque (in-lbs)	290-325 in/lbs
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0068 cps
Max Operating Temperature (F)	225 °F
Radial Clearance	C3 STANDARD
Housing Coating	Powder Coated
Vibration Frequency Outer Ring Defect	0.0682 cps
Inner Ring Outside Diameter (in)	2.475 in
Insert	UG231NL
Max Operating Temperature (C)	107 °C
Bearing Type	Standard Duty
Static Load Rating (lb)	5,220 lb
Maximum Speed (RPM)	4800 rpm
Vibration Frequency Roller Spin	0.0445 cps
Cage Type	Ball Riding Retainer
Size Code	210
Grease Fitting Thread Size	1/8 NPT
Lubricant	EXXON RONEX MP STD
Shaft Locking Type	Set Screw
End Cap Available	No
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±1.5° Misalignment - Static Only
Vibration Frequency Inner Ring Defect	0.0985 cps
Dynamic Load Rating (lb)	7,920 lb
Bearing Brand	LINK-BELT 200 SERIES BALL

General Specifications

UPC	662327144609
Weight	10.00 LB
Packaged Length	7.75 IN
Packaged Width	3.69 IN
Packaged Height	7.88 IN
HTC	8483204040
Country of Origin	Mexico
