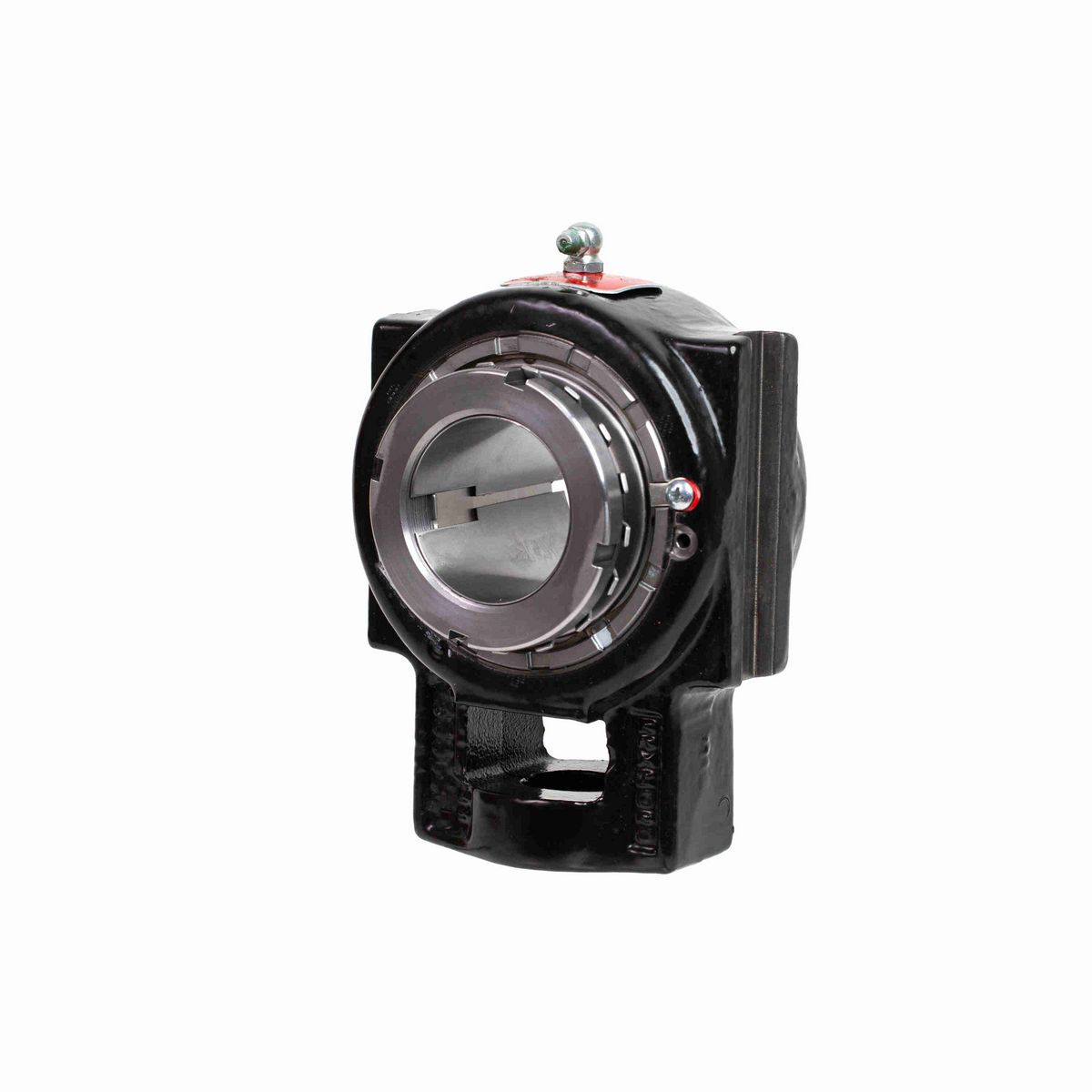

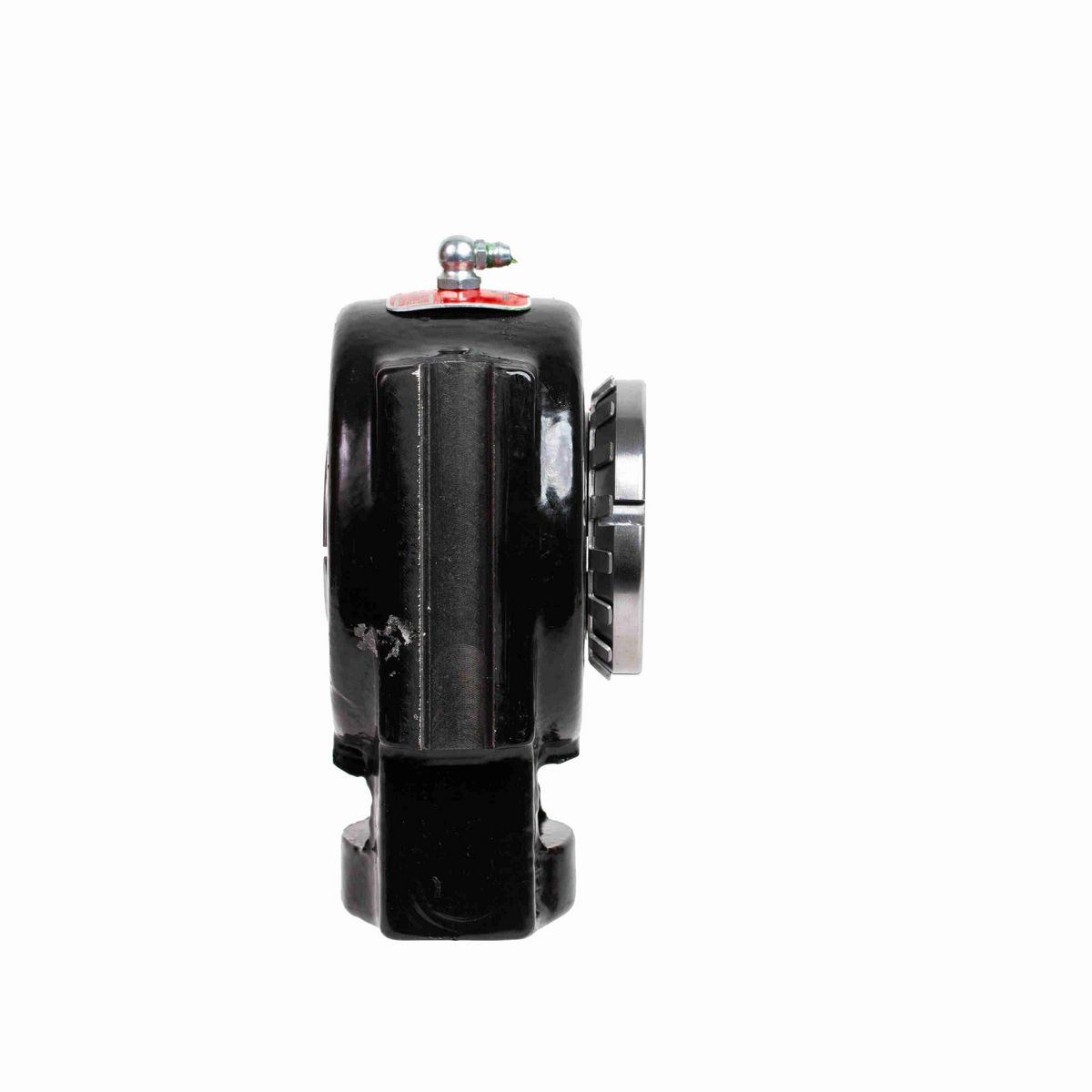

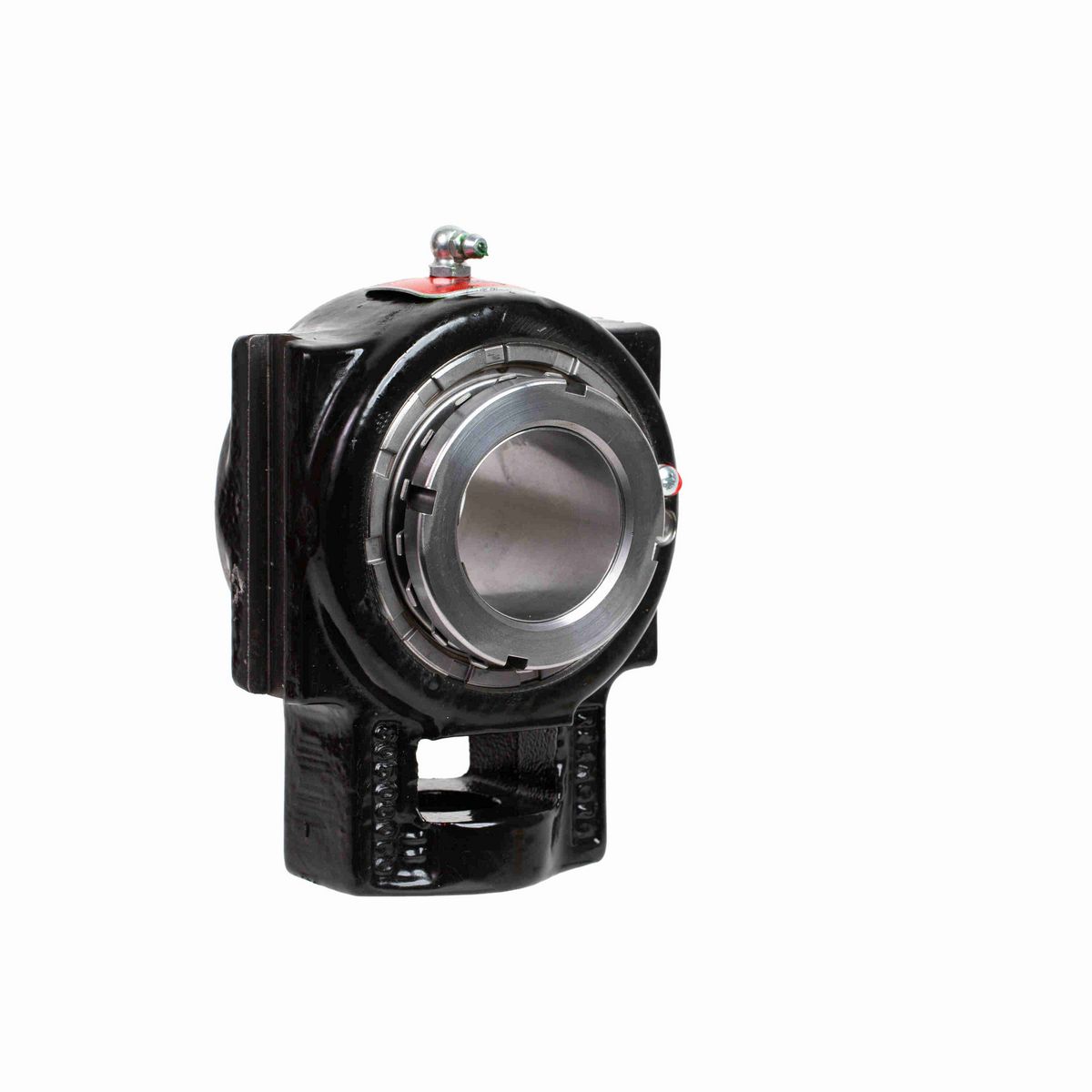

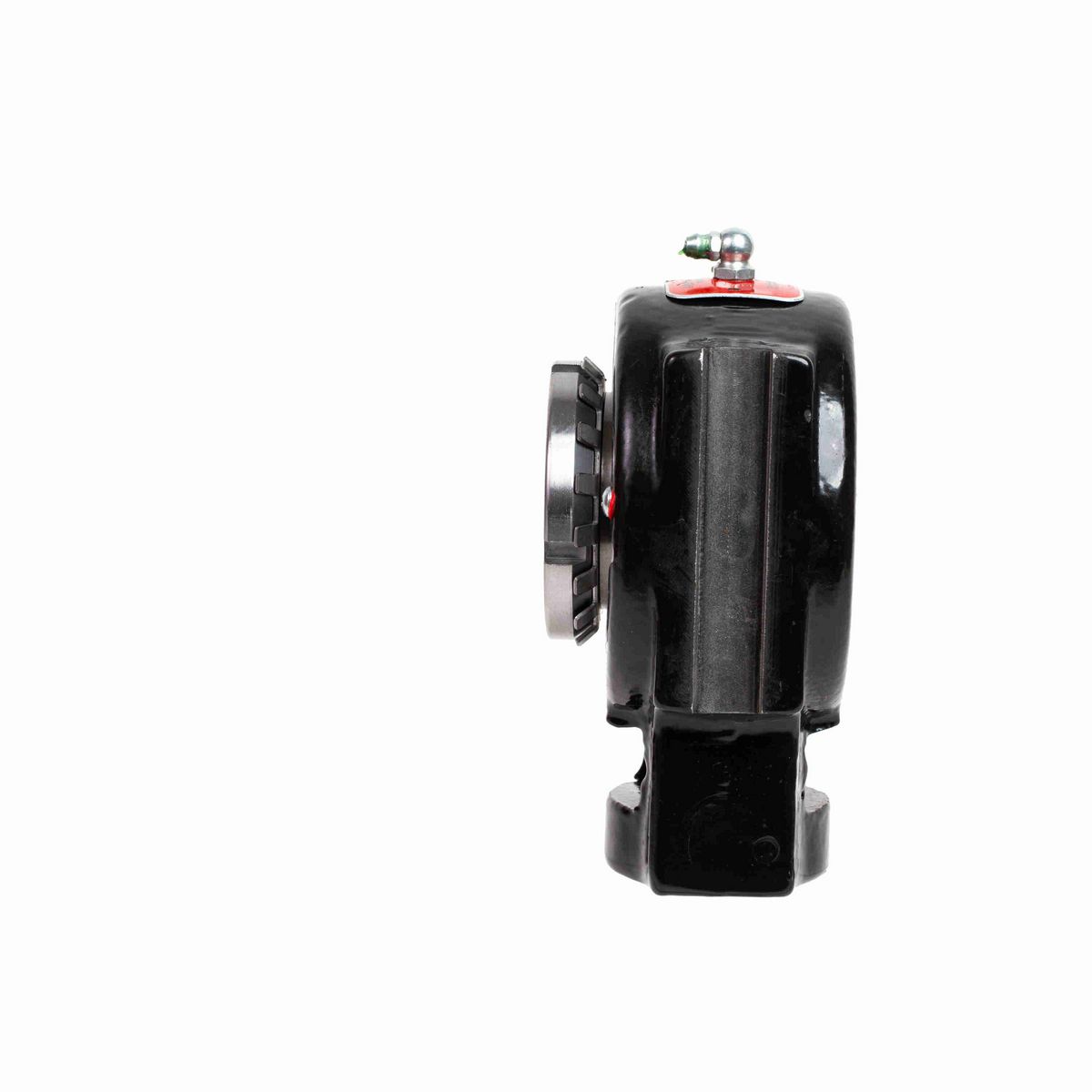

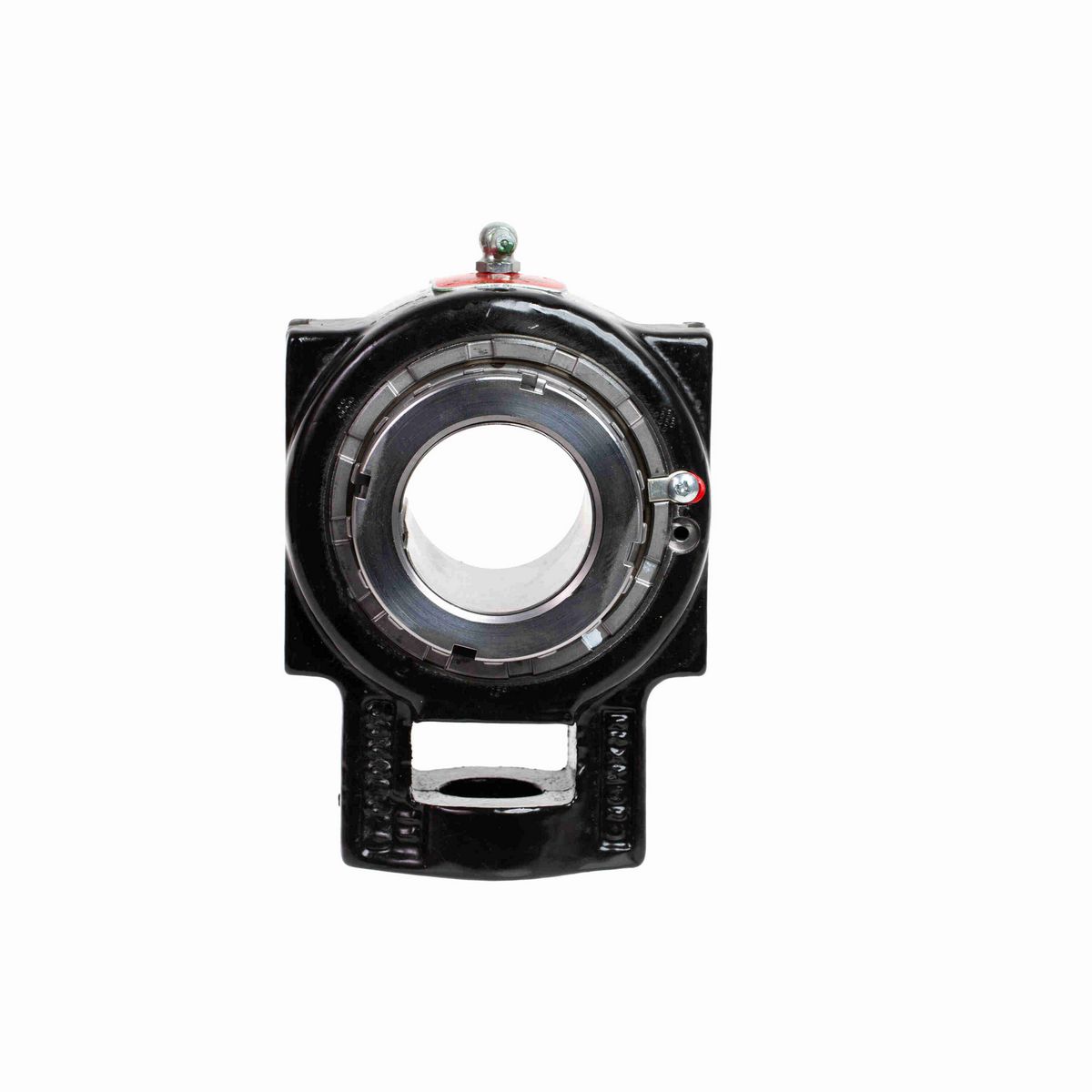

• 3 15/16" Mounted Spherical Roller Bearing, Fixed Cast Iron Take Up Block, Adapter Mounted, Clearance Seal

Dimensions

Base to Center Height (in)	7.688 in
Slot Length (in)	7.5 in
Slot Width (in)	2.06 in
Overall Width (in)	4.94 in
Overall Length (in)	12.13 in
Housing Width (in)	4.13 in
Overall Height (in)	9.44 in
Bore Diameter (in)	3.9375 in
Adjusting Screw Clearance Hole Diameter (in)	2.13 in
Adjustment Slot Width (in)	2.13 in
Adjusting Screw Square Nut Seat Height (in)	3.38 in
Slot Spacing (in)	8.63 in
Locking Collar Outside Diameter (in)	5.44 in
Adjustment Pad Height (in)	5.38 in
Centerline to Outermost Bearing Face (in)	2.94 in
Inner Ring Outside Diameter (in)	4.561 in
Length Through Bore (in)	4.94 in
Housing Outside Diameter to Cast Square Nut Slot Face (in)	8.88 in

Technical Specifications

Seal Type	Clearance Seal
Housing Color	Black
Product	TB22600
Misalignment Type	Dynamic
Radial Clearance	C0 STANDARD
Static Load Rating (lb)	137,000 lb
Cage Material	Steel
Series	Take-up Blocks
Shaft Locking Type	Adapter Mount
Housing Style	Take-Up Block
Radial Dynamic Load Capacity (lb)	96,500 lb
Housing Type	Take Up, Wide Slot
Housing Material	Cast Iron
Fixed/Expansion	Fixed
End Cap	B464DTC
Rolling Element	Spherical Roller
Housing Construction	Solid
Ability to Relubricate	Yes
Seal Kit	B464HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Allowable Working Load [2/3 Yield Strength] (lb)	45,400 lb
Microlock Kit	B580MLK
Maximum Speed (RPM)	1400 rpm
Shaft Locking Collar Kit/Adapter Assembly	SNW663
Vibration Frequency Inner Ring Defect	0.1717 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Housing Coating	POWDER COATED
Lubricant	EXXON RONEX MP STD
Vibration Frequency Outer Ring Defect	0.1283 cps
Max Operating Temperature (F)	225 °F
Locking Device Kit	SNW663
Max Operating Temperature (C)	107 °C
Insert	B663L
Vibration Frequency Roller Spin	0.0548 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0071 cps
Size Code	B663
Primary Seal	STEEL CLEARANCE SEAL

General Specifications

UPC	793699502008
Weight	74.00 LB
Packaged Length	10.50 IN
Packaged Width	6.63 IN
Packaged Height	16.00 IN
HTC	8483204080
