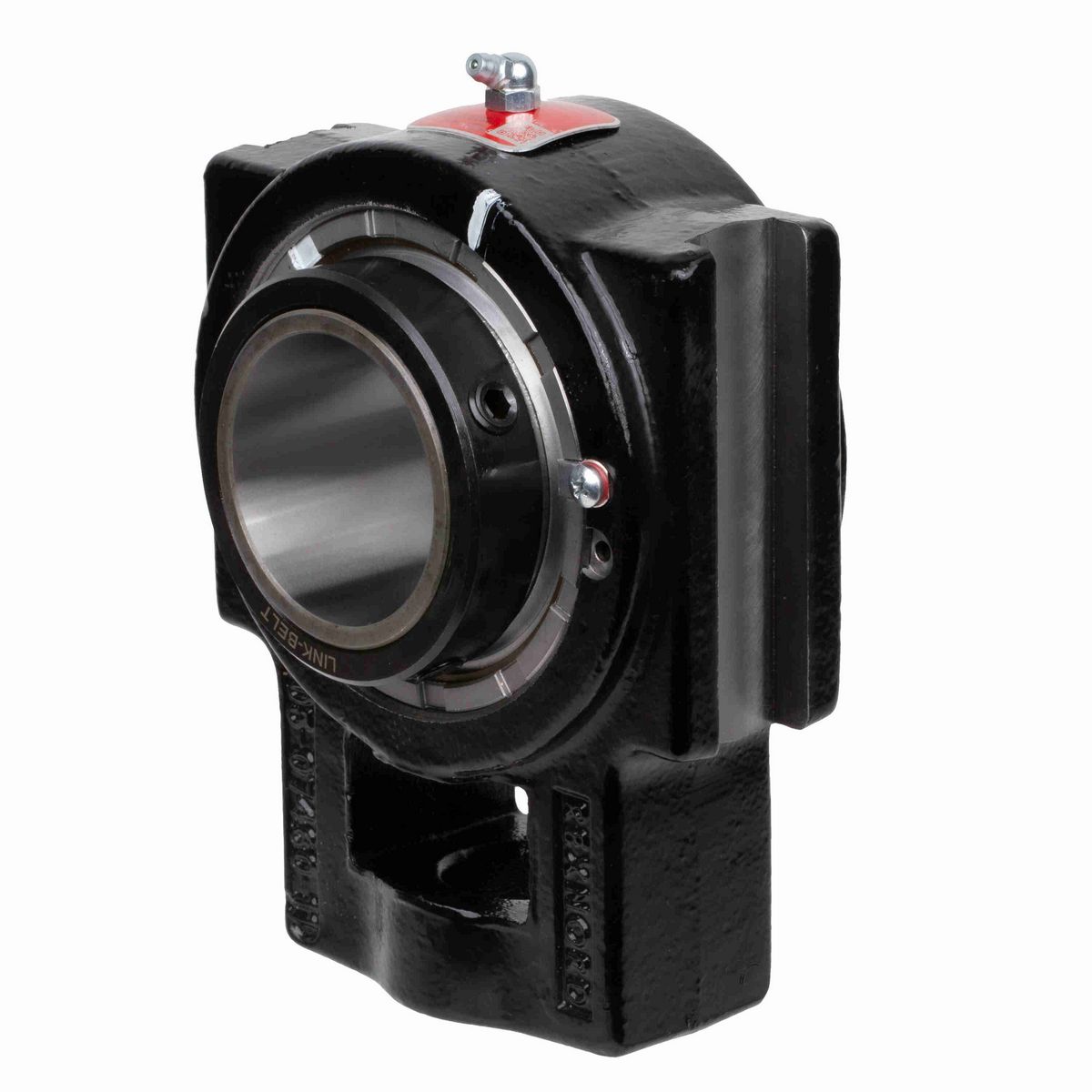

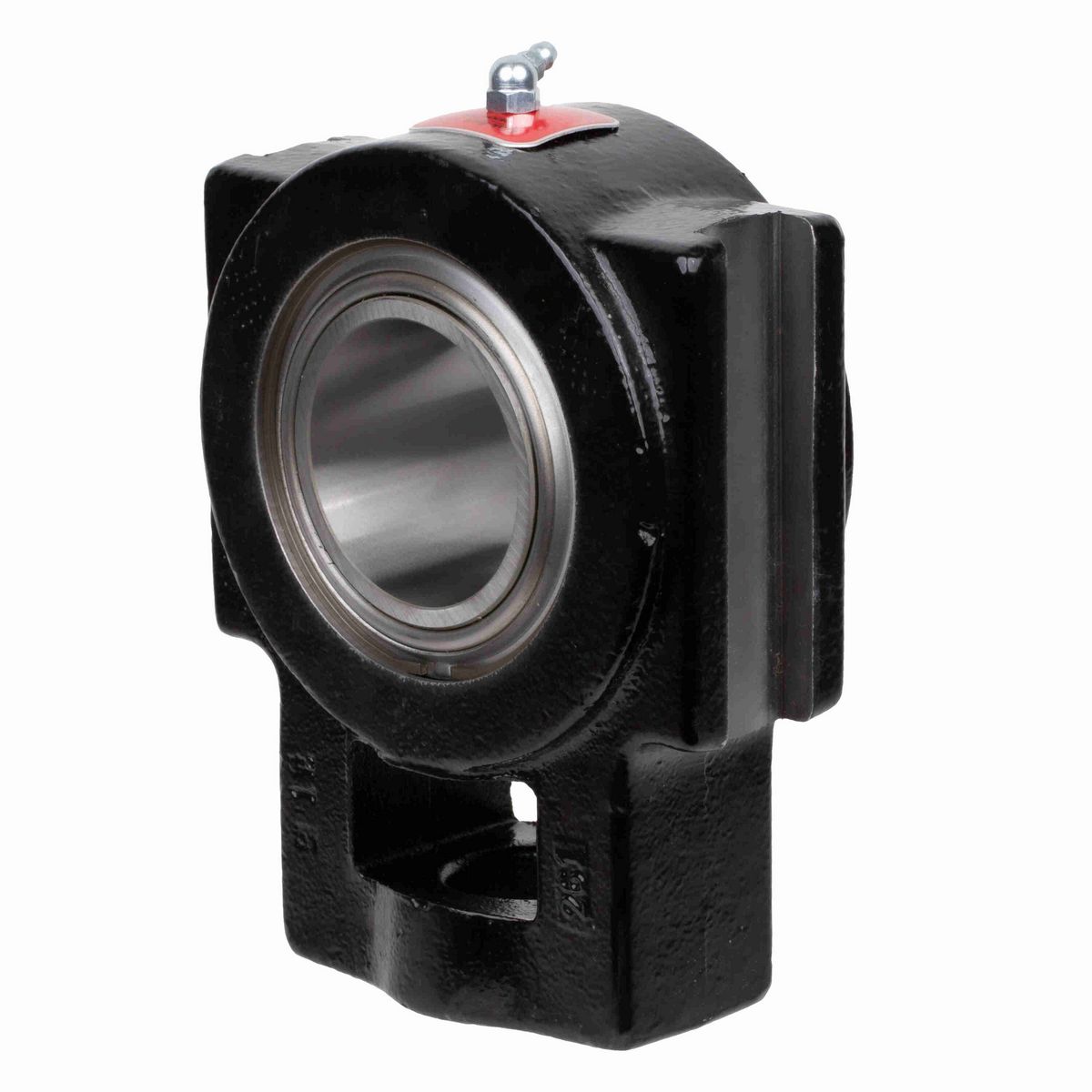

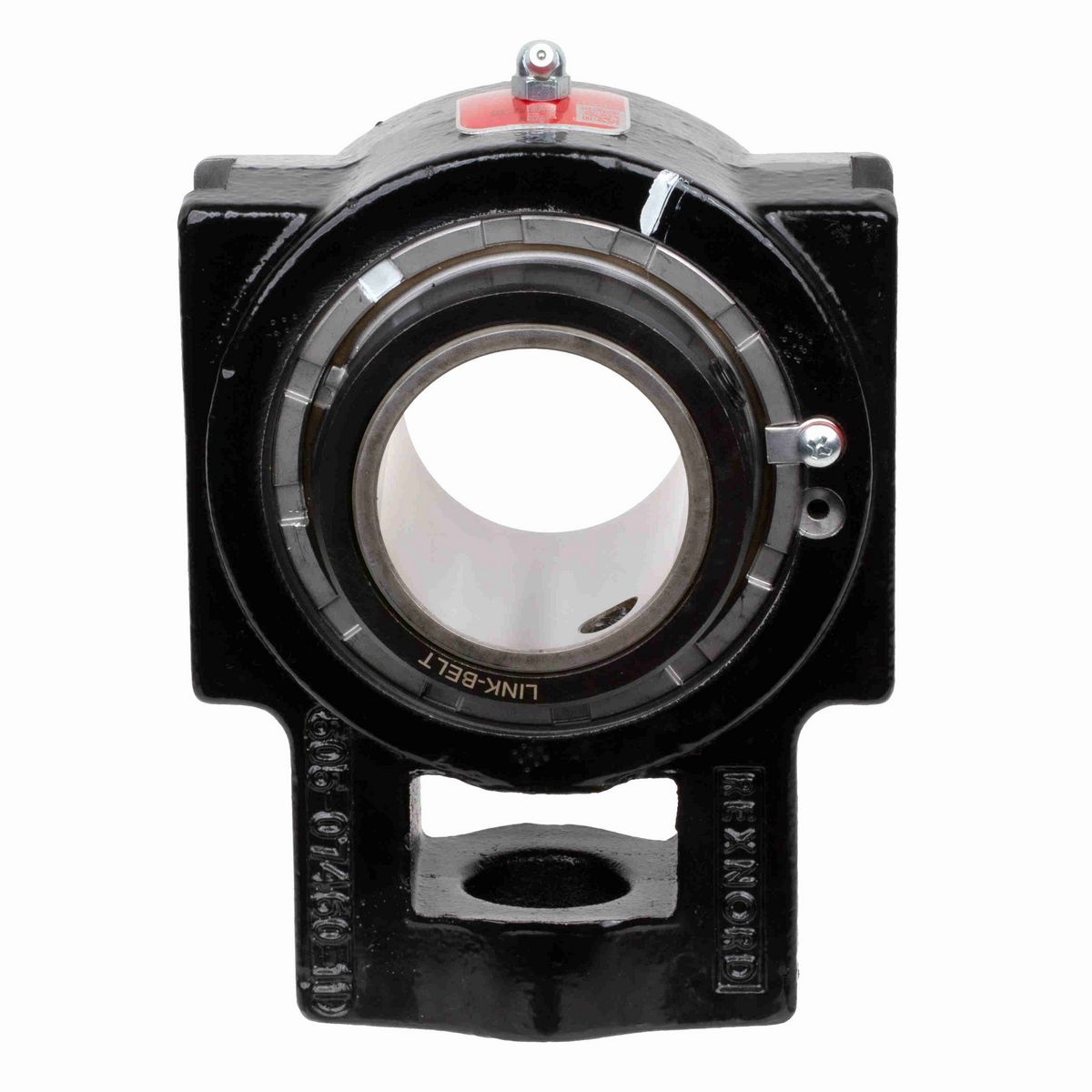

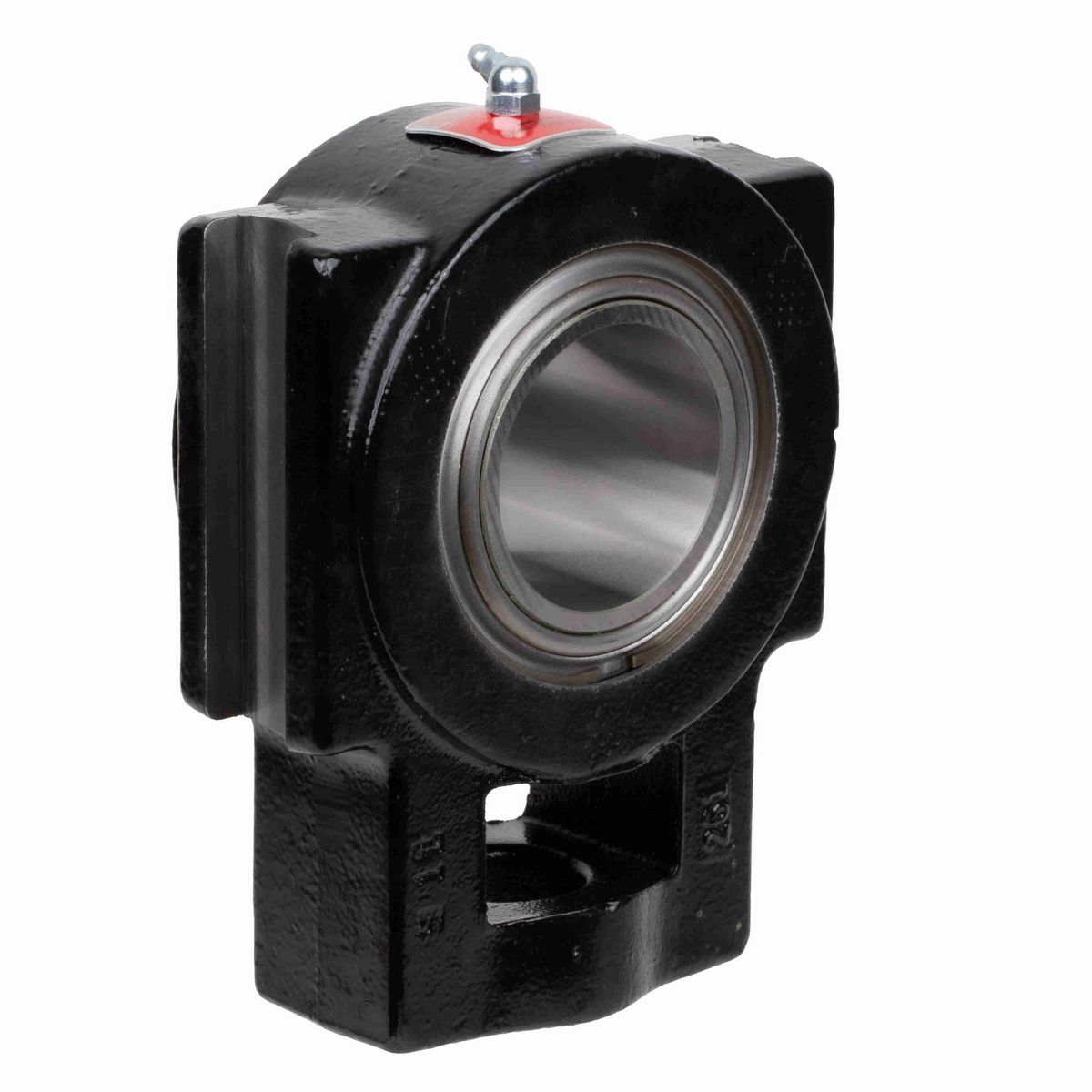

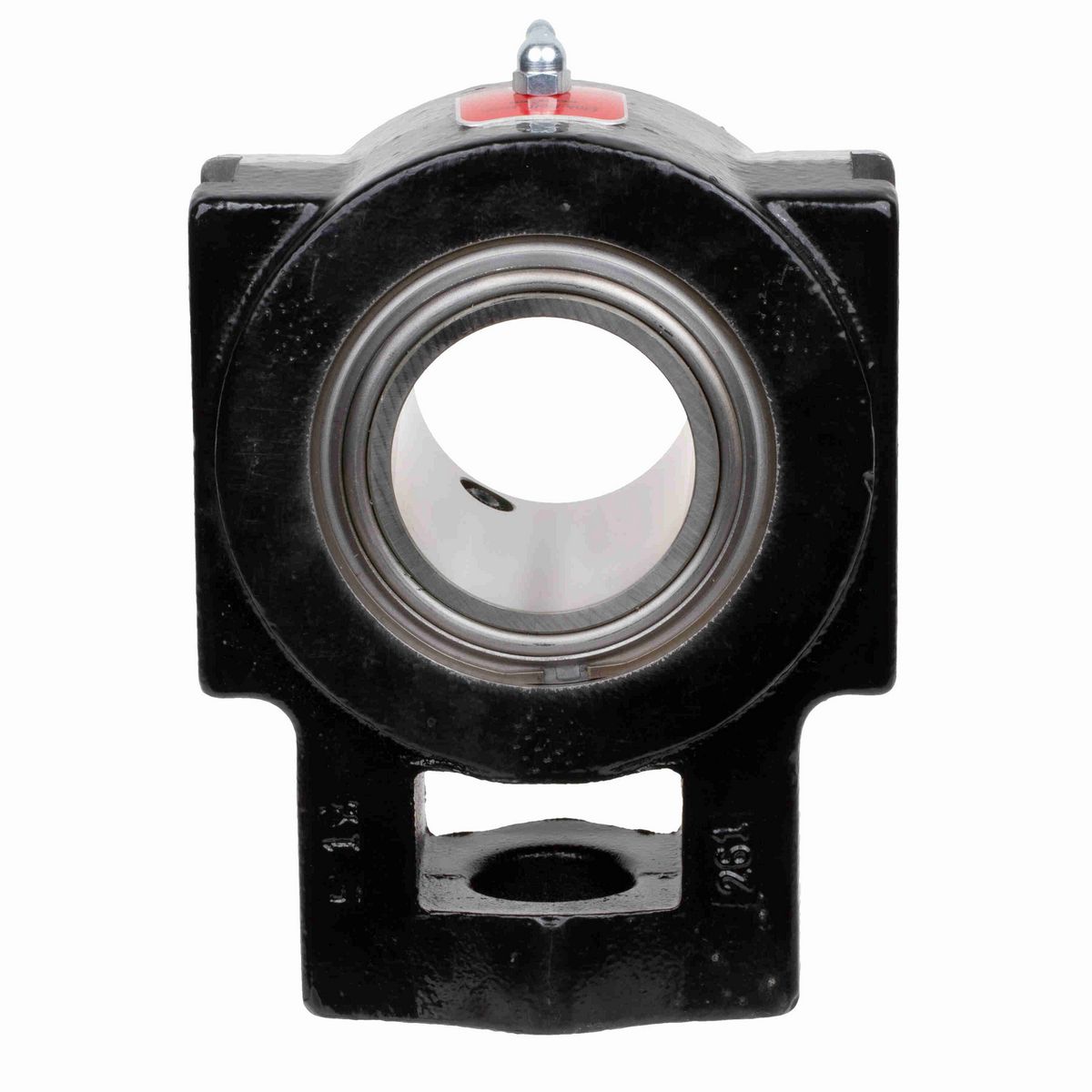

• 2 1/2" Mounted Spherical Roller Bearing, Fixed Cast Iron Take Up Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Width (in)	3.51 in
Bore Diameter (in)	2.5000 in
Overall Length (in)	7.81 in
Overall Height (in)	5.88 in
Housing Width (in)	2.63 in
Slot Width (in)	1.06 in
Slot Length (in)	4 in
Base to Center Height (in)	5.063 in
Adjusting Screw Square Nut Seat Height (in)	2.25 in
Locking Collar Outside Diameter (in)	3.56 in
Slot Spacing (in)	5.13 in
Adjustment Pad Height (in)	4.25 in
Adjusting Screw Clearance Hole Diameter (in)	1.38 in
Adjustment Slot Width (in)	1.25 in
Centerline to Outermost Bearing Face (in)	2.19 in
Inner Ring Outside Diameter (in)	2.901 in
Length Through Bore (in)	3.51 in
Housing Cast Face to Outermost Bearing Face (in)	0.88 in
Housing Outside Diameter to Cast Square Nut Slot Face (in)	5.5 in

Technical Specifications

Rolling Element	Spherical Roller
End Cap	B440DTC
Misalignment Type	Dynamic
Housing Material	Cast Iron
Radial Dynamic Load Capacity (lb)	38,300 lb
Static Load Rating (lb)	53,500 lb
Cage Material	Steel
Shaft Locking Type	Single Set Collar
Product	TB22400
Housing Construction	Solid
Fixed/Expansion	Fixed
Housing Type	Take Up, Wide Slot
Seal Type	Labyrinth Seal
Housing Style	Take-Up Block
Series	Take-up Blocks
Radial Clearance	C0 STANDARD
Setscrew Torque (in-lbs)	680 in/lbs
Allowable Working Load [2/3 Yield Strength] (lb)	20,900 lb
Microlock Kit	B448MLK
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Seal Kit	B440HS
Maximum Speed (RPM)	2300 rpm
Locking Device Kit	B440SC
Size Code	B440
Vibration Frequency Outer Ring Defect	0.1376 cps
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Primary Seal	STEEL CLEARANCE SEAL
Insert	B440L
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	225 °F
Vibration Frequency Roller Spin	0.0607 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Inner Ring Defect	0.1791 cps
Vibration Frequency Fundamental Train	0.0072 cps
Lubricant	EXXON RONEX MP STD

General Specifications

UPC	662327141929
Weight	18.50 LB
Packaged Length	10.44 IN
Packaged Width	3.50 IN
Packaged Height	6.13 IN
HTC	8483204080
Country of Origin	United States of America
