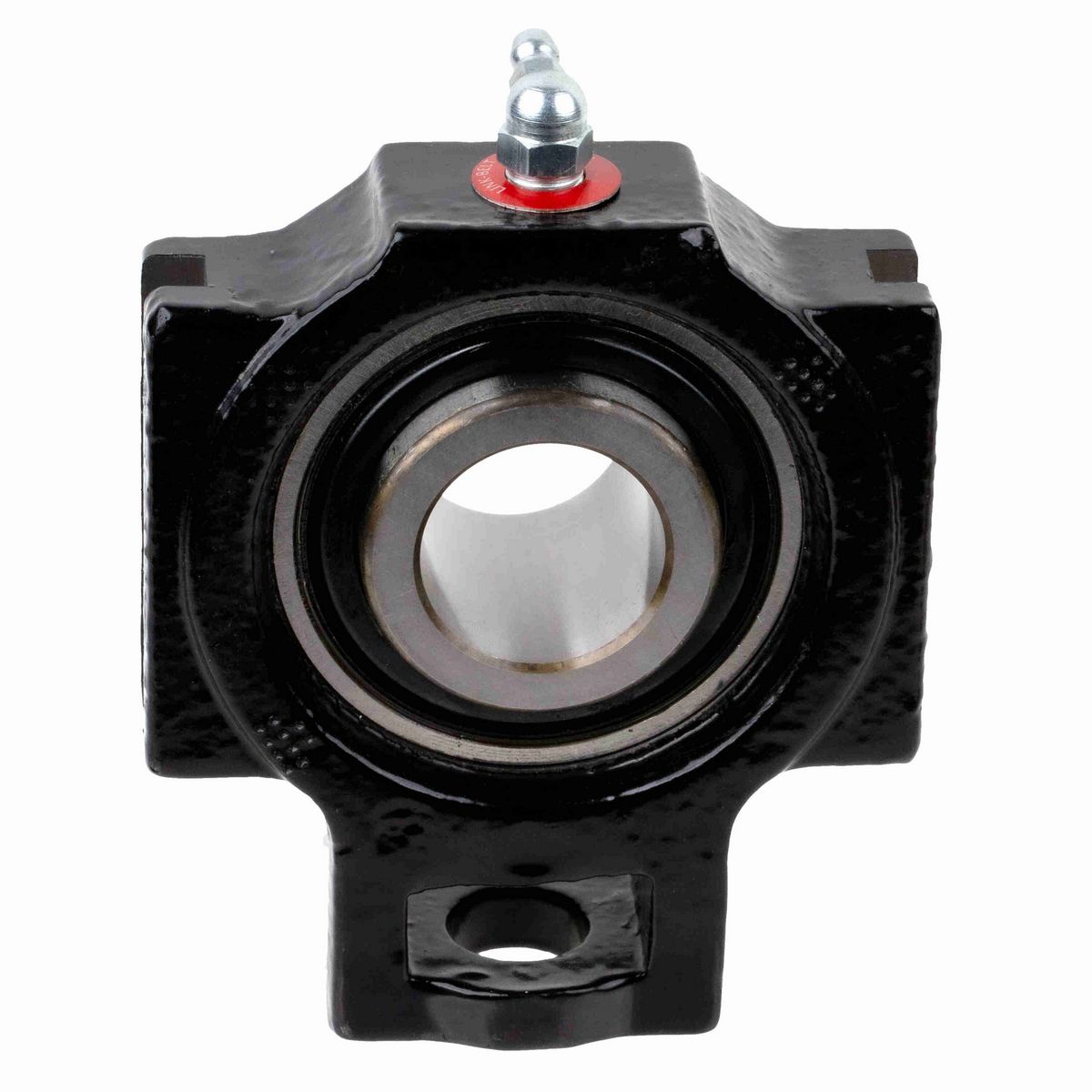

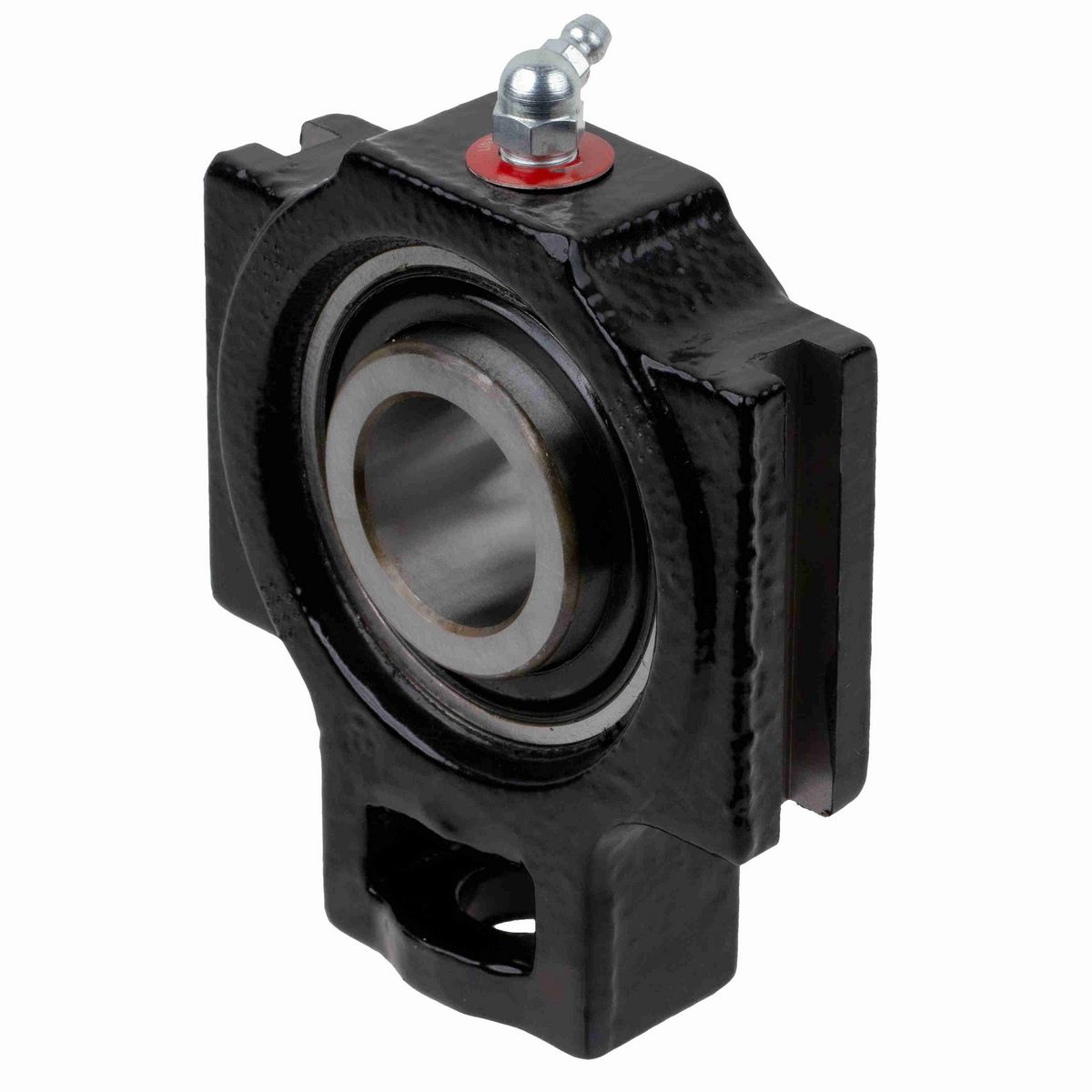

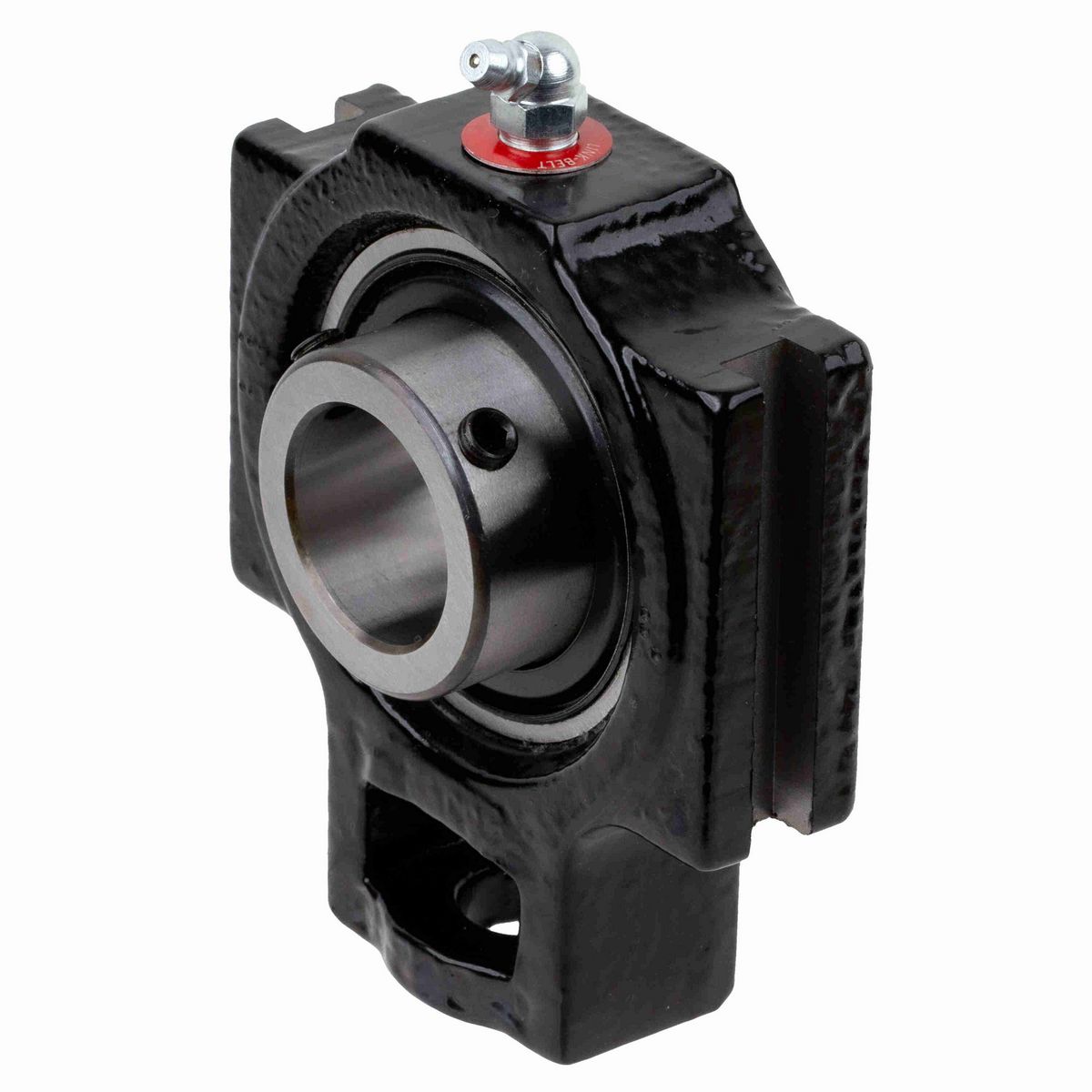

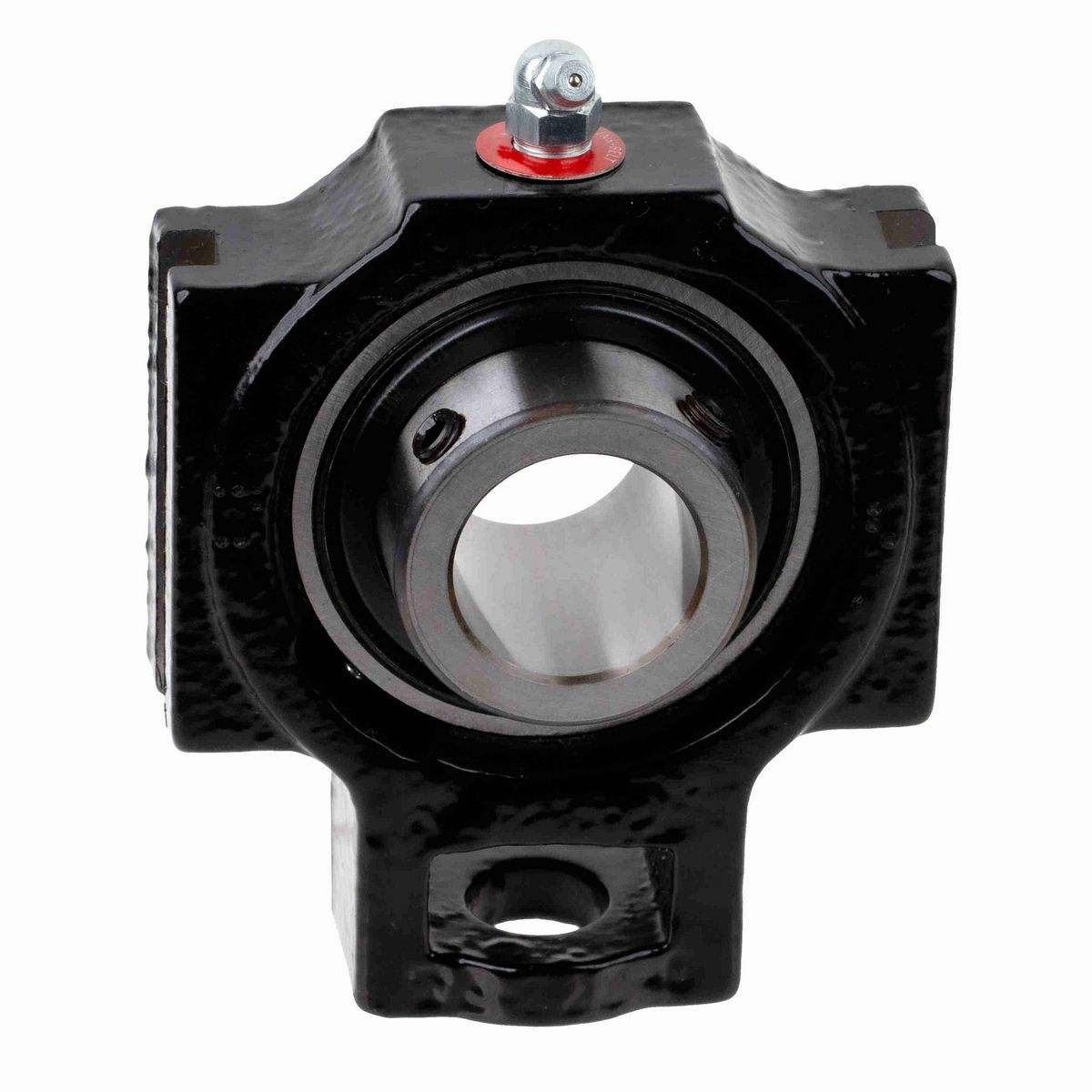

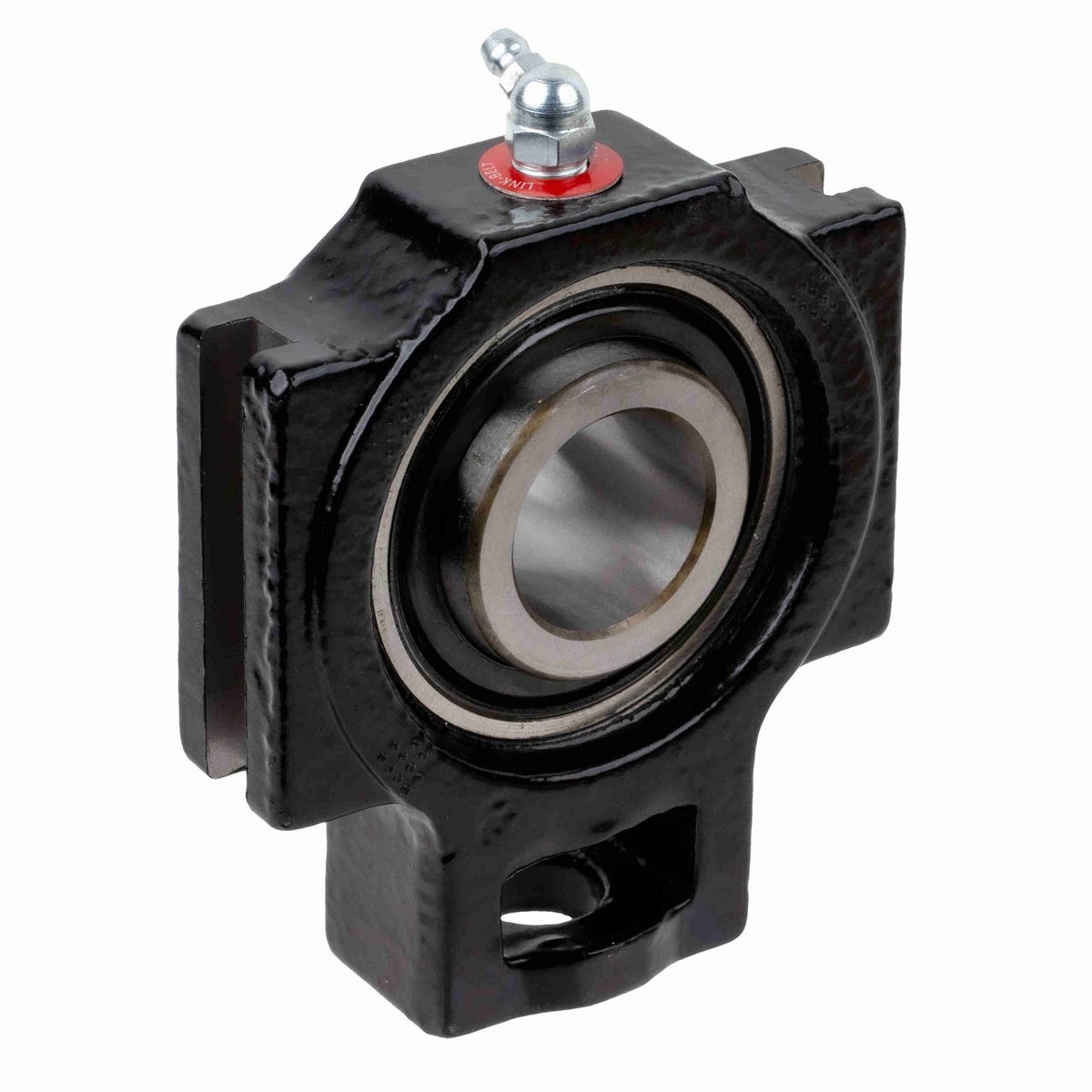

• 1 1/4" Mounted Ball Bearing, Standard Duty, Cast Iron Center Pull Take-up Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Slot Width (in)	0.406 in
Base to Center Height (in)	2.875 in
Overall Width (in)	1.77 in
Overall Height (in)	4.00 in
Bore Diameter (in)	1.25 in
Overall Length (in)	4.69 in
Length Through Bore (in)	1.766 in
Slot Spacing (in)	3.375 in
Centerline to Outermost Bearing Face (in)	1.109 in

Technical Specifications

Housing Type	Take-Up Block
Seal Type	Single Lip Contact Seal
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Slot Length (in)	2.63 in
Misalignment Type	Static Only
Housing Construction	One Piece
Housing Color	Black
Bore Shape	Straight
Cage Material	Molded fiber glass reinforced nylon
Housing Style	Take-Up Block
Carriage Bolt Size (in)	5/8 in
Adjusting Screw Clearance Hole Diameter (in)	0.69 in
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165 in/lbs
Adjusting Screw Square Nut Seat Height (in)	1.25 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Insert	UG220NL
Inner Ring Outside Diameter (in)	1.847 in
Vibration Frequency Inner Ring Defect	0.0905 cps
Vibration Frequency Roller Spin	0.0383 cps
Max Operating Temperature (C)	107 °C
Housing Material	Cast Iron
Max Operating Temperature (F)	225 °F
Bearing Brand	LINK-BELT 200 SERIES BALL
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	5,810 lb
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/8 NPT
Misalignment Capability	±1.5° Misalignment - Static Only
Radial Clearance	C3 STANDARD
Cage Type	Ball Riding Retainer
Vibration Frequency Fundamental Train	0.0067 cps
Static Load Rating (lb)	3,440 lb
Shaft Locking Type	Set Screw
Centerline to Cap Face (in)	1 35/64
Maximum Speed (RPM)	6850 rpm
Lubricant	EXXON RONEX MP STD
Size Code	207

General Specifications

UPC	662327148249
Weight	3.45 LB
Packaged Length	5.63 IN
Packaged Width	4.25 IN
Packaged Height	1.88 IN
HTC	8483204040
Country of Origin	Mexico
