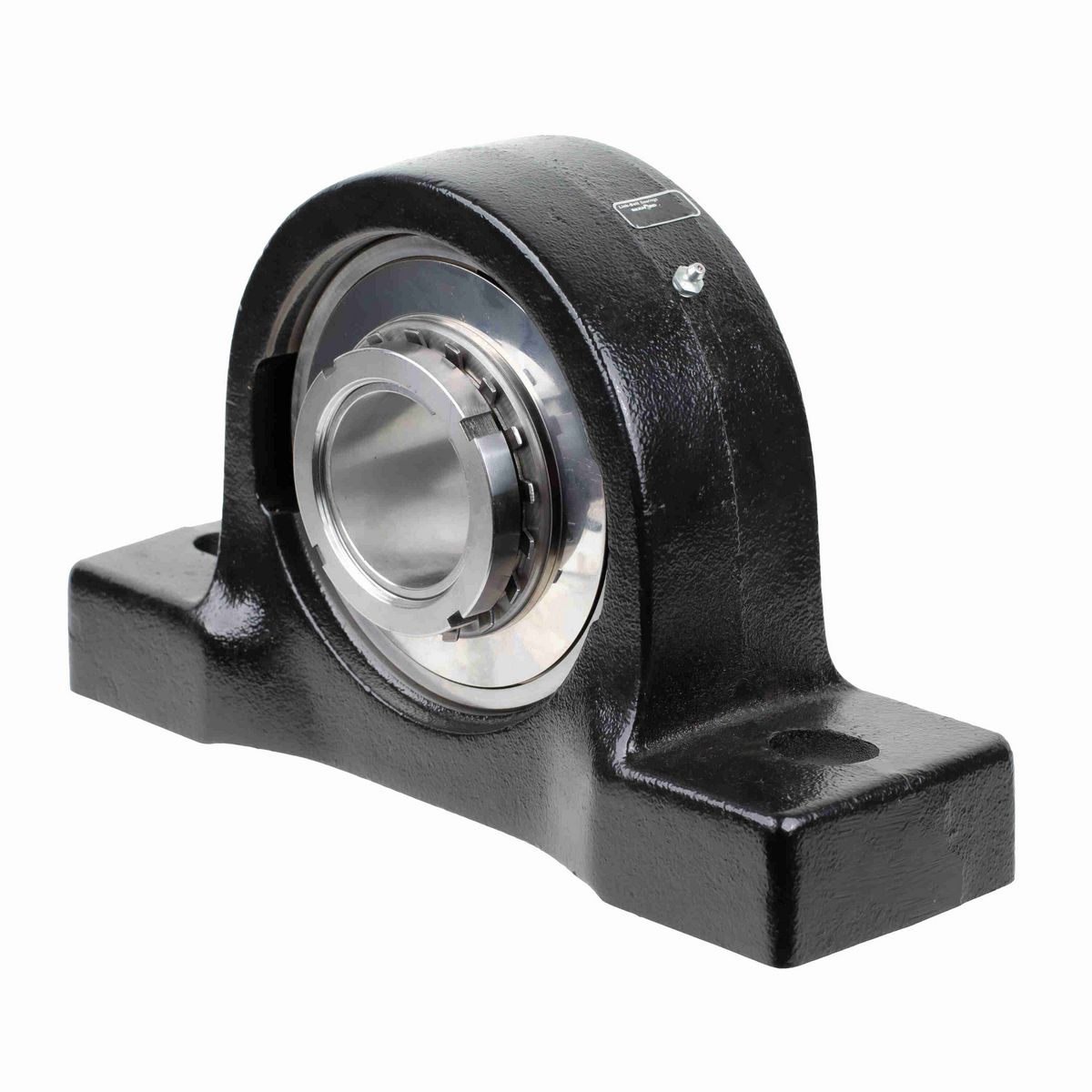

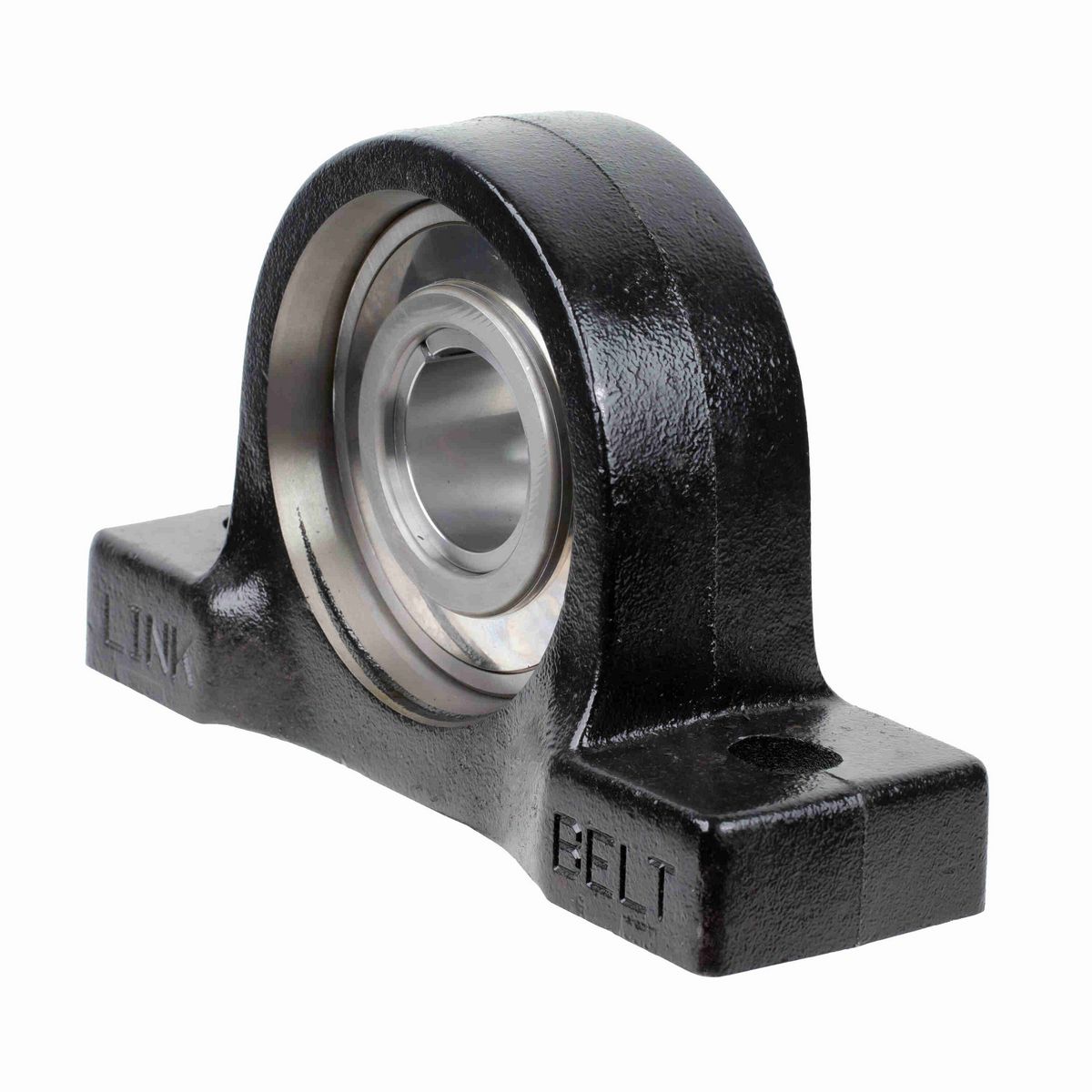

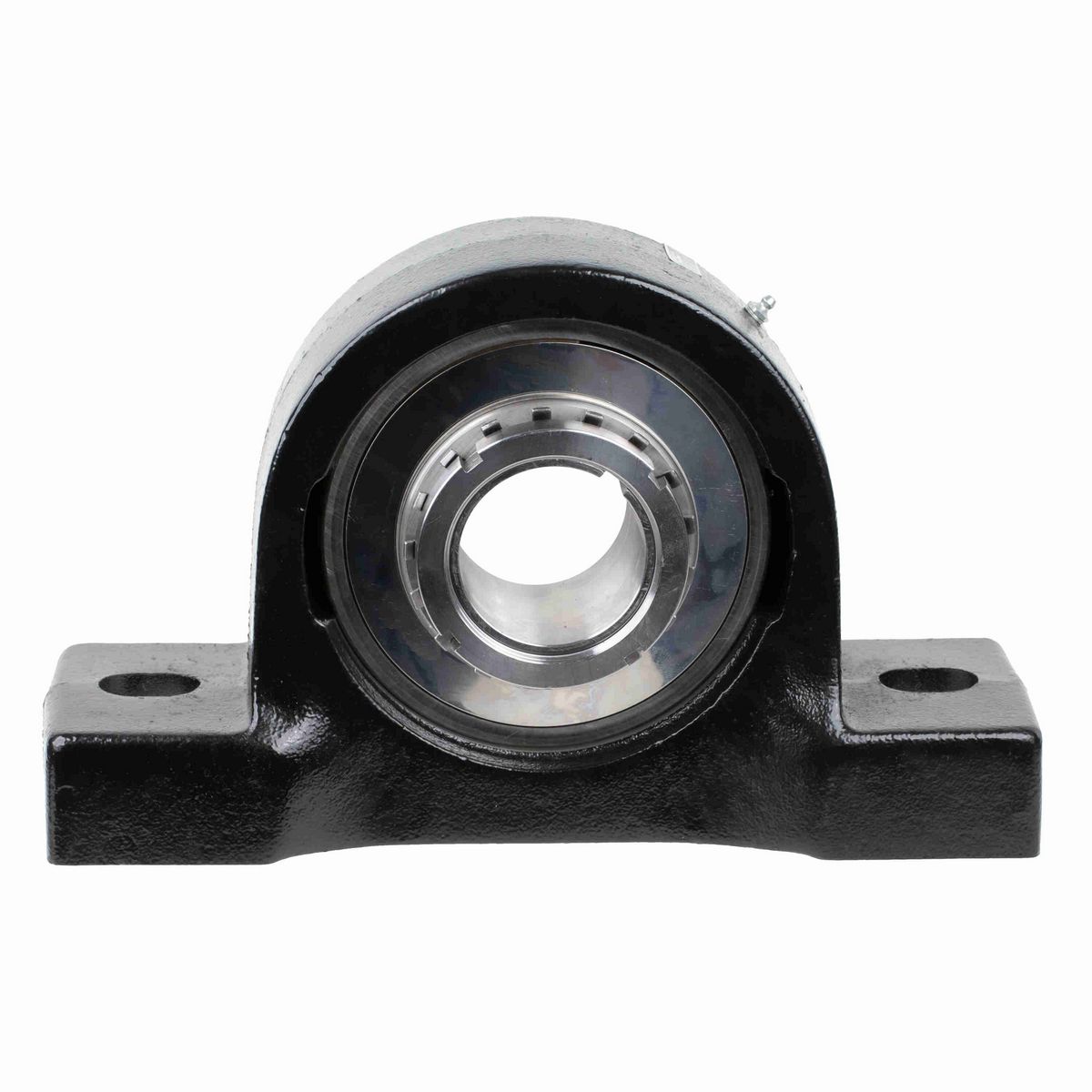

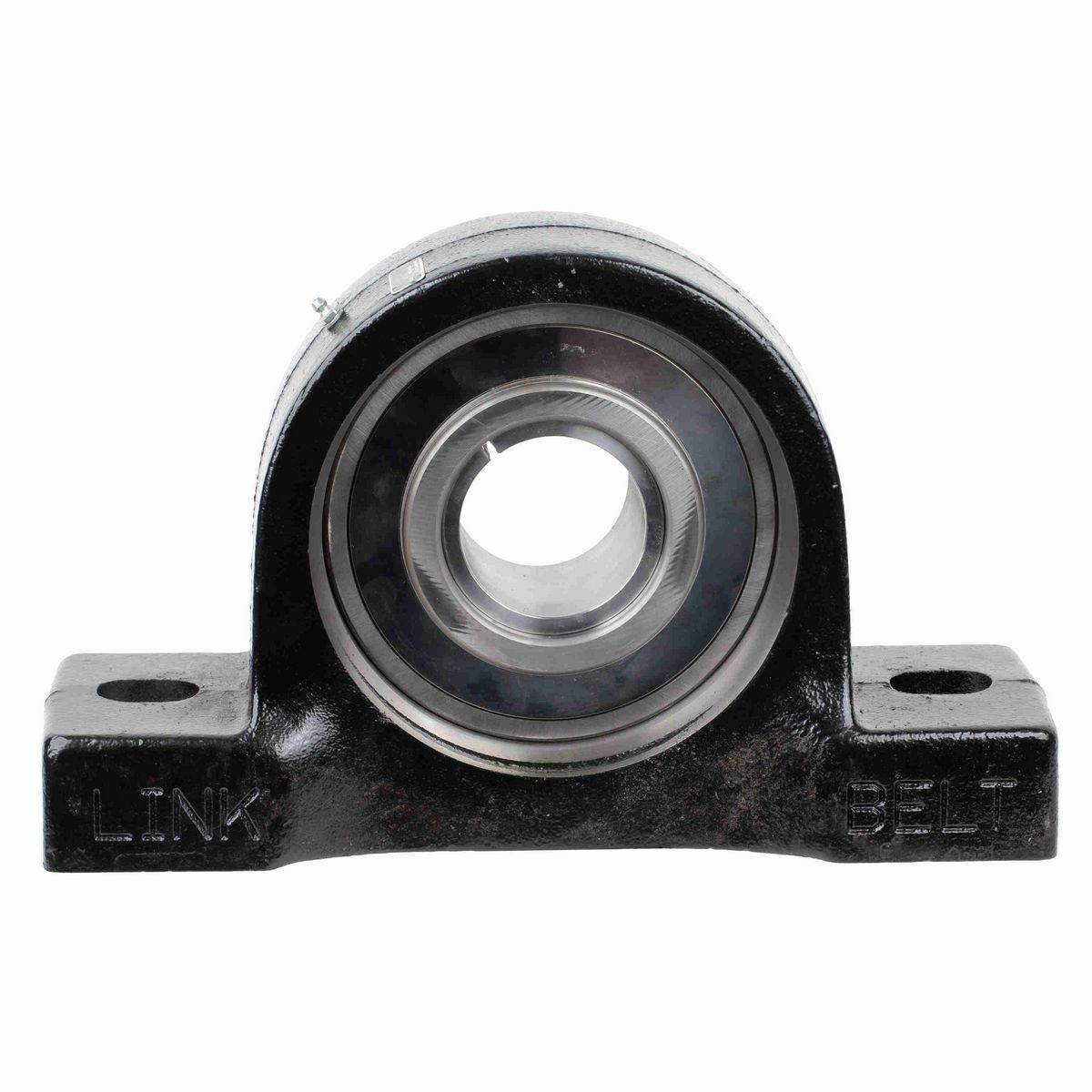

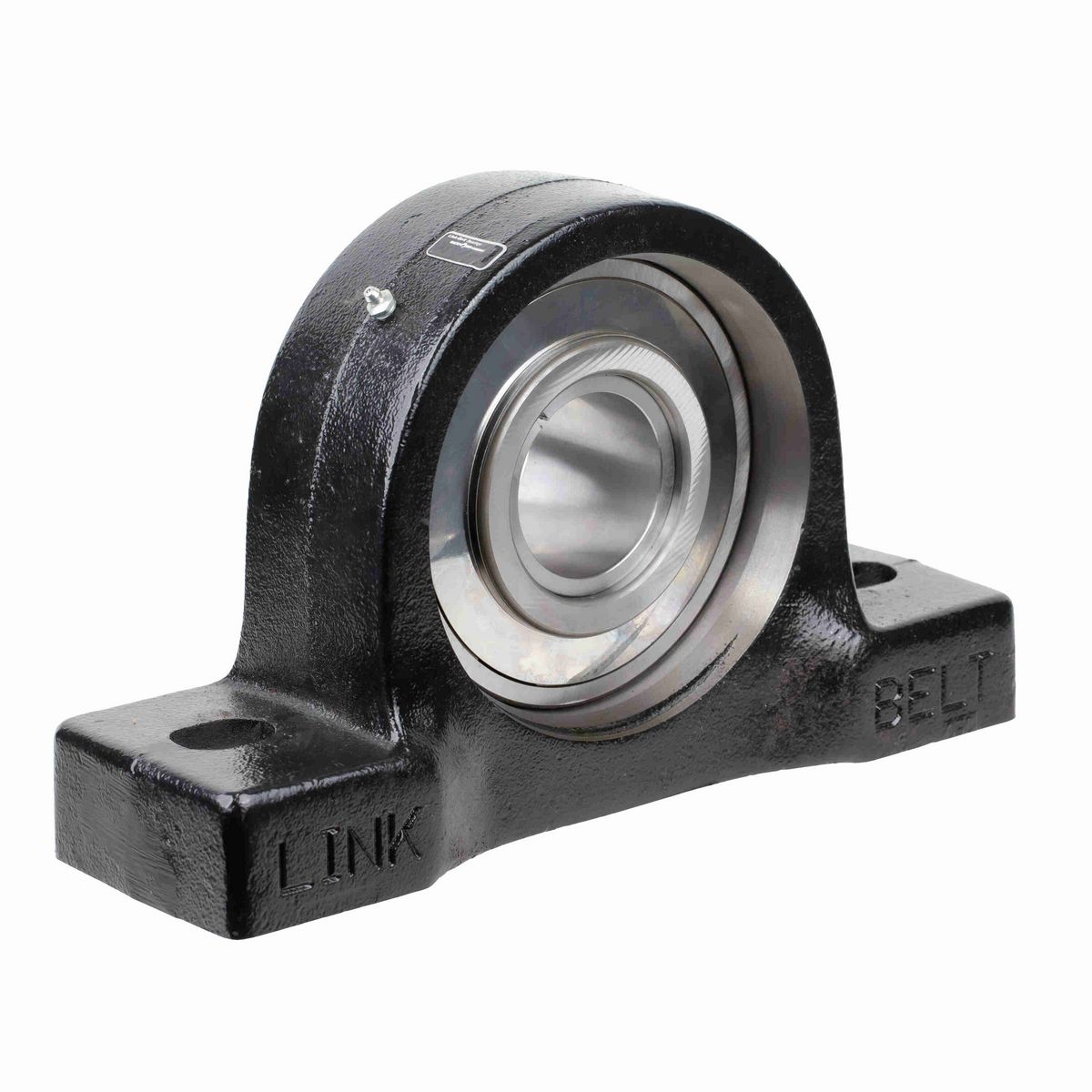

• 2 15/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt Pillow Block, Adapter Mounted, Clearance Seal

Dimensions

Foot Height (in)	2.25 in
Base to Center Height (in)	5.125 in
Bore Diameter (in)	2.9375 in
Bolt Size (in)	1 in
Length Through Bore (in)	3.53 in
Overall Length (in)	16.13 in
Overall Height (in)	9.88 in
Base Width (in)	5 in
Overall Width (in)	5 in
Bolt Spacing (in)	12.88 in
Centerline to Outermost Bearing Face (in)	2.13 in

Technical Specifications

Slot Length (in)	1.63 in
Seal Type	Labryinth Seal
Cage Material	Molded fiber glass reinforced nylon
Housing Construction	One Piece
Housing Base	Semi-Solid
Housing Type	Pillow Block, Two Bolt
Rolling Element	Ball Bearing
Housing Style	Pillow Block
Housing Color	Black
Bore Shape	Straight
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Shaft Locking Collar Kit/Adapter Assembly	H2317047
Locking Collar Outside Diameter (in)	4.33 in
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0065 cps
End Cap Available	No
Vibration Frequency Outer Ring Defect	0.0315 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0348 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (C)	107 °C
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	4.763 in
Bearing Type	Heavy Duty
Bearing Insert Material	52100 Bearing Steel
Size Code	356
Insert	UG3K47L
Locking Device Kit	H2317047
Base Length (in)	16.13 in
Maximum Speed (RPM)	3100 rpm
Cage Type	Ball Riding Retainer
Lubricant	EXXON RONEX MP STD
Static Load Rating (lb)	24,100 lb
Housing Material	Cast Iron
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Dynamic Load Rating (lb)	35,070 lb
Vibration Frequency Inner Ring Defect	0.0818 cps
Shaft Locking Type	Tapered Adapter
Max Operating Temperature (F)	225 °F
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD

General Specifications

UPC	793699068511
Weight	80.00 LB
Packaged Length	10.50 IN
Packaged Width	6.63 IN
Packaged Height	16.00 IN
HTC	8483208040
Country of Origin	Mexico
