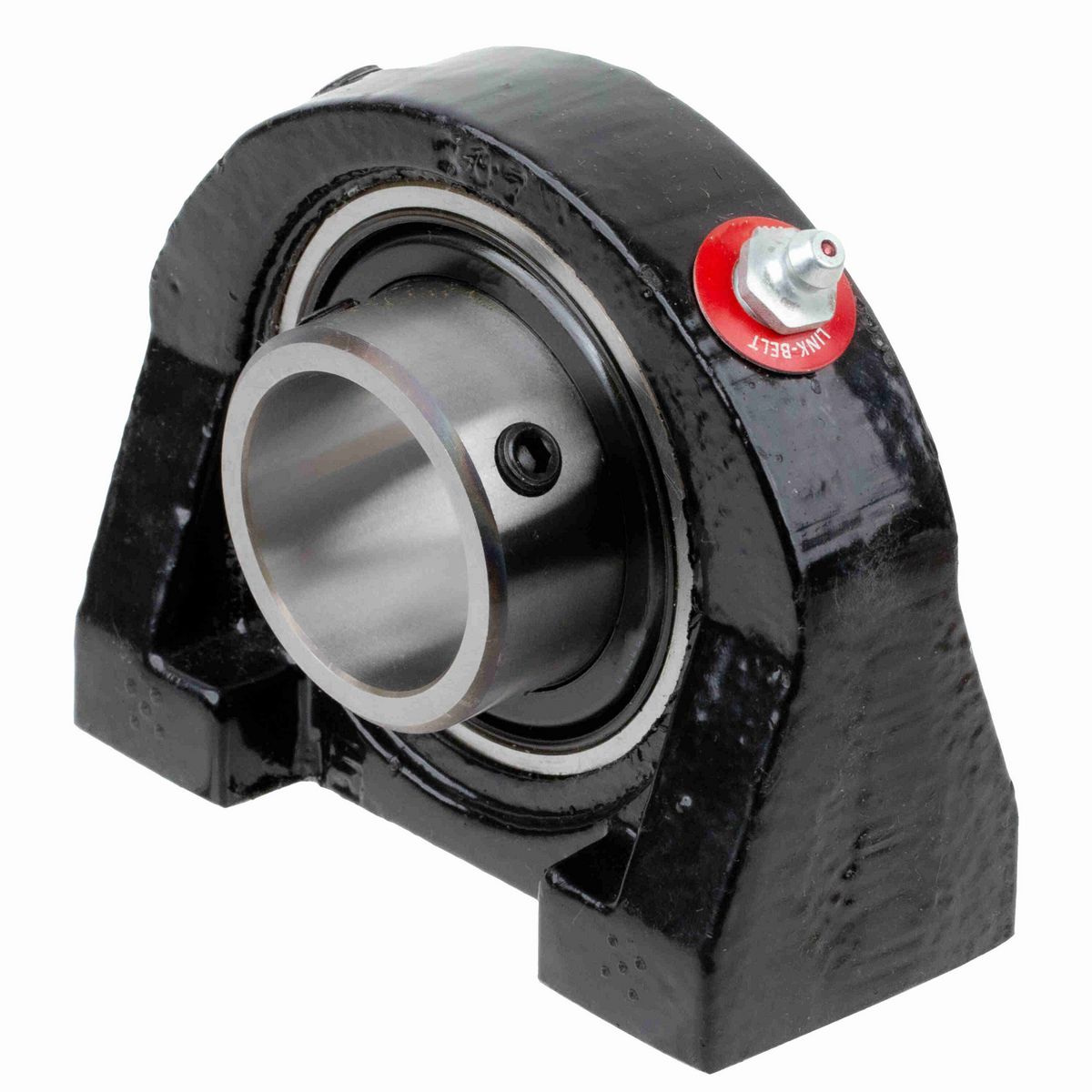

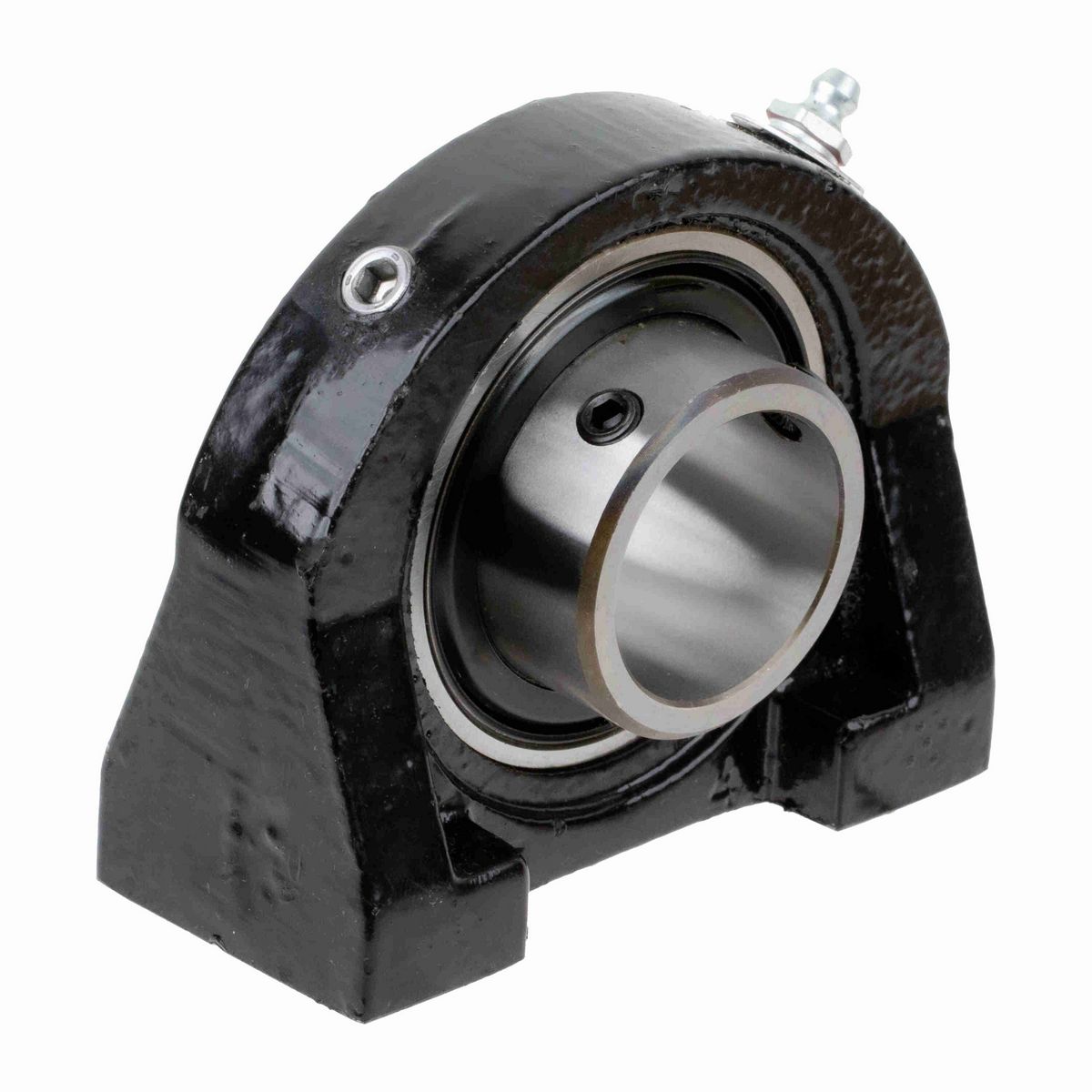

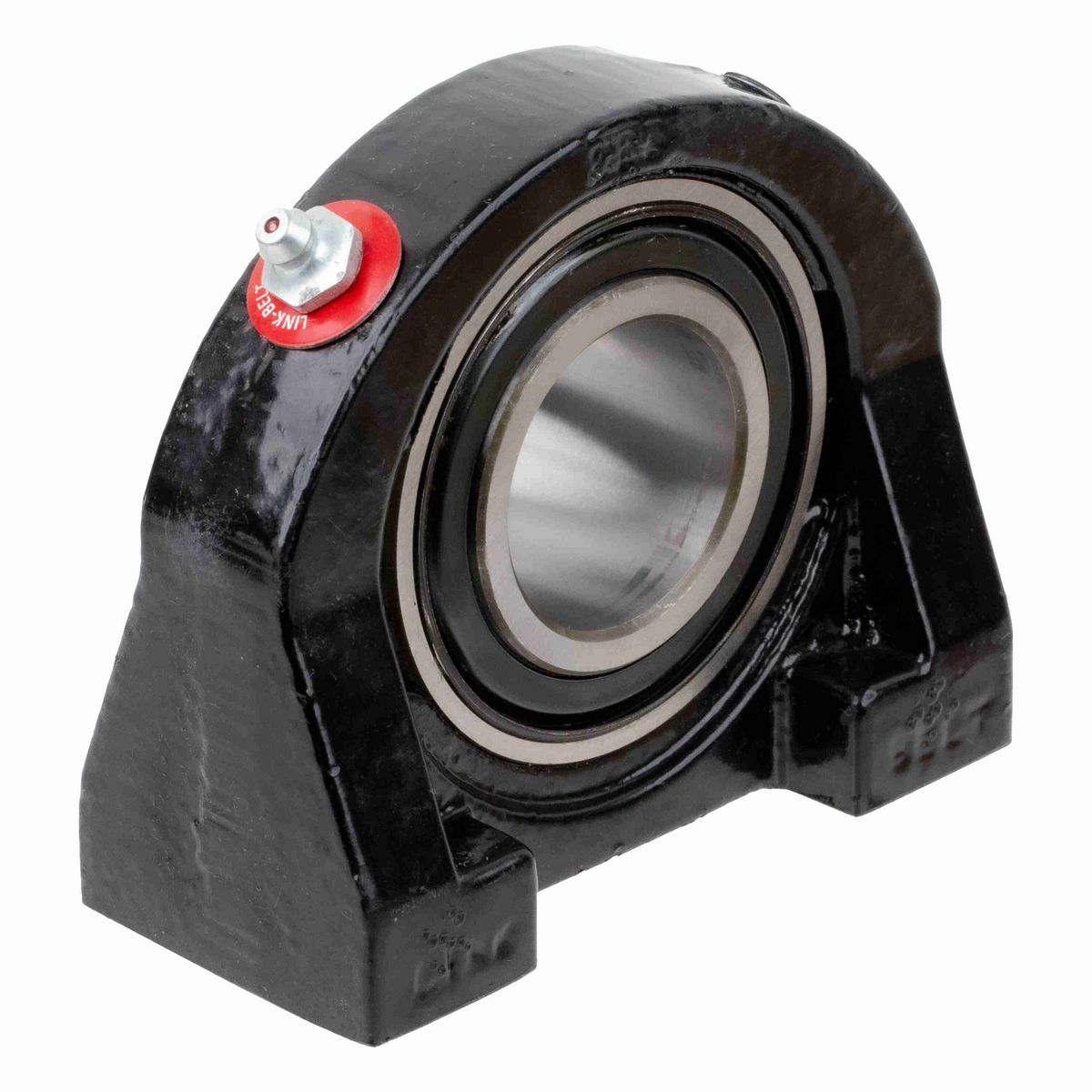

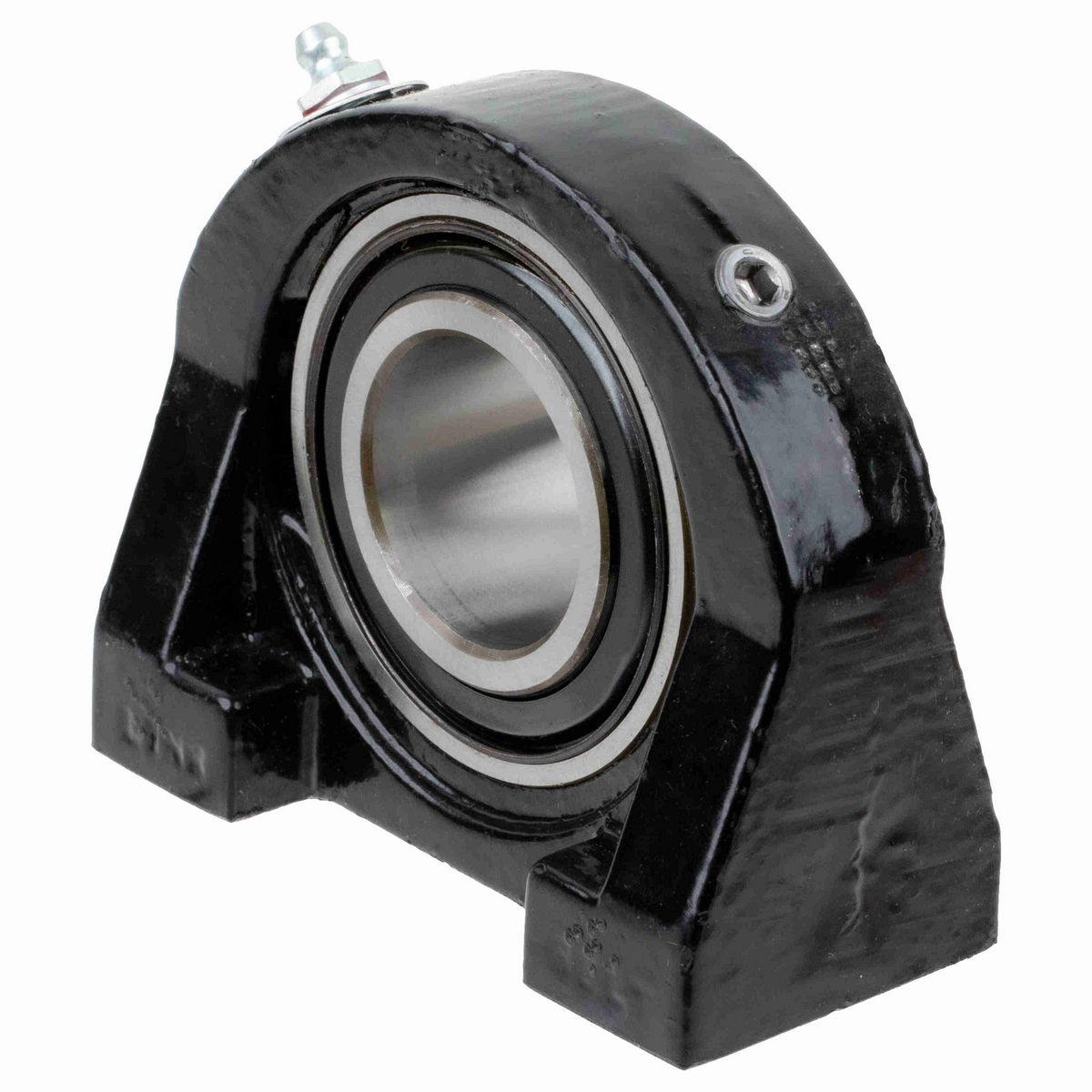

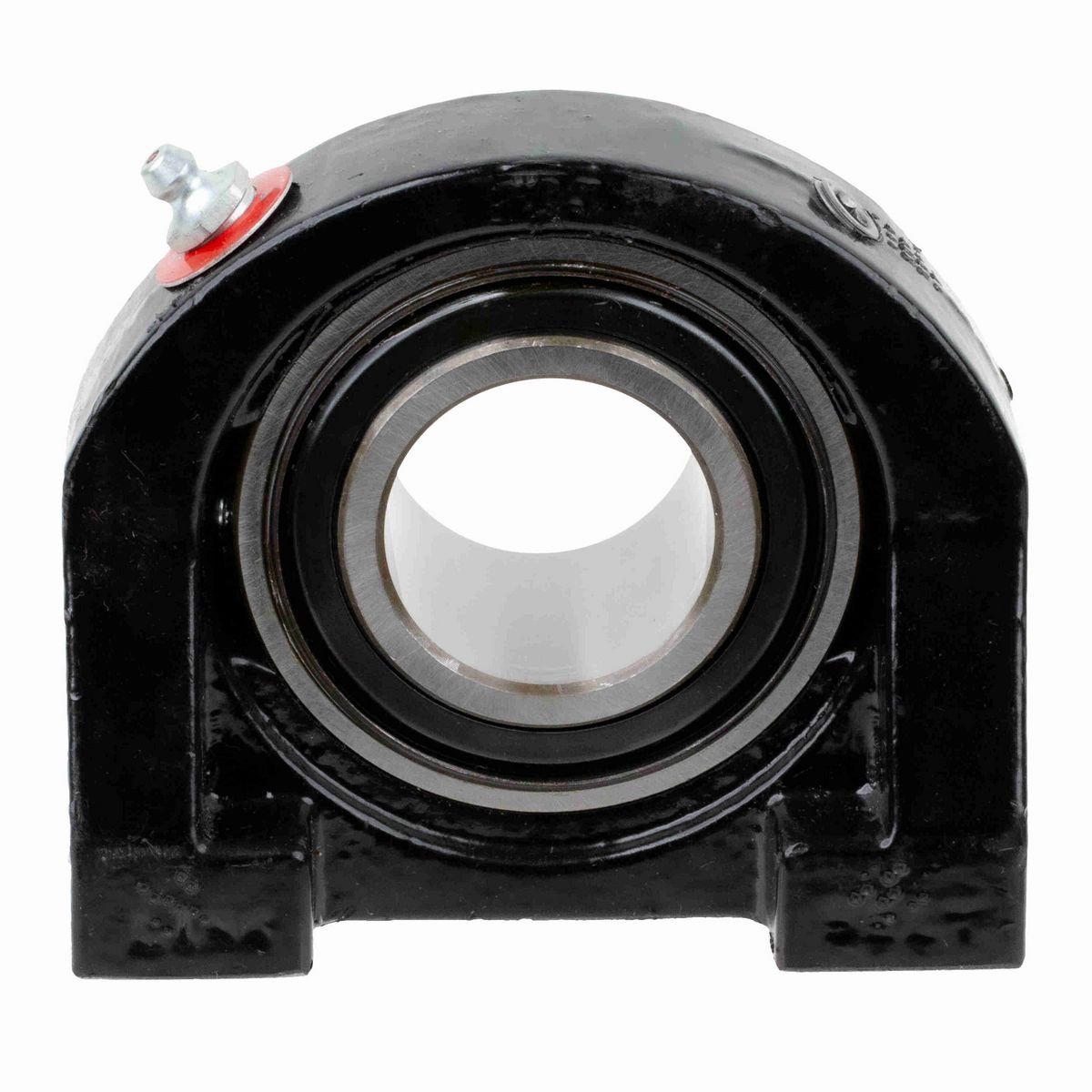

• 1 7/16" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Tapped Base Pillow Block, Setscrew Locking, Single Lip Contact Seal

Dimensions

Overall Height (in)	3.69 in
Overall Width (in)	2 in
Thread Depth (in)	0.75 in
Bore Diameter (in)	1.4375 in
Length Through Bore (in)	1.5625 in
Base to Center Height (in)	1.875 in
Overall Length (in)	4.41 in
Base Width (in)	2.00 in
Thread Size	1/2-13
Centerline to Outermost Bearing Face (in)	1.109 in
Bolt Spacing (in)	3.25 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Type	Pillow Block, Tapped Base
Misalignment Type	Static Only
Housing Base	Solid
Housing Style	Pillow Block
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Construction	One Piece
Setscrew Torque (in-lbs)	165 in/lbs
Ability to Relubricate	Yes
Static Load Rating (lb)	3,440 lb
Lubricant	EXXON RONEX MP STD
Base Length (in)	4.41 in
Vibration Frequency Outer Ring Defect	0.0595 cps
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
End Cap Available	No
Shaft Locking Type	Set Screw
Max Operating Temperature (C)	107 °C
Dynamic Load Rating (lb)	5,810 lb
Bearing Type	Intermediate Duty
Cage Type	Ball Riding Retainer
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	4800 rpm
Bearing Brand	LINK-BELT 200 SERIES BALL
Inner Ring Outside Diameter (in)	1.8438 in
Radial Clearance	C3 STANDARD
Housing Coating	Powder Coated
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.0905 cps
Insert	SG223ELPA
Size Code	207
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Roller Spin	0.0383 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Overall Housing Height (in)	3 11/16 in
Housing Width (in)	2 in

General Specifications

UPC	662327669515
Weight	3.25 LB
Packaged Length	5.31 IN
Packaged Width	5.31 IN
Packaged Height	2.19 IN
HTC	8483208040
Country of Origin	Mexico
