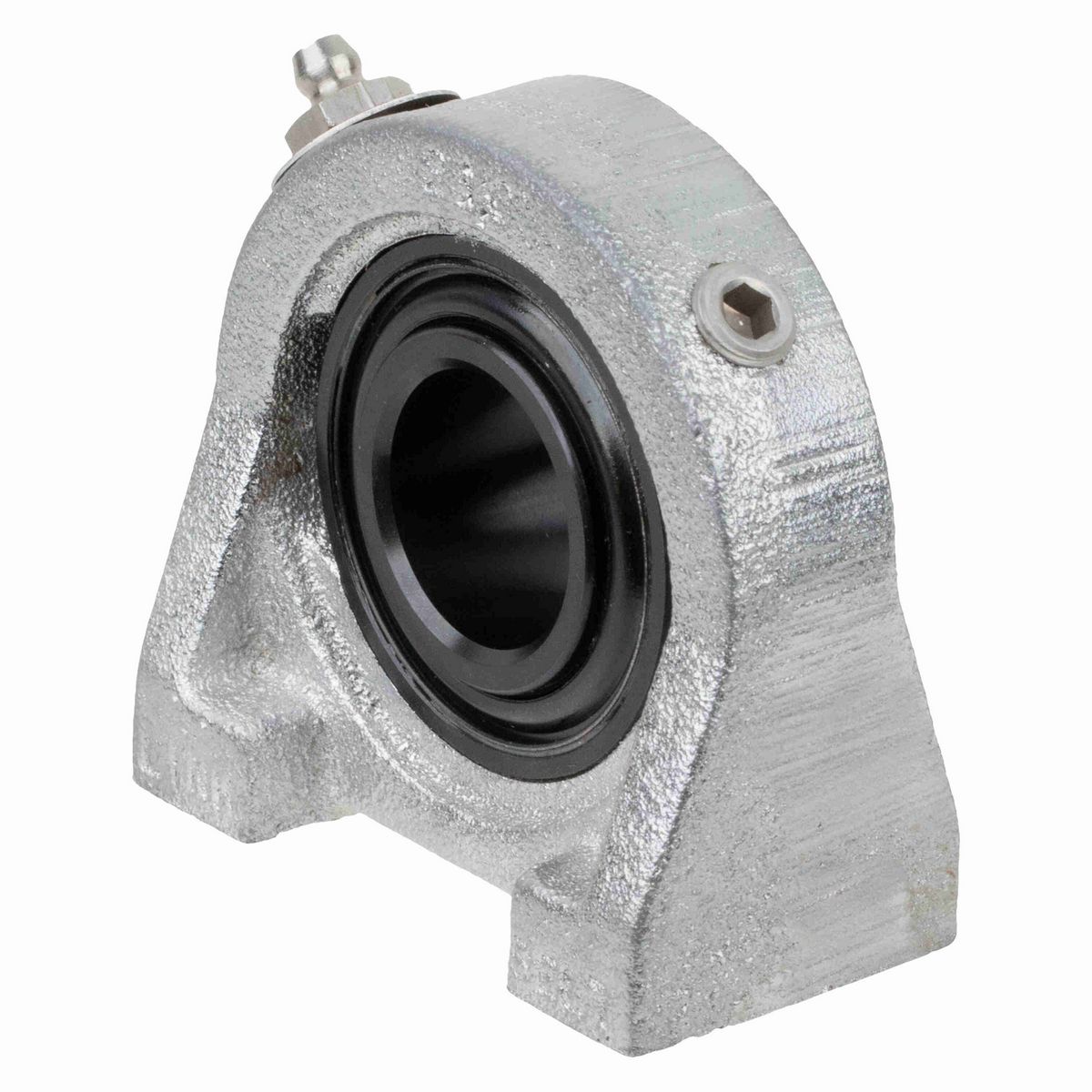

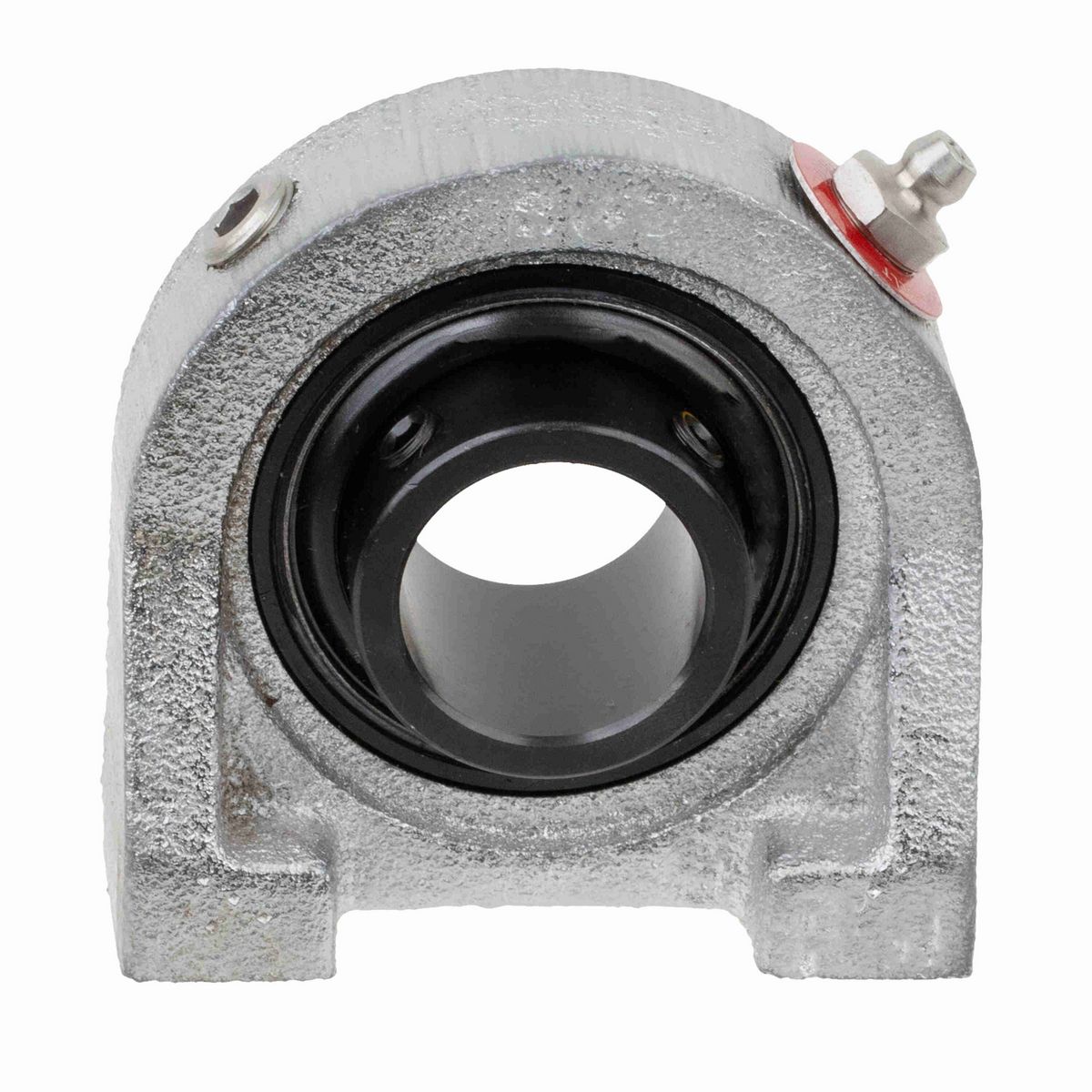

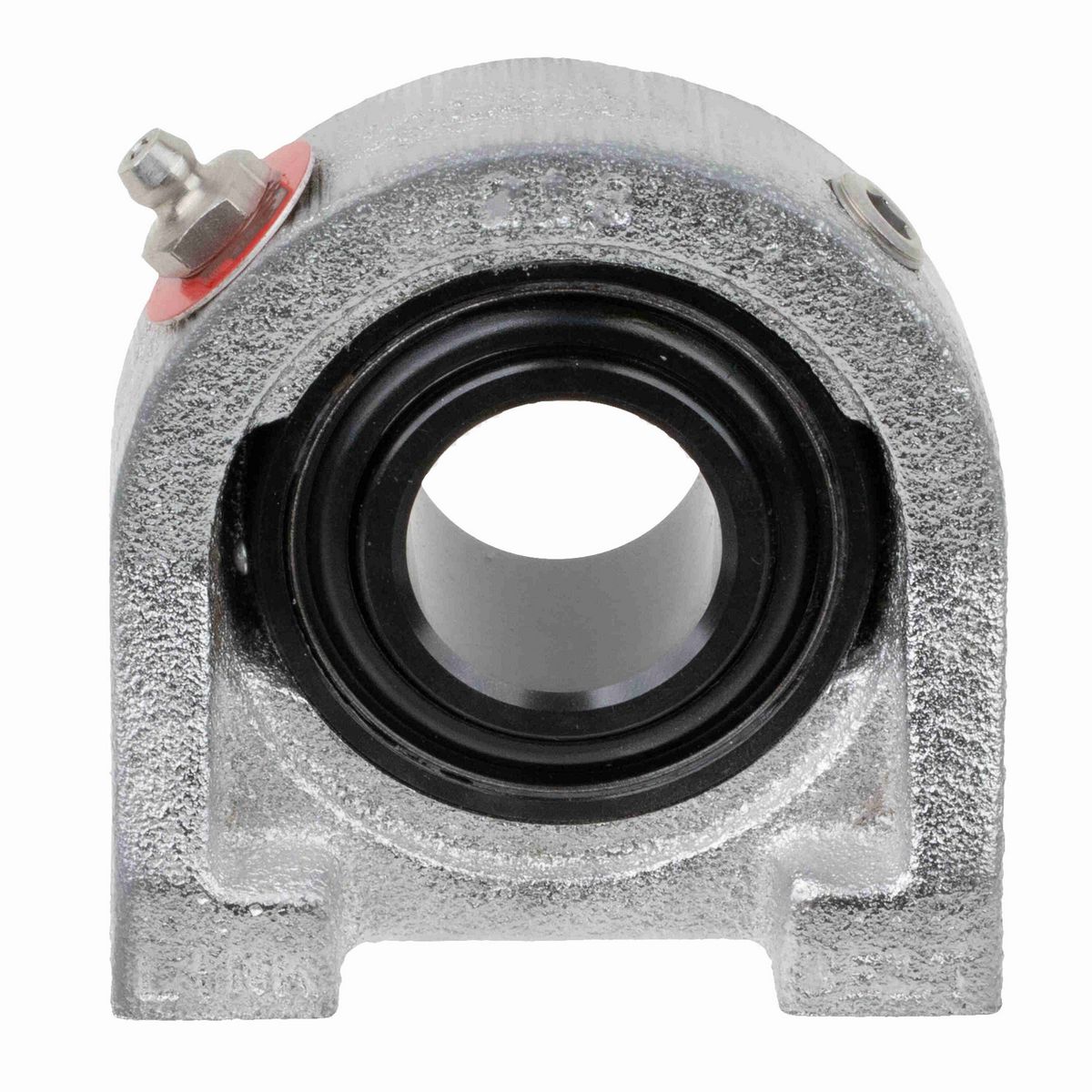

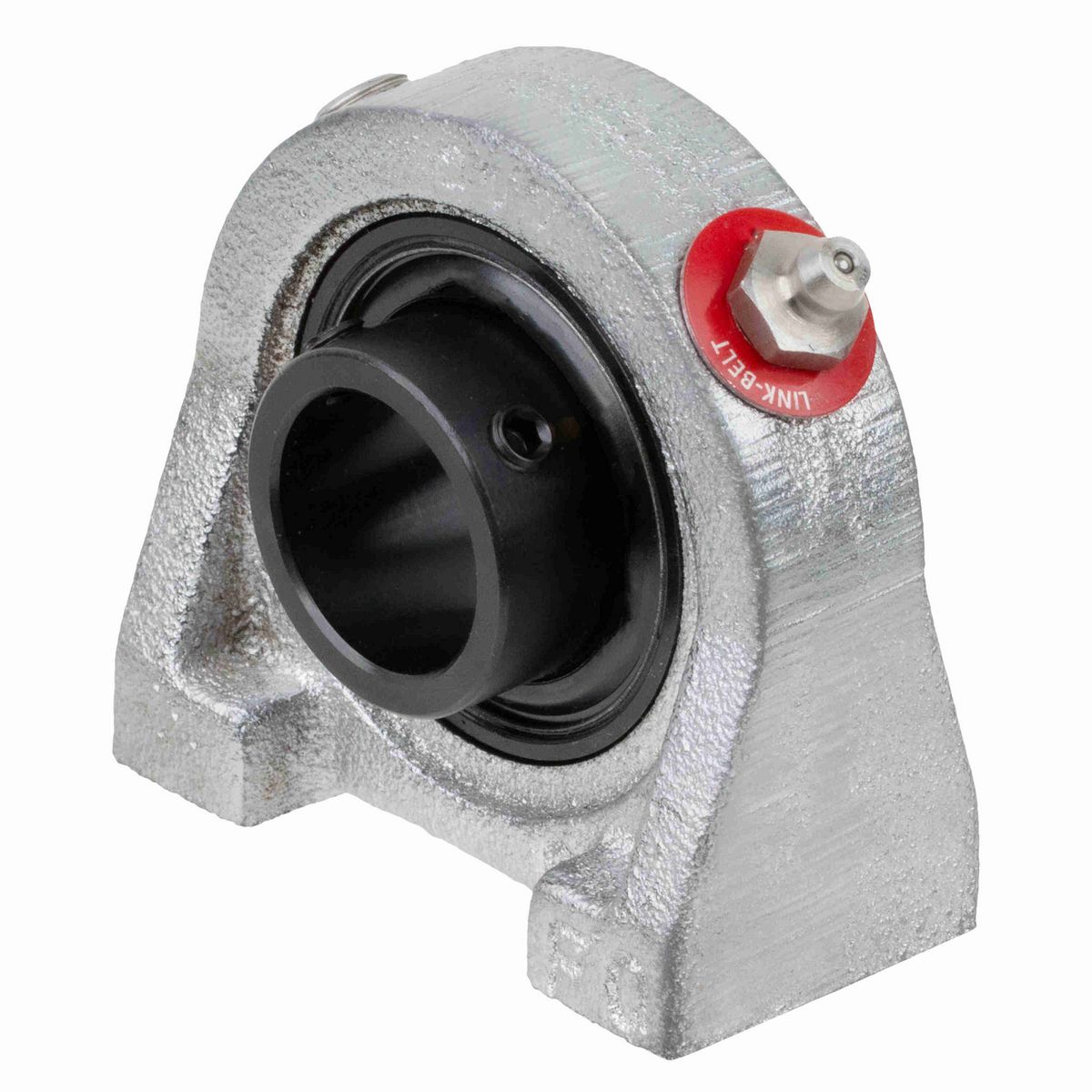

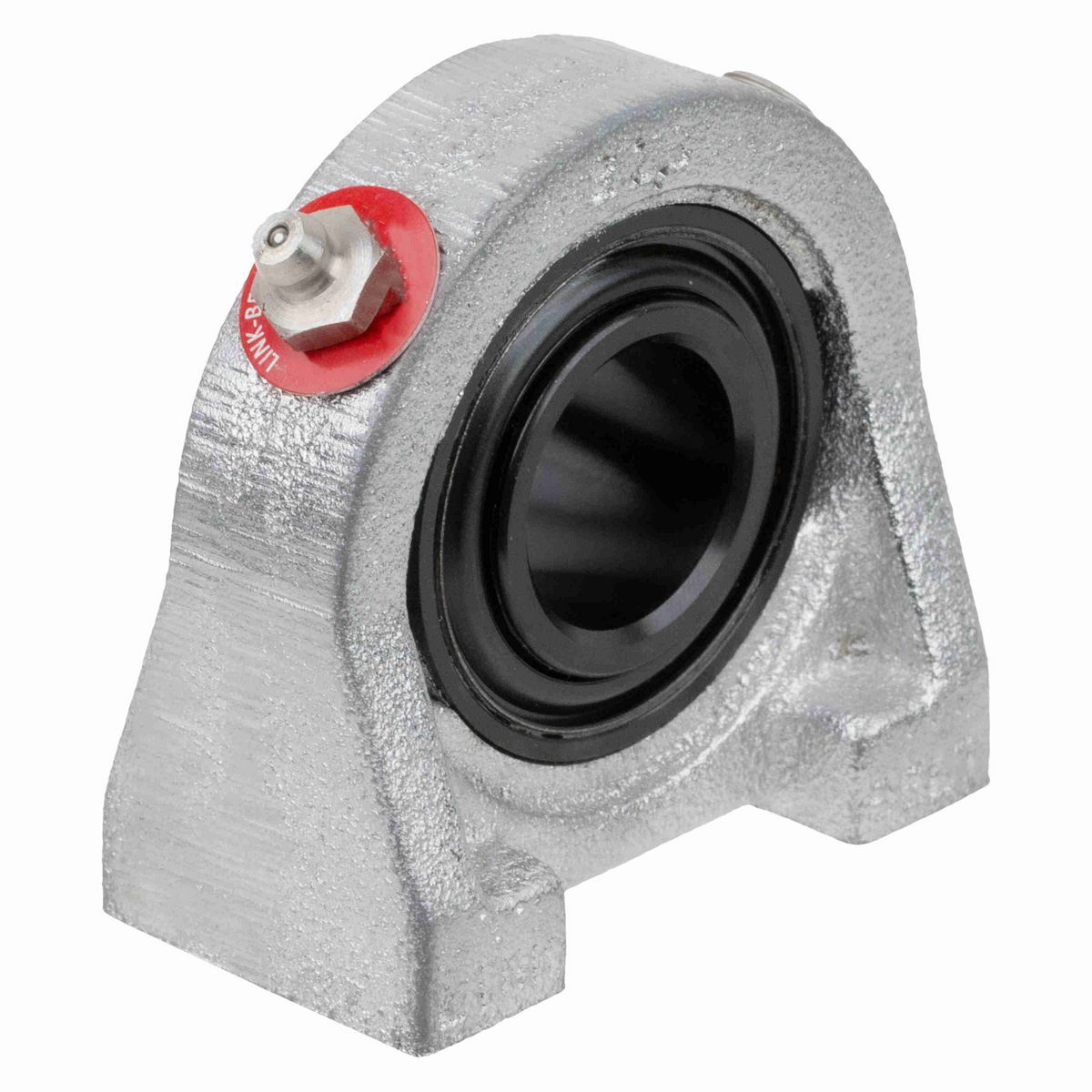

• 3/4" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Nickel Plated Tapped Base Pillow Block, Setscrew Locking, Single Lip Contact Seal, Black Oxide Coated Bearing, Food Grade Grease

Dimensions

Length Through Bore (in)	1.125 in
Base to Center Height (in)	1.312 in
Thread Size	3/8-16
Base Width (in)	1.50 in
Overall Length (in)	2.88 in
Bore Diameter (in)	0.75 in
Overall Height (in)	2.60 in
Overall Width (in)	1.5 in
Thread Depth (in)	0.5 in
Bolt Spacing (in)	2.00 in
Centerline to Outermost Bearing Face (in)	0.75 in

Technical Specifications

Bore Shape	Straight
Housing Type	Pillow Block, Tapped Base
Housing Style	Pillow Block
Cage Material	Molded fiber glass reinforced nylon
Rolling Element	Ball Bearing
Misalignment Type	Static Only
Housing Color	Silver
Housing Base	Solid
Outer Ring Land Profile	Standard
Housing Construction	One Piece
Seal Type	Single Lip Contact Seal
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	85 in/lbs
Ability to Relubricate	Yes
Housing Coating	Nickel Plated
Base Length (in)	2.88 in
Housing Material	Cast Iron
Dynamic Load Rating (lb)	2,870 lb
Overall Housing Height (in)	2 19/32 in
Cage Type	Ball Riding Retainer
Lubricant	MOBIL FM222 FOOD GRADE H1
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Bearing Brand	LINK-BELT 200 SERIES BALL
Vibration Frequency Roller Spin	0.0332 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0063 cps
Max Operating Temperature (F)	225 °F
Bearing Type	Intermediate Duty
Max Operating Temperature (C)	107 °C
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
End Cap Available	No
Static Load Rating (lb)	1,480 lb
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	7500 rpm
Insert	SG212ELPAK8299A
Vibration Frequency Outer Ring Defect	0.0508 cps
Inner Ring Outside Diameter (in)	1.121 in
Size Code	204
Vibration Frequency Inner Ring Defect	0.0825 cps
Housing Width (in)	1.5 in

General Specifications

UPC	662864724180
Weight	1.00 LB
Packaged Length	3.00 IN
Packaged Width	3.00 IN
Packaged Height	2.00 IN
HTC	8483208040
Country of Origin	Mexico
