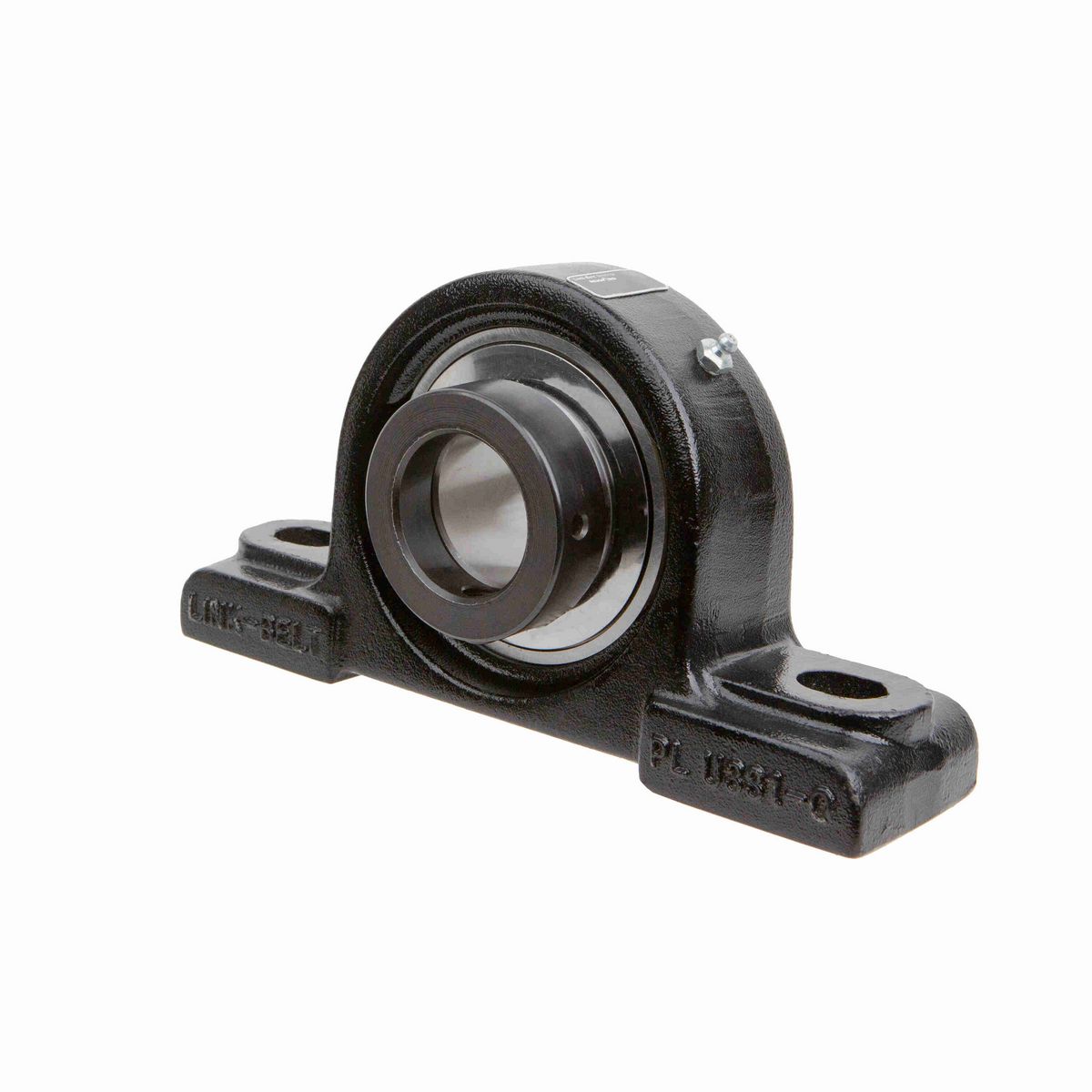

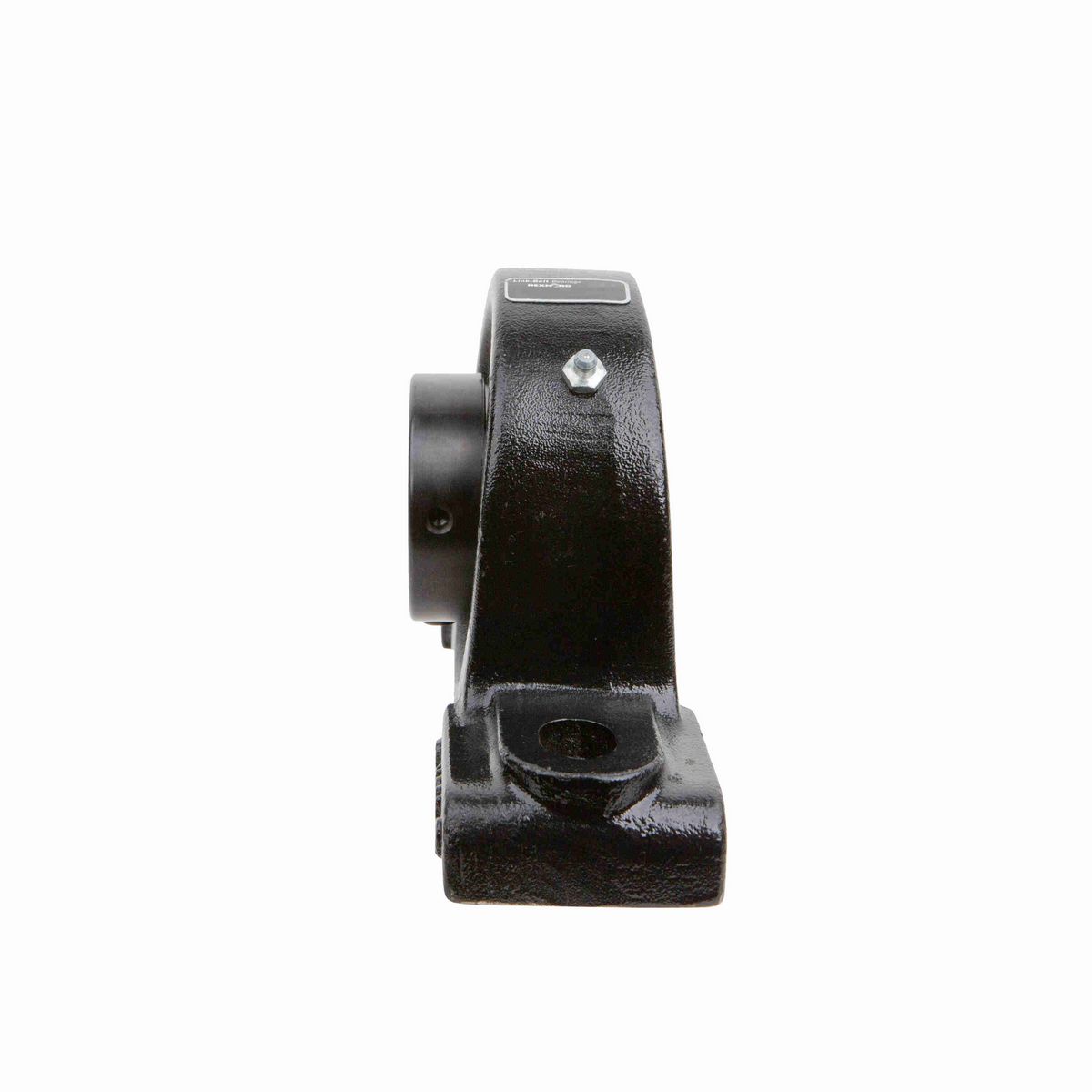

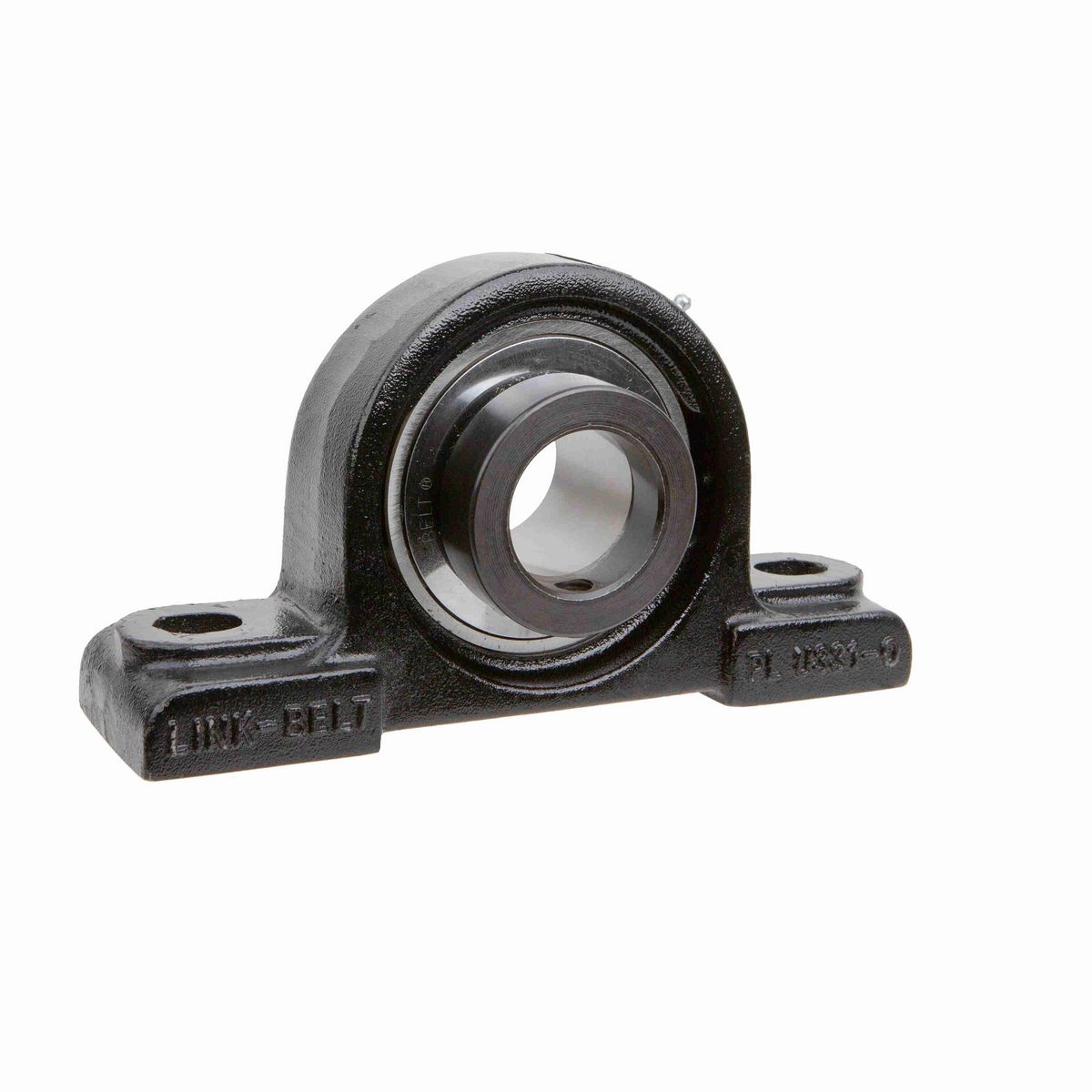

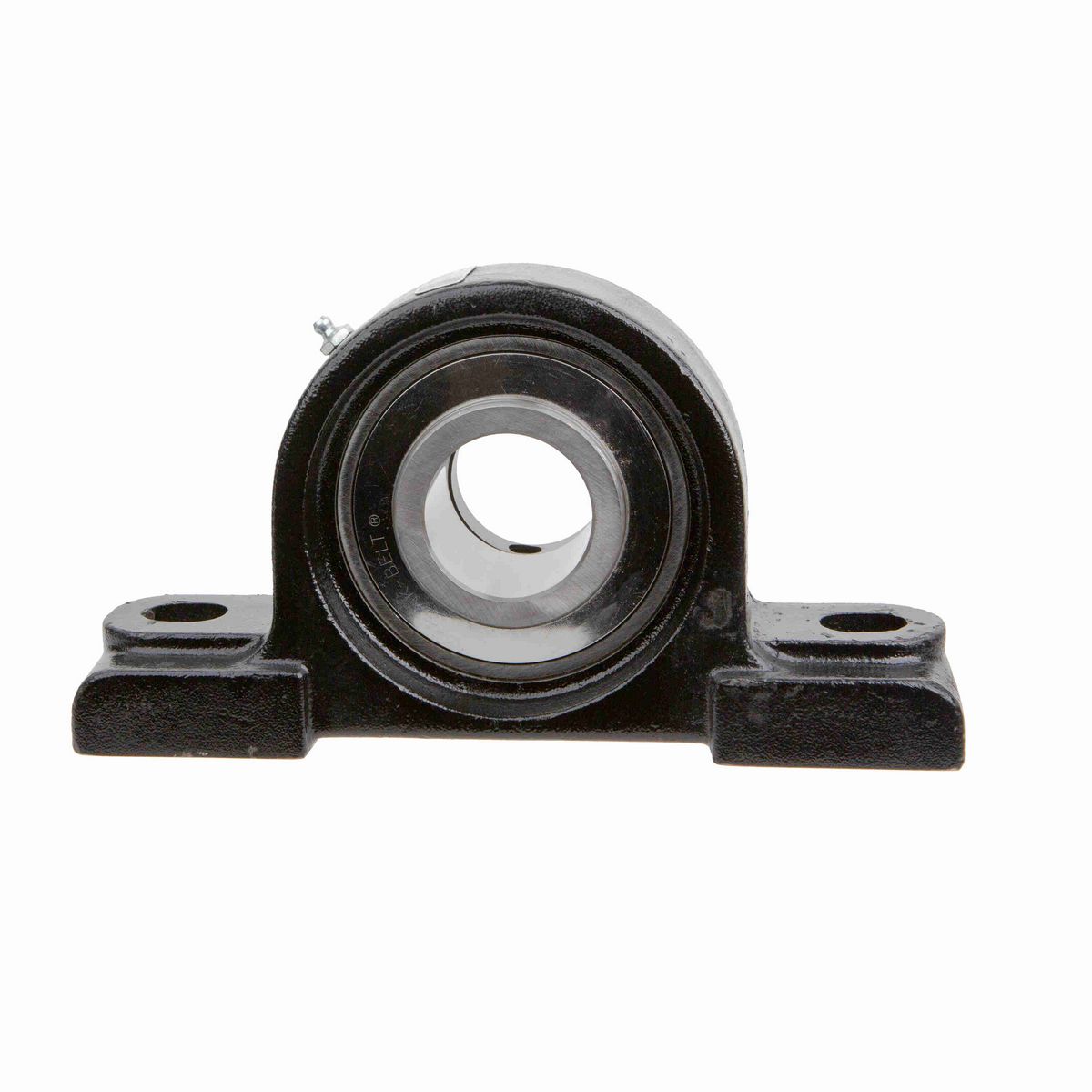

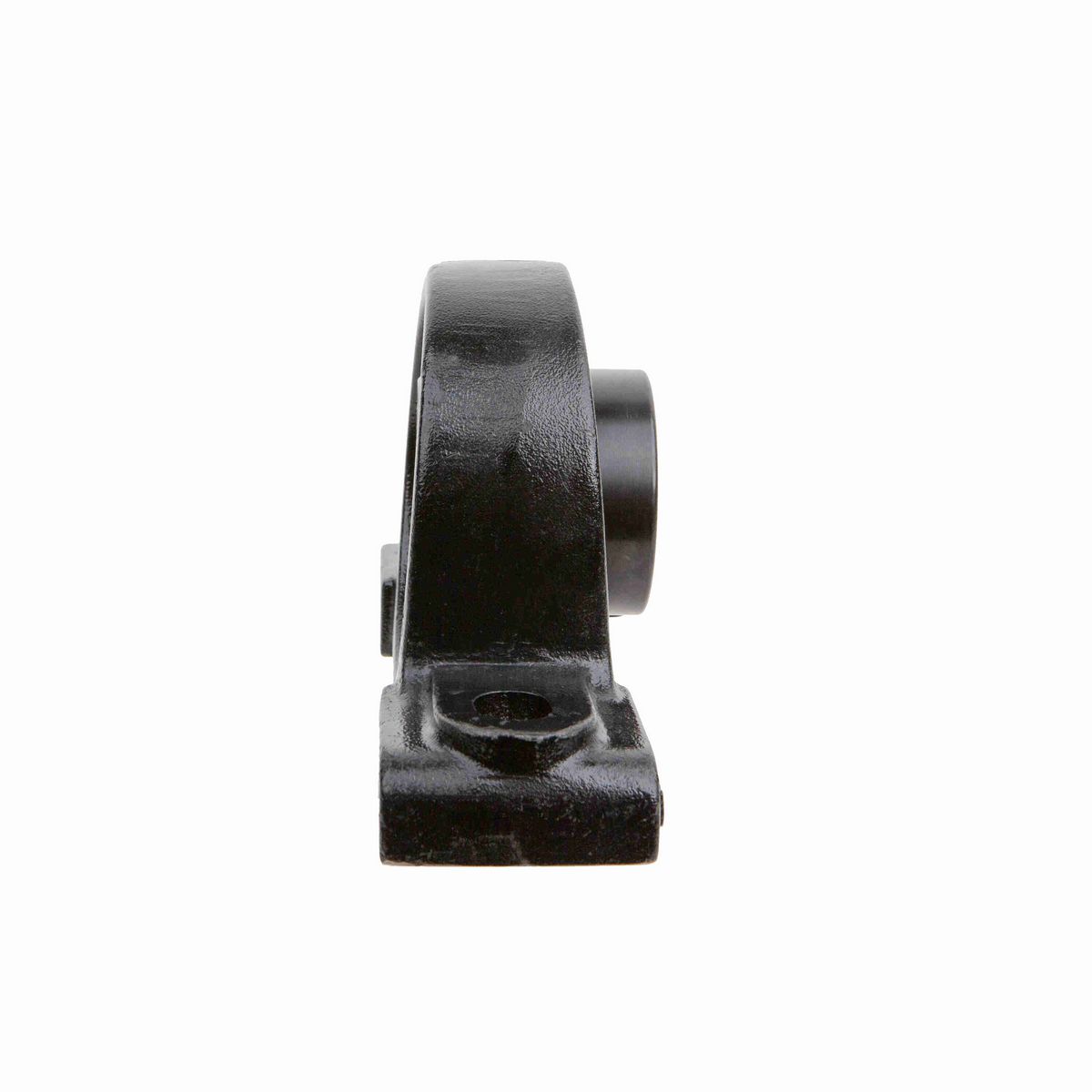

• 1 15/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt Low Backing Height Pillow Block, Eccentric Cam Locking Collar, Double Lip Contact Seal

Dimensions

Overall Height (in)	5.56 in
Overall Length (in)	10.44 in
Base to Center Height (in)	2.8125 in
Overall Width (in)	2.88 in
Length Through Bore (in)	2.78 in
Bore Diameter (in)	1.9375 in
Base Width (in)	2.88 in
Foot Height (in)	1.31 in
Bolt Size (in)	5/8 in
Centerline to Outermost Bearing Face (in)	1.64 in
Bolt Spacing (in)	8.25 in

Technical Specifications

Housing Construction	One Piece
Bore Shape	Straight
Housing Base	Semi-Solid
Housing Color	Black
Housing Style	Pillow Block
Outer Ring Land Profile	Standard
Slot Length (in)	1 in
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Cage Material	Molded fiber glass reinforced nylon
Housing Type	Pillow Block, Two Bolt, Low Base
Seal Type	Multi-Lip Contact Seal
Setscrew Torque (in-lbs)	620-680 in/lbs
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3 in
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	2.701 in
Bearing Type	Heavy Duty
Vibration Frequency Fundamental Train	0.0063 cps
Size Code	331
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Fixed vs. Expansion	Fixed
Insert	YG331NL
Housing Material	Cast Iron
Shaft Locking Type	Eccentric
Vibration Frequency Roller Spin	0.0330 cps
Max Operating Temperature (C)	107 °C
Dynamic Load Rating (lb)	13,900 lb
End Cap Available	No
Lubricant	EXXON RONEX MP STD
Maximum Speed (RPM)	3900 rpm
Cage Type	Ball Riding Retainer
Vibration Frequency Inner Ring Defect	0.0825 cps
Radial Clearance	C3 STANDARD
Locking Device Kit	Y3315SP
Vibration Frequency Outer Ring Defect	0.0508 cps
Base Length (in)	10.44 in
Housing Coating	Powder Coated
Static Load Rating (lb)	8,500 lb

General Specifications

UPC	793699259544
Weight	15.01 LB
Packaged Length	12.00 IN
Packaged Width	3.56 IN
Packaged Height	6.75 IN
HTC	8483208040
Country of Origin	Mexico
