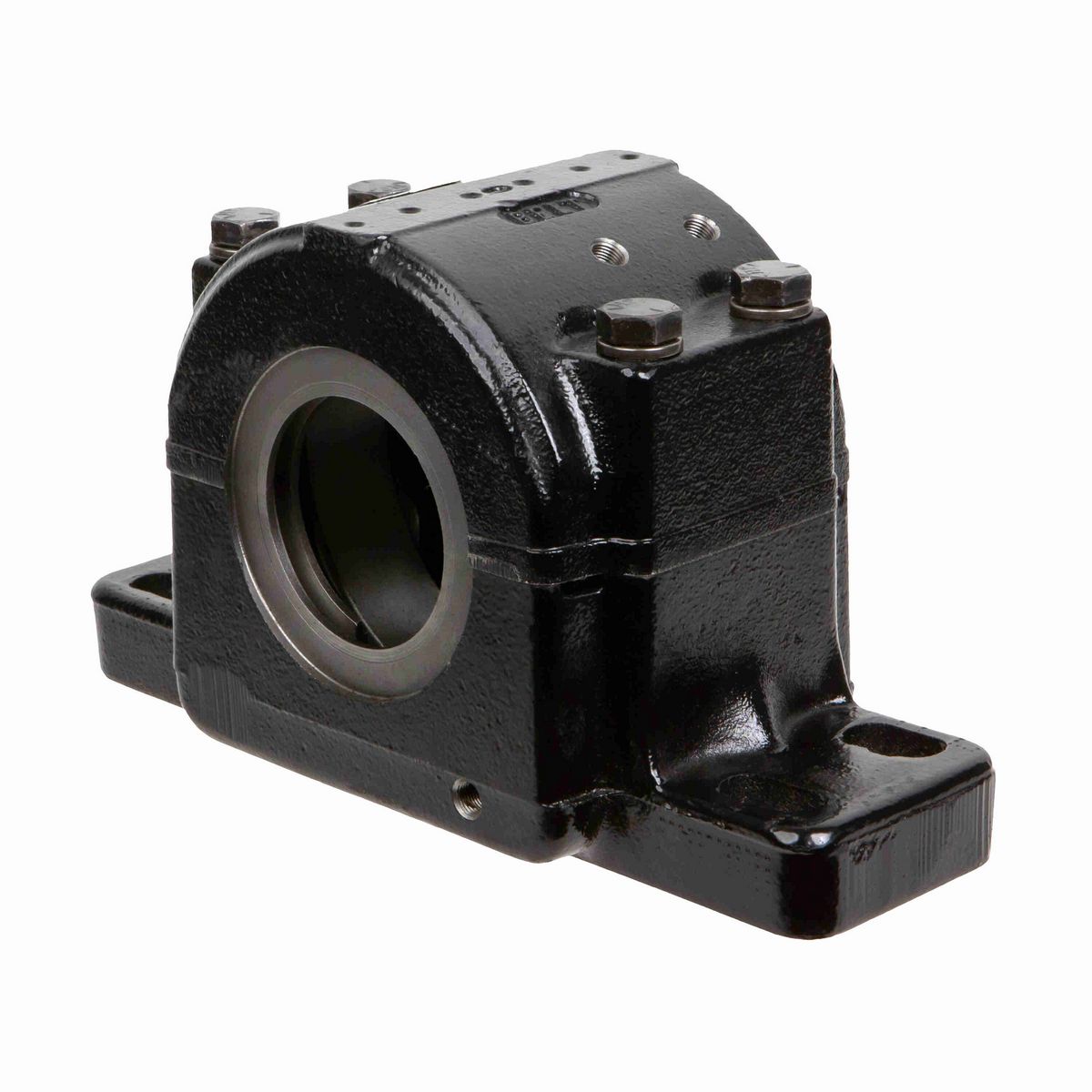

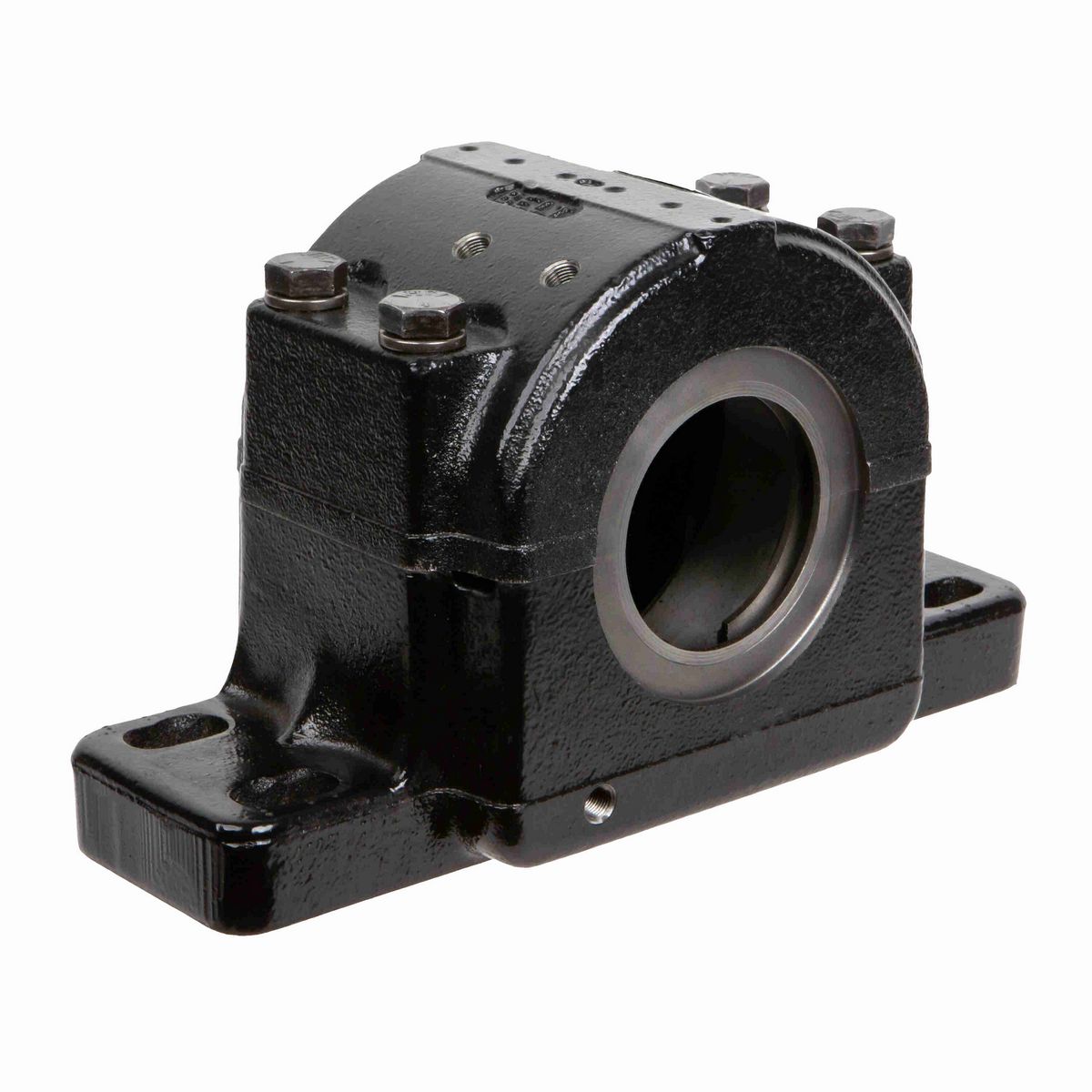

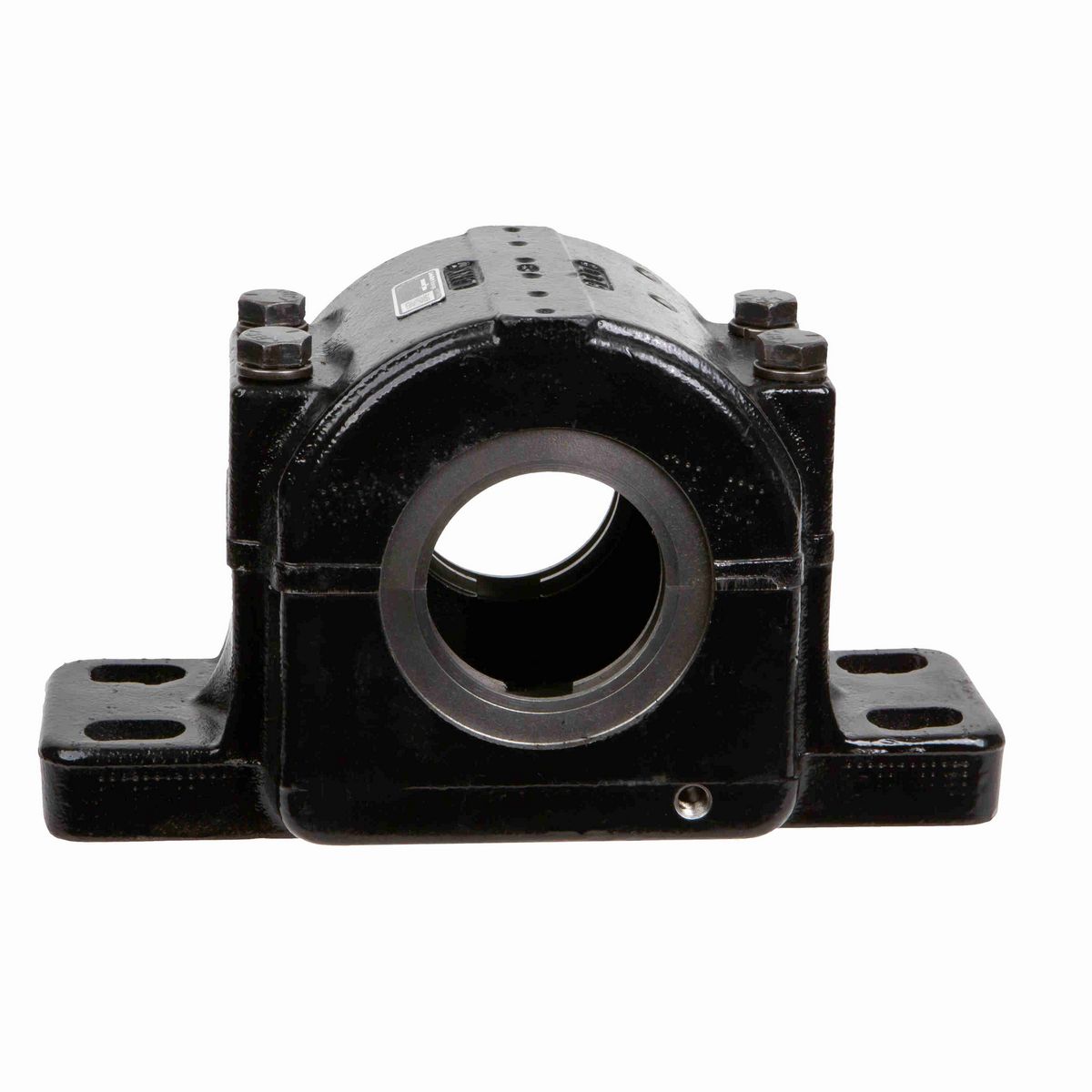

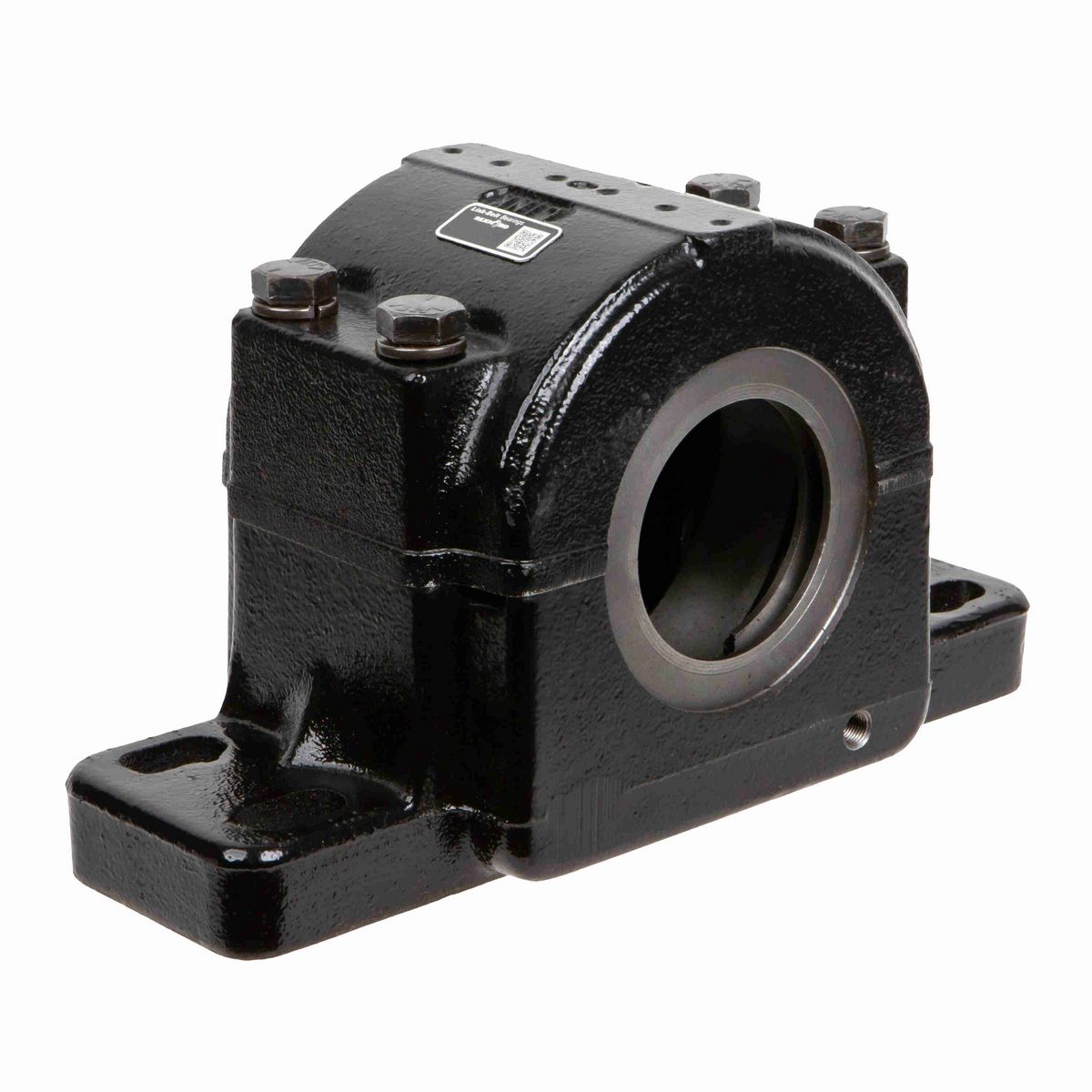

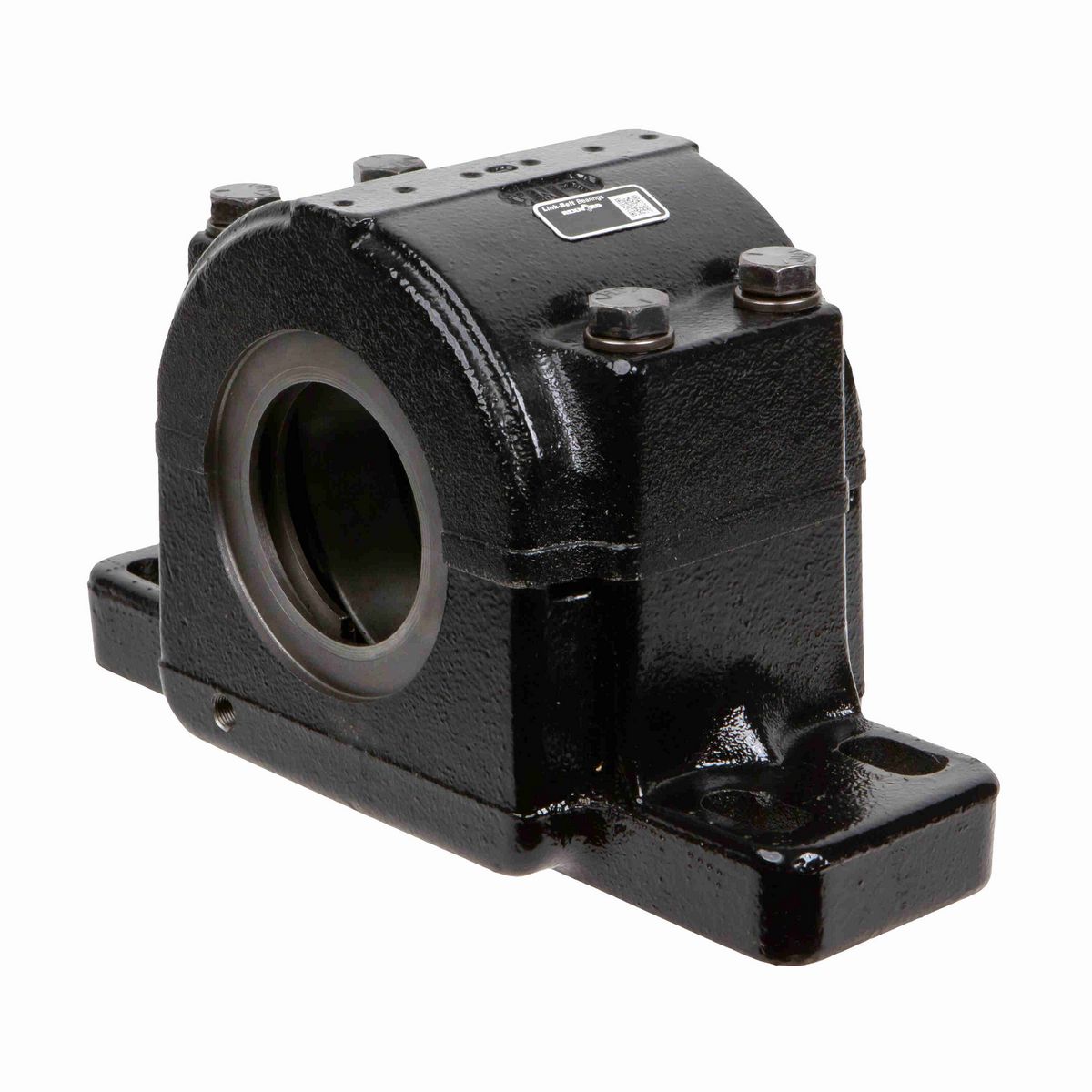

• 2 7/16" Mounted Spherical Roller Bearing, Cast Iron 4-Bolt Split Pillow Block, Adapter Mounted, Triple-Ring Metal Labyrinth Seal, Closed End Cap

Dimensions

Bore Diameter (in)	2.4375 in
Overall Height (in)	6.38 in
Bolt Size (in)	1/2 in
Base to Center Height (in)	3.25 in
Overall Width (in)	4.75 in
Foot Height (in)	1.13 in
Base Width (in)	3.13 in
Required Distance for Cap Removal (in)	8.38 in
Expansion Capability (in)	0.38 in
Bolt Spacing Max (in)	9.63 in
Centerline to Shaft Face for Closed End Unit (in)	1.47 in
Bolt Spacing Min (in)	8.63 in
Bolt Spacing Width (in)	1.88 in
Base Length (in)	11.25 in

Technical Specifications

Product	PLB6800F
Housing Color	Black
Radial Clearance	C3 STANDARD
Rolling Element	Spherical Roller
Housing Style	Pillow Block
Housing Construction	Split
Fixed/Expansion	Fixed/Expansion
Cage Material	Bronze
Series	Split-housed Pillow Blocks
Seal Type	Labyrinth Seal
Radial Dynamic Load Capacity (lb)	41,500 lb
Misalignment Type	Dynamic
End Cap	LB68406R
Shaft Locking Type	Adapter Mount
Housing Material	Cast Iron
Static Load Rating (lb)	53,000 lb
Housing Type	Pillow Block, Four Bolt, SAF Style
C-Spacer	68404
Cap Bolt Torque (ft-lbs)	45-50 ft/lbs
Ability to Relubricate	Yes
Maximum Speed Using Grease (RPM)	3,400 rpm
Seal Kit	LB68393RA (qty 1)
Maximum Speed Using Oil (RPM)	3,700 rpm
Available Seal Type	D8 Taconite Seal; D5 PenTac Seal; R Labyrinth Seal
Vibration Frequency Inner Ring Defect	0.189 cps
Auxiliary Seals	CLOSED END
Max Operating Temperature (C)	107 °C
Misalignment Capability	±0.5° Misalignment - Dynamic
Housing Coating	POWDER COATED
Vibration Frequency Fundamental Train	0.0072 cps
Vibration Frequency Roller Spin	0.0591 cps
Size Code	22215
Max Operating Temperature (F)	225 °F
Locking Device Kit	H315039
Insert	22215LBKC3
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.1438 cps
Primary Seal	LER TRIPLE RING SEAL
Housing Kit	PLB6839RC02

General Specifications

UPC	662327116859
Weight	29.40 LB
Packaged Length	12.38 IN
Packaged Width	7.13 IN
Packaged Height	6.13 IN
HTC	8483208080
Country of Origin	China
