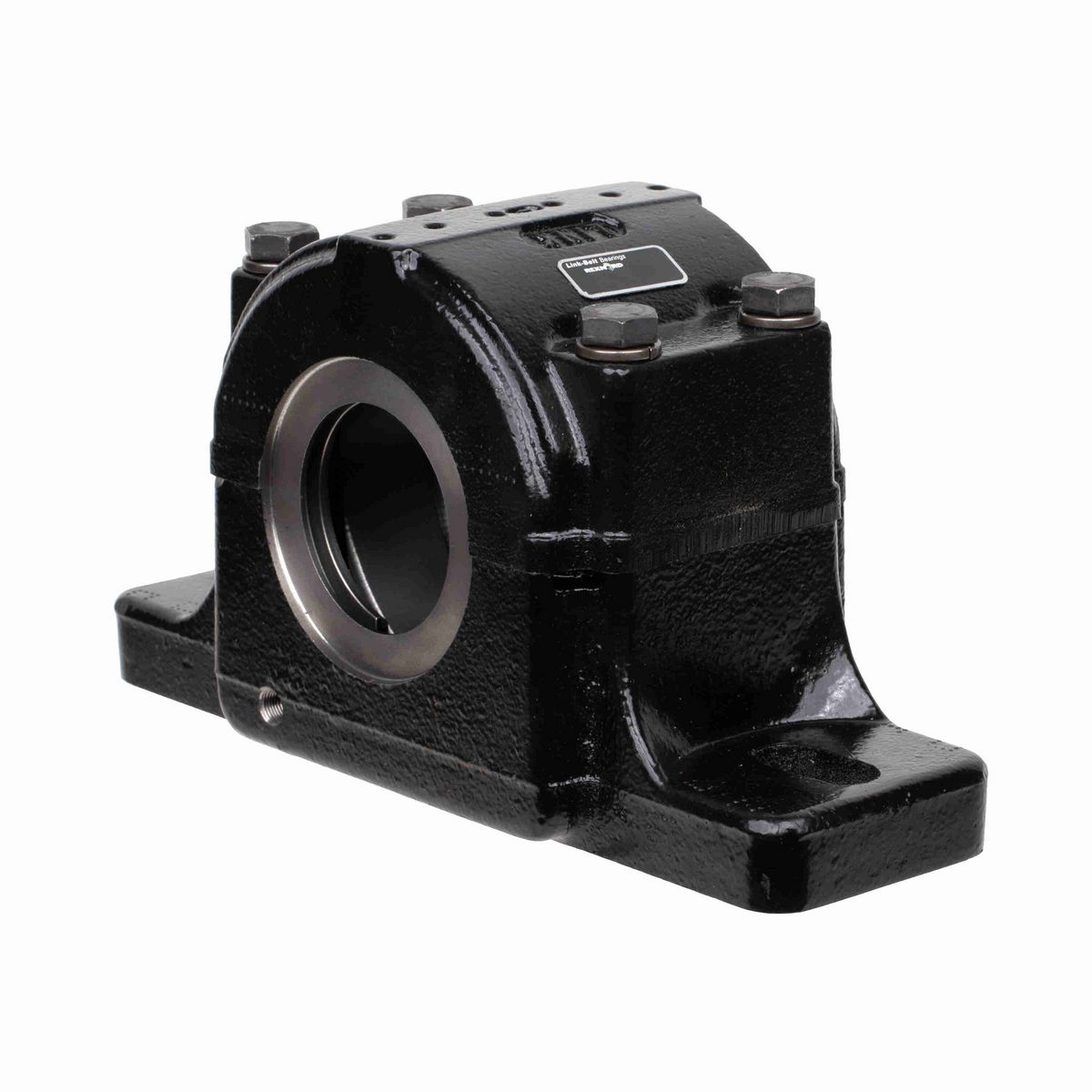

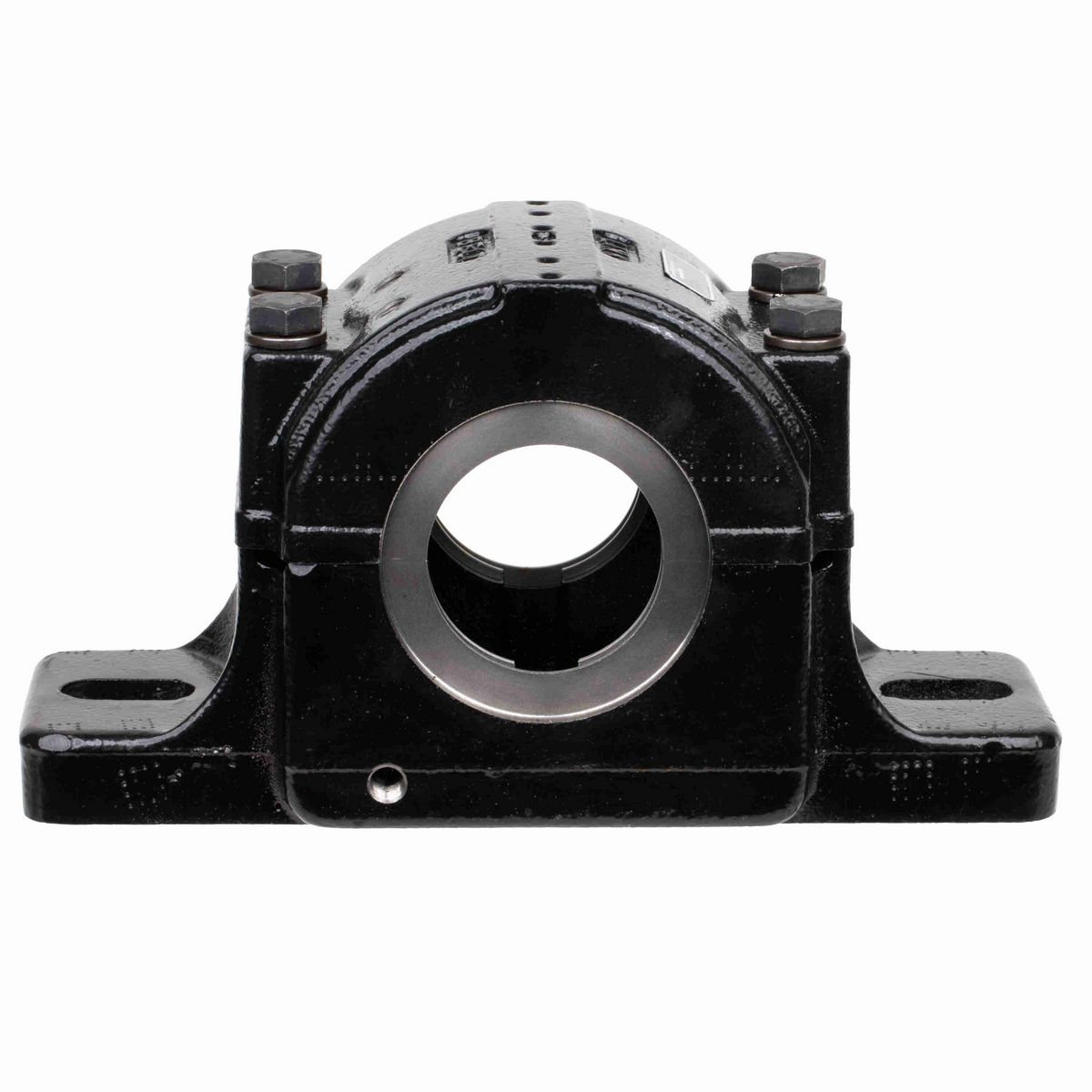

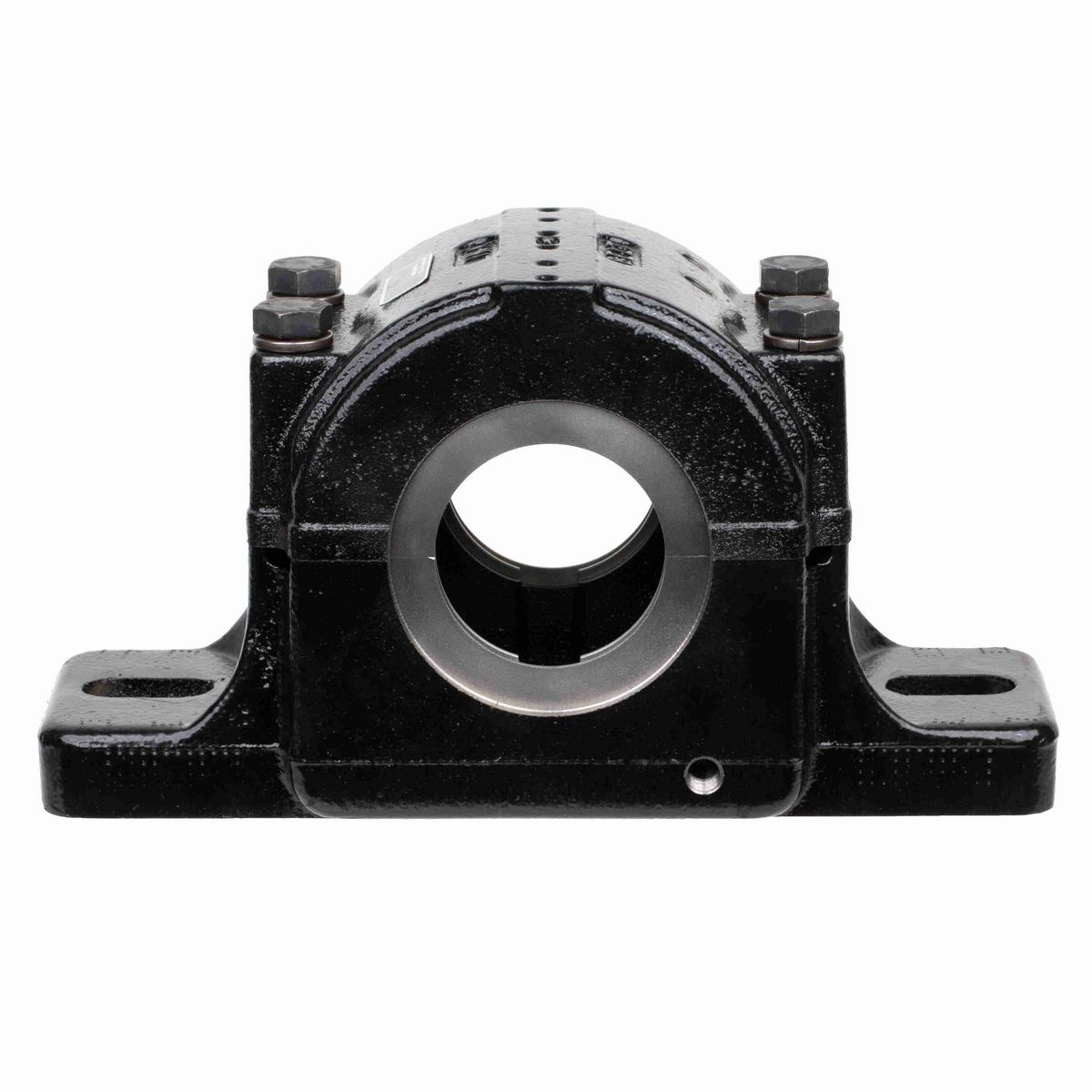

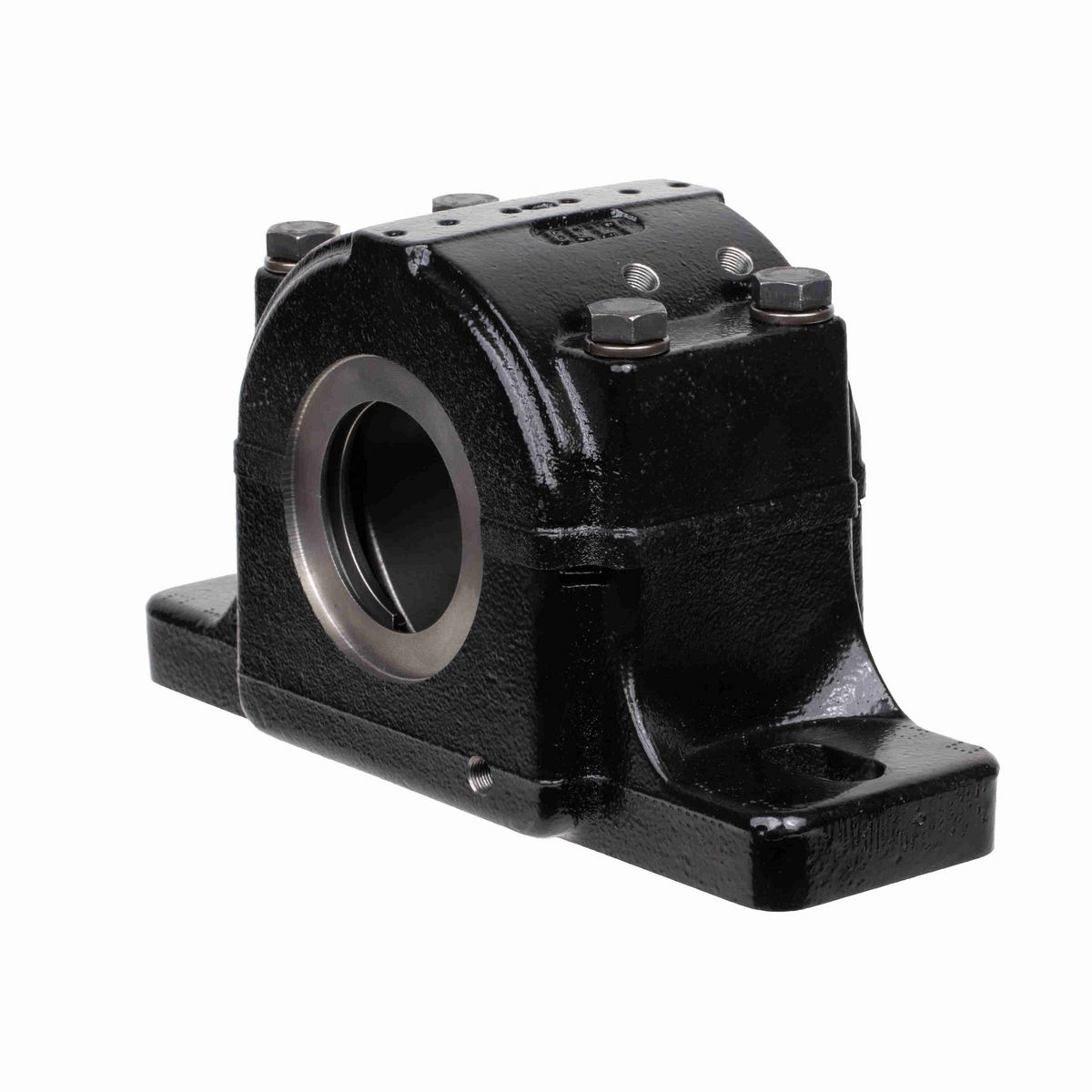

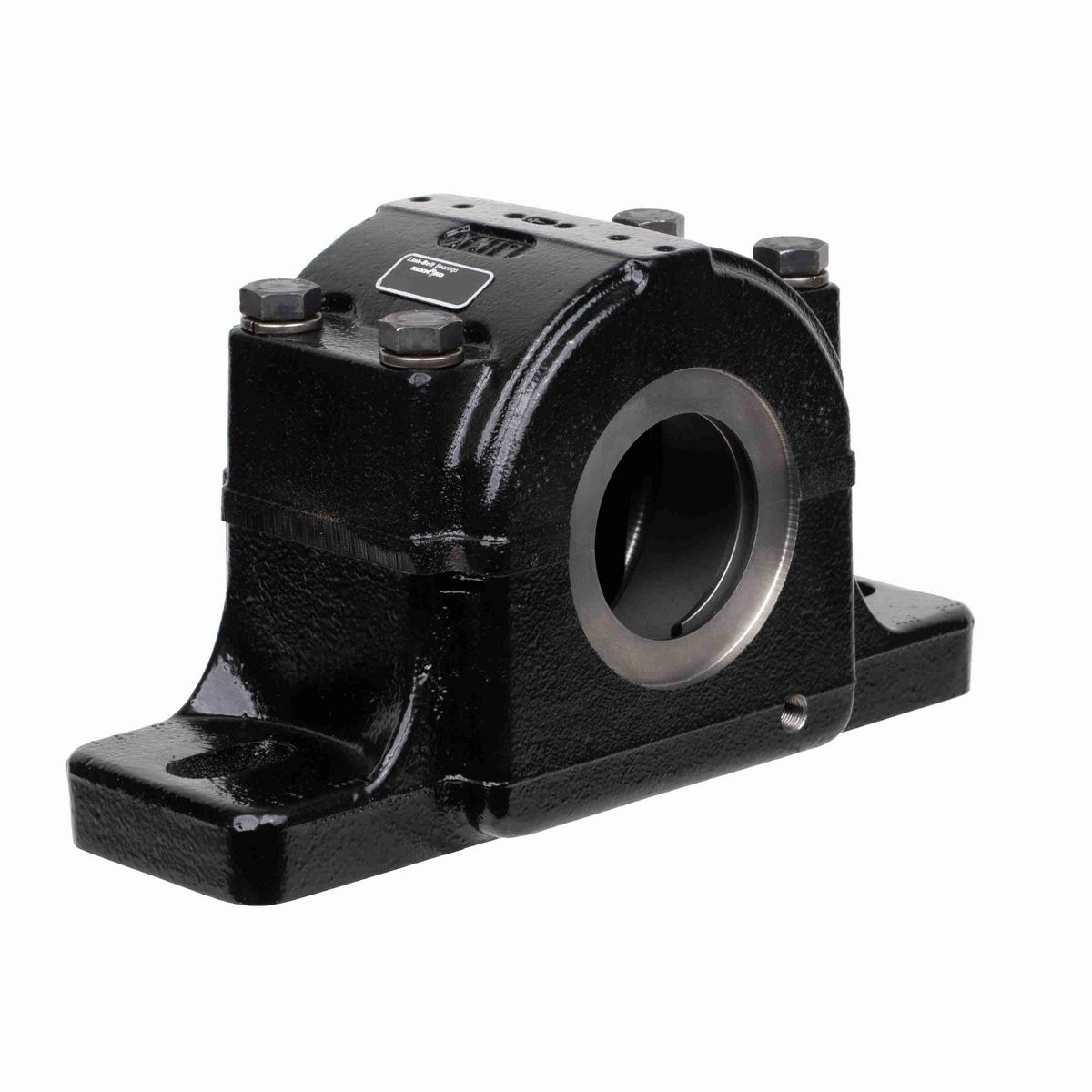

• 2 7/16" Mounted Spherical Roller Bearing, Cast Iron 4-Bolt Split Pillow Block, Adapter Mounted, Triple-Ring Metal Labyrinth Seal

Dimensions

Foot Height (in)	1.13 in
Base to Center Height (in)	3.25 in
Bore Diameter (in)	2.4375 in
Overall Height (in)	6.38 in
Overall Width (in)	4.75 in
Base Width (in)	3.13 in
Bolt Size (in)	1/2 in
Required Distance for Cap Removal (in)	8.38 in
Bolt Spacing Max (in)	9.63 in
Centerline to Shaft Face for Closed End Unit (in)	1.47 in
Base Length (in)	11.25 in
Expansion Capability (in)	0.38 in
Bolt Spacing Width (in)	1.88 in
Bolt Spacing Min (in)	8.63 in

Technical Specifications

End Cap	LB68406R
Seal Type	Labyrinth Seal
Radial Clearance	C3 STANDARD
Series	Split-housed Pillow Blocks
Shaft Locking Type	Adapter Mount
Cage Material	Bronze
Housing Color	Black
Housing Type	Pillow Block, Four Bolt, SAF Style
Radial Dynamic Load Capacity (lb)	41,500 lb
Static Load Rating (lb)	53,000 lb
Housing Material	Cast Iron
Fixed/Expansion	Fixed/Expansion
Housing Construction	Split
Product	PLB6800F
Rolling Element	Spherical Roller
Misalignment Type	Dynamic
Housing Style	Pillow Block
Ability to Relubricate	Yes
Seal Kit	LB68393RA (qty 2)
Available Seal Type	D8 Taconite Seal; D5 PenTac Seal; R Labyrinth Seal
Cap Bolt Torque (ft-lbs)	45-50 ft/lbs
Maximum Speed Using Oil (RPM)	3,700 rpm
C-Spacer	68404
Maximum Speed Using Grease (RPM)	3,400 rpm
Vibration Frequency Fundamental Train	0.0072 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Outer Ring Defect	0.1438 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0591 cps
Locking Device Kit	H315039
Housing Coating	POWDER COATED
Insert	22215LBKC3
Vibration Frequency Inner Ring Defect	0.189 cps
Primary Seal	LER TRIPLE RING SEAL
Housing Kit	PLB6839R02
Misalignment Capability	±0.5° Misalignment - Dynamic
Size Code	22215
Max Operating Temperature (F)	225 °F

General Specifications

UPC	662327116842
Weight	34.61 LB
Packaged Length	12.38 IN
Packaged Width	7.13 IN
Packaged Height	6.13 IN
HTC	8483204080
Country of Origin	Japan
