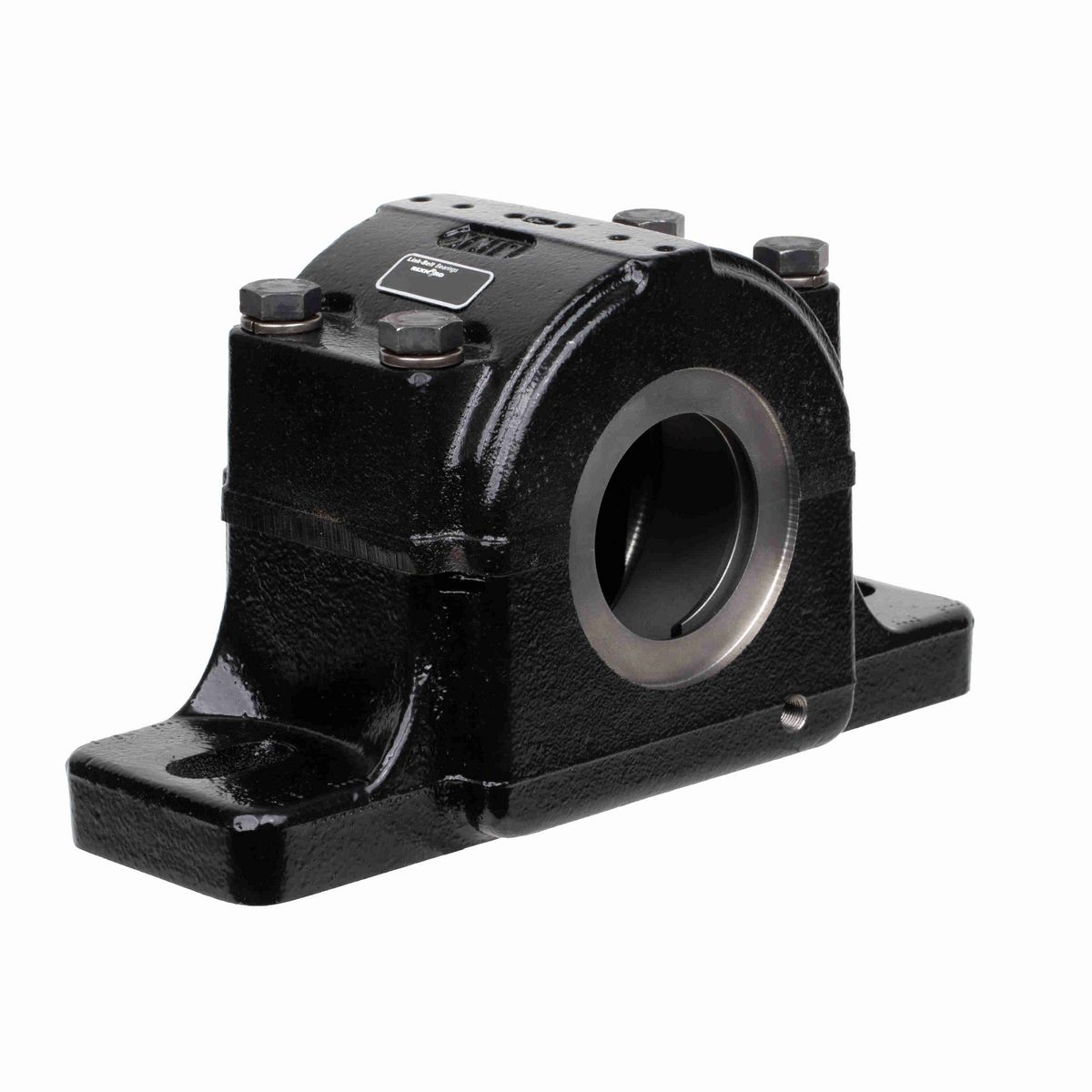

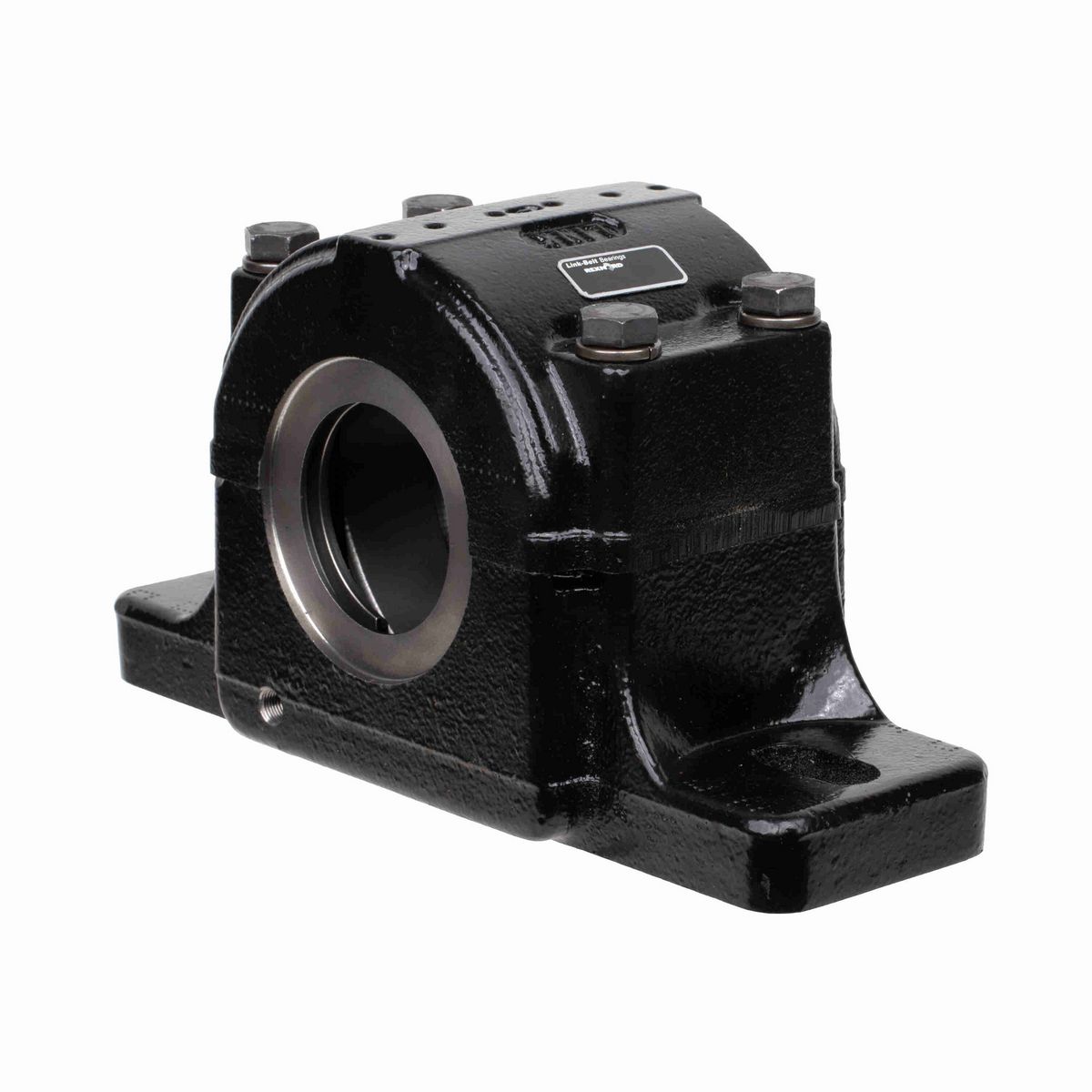

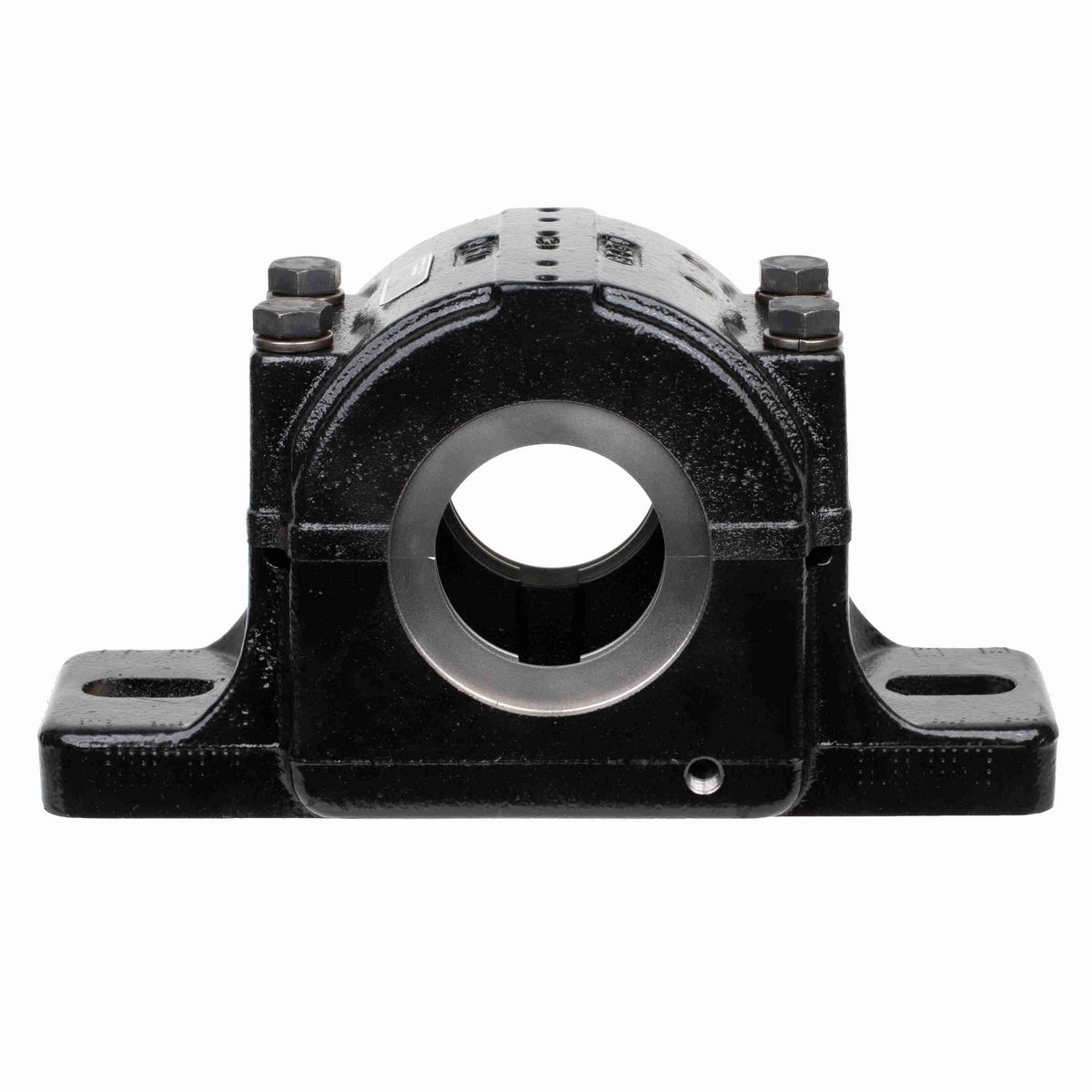

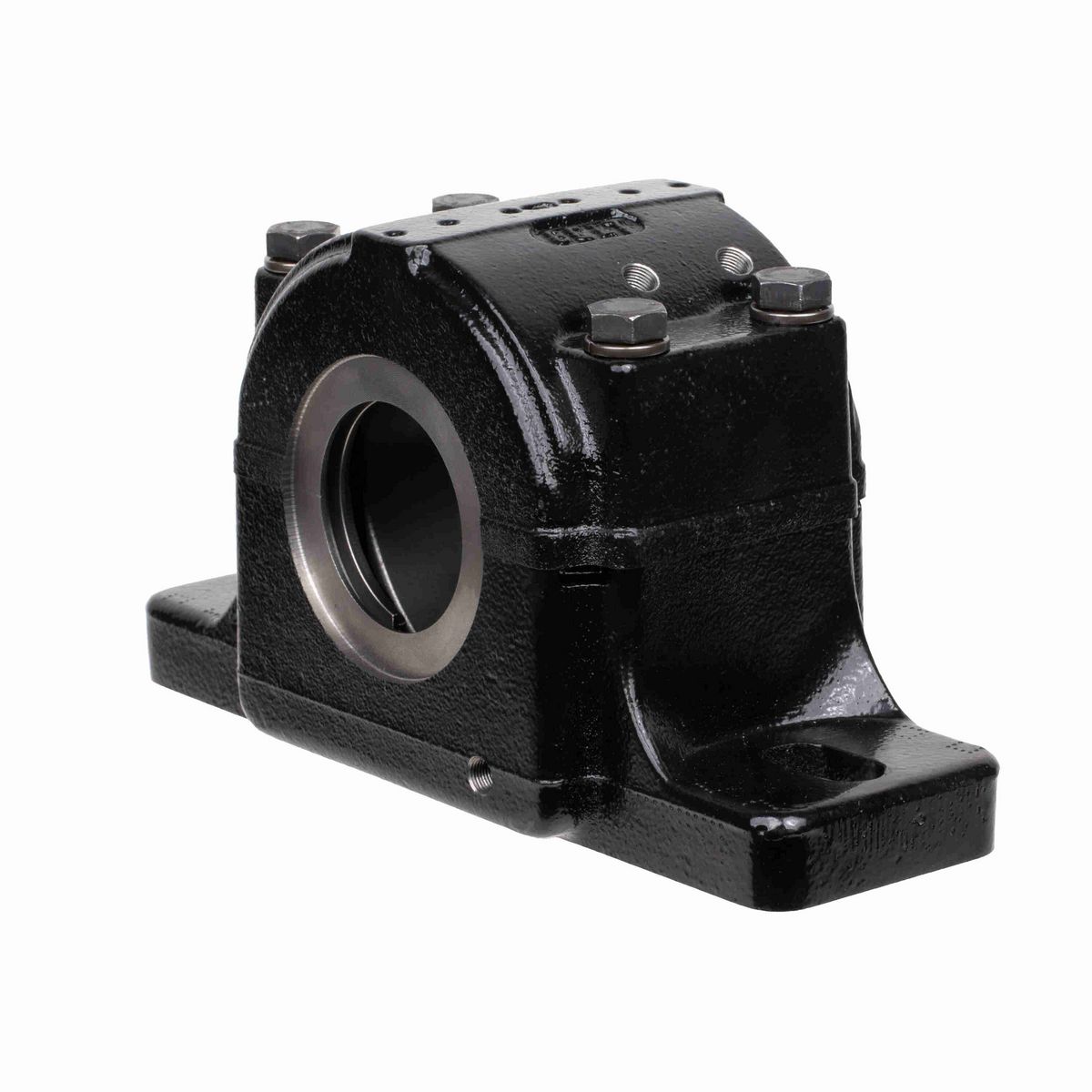

• 2 3/16" Mounted Spherical Roller Bearing, Cast Iron 2-Bolt Split Pillow Block, Adapter Mounted, Triple-Ring Metal Labyrinth Seal

Dimensions

Foot Height (in)	1 in
Overall Width (in)	4.38 in
Overall Height (in)	5.94 in
Bolt Size (in)	5/8 in
Base to Center Height (in)	3 in
Base Width (in)	3.25 in
Overall Length (in)	11 in
Bore Diameter (in)	2.1875 in
Required Distance for Cap Removal (in)	8.25 in
Bolt Spacing Max (in)	9.5 in
Centerline to Shaft Face for Closed End Unit (in)	1.41 in
Base Length (in)	11 in
Expansion Capability (in)	0.38 in
Bolt Spacing Min (in)	8.13 in

Technical Specifications

Fixed/Expansion	Fixed/Expansion
Radial Clearance	C3 STANDARD
Shaft Locking Type	Adapter Mount
Housing Type	Pillow Block, Two Bolt, SAF Style
Series	Split-housed Pillow Blocks
Housing Style	Pillow Block
Housing Construction	Split
Housing Color	Black
Seal Type	Labyrinth Seal
Static Load Rating (lb)	46,500 lb
Housing Material	Cast Iron
End Cap	LB69366R
Cage Material	Bronze
Radial Dynamic Load Capacity (lb)	38,000 lb
Rolling Element	Spherical Roller
Product	PLB6800
Misalignment Type	Dynamic
C-Spacer	69324
Available Seal Type	D8 Taconite Seal; D5 PenTac Seal; R Labyrinth Seal
Seal Kit	LB69353RA (qty 2)
Ability to Relubricate	Yes
Cap Bolt Torque (ft-lbs)	45-50 ft/lbs
Maximum Speed Using Grease (RPM)	3,800 rpm
Maximum Speed Using Oil (RPM)	4,300 rpm
Size Code	22213
Vibration Frequency Outer Ring Defect	0.1269 cps
Locking Device Kit	H313035
Vibration Frequency Roller Spin	0.0523 cps
Vibration Frequency Inner Ring Defect	0.173 cps
Housing Coating	POWDER COATED
Housing Kit	PLB6835R02
Insert	22213LBKC3
Vibration Frequency Fundamental Train	0.0071 cps
Grease Fitting Thread Size	1/8 NPT
Primary Seal	LER TRIPLE RING SEAL
Max Operating Temperature (F)	225 °F
Max Operating Temperature (C)	107 °C
Misalignment Capability	±0.5° Misalignment - Dynamic

General Specifications

UPC	662327116729
Weight	30.00 LB
Packaged Length	12.38 IN
Packaged Width	7.13 IN
Packaged Height	6.13 IN
HTC	8483208080
Country of Origin	Japan
