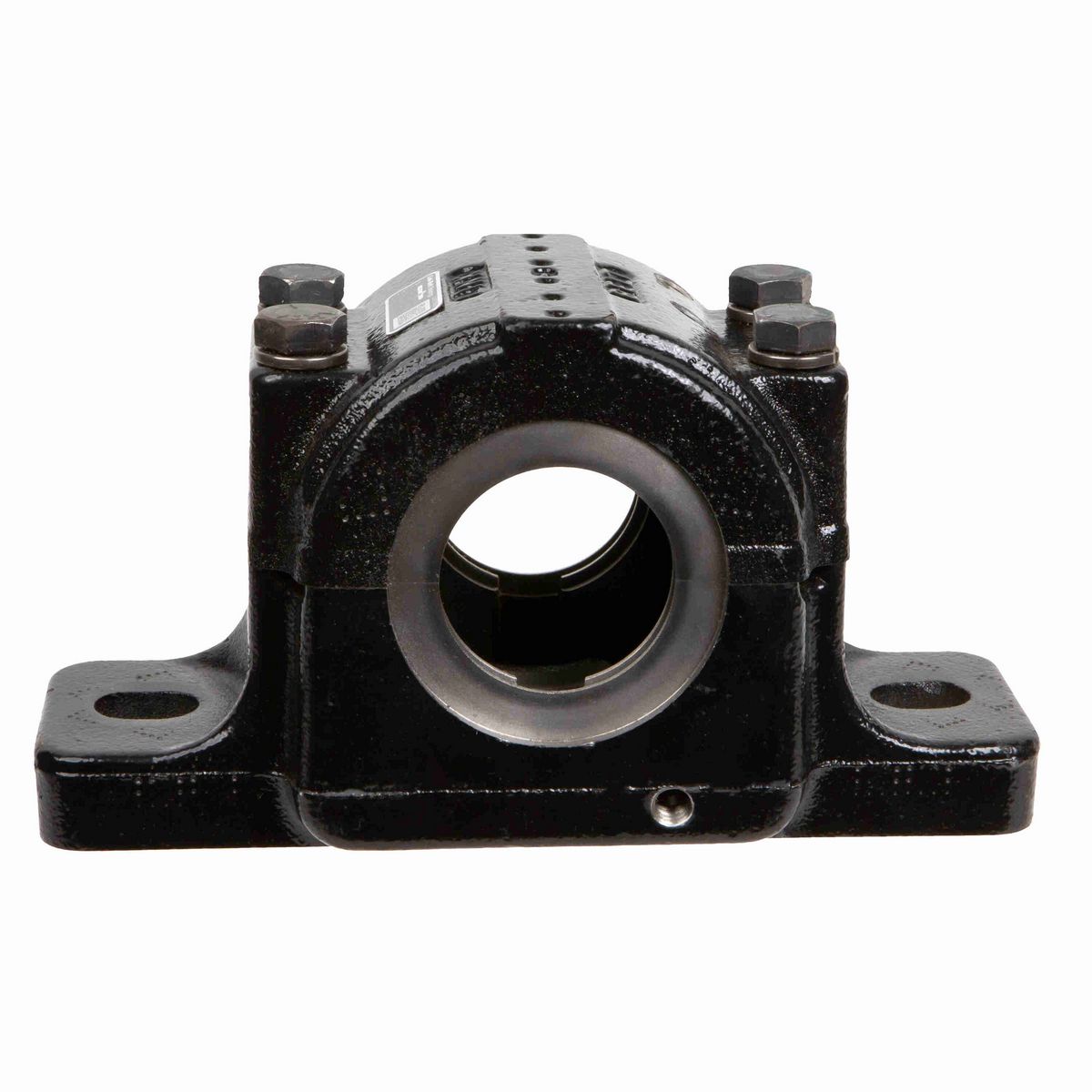

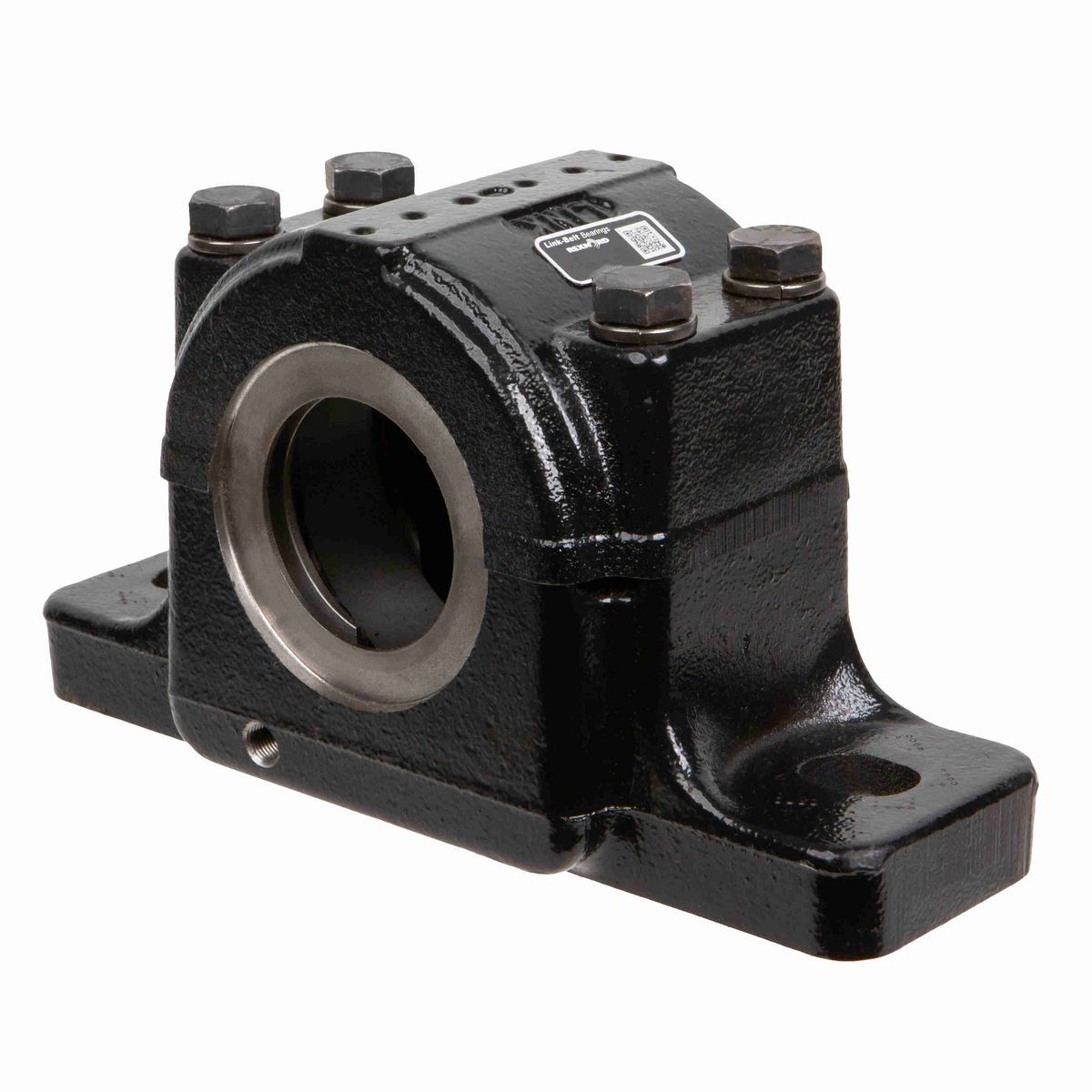

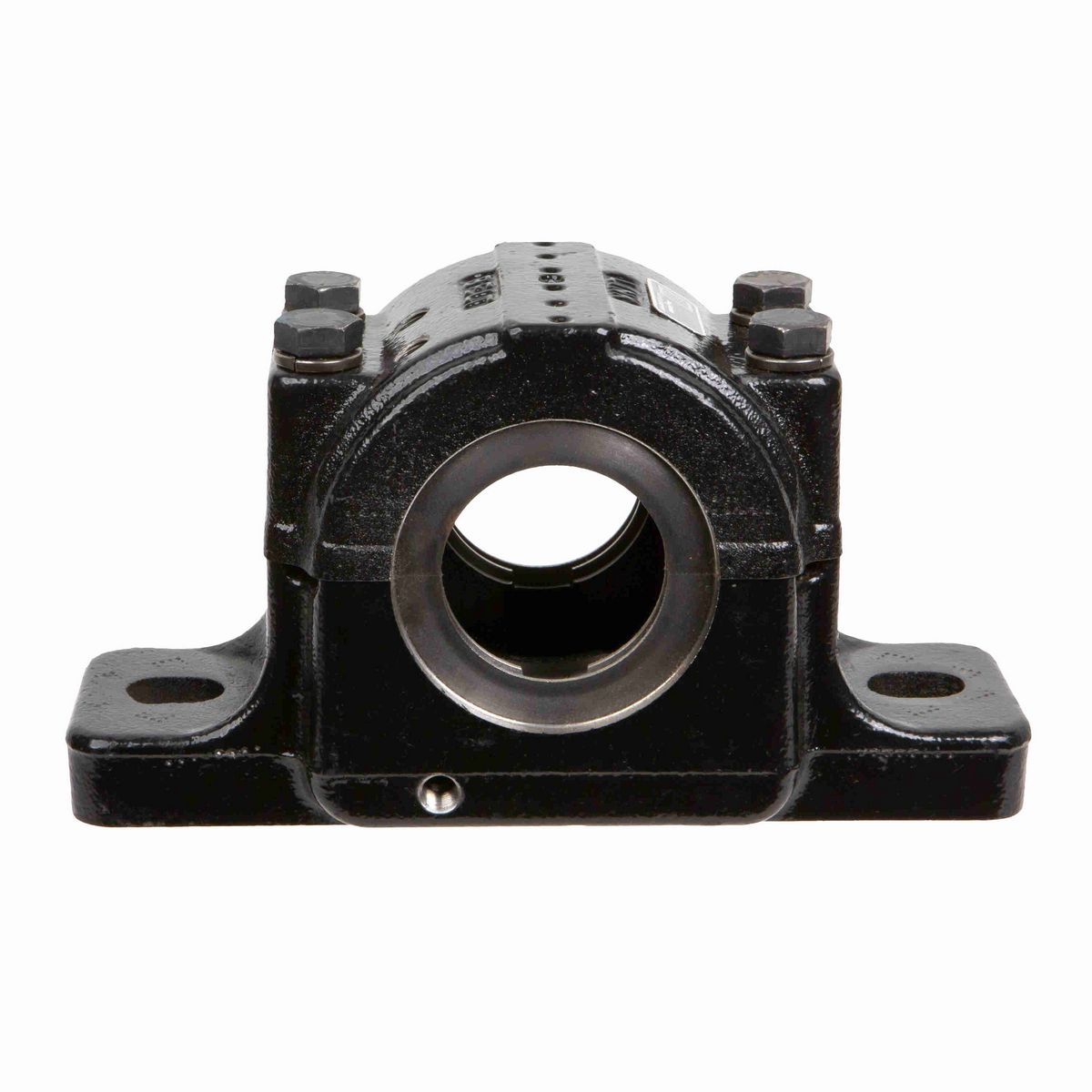

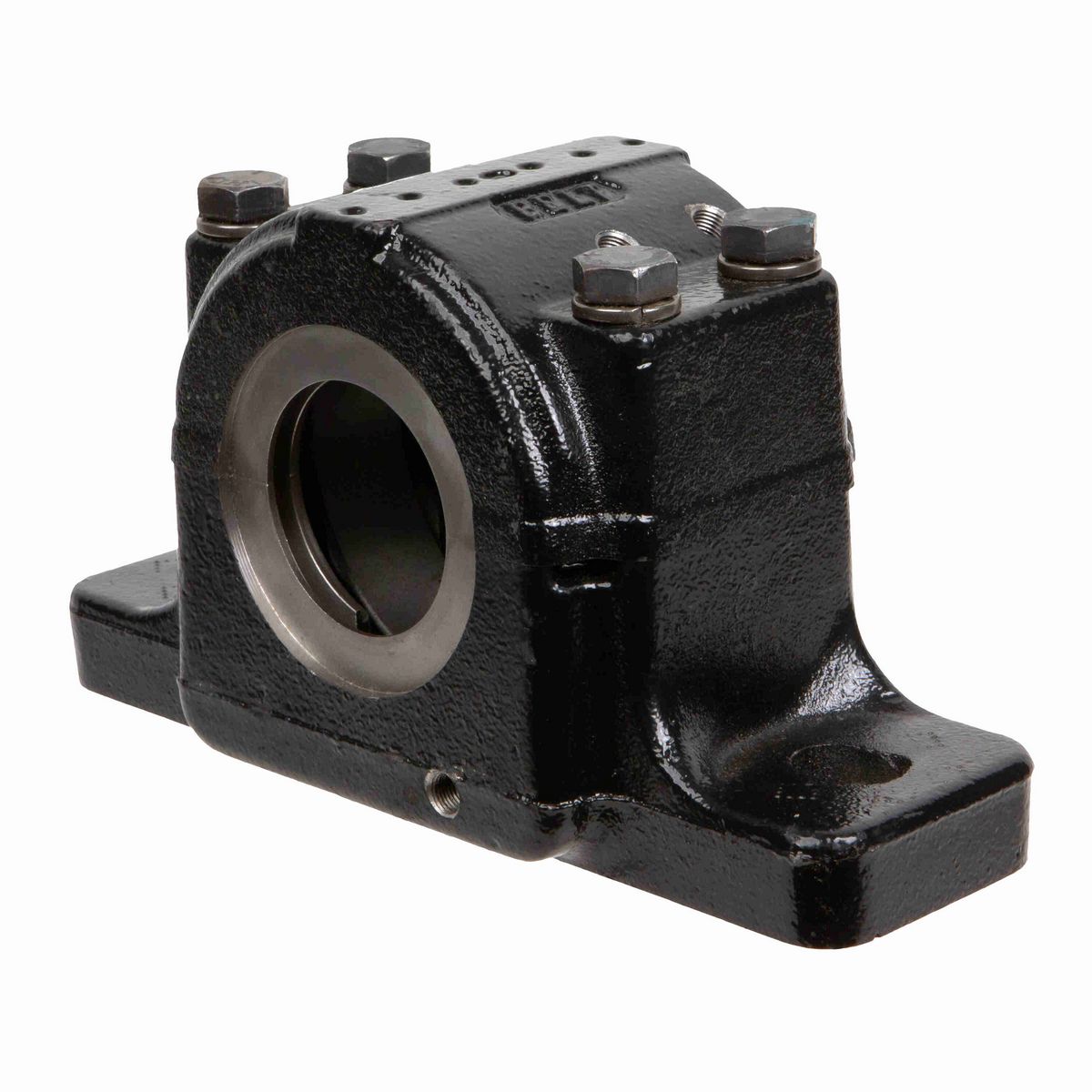

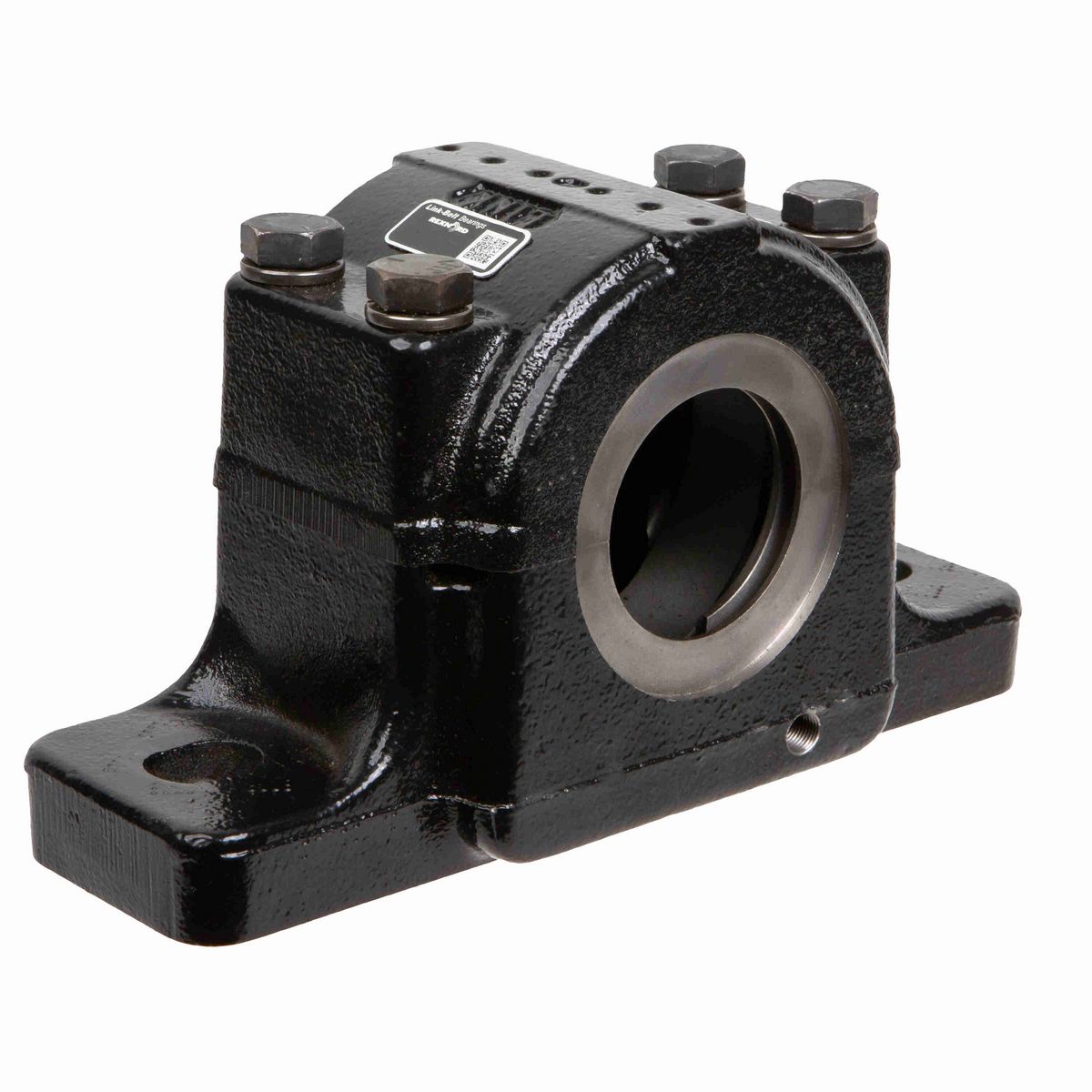

• 1 15/16" Mounted Spherical Roller Bearing, Cast Iron 2-Bolt Split Pillow Block, Adapter Mounted, Triple-Ring Metal Labyrinth Seal, Closed End Cap

Dimensions

Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Overall Length (in)	9.63 in
Overall Width (in)	3.88 in
Foot Height (in)	0.94 in
Base to Center Height (in)	2.75 in
Base Width (in)	2.75 in
Overall Height (in)	5.25 in
Required Distance for Cap Removal (in)	7.25 in
Base Length (in)	9.63 in
Bolt Spacing Max (in)	7.88 in
Centerline to Shaft Face for Closed End Unit (in)	1.19 in
Bolt Spacing Min (in)	7.38 in
Expansion Capability (in)	0.38 in

Technical Specifications

Static Load Rating (lb)	32,500 lb
Shaft Locking Type	Adapter Mount
Product	PLB6800
End Cap	LB69326R
Rolling Element	Spherical Roller
Series	Split-housed Pillow Blocks
Misalignment Type	Dynamic
Seal Type	Labyrinth Seal
Housing Type	Pillow Block, Two Bolt, SAF Style
Fixed/Expansion	Fixed/Expansion
Housing Color	Black
Housing Material	Cast Iron
Housing Construction	Split
Housing Style	Pillow Block
Cage Material	Bronze
Radial Dynamic Load Capacity (lb)	27,000 lb
Radial Clearance	C3 STANDARD
Available Seal Type	D8 Taconite Seal; D5 PenTac Seal; R Labyrinth Seal
Cap Bolt Torque (ft-lbs)	45-50 ft/lbs
Ability to Relubricate	Yes
Seal Kit	LB69313RA ( qty1)
Maximum Speed Using Grease (RPM)	4,500 rpm
Maximum Speed Using Oil (RPM)	5,000 rpm
C-Spacer	69244
Size Code	22211
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.181 cps
Primary Seal	LER TRIPLE RING SEAL
Housing Coating	POWDER COATED
Misalignment Capability	±0.5° Misalignment - Dynamic
Housing Kit	PLB6831RC02
Locking Device Kit	H311031
Max Operating Temperature (F)	225 °F
Vibration Frequency Outer Ring Defect	0.1352 cps
Insert	22211LBKC3
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Fundamental Train	0.0071 cps
Auxiliary Seals	CLOSED END
Vibration Frequency Roller Spin	0.0553 cps

General Specifications

UPC	662327441449
Weight	16.40 LB
Packaged Length	10.88 IN
Packaged Width	6.13 IN
Packaged Height	5.38 IN
HTC	8483208080
Country of Origin	China
