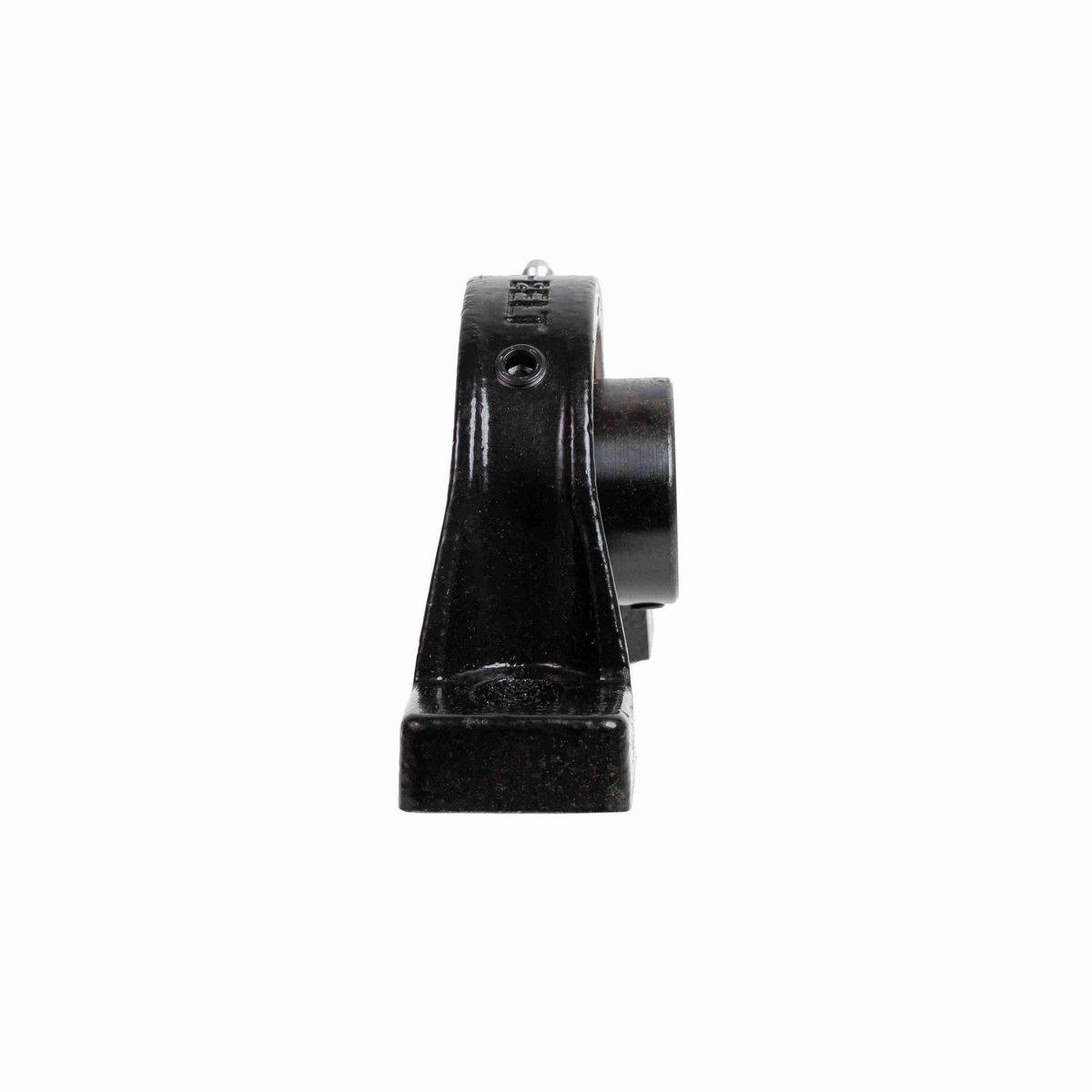

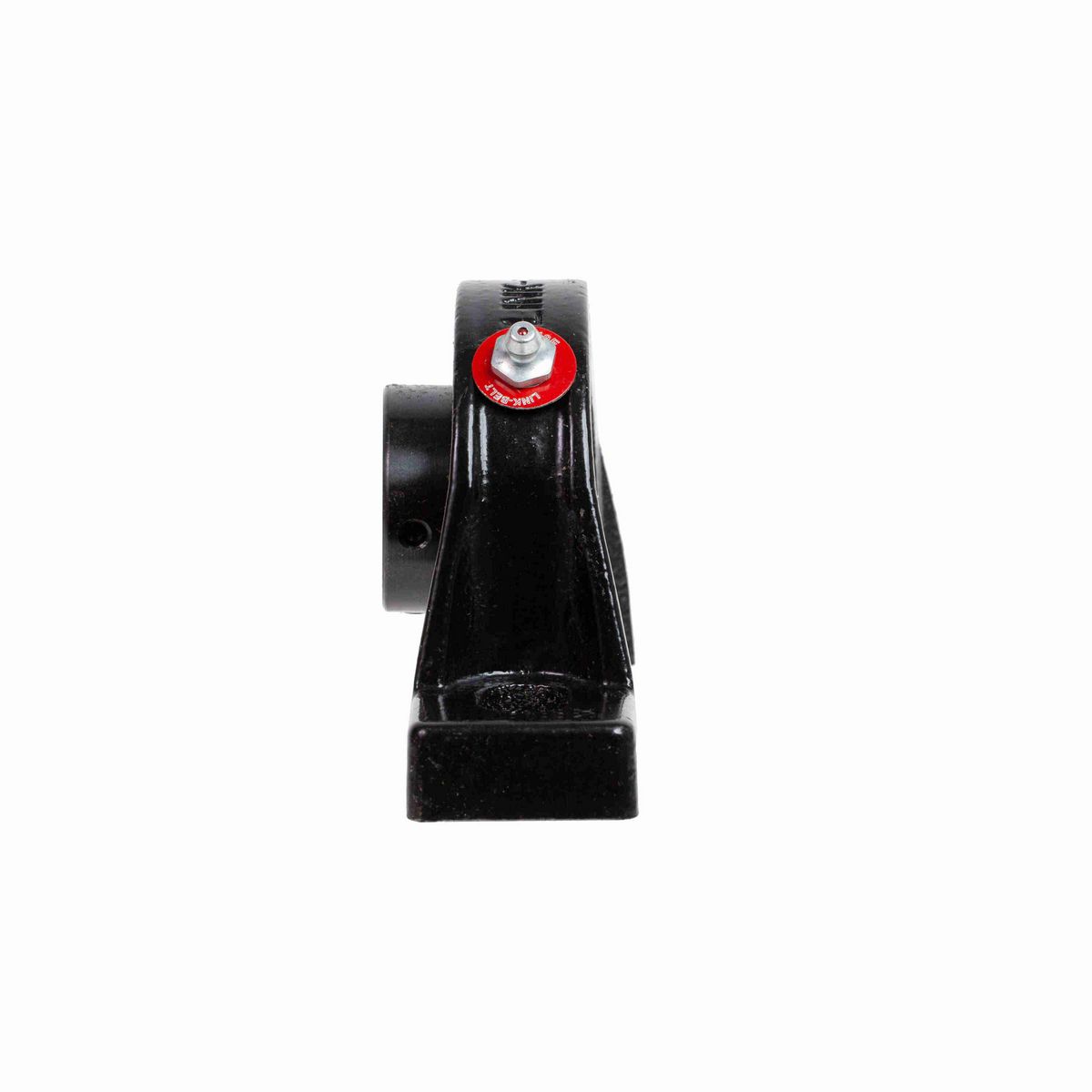

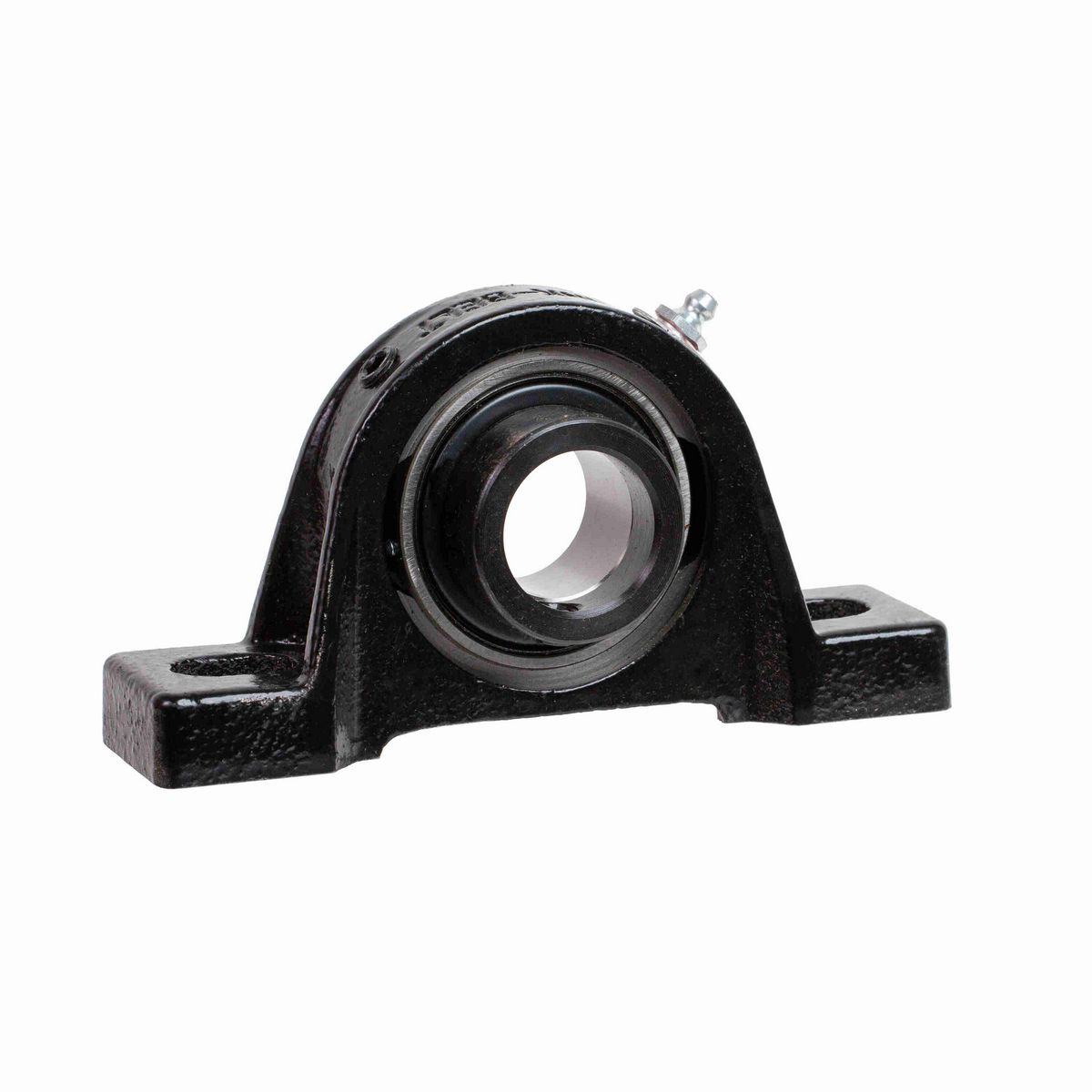

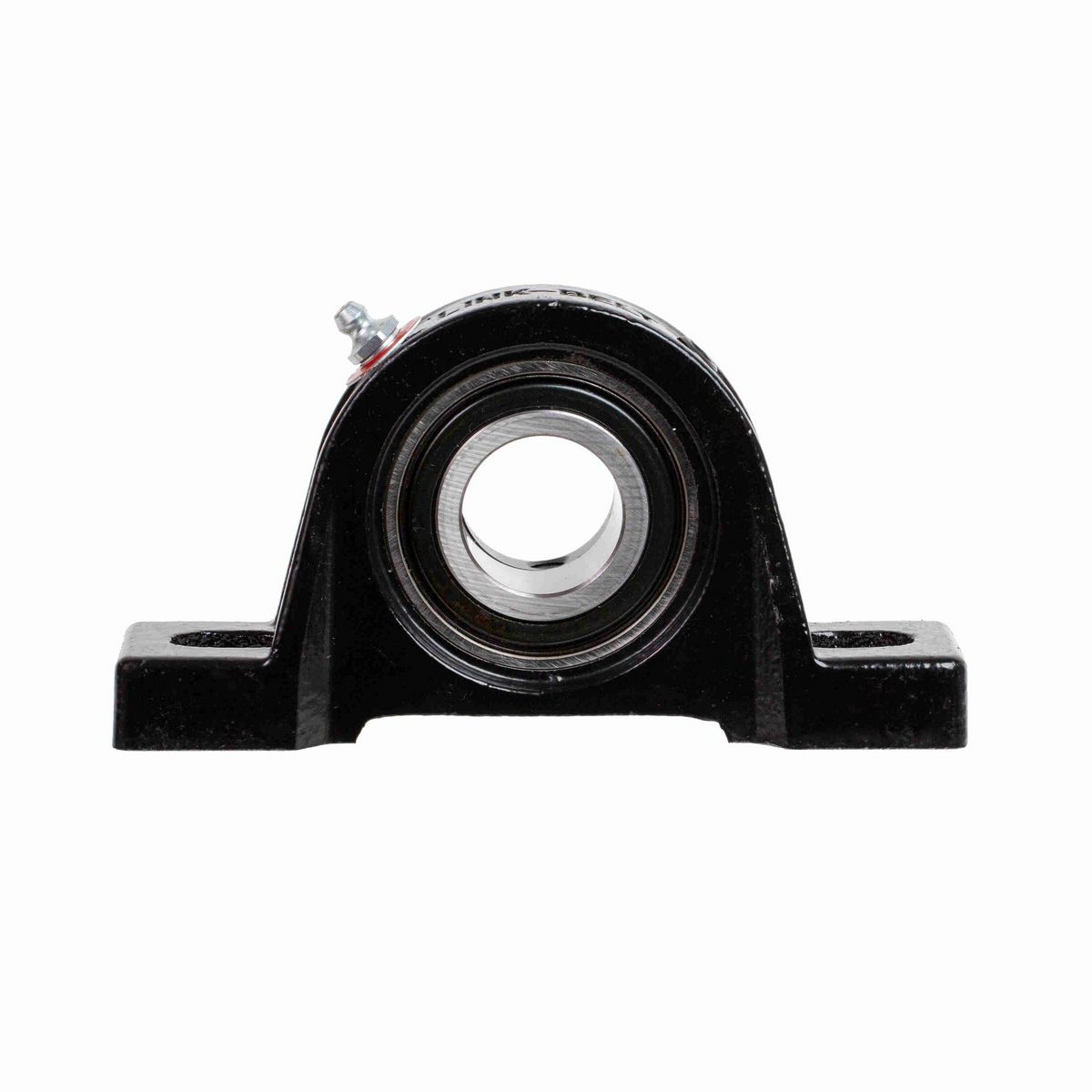

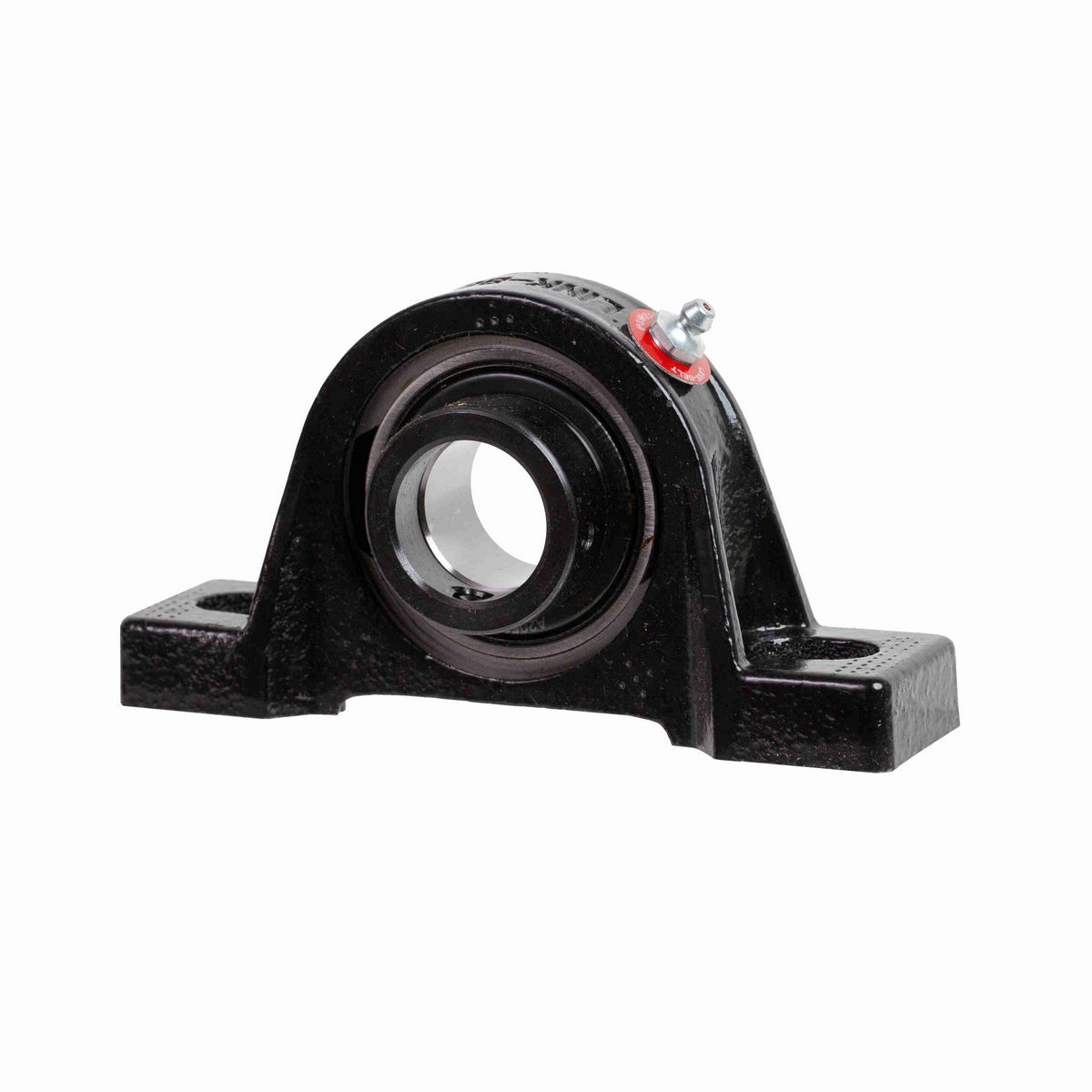

• 1" Mounted Ball Bearing, Intermediate Duty, Cast Iron 2-Bolt Low Backing Height Pillow Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Overall Length (in)	5.38 in
Bolt Size (in)	3/8 in
Overall Height (in)	2.75 in
Length Through Bore (in)	1.219 in
Foot Height (in)	0.44 in
Base to Center Height (in)	1.3125 in
Bore Diameter (in)	1 in
Base Width (in)	1.33 in
Overall Width (in)	1.33 in
Centerline to Outermost Bearing Face (in)	0.922 in
Bolt Spacing (in)	4.00 in

Technical Specifications

Housing Base	Semi-Solid
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Black
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Type	Pillow Block, Two Bolt, Low Base
Slot Length (in)	0.75 in
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Bore Shape	Straight
Outer Ring Land Profile	Standard
Housing Style	Pillow Block
Locking Collar Outside Diameter (in)	1.50 in
Setscrew Torque (in-lbs)	87-92 in/lbs
Ability to Relubricate	Yes
Size Code	205
Static Load Rating (lb)	1,760 lb
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0387 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	3,150 lb
Base Length (in)	5.38 in
End Cap Available	Yes
Maximum Speed (RPM)	6800 rpm
Inner Ring Outside Diameter (in)	1.313 in
Max Operating Temperature (C)	107 °C
Radial Clearance	C3 STANDARD
Housing Material	Cast Iron
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	225 °F
Fixed vs. Expansion	Fixed
Lubricant	EXXON RONEX MP STD
Cage Type	Ball Riding Retainer
Shaft Locking Type	Eccentric
Vibration Frequency Inner Ring Defect	0.0905 cps
End Cap	Y2166N
Vibration Frequency Fundamental Train	0.0067 cps
Housing Coating	Powder Coated
Bearing Type	Intermediate Duty
Vibration Frequency Outer Ring Defect	0.0595 cps
Insert	WG216EL
Bearing Brand	LINK-BELT 200 SERIES BALL
Locking Device Kit	W2165S

General Specifications

UPC	793699283617
Weight	1.55 LB
Packaged Length	5.63 IN
Packaged Width	3.19 IN
Packaged Height	1.81 IN
HTC	8483208040
Country of Origin	Mexico
