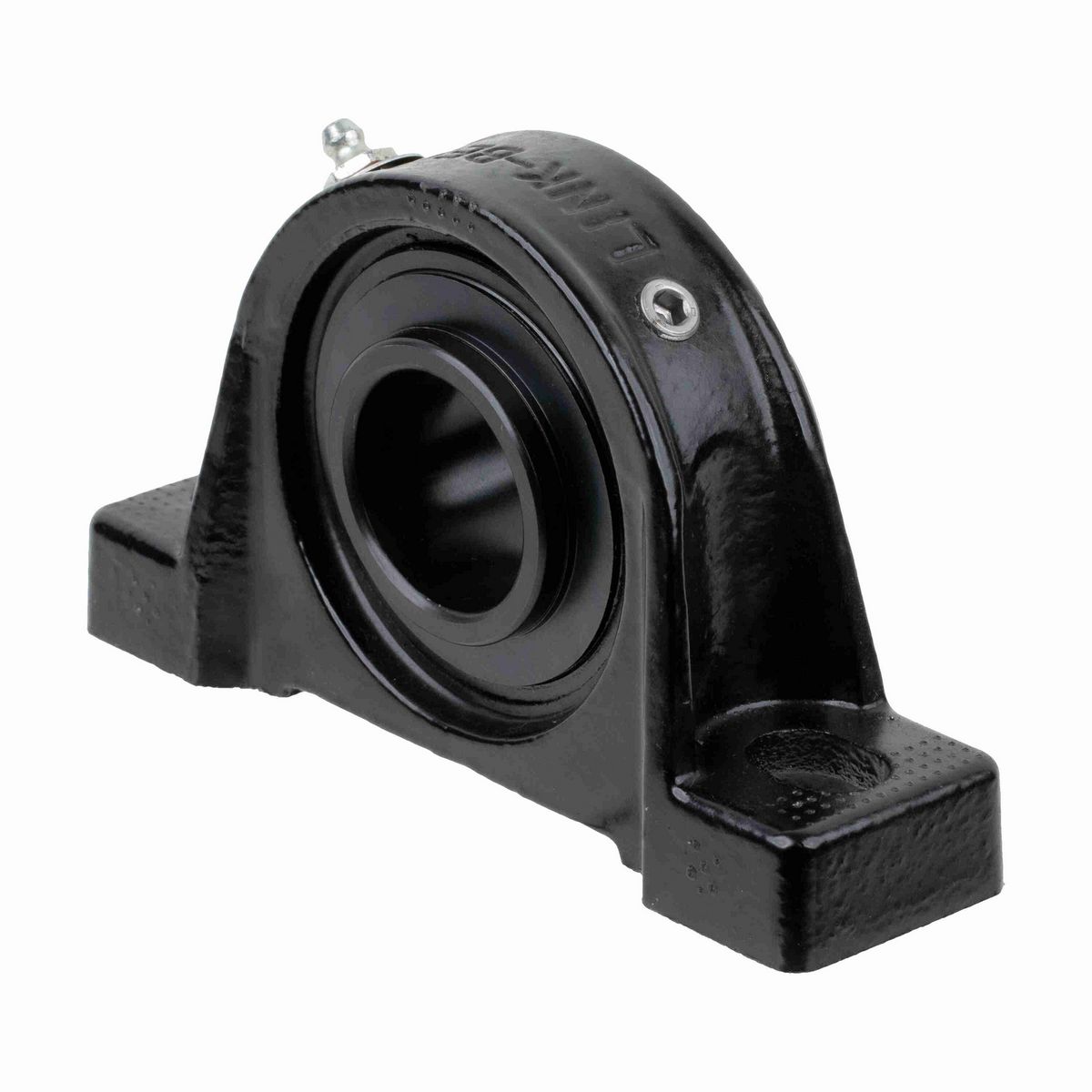

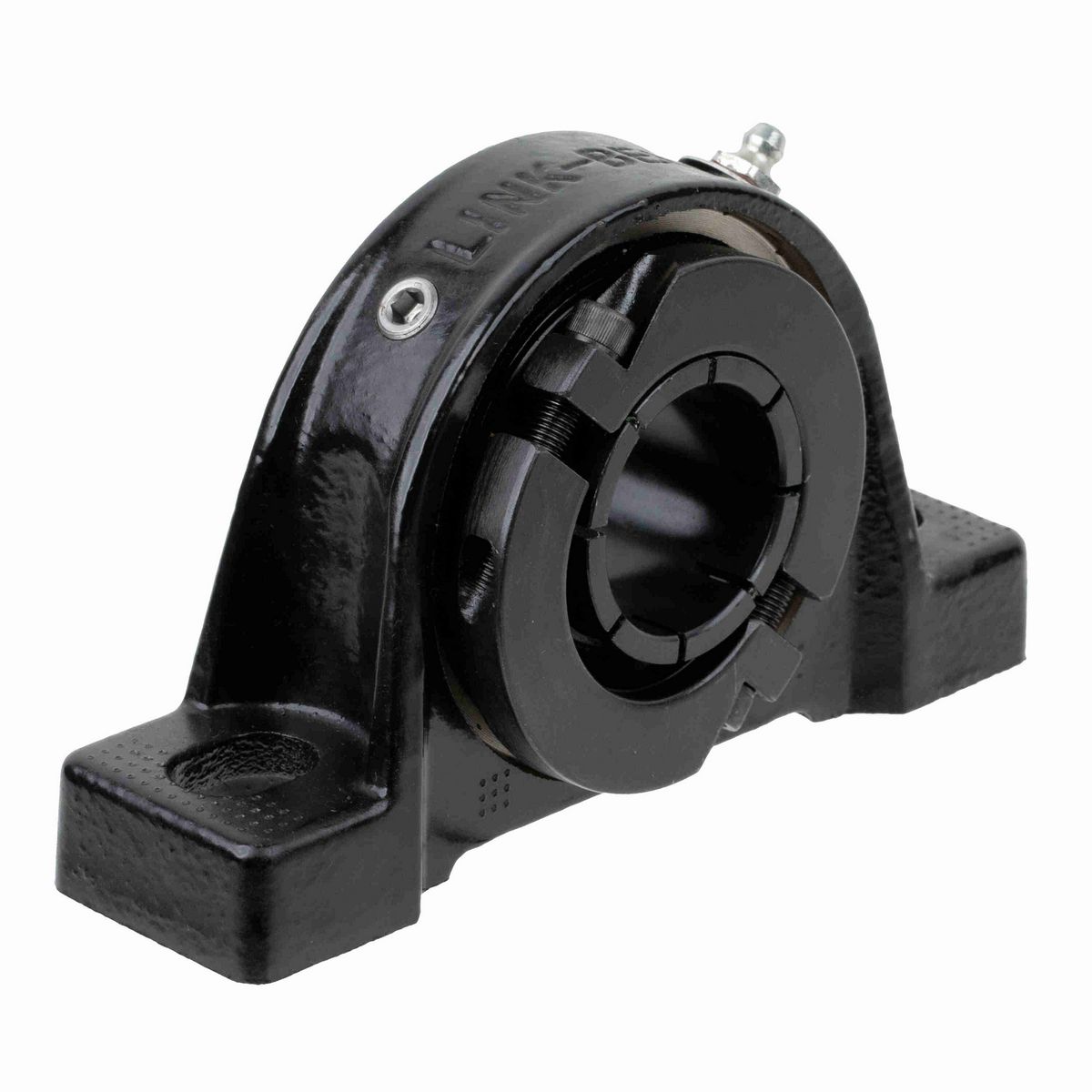

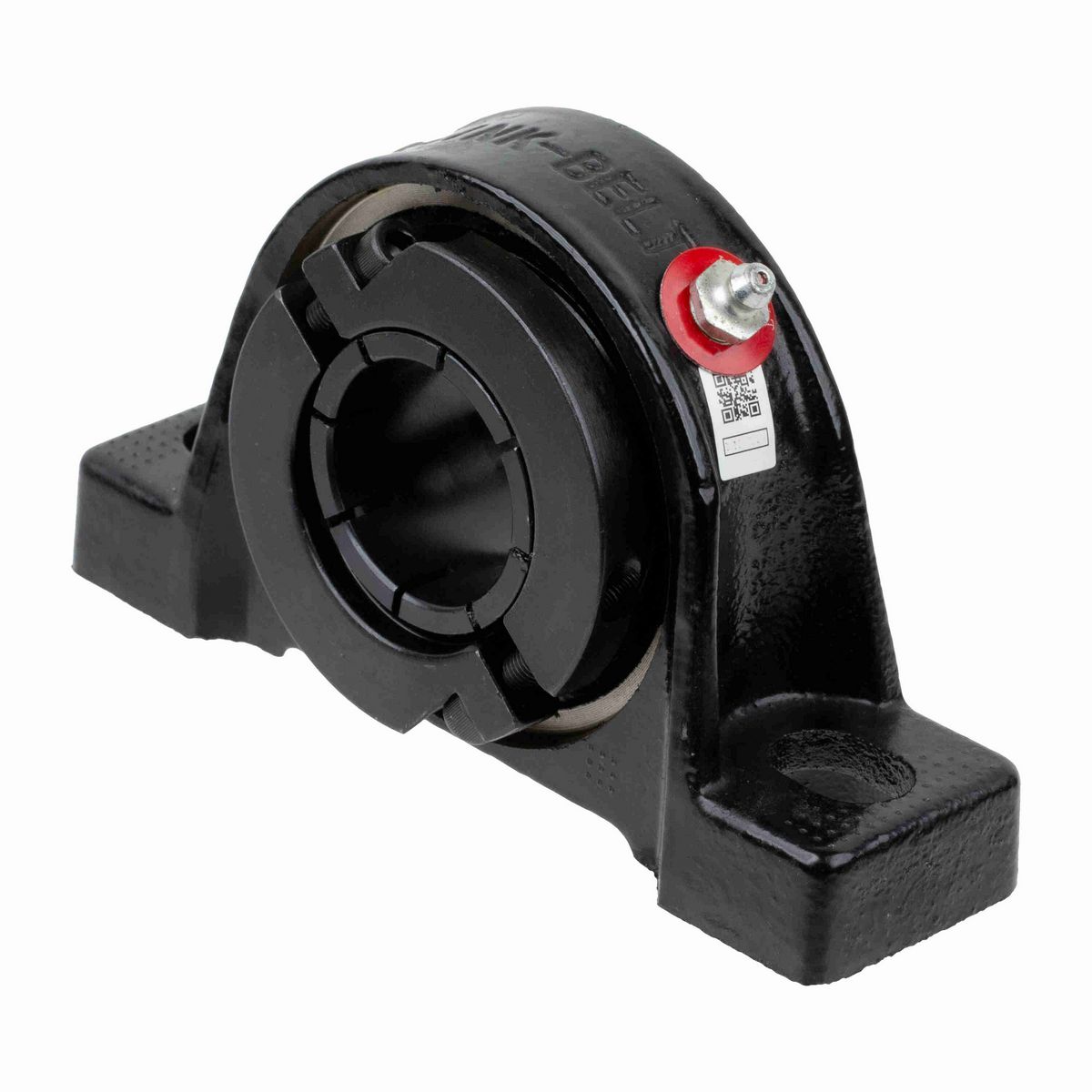

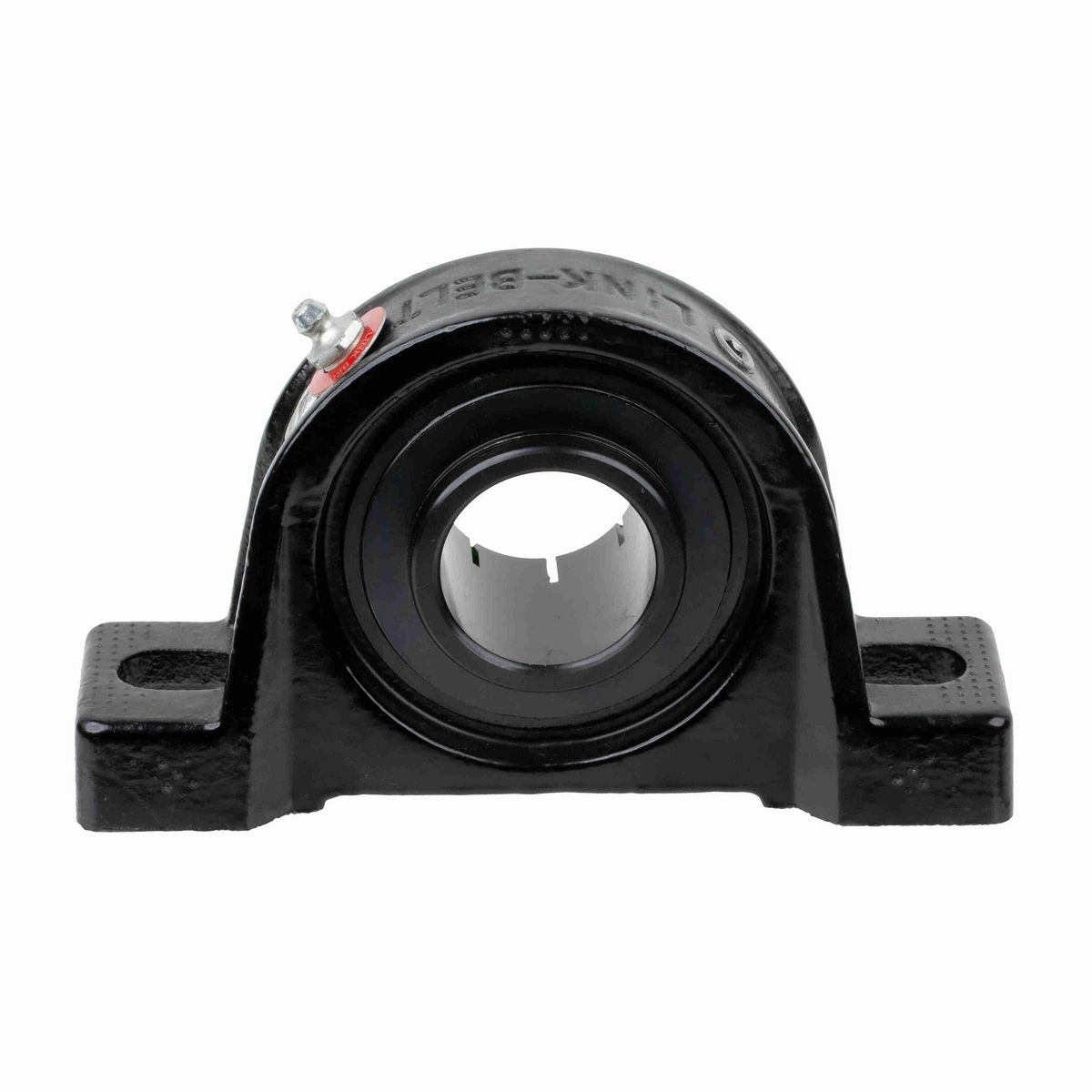

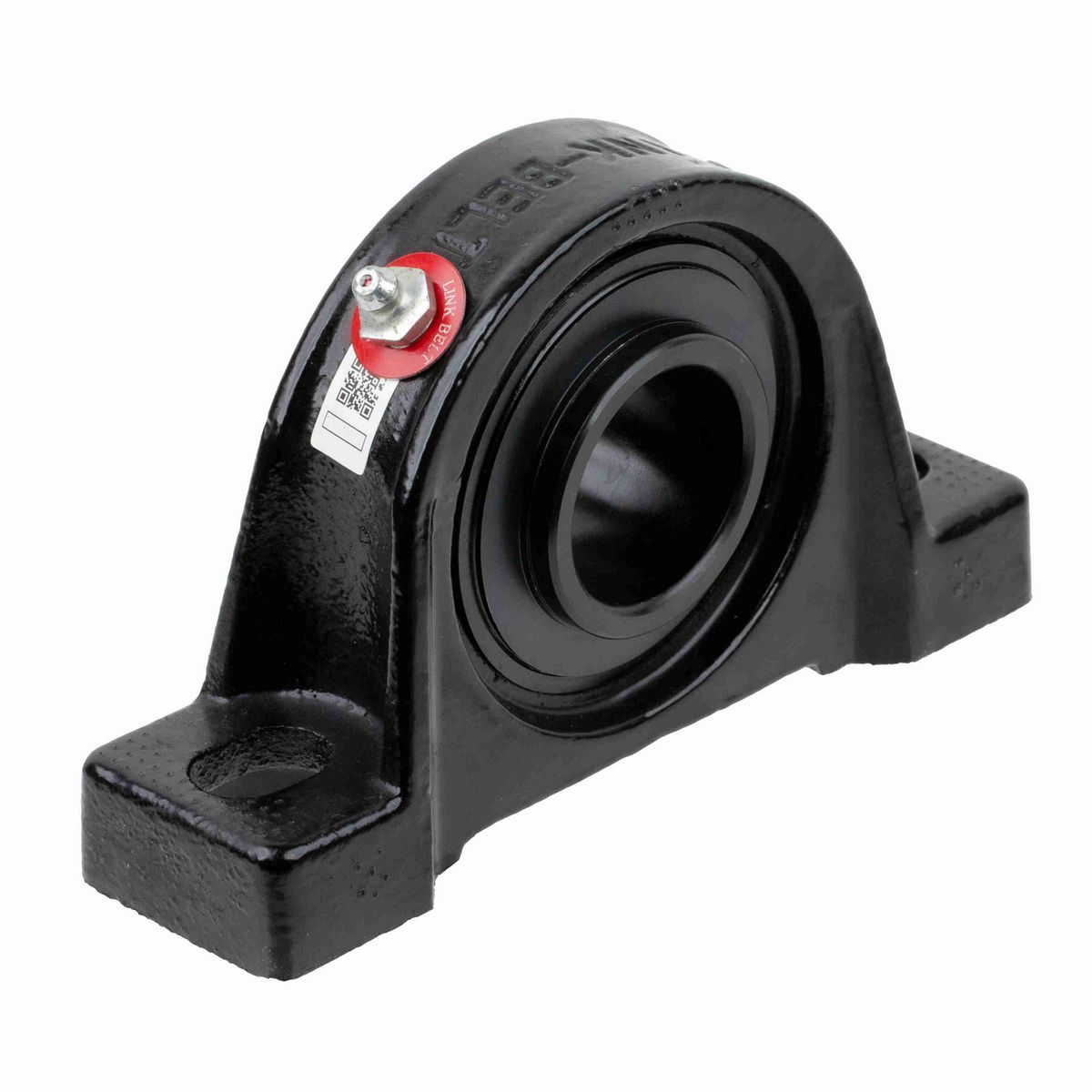

• 1 5/8" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Low Backing Height Pillow Block, Centrik-Lok CL Locking Device, Single Lip Contact Seal

Dimensions

Bolt Size (in)	1/2 in
Base to Center Height (in)	1.9375 in
Bore Diameter (in)	1.625 in
Foot Height (in)	0.74 in
Length Through Bore (in)	2 in
Overall Length (in)	7.06 in
Overall Height (in)	3.93 in
Base Width (in)	1.88 in
Overall Width (in)	2 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing (in)	5.48 in

Technical Specifications

Housing Style	Pillow Block
Cage Material	Molded fiber glass reinforced nylon
Seal Type	Single Lip Contact Seal
Housing Base	Semi-Solid
Misalignment Type	Static Only
Slot Length (in)	1.05 in
Housing Construction	One Piece
Housing Type	Pillow Block, Two Bolt, Low Base
Rolling Element	Ball Bearing
Outer Ring Land Profile	Standard
Housing Color	Black
Bore Shape	Straight
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	151-168 in/lbs
Locking Collar Outside Diameter (in)	2.75 in
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	4,460 lb
Locking Device Kit	CL2255S
Vibration Frequency Roller Spin	0.0367 cps
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	225 °F
Bearing Type	Standard Duty
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Bearing Insert Finish	Black Oxide
Max Operating Temperature (C)	107 °C
Inner Ring Outside Diameter (in)	2.084 in
Vibration Frequency Fundamental Train	0.0065 cps
Shaft Locking Type	Concentric
Bearing Brand	LINK-BELT 200 SERIES BALL
Base Length (in)	7.06 in
Insert	CLG2E26NL
Maximum Speed (RPM)	6000 rpm
End Cap Available	Yes
Size Code	208
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated
Radial Clearance	C3 STANDARD
Vibration Frequency Inner Ring Defect	0.0912 cps
Cage Type	Ball Riding Retainer
Dynamic Load Rating (lb)	7,330 lb
End Cap	CL2256
Vibration Frequency Outer Ring Defect	0.0588 cps

General Specifications

UPC	662864874335
Weight	4.70 LB
Packaged Length	7.94 IN
Packaged Width	4.69 IN
Packaged Height	2.44 IN
HTC	8483208040
Country of Origin	Mexico
