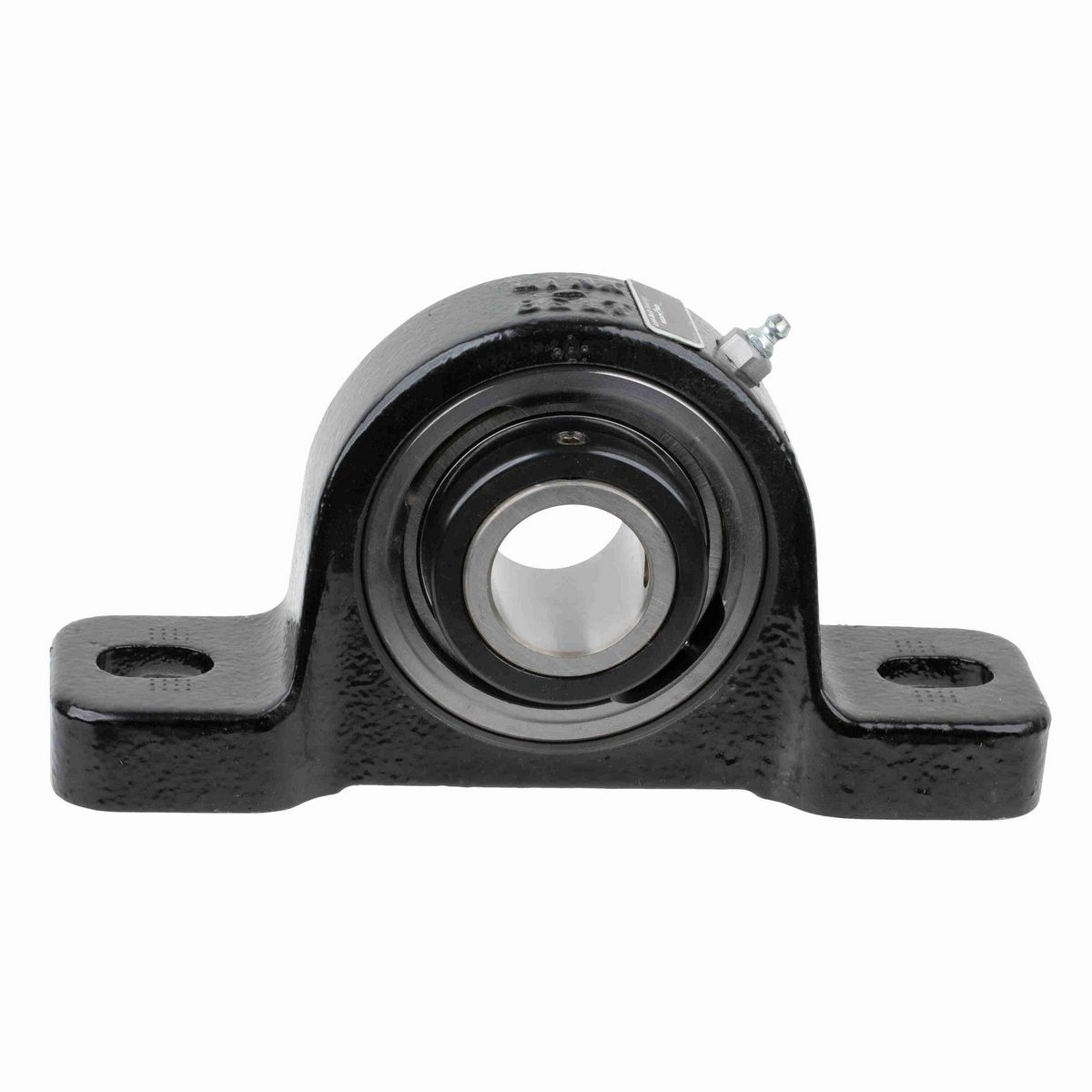

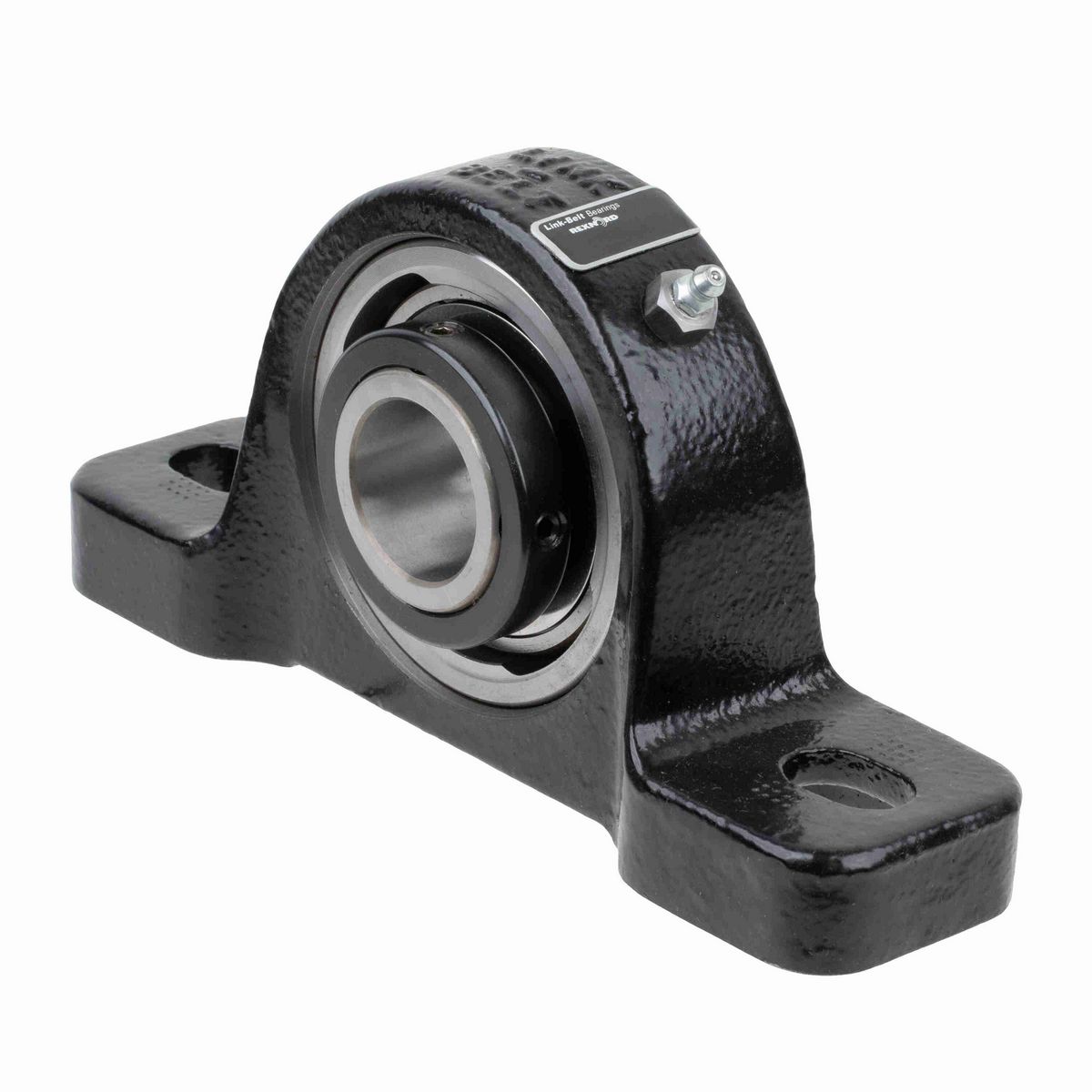

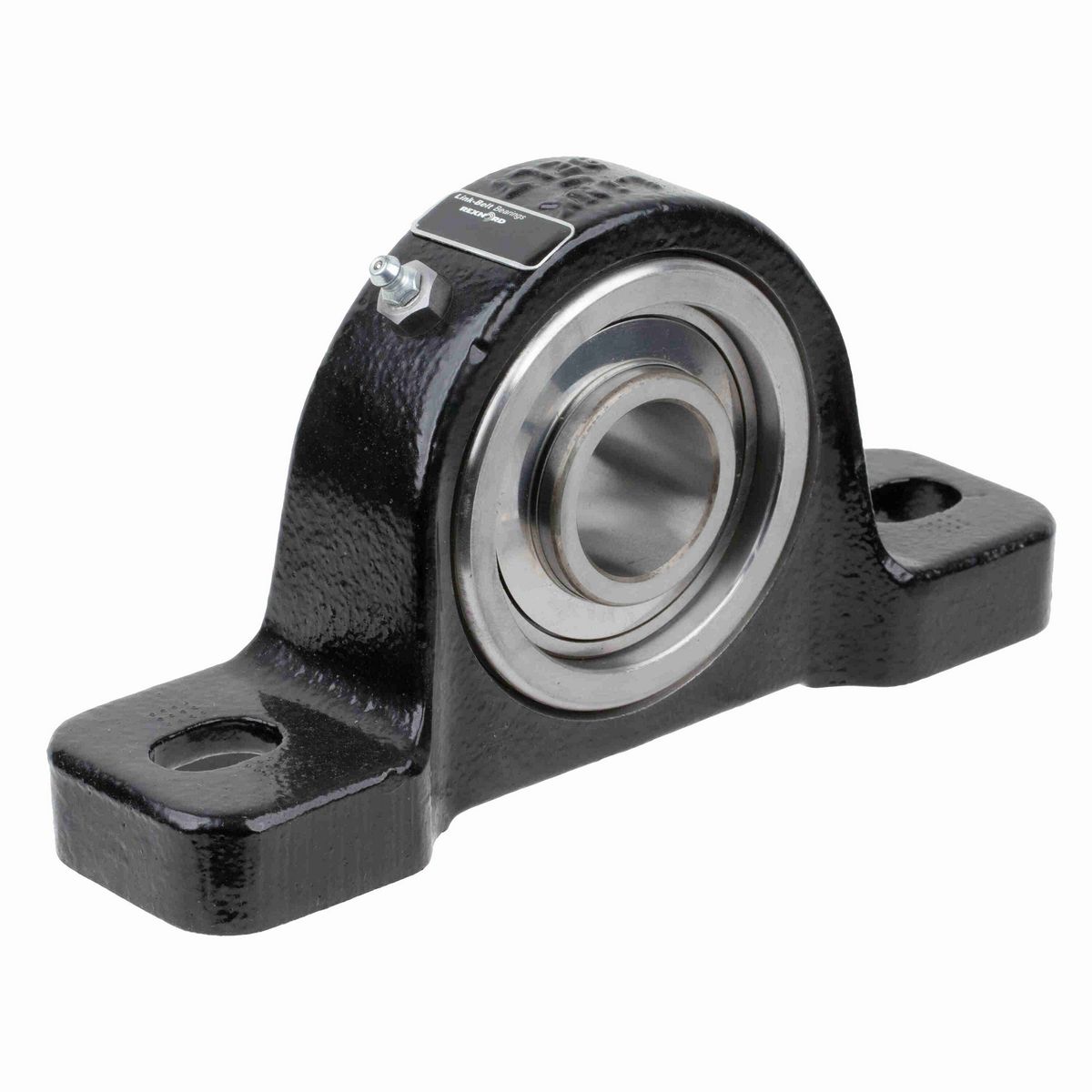

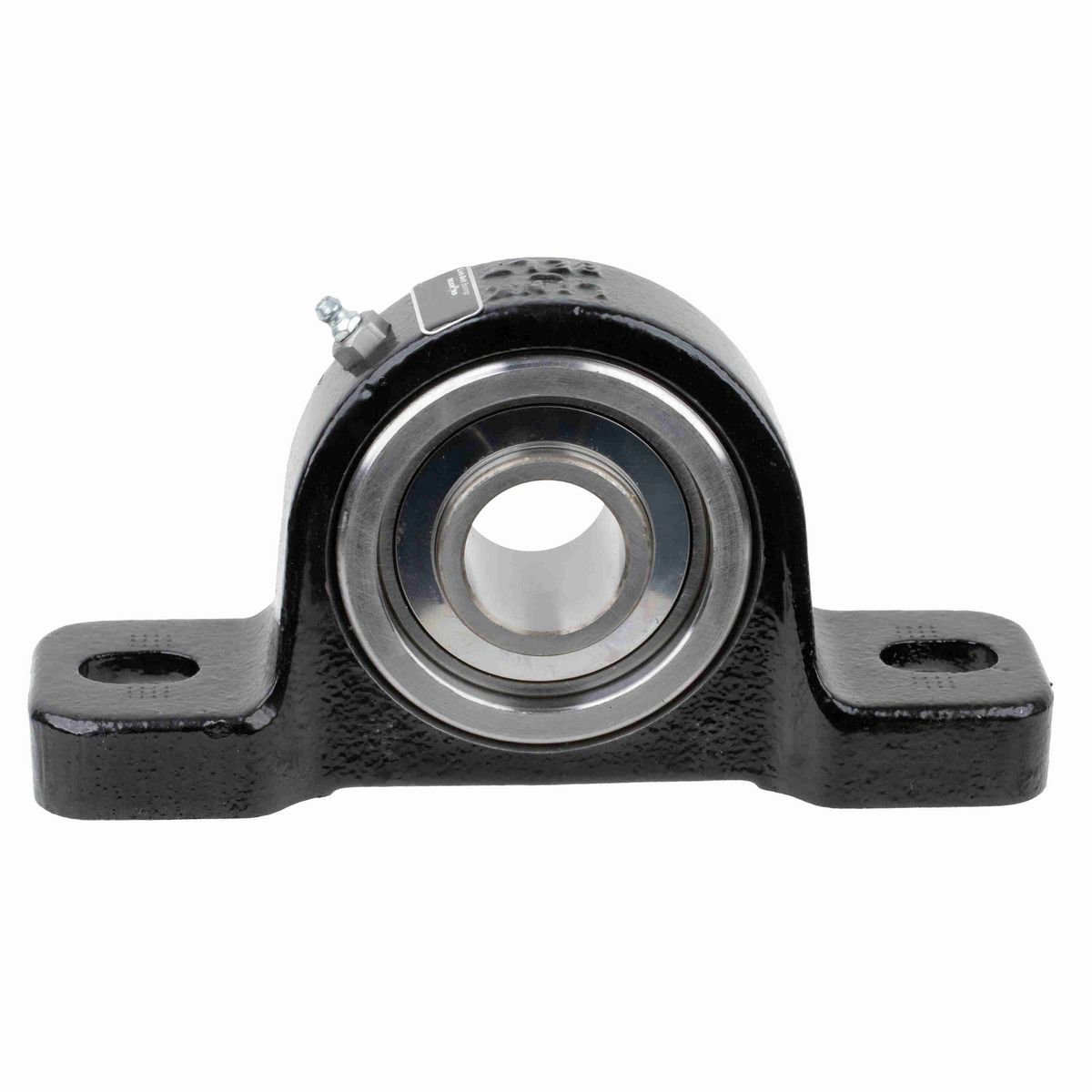

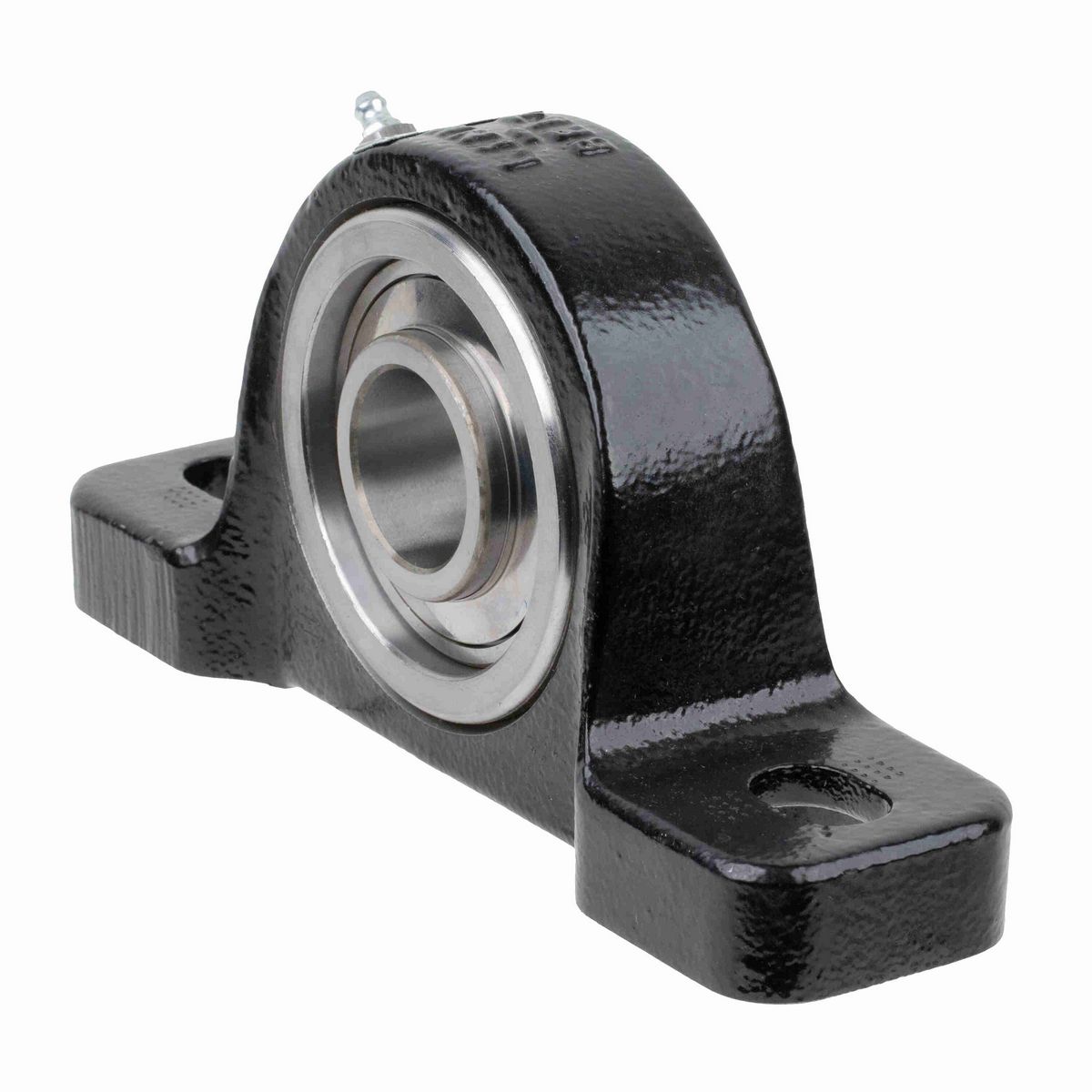

• 1 7/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt Expansion Pillow Block, Setscrew Locking, Clearance Seal

Dimensions

Bore Diameter (in)	1.4375 in
Overall Height (in)	4.69 in
Overall Length (in)	9.25 in
Overall Width (in)	2.38 in
Length Through Bore (in)	2.09 in
Bolt Size (in)	5/8 in
Base to Center Height (in)	2.375 in
Foot Height (in)	1 in
Base Width (in)	2.38 in
Bolt Spacing (in)	7.38 in
Centerline to Outermost Bearing Face (in)	1.25 in

Technical Specifications

Housing Style	Pillow Block
Housing Type	Pillow Block, Two Bolt
Seal Type	Labryinth Seal
Housing Color	Black
Bore Shape	Straight
Misalignment Type	Static Only
Cage Material	Molded fiber glass reinforced nylon
Slot Length (in)	1.13 in
Outer Ring Land Profile	Standard
Housing Base	Semi-Solid
Housing Construction	One Piece
Rolling Element	Ball Bearing
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165-185 in/lbs
Locking Collar Outside Diameter (in)	2.54 in
Vibration Frequency Outer Ring Defect	0.0510 cps
Insert	UG323L
Housing Material	Cast Iron
Vibration Frequency Inner Ring Defect	0.0823 cps
Dynamic Load Rating (lb)	7,490 lb
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Housing Coating	Powder Coated
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Grease Fitting Thread Size	1/4-28
Fixed vs. Expansion	Expansion
Size Code	323
Shaft Locking Type	Set Screw
End Cap Available	Yes
Radial Clearance	C3 STANDARD
Locking Device Kit	U3235S
Expansion Capability (in)	0.19 in
Expansion Lock Plug	3198B
Base Length (in)	9.25 in
Vibration Frequency Fundamental Train	0.0063 cps
Inner Ring Outside Diameter (in)	1.946 in
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap	U3236C
Maximum Speed (RPM)	7550 rpm
Static Load Rating (lb)	4,290 lb
Max Operating Temperature (C)	107 °C
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Roller Spin	0.0335 cps
Cage Type	Ball Riding Retainer
Bearing Type	Heavy Duty

General Specifications

UPC	662327815523
Weight	9.70 LB
Packaged Length	9.50 IN
Packaged Width	3.13 IN
Packaged Height	5.50 IN
HTC	8483208040
Country of Origin	Mexico
