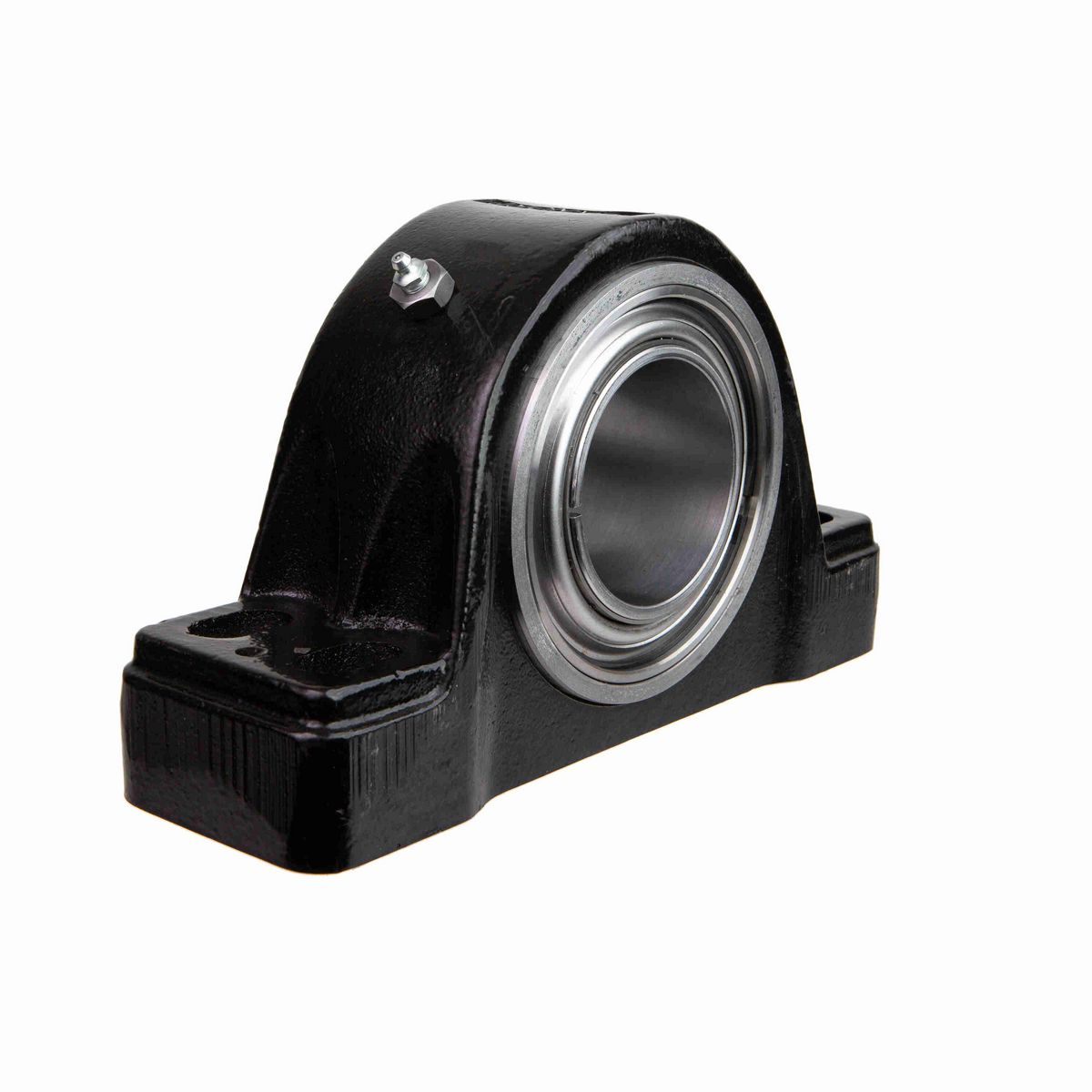

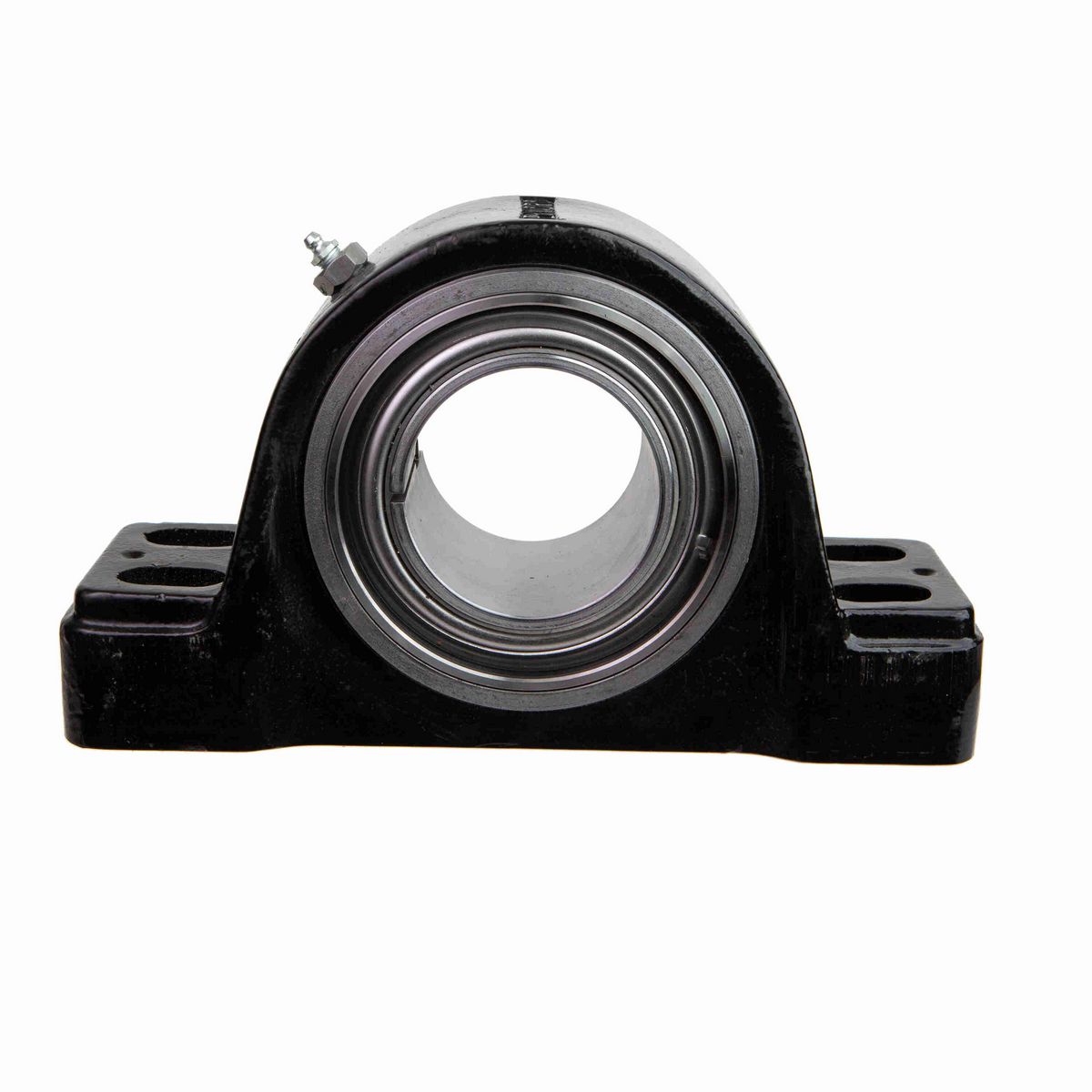

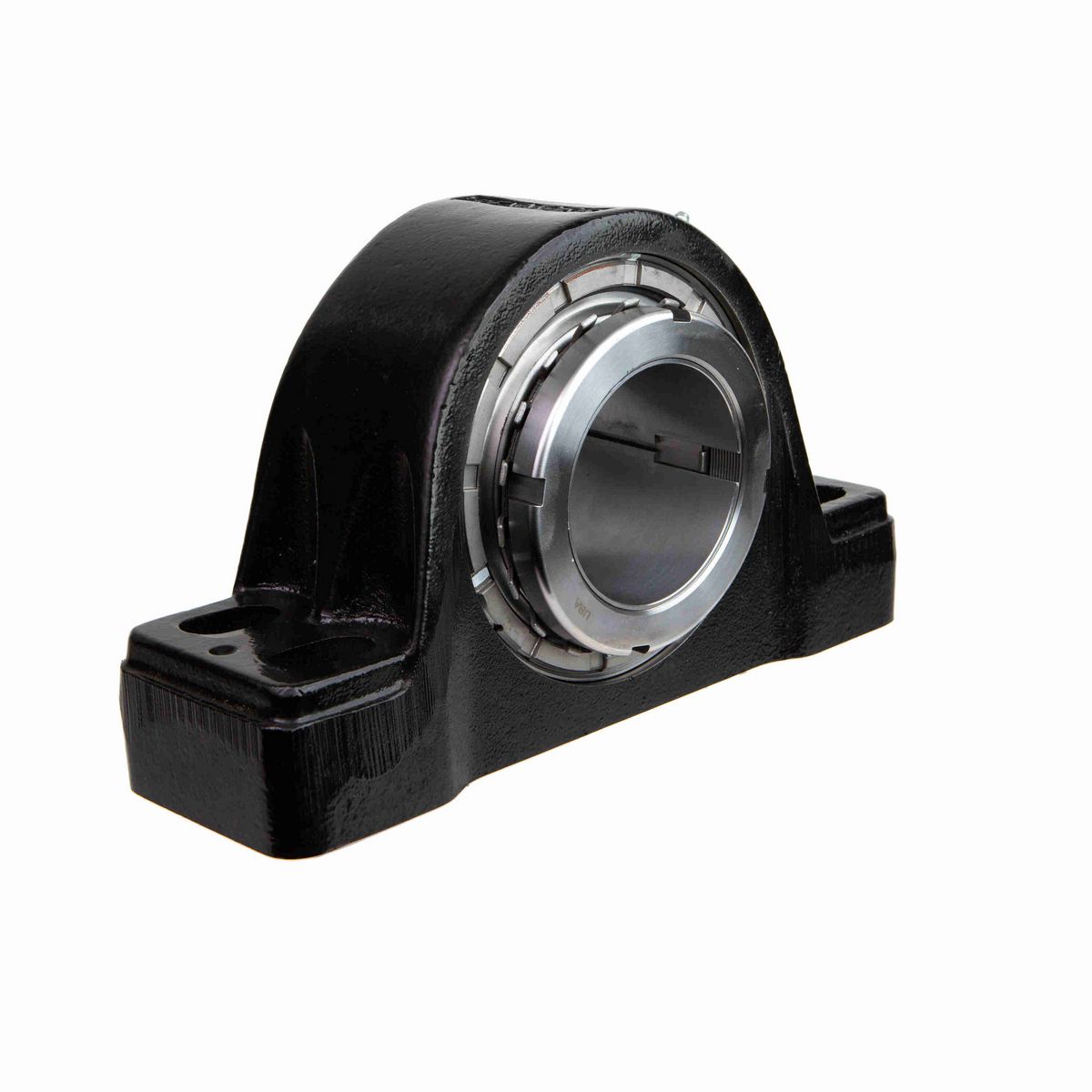

• 3 7/16" Mounted Spherical Roller Bearing, Expansion Cast Iron 4-Bolt Pillow Block, Adapter Mounted, Clearance Seal

Dimensions

Bore Diameter (in)	3.4375 in
Overall Length (in)	13 in
Base Width (in)	4.13 in
Overall Width (in)	4.29 in
Base to Center Height (in)	3.75 in
Overall Height (in)	7.5 in
Foot Height (in)	2.25 in
Slot Length (in)	1.5 in
Bolt Size (in)	3/4 in
Locking Collar Outside Diameter (in)	4.94 in
Expansion Capability (in)	0.38 in
Housing Cast Face to Outermost Bearing Face (in)	0.86 in
Centerline to Outermost Bearing Face (in)	2.58 in
Length Through Bore (in)	4.29 in
Bolt Spacing Width (in)	2 in
Bolt Spacing (in)	10 in
Inner Ring Outside Diameter (in)	3.975 in
Base Length (in)	13 in

Technical Specifications

Housing Style	Pillow Block
Misalignment Type	Dynamic
Housing Color	Black
Radial Clearance	C0 STANDARD
Rolling Element	Spherical Roller
Series	Solid-housed Pillow Blocks
Cage Material	Steel
Housing Material	Cast Iron
Housing Type	Pillow Block, Four Bolt
Static Load Rating (lb)	90,700 lb
Product	PEB22600F
Fixed/Expansion	Expansion
Shaft Locking Type	Adapter Mount
Radial Dynamic Load Capacity (lb)	62,300 lb
Seal Type	Clearance Seal
Housing Construction	Solid
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Maximum Speed (RPM)	1650 rpm
Seal Kit	B456HS
Ability to Relubricate	Yes
Primary Seal	STEEL CLEARANCE SEAL
Lubricant	EXXON RONEX MP STD
Vibration Frequency Roller Spin	0.0628 cps
Vibration Frequency Outer Ring Defect	0.1383 cps
Max Operating Temperature (C)	107 °C
Vibration Frequency Fundamental Train	0.0073 cps
Shaft Locking Collar Kit/Adapter Assembly	SNW655
Insert	CSEB22655H
Vibration Frequency Inner Ring Defect	0.1784 cps
Size Code	B655
Housing Coating	POWDER COATED
Expansion Lock Plug	B225728A
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Locking Device Kit	SNW655

General Specifications

UPC	793699503487
Weight	44.40 LB
Packaged Length	8.00 IN
Packaged Width	4.38 IN
Packaged Height	13.00 IN
