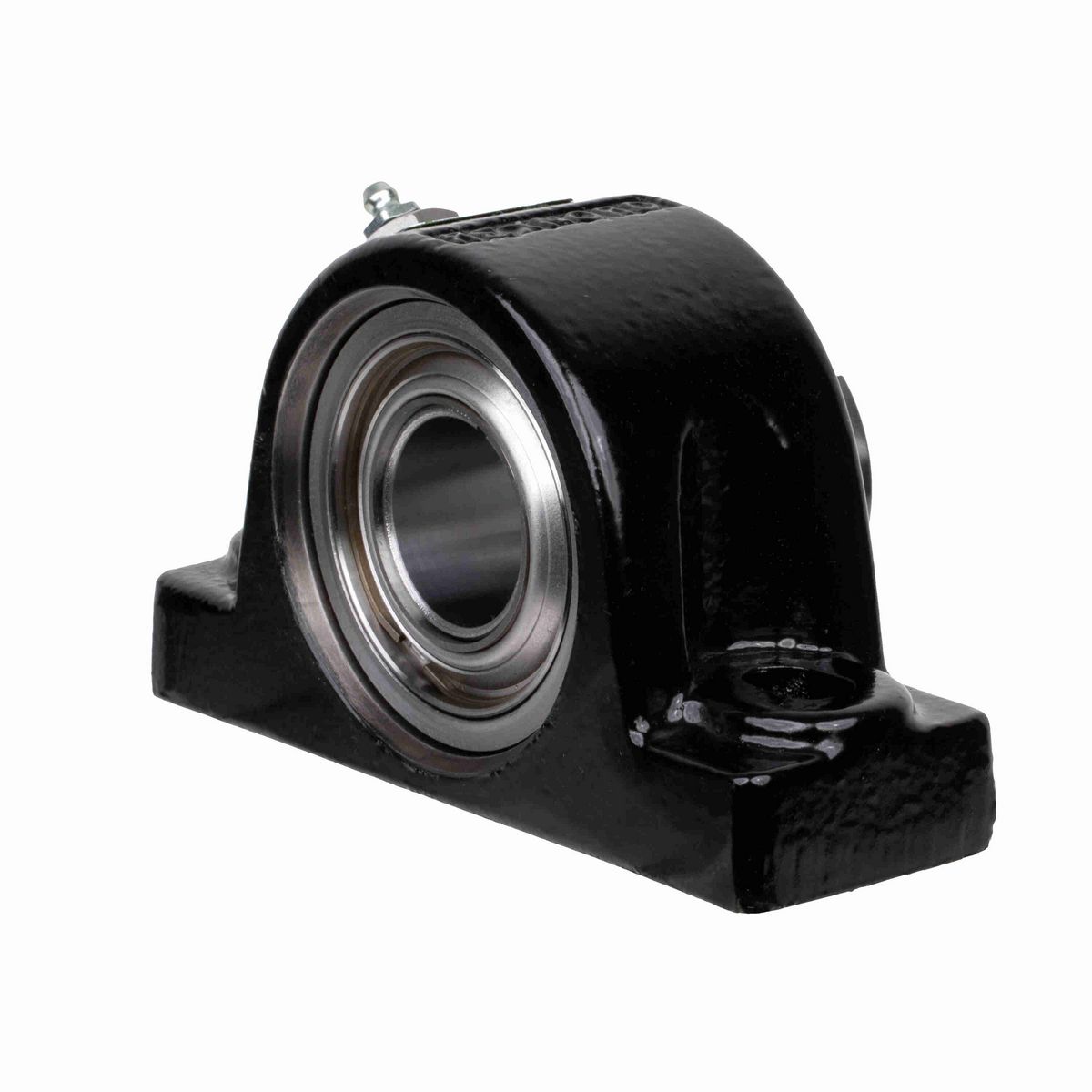

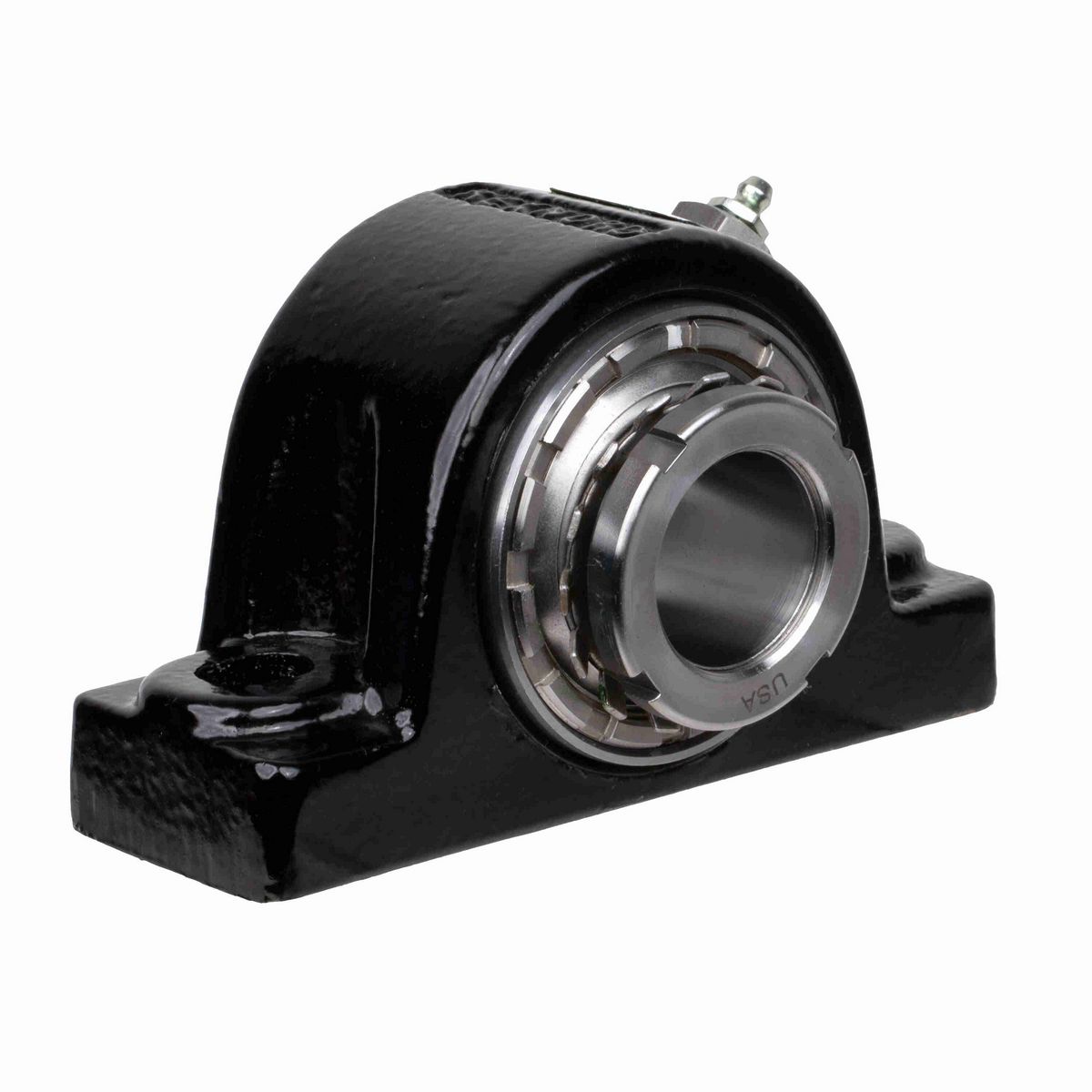

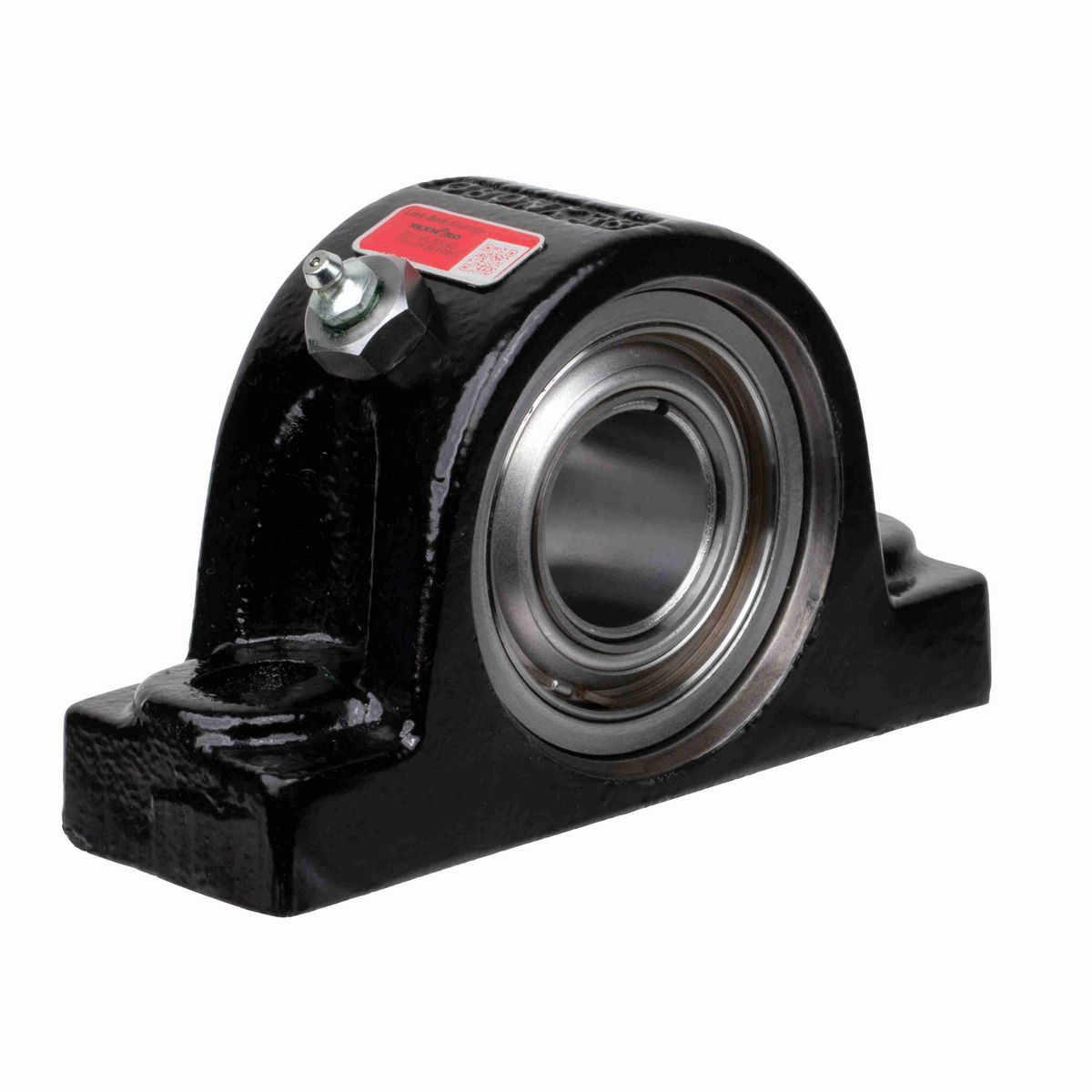

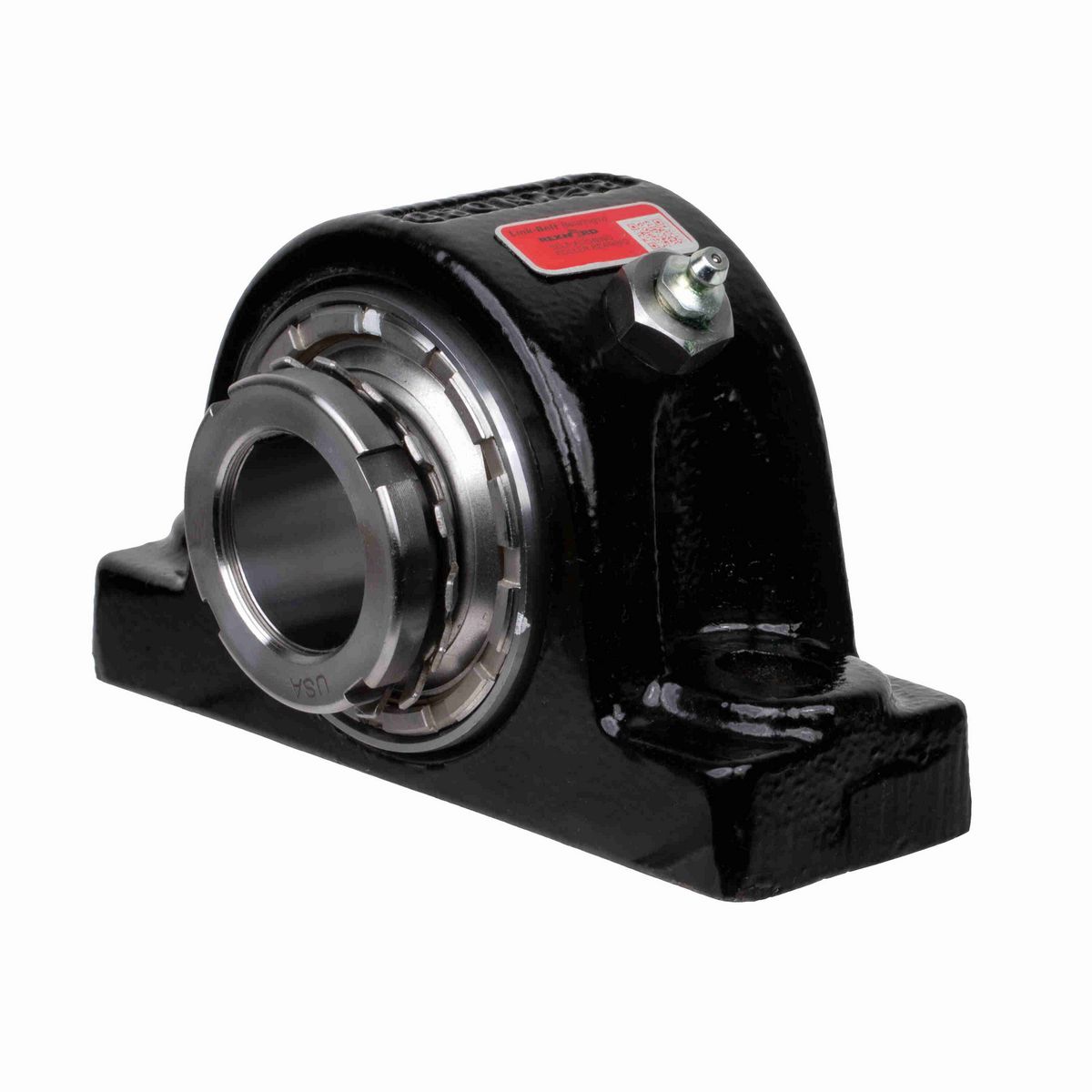

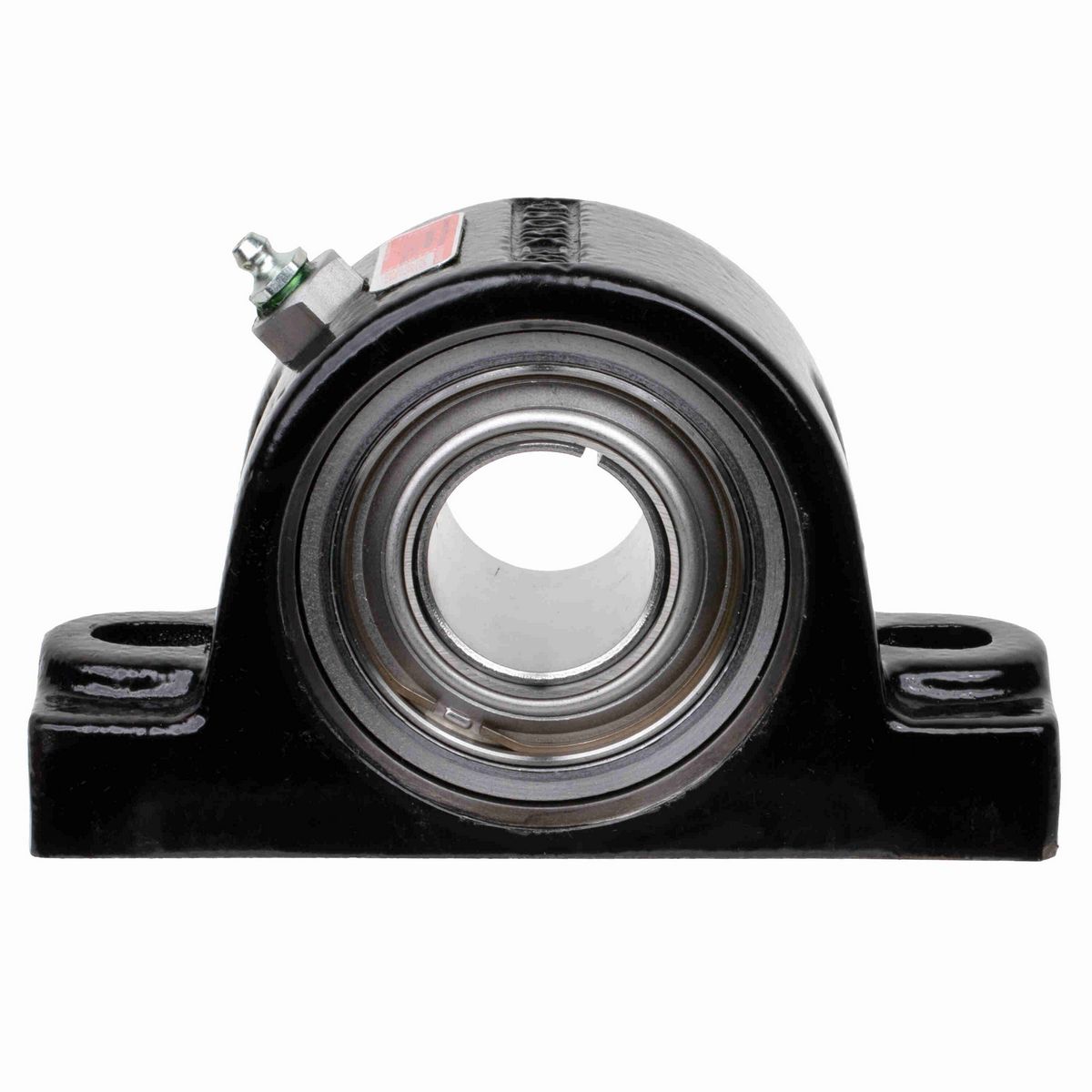

• 1 7/16" Mounted Spherical Roller Bearing, Expansion Cast Iron 2-Bolt Pillow Block, Adapter mounted, Clearance Seal

Dimensions

Overall Height (in)	3.88 in
Overall Length (in)	6.56 in
Base to Center Height (in)	1.875 in
Overall Width (in)	2.88 in
Foot Height (in)	1.19 in
Slot Length (in)	0.88 in
Base Width (in)	2.25 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.4375 in
Locking Collar Outside Diameter (in)	2.25 in
Base Length (in)	6.56 in
Centerline to Outermost Bearing Face (in)	1.61 in
Bolt Spacing (in)	5 in
Length Through Bore (in)	2.71 in
Expansion Capability (in)	0.38 in
Inner Ring Outside Diameter (in)	1.745 in
Housing Cast Face to Outermost Bearing Face (in)	0.5 in

Technical Specifications

Radial Dynamic Load Capacity (lb)	17,800 lb
Housing Color	Black
Fixed/Expansion	Expansion
Shaft Locking Type	Adapter Mount
Housing Type	Pillow Block, Two Bolt
Static Load Rating (lb)	20,900 lb
Housing Material	Cast Iron
Product	PEB22600
Radial Clearance	C0 STANDARD
Misalignment Type	Dynamic
Housing Construction	Solid
Series	Solid-housed Pillow Blocks
Seal Type	Clearance Seal
Cage Material	Steel
Housing Style	Pillow Block
Rolling Element	Spherical Roller
Seal Kit	B424HS
Maximum Speed (RPM)	3600 rpm
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Max Operating Temperature (F)	225 °F
Locking Device Kit	SNW623
Expansion Lock Plug	B224408A
Shaft Locking Collar Kit/Adapter Assembly	SNW623
Vibration Frequency Roller Spin	0.0499 cps
Insert	CSEB22623H
Vibration Frequency Fundamental Train	0.007 cps
Primary Seal	STEEL CLEARANCE SEAL
Lubricant	EXXON RONEX MP STD
Housing Coating	POWDER COATED
Misalignment Capability	±2.0° Misalignment - Dynamic
Vibration Frequency Inner Ring Defect	0.1445 cps
Grease Fitting Thread Size	1/8 NPT
Size Code	B624
Vibration Frequency Outer Ring Defect	0.1055 cps
Max Operating Temperature (C)	107 °C

General Specifications

UPC	793699501575
Weight	6.70 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
HTC	8483204080
Country of Origin	United States of America
