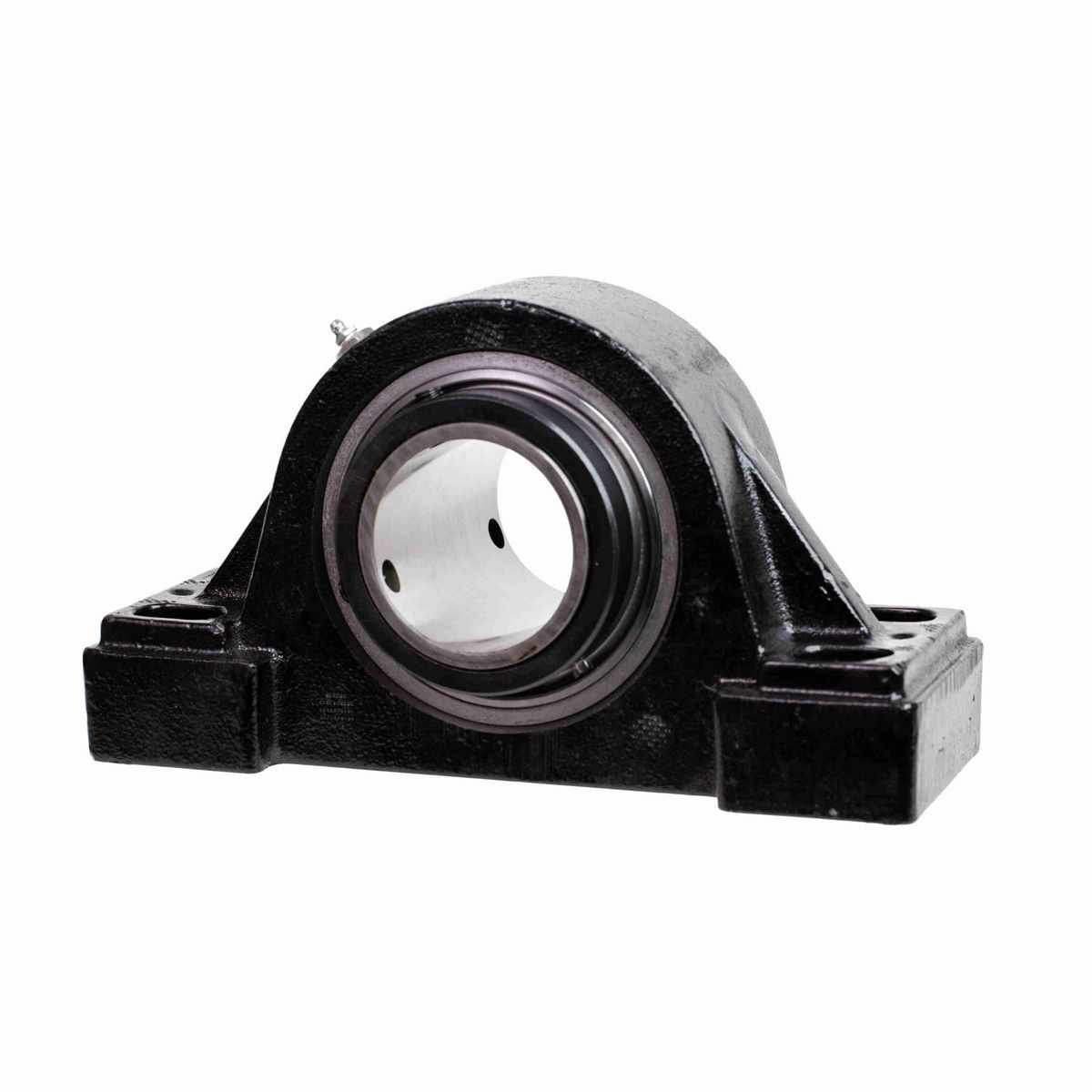

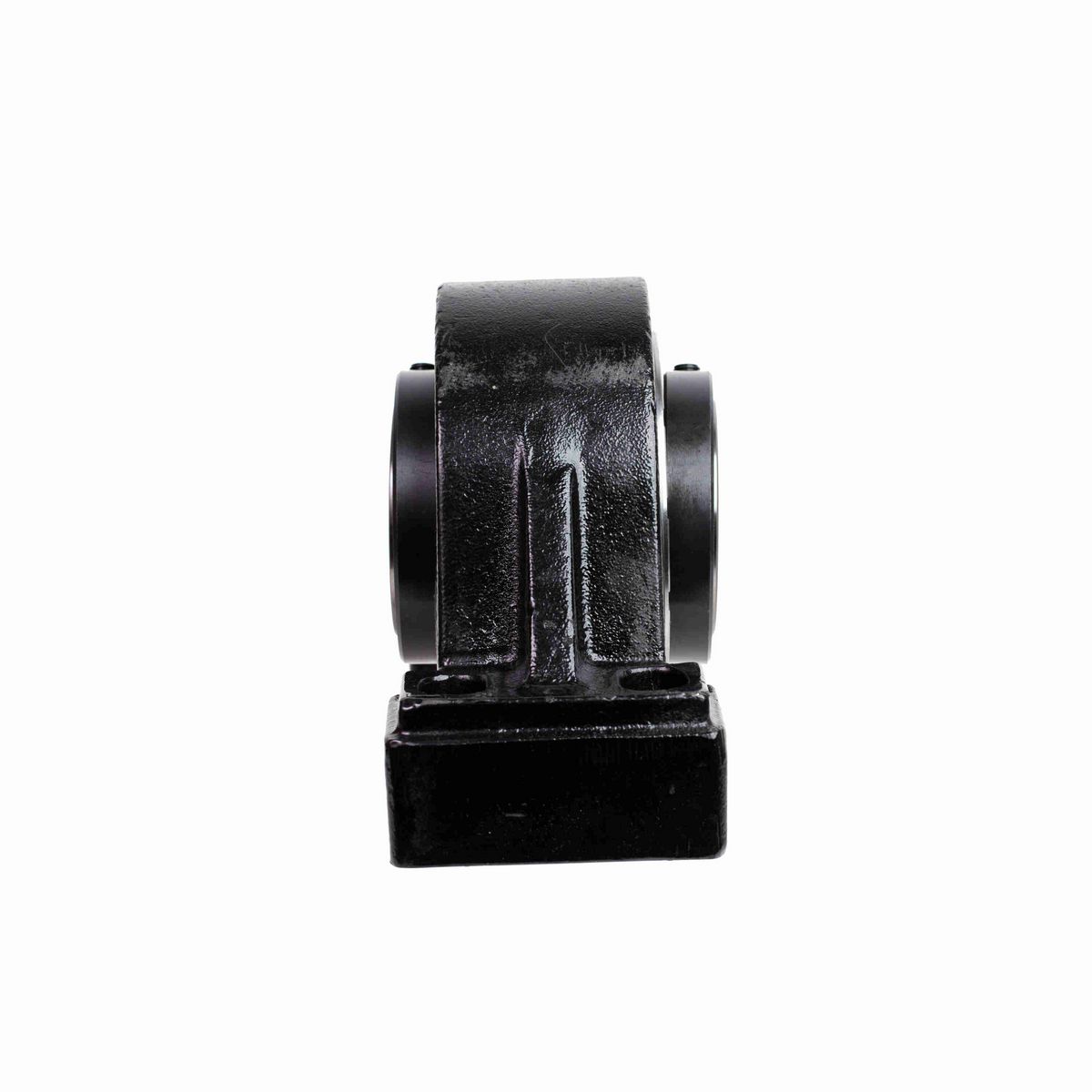

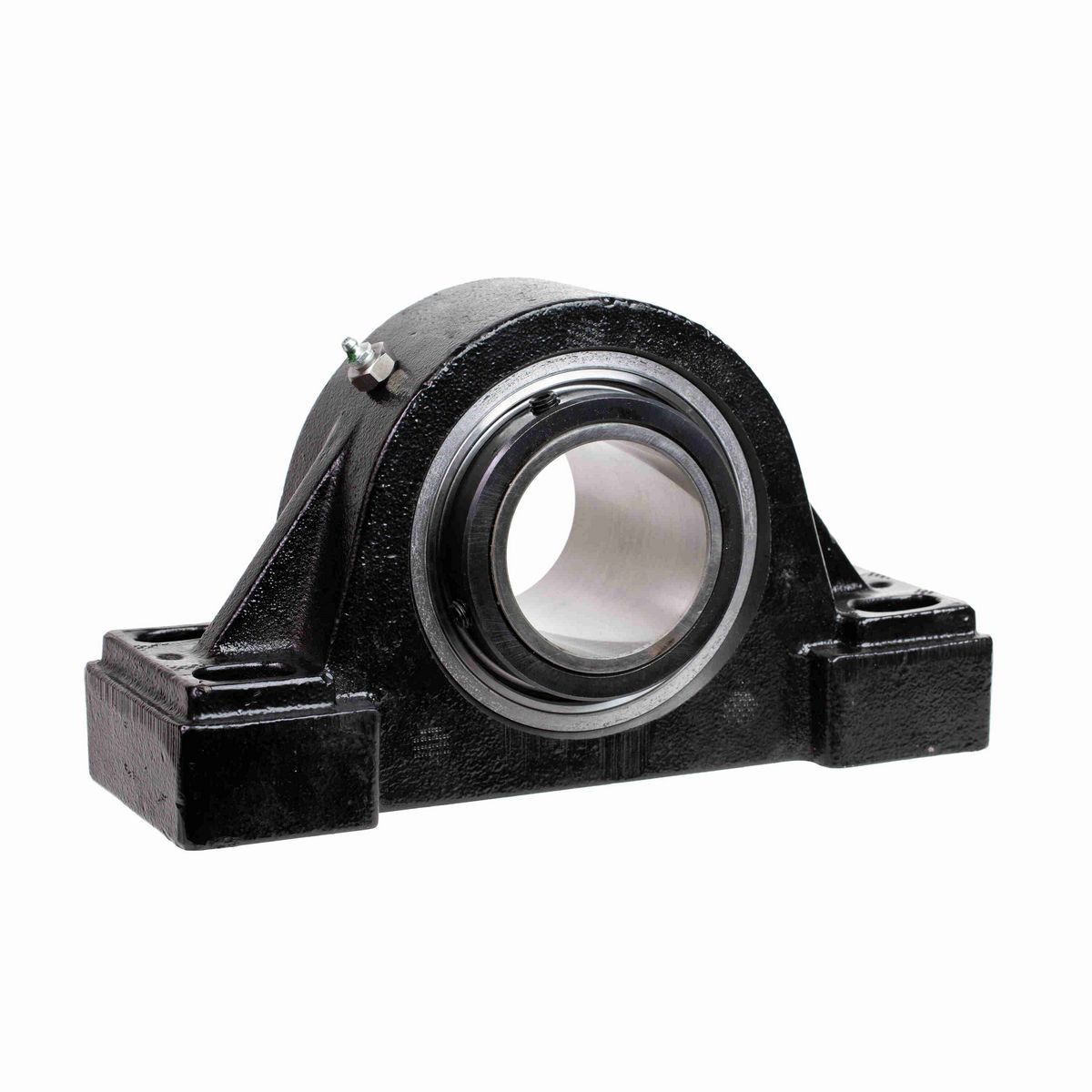

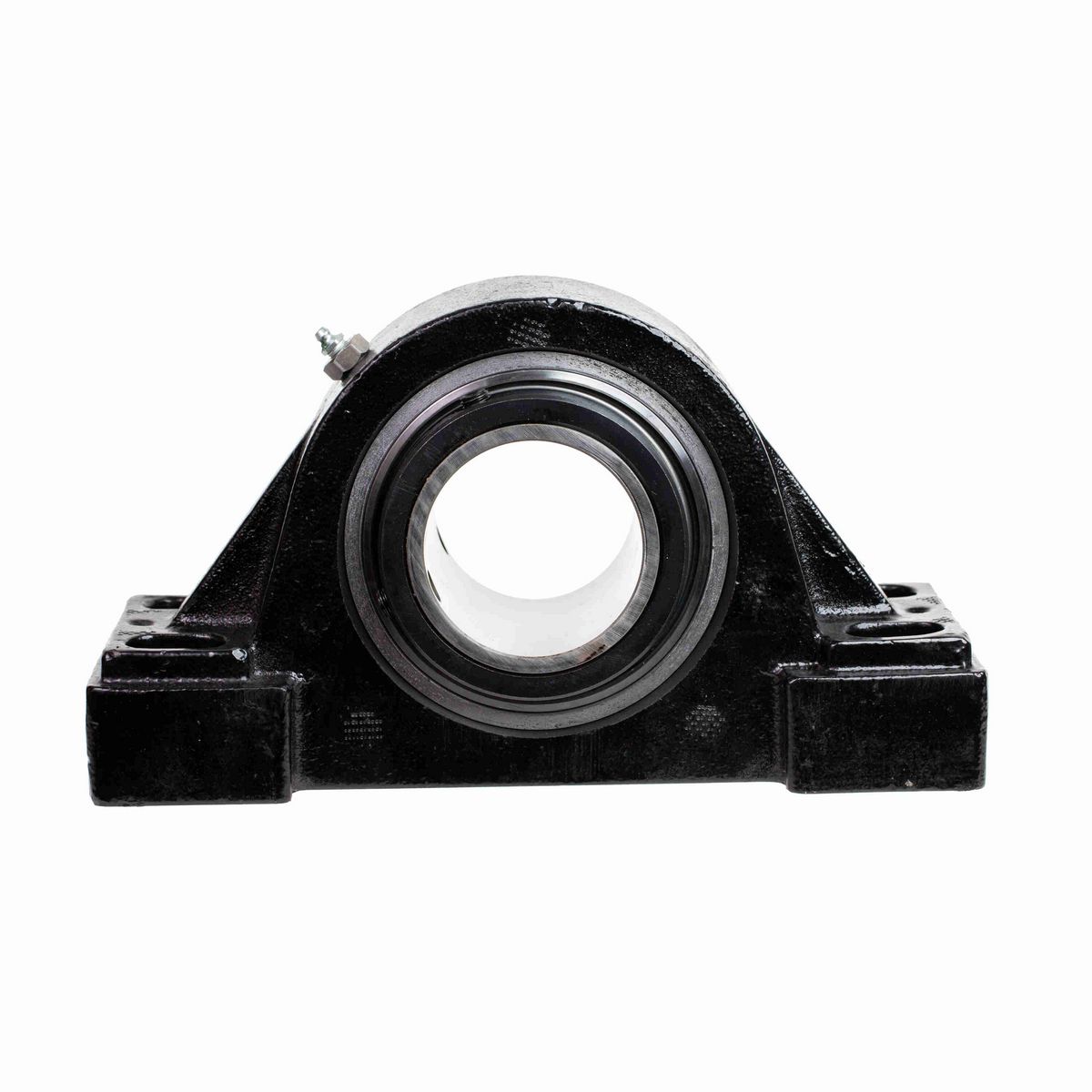

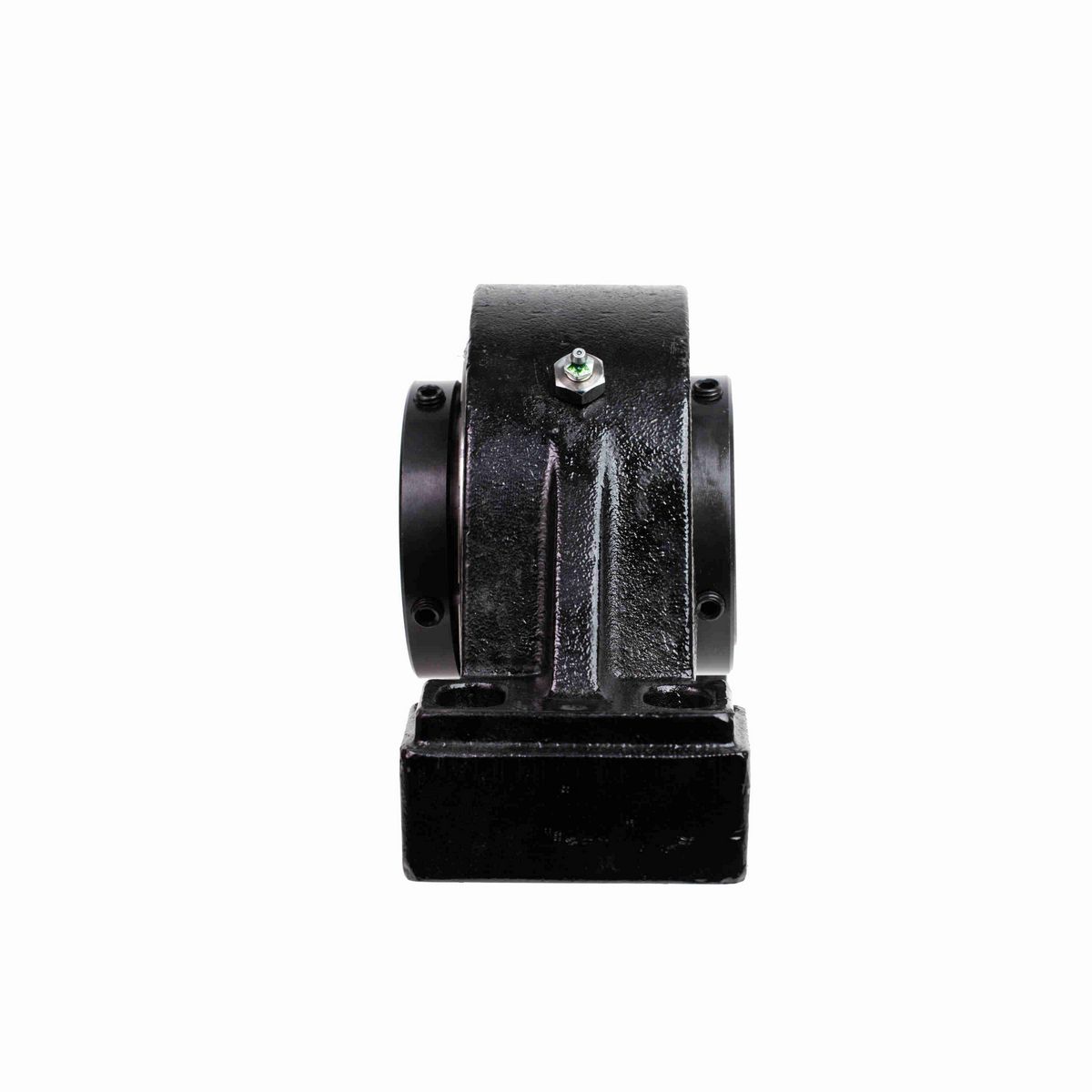

• 3 7/16" Mounted Spherical Roller Bearing, Expansion Cast Iron 4-Bolt Pillow Block, Double Setscrew Locking Collar, Clearance Seal

Dimensions

Slot Length (in)	1.5 in
Foot Height (in)	2.5 in
Overall Width (in)	5.31 in
Base to Center Height (in)	4 in
Bore Diameter (in)	3.4375 in
Bolt Size (in)	3/4 in
Base Width (in)	5 in
Overall Height (in)	8 in
Overall Length (in)	14.25 in
Locking Collar Outside Diameter (in)	4.91 in
Base Length (in)	14.25 in
Bolt Spacing Width (in)	3 in
Expansion Capability (in)	0.38 in
Centerline to Outermost Bearing Face (in)	2.66 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in
Length Through Bore (in)	5.31 in
Bolt Spacing (in)	11.5 in
Inner Ring Outside Diameter (in)	3.975 in

Technical Specifications

Housing Color	Black
Housing Style	Pillow Block
Fixed/Expansion	Expansion
Seal Type	Clearance Seal
Static Load Rating (lb)	90,700 lb
Rolling Element	Spherical Roller
Misalignment Type	Dynamic
Radial Dynamic Load Capacity (lb)	62,300 lb
Housing Material	Cast Iron
Shaft Locking Type	Double Set Collar
Cage Material	Steel
Product	PEB22500F
Radial Clearance	C0 STANDARD
Housing Construction	Solid
Series	Solid-housed Pillow Blocks
Housing Type	Pillow Block, Four Bolt
Maximum Speed (RPM)	1650 rpm
Setscrew Torque (in-lbs)	680 in/lbs
Seal Kit	B456HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Vibration Frequency Inner Ring Defect	0.1784 cps
Max Operating Temperature (C)	107 °C
Size Code	B556
Primary Seal	STEEL CLEARANCE SEAL
Expansion Lock Plug	B225728A
Locking Device Kit	B456SC QTY 2
Misalignment Capability	±2.0° Misalignment - Dynamic
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0628 cps
Vibration Frequency Fundamental Train	0.0073 cps
Housing Coating	POWDER COATED
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Insert	CSEB22555H
Vibration Frequency Outer Ring Defect	0.1383 cps

General Specifications

UPC	662327112318
Weight	59.00 LB
Packaged Length	8.38 IN
Packaged Width	5.25 IN
Packaged Height	14.63 IN
HTC	8483204080
Country of Origin	United States of America
