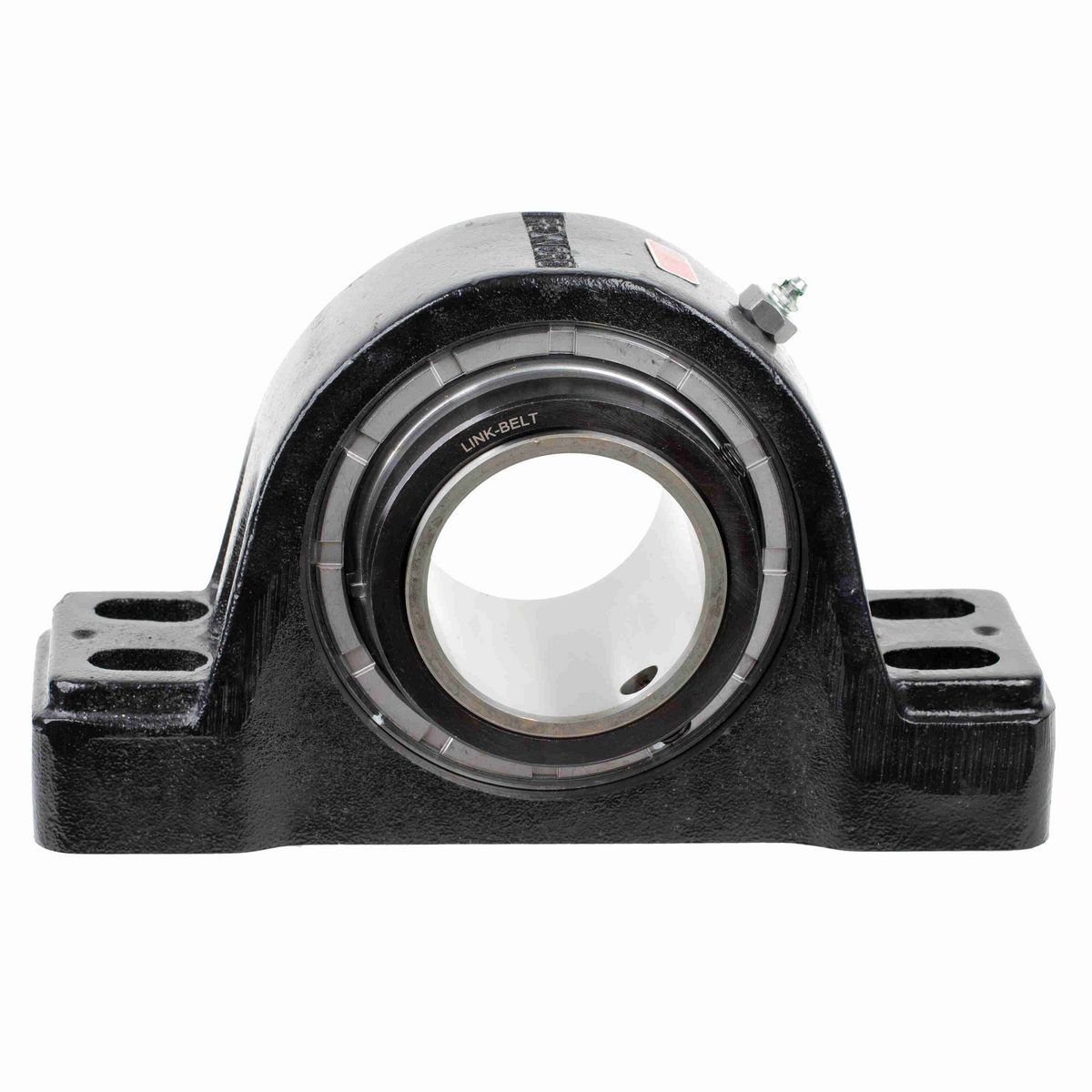

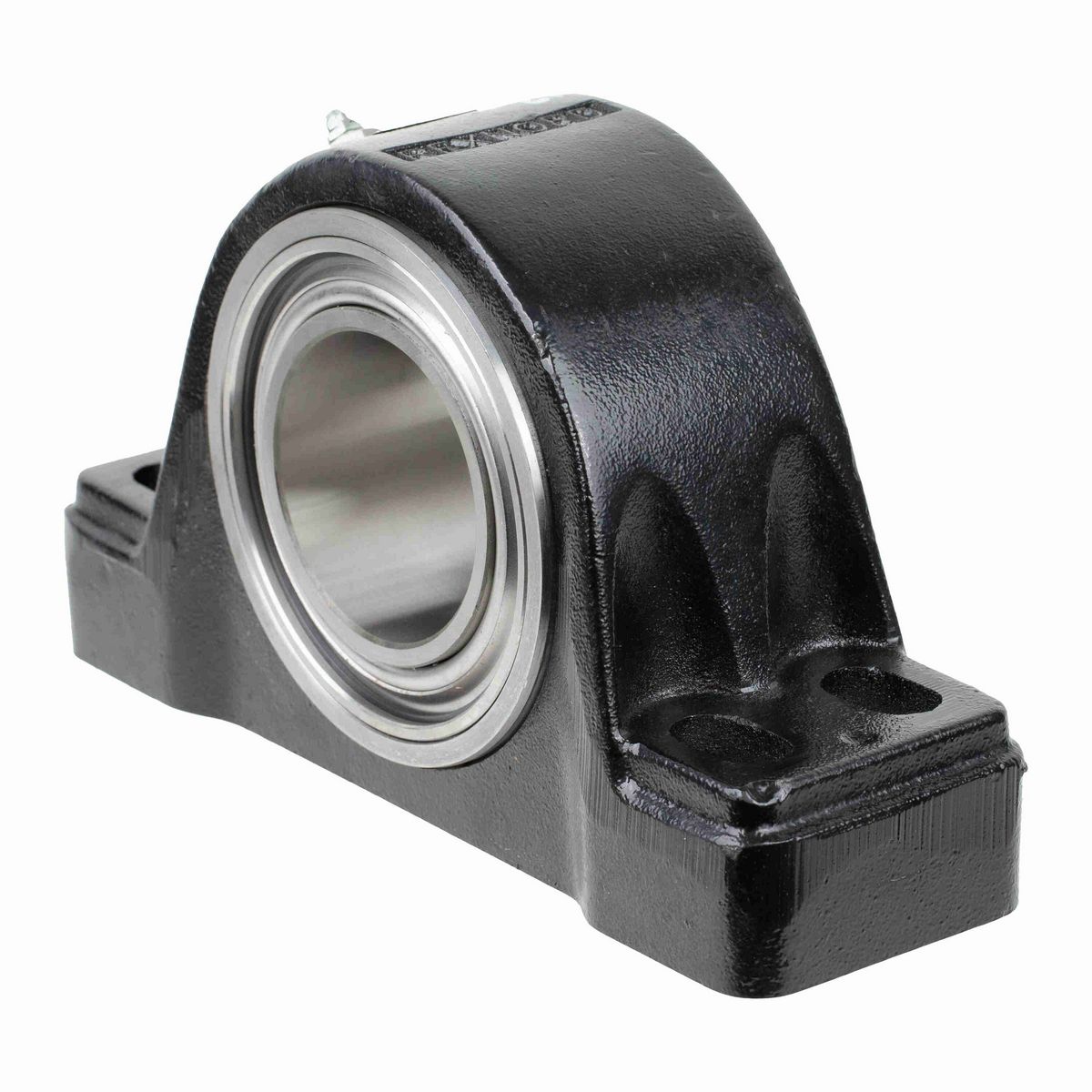

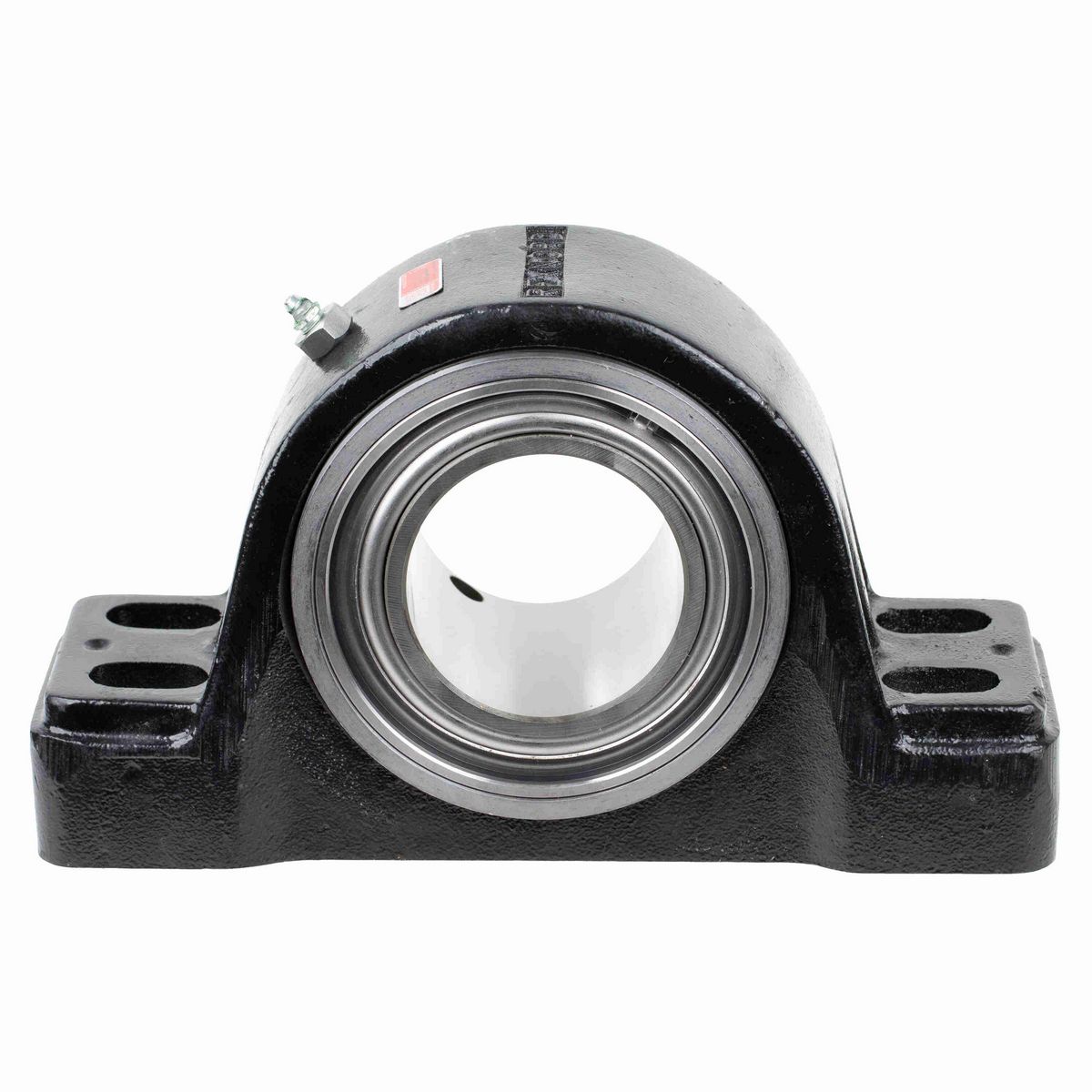

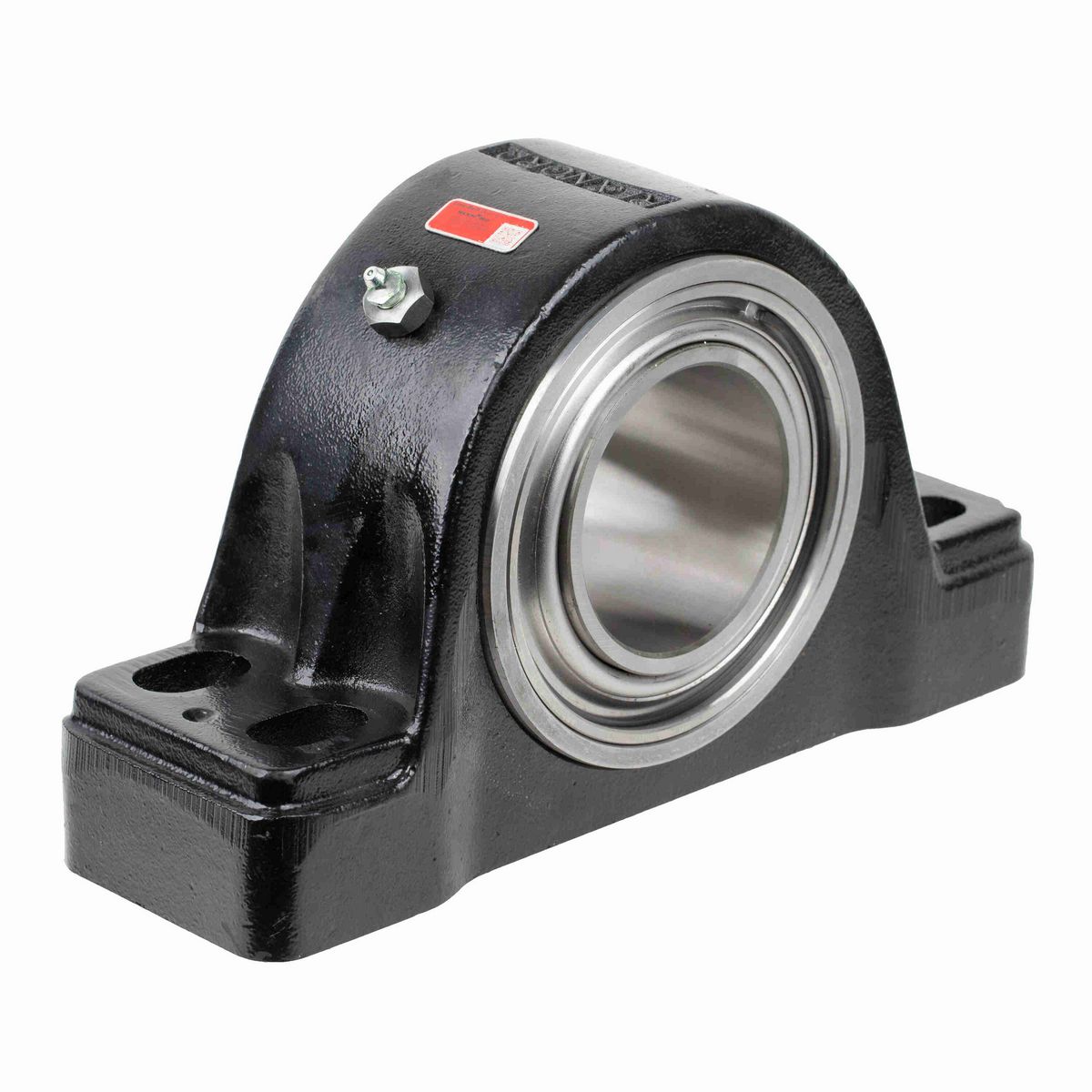

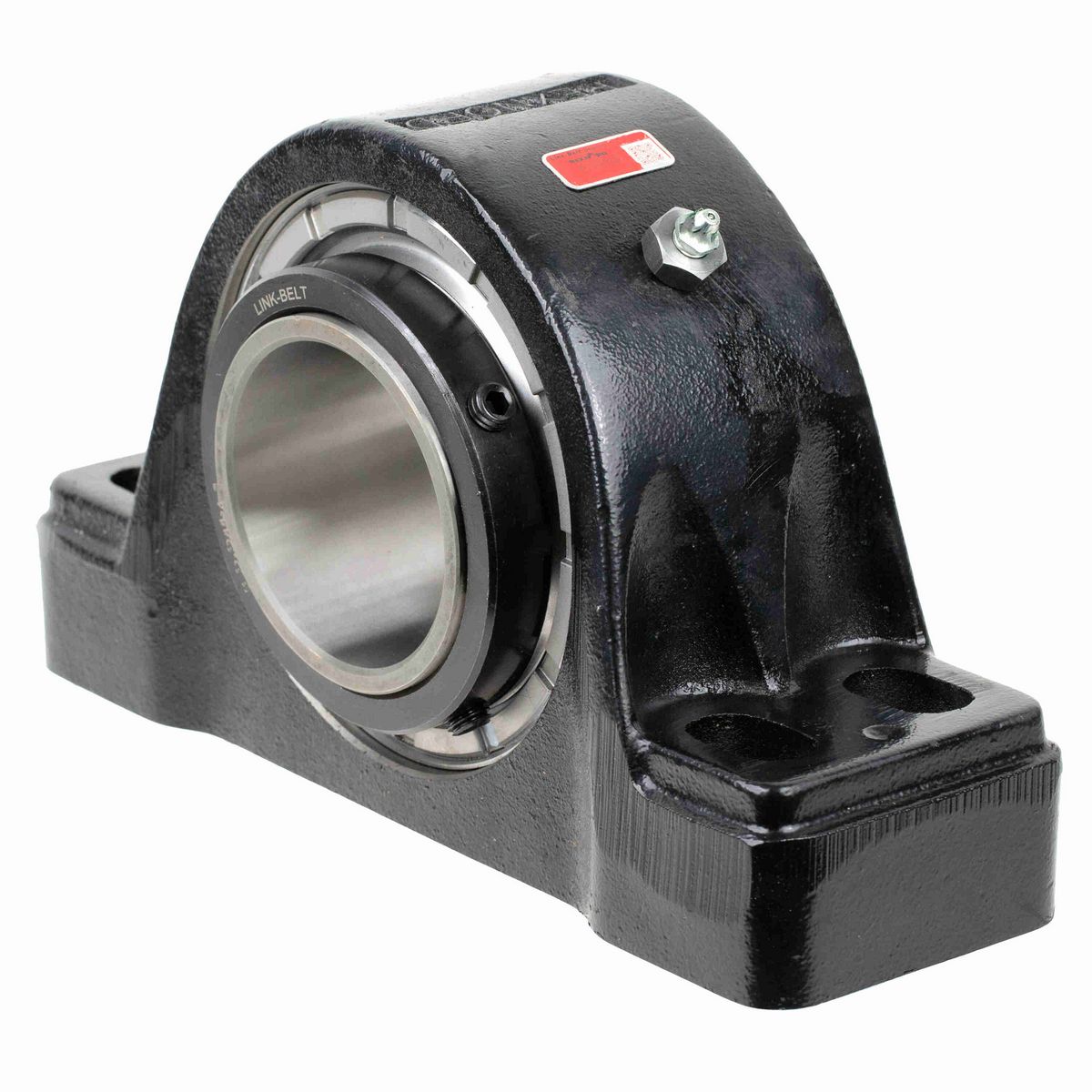

• 3 7/16" Mounted Spherical Roller Bearing, Expansion Cast Iron 4-Bolt Pillow Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Base to Center Height (in)	3.75 in
Overall Height (in)	7.5 in
Bolt Size (in)	3/4 in
Overall Width (in)	4.38 in
Overall Length (in)	13 in
Slot Length (in)	1.5 in
Foot Height (in)	2.25 in
Base Width (in)	4.13 in
Bore Diameter (in)	3.4375 in
Locking Collar Outside Diameter (in)	4.91 in
Housing Cast Face to Outermost Bearing Face (in)	0.94 in
Centerline to Outermost Bearing Face (in)	2.66 in
Length Through Bore (in)	4.38 in
Bolt Spacing (in)	10 in
Expansion Capability (in)	0.38 in
Base Length (in)	13 in
Inner Ring Outside Diameter (in)	3.975 in
Bolt Spacing Width (in)	2 in

Technical Specifications

Fixed/Expansion	Expansion
Housing Color	Black
Series	Solid-housed Pillow Blocks
Housing Type	Pillow Block, Four Bolt
Radial Dynamic Load Capacity (lb)	62,300 lb
Housing Construction	Solid
Seal Type	Clearance Seal
Static Load Rating (lb)	90,700 lb
Product	PEB22400F
Shaft Locking Type	Single Set Collar
Housing Material	Cast Iron
Misalignment Type	Dynamic
Radial Clearance	C0 STANDARD
Rolling Element	Spherical Roller
Housing Style	Pillow Block
Cage Material	Steel
Seal Kit	B456HS
Setscrew Torque (in-lbs)	680 in/lbs
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Ability to Relubricate	Yes
Maximum Speed (RPM)	1650 rpm
Insert	CSEB22455H
Vibration Frequency Outer Ring Defect	0.1383 cps
Lubricant	EXXON RONEX MP STD
Grease Fitting Thread Size	1/8 NPT
Housing Coating	POWDER COATED
Size Code	B456
Misalignment Capability	±2.0° Misalignment - Dynamic
Max Operating Temperature (C)	107 °C
Vibration Frequency Inner Ring Defect	0.1784 cps
Vibration Frequency Fundamental Train	0.0073 cps
Primary Seal	STEEL CLEARANCE SEAL
Expansion Lock Plug	B225728A
Vibration Frequency Roller Spin	0.0628 cps
Max Operating Temperature (F)	225 °F
Locking Device Kit	B456SC

General Specifications

UPC	662327111793
Weight	45.00 LB
Packaged Length	8.00 IN
Packaged Width	4.38 IN
Packaged Height	13.00 IN
HTC	8483208080
Country of Origin	Mexico
