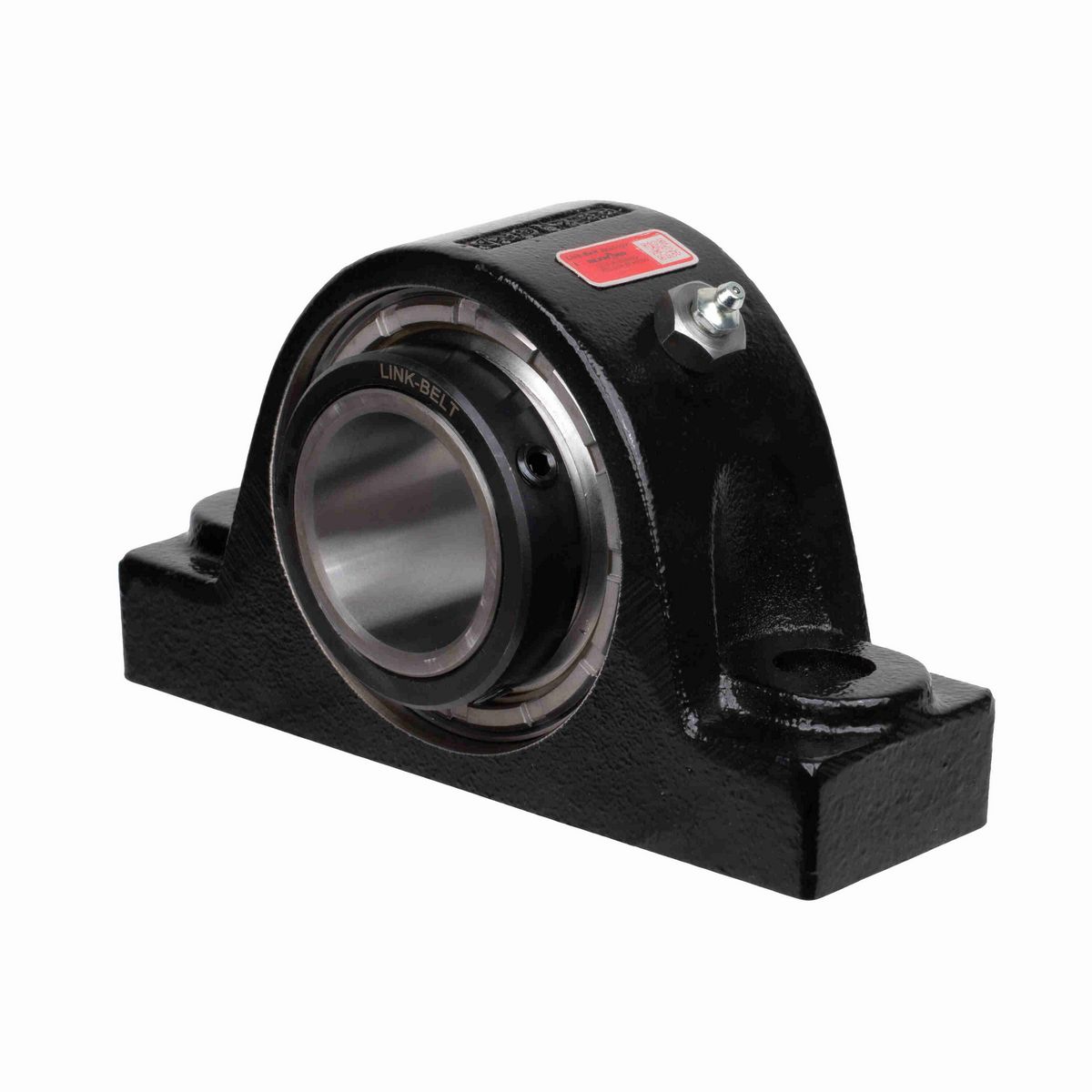

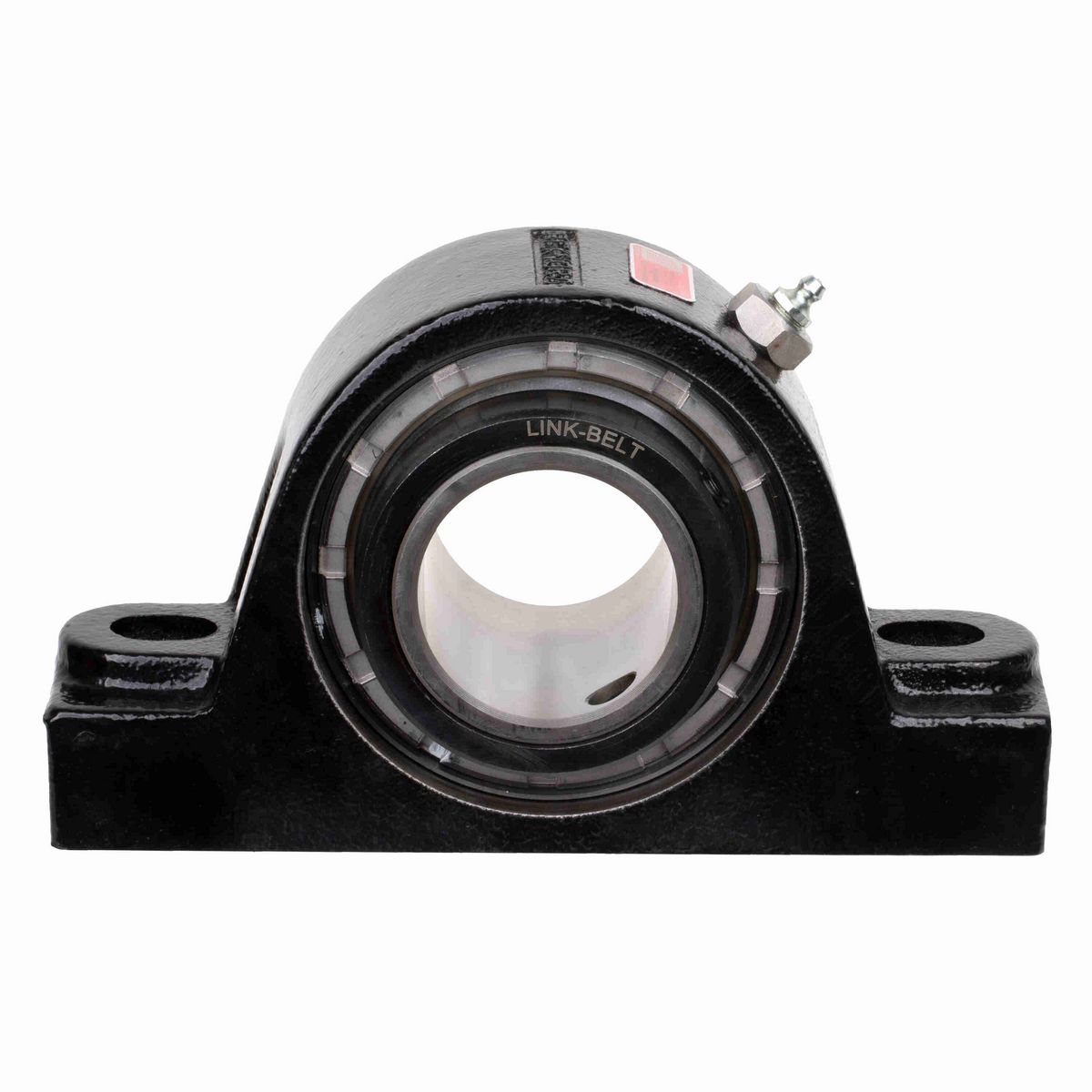

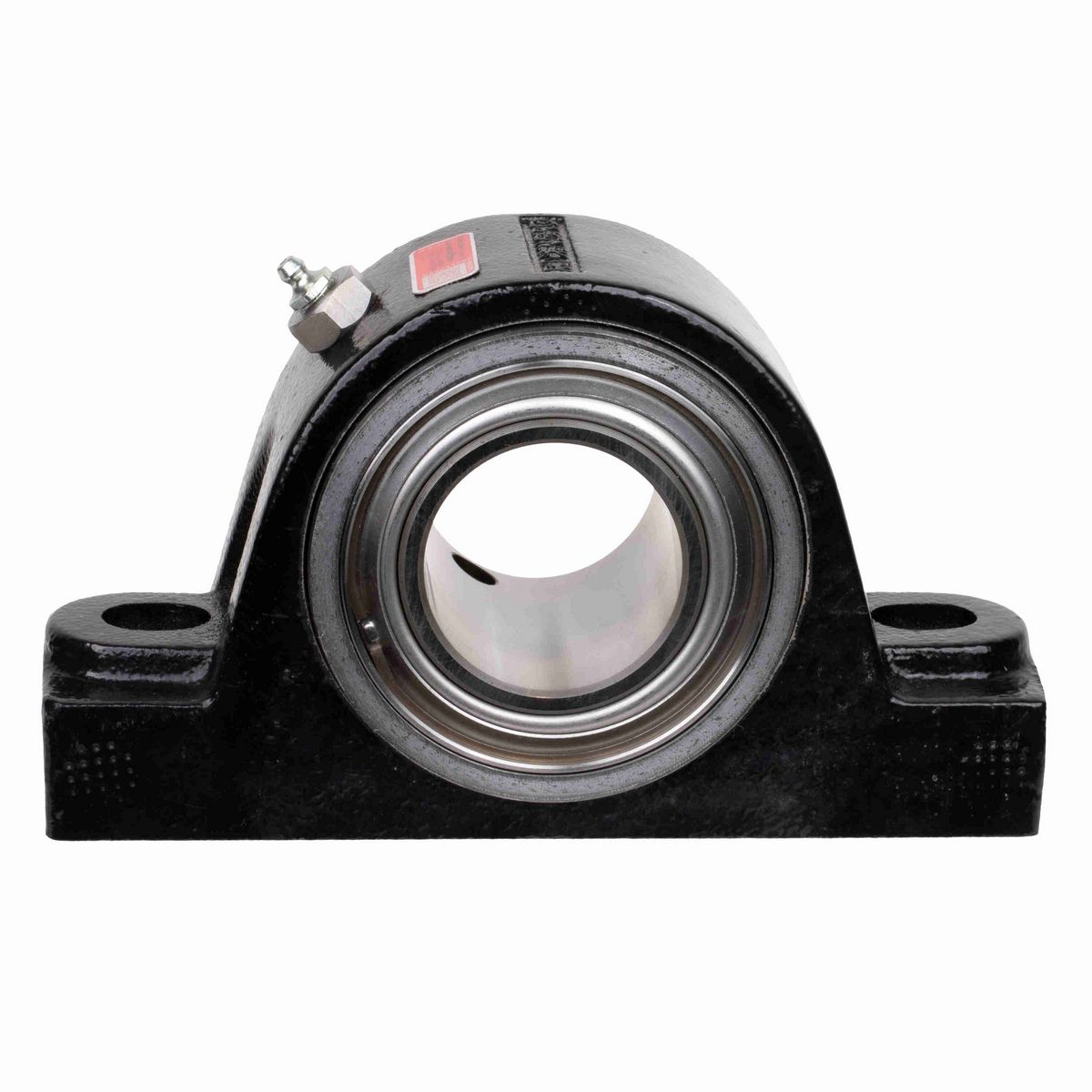

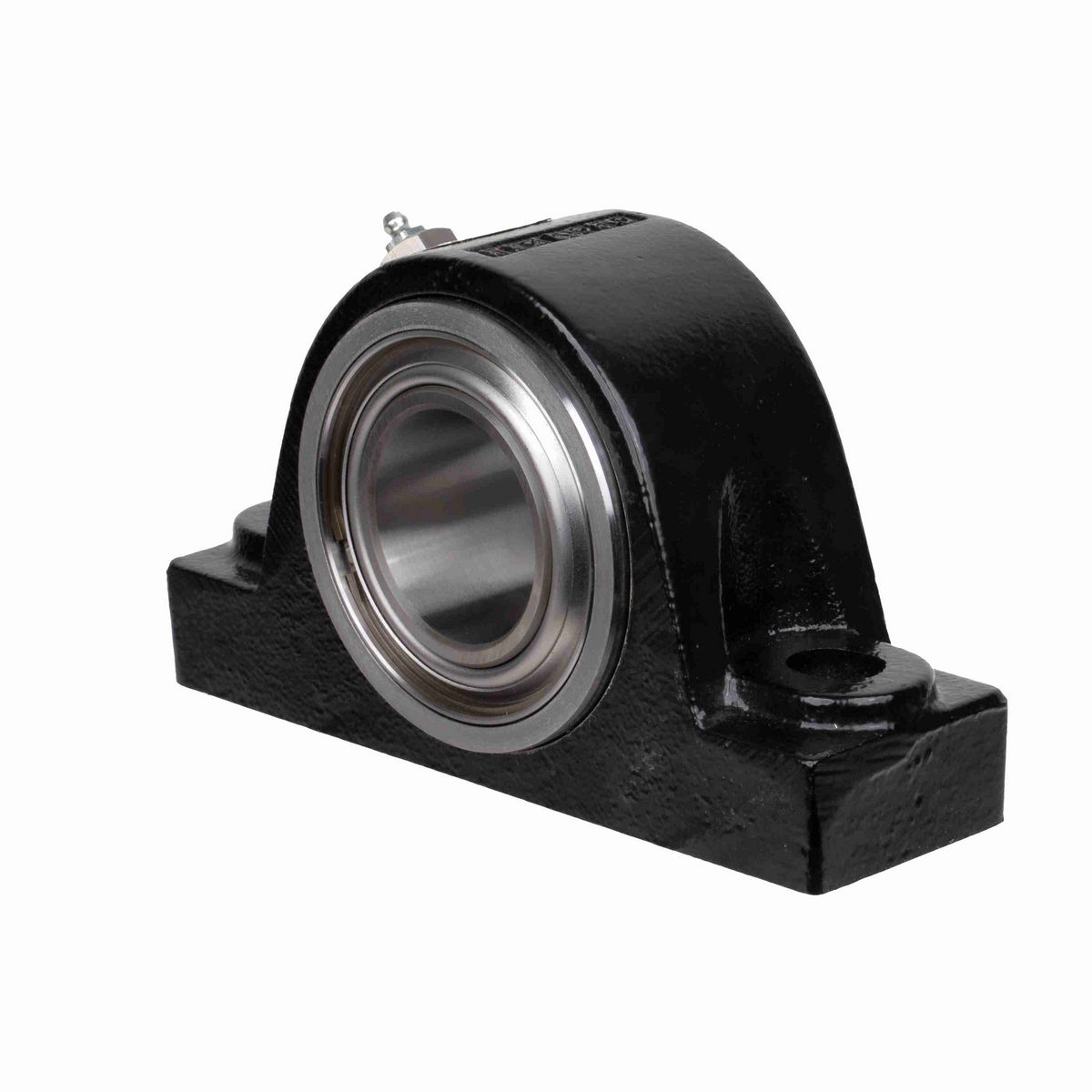

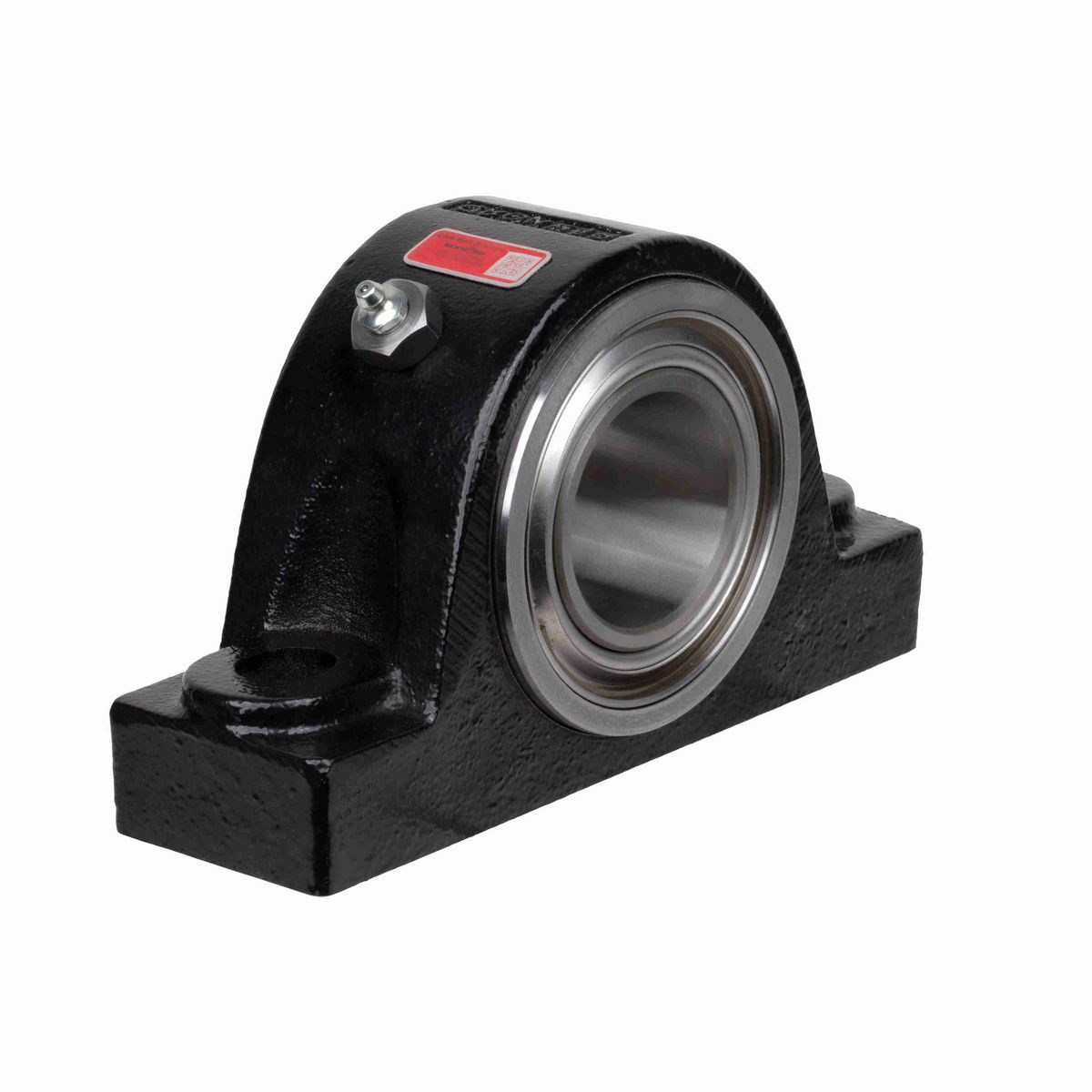

• 2 3/16" Mounted Spherical Roller Bearing, Expansion Cast Iron 2-Bolt Pillow Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Foot Height (in)	1.63 in
Base Width (in)	2.56 in
Overall Length (in)	8.63 in
Slot Length (in)	0.94 in
Overall Height (in)	5 in
Overall Width (in)	3.32 in
Base to Center Height (in)	2.5 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	2.1875 in
Locking Collar Outside Diameter (in)	3.25 in
Length Through Bore (in)	3.32 in
Inner Ring Outside Diameter (in)	2.62 in
Expansion Capability (in)	0.38 in
Bolt Spacing (in)	6.75 in
Housing Cast Face to Outermost Bearing Face (in)	0.78 in
Centerline to Outermost Bearing Face (in)	2.06 in
Base Length (in)	8.63 in

Technical Specifications

Misalignment Type	Dynamic
Housing Style	Pillow Block
Housing Type	Pillow Block, Two Bolt
Rolling Element	Spherical Roller
Product	PEB22400
Housing Material	Cast Iron
Housing Construction	Solid
Static Load Rating (lb)	44,400 lb
Shaft Locking Type	Single Set Collar
Fixed/Expansion	Expansion
Radial Clearance	C0 STANDARD
Cage Material	Steel
Housing Color	Black
Seal Type	Clearance Seal
Series	Solid-housed Pillow Blocks
Radial Dynamic Load Capacity (lb)	32,500 lb
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Seal Kit	B436HS
Setscrew Torque (in-lbs)	460 in/lbs
Ability to Relubricate	Yes
Maximum Speed (RPM)	2500 rpm
Primary Seal	STEEL CLEARANCE SEAL
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C
Housing Coating	POWDER COATED
Size Code	B436
Vibration Frequency Fundamental Train	0.0072 cps
Locking Device Kit	B436SC
Vibration Frequency Roller Spin	0.0606 cps
Misalignment Capability	±2.0° Misalignment - Dynamic
Insert	CSEB22435H
Expansion Lock Plug	B224408A
Vibration Frequency Outer Ring Defect	0.1377 cps
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Vibration Frequency Inner Ring Defect	0.179 cps

General Specifications

UPC	662327111465
Weight	14.85 LB
Packaged Length	9.56 IN
Packaged Width	4.00 IN
Packaged Height	5.50 IN
HTC	8483208080
Country of Origin	United States of America
