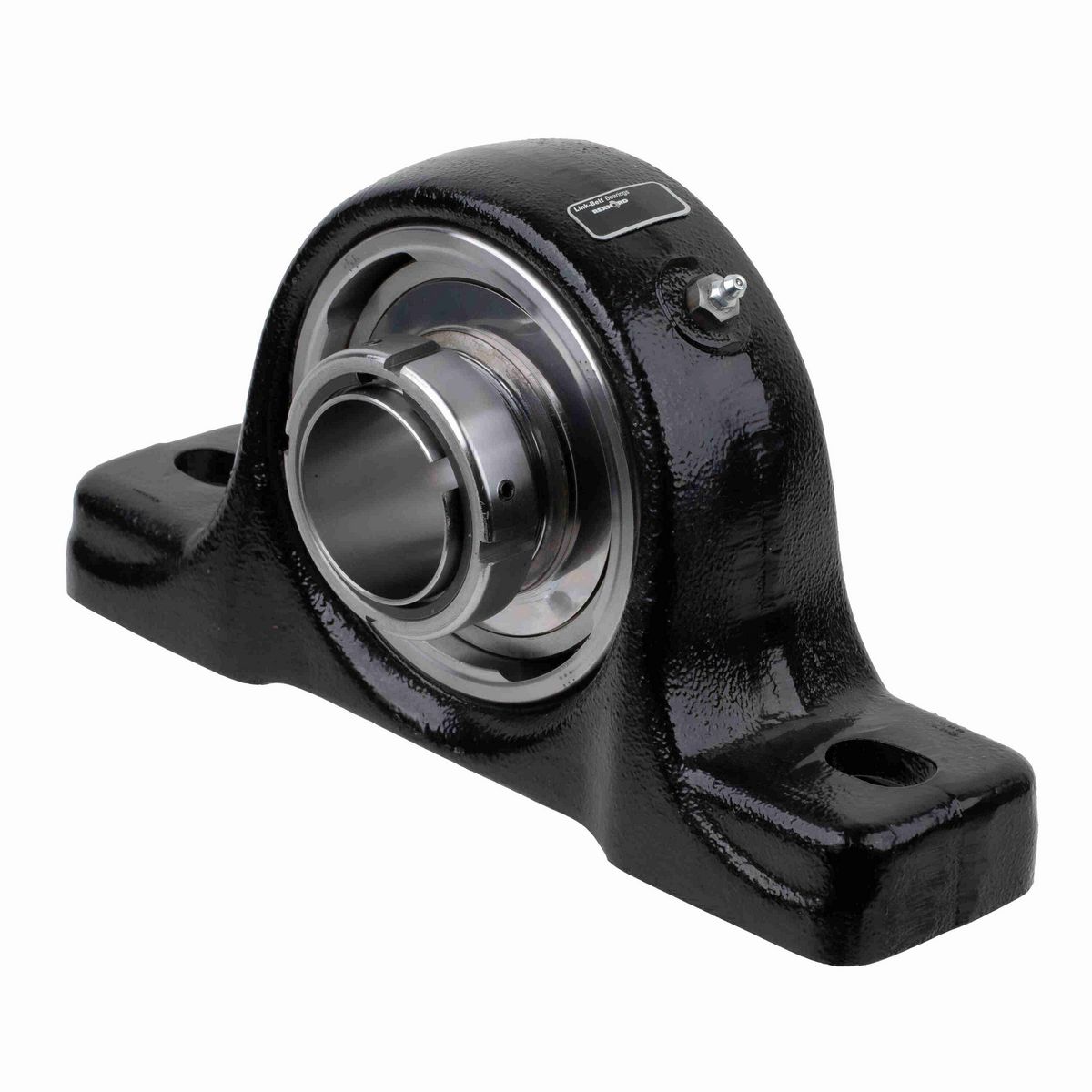

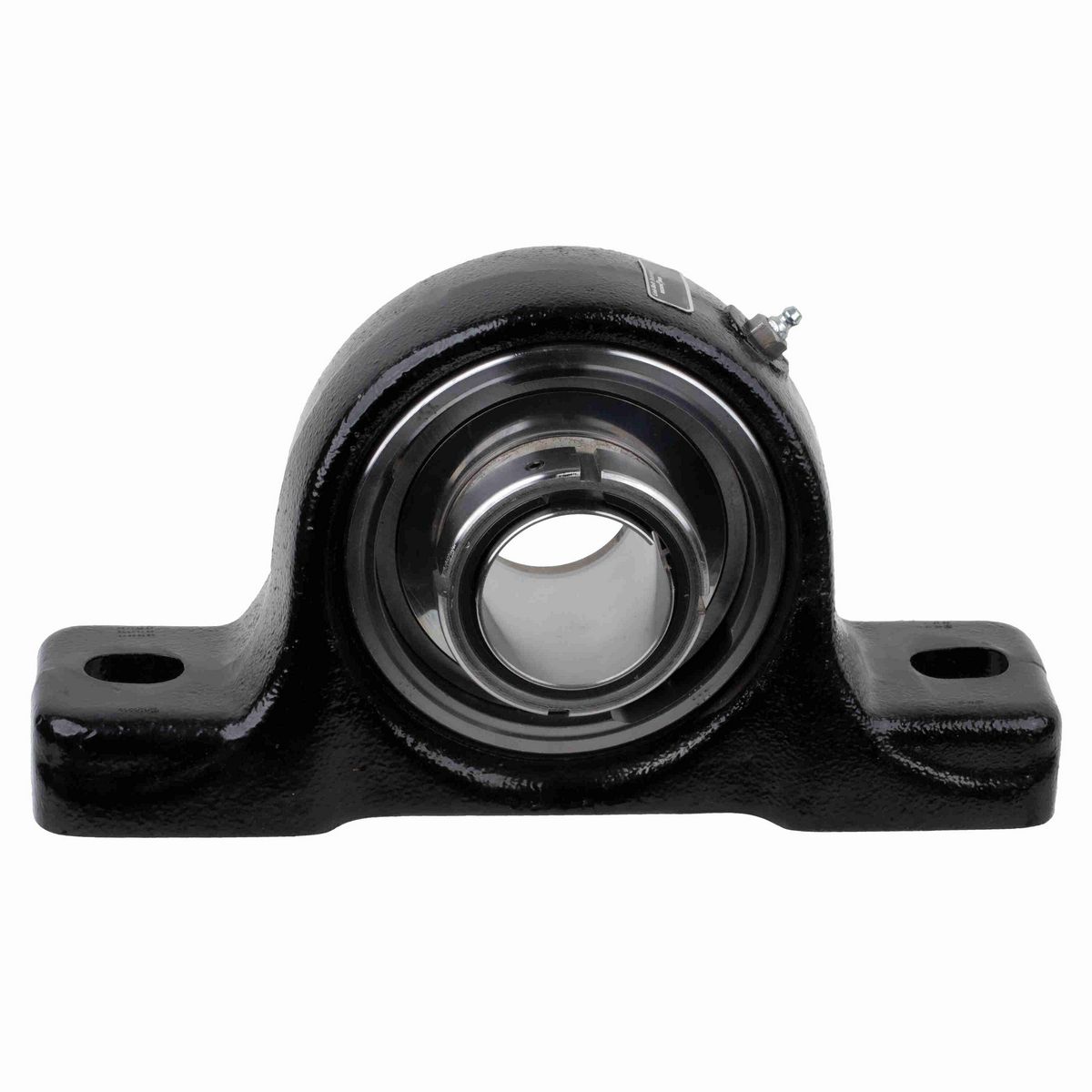

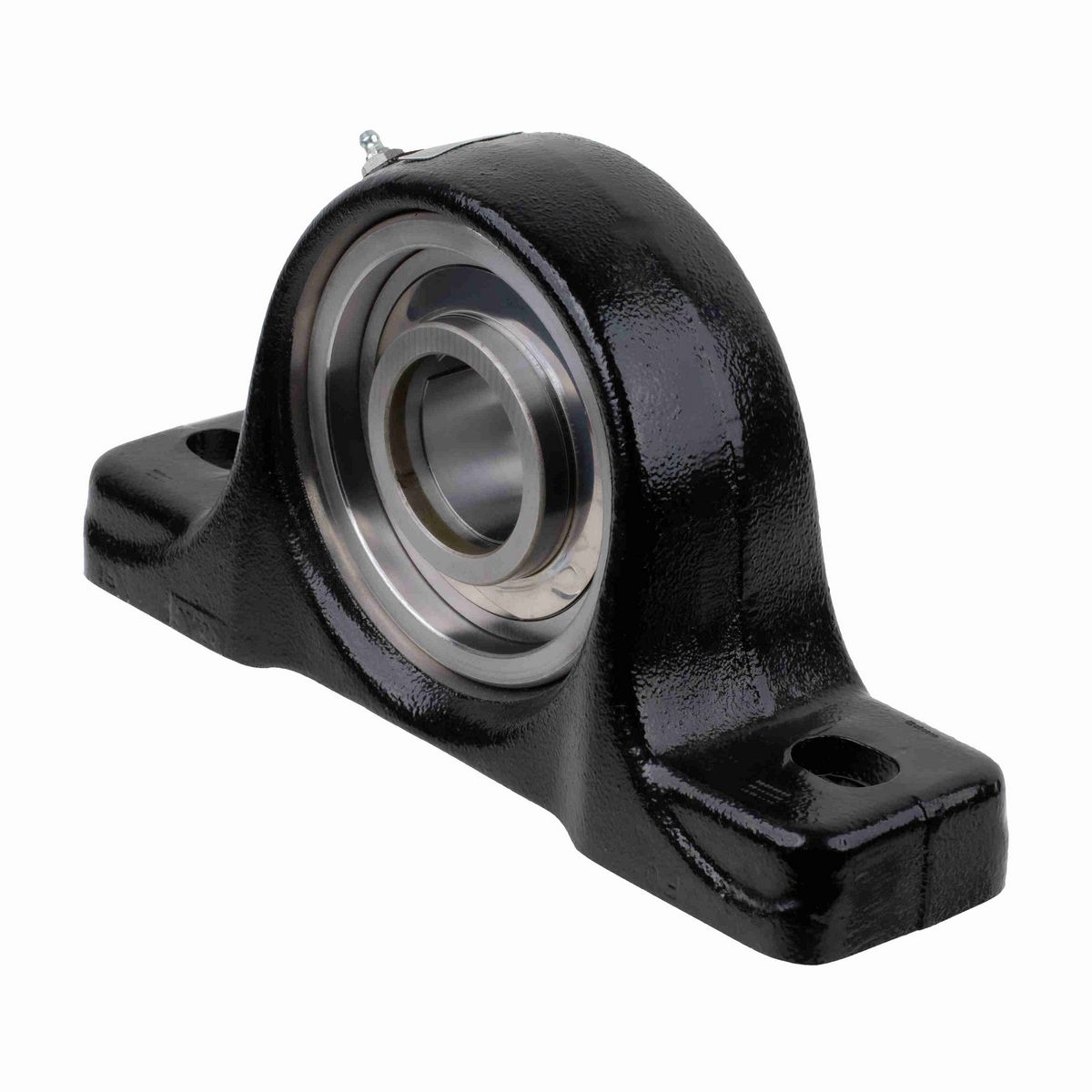

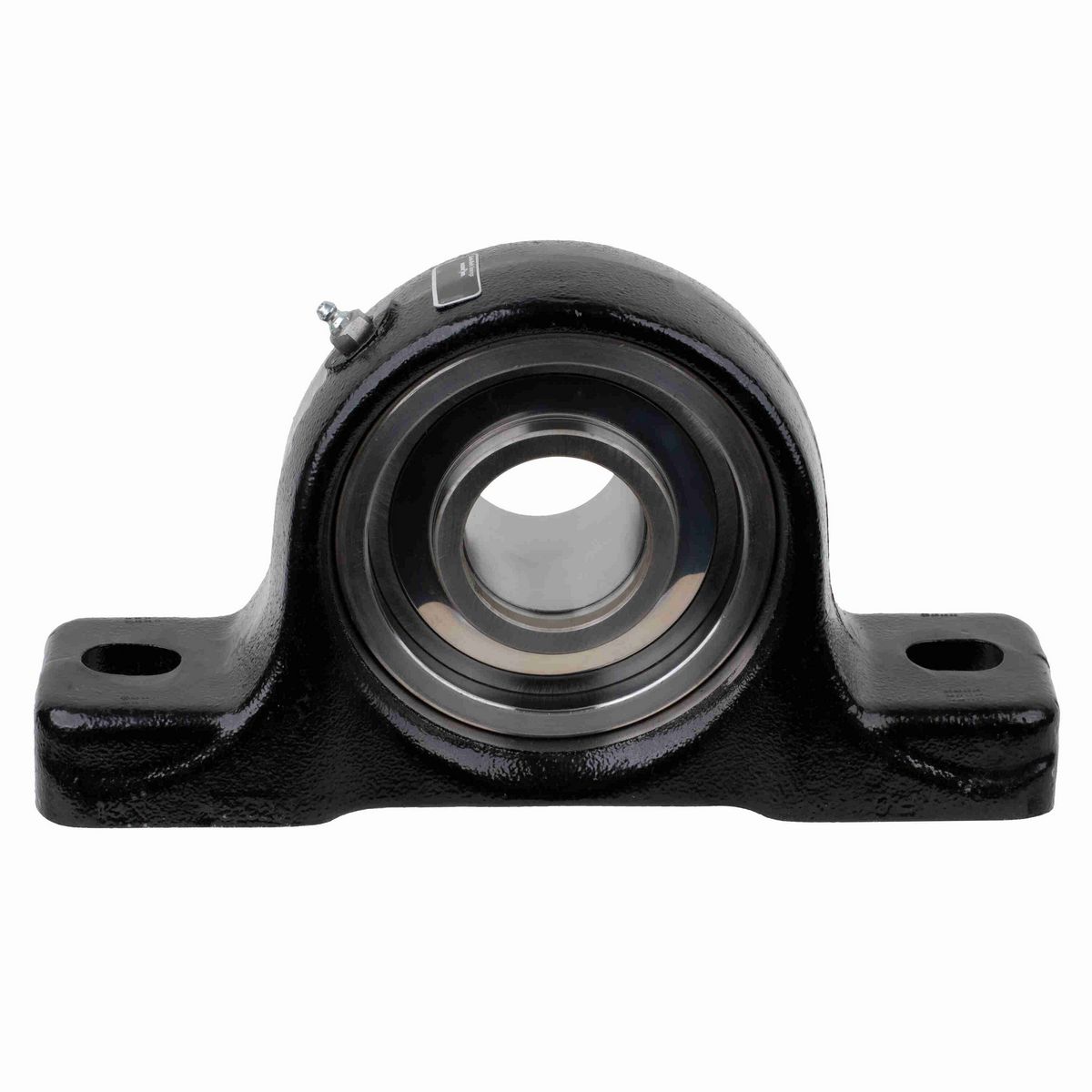

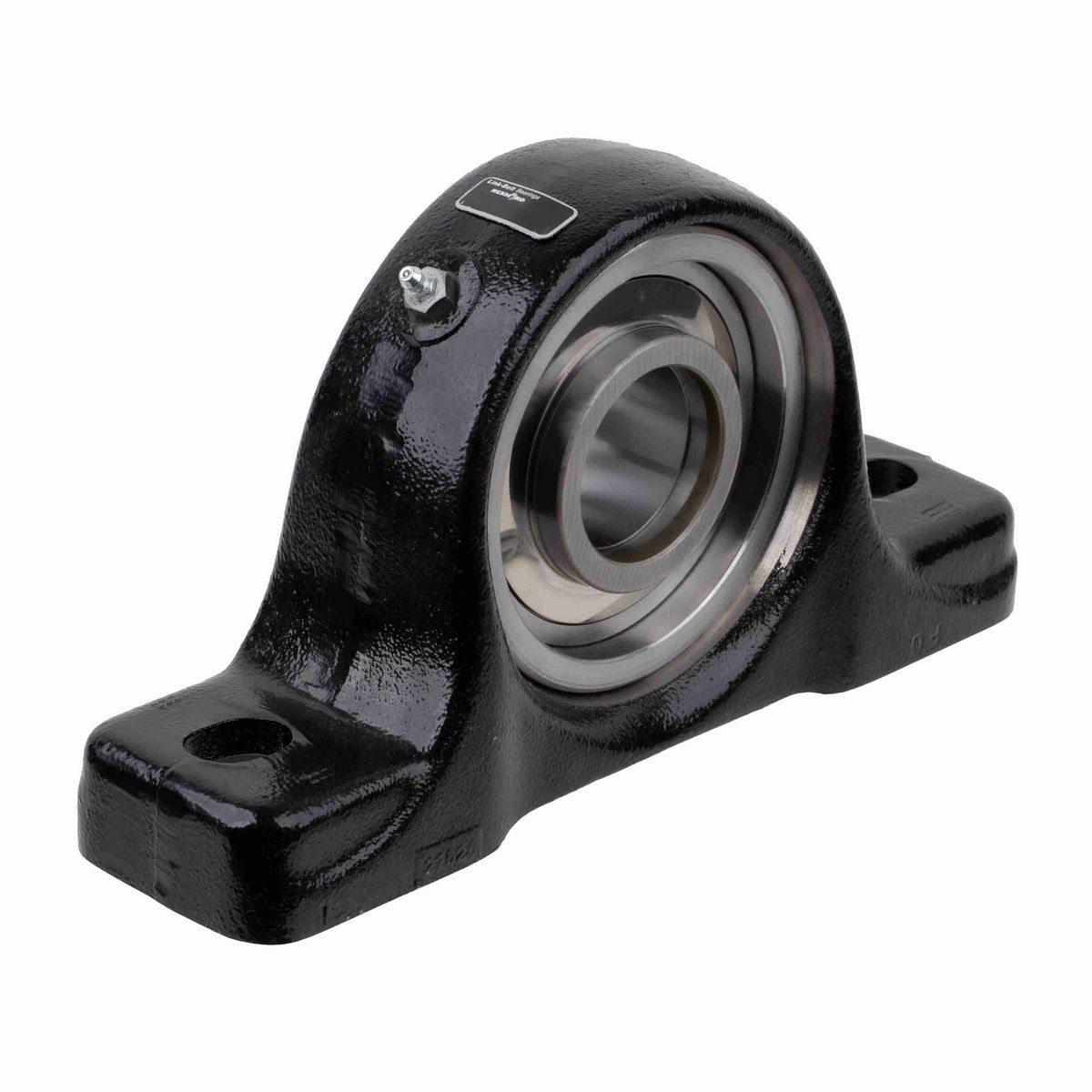

• 1 15/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt Expansion Pillow Block, Shurlok Adapter Mounted, Clearance Seal

Dimensions

Foot Height (in)	1.38 in
Base to Center Height (in)	3.125 in
Base Width (in)	3.13 in
Overall Width (in)	3.22 in
Length Through Bore (in)	3.22 in
Overall Height (in)	6.22 in
Bore Diameter (in)	1.9375 in
Overall Length (in)	11.13 in
Bolt Size (in)	5/8 in
Bolt Spacing (in)	8.88 in
Centerline to Outermost Bearing Face (in)	2.13 in

Technical Specifications

Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Type	Pillow Block, Two Bolt
Slot Length (in)	1.13 in
Housing Construction	One Piece
Housing Base	Semi-Solid
Shaft Locking Collar Kit/Adapter Assembly	AK66115
Cage Material	Molded fiber glass reinforced nylon
Seal Type	Labryinth Seal
Housing Style	Pillow Block
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	87-92 in/lbs
Wrench Style Shurlok Install Tool	105-90420-11
Locking Collar Outside Diameter (in)	2.86 in
Expansion Capability (in)	0.25 in
Max Operating Temperature (C)	107 °C
Shaft Locking Type	Tapered Adapter
Vibration Frequency Outer Ring Defect	0.0508 cps
Expansion Lock Plug	3398B
Size Code	331
Impact Style Shurlok Install Tool	105-90425-11
Locking Device Kit	AK66115
Cage Type	Ball Riding Retainer
Insert	AG331L
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0825 cps
Vibration Frequency Fundamental Train	0.0063 cps
Grease Fitting Thread Size	1/4-28
Radial Clearance	C3 STANDARD
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Fixed vs. Expansion	Expansion
Vibration Frequency Roller Spin	0.0330 cps
End Cap Available	No
Bearing Type	Heavy Duty
Inner Ring Outside Diameter (in)	2.701 in
Static Load Rating (lb)	8,500 lb
Base Length (in)	11.13 in
Dynamic Load Rating (lb)	13,900 lb
Max Operating Temperature (F)	225 °F
Lubricant	EXXON RONEX MP STD
Housing Material	Cast Iron
Housing Coating	Powder Coated
Maximum Speed (RPM)	5600 rpm

General Specifications

UPC	662864296953
Weight	19.62 LB
Packaged Length	12.00 IN
Packaged Width	3.56 IN
Packaged Height	6.75 IN
HTC	8483208040
Country of Origin	Mexico
