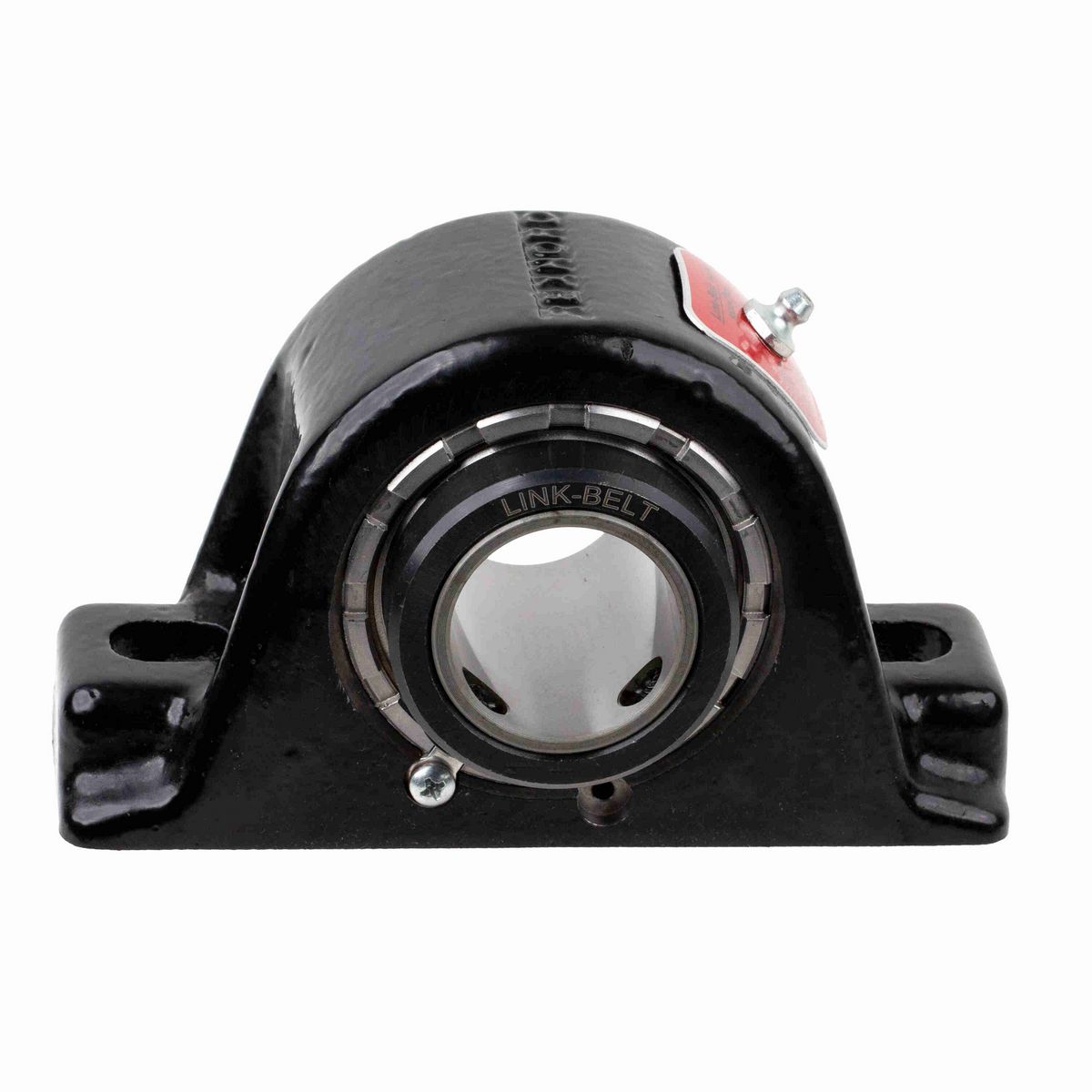

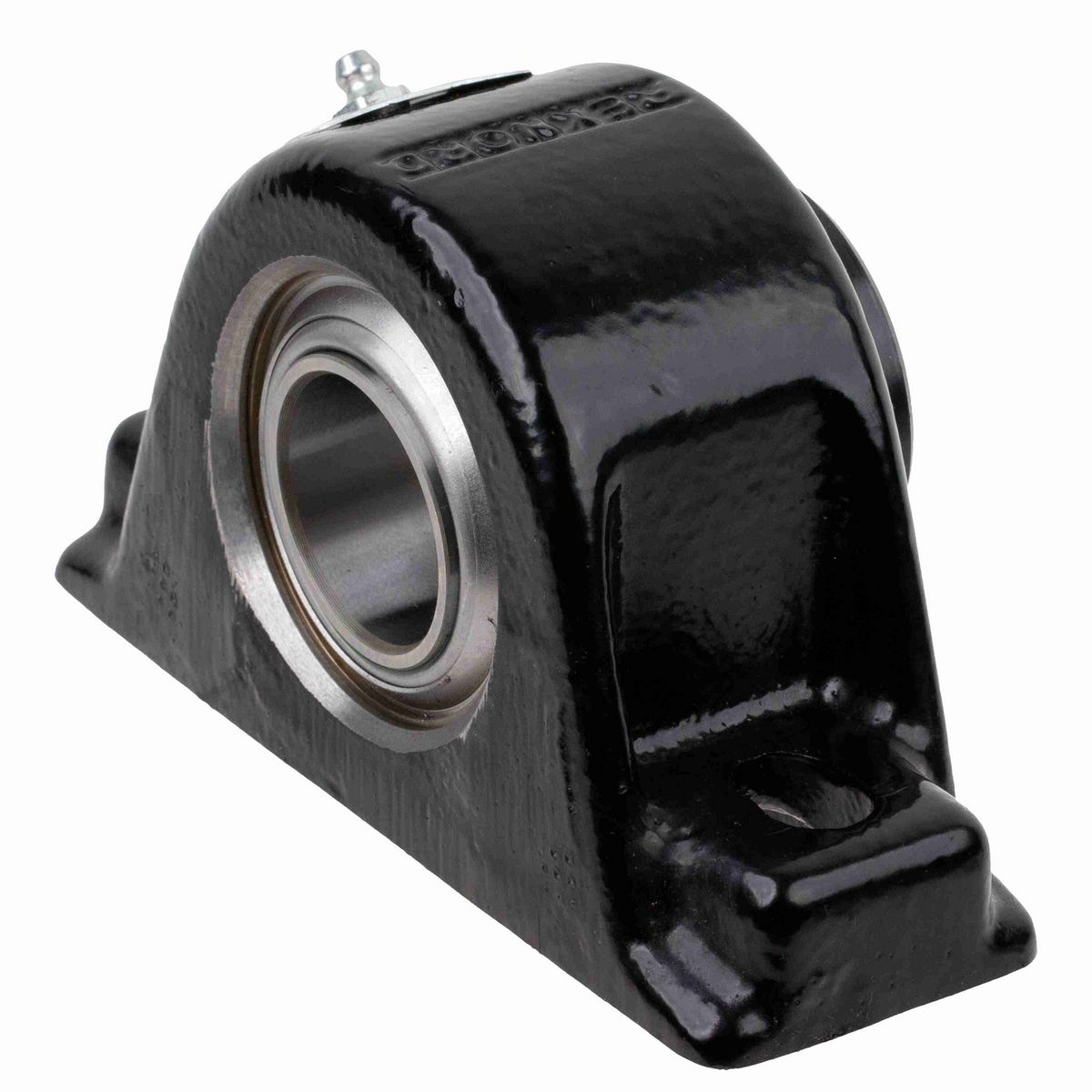

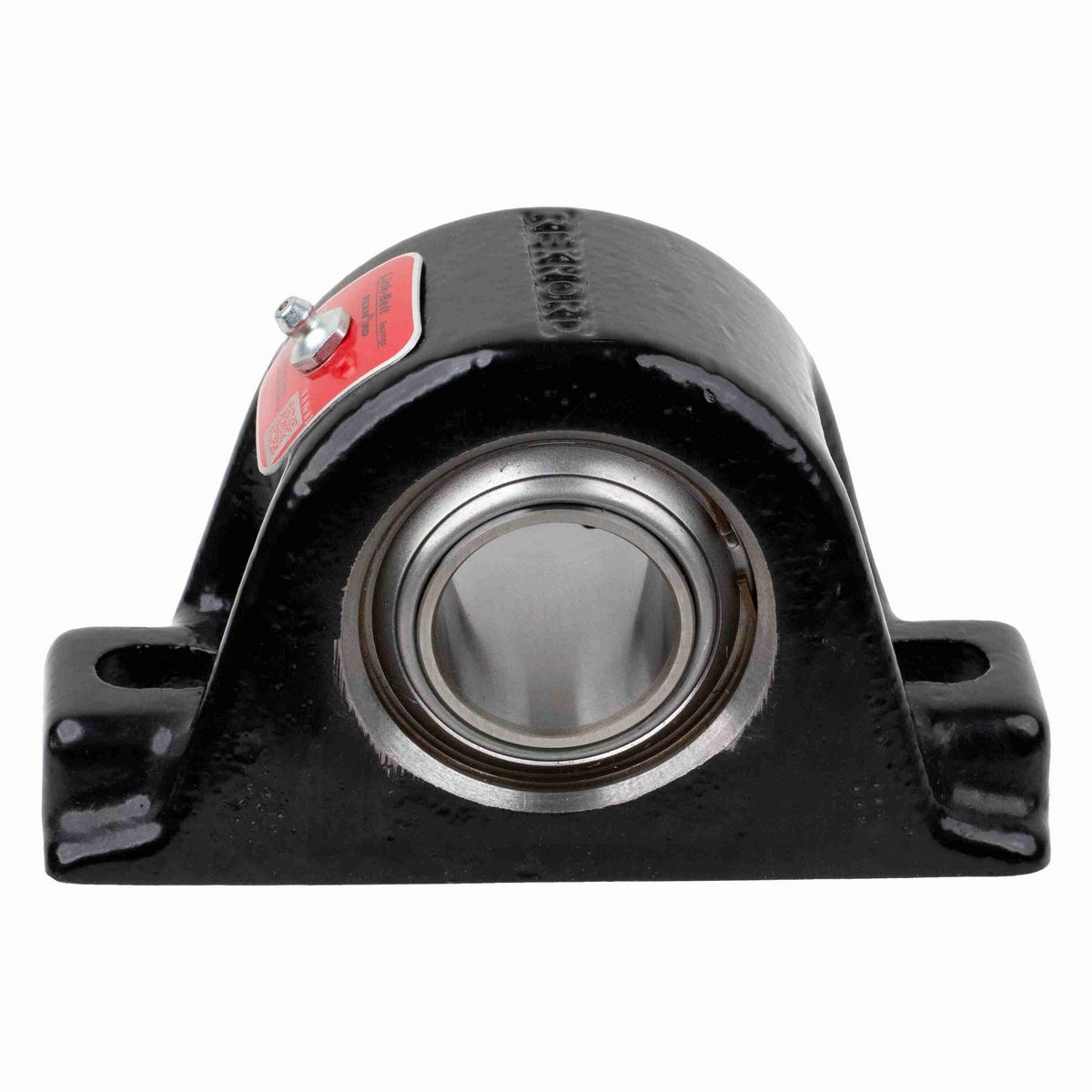

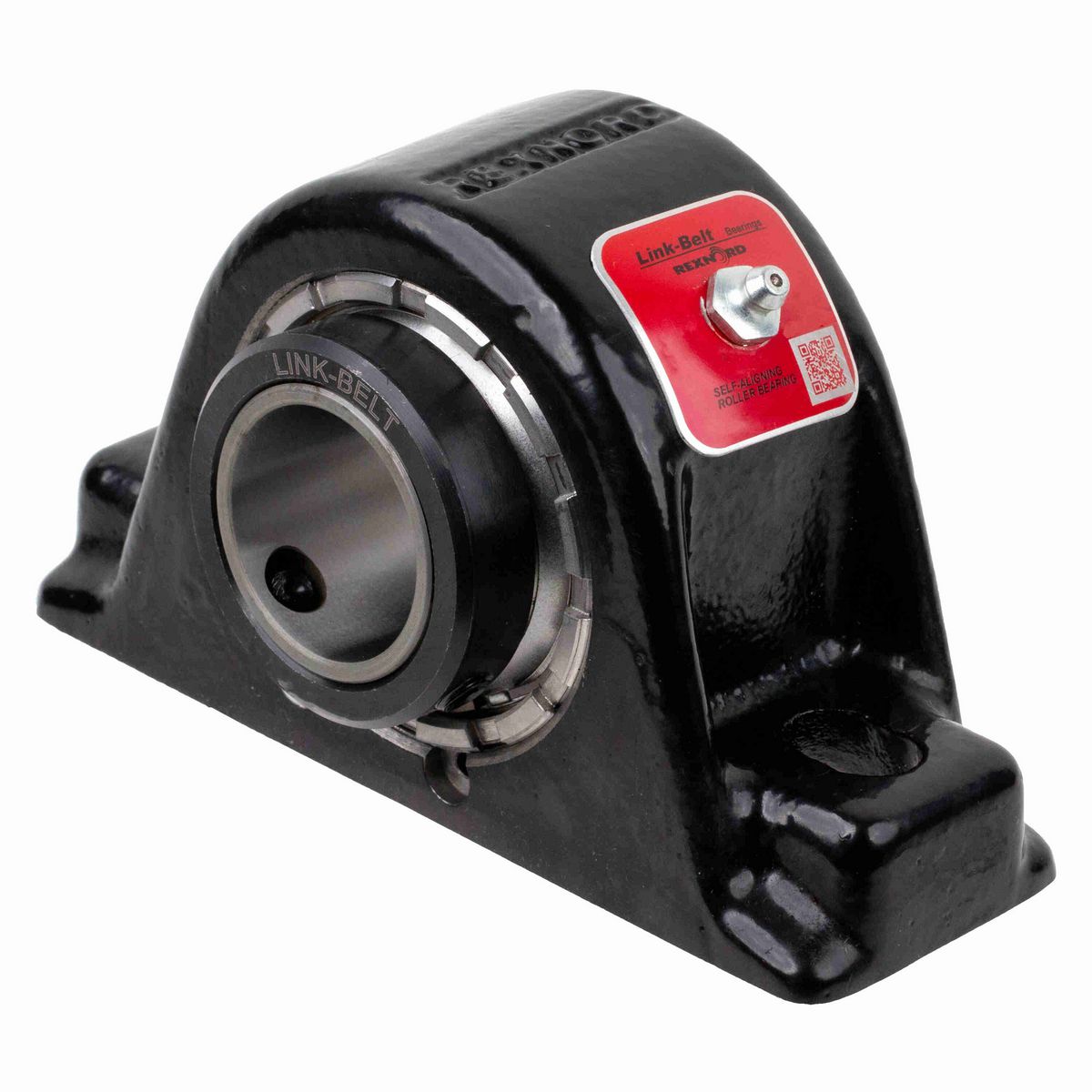

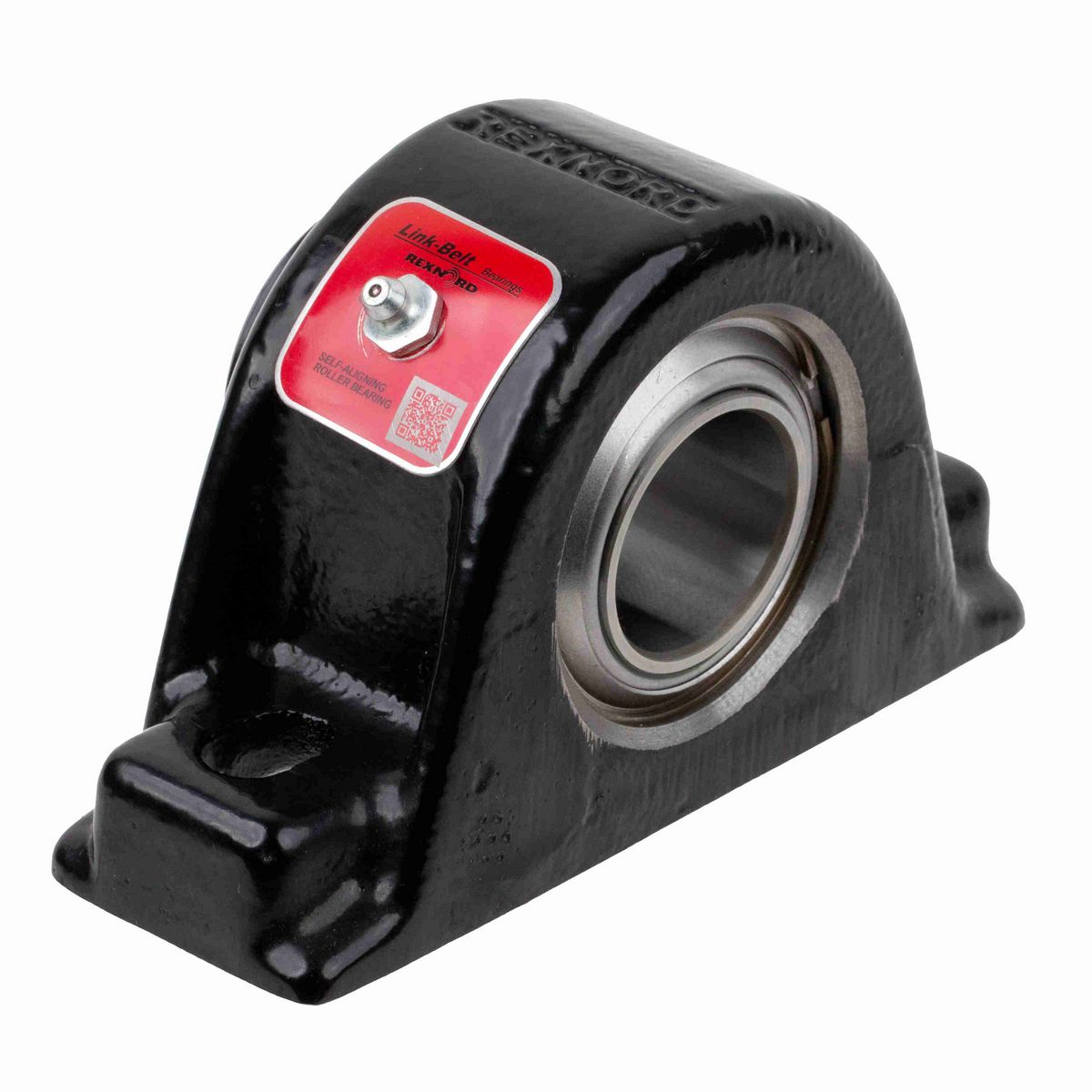

• 1 1/2" Mounted Spherical Roller Bearing, Cast Iron 2-Bolt Pillow Block, Single Setscrew Locking Collar, Clearance Seal

Dimensions

Overall Width (in)	2.88 in
Base to Center Height (in)	1.875 in
Base Width (in)	2.25 in
Bore Diameter (in)	1.5000 in
Slot Length (in)	0.81 in
Overall Length (in)	6.56 in
Foot Height (in)	1.19 in
Bolt Size (in)	1/2 in
Overall Height (in)	3.69 in
Locking Collar Outside Diameter (in)	2.31 in
Base Length (in)	6.56 in
Bolt Spacing (in)	5 in
Length Through Bore (in)	2.88 in
Centerline to Outermost Bearing Face (in)	1.78 in
Inner Ring Outside Diameter (in)	1.745 in
Housing Cast Face to Outermost Bearing Face (in)	0.66 in

Technical Specifications

Housing Style	Pillow Block
Radial Clearance	C0 STANDARD
Fixed/Expansion	Fixed
Housing Material	Cast Iron
Radial Dynamic Load Capacity (lb)	17,800 lb
Static Load Rating (lb)	20,900 lb
Housing Construction	Solid
Series	Solid-housed Pillow Blocks
End Cap	B424DTC
Product	PB22400
Shaft Locking Type	Single Set Collar
Housing Color	Black
Seal Type	Clearance Seal
Rolling Element	Spherical Roller
Housing Type	Pillow Block, Two Bolt
Misalignment Type	Dynamic
Cage Material	Steel
Setscrew Torque (in-lbs)	325 in/lbs
Ability to Relubricate	Yes
Seal Kit	B424HS
Available Seal Type	E Lip Seal; H Labyrinth Seal; E7 Triple Lip Seal
Microlock Kit	B436MLK
Maximum Speed (RPM)	3600 rpm
Housing Coating	POWDER COATED
Vibration Frequency Inner Ring Defect	0.1445 cps
Vibration Frequency Roller Spin	0.0499 cps
Max Operating Temperature (C)	107 °C
Primary Seal	STEEL CLEARANCE SEAL
Vibration Frequency Outer Ring Defect	0.1055 cps
Lubricant	EXXON RONEX MP STD
Max Operating Temperature (F)	225 °F
Grease Fitting Thread Size	1/8 NPT
Size Code	B424
Misalignment Capability	±2.0° Misalignment - Dynamic
Locking Device Kit	B424SC
Vibration Frequency Fundamental Train	0.007 cps
Insert	B424L

General Specifications

UPC	662327109585
Weight	7.01 LB
Packaged Length	5.75 IN
Packaged Width	5.75 IN
Packaged Height	2.25 IN
HTC	8483208080
Country of Origin	United States of America
