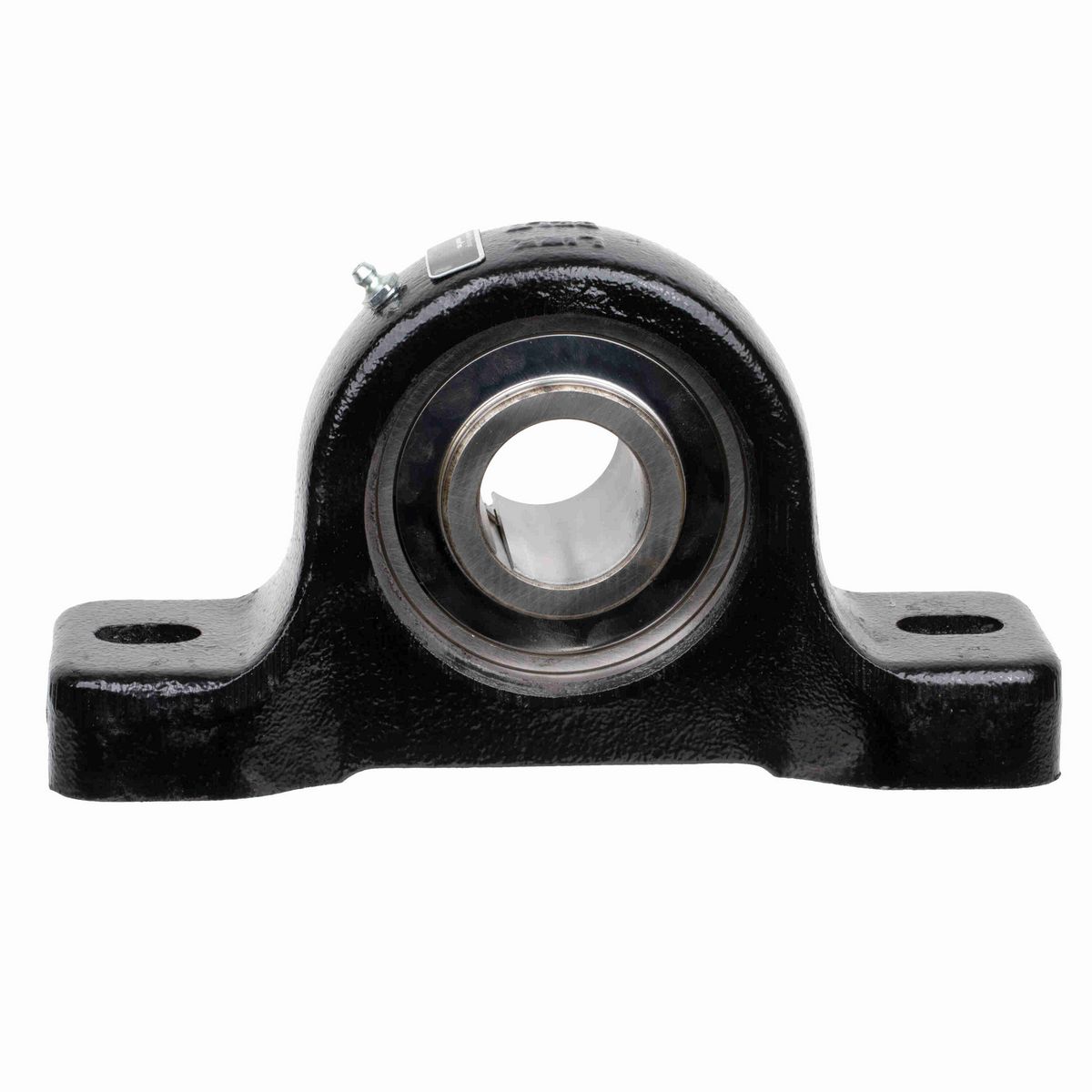

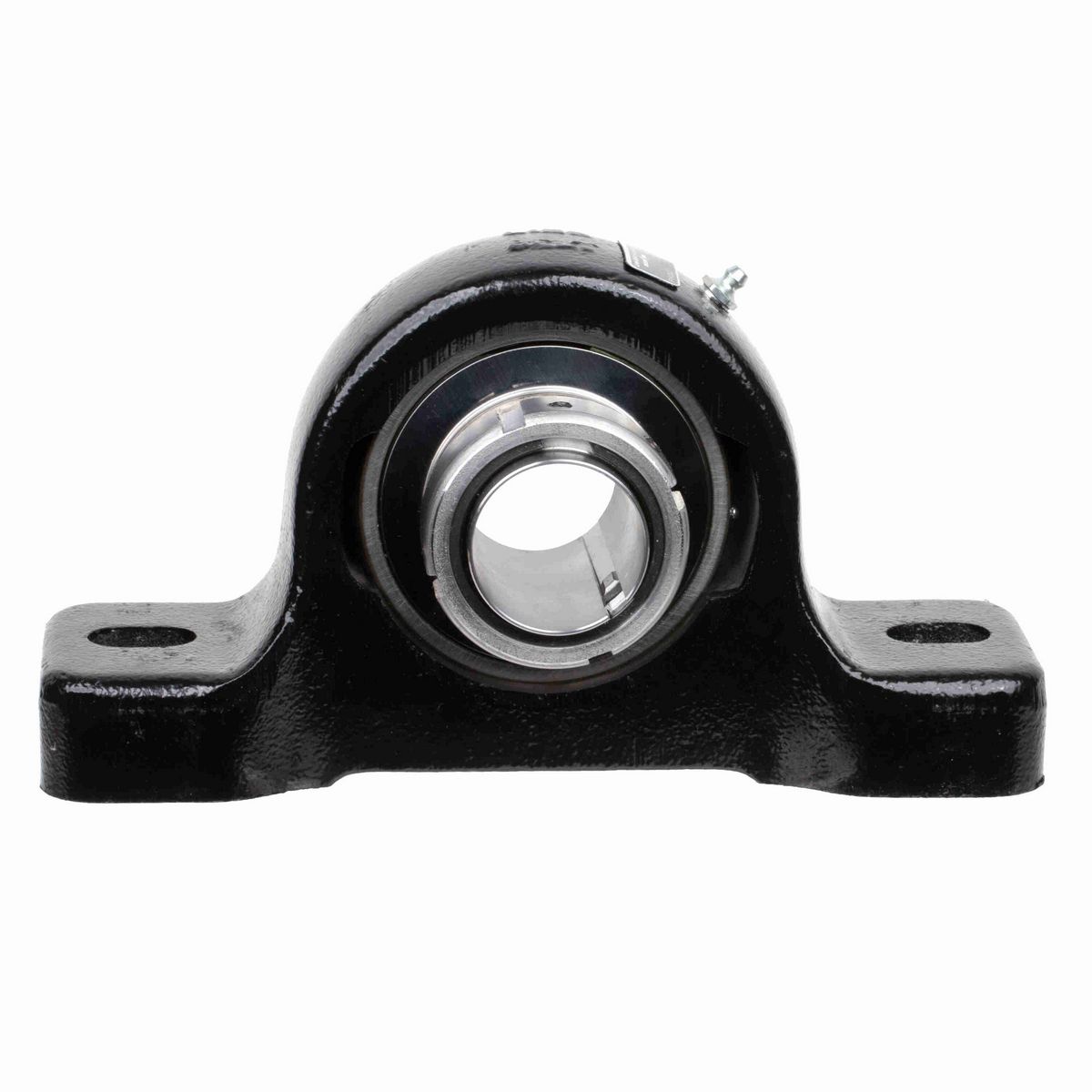

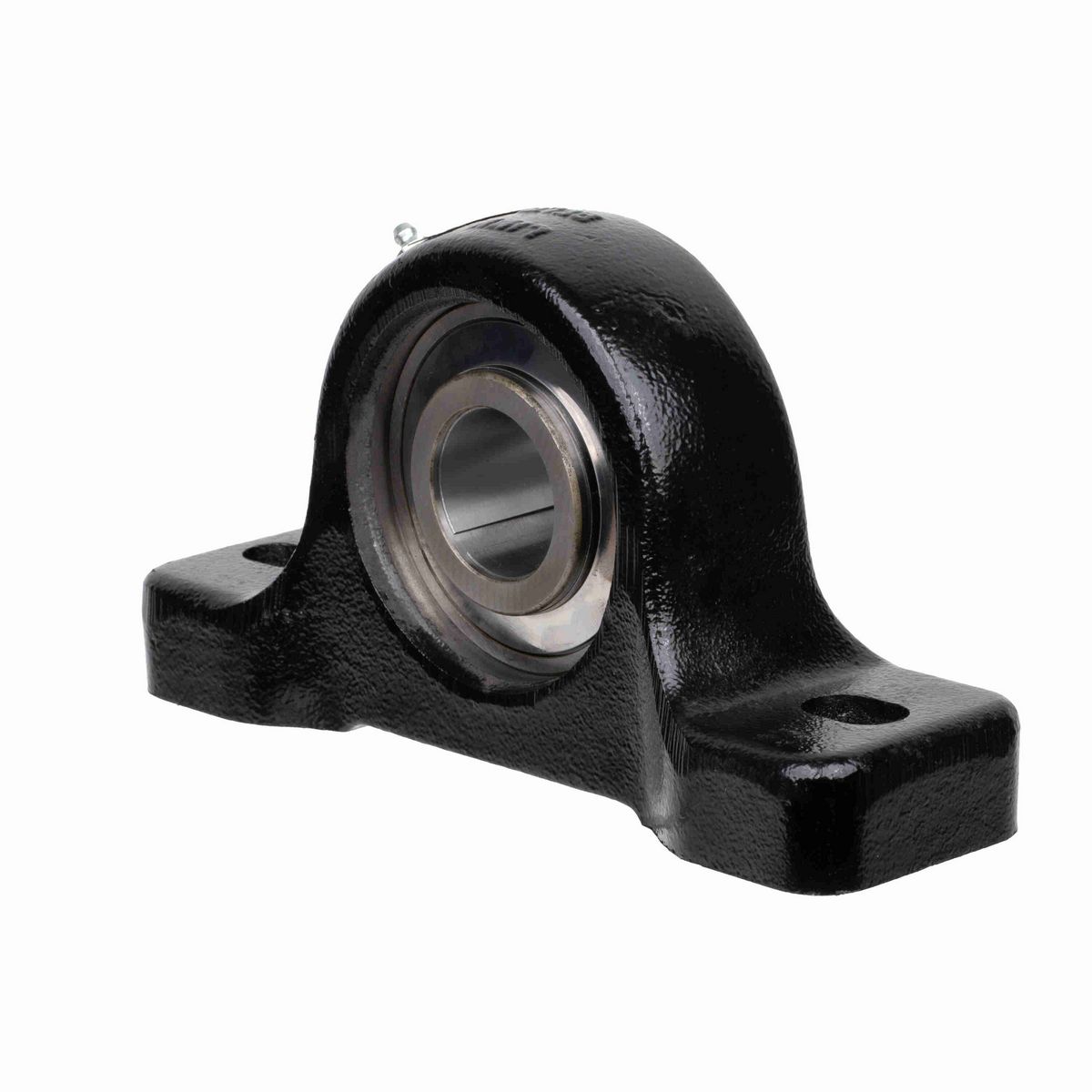

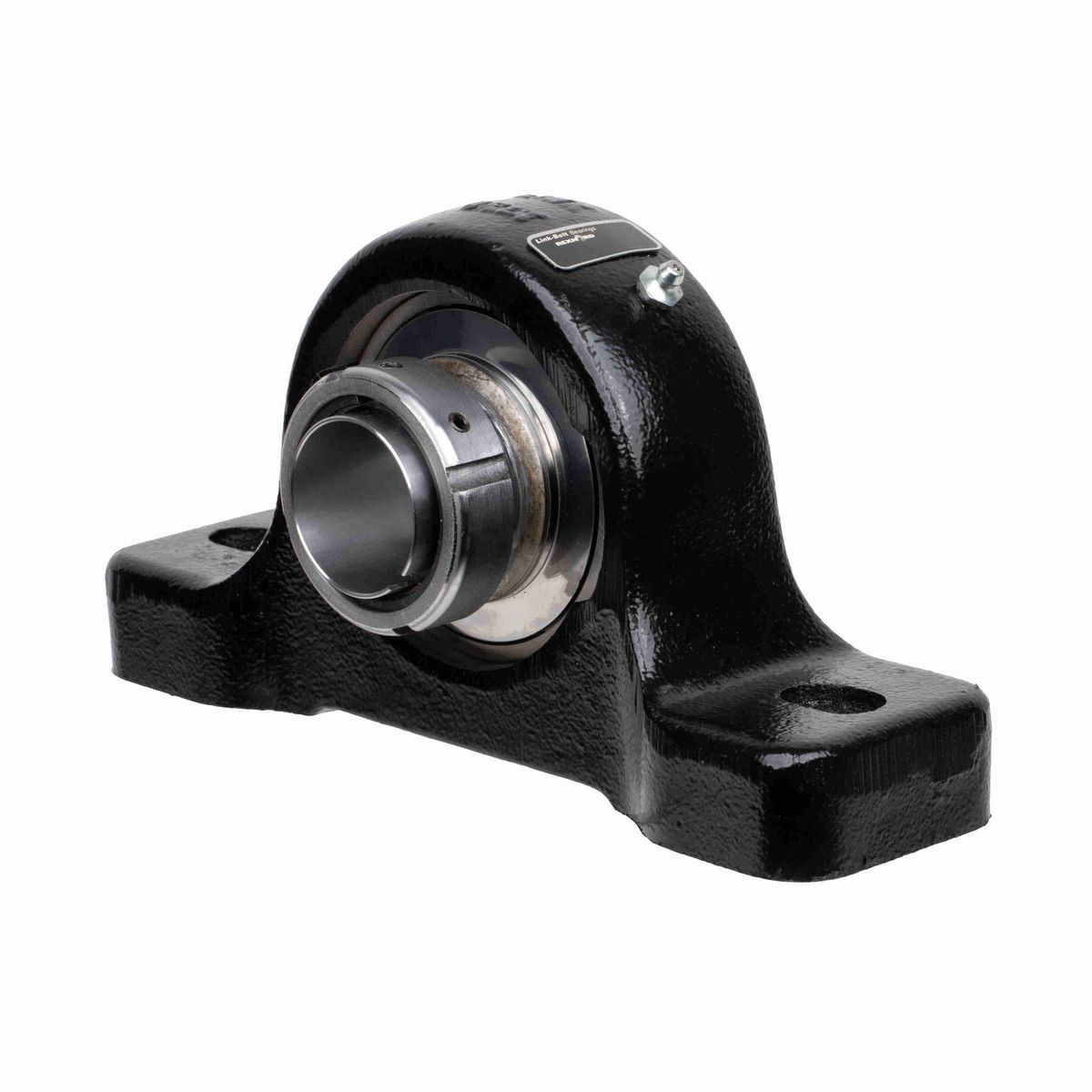

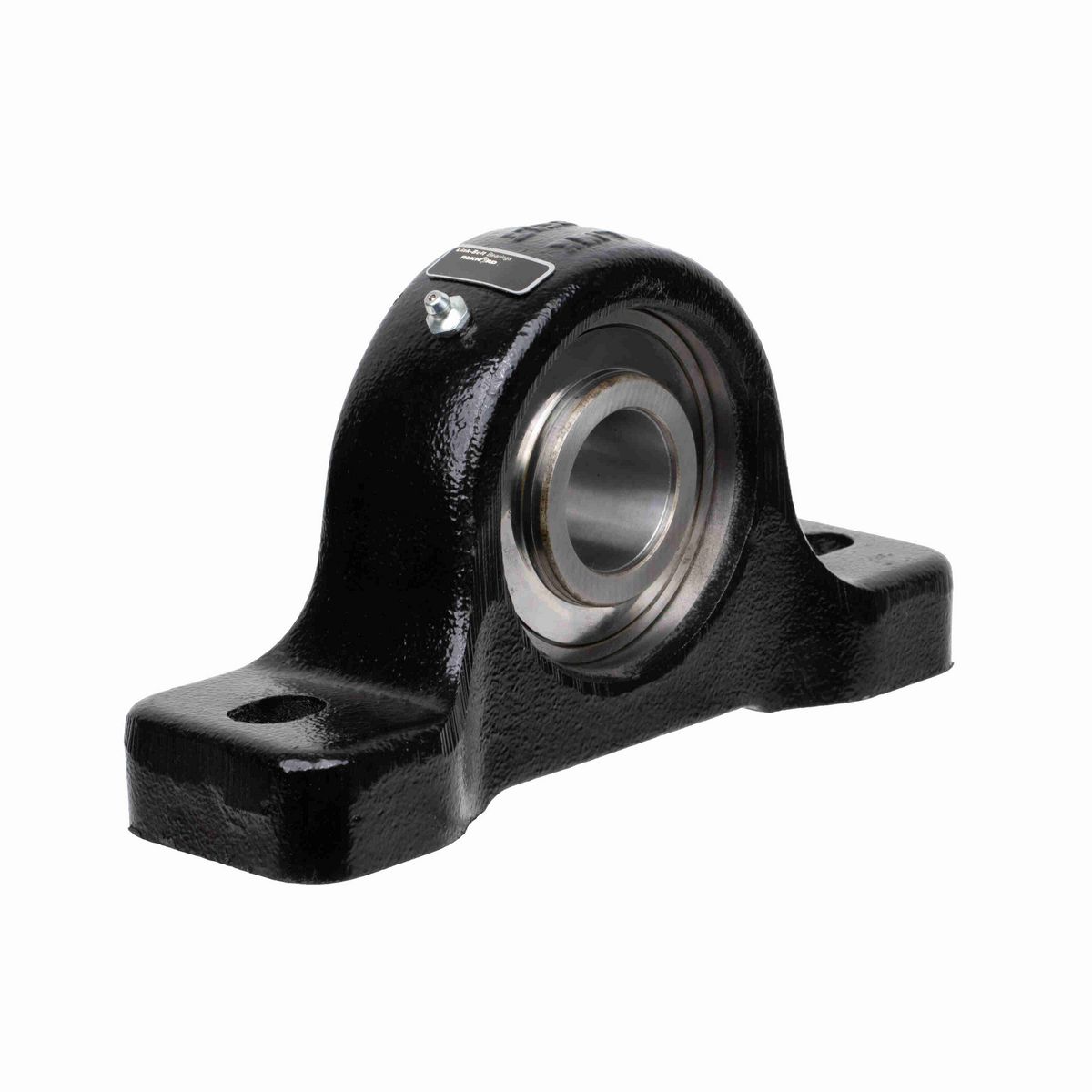

• 2 7/16" Mounted Ball Bearing, Heavy Duty, Cast Iron 2-Bolt Pillow Block, Shurlok Adapter Mounted, Clearance Seal

Dimensions

Base to Center Height (in)	3.625 in
Base Width (in)	3.5 in
Length Through Bore (in)	3.84 in
Overall Height (in)	7.13 in
Overall Length (in)	13.75 in
Bolt Size (in)	3/4 in
Overall Width (in)	3.84 in
Foot Height (in)	1.63 in
Bore Diameter (in)	2.4375 in
Centerline to Outermost Bearing Face (in)	2.39 in
Bolt Spacing (in)	11.25 in

Technical Specifications

Seal Type	Labryinth Seal
Misalignment Type	Static Only
Bore Shape	Straight
Shaft Locking Collar Kit/Adapter Assembly	AK86207
Cage Material	Molded fiber glass reinforced nylon
Housing Style	Pillow Block
Outer Ring Land Profile	Standard
Housing Base	Semi-Solid
Housing Color	Black
Housing Type	Pillow Block, Two Bolt
Slot Length (in)	1.38 in
Housing Construction	One Piece
Rolling Element	Ball Bearing
Ability to Relubricate	Yes
Wrench Style Shurlok Install Tool	105-90420-31
Locking Collar Outside Diameter (in)	3.59 in
Setscrew Torque (in-lbs)	87-92 in/lbs
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Vibration Frequency Inner Ring Defect	0.0823 cps
Max Operating Temperature (F)	225 °F
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	C3 STANDARD
Housing Coating	Powder Coated
Dynamic Load Rating (lb)	18,390 lb
Vibration Frequency Fundamental Train	0.0063 cps
Maximum Speed (RPM)	4450 rpm
Base Length (in)	13.75 in
Housing Material	Cast Iron
Impact Style Shurlok Install Tool	105-90425-31
Shaft Locking Type	Tapered Adapter
Max Operating Temperature (C)	107 °C
Cage Type	Ball Riding Retainer
Vibration Frequency Roller Spin	0.0337 cps
Size Code	339
Grease Fitting Thread Size	1/8 NPT
Fixed vs. Expansion	Fixed
End Cap Available	No
Lubricant	EXXON RONEX MP STD
Vibration Frequency Outer Ring Defect	0.0510 cps
Bearing Type	Heavy Duty
Insert	AG339L
Static Load Rating (lb)	11,700 lb
Inner Ring Outside Diameter (in)	3.216 in
Locking Device Kit	AK86207
Misalignment Capability	±2.0° Misalignment - Static Only

General Specifications

UPC	662864296854
Weight	27.00 LB
Packaged Length	7.38 IN
Packaged Width	4.50 IN
Packaged Height	13.75 IN
HTC	8483208040
Country of Origin	Mexico
