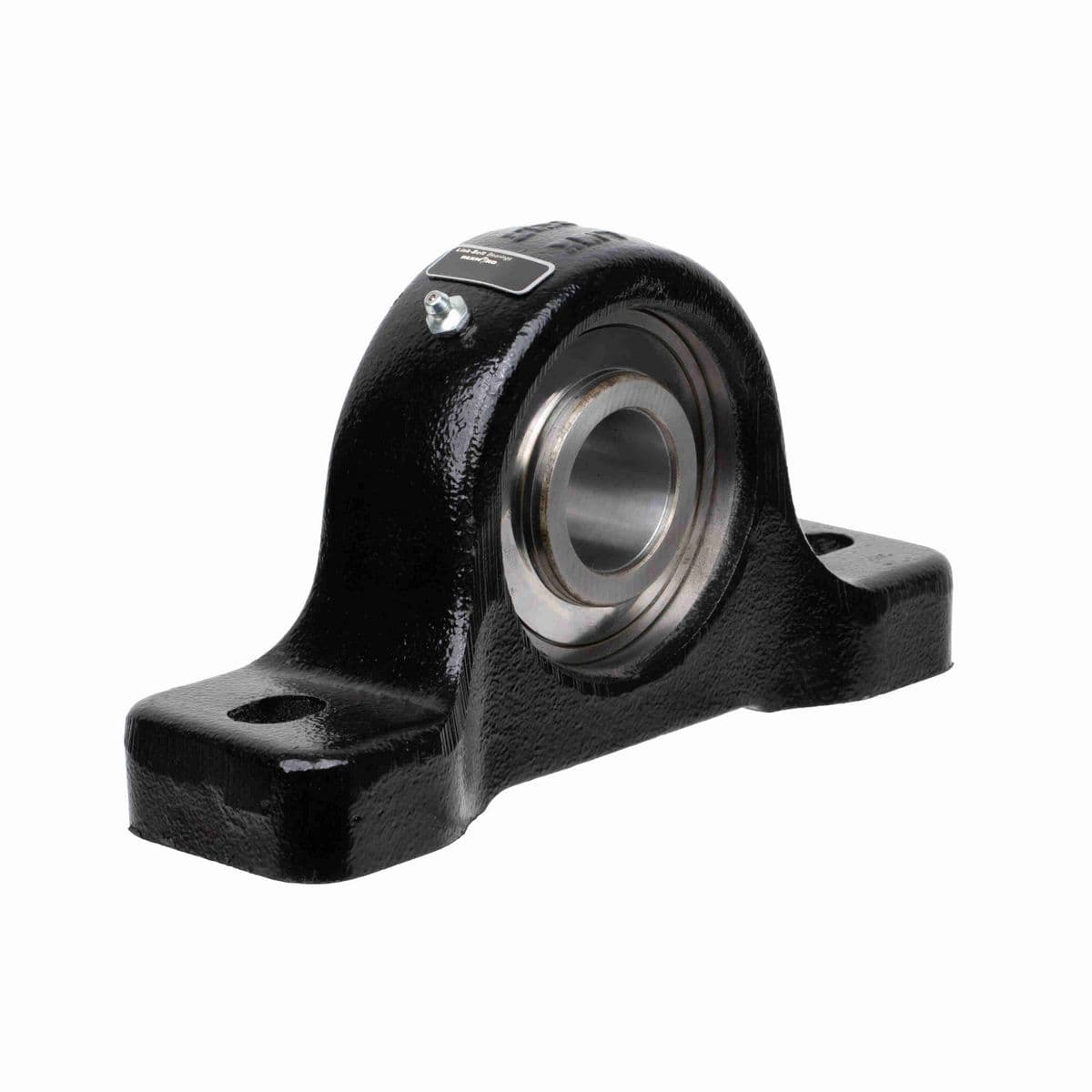

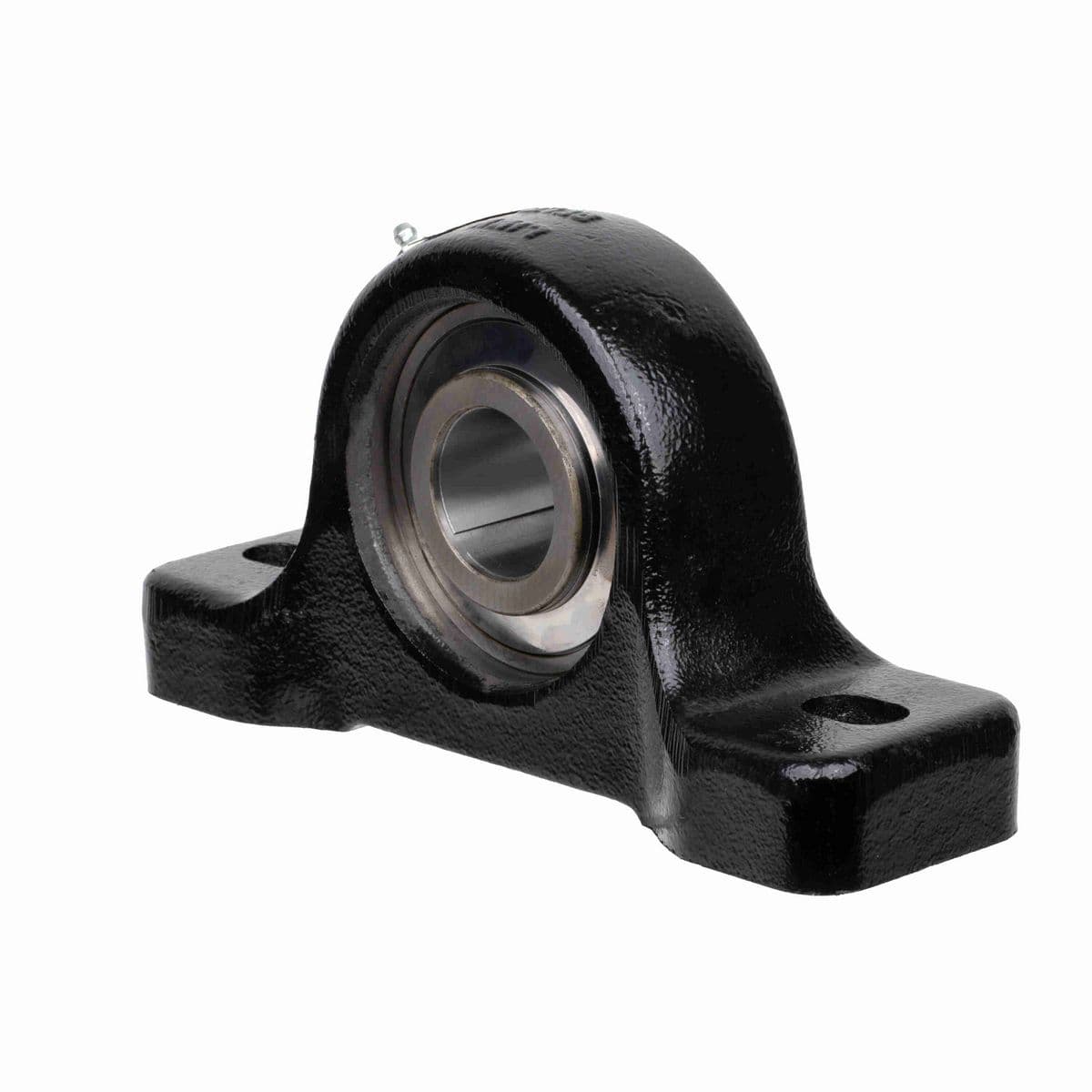

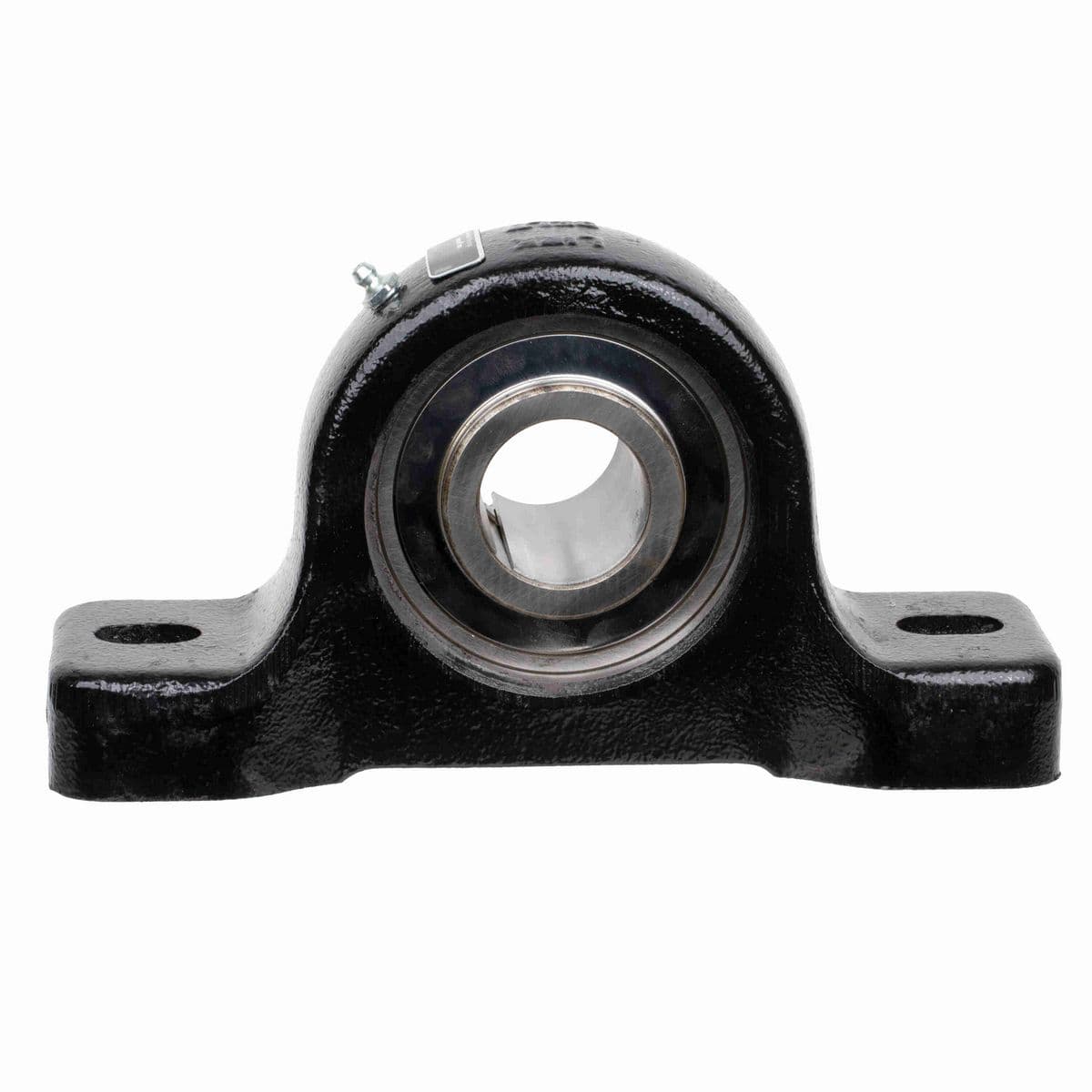

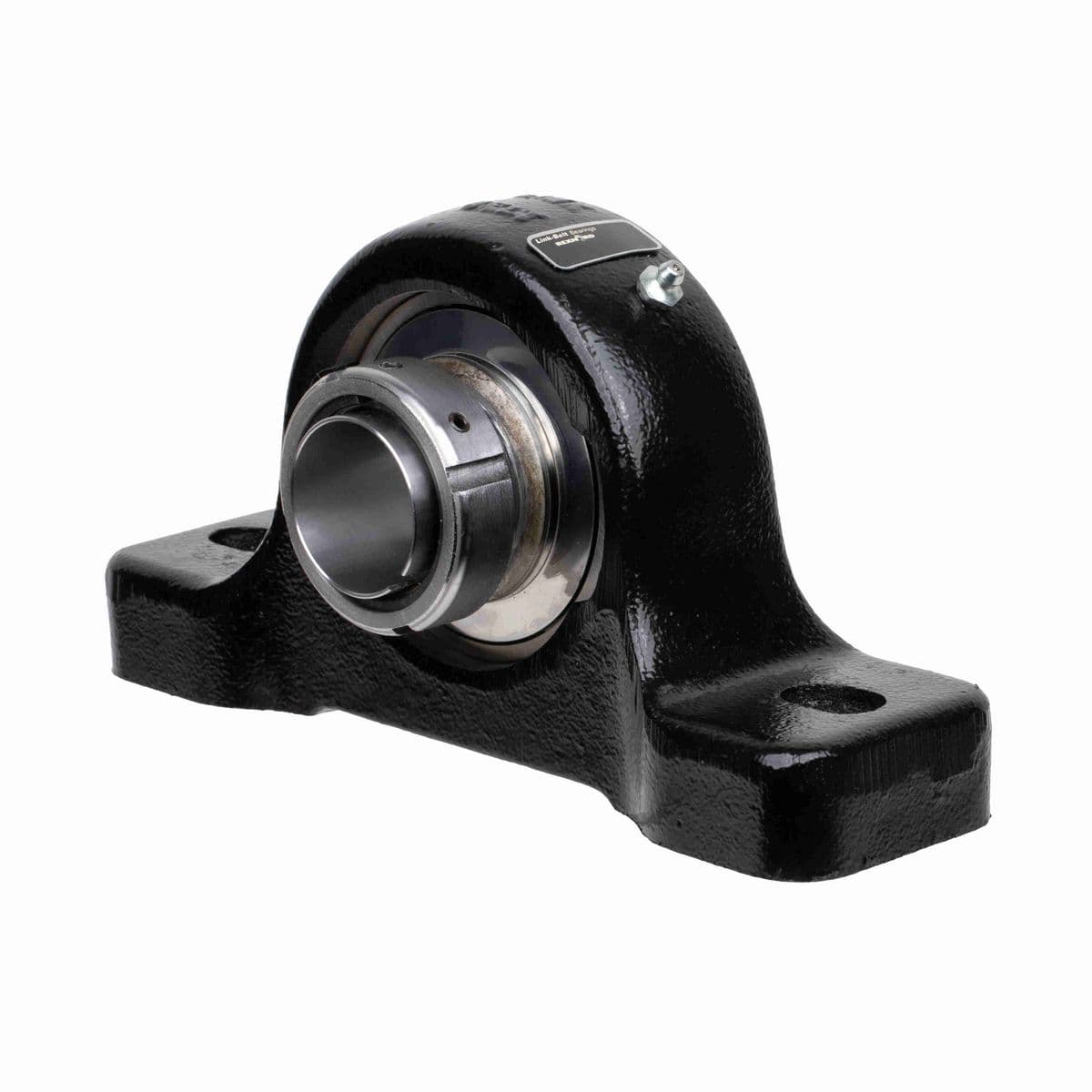

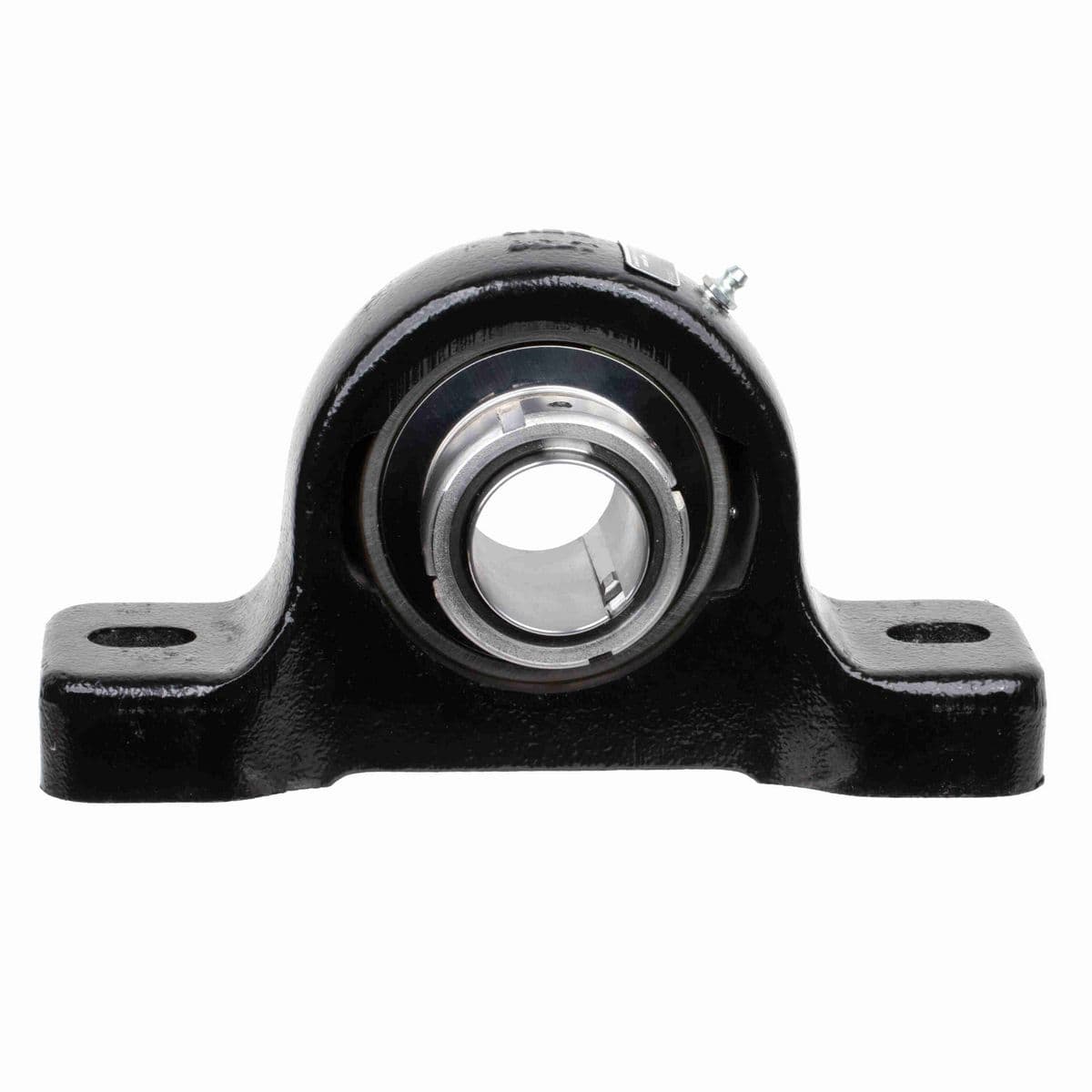

• Product Family: Ball Bearing; Line: Link-Belt Mounted

Dimensions

Length Through Bore (in)	2.73 in
Overall Height (in)	4.5 in
Bore Diameter (in)	1.4375 in
Bolt Size (in)	5/8 in
Base Width (in)	2.38 in
Overall Length (in)	9.25 in
Foot Height (in)	1 in
Base to Center Height (in)	2.375 in
Overall Width (in)	2.73 in
Bolt Spacing (in)	7.38 in
Centerline to Outermost Bearing Face (in)	1.91 in

Technical Specifications

Outer Ring Land Profile	Standard
Shaft Locking Collar Kit/Adapter Assembly	AK46107
Housing Base	Semi-Solid
Rolling Element	Ball Bearing
Seal Type	CLEARANCE SEAL WITH FLINGERS
Housing Style	Pillow Block
Housing Type	Pillow Block, Two Bolt
Housing Construction	One Piece
Bore Shape	Straight
Slot Length (in)	1.13 in
Misalignment Type	Static Only
Cage Material	Molded fiber glass reinforced nylon
Housing Color	Black
Ability to Relubricate	Yes
Wrench Style Shurlok Install Tool	N6107-SPN
Locking Collar Outside Diameter (in)	2.38 in
Bearing Type	Heavy Duty
Bearing Brand	LINK-BELT 300 SERIES HD BALL
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	7550 rpm
Dynamic Load Rating (lb)	7,490 lb
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Roller Spin	0.0335 cps
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	323
Static Load Rating (lb)	4,290 lb
Locking Device Kit	AK46107
Vibration Frequency Outer Ring Defect	0.0510 cps
Inner Ring Outside Diameter (in)	1.946 in
Housing Material	Cast Iron
Lubricant	EXXON RONEX MP STD
Base Length (in)	9.25 in
Max Operating Temperature (C)	107 °C
Impact Style Shurlok Install Tool	N6107-IMP
Housing Coating	Powder Coated
Max Operating Temperature (F)	225 °F
Cage Type	Ball Riding Retainer
Radial Clearance	C3 STANDARD
Vibration Frequency Fundamental Train	0.0063 cps
Vibration Frequency Inner Ring Defect	0.0823 cps
End Cap Available	No
Insert	AG323L
Shaft Locking Type	Tapered Adapter

General Specifications

UPC	662864584722
Weight	7.77 LB
HTC	8483204040
Country of Origin	Mexico
