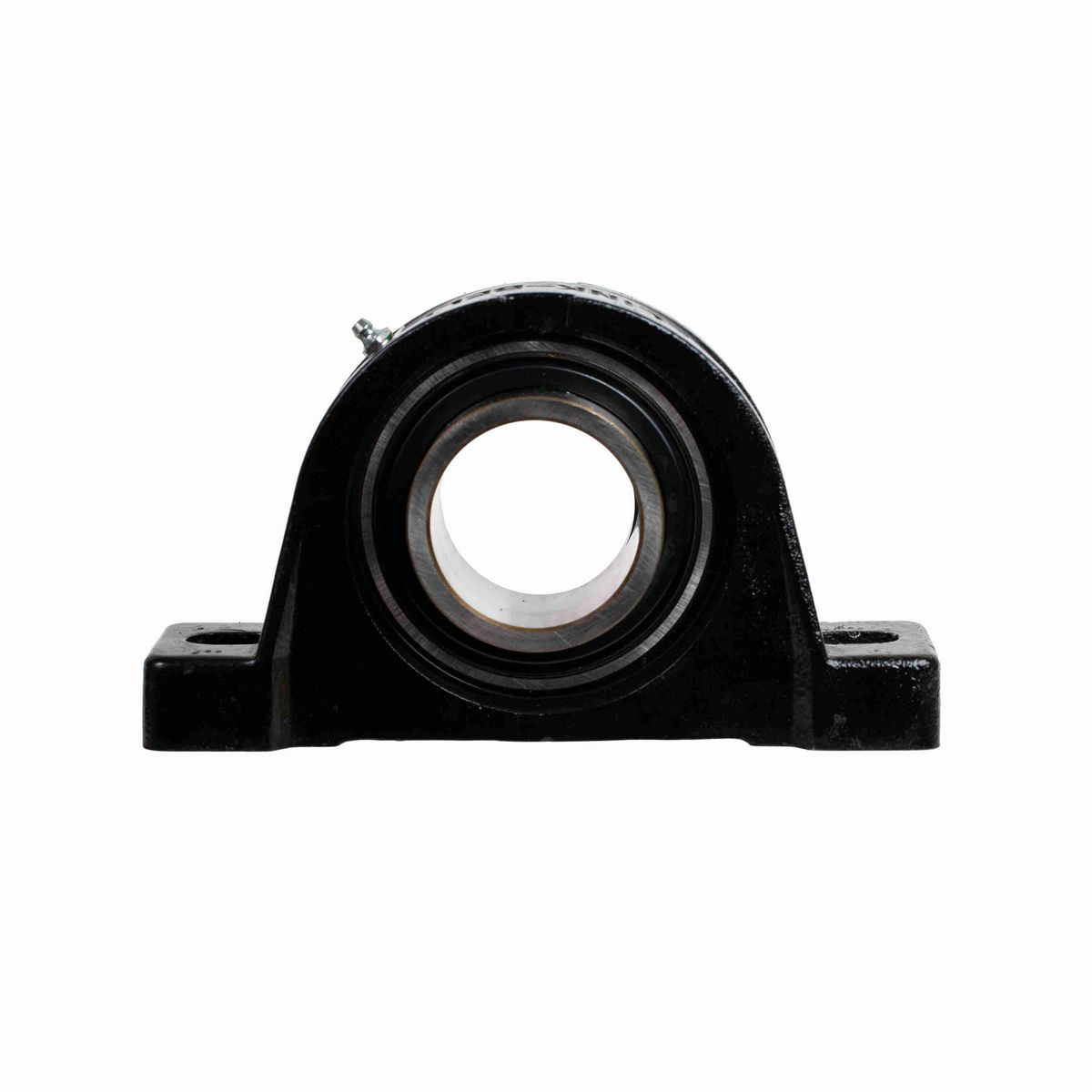

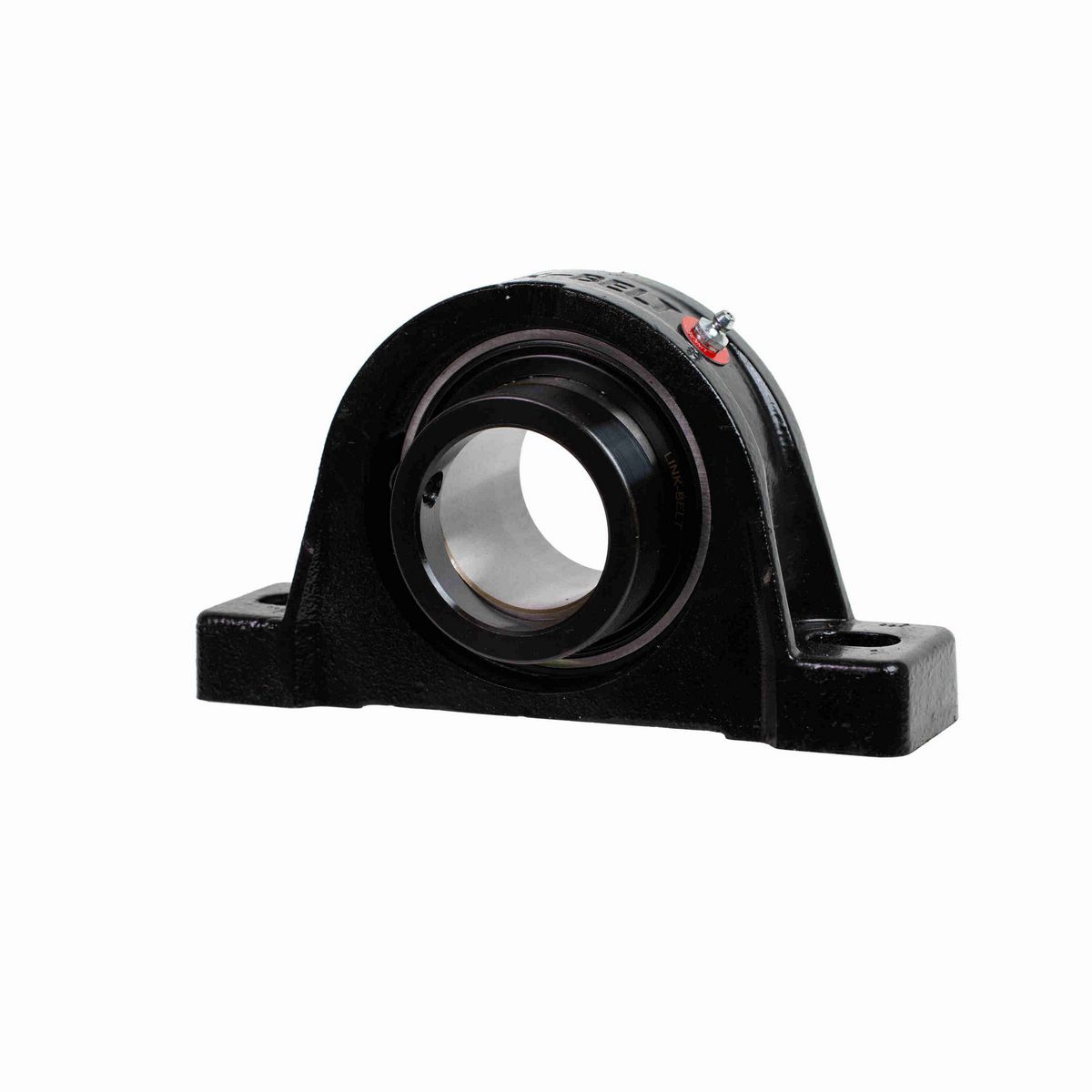

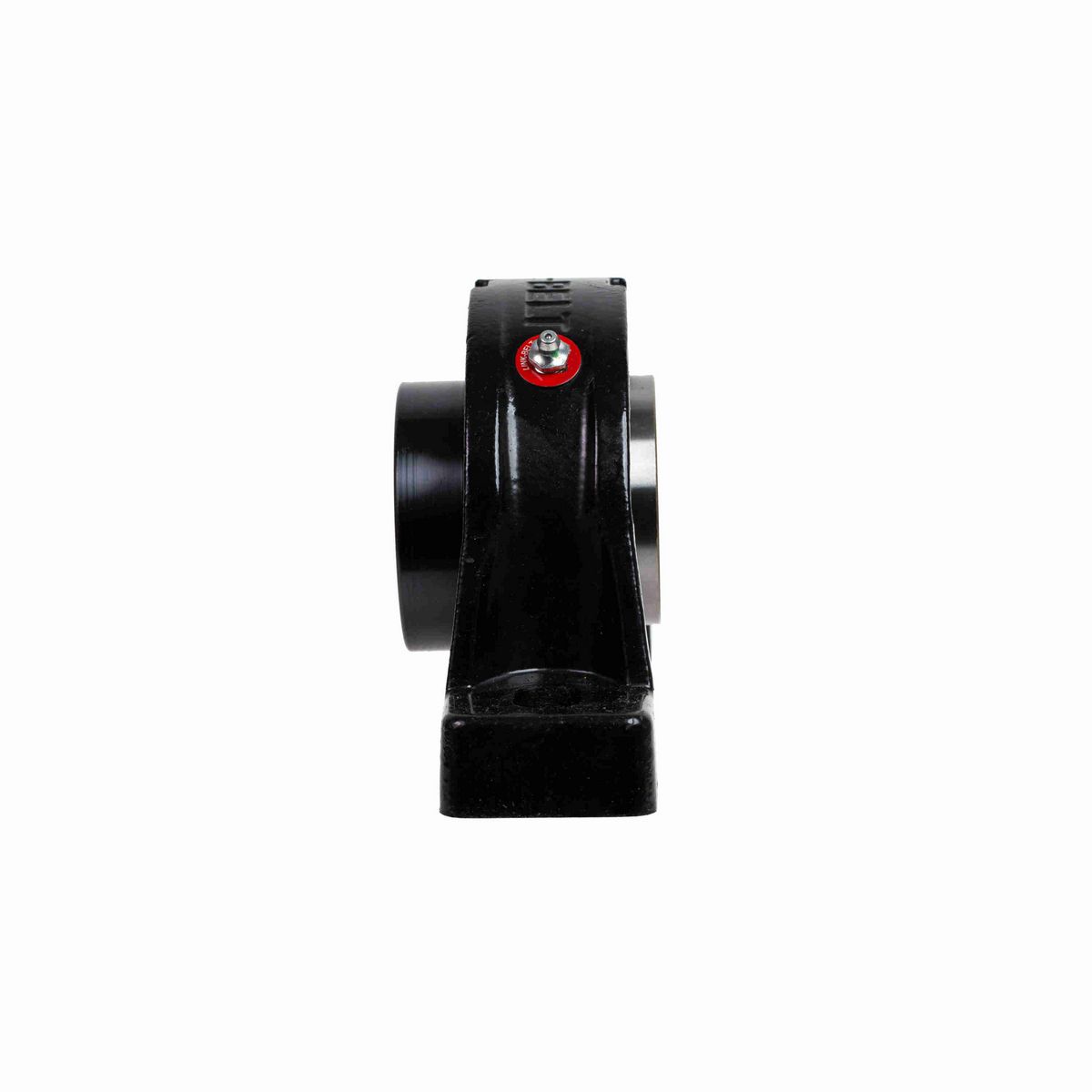

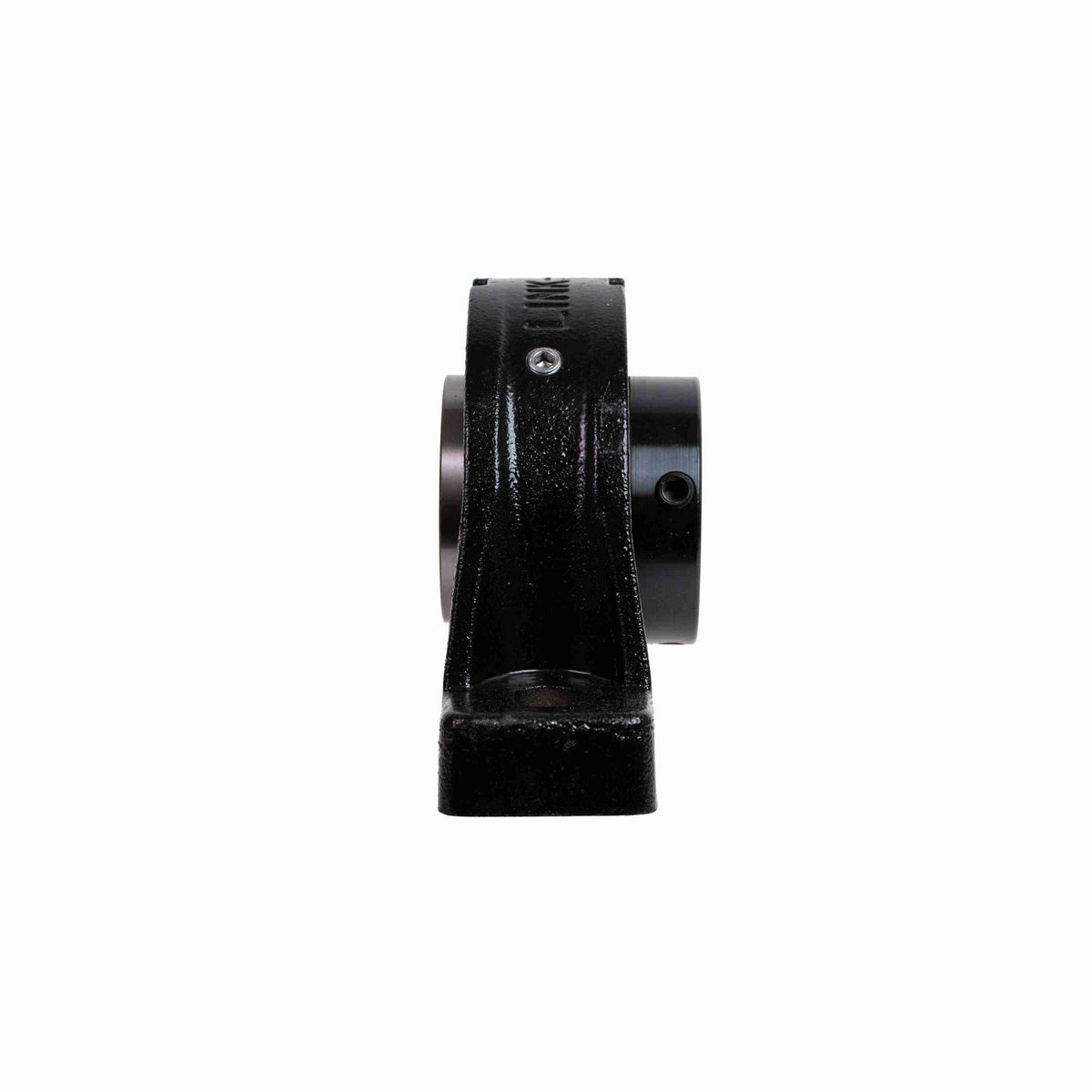

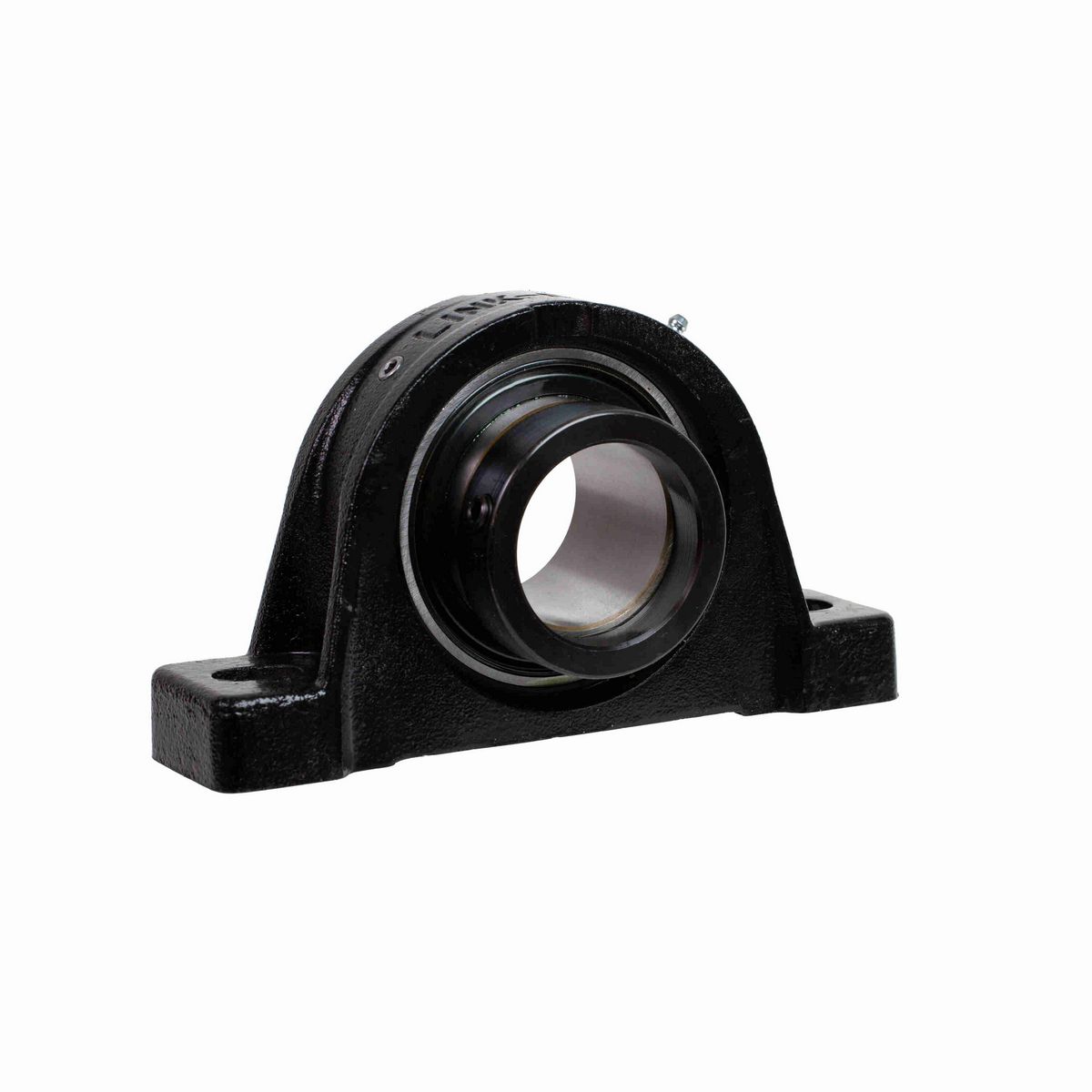

• 2" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Pillow Block, Eccentric Cam Locking Collar, Single Lip Contact Seal

Dimensions

Overall Height (in)	5.00 in
Bore Diameter (in)	2 in
Base Width (in)	2.31 in
Foot Height (in)	1.00 in
Overall Length (in)	8.88 in
Length Through Bore (in)	2.81 in
Bolt Size (in)	5/8 in
Base to Center Height (in)	2.5000 in
Overall Width (in)	2.81 in
Bolt Spacing (in)	6.94 in
Centerline to Outermost Bearing Face (in)	1.719 in

Technical Specifications

Seal Type	Single Lip Contact Seal
Housing Construction	One Piece
Housing Color	Black
Slot Length (in)	1.22 in
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Housing Base	Semi-Solid
Housing Type	Pillow Block, Two Bolt
Misalignment Type	Static Only
Bore Shape	Straight
Housing Style	Pillow Block
Cage Material	Molded fiber glass reinforced nylon
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	3.00 in
Setscrew Torque (in-lbs)	430-460 in/lbs
Insert	YG232NL
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.749 in
Vibration Frequency Outer Ring Defect	0.0680 cps
Bearing Brand	LINK-BELT 200 SERIES BALL
Max Operating Temperature (C)	107 °C
Housing Material	Cast Iron
Dynamic Load Rating (lb)	9,800 lb
Max Operating Temperature (F)	225 °F
Base Length (in)	8.88 in
Cage Type	Ball Riding Retainer
End Cap Available	No
Radial Clearance	C3 STANDARD
Lubricant	EXXON RONEX MP STD
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
Locking Device Kit	W2325S
Shaft Locking Type	Eccentric
Static Load Rating (lb)	6,570 lb
Size Code	211
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	4360 rpm
Vibration Frequency Inner Ring Defect	0.0987 cps
Bearing Type	Standard Duty
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0068 cps
Vibration Frequency Roller Spin	0.0437 cps

General Specifications

UPC	662327121938
Weight	9.14 LB
Packaged Length	9.50 IN
Packaged Width	3.13 IN
Packaged Height	5.50 IN
HTC	8483208040
Country of Origin	Mexico
