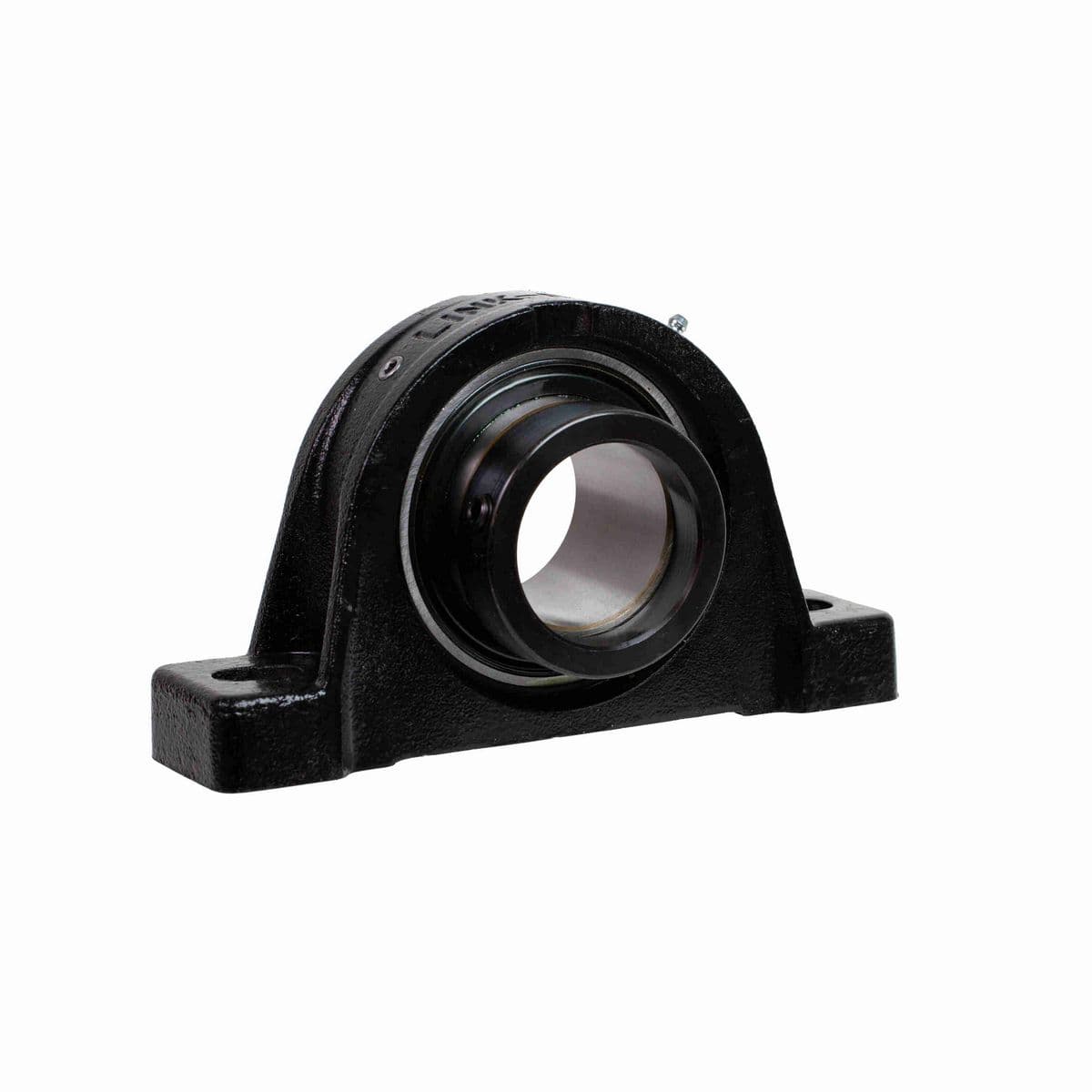

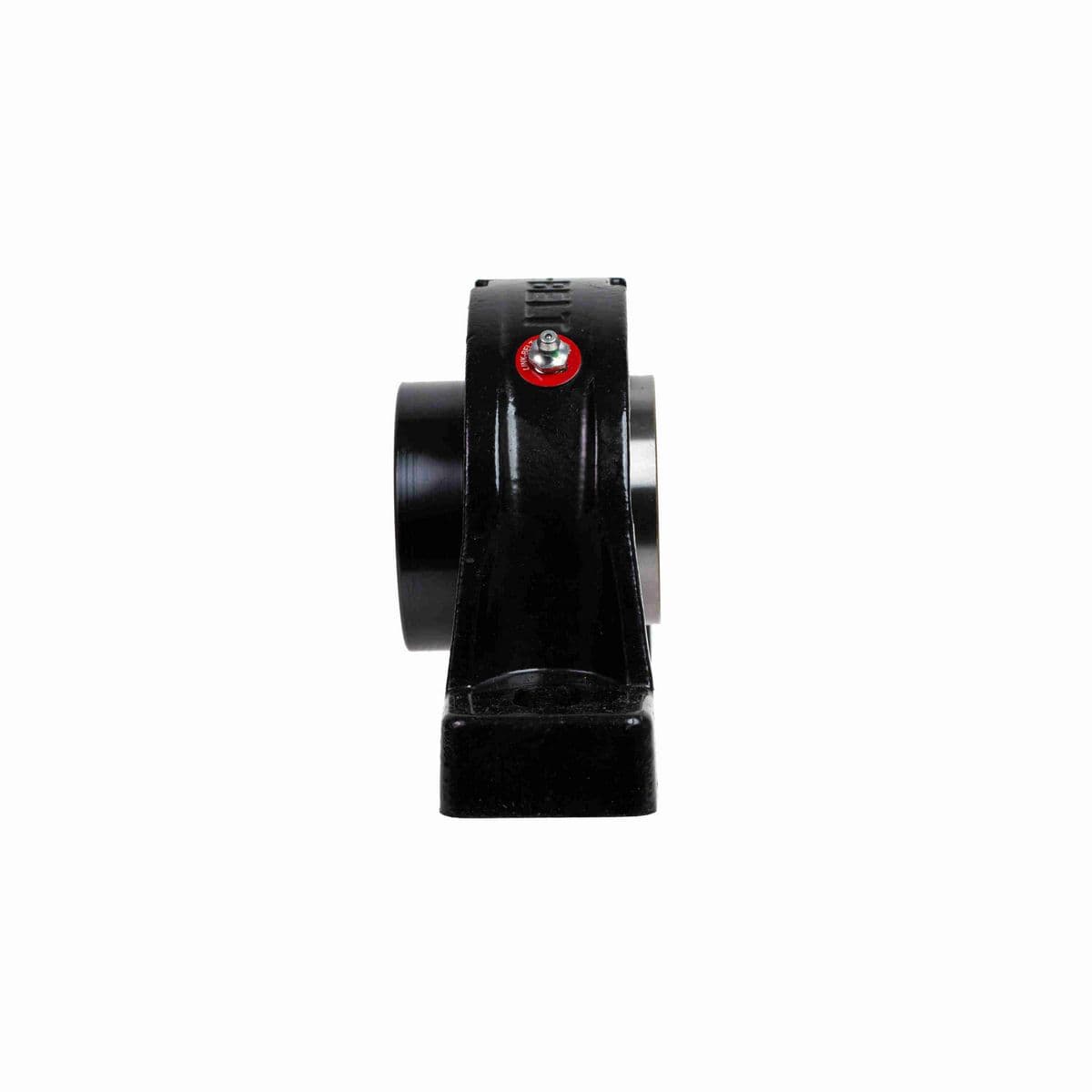

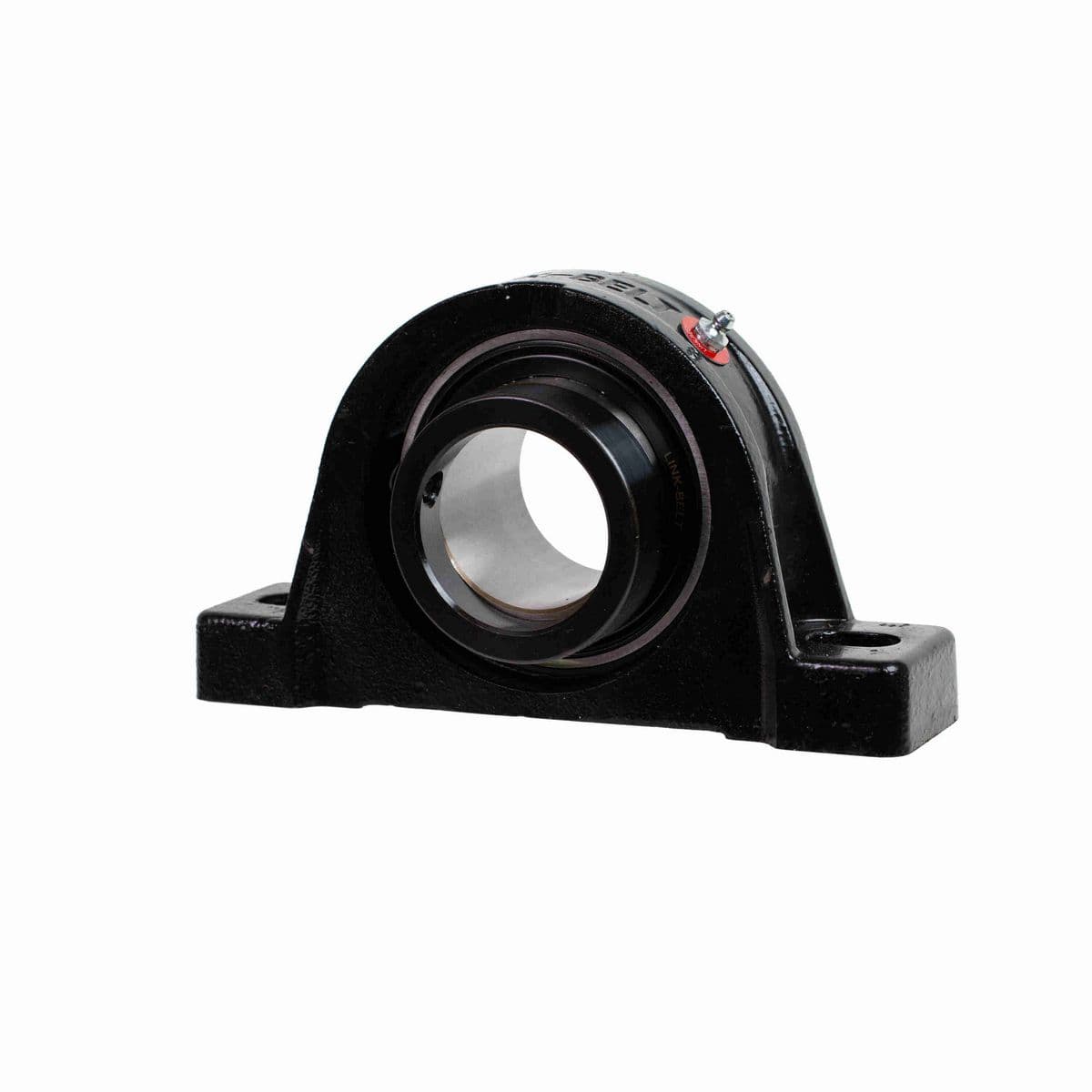

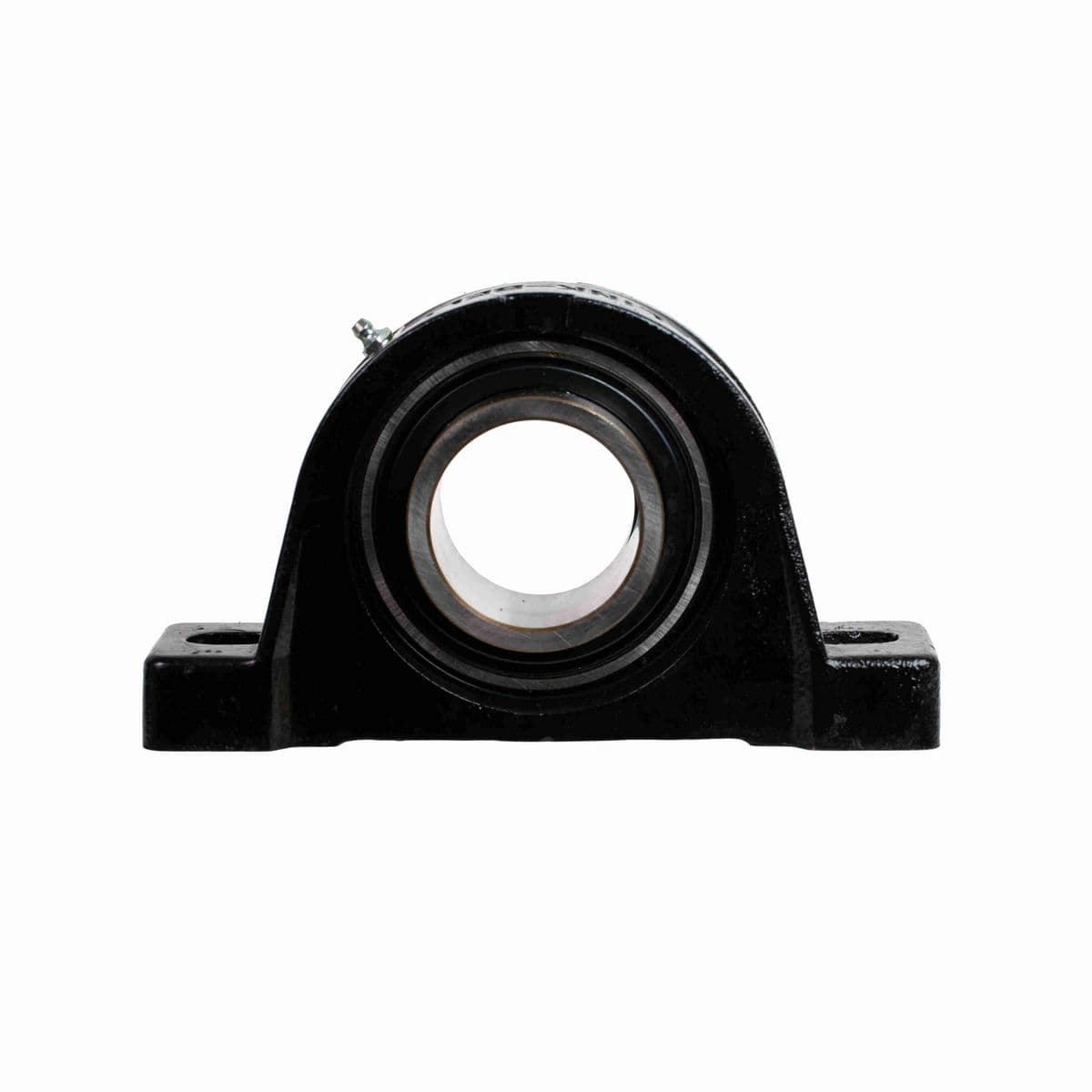

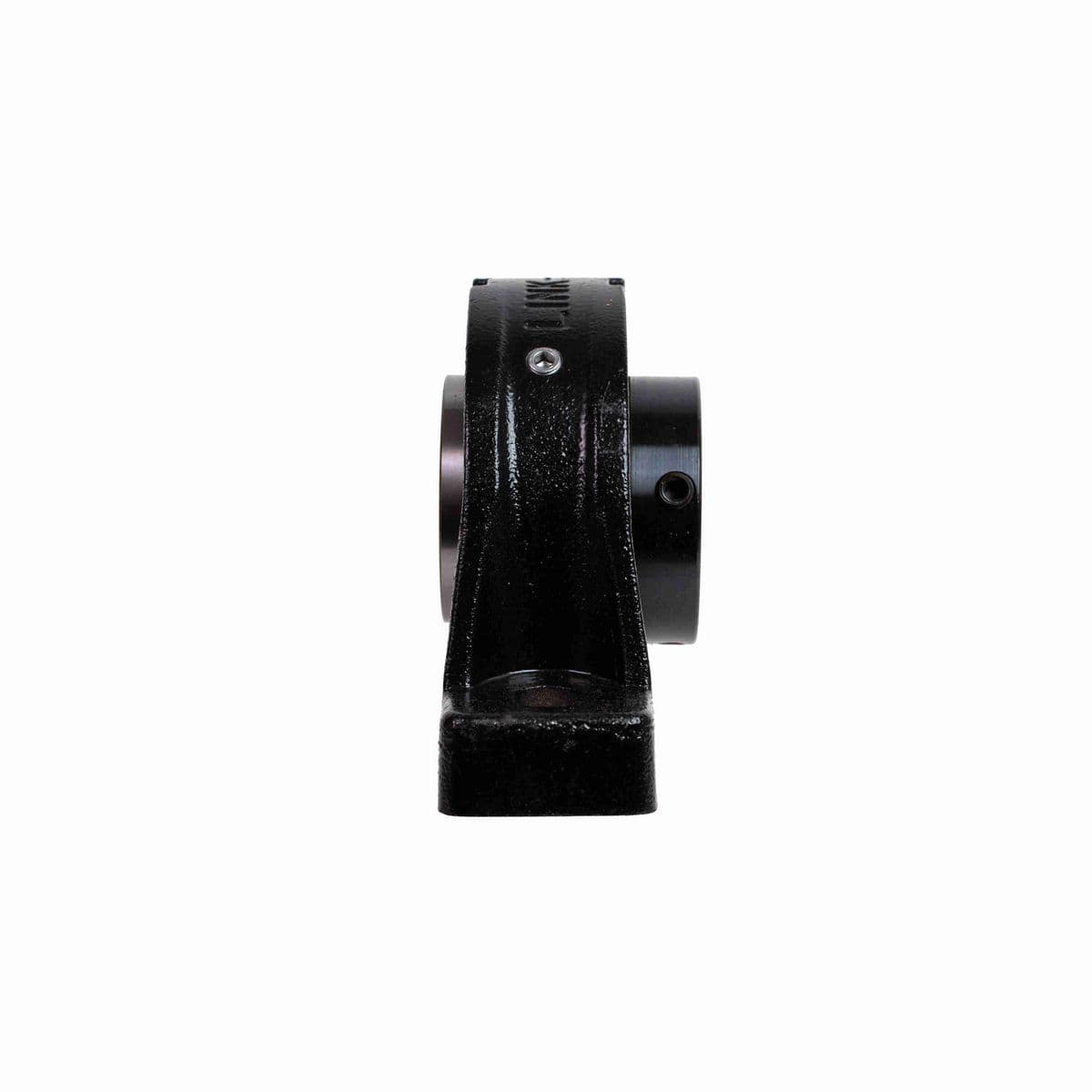

• 2" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Pillow Block, Eccentric Cam Locking Collar, Triple Lip Contact Seal, 90 degree lube fitting

Dimensions

Foot Height (in)	1.00 in
Overall Length (in)	8.88 in
Base to Center Height (in)	2.5000 in
Overall Height (in)	5.00 in
Bolt Size (in)	5/8 in
Length Through Bore (in)	2.81 in
Bore Diameter (in)	2 in
Base Width (in)	2.31 in
Overall Width (in)	2.81 in
Centerline to Outermost Bearing Face (in)	1.719 in
Bolt Spacing (in)	6.94 in

Technical Specifications

Housing Style	Pillow Block
Housing Color	Black
Housing Base	Semi-Solid
Cage Material	Molded fiber glass reinforced nylon
Bore Shape	Straight
Housing Type	Pillow Block, Two Bolt
Rolling Element	Ball Bearing
Seal Type	Multi-Lip Contact Seal
Housing Construction	One Piece
Slot Length (in)	1.22 in
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	430-460 in/lbs
Locking Collar Outside Diameter (in)	3.00 in
Dynamic Load Rating (lb)	9,800 lb
Maximum Speed (RPM)	500 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Base Length (in)	8.88 in
Max Operating Temperature (F)	225 °F
Fixed vs. Expansion	Fixed
Cage Type	Ball Riding Retainer
Vibration Frequency Outer Ring Defect	0.0680 cps
Locking Device Kit	W2325S
Vibration Frequency Fundamental Train	0.0068 cps
Lubricant	EXXON RONEX MP STD
Lube Fitting Type	90 DEG LUBE FITTING
Bearing Brand	LINK-BELT 200 SERIES BALL
Size Code	211
Bearing Type	Standard Duty
Max Operating Temperature (C)	107 °C
Shaft Locking Type	Eccentric
Static Load Rating (lb)	6,570 lb
Insert	YG232E3L
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	C3 STANDARD
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0437 cps
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	2.749 in
Vibration Frequency Inner Ring Defect	0.0987 cps

General Specifications

UPC	793699192476
Weight	8.63 LB
Packaged Length	9.50 IN
Packaged Width	3.13 IN
Packaged Height	5.50 IN
HTC	8483208040
Country of Origin	Mexico
