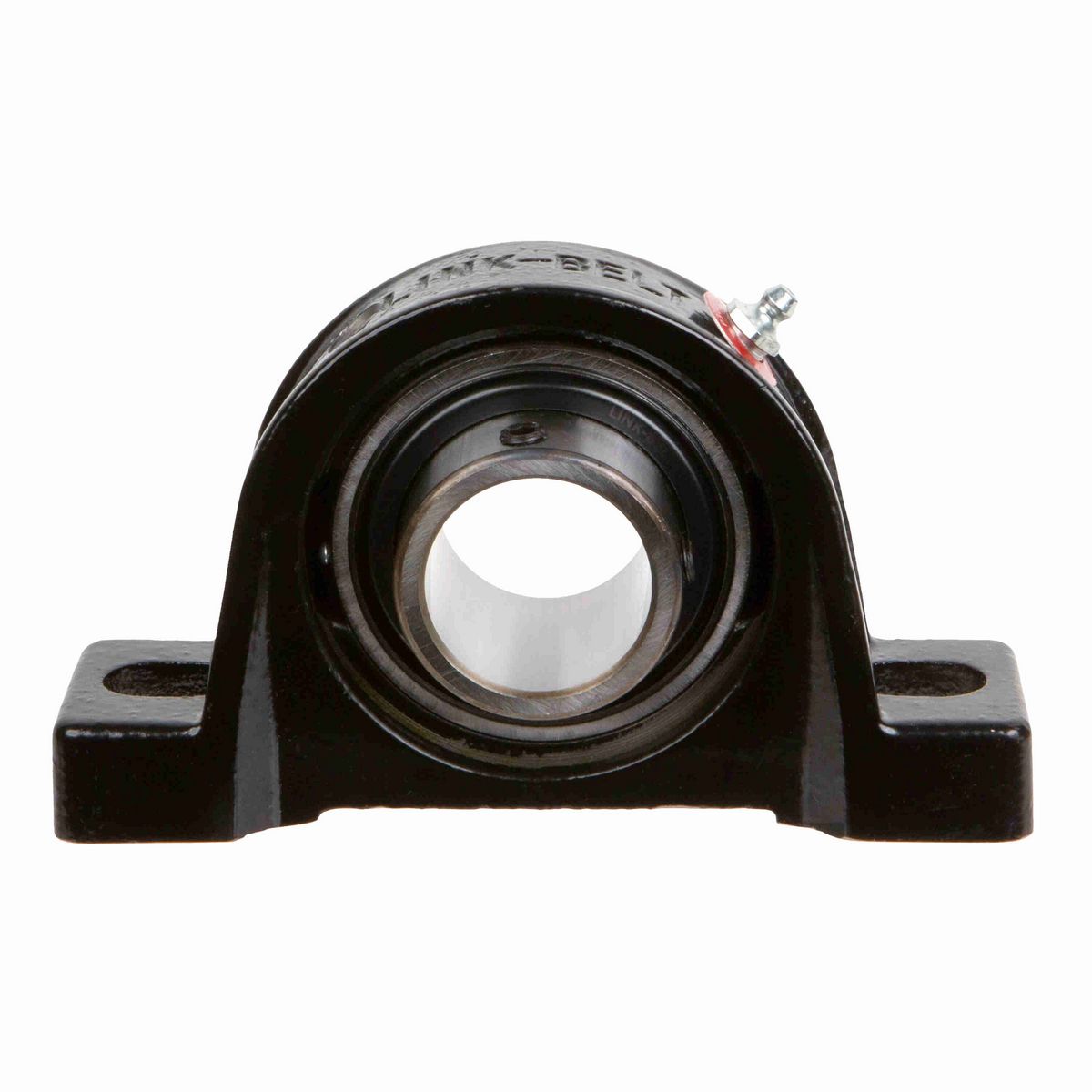

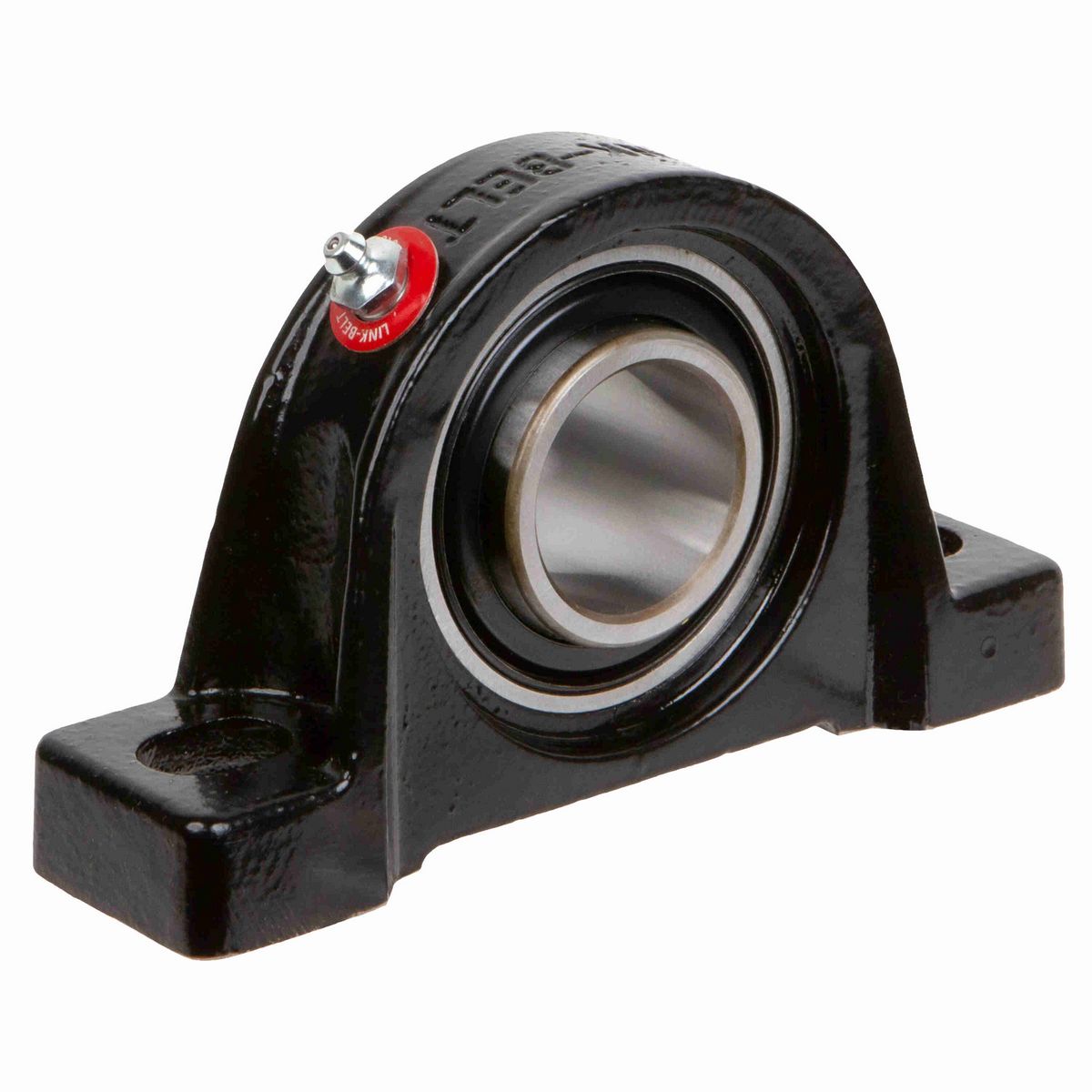

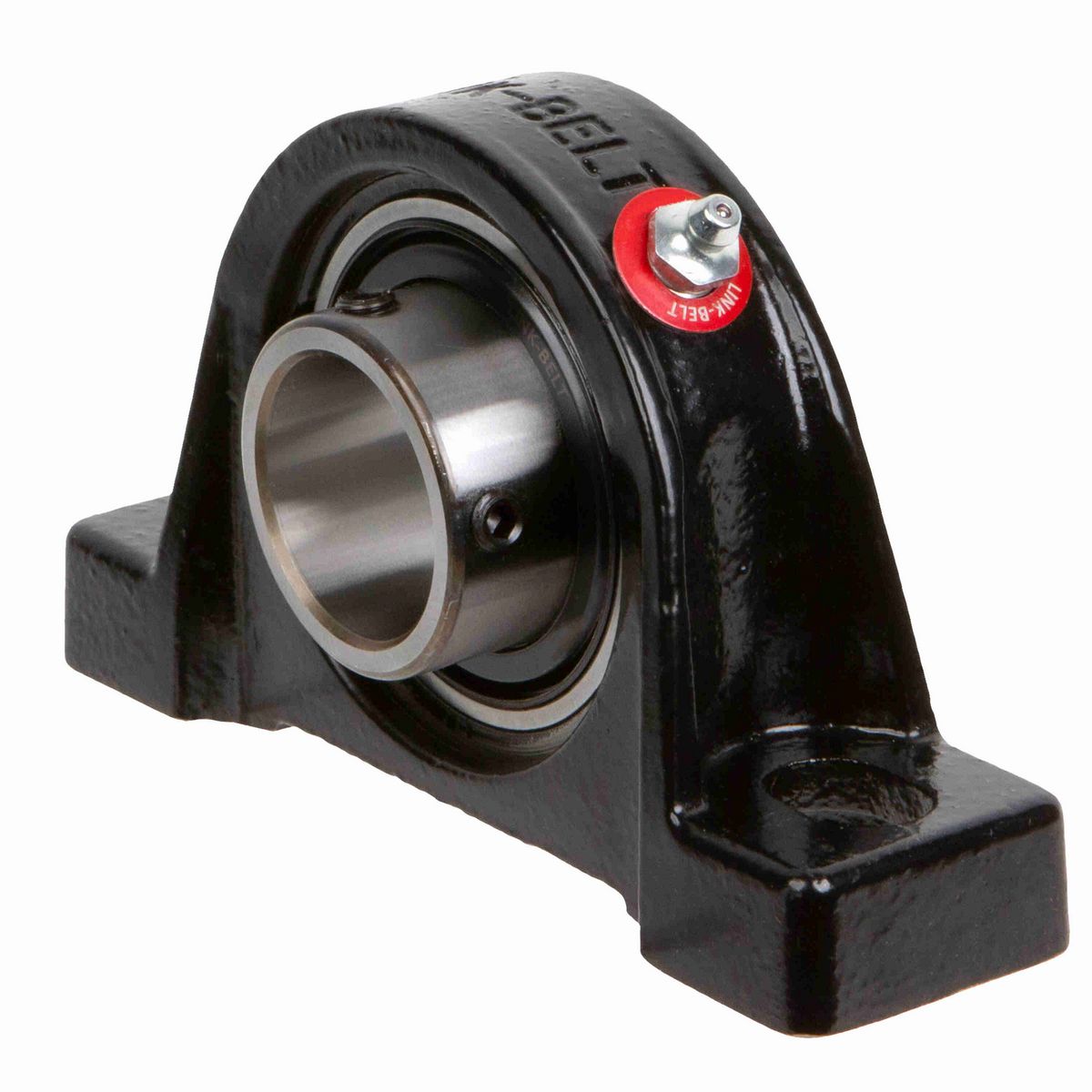

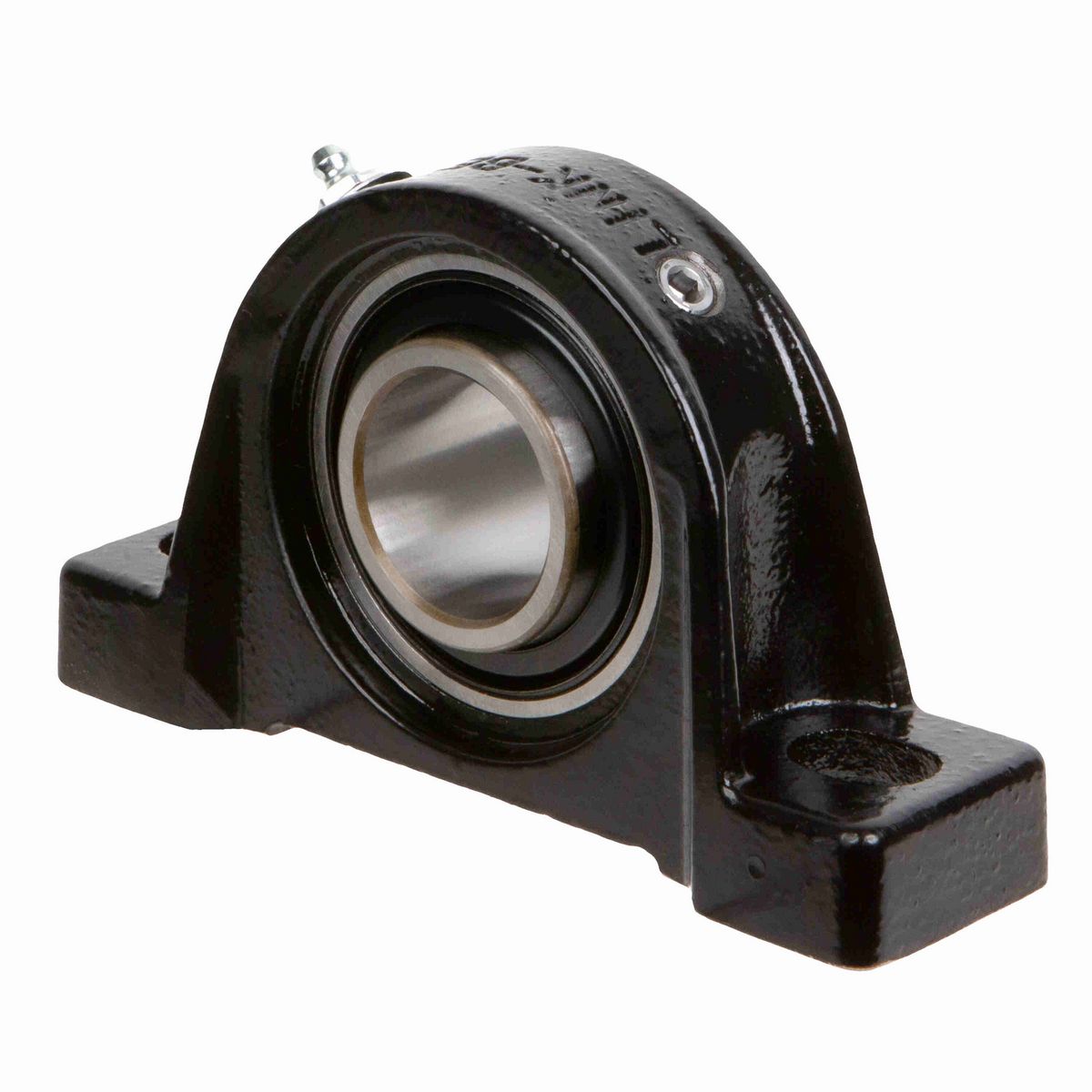

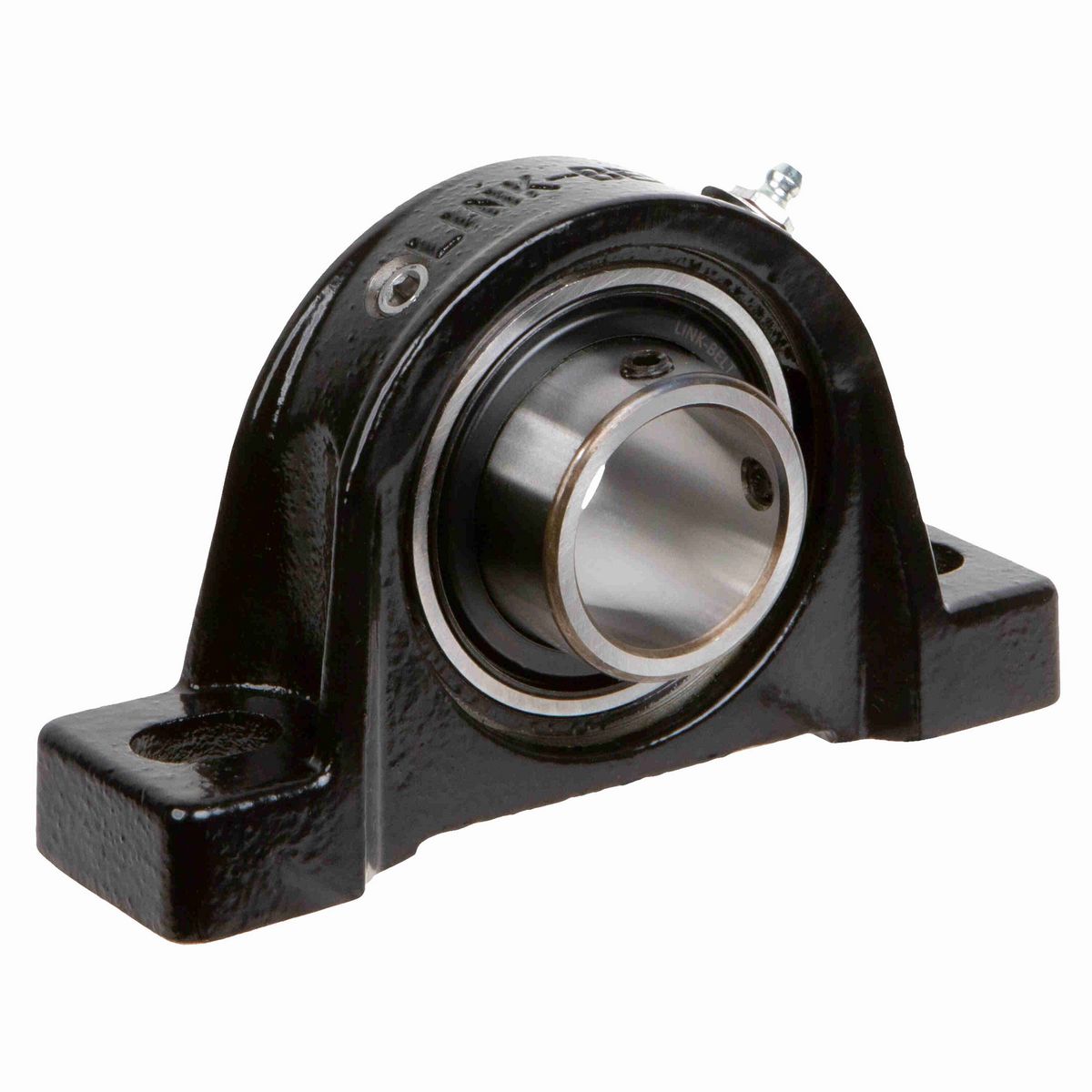

• 1 7/16" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Pillow Block, Setscrew Locking, Single Lip Contact Seal, Closed End Cap

Dimensions

Base to Center Height (in)	1.875 in
Length Through Bore (in)	1.764 in
Base Width (in)	1.75 in
Overall Width (in)	1.76 in
Foot Height (in)	0.81 in
Overall Height (in)	3.69 in
Overall Length (in)	6.38 in
Bore Diameter (in)	1.4375 in
Bolt Size (in)	1/2 in
Bolt Spacing (in)	4.94 in
Centerline to Outermost Bearing Face (in)	1.109 in

Technical Specifications

Misalignment Type	Static Only
Housing Color	Black
Cage Material	Molded fiber glass reinforced nylon
Outer Ring Land Profile	Standard
Rolling Element	Ball Bearing
Housing Construction	One Piece
Slot Length (in)	0.88 in
Seal Type	Single Lip Contact Seal
Housing Type	Pillow Block, Two Bolt
Bore Shape	Straight
Housing Base	Semi-Solid
Housing Style	Pillow Block
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	165 in/lbs
Vibration Frequency Roller Spin	0.0383 cps
Dynamic Load Rating (lb)	5,810 lb
Fixed vs. Expansion	Fixed
Vibration Frequency Fundamental Train	0.0067 cps
Radial Clearance	C3 STANDARD
End Cap	Y2236N
Lubricant	EXXON RONEX MP STD
Base Length (in)	6.38 in
Max Operating Temperature (F)	225 °F
Size Code	207
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	6850 rpm
End Cap Available	Yes
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0905 cps
Inner Ring Outside Diameter (in)	1.847 in
Bearing Brand	LINK-BELT 200 SERIES BALL
Shaft Locking Type	Set Screw
Max Operating Temperature (C)	107 °C
Static Load Rating (lb)	3,440 lb
Centerline to Cap Face (in)	1.55
Vibration Frequency Outer Ring Defect	0.0595 cps
Cage Type	Ball Riding Retainer
Housing Material	Cast Iron
Bearing Type	Standard Duty
Insert	UG223NL
Grease Fitting Thread Size	1/8 NPT

General Specifications

UPC	662327121013
Weight	3.67 LB
Packaged Length	7.94 IN
Packaged Width	4.69 IN
Packaged Height	2.44 IN
HTC	8483208040
Country of Origin	Mexico
