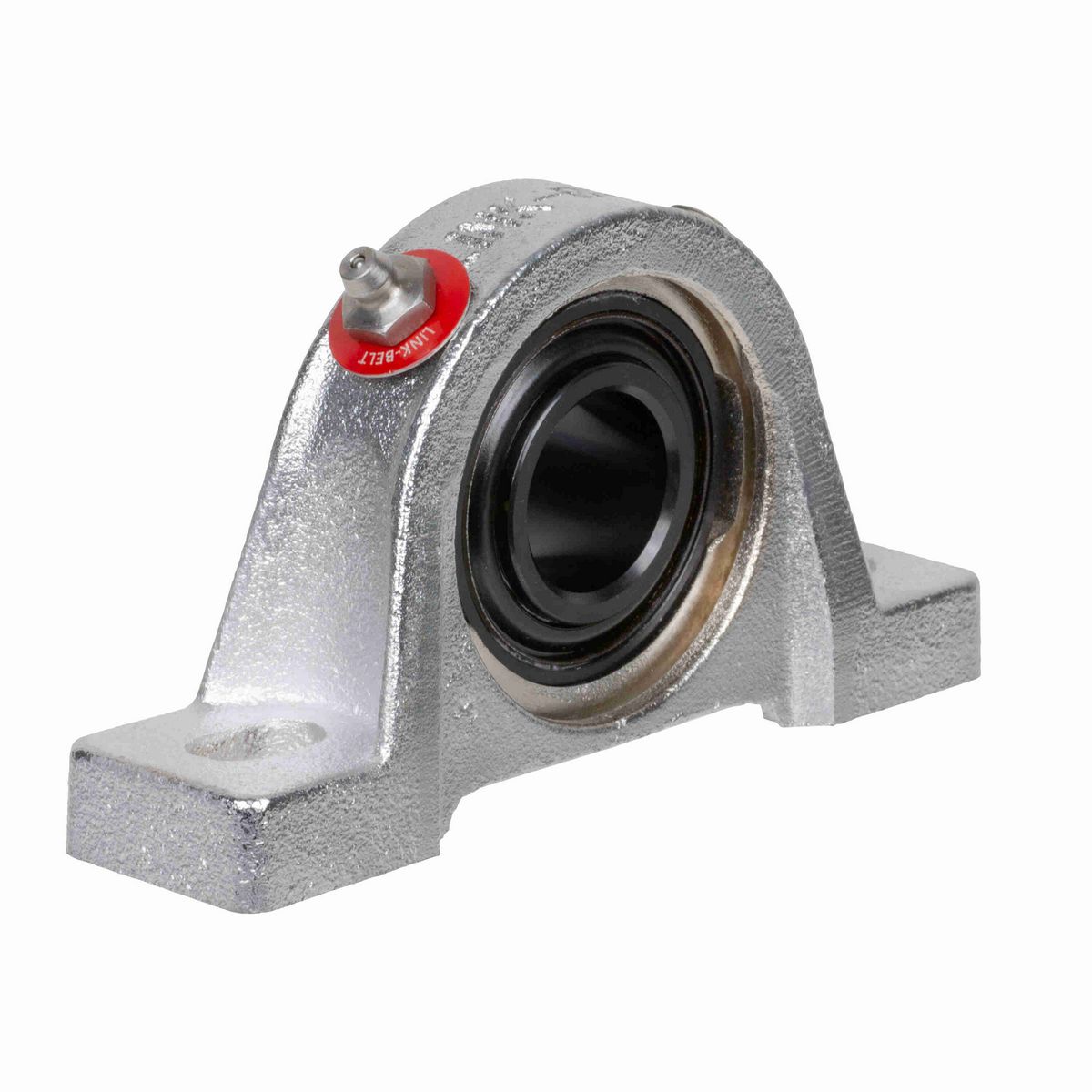

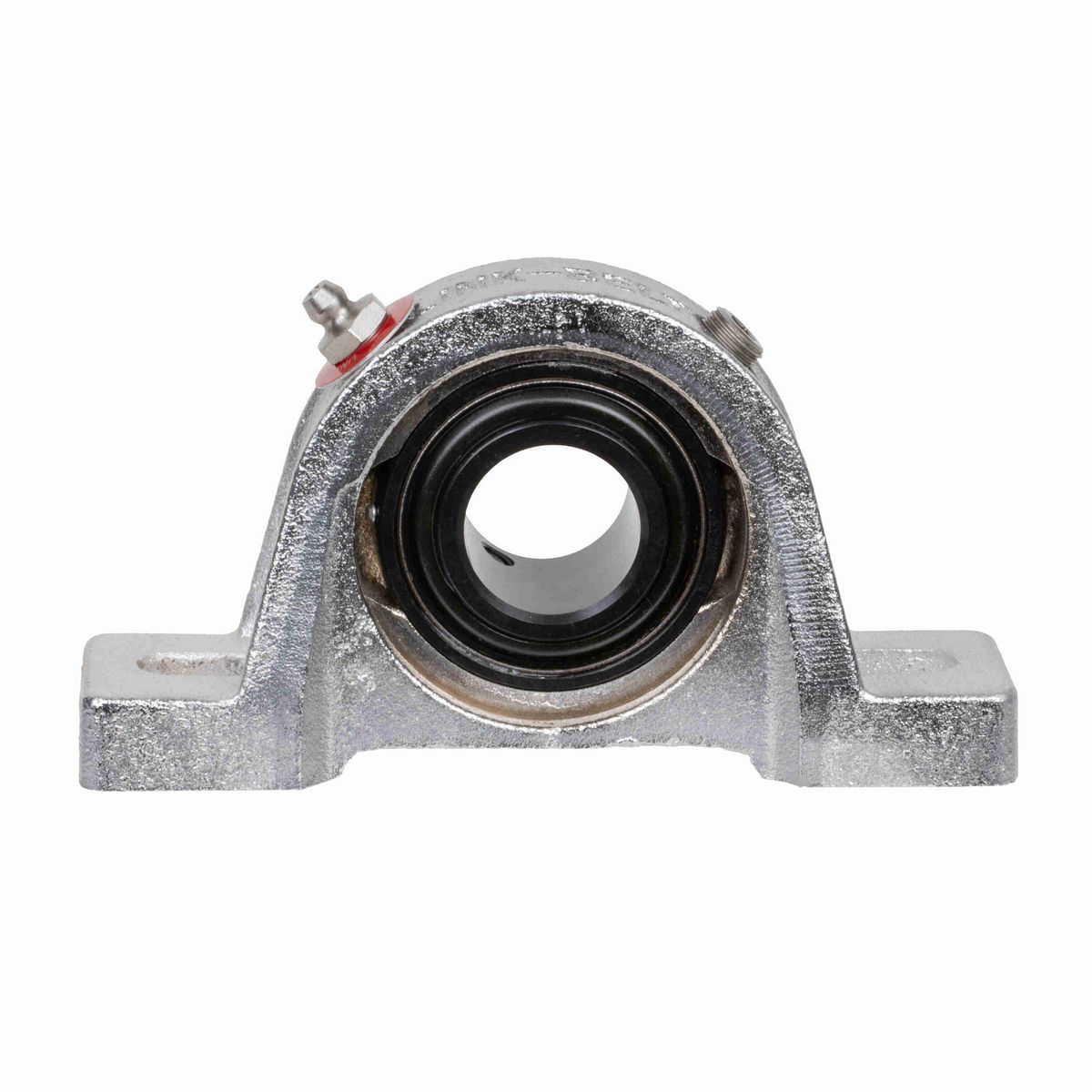

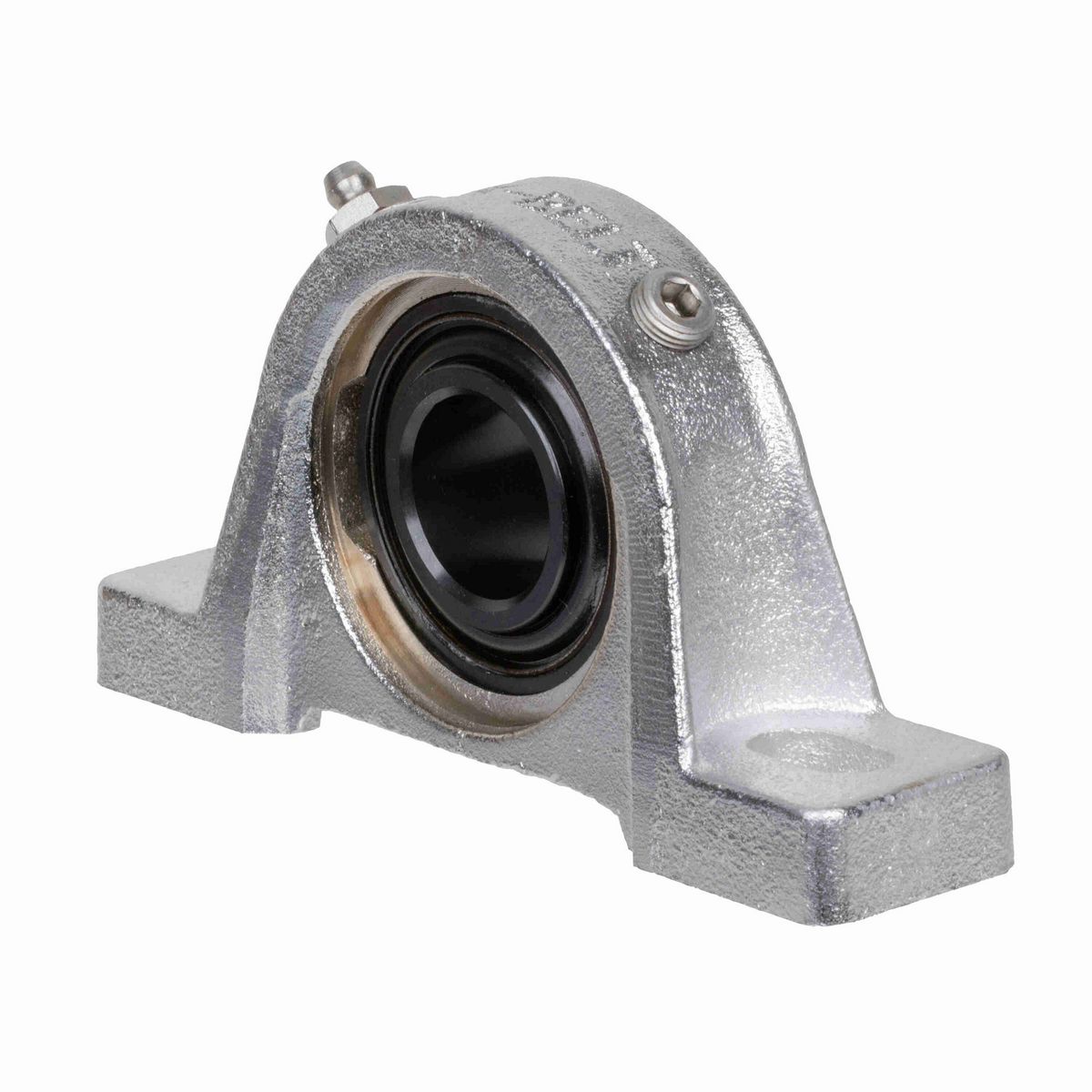

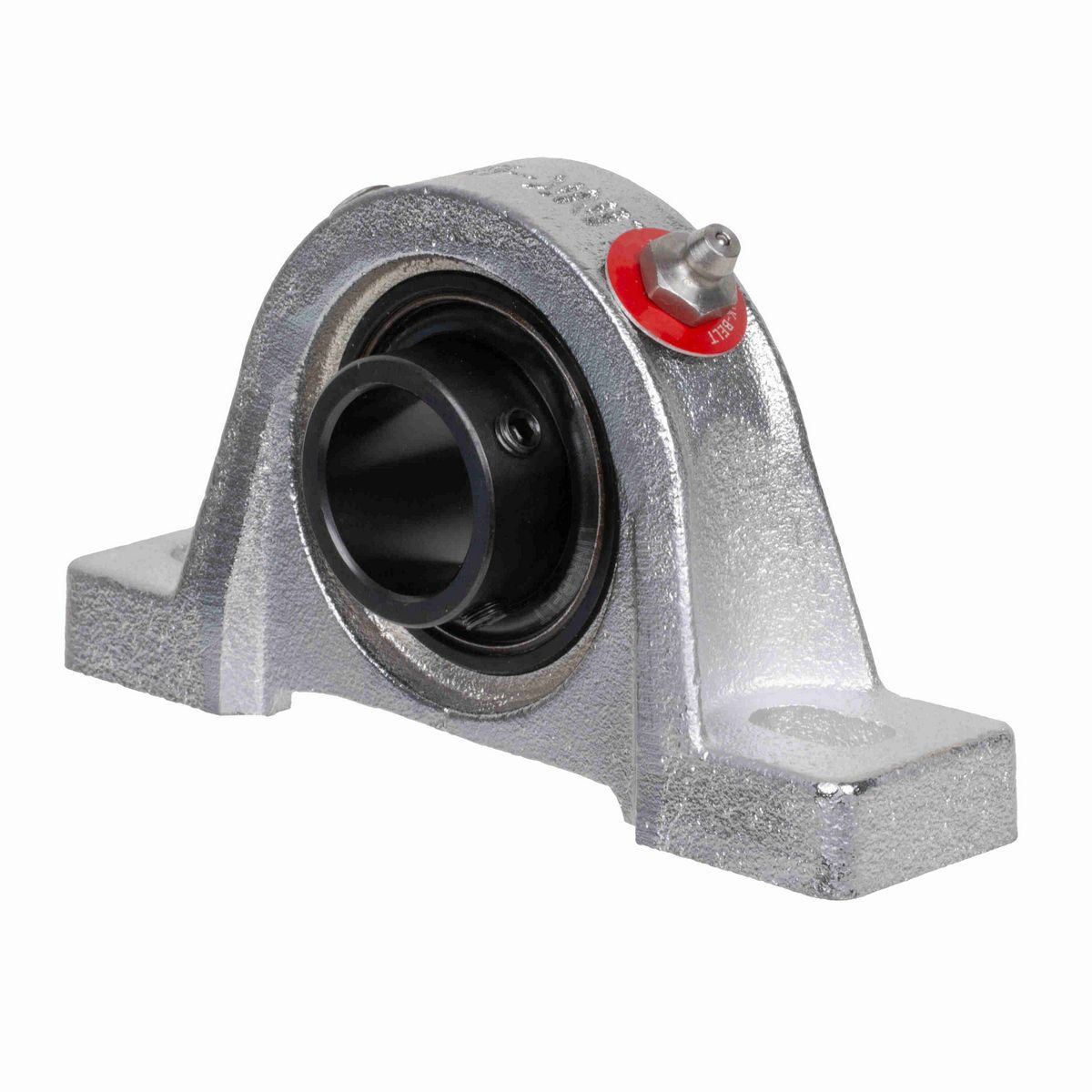

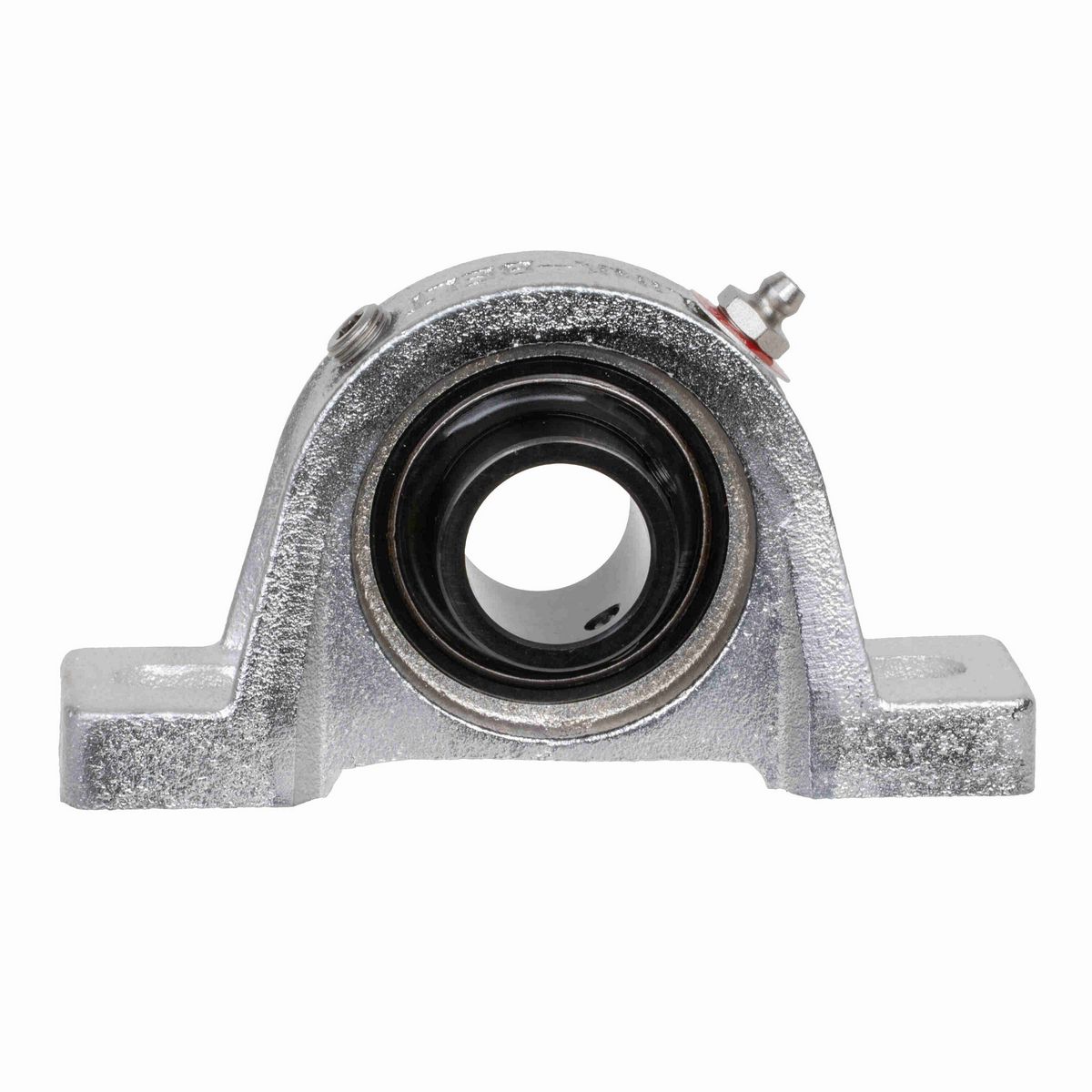

• 1 1/8" Mounted Ball Bearing, Standard Duty, Cast Iron 2-Bolt Pillow Block, Setscrew Locking, Single Lip Contact Seal, Nickel Plated Housing

Dimensions

Overall Length (in)	6.31 in
Length Through Bore (in)	1.567 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1.125 in
Foot Height (in)	0.69 in
Base to Center Height (in)	1.6875 in
Base Width (in)	1.63 in
Overall Height (in)	3.31 in
Overall Width (in)	1.63 in
Centerline to Outermost Bearing Face (in)	0.953 in
Bolt Spacing (in)	4.63 in

Technical Specifications

Housing Construction	One Piece
Outer Ring Land Profile	Standard
Slot Length (in)	0.94 in
Seal Type	Single Lip Contact Seal
Rolling Element	Ball Bearing
Housing Base	Semi-Solid
Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Housing Type	Pillow Block, Two Bolt
Bore Shape	Straight
Housing Style	Pillow Block
Housing Color	Silver
Ability to Relubricate	Yes
Setscrew Torque (in-lbs)	85 in/lbs
Inner Ring Outside Diameter (in)	1.587 in
Housing Coating	Nickel Plated
Fixed vs. Expansion	Fixed
End Cap Available	Yes
Static Load Rating (lb)	2,530 lb
Vibration Frequency Fundamental Train	0.0067 cps
Vibration Frequency Roller Spin	0.0385 cps
Bearing Insert Material	52100 Bearing Steel
Lubricant	EXXON RONEX MP STD
Dynamic Load Rating (lb)	4,390 lb
Radial Clearance	C3 STANDARD
Maximum Speed (RPM)	8000 rpm
Vibration Frequency Inner Ring Defect	0.0905 cps
Base Length (in)	6.31 in
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Outer Ring Defect	0.0595 cps
Size Code	206
Bearing Type	Standard Duty
Insert	UG218NL
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C
Bearing Brand	LINK-BELT 200 SERIES BALL
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
End Cap	Y2196N
Cage Type	Ball Riding Retainer
Max Operating Temperature (F)	225 °F

General Specifications

UPC	662327120825
Weight	2.80 LB
Packaged Length	6.88 IN
Packaged Width	4.06 IN
Packaged Height	2.13 IN
HTC	8483208040
Country of Origin	Mexico
