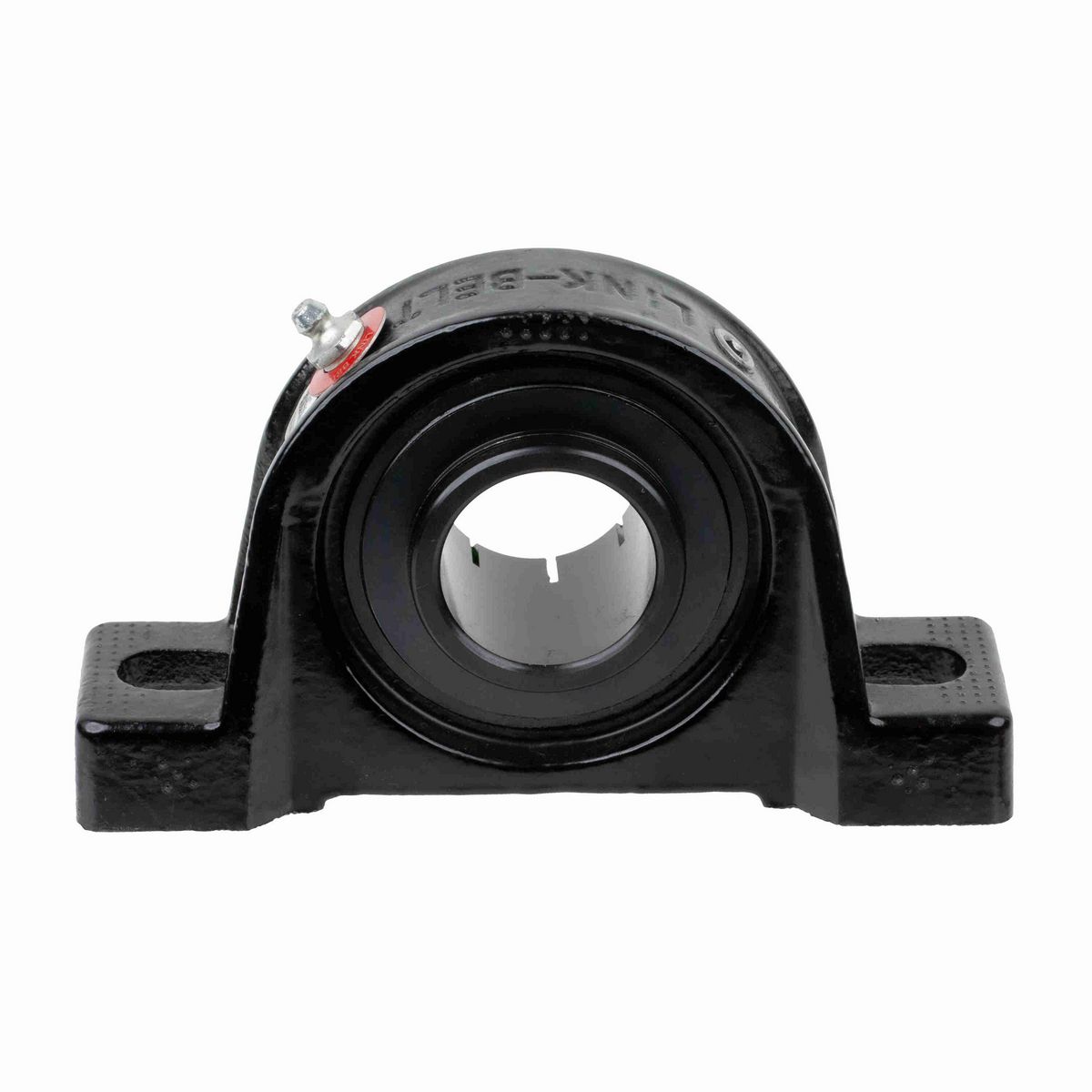

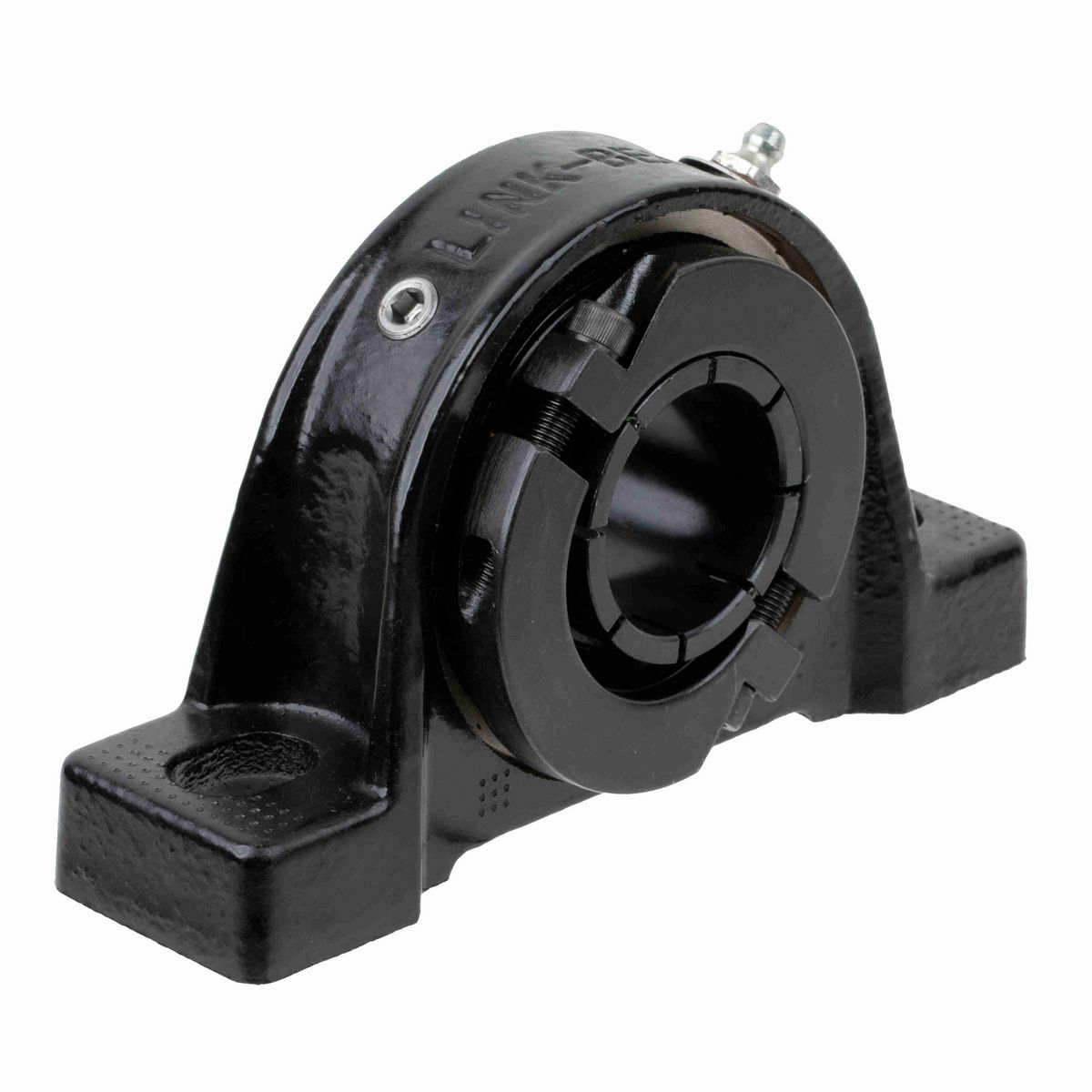

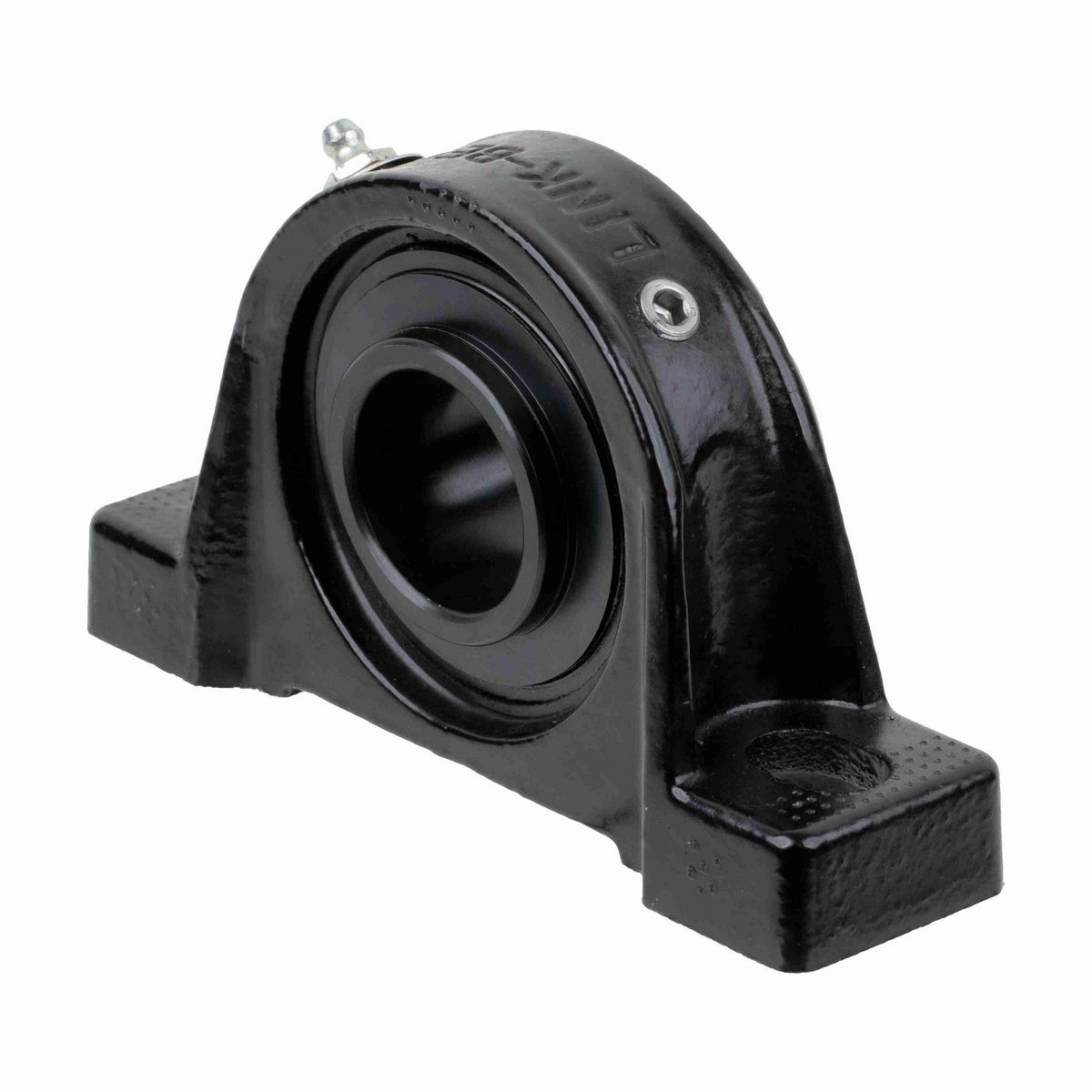

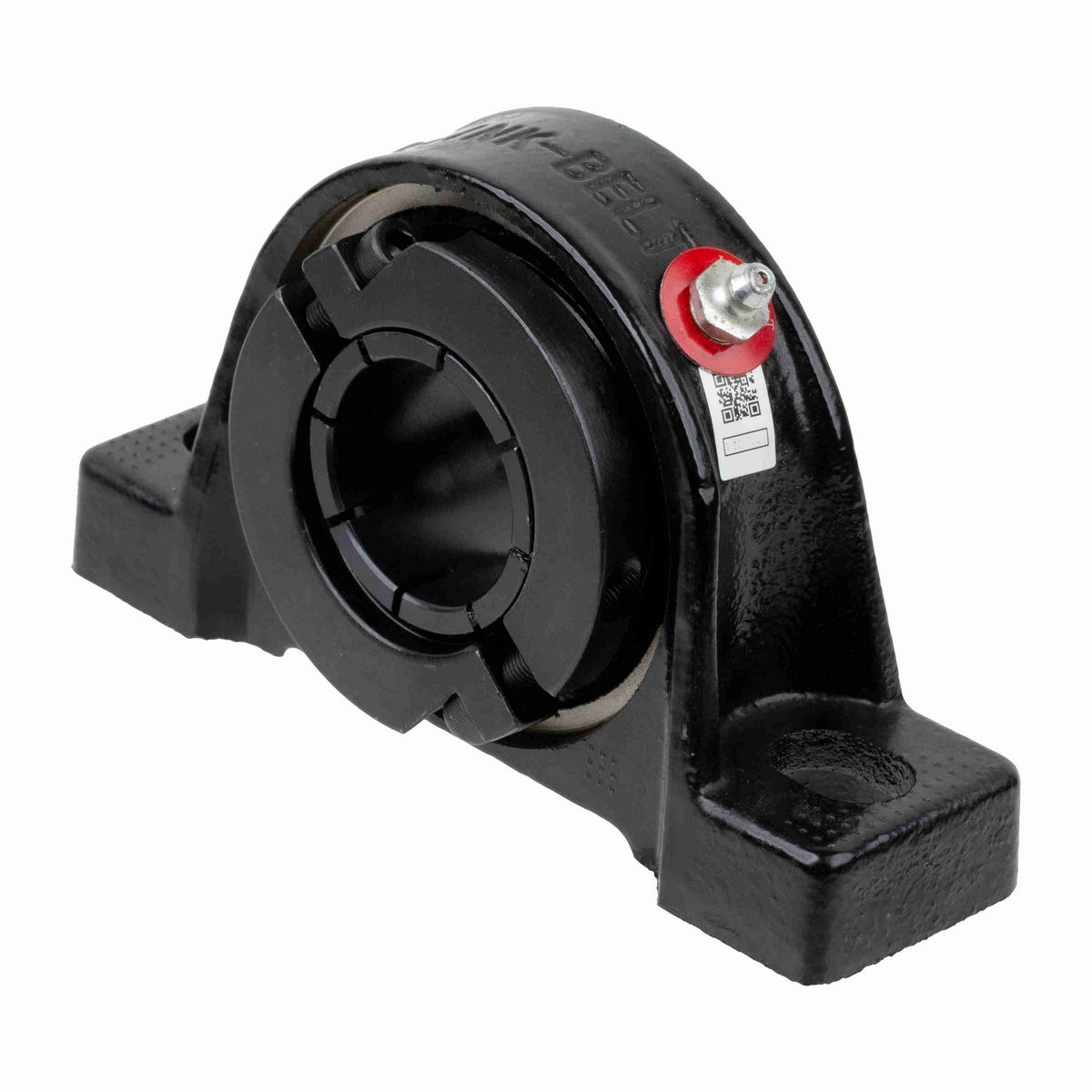

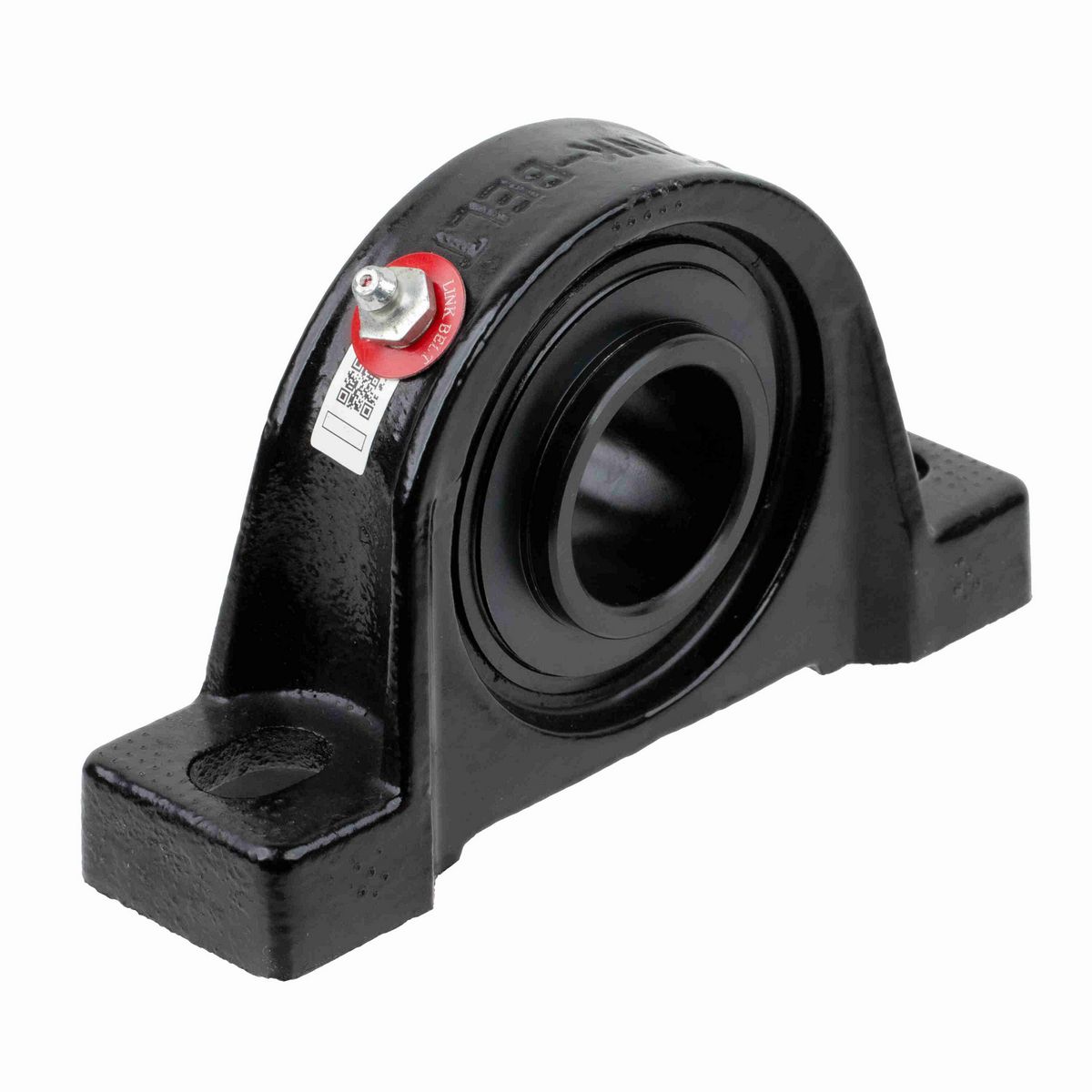

• Link-Belt P3CL2M45N Ball Bearings P3CL200 Pillow Block. Contact Rexnord for more details.

Dimensions

Foot Height (in)	0.81 in
Overall Length (in)	7.25 in
Overall Height (in)	4.25 in
Overall Width (in)	2.00 in
Bolt Size (in)	1/2 in
Length Through Bore (in)	2.00 in
Bore Diameter (mm)	45 mm
Base to Center Height (in)	2.13 in
Base Width (in)	2.00 in
Centerline to Outermost Bearing Face (in)	1.31 in
Bolt Spacing (in)	5.69 in

Technical Specifications

Slot Length (in)	1.00 in
Housing Base	Semi-Solid
Seal Type	BUNA SGL LIP WITH FLINGER
Housing Color	Black
Housing Construction	One Piece
Housing Type	Pillow Block, Two Bolt
Outer Ring Land Profile	Standard
Cage Material	Molded fiber glass reinforced nylon
Misalignment Type	Static Only
Housing Style	Pillow Block
Rolling Element	Ball Bearing
Bore Shape	Straight
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.94 in
Setscrew Torque (in-lbs)	240 in/lbs
Radial Clearance	C3 STANDARD
Cage Type	Ball Riding Retainer
End Cap	CL2286
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	7,370 lb
Vibration Frequency Inner Ring Defect	0.0908 cps
Base Length (in)	7.25 in
End Cap Available	Yes
Vibration Frequency Outer Ring Defect	0.0592 cps
Bearing Type	Standard Duty
Maximum Speed (RPM)	5330 rpm
Shaft Locking Type	Concentric
Lubricant	EXXON RONEX MP STD
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0065 cps
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0377 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (C)	107 °C
Bearing Brand	LINK-BELT 200 SERIES BALL
Insert	CLG2M45NL
Inner Ring Outside Diameter (in)	2.281 in
Max Operating Temperature (F)	225 °F
Size Code	209
Fixed vs. Expansion	Fixed
Locking Device Kit	CL2285S
Static Load Rating (lb)	4,590 lb

General Specifications

UPC	662864293860
Weight	5.30 LB
HTC	84833080
